USER MANUAL ICU 165 FOCAL

C FOGAL + Car - + Display

D 1 Integrated crossover 2 Integrated crossover

E 1 ISU130, ISU165, ISU200, ISU570, ISU690 2

F 1 ICU100, ICU130, ICU165, ICU570 2 RDCAL

G 1 ICU690 2

Top-down line drawing of a car interior showing steering wheel, dashboard, and steering wheel (no text or symbols)

Top-down line drawing of a car interior showing steering wheel, dashboard, and steering wheel (no text or symbols)

Please validate your Focal-JMlab warranty,

it is now possible to register your product online: www.focal.com/warranty

Warning

Listening for a prolonged period at a high volume level over 110 dB may result in hearing loss. Exposure, even brief, to sound at over 130 dB may result in irreparable hearing loss.

Important recommendations

First of all, check the space available for the loudspeakers (see the plans on the packaging) and then start cutting. If the loudspeakers are to be mounted in their original place, check whether there is enough space between the loudspeaker and the protective grating.

• Keep the loudspeakers away from metal chips and dust.
• Clean carefully prior to mounting the loudspeakers.

Warranty conditions

If you encounter problems, contact your Focal distributor first. For all Focal equipment, the warranty applicable to France covers a 2-year period as of the purchase date and is non-transmissible in case of resale. In the event of faulty equipment, it should be sent, at your own expense, in its original packaging to your distributor, who will then check the equipment and determine the nature of the problem. If it is under warranty, the equipment will be returned to you or replaced "postage paid". Otherwise, a quote for repair will be sent to you. The warranty does not cover damage arising from improper use or incorrect connection (e.g. burned voice coils...)

Environmental information

Your Focal-JMlab product has been designed and manufactured using high quality materials and components, which can be recycled and reused. This symbol signifies that the electrical and electronic devices, at the end of their life, should be disposed of separately from household waste. Please take this device to the local collection point or to a recycling centre. You will thus contribute to environmental conservation.

Tweeter installation (ISU130, ISU165, ISU200, ISU570, ISU690)

There are three possible mounting options :

Tilted mounting : (Fig. A1)

Drill a hole for the cables and screws in the desired location, fix the mount in place using the screws provided with the kit, route the 2 wires through, then, fix the tweeter to its housing (close-fitting). These operations can be carried out with the tweeter grille in place.

Flush mounting : (Fig. A2)

Cut out a hole the same diameter as the tweeter in the desired location. Then, insert the tweeter.

Installing in the factory locations : (Fig. B)

Unscrew the plastic cover at the rear of the tweeter by rotating it to the left (towards the " unlocked" symbol / Fig.B). The tweeter is ready to be mounted alone into the factory location.

Note: the "+" is indicated by a red line.

Handle with care: do not touch the dome or let it come into contact with the rear of the vehicle's original grille.

Wiring the tweeters: (Fig. C)

If wiring to a display stand, connect the "display" wire.

If wiring to a vehicle: connect the "car" wire.

The wire with the "-" symbol is the negative wire in both cases.

Connecting the tweeter / woofer to the connector of the integrated crossover : (Fig. D)

For the tweeter: connect both wires (Fig.D1) directly to the cable lugs on the integrated crossover.

For the woofer: connect the two cable lugs on the integrated crossover (Fig.D2) directly to the two terminals on the basket of the woofer.

Note: the "+" is indicated by a red line.

Caution: the tweeter crossover is integrated into the connector. Ensure that the wiring is correct using the cable lugs (tweeter/crossover connector) in order to ensure optimal performance of the kits.

The woofers in the ISU130, ISU165, ISU200, ISU570 and ISU690 kits are equipped with a crossover integrated into the connector (for a more compact basket and one which is easy to install in factory locations).

Make sure that ONLY the connectors supplied with the kit are used.

Installing the different woofers

(Fiq.E) represents the typical installation for the ISU130, ISU165, ISU200, ISU570 and ISU690 speaker drivers.

(Fig.E1) Fix the speaker driver in place using the screws provided.

(Fig.E2) represents the speaker driver once fixed in place.

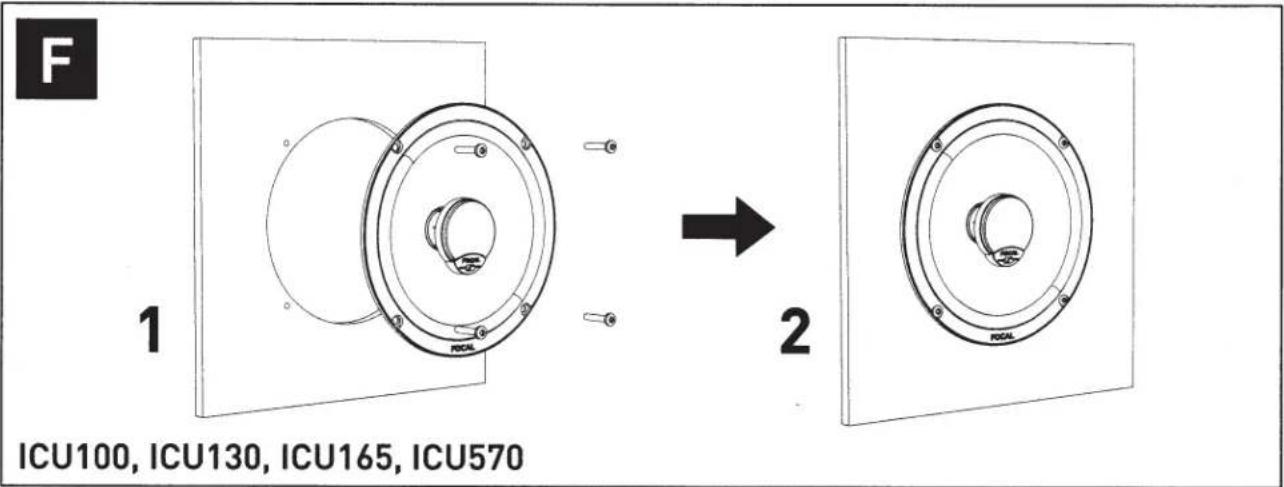

(Fiq.F) represents the typical installation for the ICU100, ICU130, ICU165 and ICU570 speaker drivers.

(Fig.F1) Fix the speaker driver in place using the screws provided.

(Fig.F2) represents the speaker driver once fixed in place.

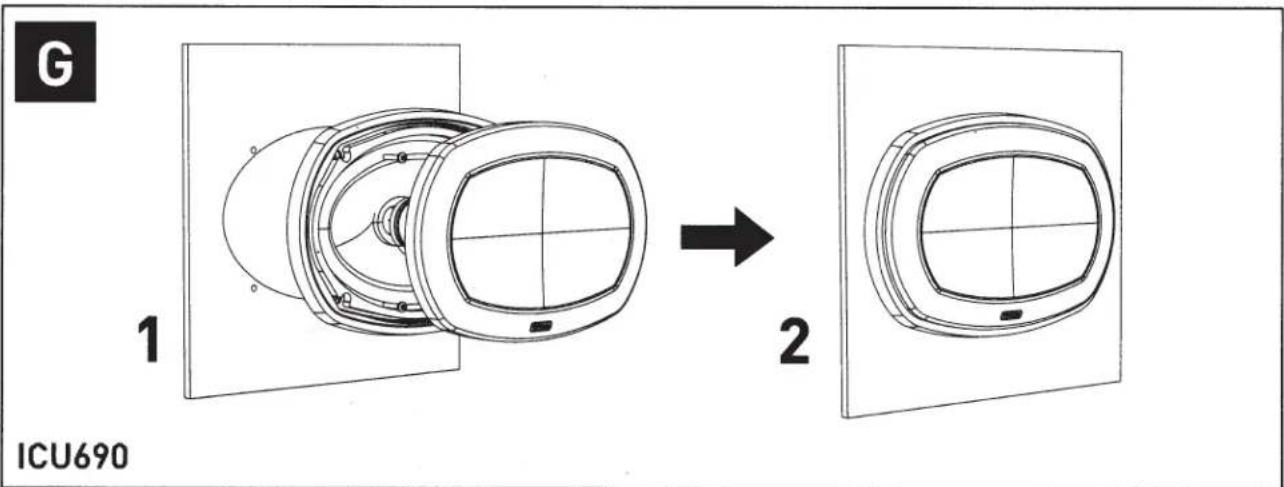

(Fig.G) represents the typical installation of the ICU690 speaker driver with its grille.

(Fig.G1) Insert the grille's plastic support onto the rear of the speaker driver. Fix the speaker driver in place using the screws provided, then, clip on the grille supplied

(Fig. G2) represents the speaker driver once fixed in place and with its protective grille.

Adjusting the tweeter level (ICU100, ICU130, ICU165, ICU570, ICU690)

The integrated tweeter on the coaxial speaker drivers is equipped with a level adjustment, giving you the choice out of two output levels for the treble (Fig.H.):

View of the full installation in the vehicle

(Fig.1) represents an example of a full installation of a component kit (ISU130, ISU165, ISU200, ISU570, ISU690)

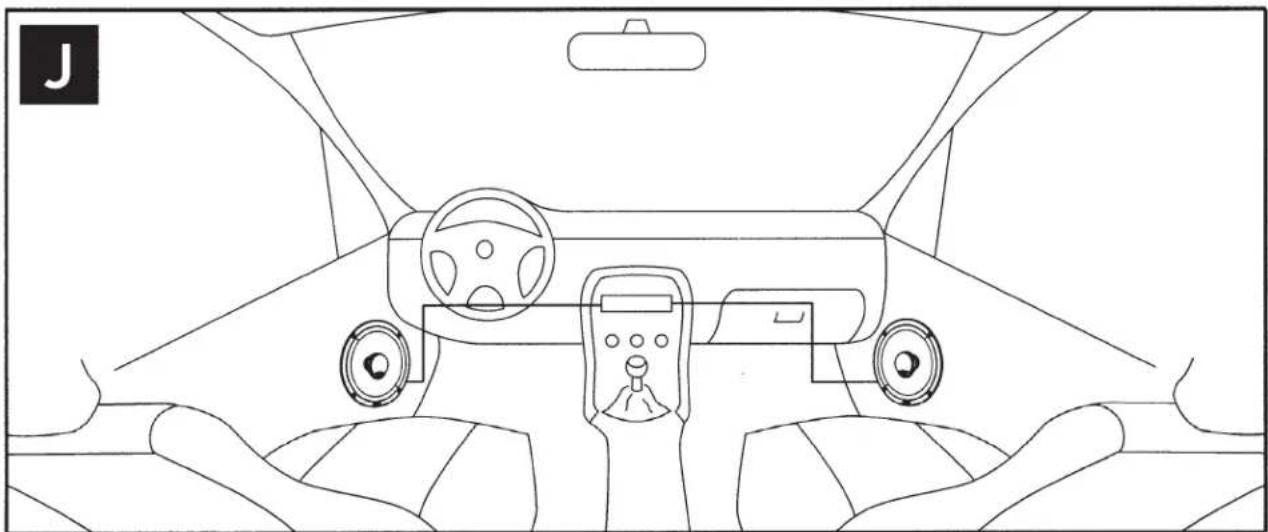

(Fiq.J) represents an example of a full installation of a coaxial kit (ICU100, ICU130, ICU165, ICU570, ICU690)

If all the speaker drivers are located in the lower part of the door, we recommend setting the tweeter to "HIGH" to increase the treble level.

If the speaker drivers are located in the upper part of the door, we recommend setting the tweeter to "FLAT".

Note : of course, you can always adjust these settings according to your personal preference.

Butyl suspension Excellent reliability Aluminum/Magnesium inverted dome tweete Clear and detailed sound Acoustic horn Improves the position of the soundstage Polyglass cone Natural sound without coloration FOCAL FOCAL FOCAL Integrated crossover Easy connection

ADVANTAGES

• High sensitivity
- Shallow mounting depth (1 ^29/32 " - 48.4 mm)
• Great improvement from original car speakers
• Dynamics and neutrality

Acoustic horn

Level adjustment

TECHNICAL CHARACTERISTICS

Woofer: 6 ^7 (165mm)

Voice coil diameter: 1" (25mm)

Max. power: 140W

Nom. power: 70W RMS

Sensitivity (2.83V/1m): 93dB

Frequency response: 60Hz-21kHz

Al/Mg inverted dome tweeter

Accessories: delivered without grilles

Integrated crossover: 6dB/oct

Integration

INSTANT GRATIFICATION

-ocal Amer. ca - tel [phone] - www-Focal-America.com - @FocalAmer. ca

FOCAL®

LISTEN BEYOND

UNIVERSAL ICU165

Technical Sheet

Woofer

Close-up of a black Focal speaker with visible sound waves and red buttons (no text or symbols)

• Polyglass cone, natural sound
- Compact dimensions, easy to install

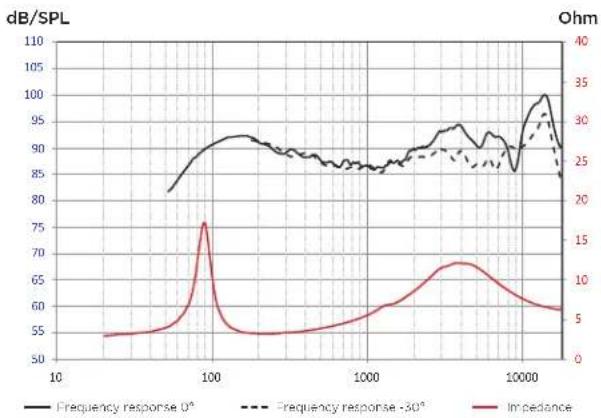

FREQUENCY RESPONSE/IMPEDANCE

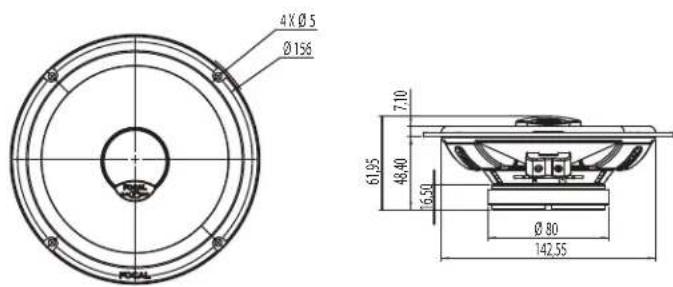

MECHANICAL DRAWING

4XØ5 Ø156 7.10 61,95 48,40 16,50 Ø 80 142,55

Integration

INSTANT GRATIFICATION

Focal America - Tel [phone] - www.Focal-America.com - @FocalAmerica

SPECIFICATIONS

Nominal power 70W RMS

Maximum power 140W

Sensitivity (2,83V/1m) 93dB

Frequency response 60Hz-21kHz

Cone type Polyglass

Surround type Butyl

Nom. impedance 4Ω

VC diameter 25mm 1"

Net weight 750g 1.6lbs

PARAMETERS

Fs 90Hz
Vas	5.8l
Qts	1
Qes	1.3
Qms	7
Re	2.9Ω
Sd	137cm ^2
Cms	0.23mm/N
Mms	14g
BI	4.3N/A
