Product type	Electric kettle
Brand	Panasonic
Model	NC-ZK1
Rated voltage	220-240 V ~ 50-60 Hz
Rated power	2520-3000 W
Capacity	1.4 L
Dimensions (body)	22.8 × 15.6 × 26.1 cm
Dimensions (with base)	22.8 × 15.6 × 28.4 cm
Weight (body)	1.6 kg
Weight (with base)	2.1 kg
Cord length	0.75 m
Material	Plastic and stainless steel
Base	With cord storage
Filter	Removable and cleanable
Automatic shut-off	Yes
Dry boil protection	Yes
Operation indicator	Yes
Lid opening	Unlock button
Cleaning	Descaling recommended, do not use soap
Usage	Only for boiling water

Frequently Asked Questions - NC-ZK1 PANASONIC

Why does the hot water have a strange smell?

During first use, a plastic smell may appear, but it will disappear over time. A chalky smell may be due to chlorine in the water. If the odor persists, descaling may be necessary.

Why are there white or brown substances floating in the water?

This is scale (mineral deposits). It builds up faster with mineral-rich water (mineral water, softened water). Clean the kettle with a suitable descaler.

Why does the water take a long time to boil?

Check that the lid is properly closed. Heavy scale can slow boiling: descale the appliance. Very cold water also increases the heating time.

Why is it difficult to pour hot water?

The filter may be clogged with scale or residues. Remove it and clean it with a brush. If the problem persists, descale the kettle.

Why does the kettle make a clicking sound after use?

This noise is normal: it comes from the heating element cooling down. No action is required.

How to clean scale?

Use a commercial descaler following the instructions. Fill the kettle with water, add the descaler, boil, then rinse thoroughly. Repeat the process several times with clean water.

How to install the filter?

Align the filter with the groove in the spout and press firmly until it clicks into place. To remove it, push it toward the spout and lift it out.

What to do if the kettle heats without water?

The dry boil protection automatically turns off the appliance. Let it cool, fill with water, and restart. A smell may be noticeable, but it is normal.

Can I heat milk or tea in the kettle?

No, this appliance is designed only for boiling water. Heating other liquids may cause overflow and burns.

How to store the kettle?

After use, dry the appliance thoroughly and place it in a plastic bag to prevent insects from entering. Store it in a dry place out of reach of children.

USER MANUAL NC-ZK1 PANASONIC

Operating Instructions

Bedienungsanleitung

Gebruiksaanwijzing

Mode d'emploi

Kettle (Household Use)

Panasonic Test and Development Kitchen

Panasonic Consumer Electronics U.K.

A Division of Panasonic U.K. Ltd

Willoughby Road, Bracknell, Berks, RG12 8FP

Representative in EU :

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany

Panasonic Taiwan Co., Ltd.

Web Site: http://panasonic.net/

© Panasonic Taiwan Co., Ltd. 2012

PZ05-668

F0712S0

NC-ZK1

Contents	Page
Safety Precautions	4
Electrical Requirement (For UK market only)	16
Important Information	18

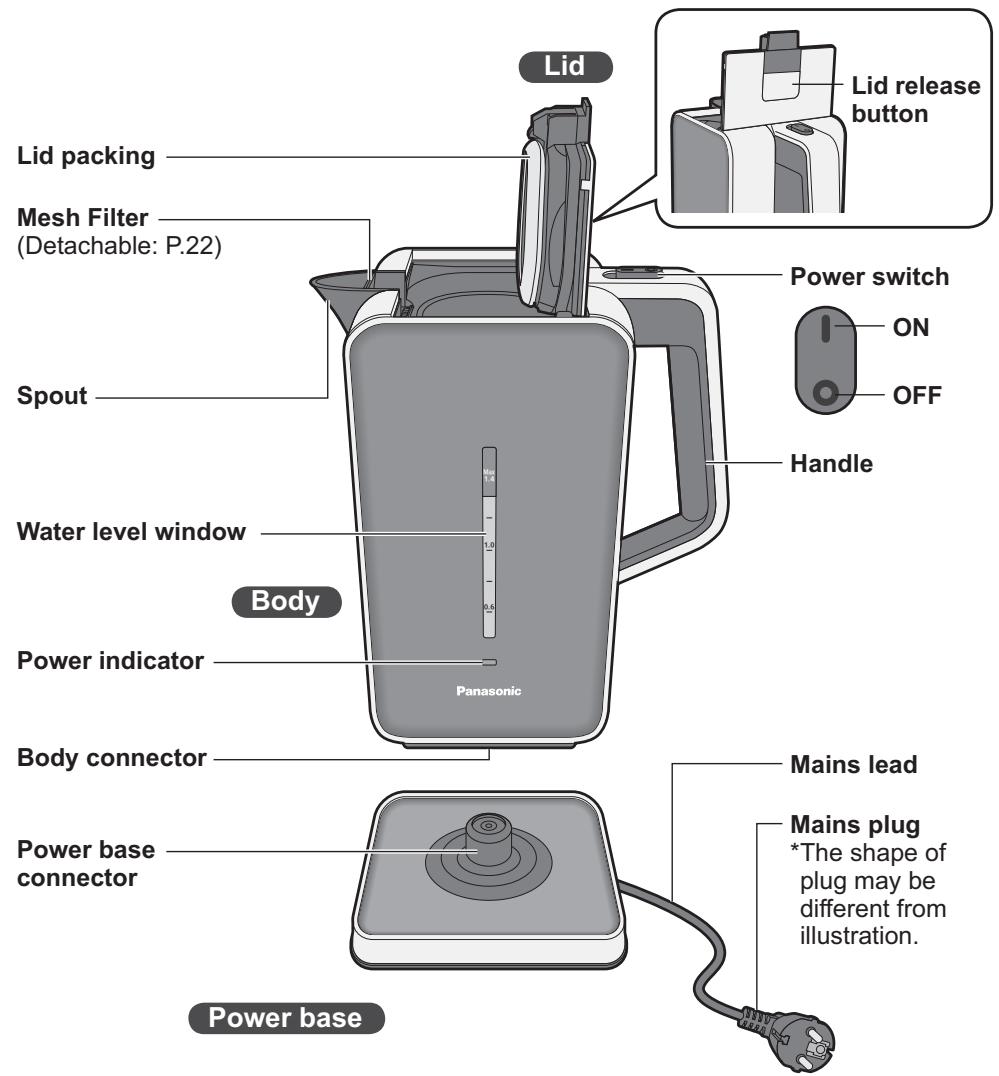

Parts Names and Handling Instructions	19
How to Use	20

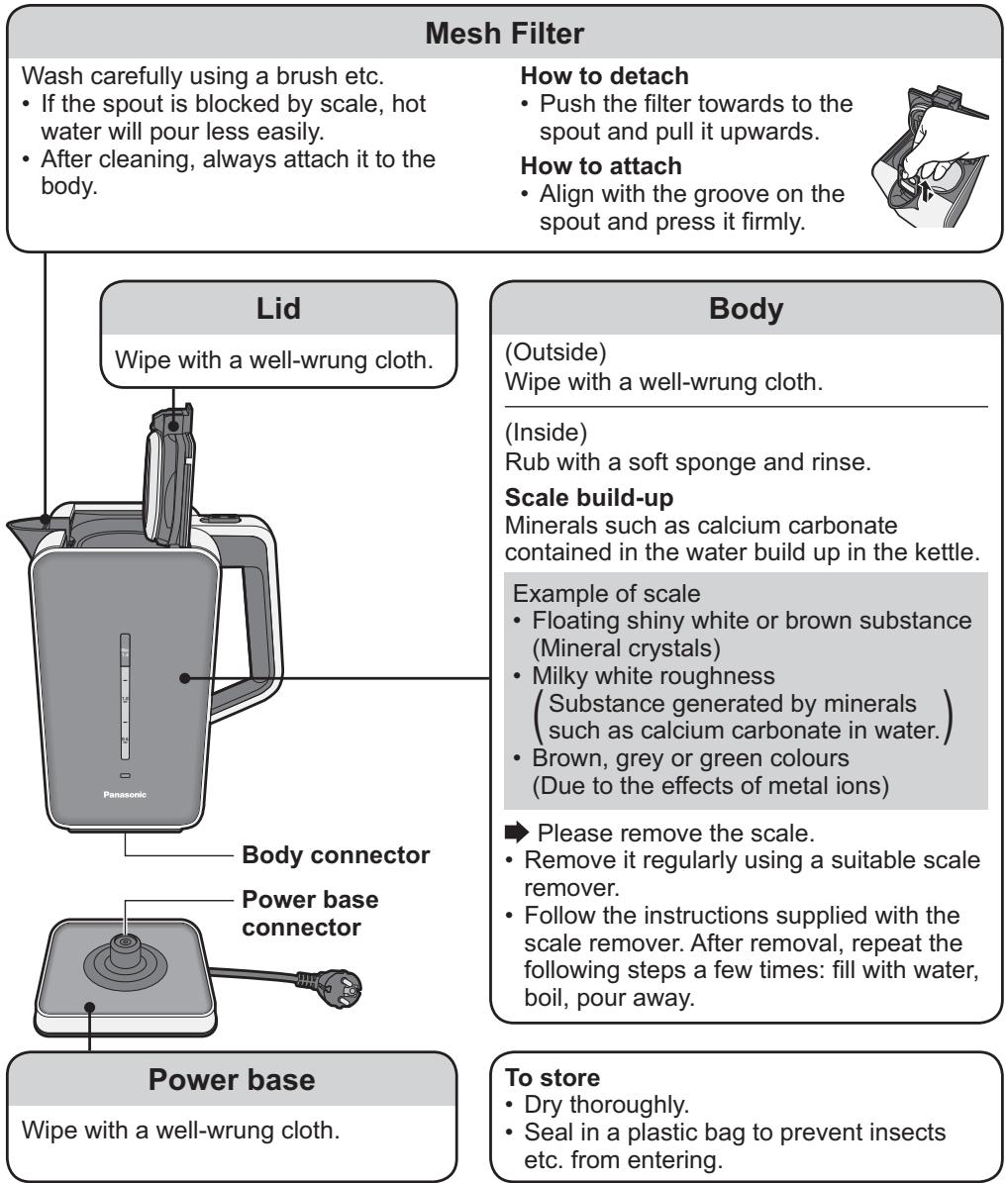

How to Clean	22

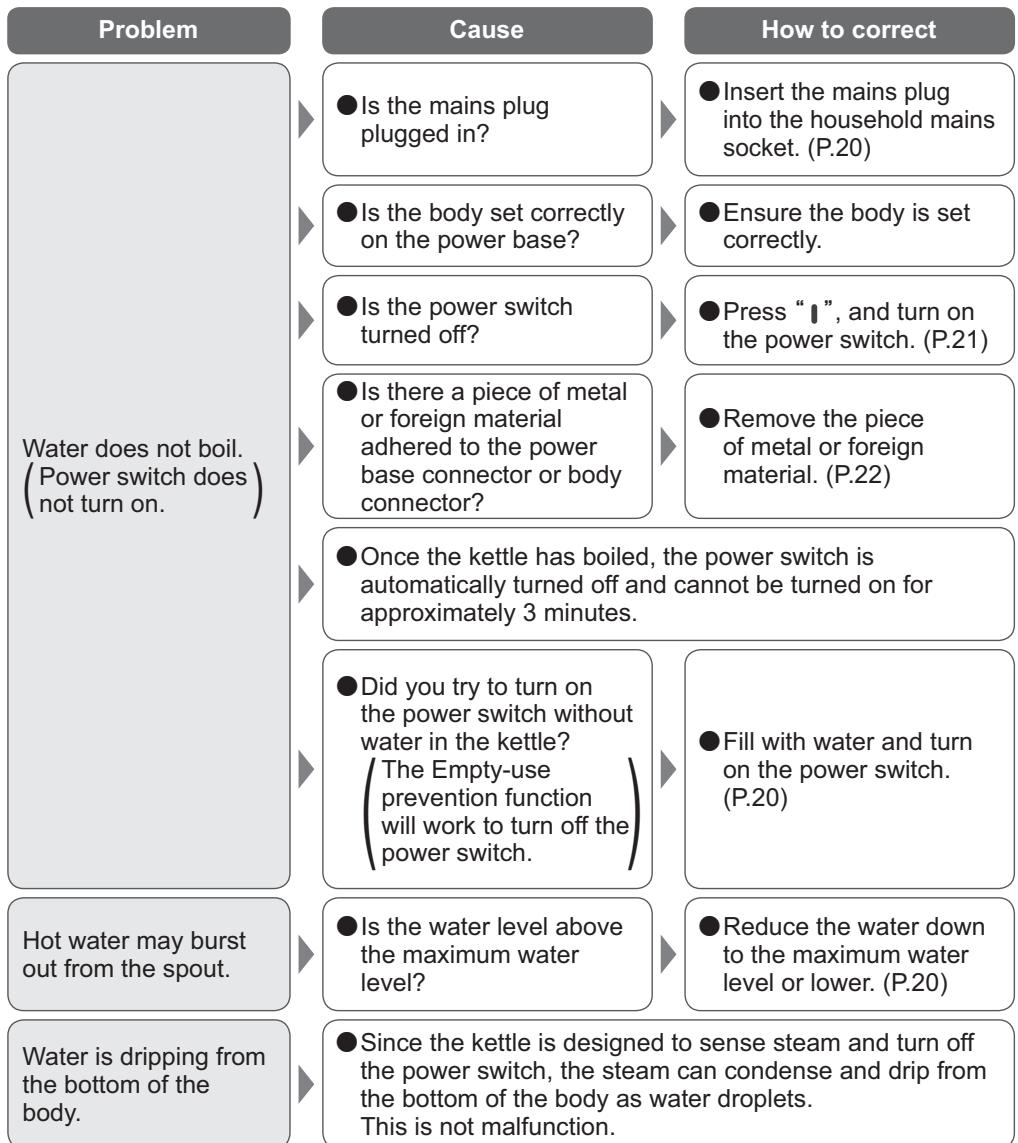

Troubleshooting	23
Specifications	25

Thank you for purchasing the Panasonic product.

• This product is intended for household use only.
• Please read these instructions carefully to use the product correctly and safely.
• Before using this product please give your special attention to "Safety Precautions" (Page 4~15).
• Please keep this Operating Instructions for future use.

Please make sure to follow these instructions.

In order to prevent accidents or injuries to the user, other people, and damage to property, please follow the instructions below.

The following charts indicate the degree of damage caused by wrong operation.

WARNING: Indicates serious injury or death.

CAUTION: Indicates risk of injury or property damage.

The symbols are classified and explained as follows.

This symbol indicates prohibition.

This symbol indicates requirement that must be followed.

WARNING

• Do not damage the mains lead or mains plug.

Following actions are strictly prohibited. Modifying, touching on or placing near heating elements, bending, twisting, pulling, pulled over sharp edges, putting heavy objects on top, bundling the mains lead and carrying the appliance by the mains lead. (It may cause electric shock, or fire due to short circuit.

Mains lead
Mains plug

WARNING

• Do not use the appliance if the mains lead or mains plug is damaged or the mains plug is loosely connected to the household mains socket.

It may cause electric shock, or fire due to short circuit.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

• Do not plug or unplug the mains plug with wet hands.

(It may cause electric shock.)

• Always ensure that hands are dry before handling the mains plug or switching on the appliance.

• Make sure the voltage indicated on the label of the appliance is the same as your local supply.

(It may cause electric shock or fire.)

Also avoid plugging other devices into the same household mains socket to prevent electric over heating.

However, if you are connecting a number of mains plugs, make sure the total wattage does not exceed the rated wattage of the household mains socket.

Safety Precautions

Please make sure to

follow these instructions.

WARNING

Insert the mains plug firmly.

Otherwise it may cause electric shock and fire due to heat that may be generated around the mains plug.

Clean the mains plug regularly.

Dust and moisture build-up on the mains plug may cause insufficient insulation, which may cause a fire.

Unplug the mains plug, and wipe with a dry cloth.

- Keep the mains lead out of reach of children. Do not let the mains lead hang over the edge of the table or worktop.

(It may cause burns, injury or electric shock.)

- Do not immerse the appliance (include the power base) in water or splash it with water.

It may cause electric shock, or fire due to short circuit.

• Do not allow the bottom of the kettle to get wet when filling directly from the tap or placing it in the sink.

WARNING

- Do not disassemble, repair or modify this appliance.

(It may cause fire, electric shock or injury.)

Consult the place of purchase or a Panasonic service centre.

- Do not touch or put your face close to the spout during or after use.

(It may cause burns.)

• Especially keep the appliance out of reach of infants and children.

- Do not block the spout with a cloth etc. (Hot water may spill out, which may cause burns.

- Do not close the lid vigorously.

Hot water may splash out, which may cause burns.

- Do not fill with any substance other than water. This appliance is for boiling water only.

If you boil the appliance with tea bags, tea leaves, milk, alcohol, boil-in-the-bag products etc., bubbles may form, causing a discharge of liquid which may cause burns.

Safety Precautions

Please make sure to

follow these instructions.

WARNING

• Do not shake or tip over the body. (Hot water may pour out, it may cause burns.)

• Do not lick the power base connector. (It may cause electric shock or injury.)

• Pay attention when infants and children are near the appliance.

• Do not allow foreign material (especially metal components such as pins and wires or dust) to adhere to the body connector or power base connector.

It may cause electric shock, or fire due to short circuit.

• Do not use the body as a cooler.

(Do not put ice inside.)

(This generates condensation, which may cause electric shock.

• Do not put the body on any heat source or in a microwave.

(It may cause fire.)

WARNING

• Do not open the lid while the water is boiling.

Hot water may splash out, which may cause burns.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

(It may cause burns, injury or electric shock.)

Always keep the children away from the appliance.

(It may cause burns or injury.)

• Children do not realise dangers that are likely to occur because of improper use of appliances.

Safety Precautions

Please make sure to

follow these instructions.

WARNING

If the kettle is overfilled, boiling water may be ejected.

MAX

Hot water may boil over, which may cause burns.

MIN

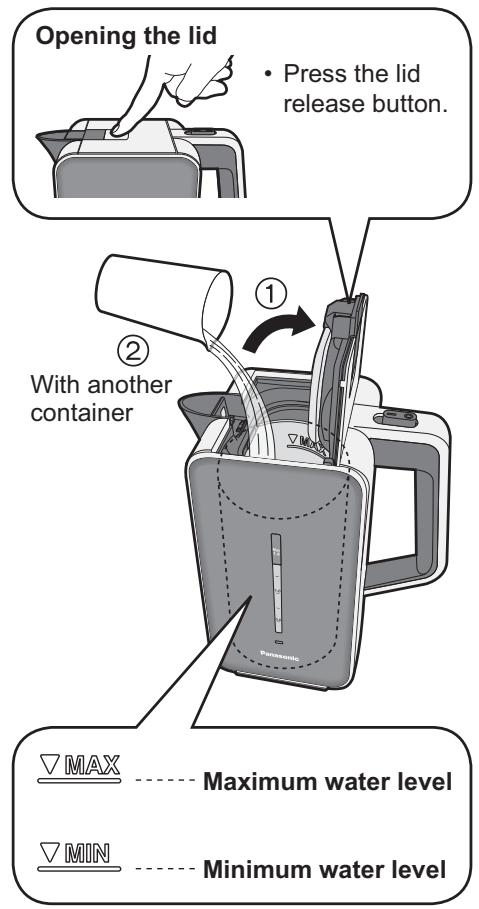

• Fill with water between the minimum water level and the maximum water level.

- Discontinue using the appliance immediately and unplug in the unlikely event that this appliance stops working properly.

It may cause smoking, fire, electric shock or burns.

e.g. for abnormal or breaking down

• The mains plug and the mains lead become abnormally hot.
• The mains lead is damaged or the appliance power fails.
• The main body is deformed, has visible damage or is abnormally hot.
• Water leaks from the body.
• The steam continues more than 3 minutes.
• There is another abnormality or failure.
  Unplug the appliance immediately and consult the place of purchase or a Panasonic service centre for inspection or repair.

WARNING

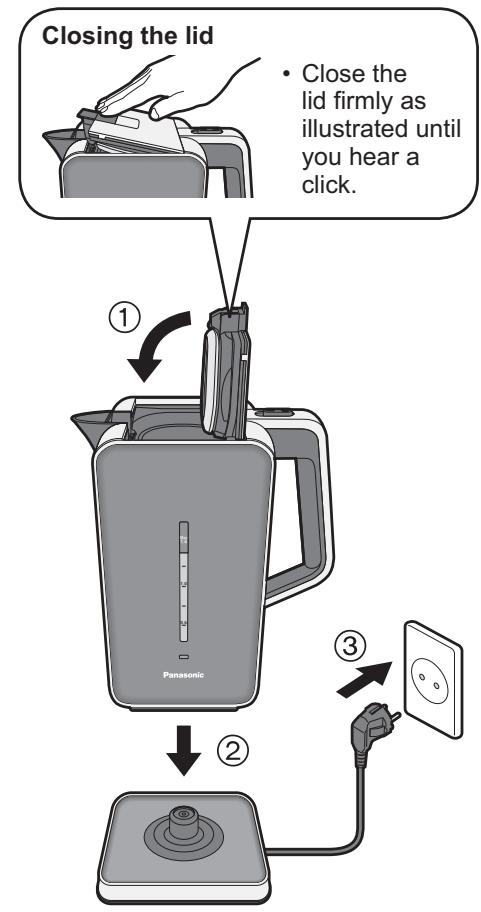

Make sure the lid is fully closed before turning on the appliance.

(If the appliance tips over, hot water may spill out, it may cause burns.)

Otherwise the appliance will keep boiling until it gets empty.

- The appliance gets hot during use. When moving the body, turn off the power switch and pick up by the handle.

Hot water may spill out from the spout, which may cause burns.

• Do not tilt except when pouring.

Safety Precautions

Please make sure to

follow these instructions.

CAUTION

• Do not use the appliance for any purpose other than those described in these instructions.

(It may cause burns or injury.)

• Panasonic will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

• Do not touch the hot parts (Spout etc.) during or after use.

(It may cause burns.)

• Do not pour hot water or move the appliance while the water is boiling.

Hot water may splash out, which may cause burns.

CAUTION

• Do not use the appliance on following places.

• On uneven surfaces, on non-heat-resistant carpet or table cloths etc.

(It may cause fire or injury.)

• Place where it may be splashed with water or near a heat source.

It may cause electric shock or electrical leakage.

• Near any open water such as bathtubs, sinks, or other containers.

It may cause electric shock or electrical leakage.

• Near a wall or furniture.

(It may cause discolouration or deformation.)

• Place that could be damaged even by moderate heat.

(It may cause discolouration or deformation.)

• Make sure to hold the mains plug when unplugging the mains plug.

Never pull on the mains lead.

(Otherwise it may cause electric shock, or) fire due to short circuit.

Safety Precautions

Please make sure to

follow these instructions.

CAUTION

Always ensure the appliance is switched off and unplug the mains plug when it is not in use, before moving and before cleaning.

Otherwise it may cause electric shock, or fire due to electrical leakage.

• Place the appliance on a firm, dry, clean flat heatproof worktop.

(Otherwise it may cause burns or injury.)

• Beware not to be tripped over or get caught in the mains lead while in use.

(Otherwise it may cause burns or injury.)

• When opening the lid, beware of steam and water drips.

(It may cause burns.)

• Replace the lid packing if it turns white, is scratched, or split.

If the appliance is tilted or tipped over, hot water may spill out, which may cause burns.

For replacement, consult the place of purchase or a Panasonic service centre.

CAUTION

Pour out any remaining hot water from the spout.

Pouring out from another location may result in water splashing, it may cause malfunction or burns.

• The kettle is only to be used with the stand provided.

Do not use power source other than the dedicated power base, or use the power base with any other equipment.

(It may cause burns, malfunction or fire.)

• Unplug and allow the appliance to cool down fully before cleaning and storing away.

(It may cause burns.)

• Pay attention to the appliance when it is in use.

(It may cause fire.)

• When leaving it, turn the power switch off.

• Beware when pouring hot water. Pour slowly, and do not over-tilt the appliance. (It may cause burns.)

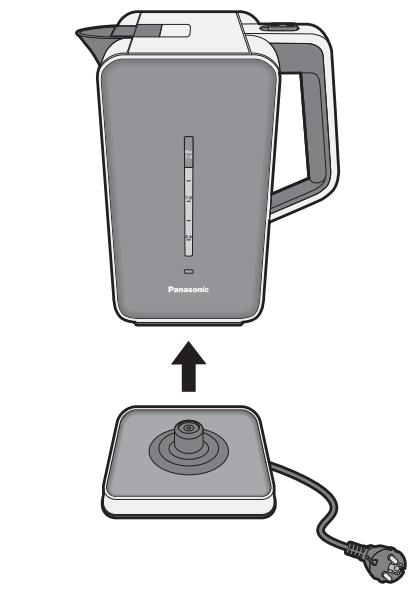

• Remove the appliance from its stand before filling or pouring.

(It may cause burns.)

Electrical Requirement (For UK market only)

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 13- amp fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 13- amp and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark A or the BSI mark on the body of the fuse.

If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover, the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local Panasonic Dealer.

If the fitted moulded plug is unsuitable for the socket outlet in your home, then the fuse should be removed and the plug cut off and disposed of safely. There is a danger of severe electrical shock if the cut off plug is inserted into any 13-amp socket.

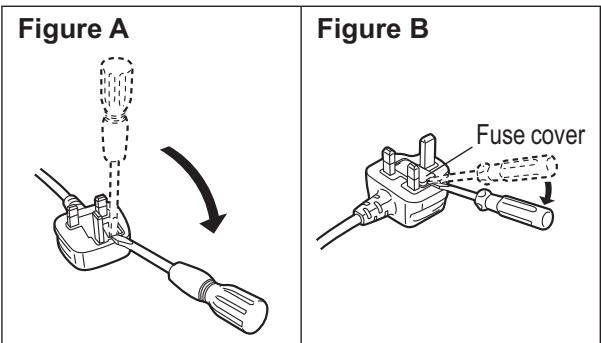

How to replace the fuse

The location of the fuse differs according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below. Illustrations may differ from actual AC mains plug.

Open the fuse cover with a screwdriver and replace the fuse and close or attach the fuse cover.

Important Information

• Do not subject the body or power base to strong impacts by dropping, hitting etc. (It may cause malfunction or damage.)
• Do not move the body or power base by dragging. (It may scratch the table or work surface.)
• Do not turn the power switch on without water. (It may cause malfunction.)
• Do not use the appliance outdoors.
• Do not put anything on the appliance. (The power switch may be turned on.)
• Make sure the kettle is properly located on the stand and mesh filter is set before switching on.
• Make sure to clean the appliance after every use.

Parts Names and Handling Instructions

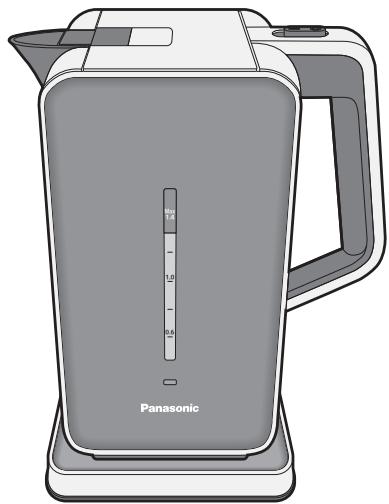

The illustrations inside mainly show model NC-ZK1.

Before use

Clean the appliance by following the steps below for the first time or when you have not used it for a while.

① Fill water up to the maximum water level and boil. (P.20)
(2) Pour the water out from the spout. (P.21 After use, pour out any remaining water.)

How to Use

1 Open the lid and fill with water.

2 Close the lid, put the kettle on the power base and insert the mains plug.

Adjusting the length of the mains lead

• Wind the mains lead on the bottom of the power base to adjust the length.

• Pass the mains lead out through the cut out section.
• Do not put the power base on the mains lead.

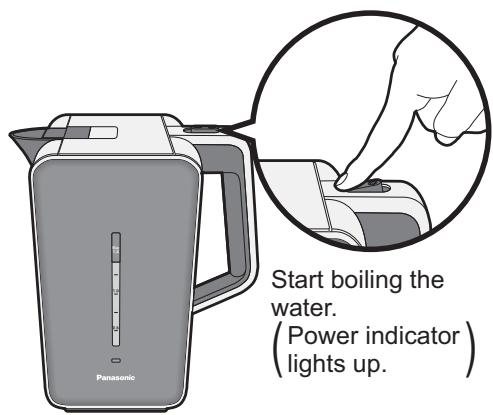

3 Turn on the power switch. (Press "I")

During use, the power indicator lights up.

When the water has boiled, the power switch turns off automatically.

• The kettle takes around 3 minutes to boil.
  Water temperature 23^ , room temperature 23^ , water to max level
• To stop boiling before the water has boiled, turn off the power switch.

Note

• Immediately after the water has boiled, do not force the kettle to continue heating the water by keep pressing the power switch. (It may cause malfunction.)

4 Remove from the power base and pour.

After use, pour out any remaining water.

*Keep the lid closed when pouring away the water.

Empty-use prevention function

When the power switch is on without water, an empty-use prevention function works to automatically turn off the power in order to prevent accidents and malfunction due to overheating.

① Allow the body to cool sufficiently.
(2) Remove the body from the power base and fill the water.
③ Place it on the power base and turn on the power switch again.

*If you boil the kettle without water, it may smell strange.

How to Clean

Clean the appliance after every use.
Before cleaning, unplug the mains plug, pour away the hot water, and cool the body.
- Do not use soap. (This may cause a residual odour.)
- Do not use benzine, thinner, alcohol, bleach, polishing powder, metal brush or nylon brush, otherwise the surface will be damaged.
- Do not wash in a dishwasher.

Troubleshooting

Check the following before contacting the shop or asking for a repair.

Troubleshooting

Problem	Cause	How to correct
The hot water has a strange smell.	Depending on the amount of chloride contained in the water supply, there may be a residual chalky smell.
	The first time of use, there may be plastic smell, but this will disappear as you continue to use the kettle.
Shiny white or brown substances are floating in the hot water.	This is scale. Scale is more likely to be generated when using water with a high mineral content. • Mineral water. • Water from ionic water purifiers.	Clean the kettle with a scale remover. (P.22)
Rough milky white substances are adhered to parts inside the body.
The sound of water boiling has become very loud.	The sound grows larger as scale adheres.
Hot water is difficult to pour.	Has the mesh filter been blocked by foreign matter or scale?	Detach and clean with a brush etc. (P.22) Clean the kettle with a scale remover. (P.22)
A clicking sound is heard a short time after use.	This sound is made when an internal heat component cools down. This is not malfunction.
The kettle is taking a long time to boil.	Did you boil with the lid open?	Close the lid. (P.20)
	Scale build up.	Clean the kettle with a scale remover. (P.22)
	If the water is very cold, the kettle will take longer time to boil.

Specifications

		NC-ZK1	NC-DK1
Power supply		220 - 240 V ~ 50 - 60 Hz
Power consumption		2520 - 3000 W
Dimensions (W × D × H) (approx.)	Body	22.8 cm × 15.6 cm × 26.1 cm
	Body + Power base	22.8 cm × 15.6 cm × 28.4 cm
Weight (approx.)	Body	1.6 kg	1.6 kg
	Body + Power base	2.1 kg	1.9 kg
Rated capacity		1.4 L
Length of the mains lead (approx.)		0.75 m

• In certain regions (high altitude, very cold locations), it may not be possible to obtain the predetermined performance.

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your

products to your local retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.
