BPB36-G2 - Pregnant Bazooka - Free user manual and instructions

Type	Portable Bluetooth Speaker
Brand	Bazooka
Model	BPB36-G2
Dimensions (H x W x D)	7.5 x 7.5 x 7.5 inches
Weight	2.2 lbs (1 kg)
Power Output	20W RMS
Battery Life	Up to 12 hours
Charging Time	3 hours
Bluetooth Version	5.0
Water Resistance	IPX5
Inputs	Bluetooth, AUX 3.5mm, USB (charging)
Controls	Power, Volume +/-, Play/Pause, Bluetooth pairing
Built-in Microphone	Yes, for hands-free calls
Frequency Response	60Hz - 20kHz
Driver Size	3 inches
Material	Plastic with fabric grille
Included Accessories	USB charging cable, AUX cable, user manual
Cleaning	Wipe with a dry cloth; do not use water or solvents
Safety	Do not expose to extreme temperatures or moisture
Spare Parts	Contact Bazooka support for replacement cables

Frequently Asked Questions - BPB36-G2 Bazooka

How do I pair the speaker with my phone?

Turn on the speaker and press the Bluetooth button to enter pairing mode. On your phone, search for available devices and select 'Bazooka BPB36-G2'. The speaker will confirm with a sound.

How long does the battery last?

The battery lasts up to 12 hours at moderate volume. Actual battery life may vary depending on volume level and music content.

Can I use the speaker while charging?

Yes, you can use the speaker while it is charging. However, prolonged use while charging may affect battery lifespan.

Is the speaker waterproof?

The speaker has an IPX5 rating, meaning it is splash-proof. It can withstand light rain or splashes, but do not submerge it in water.

How do I reset the speaker?

To reset, press and hold the Bluetooth button and the volume up button simultaneously for 5 seconds until the speaker powers off and restarts.

Why is the speaker not turning on?

Ensure the speaker is charged. Connect it to a power source using the included USB cable. If it still does not turn on, try a different cable or reset the speaker.

Can I connect two speakers together?

This model does not support stereo pairing or daisy-chaining. Only one speaker can be connected at a time.

What is the range of Bluetooth connectivity?

The Bluetooth range is approximately 30 feet (10 meters) in open space. Walls and obstacles may reduce the range.

How do I clean the speaker?

Wipe the exterior with a soft, dry cloth. Do not use water, alcohol, or abrasive cleaners. Avoid getting moisture into the ports.

Can I use the speaker as a hands-free device?

Yes, the built-in microphone allows you to answer calls. Press the play/pause button to answer or end a call.

USER MANUAL BPB36-G2 Bazooka

Installation Instructions

POTATO CHINA

READY!

End Mounting Options

with Cast Aluminum Legs

See Warning Below!

Use the 8mm X 12mm bolts (5) to attach the mounting legs. Mounting legs (3) can be installed in ether direction depending on space constraints. When mounting with optional clamps (PR-URM, PR-FRC200, and PR-FRC175) use the hex bolts provided with the clamps to mount the bottom half of the clamps to the mounting legs.

Warning:

If you are using the cast aluminum mounting legs to secure the Party Bar to your machine, the mounting legs must FIRST be attached and tightened to the Party Bar before mounting it to your machine. Attaching the legs to the machine first and then inserting the Party Bar between them can cause misalignment, spacing, and torque issues that can cause damage to the mounting assembly resulting in a failure.

Intergrated Mounting Rail Options

Illustration of traditional Chinese musical instruments with floral patterns (no text or symbols)

PR-URM 2° 15'0mm

PR-FRC200 2" Champ PR-FRC175 1/2" Champ

When using the Integrated Mounting Rail System, first determine your mounting stud spacing then screw the 6mm X 40mm studs (10) into the mounting nuts. Mark your desired spacing onto the flat surface to which you are mounting. Use a 1/4" or 7mm drill bit to drill mounting holes. Mount the Party Bar to your mounting surface using the 6mm washers (8) and 6mm nylon locking nuts (9) provided in hardware kit. You can also use our optional PR-URM, PR-FRC175, and PR-FRC200 clamps (sold separately) to mount to round tubing. When mounting the bottom half of the clamps to the Party Bar, you will need to use the 2 ea. 6mm X 12mm low profile socket head cap screws. (6)

Two cylindrical objects with flower-like patterns and hanging clips, no text or symbols present

Rev.12/12/2016 Pg. 4

BPB24 / BPB24-DS

BPB36

Installation Instructions

广西壮族自治区

READY!

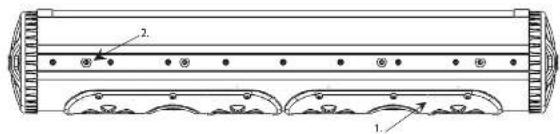

1. Party Bar (BPB24, BPB24-DS, or BPB36) 1 ea.

2. Optional Mounting Bolt 6mm 4 ea.

3. Mounting Leg 2 ea.
4. Rubber Vibration Insulation Pads 2 ea.
5. Socket Head Cap Screw 8mm X 12mm 2 ea.
6. Low Profile Socket Head Cap Screw 6mm X 12mm 2 ea.
7. Socket Head Cap 5crew 6mm X 30mm 2 ea
8. Narrow Washer 6mm 4 ea.
9. Nylon Insert Locking Nut 6mm 2 ea.
10. Stud 6mm x 40mm 2 ea.
11. Accessory Pigtail 1 ea.
12. Power Cable 6 ft. 1 ea.

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

IMPORTANT NOTICE:

The internal RF circuit for the remote control will draw a small amount of current because it must always be ON listening for the remote commands. Over time this could draw down your battery when your machine remains in storage without being connected to a charger or not being actively used. For this reason, we recommend connecting the Party Bar to a switched master power source or disconnecting the main power wire when the machine is in storage. We also make a plug & play inline 12v master power switch that can be easily added to the main battery wire for the Party Bar to completely kill power to the unit. It is listed under the Accessories tab on the Party Bar product page on our website (Model number: PR-ILS16)

Remove fuse from 6 ft power cable (12). Attach the red wire to the positive battery terminal. Attach the black wire to the negative battery terminal. Run power cable to the location of the BPB24.making sure power wire does not hinder the safe operation of the vehicle. Plug the red power cable end into the BPB24's red input power plug. The black 12vdc accessory plug can be used to power any 12vdc accessory up to 15 amps. Use the included black accessory pigtail (11) to wire your accessories.

Rev.12/12/2016 Pg.1

BPB24 / BPB24-DS

BPB36

Installation Instructions

POWER-RATH

READY!

Button

Auxiliary 12vdc output on/off switch.

Button 2M

ess and hold to power on, press while power is on to switch input between aux. and Bluetooth Inputs, Press and hold to power off.

Button 3

ess to go forward one track, Press and hold to increase volume.

Button 411

Press to play/pause, Press to answer/hang up phone, Double press for last number radial or open Siri on Iphone, Press and hold to unpair bluetooth device.

Button 5

Press to go back one track. Press and hold to decrease volume.

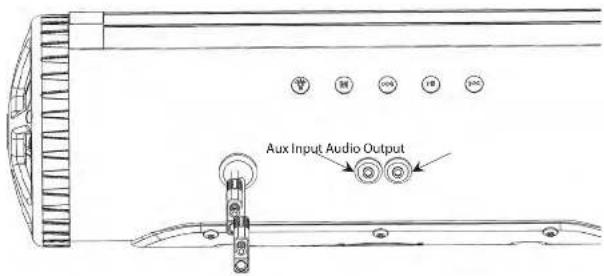

Aux. Input Used for a 1/8" audio cable

Audio Output Used for line level audio signal to an amplifier

Bluetooth module audio indicators:

Audio Response Description

Power on:

Power off:

Beep:

Beep:

Double Beep:

Module is turned on

Module is turned off

After LED light stops blinking means module is paired

When play/pause button is pressed and held means

module is unpaired from Bluetooth device.

When forward button is pressed and held means

module has reached maximum volume.

Rev.12/12/2016 Pg.2

BPB24 / BPB24-DS

BPB36

Installation Instructions

POTATO

READY!

LED light status indicator:

LED Light Description

Blinking: Bluetooth module is pairing

Solid blue: Bluetooth module is paired

Blue/Red: Bluetooth module is in AUX

input mode

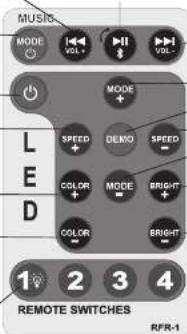

MUSIC

FUNCTIONS

Press: Previous Song

Press & Hold: Volume Down

Press: Mode Select (AUX/Bluetooth)

Press & Hold: Power On/Off

Press: Play/Pause (Phone Answer/Hang Up)

Double Press: Last number redial or Enter Siri on iPhone

Press & Hold: Unpair Bluetooth device and enter Pairing Mode for new Bluetooth device.

LED

FUNCTIONS

LEDs On/Off

Speed Up

Color Forward

Color Back

[Non-Text]

[Non-Text]

Press: Next Song

Press & Hold: Volume Up

Mode Forward

DEMO Mode

Speed Down

Mode Back

Brightness Up

Brightness Down

SWITCH

FUNCTIONS

MILKON, 2019

Remote switch buttons 2-4 are not used with this model

Note: * When pressing for Power Off, be sure to hold until Power Off is indicated (audible). Failure to do so may toggle the Bluetooth Receiver into AUX/BT Mode and it will remain in the last selected mode on subsequent Power On. If this occurs simply press the M button again to reselect BT or AUX mode as desired. The receiver should automatically pair with the last device in BT mode. To pair a new device, press and hold the Play/Pause button.

Rev. 12/12/2016 Pg. 3
