Product Type Marine Tower Speaker
Model MT8265W
Brand Bazooka
Speaker Size 6.5 inches
Impedance 4 ohms
Power Handling (RMS) 100 watts
Power Handling (Peak) 200 watts
Frequency Response 50 Hz - 20 kHz
Sensitivity 90 dB
Enclosure Material UV-resistant marine-grade polymer
Grille Material Stainless steel
Mounting Depth 3.5 inches
Cutout Diameter 6.0 inches
Dimensions (W x H x D) 7.5 x 7.5 x 4.5 inches
Weight per Speaker 2.5 lbs
Power Source Passive (requires external amplifier)
Recommended Amplifier Power 50-150 watts RMS per channel
Weather Resistance Yes (IPX6 rated)
Color White
Included Accessories Mounting bracket, stainless steel hardware, owner's manual
Cleaning Instructions Wipe with a damp cloth; avoid harsh chemicals.
Safety Warning Do not exceed power rating; secure properly to prevent falling.
Repairability Replacement parts available; consult manufacturer for service.
Warranty 1 year limited warranty

Frequently Asked Questions - MT8265W Bazooka

What is the power handling of the Bazooka MT8265W?
The speaker handles 100 watts RMS and 200 watts peak.
Are these speakers weatherproof?
Yes, they are rated IPX6, making them resistant to water jets and suitable for marine environments.
What is the recommended amplifier power?
Use an amplifier delivering 50-150 watts RMS per channel at 4 ohms.
How do I clean the speakers?
Clean with a damp cloth and mild soap if needed. Avoid abrasive or chemical cleaners.
What is the mounting depth?
The mounting depth is 3.5 inches. Ensure sufficient clearance in your installation location.
Are installation instructions included?
Yes, a detailed owner's manual is included with mounting and wiring instructions.
What is the impedance of these speakers?
The impedance is 4 ohms, standard for most marine speakers.
Can I use these speakers in a car?
While designed for marine use, they can be used in cars as long as they are not exposed to moisture. However, they are optimized for open-air environments.
What is the frequency response?
The frequency response ranges from 50 Hz to 20 kHz, providing full-range sound.
Does the MT8265W come with a warranty?
Yes, it includes a 1-year limited warranty against defects in materials and workmanship.

User questions about MT8265W Bazooka

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Loudspeaker in PDF format for free! Find your manual MT8265W - Bazooka and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MT8265W by Bazooka.

USER MANUAL MT8265W Bazooka

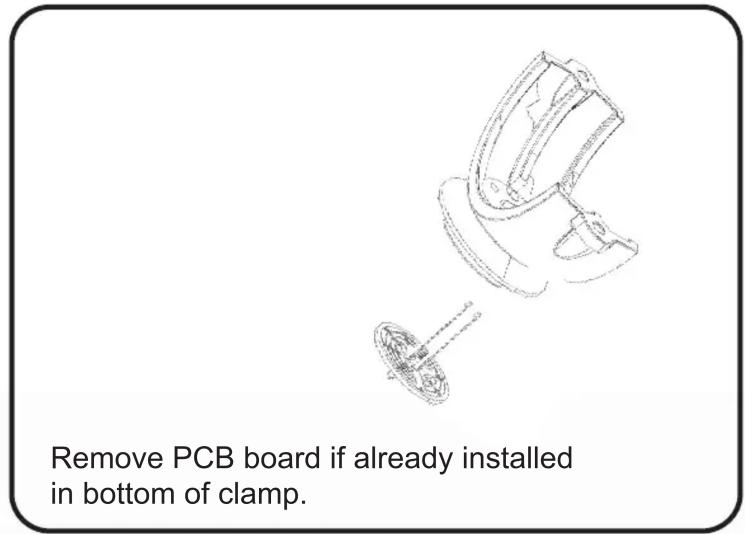

Remove PCB board if already installed in bottom of clamp.

Place clamp on mounting pipe. Minimum distance from edge of clamp to nearest obstruction is 7"(177.8 mm). If clamp is mounted any closer, the Tubbie will not be able to rotate 360 degrees. Make sure clamp is level, then mark pipe so a hole can be drilled for the wires. Hole should be between 1/2" (12.7mm) & 3/4" (19.5 mm). Remove clamp & drill hole.

Extend the length of the PCB wires so they will be able to reach your audio source. Run wires through bottom of clamp and through your mounting pipe. Reattach clamp to make sure wires are centered in the mounting hole.

Center top of Tubbie mounting plate with bottom of clamp. Loosen saddle clamp latching bolt until nut is 1/8" from end of threaded mounting stud. Wrap saddle clamp around bottom of clamp and top of Tubbie mounting plate. Tighten latch bolt.

Latch bolt can be loosened and tighten by hand to be able to rotate Tubbie. If you want a more permanent mount, tightened with a 10mm wrench or supplied allen wrench. Ether way always make sure clamp is tight and retaing clip is in place before boat is in motion.

MT8100B / MT8100W

Single ended Tubbies:

Red -Speaker positive

Black - Speaker negative

Gray - NA

White - NA

MT81LKB / MT81LKW

Single ended Tubbies w/ light kit

Red -Speaker positive

Black - Speaker negative

Gray - 12vdc positive

White - 12 vdc negative

MT8265B / MT265W

Double ended Tubbies

Dual 4 ohm configuration

Red -Speaker positive

Black - Speaker negative

Gray - Speaker negative

White - Speaker positive

MT8265B / MT265W

Double ended Tubbies

Single 2 ohm configuration

Combine Red and White Speaker positives

Combine Black and Gray Speaker negative
