OPERATING INSTRUCTIONS

HUỐNG DÃN SỬ DỤNG

Air Purifier

Máy lọc Không khí

Model No.

Model số

F-PXM35A

This product is for indoor use only

- CLEANING METHOD 15

• FILTER REPLACEMENT 16

- WHEN IDLE FOR A LONG TIME 16

FURTHER INFORMATION 17\~18

FAQ 18

TROUBLESHOOTING 19

SPECIFICATIONS……BACK COVER

OPTIONAL ACCESSORIES ...... BACK COVER

NỘI DUNG

CÁC BIỆN PHÁP AN TOÀN 2\~5

CÁC YÊU CẦU CÀI ĐẶT VÀ VẬN HÀNH … 6

NHẠN DẠNG CÁC BỘ PHẠN CHÍNH……9

CÀI ĐẶT TRƯỚC KHI VẬN HÀNH…… 10\~1

VĂN HÀNH 12\~13

• TẮT/BẶT NGUỒN LUỰU LƯỢNG KHÔNG KHÍ ……12

• HÊN GIỒ' NHANH·CHẾ ĐỘ NGÙ ……13

BẢO TRÌ 14\~16

• PHƯƠNG PHÁP VỆ SINH MÁY …… 15

• THAY BỘ LỌC 16

• KHI MÁY KHÔNG VẠN HÀNH TRONG…… 16 THỜI GIAN DẢI

Warranty card attached

Thank you very much for purchasing this Panasonic product.

Please read these operating instructions carefully before operation and maintenance.

Also, be sure to read the "SAFETY PRECAUTIONS" section (P.2\~5) before use.

Failure to comply with instructions could result in injury or property damage.

Make sure that the correct information is written on the warranty card, including the date of purchase and the name of the dealer. Keep the warranty card in a safe place along with the operating instructions for future reference.

The following symbols differentiate the levels of danger or injury that may result if the product is not used correctly as instructed.

Those things shown in this column indicate that there is possibility of causing death or severe injury.

Those things shown in this column indicate that there is possibility of causing minor injury or damage to properties.

■ The following symbols are used to indicate the type of instructions that need to be followed.

(The symbols given below are examples)

This symbol indicates an action that must not be performed.

This symbol indicates an action that must be performed.

■Do not touch the power plug with wet hands.

■Do not let the product get wet.

(Otherwise, the product may short circuit with the possibility of fire or electric shock.)

■ Do not insert your fingers, metallic objects or others into the air inlet, air outlet or gaps.

(Otherwise, you may be hurt by the inner units with the possibility of electric shock or injury.)

■ Do not pull the power cord when carrying or storing the product.

(Otherwise, the power cord may be damaged with the possibility of fire or electric shock.)

■ Do not damage the power cord or power plug.

- Do not cut, modify, excessive distort, twist, squeeze the power cord, and do not place it near heat sources, place heavy weight on it, etc.

(Otherwise, the power cord may be damaged with the possibility of fire or electric shock.)

■ Make sure to disconnect the power plug before cleaning the product.

(Otherwise, the product might operate with the possibility of electric shock or injury.)

■ Do not use power other than the rated voltage (220 V\~50 Hz).

(Otherwise, the power cord may be overheated and induce fire.)

■ Do not disassemble or modify the product.

(Otherwise, the product may malfunction with the possibility of fire or electric shock.)

→ Contact the dealer for repair.

In case of any abnormality or malfunction, stop using the product immediately and disconnect the power plug.

(Otherwise, electric shock, fire or smoke may occur.)

- The product stops operating when moving the power cord.

- If the circuit breaker is tripped or when fuse blows.

- If the power cord or power plug becomes abnormally hot.

- If there is any other abnormalities or malfunctions.

→ Please stop using the product immediately and disconnect the power plug, and contact the dealer to check and repair.

■ Clean the power plug regularly.

(If dust is found on the power plug, insulation may be damaged by humidity and fire may occur.)

■ Insert the power plug completely.

(Otherwise, the power cord may overheat with the possibility of fire or electric shock.)

■ Do not clean the product with gasoline or other volatile mixture solvents, and avoid contacting with spray insecticides.

(Otherwise, the product may crack or short circuit with the possibility of injury, fire or electric shock.)

■Do not sit on or lean against this product.

(Otherwise, the product may fall over and injury may occur.)

- Families with children should pay more attention.

■ Do not operate this product in places where indoor fumigation type insecticides are being used.

→ Ventilate the room with fresh air thoroughly after using insecticides before operating the product.

■ Do not place the product near combustible materials such as lighted cigarette, incense, etc.

■When disconnecting the power plug, hold the power plug instead of the power cord.

(Otherwise, the power cord may damage with the possibility of fire or electric shock.)

- Keep the room well-ventilated when using the product together with a burner.

- This product cannot remove carbon monoxide.

■When carrying the product, please hold the left and right handles, but not the front panel.

(Otherwise, the product may fall off, injury may occur.)

■Do not place the product in the following places.

- Where the temperature or humidity is too high, or watery area such as bathroom.

- Where the air outlet faces animals or plants directly.

(Otherwise, it may cause discomfort to animals and dry out plant.)

Area that can enhance the effectiveness!

■ Way to against PM2.5 and indoor dust, etc.

We recommend you to place the product on flat floor in the room.

Interior layout diagram of a modern living room with sofa, TV, and wall-mounted appliances (no text or symbols)

■ Way to circulate air more effectively.

Place the product with its left, right and top about 30 cm or more away from walls, furniture or curtains, etc. Otherwise, the pollutants are difficult to be cleared.

To ensure effectiveness of this product, keep its back at least 1 cm away from the wall.

■ If the product is used in the same place for a long period.

Using the product continuously at the same location may result in dirty surrounding walls or floor. You are recommend to move the product away from where it is placed when maintenance it.

■ Do not use the same power socket with TV, radio, etc.

→ In this case, insert the power plug into another power socket.

■ Do not set the product in the following places.

- Where the product will be exposed directly to sunlight, outlet air of air conditioner or heat, etc.

(Otherwise, deformation, degeneration, discolor or malfunction may be occurred.)

• Near equipment such as TV and radio.

→ Keep the product 1 m or above away from such devices.

"House Dust Catcher" and "nanoe®" give you clean and fresh air.

■ House Dust Catcher completely cleaning dust from the air near the floor
■ Equipped with nanoe® technology
■ Compact and stylish design

With nanoe ^® technology, the effects of sterilization ^★※1 , allergens inhibition ^※2 , fungi elimination ^※3 and deodorization ^※4 can be achieved, thereby creates a conducive environment for hydrated skin.

nanoe®

● Test organization: Japan Food Research Laboratories

- Test method: measure the bacteria count adhered on the fabric in a test space of 23m^3

● Target: bacteria adhered on the standard fabric

● Test outcome: eliminated 99 % and above in 8 hours [Test number 13044083003-01]

(With one type in variety of bacteria to test)

●Test method: measure the allergens adhered on the fabric in a test space of 23 m³ with ELISA method

● Inhibiting method: release nanoe®

●Test outcome: inhibited 88 % and above in 8 hours [BAA33-130402-F01]

※3 ●Test organization: Japan Food Research Laboratories

●Test method: measure the fungi count adhered on the fabric in a test space of 23 m³

●Target: adhered fungi

●Test outcome: confirm the effect after 8 hours [Test number 13044083002-01]

※4 ●Test organization: Panasonic Corporation Analysis Center

●Test method: conduct verification by using 6-phase odor intensity in a test space of 23 m ^3

- Deodorizing method: release nanoe®

● Target: adhered cigarette odor

●Test outcome: odor intensity drops to 1.2 after 2 hours [BAA33-130125-D01]

- This is nanoe® device verification result, it is different from the verification of this product.

● The deodorizer effect differs according to the surrounding environment (temperature, humidity), operation time, type of odor or fiber.

● This product is not a medical equipment.

Note: nanoe® and the nanoe® mark are trademarks of Panasonic Corporation.

1 Fill in the label with the first date of use.

Line drawing of a device with a rectangular opening and ventilation grille (no text or symbols)

■ HEPA composite filter replacement ● About once every 3 years.

Replacement filter Part No. F-ZXMP35Z

Date installed:

■ Deodorizing filter replacement - Replace a new one when the deodorizing function becomes less effective (About once every 3 years)

Replacement filter Part No. F-ZXFD35X

Date installed:

Notice Luru y

Be sure to read P.2\~5 before startup.

2 Remove the deodorizing filter from poly bag.

Pull it forward with both hands Dùng hai tay kéo ra phía trước

③ Remove the deodorizing filter from the poly bag. Lấy bộ lọc khởi túi bóng.

Notice Luru y

① Install deodorizing filter.

(There is no distinction between inside and outside, upper and lower)

Lắp bộ lọc khử mùi.

Illustration of hands opening a paper airplane into a machine (no text or symbols visible)

② Install HEPA composite filter.

(There is distinction between inside and outside, no distinction between upper and lower)

Illustration of a hand inserting a device into a device with an arrow indicating the direction (no text or symbols present)

Illustration of an electronic component with pins and a triangular base (no visible text or symbols)

With the black side (front side) outside, and align it with the projections of the product.

③ Install front panel.

Lắp tâm cản trước.

Illustration of hands installing or adjusting a device panel (no text or symbols visible)

Fit the clutch into the indentation (3 places) of the product.

Pure technical diagram of a mechanical component with no visible text, numbers, or symbols

Push in the protrusion into holes (2 places) of product and press properly.

Be sure to install the front panel before use.

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Turn on or off the product.

Bật/Tắt nguồn.

Press the button to operate. (Air volume indicator lights on)

1. Press the button again, the product stops operating.

To operate product within 2 minutes after the power plug is inserted, the indicator of air volume under "Auto" will blink about 2 minutes, what it indicates the odor sensor is in the stanby mode.

Select appropriate air volume for purifying air.

The indicator will be changed sequentially as figure below.

(Indicator lights on)

Press this button to begin turbo operation.

Make sure to disconnect the power plug before cleaning the product.

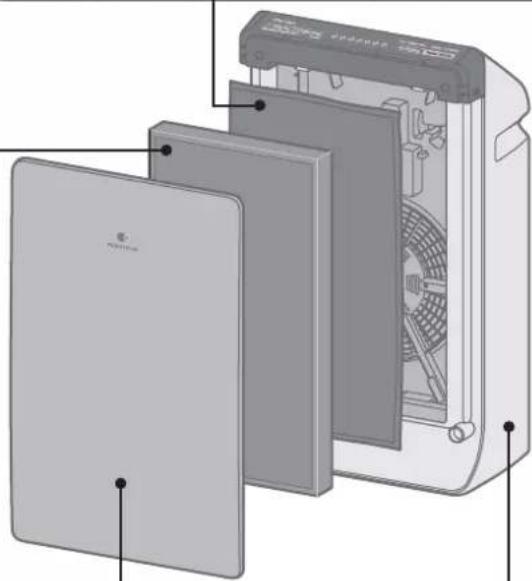

Deodorizing filter Bộ lọc khử mùi

Clean the black (front) side with a vacuum cleaner, etc.

3D diagram of a microfluidic device with a pipette inserted into a substrate (no text or symbols visible)

Exploded view diagram of a refrigerator showing internal components and fan structure (no text or labels)

Body and front panel

Wipe off any dust and dirt using a well wrung-out cloth

※ Filter replacement period may be shorten, depending on the environment (such as where smoking is frequent).

■ nanoe ^® can be switched off.

During operation, press ■ Turbo Timer and ■ Sleep (8 h) buttons at the same time for about 3 seconds to switch off. (nanoe® indicator lights off)

Please press the buttons for about 3 seconds again to restart the nanoe®.

■ Conditions for nanoe® generation

nanoe ^® is generated using the air in the room. Therefore, depending on the temperature and humidity, nanoe ^® may not be generated stably.

• Room temperature: about 5 °C\~35 °C (dew-point temperature: 2 °C and above)

- Relative humidity: about 30%\~85%

■ When nanoe ^® is generated, small amount of ozone will be released. However, the quantity will be far less than the level in natural environment such as forest, and not be harmful to human beings.

The HEPA composite filter which with the Bio-sterilization and Super Allergy-buster can inhibit allergens (pollen, dead mites and feces), bacteria and mold.

■ Super Allergy-buster: inhibits the activity of allergens (pollen, dead mites and feces).

Testing authority: Osaka Municipal Technical Research Institute

Test method: check the decrease of refined house dust mite allergen, by using enzyme immune measuring method.

Inhibiting method: contact with Super Allergy-buster

Target: allergens trapped by the filter (mites, pollen)

Test result: inhibited 99 % and above. (Daikou research report No. 2127)

■ The HEPA composite filter may give off unique and harmless smell of "Green Tea Catechin", "Bio-sterilization" and "Super Allergy-buster".

The sensor can detect the pollution of the air, and show the pollution level by indicator. The product can optimize the air volume automatically in auto operation according to the air quality.

① Stop operating the product, then press ■ Turbo Timer and Air Volume buttons at the same time for about 3 seconds. The air volume indicator will light on sequentially.

② Please release the buttons, when the sensitivity is set as required.

Why is there a "jee" sound from the air outlet?

There is a slight sound when nanoe ^® is being generated. Depends on the environment and operation mode, the sound may be a bit loud or inaudible but it is not abnormal.

Why does the clean sign remain red even when the operation continues?

The indicator may illuminate red when the product is subject to steam or vapor emitting from sprayers.

Why does the clean sign remain blue even when the air is dirty?

Is the product placed in area where the dirty air is difficult to be cleared or the room size is too large for the product? (P.6, back cover)

How to turn off the clean sign?

■ Please press Sleep (8 h) and Air Volume buttons at the same time for about 3 seconds during operation to turn off.

If a problem is encountered, please investigate it by going through the following items.

If the problem still persists, please disconnect the power plug and contact the dealer for repair.

If any of the following cases occur, please contact the dealer immediately for repair.

● Replacement HEPA composite filter

● Replacement deodorizing filter

©Panasonic Corporation 2017

Issue date:11/2017
