Product Type	GPS Navigator
Brand	Prestigio
Model	GeoVision 5300 Navitel
Display Size	5.0 inches
Display Resolution	480 x 272 pixels
Processor	ARM Cortex-A8 800 MHz
Internal Memory	4 GB
RAM	128 MB
GPS Chipset	SiRF Atlas V
Pre-installed Maps	Navitel maps of Europe
Additional Map Support	SD card up to 32 GB
Power Supply	Rechargeable lithium-ion battery (3.7V, 1000 mAh)
Charging	Car charger (12V/24V) and USB cable
Dimensions	137 x 86 x 15 mm
Weight	160 g
Operating Temperature	0°C to 45°C
Voice Guidance	Built-in speaker, Text-to-Speech
Points of Interest (POI)	Preloaded with millions of POIs
Route Options	Fastest, shortest, avoid tolls, avoid highways
Mounting	Windshield suction cup mount included

Frequently Asked Questions - GeoVision 5300 Navitel PRESTIGIO

How do I update the maps on my Prestigio GeoVision 5300 Navitel?

Connect the device to your computer via USB. The device will appear as a removable drive. Download the latest Navitel map updates from the official Navitel website and copy them to the 'NavitelContent' folder on the device.

How long does the battery last on a full charge?

The built-in lithium-ion battery typically lasts up to 2-3 hours of continuous GPS use. Battery life may vary depending on screen brightness and usage conditions.

Can I charge the GPS while using it?

Yes, you can charge the device using the included car charger while it is in use. This is recommended for long trips to ensure continuous power.

How do I reset the device if it freezes?

Press the reset button located on the back or bottom of the device using a paperclip. If there is no reset button, hold the power button for 10 seconds to force a shutdown.

Can I install third-party navigation apps?

No, the device runs a custom operating system and only supports Navitel navigation software pre-installed. You cannot install other apps.

How do I set a home address?

Go to the main menu, select 'My Places' or 'Favorites', then 'Add Home'. Enter your address and save. You can then navigate home with one tap.

What should I do if the GPS signal is weak?

Ensure you are outdoors with a clear view of the sky. Avoid metal objects or tinted windows. Let the device acquire a signal for a few minutes after power-on.

Can I use the device in different countries?

Yes, the device comes with pre-loaded Navitel maps of Europe. For other regions, you can purchase additional maps from Navitel and load them via SD card.

How do I clean the screen and device?

Use a soft, dry microfiber cloth to gently wipe the screen. Do not use abrasive cleaners or liquids. Keep the device dry and avoid exposure to extreme temperatures.

What is included in the box?

The package includes: Prestigio GeoVision 5300 Navitel GPS unit, car charger, USB cable, windshield mount, user manual, and warranty card.

USER MANUAL GeoVision 5300 Navitel PRESTIGIO

Important Safety Instructions

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric to persons.

CAUTION

1. To reduce the risk of electric shock, do not remove the cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel. Unplug the product from the wall outlet before servicing or when it is unused for a long period of time.
2. The manufacturer should not hold responsibility for the damage caused by any substitutions and modifications of the product without authorization from the manufacturer or authorized unit.
3. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

WARNING

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Accessories

Accessories List

ITEM	NAME	QTY
	Car Charger	1
	Mounting Cradle	1
	USB Cable	1
	Stylus pen	1
	Stylish Carrying case ( for 5300/5300BT only)	1
	Driver / Documentation CD	1
	User Manual	1
	Warranty Card	1

EN-1

View of Main Unit

Front and Side View

1. LCD Touch Screen

Tap the screen with touch pen or finger to select menu commands or to enter information.

2. Battery Status Indicator

The indicator glows in bright amber color when battery is fully charged and in red color when charging.

3. microSD Slot

Receives microSD memory card for data access or memory expansion.

4. Mini-USB Port

Connects to USB Cable for data access or battery charging

5. Headphone Port

Connects to stereo headphones or headsets.

6. Reset Button

Press to restore system to factory default settings.

7. Power Button

Press to power ON/OFF device.

8. Speaker

Emits sound, voice or music.

EN-2

Device Connection

NOTE:

Please always make sure that the device and any other external device connected to the device are powered off and unplugged from the power supply before attempting to connect the device to any external device.

Inserting microSD Card

- To insert a microSD card, place connector towards device and card label towards the front side of the device.

- To remove a microSD card, gently press the edge of the card to release the safety lock and pull the card out of the slot.

NOTE:

Please always make sure that no application is accessing the microSD card before extraction.

Charging

1. Connecting to External USB Device

• Flip open the protective rubber cover towards the front of the device.
• Insert USB connector into the appropriate USB port.
• Insert the other USB connector into USB port on PC to start charging.

Device Connection

Cautions on Battery Charging

2. Connecting to Car Charger

• Flip open the protective rubber cover towards the left side of the device.
• Insert USB connector into the appropriate USB port.
• Insert car charger connector into vehicle 12V accessory/cigarette socket to start charging.

NOTE:

Please connect the car charger to vehicle 12V accessory/cigarette socket after vehicle engine is started to protect the device from sudden surges in current.

Connecting to Earphones

• Flip open the protective rubber cover towards the front of the device.
• Insert earphone plug (not included) into the appropriate earphone port to switch audio output from device speaker to earphone.

NOTE:

Excessively loud volume is potentially detrimental to hearing. Please turn down the volume before connecting the earphone and gradually turn up the volume to a comfortable level.

About Rechargeable Battery

The device is equipped with a built-in rechargeable battery. Please fully charge the battery (for at least 8 hours) before initial use. The battery status indicator glows in red color when charging and turns bright amber color when charging is complete. Charging time is approximately 2 hours.

Working conditions and precautions for the rechargeable battery

● Device with new batteries should be fully charged before initial use.
- Battery should only be used and charged when temperatures are between 0° \~ 37°C.
- It is not necessary to start charging the device before the battery is fully discharged.

NOTE:

Please connect the car charger to vehicle 12V accessory/cigarette socket after vehicle engine is started to protect the device from sudden surges in current.

EN-3

Using Mounting Cradle

NOTE:

• Do not operate the device while driving.
• Please select an appropriate location on the dashboard or windshield where the device will not obstruct driver field of vision.

Device Mounting Procedures

The device can be securely mounted on vehicle dashboard or windshield with the mounting cradle included. Please follow procedures below to operate mounting cradle:

1. Select an appropriate location on windshield or dashboard where the device and mounting cradle will not obstruct driver field of vision.
2. Please also make sure that the device has a clear view of sky to attain best GPS reception.

• Place device on the bracket with bottom positioned on the appropriate socket.
• Push on the top edge to securely install device onto the cradle.
• Lift the suction cup lever and press the suction cup at desired location.
• Press down the suction cup lever to secure the mounting cradle on the surface.
• Rotate the knob to adjust device to desired viewing angle.

Getting Started

1. Press and hold Power Button to turn on device.
2. Shortly after the greeting screen is shown, the main menu will be displayed.
3. Tap the corresponding buttons with touch pen included to navigate various functions.
4. Press and hold Power Button to turn off the device or to allow device to enter sleep mode.

To Dismount Device

1. Push the tap on top of the mounting cradle to release the device.
2. Lift the suction cup lever to easily remove the suction cup from windshield or dashboard.

EN-4

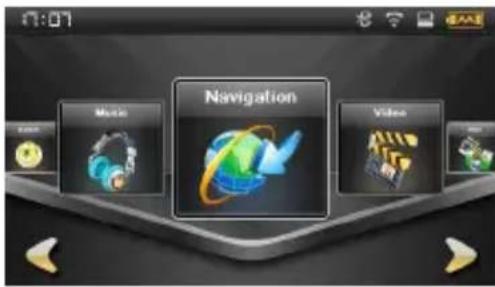

Main Menu

Shortly after the greeting screen is shown, main menu will be displayed automatically. The main menu consists of the following sections.

Item

Description

Displays time.

Enable/disable Bluetooth function.

Enable/disable FM-Transmitter function.

Show MicroSD/SDHC card.

Indicates electric quantity.

Press ◀ to select functions.

Bluetooth Function (Optional)

1. Tap

to start using

Bluetooth function.

1. Tap file

to exit the current

1. Tap

to open the

Bluetooth settings

1. Tap

change

the device name, press the button

to switch between letter and per input

1. Tap PIN.

modify the

EN-5

Bluetooth Function (Optional)

6

Tap

connection history

to display the

7

Tap

Bluetooth devices

to search

8

Select Bluetooth

phone"N73gps",

tap on Connect, and enter the PIN code 1234

9

ter successful connection, then

exit from the current interface,

The main menu will be displayed in colored pattern

Bluetooth Function (Optional)

10.

Tap

to open dial pad

11.

Tap

dial the

12.

Tap

o answer the

Call

g number and its ID will be

displayed in the Incoming Call.

Tap on to switch phone

call between GPS and cell phone

Bluetooth Function (Optional)

DUN (Optional)

The Dial up Networking (DUN) function allows you to connect your navigation device to internet. To enable DUN, please turn on Bluetooth.

1. Tap on

open the

1. Tap

to open the call

1. Tap

to open the A2DP

1. Tap

to download SMS pile phone.

1. Tap

to enter DUN

the

1. Tap

browser. Tap on to back to

the last page; Tap on to skip

to the next page; Tap on to

refresh the interface; Tap on to

stop opening the website; Tap on

to exit the current interface;

Tap on to enter input panel

Others

Tool Mode

Tap on
to enter tool mode.
Tap
to exit the current file.

FM Transmitter Mode (Optional)

Tap on
to enter FM
transmitter mode.
Tap

to exit the current
function.

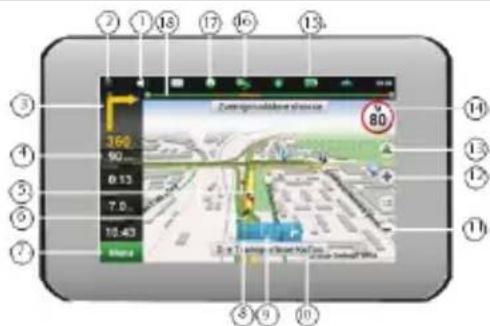

Program interface

No.
Name
Function

1 Sound Sound menu opens by pressing this button
2 Compass		Context menu opens by pressing this button. In this menu switches the orientation of the map («North up» - lock icon is next to the compass, «Rotate in accordance with the movement» - route is next to the compass), the type of card (Flat view «2D» and the Panoramic view of the «3D») and the skins («Night», «Day», «Auto»). When driving the compass always points to the North.
3	Information panel	A sign of the upcoming maneuver. There are various turns, distance to the next maneuver in meters or kilometers, etc. on a gray background. Clicking on the sign stops the route guidance and more route options.
4	Information panel	The estimated total time in a way, the total length of the route, time of arrival at the final point of the route.
5 Route The active route.
6 GPS-cursor Your location indicator.
7	Menu	Main menu opens by pressing this button.

Program interface Program

No. Name Function

8	Progress-bar	Bar is filled in as you approach the place of maneuver.
9	Traffic lane	Displays the traffic lanes with valid maneuvers at the next intersection.
10	Information panel	Shows the name of the street you are currently driving along. Available only if GPS/GLONASS connection is established. If there is no street name, the direction will be shown.
11	Scale button Zoom out.
12	Scale button Zoom in.
13	Navitel.Events * Navitel.Events button
14	Speed limit and camera	In excess of the established speed displays the speed limit on that road section.If warning of the cameras turned on in the settings, then when approaching the camera distance to it displays.
15	Battery	Icon shows the level of battery charge. Press it to see the remaining memory.
16	GPS	GPS/GLONASS connection icon. If the indicator is grey — receiver is disabled, red — switched on, but the connection is not established, yellow - poor connection, green – connection established. There is a number of the satellites in the dot.
17	Navitel.Friends	Pop-up menu to work with Navitel.Friends service. Here you can add friends, see them on map and talk to them.
18	Route panel	Allows you to see the entire route, your location and traffic jams* on the route directly on the Map page.

No. Name Function

19 «Save» Saves current marc on map as a waypoint.
20 «Cursor» Shows the point menu.

Program interface

No. Name Function

21	Mark on the map	You can set the mark by taping on the map. You can save this mark as a waypoint, add it to the route or see object's characteristics the mark was set on.
22	Track record	Track record. Red dot means that the track is recording, grey dot means that the record stopped.
23	Traffic Jams*	Shows the current traffic jams on a 10-point scale.
24	Navitel.SMS*	This button is intended to read/send SMS-messages. Near the icon you can see the number of unread messages.
25	Software update*	Shows available updates.
26	«Go!» Marks the current position on the map as the end of the route
27	«Route through»	Mark becomes the start point on the route. You should turn off your GPS/GLONASS receiver.
28	«Set start» Mark becomes the middle point of the route.
29	«Set finish»	Mark on the map becomes the end of the route. And previous end of the route becomes the middle point.
30	Map Back to map.

* - This function is available only on some devices with GSM or Bluetooth with DUN support. Please, refer to your supplier for more information.

Autorouting

Route to the objects.

To create a route to the object with known address, press the «Menu» button at the lower left corner of the screen [1]. Then select «Find», «By address» [2]. Press the «Select country» button and enter its name [4]. To minimize the keyboard, press the icon at the right top of the screen. Select the required country[5]. Menus «Select city», «Select street» and «Select building» will become active [6]. After choosing the required information press «Go!» to create a route. The route will be shown on the map [8]. You can follow this route or start simulation by pressing the «Demo route» button.

Fig.1

Fig.2

Fig.3

Fig. 4

Fig. 5

Fig. 8

Fig. 7

Fig. 8

Fig.9

Route to the selected point on the map.

You can set the route to any point on the map. This point will be the end of the route, your current position will become the start of the route. Create a mark on the route by pressing any place on the map[1]. Press the «Cursor», then «Go!»[2]. The route is created[3].

Route from point to point.

If you want to create a route from point to point you should create a point on the map[1]. Then set this button as a start route by pressing «Cursor» > «Go!». If you didn't turn off your GPS receiver, the system will ask you to do it[3]. The start point will be marked by green flag[4]. Then find the finish point, tap on map and press «Cursor» > «Go!»[5]. The route will be created from point to point.

If your device has GSM/GPRS module, you will be able to use some «Navitel Navigator» software features like «Navitel. Traffic Jams» and «Navitel .SMS» services.

Navitel. Traffic

Fig.1

Using this service you can see the information about the traffic jams. To set the service go to «Settings > «Online services» > «Traffic jams». When the service is active the roads are painted in different colors.

Red - traffic jam, Orange - traffic is bad, Yellow - traffic is a bit difficult, Green - normal traffic[1].

Navitel.Friends

Interactive service «Navitel.Friends» allows you to see the location of your friends on a map in real time, to share your geographic location with friends, send messages or route to meet them.

Note:

For more detailed information regarding the functionality of Navitel software, please, refer to the complete user manual on CD, or to www.prestigio.com.

EN-11

Troubleshooting

NOTE:

Immediately turn off the device and disconnect the power adapter if the device is not working properly. Never try to repair the unit without authorized professionals for it may damage the unit.

PROBLEM

Users can't turn on the unit.

POSSIBLE CAUSE

POSSIBLE SOLUTION

The adaptor doesn't connect well.	Connect the adaptor correctly.
The built-in rechargeable battery is weak.	Use the adaptor to supply power or charge the battery.

There is no sound.

The volume may be turned down or mute.

Turn up the volume or turn on the sound output.

There is no picture.

The brightness may be turned down.

Adjust the brightness of the LCD.

The unit can't receive satellite signals or can't orient.

The unit may be obstructed by buildings or metal block.

Make sure to use the unit out of room; if in the vehicle, you can use the external GPS antenna to solve this problem.

Troubleshooting

PROBLEM

The unit can receive signals now but can't then: signals received are not stable.

POSSIBLE CAUSE

POSSIBLE SOLUTION

The built-in rechargeable battery is weak.	Use the adaptor to supply power or charge the battery.
The unit may be obstructed by veil, such as heat insulation paper.	Remove the veil.
Swing of the unit is too great.	Avoid great swing of the unit.

PC Connection

Technical specifications

To establish connection with PC for data access and synchronization, please execute setup file included in the Driver/Documentation CD or download the file from Microsoft website to install:

Microsoft Active Sync® software for operating system Microsoft XP or earlier versions (http://www.microsoft.com/windowsmobile/en-us/downloads/microsoft/activesync-download.mspx)

and/or

Microsoft Mobile Device Center® software for operating system Microsoft Vista (http://www.microsoft.com/windowsmobile/en-us/downloads/microsoft/device-center-download.mspx).

Please refer to its user manual for more detailed instructions.

Model	GV4300/GV5300
GPS Receiver MSR2112
Processor	MSB2531 Cortex A7, 800MHz
RAM	128MB DDR3
Display	4.3" touch LCD/ 5" touch LCD
Resolution	480*272
Storage Capacity	4GB flash memory, Memory card slot supports micro SDHC card up to 8GB
Interface	Mini USB
Battery	850/1050mAh Li-Polymer battery
Dimensions GV4300: L112.3mm*H74.2mm*W12.7mmGV5300: 128.4mm*H82.7mm*W12.7mm
Weight	127g/ 161g
Storage Temperature	-20°C to +70°C
Operating Temperature	-10°C to +60°C
Operating Relative Humidity	45% to 80%RH
Storage Relative Humidity	30% to 90%RH

Disclaimer

As the Prestigio products are constantly updated and improved, your device's software and hardware may have a slightly different appearance or modified functionality than presented in this Quick Start Guide.

Prestigio hereby states that this GPS Navigator complies to basic requirements and another relevant regulations given by the EU directive1999/5/ES. Full version of the declaration of conformity is available on http://www.prestigio.com/compliance.

Внимание:

1. Нажмите

чтобы

© 2004 Microsoft Corporation, Inc. (APRS) received: https://doi.org/

чтобы

чтобы зайти в

Нажмите

инструменты.

Нажмите

текущий файл.

чтобы покинуть

чтобы зайти в

Нажмите

Автороутинг

Рис. 1

Рис. 2

Adjust the brightness of the LCD.

1. Натисніть

щоб увійти до

меню DUN.

1. Натисніть

встановити зв'язок.

1. Натисніть

№ Назва Функція
