Product Type	GPS Navigation Device
Model	GeoVision 4766 Navitel
Brand	Prestigio
Display Size	4.3 inches
Display Resolution	480 x 270 pixels
Display Type	TFT Touch Screen
GPS Chipset	SiRF Atlas V 664 MHz
GPS Channels	64
Antenna	Internal
RAM	128 MB DDR2
Flash Memory	4 GB
Expansion Slot	MicroSD (max 8 GB)
Battery Type	Li-polymer
Battery Capacity	950 mAh
Charging Time	Approximately 2 hours
Operating System	Microsoft Windows CE 6.0
Navigation Software	Navitel 5.1
Bluetooth	Yes (optional)
FM Transmitter	Yes (optional)
Audio Formats	MP3
Video Formats	AVI
Speaker	1W 8 ohm built-in
Earphone Jack	2.5 mm mini jack
Interface	Mini-USB 2.0
Operating Temperature	0°C to 60°C
Operating Humidity	10% to 90% non-condensing

Frequently Asked Questions - GeoVision 4766 Navitel PRESTIGIO

How do I turn on the Prestigio GeoVision 4766 Navitel?

Press and hold the Power Button located on the top of the device until the screen turns on. The main menu will appear after the loading screen.

Why is there no sound from my device?

Check if the volume is turned down or muted. Press the Sound button on the map screen to adjust.

How do I charge the GPS device?

Connect the mini-USB cable to the device and the other end to a USB port on a PC or use the car charger. The red indicator shows charging, green when full.

What should I do if the GPS cannot receive satellite signals?

Ensure you are outdoors or near a window. Remove any metal or heat-insulating barriers. If using a vehicle, consider an external GPS antenna.

How do I insert a microSD card?

Insert the card with the connector facing the device and the label facing the front side. Gently press until it clicks. To remove, press the edge to release the lock.

How do I connect Bluetooth to my phone?

From the main menu, tap Function > Bluetooth. Enable Bluetooth and select Paired List. Search for your phone, select it, and enter PIN 1234.

How do I set up the Navitel navigation?

Tap the Map icon. Use Search to find an address or point of interest. Select a destination and tap 'Go To' to create a route. Follow the blue route line on the map.

What does the red, yellow, and green GPS dot mean?

The GPS button icon has a dot: red means no connection, yellow means weak connection, green means strong GPS connection.

How do I reset the device?

Use a stylus or paperclip to press the Reset button located on the side of the device. This will restart the unit without losing data.

How do I clean the touch screen?

Turn off the device and disconnect power. Gently wipe the screen with a soft, dry cloth. Do not use liquids or harsh cleaners.

USER MANUAL GeoVision 4766 Navitel PRESTIGIO

Black triangular warning symbol with exclamation mark (no text or numbers)

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION

1. To reduce the risk of electric shock, do not remove the cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel.
2. The manufacturer should not hold responsibility for the damage caused by any substitutions and modifications of the product without authorization from the manufacturer or authorized unit.

WARNING

The device should not be exposed to dripping or splashing and no objects filled with liquids should be placed on the device.

To prevent the GPS from being damaged, be sure to keep the GPS out of direct sunlight or heat. Maintain well-ventilated conditions around the unit to avoid overheating.

Accessories List

ITEM	NAME
	Car Charger 1
	Pouch(for GV5766/5766BT)	1
	USB Cable 1
	Stylus Pen 1
	Driver/Documentation CD 1
	User Manual 1
	Warranty Card	1
	Smart Mount	1
	User guide(for smart mount)	1

EN-2

QTY

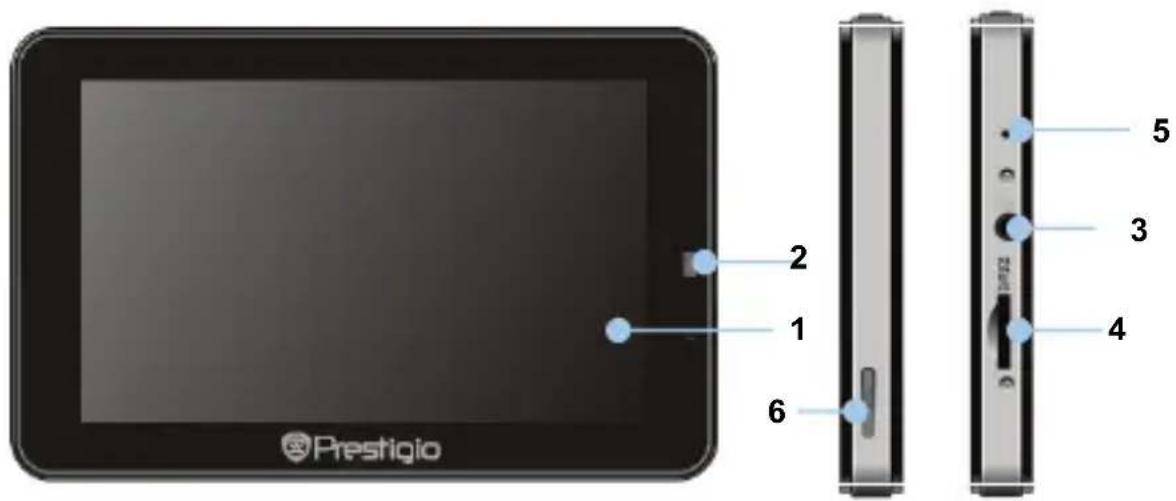

Front and Side View

1. LCD Touch Screen

Tap the screen with touch pen or finger to select menu commands or to enter information.

2. Light sensor

3. Headphone Port

Connects to stereo headphones or headsets.

4. microSD Slot

Receives microSD memory card for data access or memory expansion.

5. Reset Button

Press to reset the device

6. Speaker

Emits sound, voice or music.

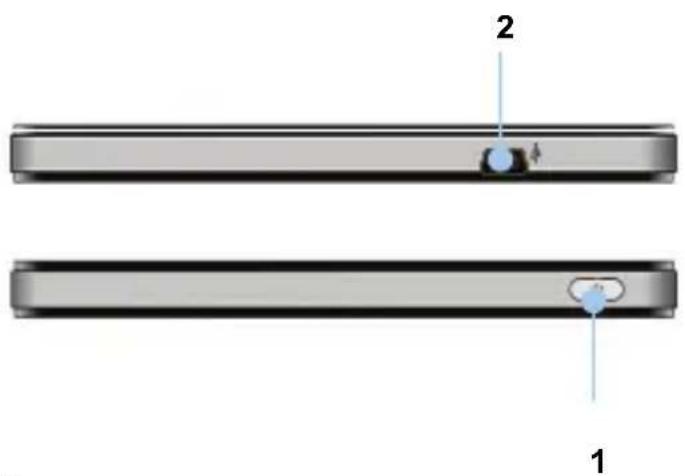

Top and Bottom View

1. Power Button

Press to power ON/OFF device.

2. Mini-USB Port

Connect to USB Cable for data access or battery charging

Inserting microSD Card

Black rectangular electronic device with a small attached card showing 'Prestigio' and a small label 'Mire 2.5", no readable text or symbols on the device itself.

• To insert a microSD card, place connector towards device and card label towards the front side of the device.
• To remove a microSD card, gently press the edge of the card to release the safety lock and pull the card out of the slot.

NOTE:

Please always make sure that no application is accessing the microSD card before extraction.

Connecting to External USB Device (Charging)

Black rectangular electronic device with 'Prestigio' branding and a small icon showing a smartwatch (no text or symbols on the device itself)

• Insert the mini USB connector into the appropriate mini USB port.
• Insert the other USB connector into the USB port on PC to start charging.

Connecting to Earphones

Diagram showing a device with a cable and connector, no text or symbols present

- Insert earphone jack (earphones not included) into the appropriate earphone port to switch audio output from device speaker to earphone.

NOTE:

High volume level is a potential risk to your hearing. Please turn down the volume before connecting the earphone and gradually turn up the volume to a comfortable level.

Connecting to Car Charger

Close-up of a car charger connected to a cable with a small icon, no visible text or symbols

• Insert USB connector into the appropriate USB port.
• Insert car charger connector into vehicle 12V accessory/cigarette socket to start charging.

NOTE:

Please connect the car charger to vehicle 12V accessory/cigarette socket after vehicle engine is started to protect the device from sudden surges in current.

About Rechargeable Battery

The device is equipped with a built-in rechargeable battery. Please fully charge the battery (for at least 8 hours) before initial use. The battery status indicator glows in red color when charging, and turns green color when the battery is full. Charging time is approximately 2 hours.

Working conditions and precautions for the rechargeable battery

● Device with new batteries should be fully charged before initial use.
● Battery should only be used and charged when temperatures are between 0^ 37^ .
- It is not necessary to start charging the device before the battery is fully discharged.

NOTE:

Please connect the car charger to vehicle 12V accessory/cigarette socket after vehicle engine is started to protect the device from sudden surges in current.

Getting Started

Simple grayscale rectangular object with a small circular button labeled 'b' pointing to the bottom right corner (no other text or symbols)

Close-up of a metallic electronic device with a button labeled '6' pointing to its left side (no other text or symbols visible)

1. Press and hold Power Button to turn on the device.

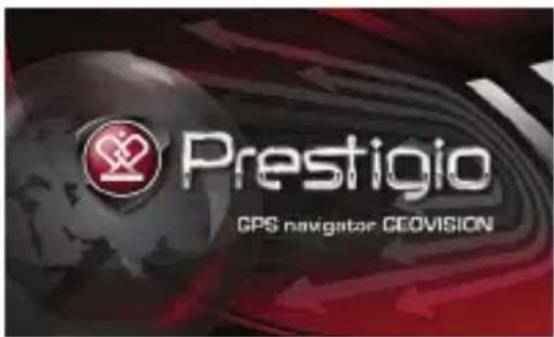

2. Shortly after the loading screen is shown, the main menu will be displayed.
3. Tap the corresponding buttons with touch pen included to navigate various functions.
4. Press and hold Power Button to turn off the device or to allow the device to enter sleep mode.

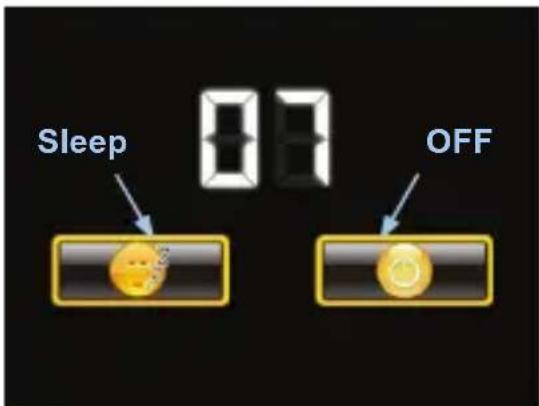

5. Tap Sleep icon to enter sleeping mode or OFF icon to complete turn off the device.

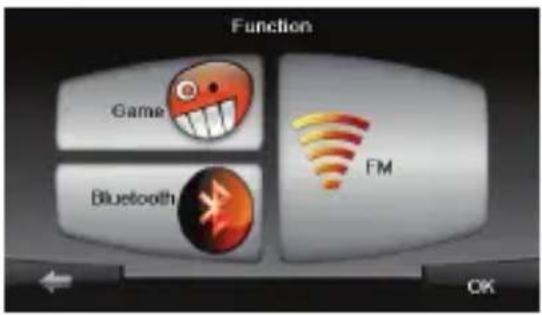

Bluetooth function (optional)

The following is shown how to select, switch on/off the Bluetooth function

1. Tap on Function icon on the main menu.

2. Tap on Bluetooth icon to start using Bluetooth function.

3. Tap on ON/OFF icon to enable/disable Bluetooth function.

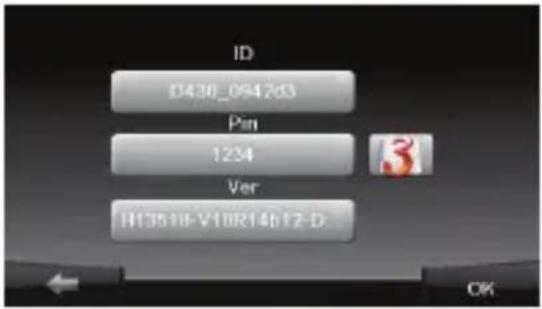

4. Tap Info icon to review Bluetooth information.

5. Tap on to reset a new PIN code. The default setting is 1234.

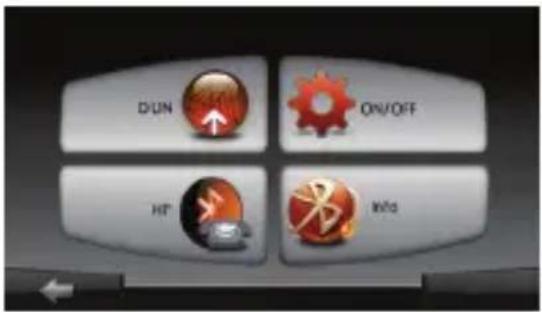

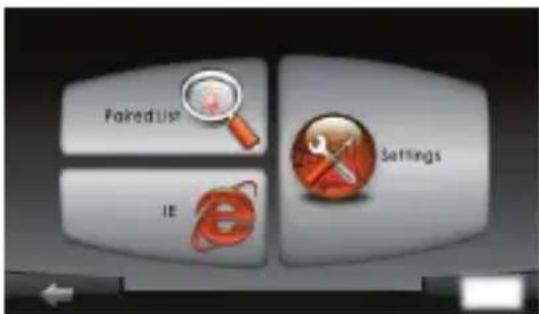

Bluetooth Connection

How to operate the Bluetooth function.

1. Tap on DUN icon or HF icon on the main menu.

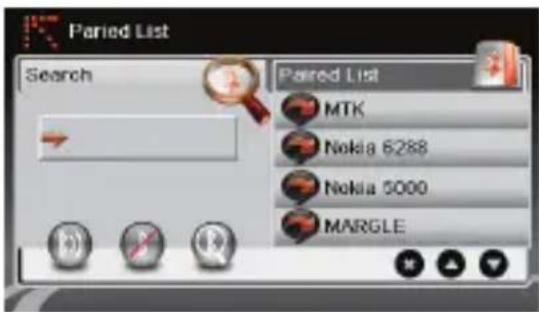

2. Tap on Paired List icon to start pairing with mobile phone device with GPRS function.

3. Please make sure Bluetooth function on mobile phone is detectable by other devices.

4. Tap on to start searching process.

5. Mobile phone name desired for connection will be displayed on the list when search is completed.

6. Tap on the mobile phone name and tap on to establish connection.

7. Enter PIN code 1234 when PIN number is required on mobile phone device.

8. Tap on to disconnect current Bluetooth connection.

9. Select mobile phone name from

Paired List and tap on

re-connect from previously connected mobile phone.

1. Select mobile phone name from

Paired List and tap on

it from the list.

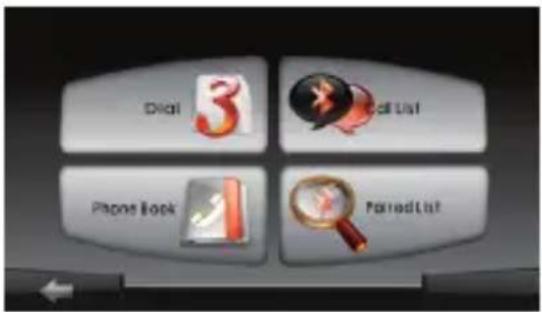

1. Tap on HF icon on the main menu.

NOTE:

Please refer to Bluetooth Connection section before connecting by Hands Free function.

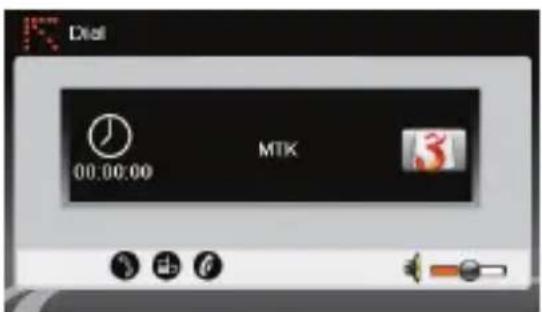

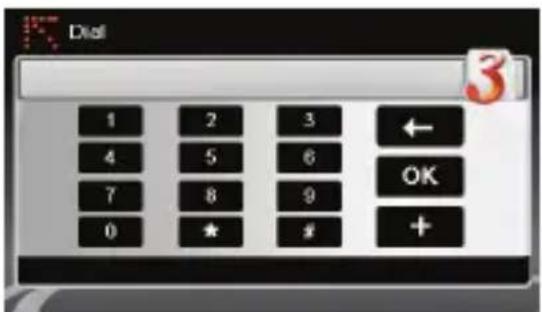

1. Tap on Dial icon to make phone calls.

2. Tap on digit buttons and tap on to start dialing.

1. Tap on to answer a call if it is on standby.

2. Tap on to end call.

3. Tap on to switch the call to mobile phone or switch it back to device.

4. Tap on 3 to show dialing keypad to dial more numbers.

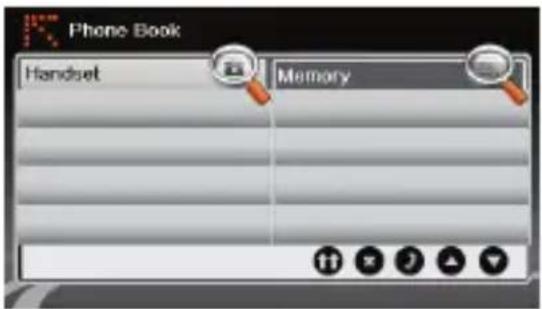

5. Tap on Phone Book icon to view phonebook entries.

6. Tap on to browse phonebook entries stored in SIM card.

7. Tap ▲ to scroll pages up/down.

8. Select a phonebook entry and tap to make the call.

9. Select a phonebook entry and tap to delete it.

Hands Free Function

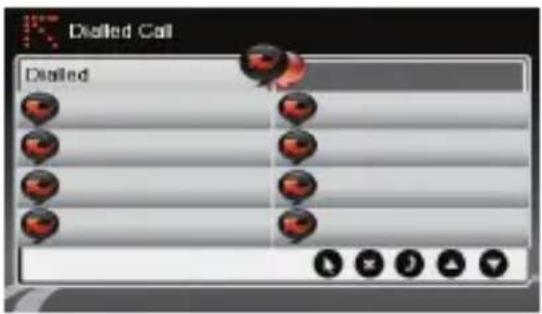

1. Tap on Calls List icon to review call history.
2. Tap 📄 to view Dialed Call list, Received Call list, and Missed Call list.
3. Tap △ to scroll pages up/down.
4. Select a phonebook entry and tap to make the call.
5. Select a phonebook entry and tap to delete it.

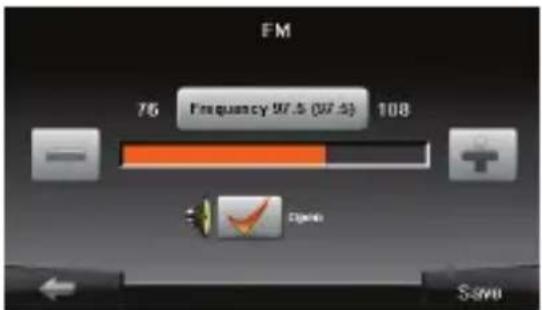

FM function (optional)

1. Tap on Function icon on the main menu.

2. Tap on FM icon to start using Bluetooth function.

3. Tap on / to tune FM frequency down/up.

4. Tap on to open the selected frequency for broadcast.
5. Tap on Save to save current FM station.
6. Tap on to cancel settings and exit.

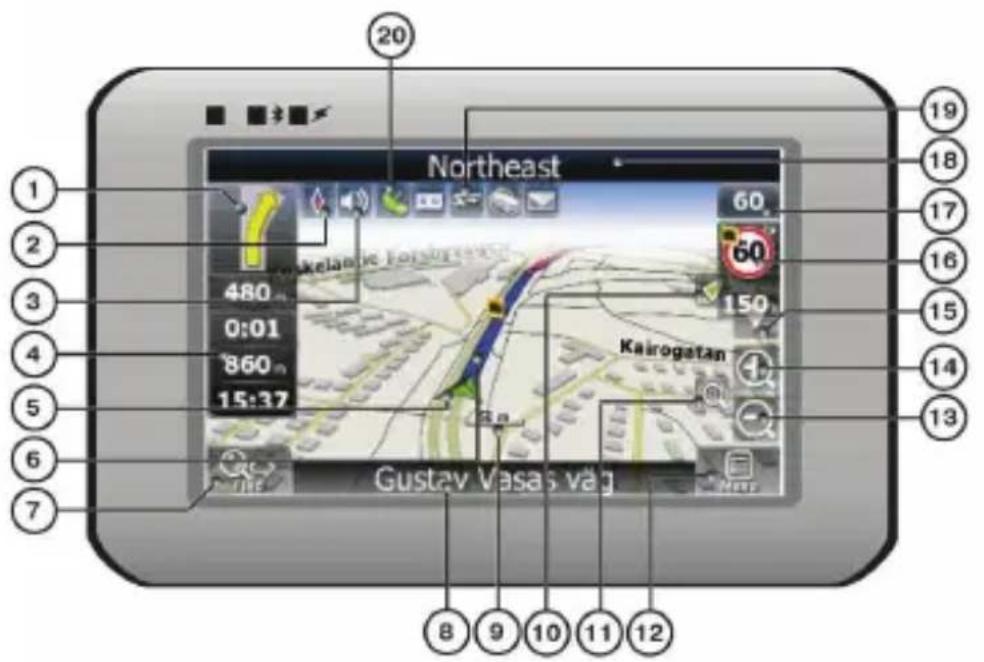

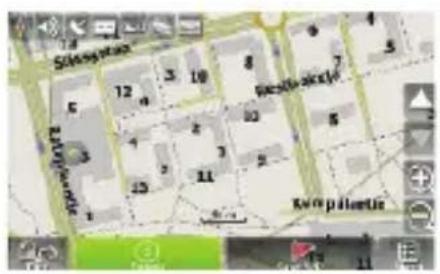

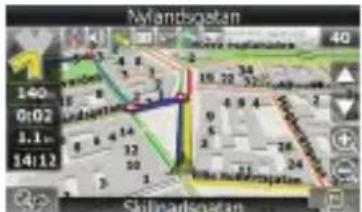

Program interface

No. Name Function

1	Next maneuver	Next maneuver on the way and distance up to it. Press this Icon to open route options menu.
2	Compass	Press the compass loon to edit map rotation mode, map view and day/night mode.
3	Sound	Press this button to turn on/off voice and sound effects.
4	Information panels	Display time until the end of the trip, total route length, and arrival time.
5	GPS-cursor	If GPS connection is established, displays your current location.
6	Route	Route you are currently navigating displays as a wide blue line.
7	Search	Press this button to enter the search menu and to find specific address or object (you can find more Info about Search In ~Functionality~ section)
8	Information panel	Shows street name you are currently moving on. Available only if GPS or GLONASS connection is established. If there is no street name, the direction will be shown.
9	Scale Map current scale.

No. Name Function

10	Return to current location	You can see the green arrow at the top of the screen if the map was moved relative to your position. Press it to return view to your current location.
11	Autoscale	If you zoom In/out with ~Autozoom~ function activated, this function will deactivate for a period according to settings. Press this button to activate ~Autozoom~ function manually.
12	MENU Press to enter the Main Menu.
13	Zoom Out	Decrease map scale.
14	Zoom In	Increase map scale.
15	Map slope	Press "Up"/"Down" to slope the map. Available only if scale is between 5 and 300 m.
16	Speedcam window	When you approach a speed camera with visual warnings being activated the window will appear In upper right comer at the screen. This window shows you permitted speed and distance left. Press the window to turn On/Off speed exceeding sound warnings.
17	Speed	Current speed. Available only with GPS connection established.
18	Information panel	Shows street name you are currently moving on. Available only if GPS or GLONASS connection is established. If there is no street name, the direction will be shown.
19	Battery	Icon displays battery life. Press it to open window with full information about battery life and remaining memory.
20	GPS	GPS connection button. Green icon - connection enabled, white icon – function disabled. Green icon also has a dot at different color: red - no connection, yellow - poor connection, green - connection established.

Program interface

No. Name Function

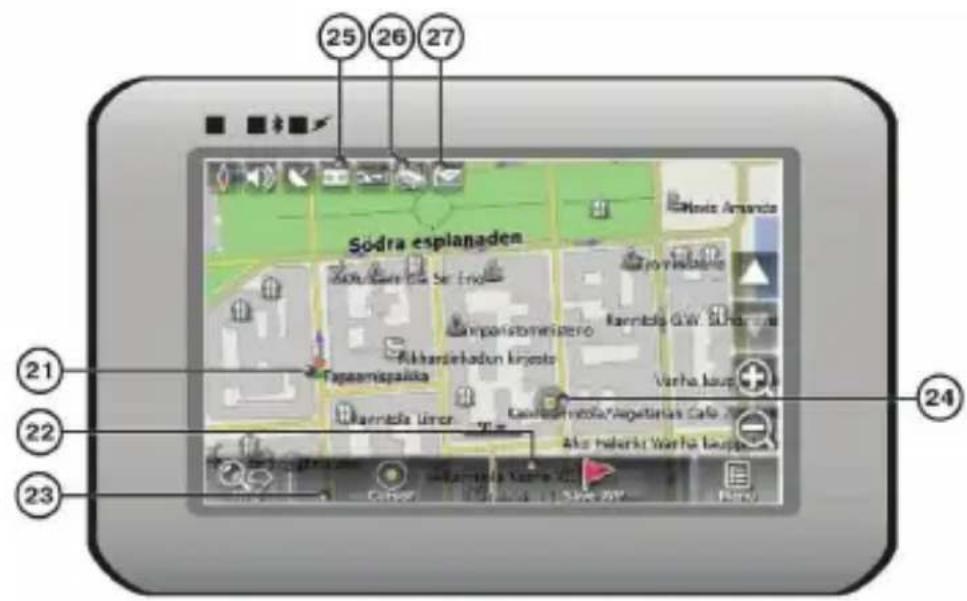

21 Waypoint	Waypoints are manually created by the user and display with red flags on a map.
22 “SaveWP”	Saves current mark on map as a waypoint.

No. Name Function

23	“Cursor”	Shows the menu of mark on map
24	Mark on map	Touch the screen with a stylus to set a mark. You can save this mark as a way point add it to the route or see object's characteristics the mark was set on.
25	Track record	Track record. Green icon - track record enabled, white icon function disabled.
26	Traffic Jams	Press this icon to edit "Navitel.Traffic Jams." function.
27	Navitel.SMS	Button is used to read/send SMS-messages and to work with coordinates given there. Figure near the icon displays number of unread messages.
28	“Go To”	“Mark on map” becomes the end point of the route.
29	Insert	“Mark on map” becomes the middle point of the route
30	“Add”	“Mark on map” becomes the end point of the route, whereas previous end point becomes middle point.
31	“Start”	“Mark on map” becomes the start point of the route. You should turn off your GPS/GLOANASS-receiver.
32	Back	Depends on way you got to this screen, returns back to “Map” screen or to find menu.
33	Info	Info about current “Mark on map” position. Tap to see more.
34	Back to map	Returns to the “Map” page
35	Object of interest	Different objects on map (traffic lights, metro stations, petrol stations etc.).

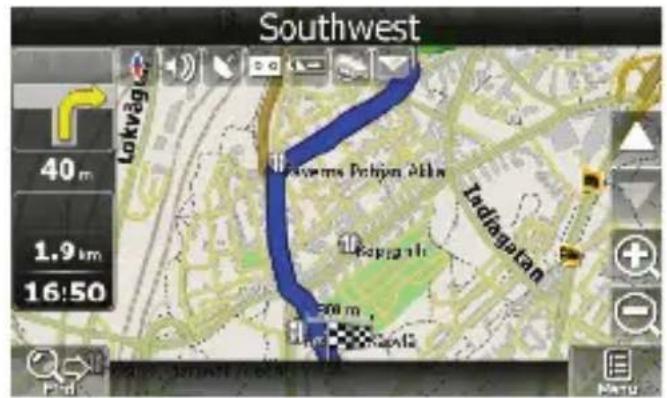

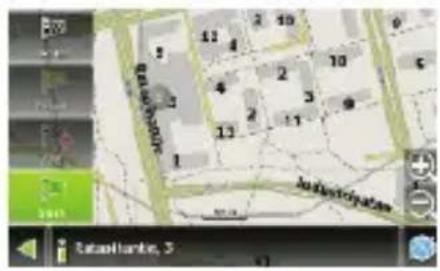

Autorouting

Autorouting

In order to create a route automatically, from the current position to the destination point, tap with the stylus pen on the place on the map where the final point is, tap on the "Cursor" button and in the context menu choose "Go to" (Fig. 1). The calculated route will be shown on the map in blue color with highly visible dark border (Fig. 2). Please, note that in case of non-routable maps, the route will represent a straight green line from your position to the destination point, ignoring the existing buildings, roads, etc.

1 2

Autorouting using search

Find an object of interest using “Search” and press it with stylus, then select “Go To” item from the menu. Apart from this item there are also “Insert” — add a point between two points of existing route, and “Add” — point is added to the end of a route and continues it. Both items are available only with existing route.

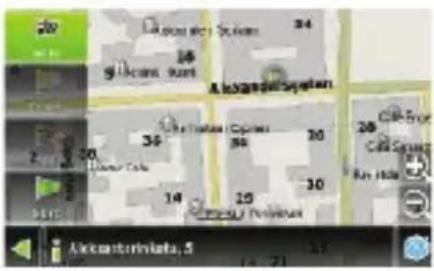

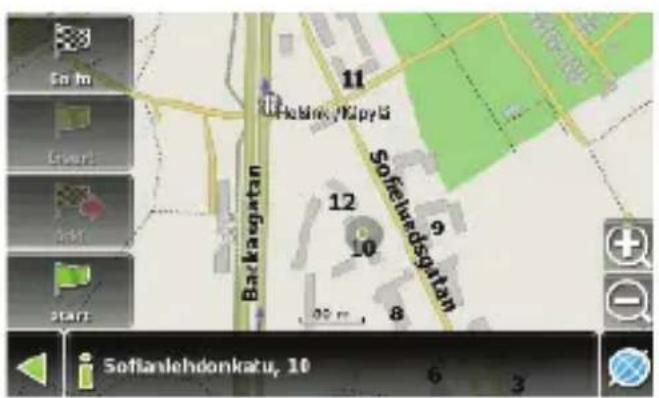

Manual route creation

The difference of this route creation method from previous two is what you can set a start point and a destination point.

To create a route, press a map using stylus, press the “Cursor” (Fig. 1) button and “Start” button after the menu appears (Fig. 2). Then find the destination point and press “Cursor” — “Go To” (Fig. 3). If you using maps supports autorouting, route will be created referring to this data and will be the shortest or the quickest. Otherwise waypoints will be connected with strait green lines.

Please note! If GPS-receiver is active, you cannot set the start point!

1 2 3

Additional features

If your device has GPRS-module, or provides Internet connection via the GPRS-module of your mobile phone through Bluetooth, you will be able to use some «Navitel.Navigator» software features like «Navitel.Traffic» and «Navitel.SMS» services.

Navitel. Traffic

1

2

Using this service you can see the traffic situation in Russia, Ukraine, Belarus or any other country you have official map for. To set the service, go to "Settings" -> «On-line services» -> "Traffic Jams".

When the service is active, the roads are colorized in different colors, which mean: red - traffic jam, pink - movement is complicated, yellow - movement is a bit complicated, green - favorable traffic(1).

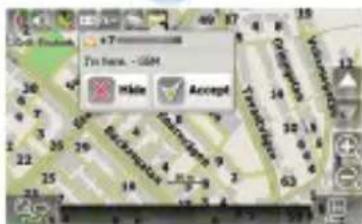

Navitel.SMS

The special window will appear on the screen when you receive the Navitel.SMSI2]. Select "Hide" to hide it or "Accept" to see options.

Note:

For more detailed information regarding the functionality of Navitel 5.0 software, please, refer to the complete user manual on CD, or to www.prestigio.com.

Take the steps described in the tables below to solve simple problems before contacting customer service centers.

NOTE:

Immediately turn off the device and disconnect the power adapter if the device is not working properly. Never try to repair the unit without authorized personnel for it may damage the unit.

PROBLEM

Users cannot turn on the unit.

There is no sound.

There is no picture.

The unit cannot receive satellite signals or cannot orient.

POSSIBLE CAUSE

The adaptor is not connected well.

The built-in rechargeable battery is weak.

The volume may be turned down or mute.

The brightness may be turned down.

The unit work may be obstructed by buildings or metal constructions.

POSSIBLE SOLUTION

Connect the adaptor correctly.

Use the adaptor to supply power or charge the battery.

Turn up the volume or turn on the sound output.

Adjust the brightness of the LCD.

Make sure to use the unit out of room; if in the vehicle, you can use the external GPS antenna to solve this problem.

Troubleshooting

PROBLEM

POSSIBLE CAUSE

POSSIBLE SOLUTION

The unit can receive signals now but can't then; signals received are not stable.

The built-in rechargeable battery is weak.	Use the adaptor to supply power or charge the battery.
The unit may be obstructed by veil, such as heat insulation paper.	Remove the veil.
Swing of the unit is too great.	Avoid great swing of the unit.

MODEL	GV4766/4766BT	GV5766/5766BT
Navigation Software	Navitel 5.1	Navitel 5.1
GPS Chipset	SiRF Atlas V 664MHZ	SiRF Atlas V 664MHZ
Channels	64	64
Antenna	Internal Internal
Interface	USB USB
Display size	4.3" 5"
Resolution	480*270 800*480
Display type	TFT Touch screen TFT Touch screen
RAM	128MB, DDR2 128MB, DDR2
Flash	4GB 4GB
Expansion slot	Micro SD-Card slot, max8GB	Micro SD-Card slot, max8GB
Battery type/capacity	Li-polymer 950mAh Li-polymer 1250mAh
Operating System	Microsoft Window CE6.0	Microsoft Window CE6.0
Speaker	1w 8ohm built-in speaker 1w 8ohm built-in speaker
Video formats supported	AVI	AVI
Audio formats supported	MP3 MP3
Earphone jack	2.5mm mini jack	2.5mm mini jack
Operating Temperature	0~60°C	0~60°C
Operating humidity	10% to 90%non-condensing	10% to 90%non-condensing

PC Connection

To establish connection with PC for data access and synchronization, please execute setup file included in the Driver/Documentation CD or download the file from Microsoft website to install:

Microsoft Active Sync® software for operating system Microsoft XP or earlier versions

(http://www.microsoft.com/windowsmobile/en-us/downloads/microsoft/activesync-download.mspx)

and/or

Microsoft Mobile Device Center® software for operating system Microsoft Vista (http://www.microsoft.com/windowsmobile/en-us/downloads/microsoft/device-center-download.mspx).

Please refer to its user manual for more detailed instructions.

Disclaimer

As the Prestigio products are constantly updated and improved, your device may have a slightly different appearance or modified functionality than presented in this Quick start Guide.
