Product Type	Under-cabinet range hood
Model	EFA9620X
Brand	Electrolux
Width	60 cm
Depth	50 cm
Height (min-max)	62 - 104 cm
Weight	11 kg
Power Supply	220-240 V, 50 Hz
Total Connected Load	150 W
Motor Power	120 W
Max Extraction Rate	650 m³/h
Noise Level (max)	65 dB(A)
Number of Speeds	3 + intensive
Controls	Electronic push buttons
Lighting	2 x 3 W LED
Grease Filter Type	Aluminum mesh, washable
Charcoal Filter	Optional, for recirculation mode
Energy Class	A
Installation Type	Built-in / under cabinet
Exhaust Duct Diameter	150 mm
Material	Stainless steel

Frequently Asked Questions - EFA9620X ELECTROLUX

How do I clean the grease filters?

Remove the aluminum mesh filters and wash them in warm soapy water or in the dishwasher. Ensure they are completely dry before reinstalling.

Can I use the hood without a charcoal filter?

Yes, the hood works in extraction mode without a charcoal filter. The charcoal filter is only required for recirculation mode to absorb odors.

How do I replace the LED lights?

Warning: Disconnect power. Pry open the light cover and replace the LED module with a compatible 3 W LED from Electrolux.

What is the maximum extraction capacity?

The maximum extraction rate is 650 m³/h at the highest speed setting.

How often should I clean the filters?

Grease filters should be cleaned every 2-3 months depending on usage. Charcoal filters should be replaced every 6-12 months.

Is the hood suitable for use over a gas hob?

Yes, the hood is suitable for use over gas and induction hobs. Ensure a minimum distance of 65 cm between the hob and the hood.

How do I activate the intensive speed?

Press the intensive speed button on the control panel. It will run for 10 minutes and then return to the previous speed.

What does the alarm indicator mean?

The alarm indicator signals that the charcoal filter needs replacement or the grease filters need cleaning. Refer to the manual for reset instructions.

Can I convert the hood from ducted to recirculation?

Yes, you can convert to recirculation by adding a charcoal filter and capping the exhaust outlet. A kit may be required.

What is the noise level at normal speed?

At normal speed, the noise level is around 50 dB(A). At intensive speed, it can reach 65 dB(A).

USER MANUAL EFA9620X ELECTROLUX

Thinking of you Electrolux

USER MANUAL

EFA9620

Close-up of a young girl with curly hair and hands preparing food, wearing a patterned overalls (no visible text or symbols)

We were thinking of you

when we made this product

EN

RECOMMENDATIONS AND SUGGESTIONS 6

CHARACTERISTICS 7

USE 12

MAINTENANCE 14

Welcome to the world of Electrolux

Thank you for choosing a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. The Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable. You find some examples on the cover in this manual. Please take a few minutes to study this manual so that you can take advantage of the benefits of your new machine. We promise that it will provide a superior User Experience delivering Ease-of-Mind. Good luck!

ES

RECOMMENDATIONS AND SUGGESTIONS

Installation

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

Use

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.

• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.

• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

• Do not flambè under the range hood; risk of fire
• The hood should not be used by children or persons not instructed in its correct use.

Maintenance

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period.
• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

CHARACTERISTICS

Dimensions

Components

Ref. Q.ty Product Components

1 1 Hood Body, complete with: Controls, Light, Blower, Filters

2 1 Telescopic Chimney comprising:

2.1 1 Upper Section

2.2 1 Lower Section

7.1 1 Telescopic frame complete with extractor, consisting of:

7.1a 1 Upper frame

7.1b 1 Lower frame

9 1 Reducer Flange ø 150-120 mm

10 1 Flange ø 150

15 1 Air Outlet Connection

24 1 Junction box

25 Pipe clamps (not included)

30 1 Suction panel

Ref. Q.ty Installation Components

11 4 Wall Plugs ø 10

12c 6 Screws 2,9 x 6,5

12e 2 Screws 2,9 x 9,5

12f 2 Screws M6 x 10

12g 4 Screws M6 x 80

12h 4 Screws 5,2 x 70

12q 4 Screws 3,5 x 9,5

21 1 Drilling template

22 8 6.4 mm int. dia washers

23 4 M6 nuts

Q.ty Documentation

1 Instruction Manual

INSTALLATION

Drilling the Ceiling/shelf

• Use a plumb line to mark the centre of the hob on the ceiling/support shelf.
• Place the drilling template 21 provided on the ceiling/support shelf, making sure that the template is in the correct position by lining up the axes of the template with those of the hob.
• Mark the centres of the holes in the template.

• Drill the holes at the points marked:

• for concrete ceilings, drill for plugs appropriate to the screw size.

• for hollow brick ceilings with wall thickness of 20 mm: drill ø 10 mm(immediately insert the Dowels 11 supplied).
• for wooden beam ceilings, drill according to the wood screws used.
  • for wooden shelf, drill ø 7 mm.
• for the power supply cable feed, drill 10 mm.
• for the air outlet (Ducted Version), drill according to the diameter of the external air exhaust duct connection.

- Insert two screws of the following type, crossing them and leaving 4-5 mm from the ceiling:

• for concrete ceilings, use the appropriate plugs for the screw size (not provided).
• for Cavity ceiling with inner space, with wall thickness of approx. 20 mm, Screws 12h, supplied.
• for wooden beam ceilings, use 4 wood screws (not provided).
• for wooden shelf, use 4 screws 12g with washers 22 and nuts 23, provided.

Diagram of a mechanical assembly with a cylindrical component and a base plate, showing alignment lines (no text or symbols)

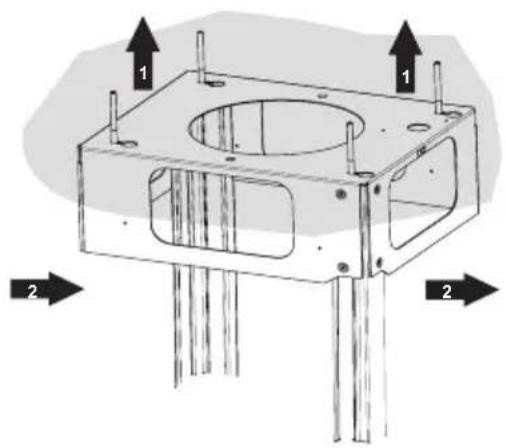

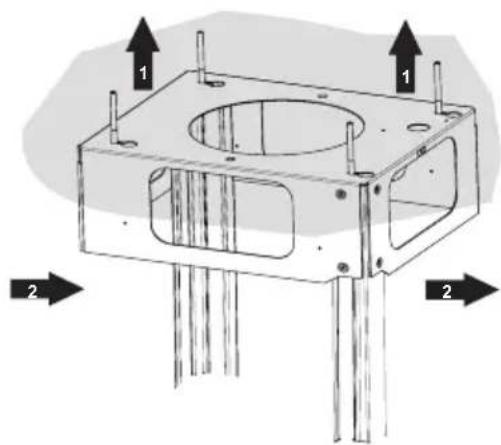

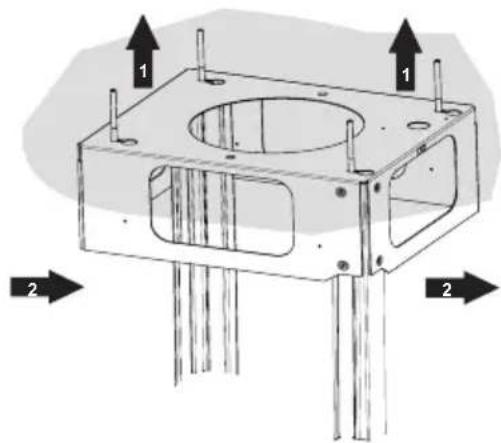

Fixing the frame

• Loosen the two screws fastening the lower chimney and remove this from the lower frame.
• Loosen the two screws fastening the upper chimney and remove this from the upper frame.

If you wish to adjust the height of the frame, proceed as follows:

• Unfasten the metric screws joining the two columns, located at the sides of the frame.
• Adjust the frame to the height required, then replace all the screws removed as above.
• Insert the upper chimney stack from above, and leave it running free on the frame.
• Lift up the frame, fit the frame slots onto the screws up to the slot end positions.
• Tighten the two screws and fasten the other two screws provided with the hood.

Before tightening the screws completely it is possible to adjust the frame by turning it. Make sure that the screws do not come out of their seats in the slotted holes.

- The frame mountings must be secure to withstand the weight of the hood and any stresses caused by the occasional side thrust applied to the device.

On completion, check that the base is stable, even if the frame is subjected to bending.

- In all cases where the ceiling is not strong enough at the suspension point, the installer must provide strengthening using suitable plates and backing pieces anchored to the structurally sound parts.

Technical illustration of a mechanical assembly with a magnified inset showing a screwdriver inserted into a component (no text or symbols present)

Connection in Ducting Version

When installing the ducting version, connect the hood to the chimney using either a flexible or rigid pipe ∅ 150 or 120 mm, the choice of which is left to the installer.

• To install a ø 120 mm air exhaust connection, insert the reducer flange 9 on the hood body outlet.
• Fix the pipe using the pipe clamps 25 (not provided).
• Remove charcoal filters, if present.

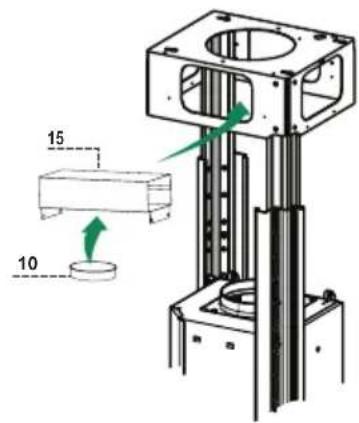

Connection in Recycling Version

• Fix the connection 15 to the frame using the 4 screws provided.
• Fix the flange 10 to the lower opening of the connection 15.
• Connect the hood air outlet to the flange in the lower part of the junction using a rigid or flexible 150 tube (by installer's choice).
• Ensure that the charcoal filters have been fitted.

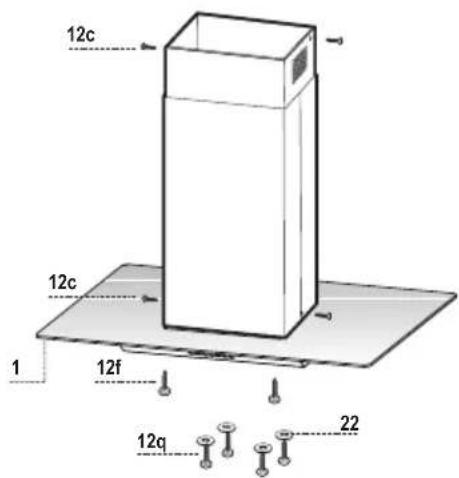

Chimney assembly / Mounting the hood body

• Position the upper chimney section and fix the upper part to the frame using the 2 screws 12c (2,9 x 6,5) provided.
• Similarly, position the lower chimney section and fix the lower part to the frame using the 2 screws 12c (2,9 x 6,5) provided.

Before fixing the hood body to the frame:

• Screw the 2 screws 12f half way into the holes provided in the sides of the bottom of the frame.
• Remove the grease filters from the hood canopy.
• Remove any activated charcoal filters.

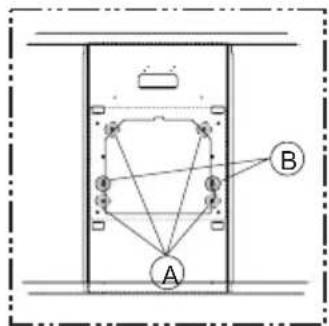

• Lift the hood canopy and engage the screws 12f in the slots (A) as far as they will go.
• Working from below, fix the hood canopy to the frame (B), using the 4 screws 12q and 4 washers 22 provided, then tighten all the screws securely.

Electrical Connection

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.
• Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.
• Connect the control connector Cmd.
• Connect the lights connector Lux.
• Place the connectors in the junction box 24 and close it using the 2 screws 12e (2,9 x 9,5) provided.
• Fix the junction box to the hood body using the 2 screws 12c (2,9 x 6,5) provided.
• For the recirculation version, fit the activated carbon odour filter.
• Replace the grease filters.
• Hook the suction panel 30 to the hood.

Technical illustration of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

USE

The hood can be switched on pushing directly onto the requested speed without firstly having to select 0/1 button

Touch control	Basic functions Indicator lights
	Dual Function
L	When briefly pressed it switches the lighting system on and off.	Touch control unlit	Lights off
	When pressed for 2 seconds it starts the lighting system in "courtesy light" mode. The lamps are fed at a reduced power of approximately 5W. Such function can be stopped by pressing the touch control for 2 seconds or just by pressing it shortly in order to return to the normal lighting mode. In courtesy light mode the touch control is not lit.	Touch control lit	Lights on
		Touch control unlit	Courtesy light on
T1	When pressed the motor is stopped, regardless of the speed it is set to.	Touch control lit	Motor on
		Touch control unlit	Motor off
T2	When pressed the motor is set to the first speed	Touch control lit
T3	By a brief pressing the motor is set to the second speed.	Touch control lit	Second speed on
	By pressing the touch control for approximately 2 seconds the Delay function is enabled, i.e delayed shutdown of the appliance ensuring a complete elimination of the residual odours. This function can be activated at OFF-position and at 1°, 2° and 3° speeds. It can be stopped in advance by pressing any of the touch controls (T) with the exception of T3. The Delay function works according to the following scheme:1° speed / OFF = 20 minuets2° speed = 15 minutes3° speed = 5 minutes	Flashing touch control	Delay function on
T4	When pressed the motor is set to the third speed	Touch control lit
T5	When pressed the motor is set to the intensive speed timed to 5 minutes. At the end of 5 minutes of intensive speed the hood starts again at the speed it was set to previously. In case the hood is set to the intensive speed directly from OFF-state it will then start from the first speed after 5 minutes of intensive speed.	Touch control lit
F	When pressed for 4 seconds it resets the filter alarm signal indicated by flashing of the touch control T1. This procedure can be carried out only when the motor is stopped.	Touch control lit	Metal grease filters saturation alarm. Metal grease filters need to be washed. The alarm starts up after 100 working hours.
		Flashing touch control	Charcoal filter saturation alarm. Charcoal filter has to be replaced and metal grease filters washed. The alarm starts up after 200 working hours. (Activation; check the paragraph "Charcoal filter")

MAINTENANCE

Cleaning of the Suction panel

• Pull the suction panel to open it.
• Slide the fixing pivot lever to disconnect the panel from the hood casing.
• Do not wash the panel in the dishwasher.
• Clean the outside using a damp cloth and neutral liquid detergent.
• Clean the inside as well using a damp cloth and neutral detergent; do not use wet cloths or sponges, or jets of water; do not use abrasive substances.
• After having carefully cleaned the panel hook the panel back to the hood and close it.

Technical diagram of a ceiling-mounted device with internal components and mounting brackets (no text or symbols)

Technical line drawing of a mechanical component with internal parts and directional arrows (no text or symbols)

Cleaning of the Metal Cassette Filters

Alarm reset

• Stop the motor.
• Press the F -touch control for at least 4 seconds until the T1 -touch control flashes.

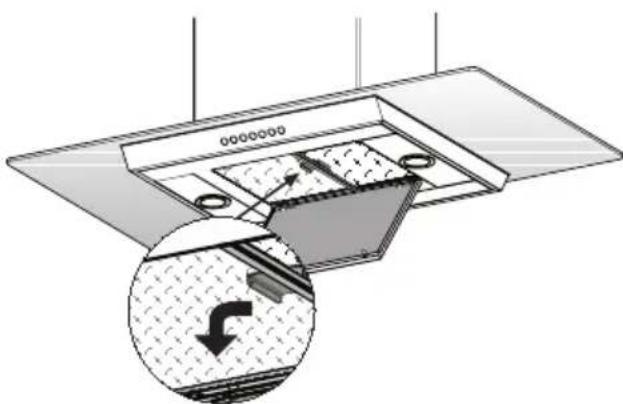

Cleaning the filters

• Filters can be washed in the dish machine. They need to be washed every 2 months or even more frequently in case of particularly intensive use of the hood.
• Pull the suction panel to open it.
• Remove the filters one by one pushing them laterally and simultaneously pulling downwards.
• Any kind of bending of the filters has to be avoided when washing them. Before fitting them again into the hood make sure that they are completely dry (The colour of the filter surface may change throughout the time but this has no influence to the filter efficiency).
• When fitting the filters into the hood pay attention that they are placed in correct position and that the handle faces outwards.
• Close the suction panel.

Replacing the Charcoal Filter

This filter cannot be washed or regenerated, and must be replaced when the F touch control starts to flash, or at least once every 4 months. The alarm is only triggered when the motor is on.

Enabling/Disabling the alarm signal

- In Recirculation Version Hoods, the Filter saturation Alarm must be enabled at the time of installation or later.

- Switch off the lights and the motor.

- Disconnect the mains power supply to the hood by removing the motor unit power supply cable connector, switching off the power supply at the Mains or turning the Main switch off.

- Restore the connection, pressing and holding T2.

- Release the touch control, touch controls L, T2 and F will light up normally.

- Within 3 seconds press the touch control F until the key itself flashes to confirm as follows:

- 2 flashes – Charcoal Filter saturation Alarm ENABLED

- 1 flash - Charcoal Filter saturation Alarm DISABLED

Reset the alarm signal

- Stop the motor.

- Press the touch control F for at least 4 seconds, until the touch control T1 flashes.

Replace the Filter

- Pull the suction panel to open it.

- Remove the metal grease filters.

- Remove the saturated charcoal filter, turning the fasteners provided.

- Fit the new filter and fasten it its correct position.

- Put the metal grease filters in their seats.

- Close the suction panel.

Light replacement

20 W halogen light.

- Remove the snap-on lamp cover by levering it from under the metal ring, supporting it with one hand.

- Remove the halogen lamp from the lamp holder by pulling gently.

- Replace the lamp with a new one of the same type, making sure that you insert the two pins properly into the housings on the lamp holder.

- Replace the snap-on lamp cover.

Illustration of a hand pressing a button on a green circular background with a green arrow (no text or symbols)

Illustration of a hand holding a small object above it, with no visible text or symbols

Diagram of a mechanical assembly with a central block and base plate, showing alignment lines (no text or symbols)

Montage des Teleskopgerüsts

Technical illustration of a mechanical assembly with a magnified inset showing a screwdriver inserted into a component (no text or symbols present)

Anschluss in Abluftversion

Elektroanschluss

Technical diagram showing a mechanical assembly with internal components and directional arrows (no text or symbols)

Illustration of a hand pressing a component on a green circular background with a downward arrow (no text or symbols)

Illustration of a hand holding a circular object with a lid, enclosed in a circle (no text or symbols)

Diagram of a mechanical assembly with a cylindrical component and a base plate, showing alignment lines (no text or symbols)

Technical illustration of a mechanical assembly with a magnified inset showing a screwdriver inserted into a component (no text or symbols present)

Conexión eléctrica

Technical illustration of a mechanical assembly with hands operating a tray and a magnified inset showing internal components (no text or symbols)

USO

Technical diagram showing a mechanical assembly with internal components and directional arrows (no text or symbols)

Illustration of a hand pressing a component on a green circular background with a green arrow (no text or symbols)

Illustration of a hand holding a circular object with a lid, enclosed in a circle (no text or symbols)

CONSELHOS E SUGESTÕES

Instalação

Technical diagram showing a mechanical assembly with a base, top, and bottom components (no text or symbols)

Technical illustration of a mechanical assembly with a magnified inset showing a screwdriver inserted into a component (no text or symbols present)

Ligação eléctrica

Technical illustration of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

UTILIZAÇÃO

Technical diagram showing a mechanical assembly with internal components and directional arrows (no text or symbols)

Limpeza dos filtros metálicos antigordura autoportantes

Reset do sinal de alarme

Illustration of a hand pressing down on a green wall with a directional arrow (no text or symbols)

Illustration of a hand holding a circular object with a ring above it, enclosed in a circular frame (no text or symbols)

Diagram of a mechanical assembly with a central block and base plate, showing alignment lines (no text or symbols)

Technical illustration of a mechanical assembly with a magnified inset showing a screwdriver inserted into a component (no text or symbols present)

Technical illustration of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

KULLANIM

Technical diagram showing a mechanical assembly with internal components and directional arrows (no text or symbols)

Illustration of a hand pressing down on a green surface with a downward arrow (no text or symbols)

Illustration of a hand holding a small object with a circular top, no text or symbols present

Diagram of a mechanical assembly with a cylindrical component and a base plate, showing alignment lines (no text or symbols)

Fissaggio Traliccio

Technical illustration of a mechanical assembly with a magnified inset showing a screwdriver inserted into a component (no text or symbols present)

Technical illustration of a mechanical assembly with a magnified inset showing a component being handled (no text or symbols present)

USO

Technical diagram showing a mechanical assembly with two views: top view of a component labeled '0000000' and bottom view of a device with internal components (no readable text or symbols)

Illustration of a hand pressing a component on a green surface, with no visible text or symbols

Illustration of a hand holding a circular object with a ring above it, no text or symbols present

ADVIEZEN EN SUGGESTIES

INSTALLATIE

Ref. Installatieonderdelen

11 4 Pluggen ø 10

12c 6 Schroeven 2,9 x 6,5

Diagram of a mechanical assembly with a cylindrical component and a base plate, showing alignment lines (no text or symbols)

Bevestiging Frame

Technical illustration of a mechanical assembly with a magnified inset showing a screwdriver inserted into a component (no text or symbols present)

Technical illustration of a mechanical assembly with hands operating a tray and a magnified inset showing internal components (no text or symbols)

GEBRUIK

Technical diagram showing a mechanical assembly with two views: top view of a component with internal components, bottom view of a device inside a housing (no text or symbols)

Illustration of a hand pressing down on a green circular background with a green arrow symbol (no text or labels)

Illustration of a hand holding a small object with a lid, enclosed in a circular frame (no text or symbols)

Modern stainless steel refrigerator with vertical glass panels and a black handle (no visible text or symbols)

Exterior view of a modern microwave oven with digital display and control panel (no visible text or symbols)

White electric stove with four top ovens and a front-mounted door (no visible text or symbols)

Red and silver vacuum cleaner with handle and blue control panel (no text or symbols visible)

3D rendering of a yellow gas stove with four black flanges (no text or symbols visible)

Exterior view of a stainless steel laboratory oven with control panel and ventilation duct (no visible text or symbols)

Exterior view of a modern stainless steel appliance with a glass door and control panel (no visible text or symbols)

Exterior view of a silver rectangular appliance with ventilation grilles (no visible text or symbols)

Exterior view of a red and blue vacuum cleaner with a compact base (no text or symbols visible)

Exterior view of a silver washing machine with a digital display and vent, shown against a plain background (no text or symbols visible)

Exterior view of a stainless steel electric grill with six grilles and open doors (no visible text or symbols)

Exterior view of a modern stainless steel refrigerator with dual doors and a blue water dispenser (no visible text or symbols)

www.electrolux.com
