Product Type	Vacuum Cleaner
Brand	ECG
Model	VR 935
Type	Cylinder (Canister)
Power Consumption	800 W
Suction Power	250 W
Dust Container Capacity	1.5 L (bagless)
Filtration System	HEPA filter
Noise Level	78 dB
Cable Length	6 m
Tube Material	Plastic
Dimensions (LxWxH)	400 x 260 x 280 mm
Weight	4.5 kg
Color	Red and Black
Accessories Included	Crevice tool, upholstery brush, small dusting brush
Operating Radius	8 m
Voltage	220-240 V, 50/60 Hz
Energy Class	A
Auto Cord Rewind	Yes
Overheating Protection	Yes
Dust Bag Indicator	No (bagless)
Spare Parts Available	HEPA filter, motor filter, sponge filter

Frequently Asked Questions - VR 935 ECG

How do I empty the dust container on the ECG VR 935?

Press the release button on the top of the dust container and pull it out. Hold it over a trash bin, press the bottom release button to open the flap, and empty the contents. Make sure to clean the filter regularly.

How often should I clean the HEPA filter?

Clean the HEPA filter every 3-4 months, or sooner if suction decreases. Tap it gently to remove dust or rinse under cold water (if labeled washable) and let it dry completely for 24 hours before reinserting.

What should I do if the vacuum loses suction?

Check if the dust container is full, the filters are clogged, or there is a blockage in the hose or nozzle. Clean or replace filters and remove any obstructions from the hose.

How do I check for blockages in the hose?

Detach the hose from the vacuum and nozzle. Use a long object (e.g., handle of a broom) to gently push out any blockage. You can also hold the hose up to a light to see through it.

Can I use the vacuum without the HEPA filter?

No, never operate the vacuum without the HEPA filter installed. It protects the motor and ensures proper filtration. Running without it could damage the vacuum and release dust back into the room.

How do I replace the filter on the ECG VR 935?

Turn off and unplug the vacuum. Open the filter cover (usually located on the top or side of the dust container). Remove the old filter and insert the new one, making sure it fits securely. Close the cover.

What is the power consumption of this vacuum?

The ECG VR 935 has a maximum power consumption of 800 watts. It operates on standard household voltage (220-240 V).

Why does the vacuum turn off during use?

This may be due to overheating protection. The vacuum has a thermal safety switch that turns it off if it gets too hot. Let it cool for at least 30 minutes, check for blockages or full dust container, and then try again.

How do I wind the power cord after use?

Hold the plug and press the cord rewind button (usually located on the top of the vacuum). The cord will automatically retract. Make sure your hand is not in the way.

What accessories come with the VR 935?

The vacuum includes a crevice tool for tight spaces, an upholstery brush for furniture, and a small dusting brush for delicate surfaces. All accessories can be stored on board.

USER MANUAL VR 935 ECG

Exterior view of a white and gray ECG vacuum cleaner with open mouth (no text or symbols visible)

VR 935

RUČNÍ VYSAVAČ

NÁVOD K OBSLUZE

RUČNÝ VYSÁVAČ

NÁVOD NA OBSLUHU

ODKURZACZ RĘCZNY

INSTRUKCJA OBSŁUGI

MORZSAPORSZÍVÓ

HASZNÁLATI ÚTMUTATÓ

HANDSTAUBSAUGER

BEDIENUNGSANLEITUNG

HAND VACUUM CLEANER

OPERATING MANUAL

CZ

SK

PL

HU

DE

EN

BEZPEČNOSTNÍ POKYNY

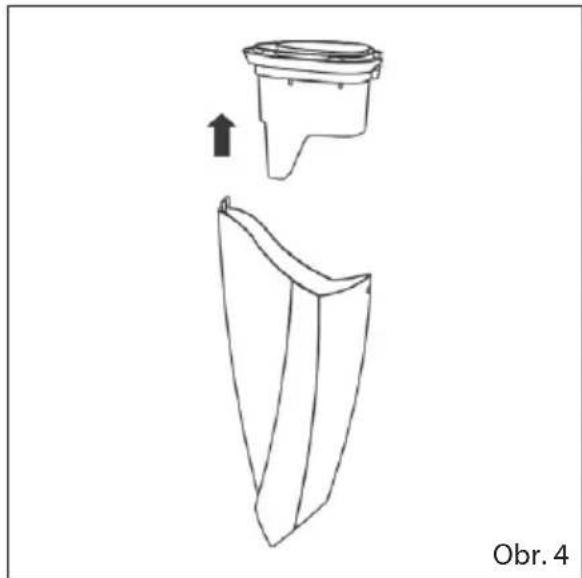

DOBÍJENÍ VYSAVAČE

Diagram of a device with a curved arrow indicating rotation or movement, labeled 'Obr. 3' at bottom (no other text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of two plastic containers with an upward arrow indicating movement or assembly (no text or symbols)

Simple line drawing of a book with a curved spine and a small object inside, labeled 'Obr. 6' (no other text or symbols)

ČIŠTĚNÍ

DOBÍJANIE VYSÁVAČA

Adaptér zapojte do sietovej zásuvky, po pripojení sa na držiaku rozsvieti indikátor nabíjania batérie. Približná dĺžka nabíjania je 14 hodín.

Diagram of a mechanical component with an arrow indicating rotation, labeled 'Obr. 3' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with an arrow indicating upward motion (no text or symbols)

Diagram showing two plastic containers with an upward arrow indicating movement or assembly (no text or symbols)

Simple line drawing of a book with a curved spine and a small object inside, labeled 'Obr. 6' (no other text or symbols)

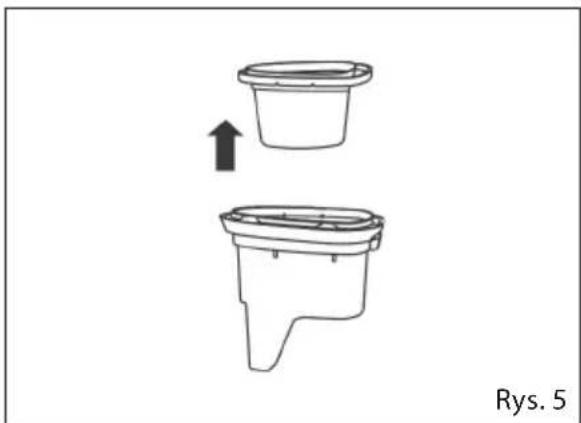

ČISTENIE

Diagram of a mechanical component with an arrow indicating rotation, labeled 'Rys. 3' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of two plastic containers with an upward arrow indicating movement or change (no text or symbols)

Simple line drawing of a book with a curved spine and a small object inside, labeled 'Rys. 6' (no other text or symbols)

CZYSZCZENIE

Producent: Zhongshan Fuduo Transformer Manufacturing Co., Ltd.

EKSPLOATACJA I USUWANIE ODPADÓW

Diagram of a device with a handle and blade, showing a close-up view of the blade (no text or symbols)

Simple line drawing of a book with a bookmark, placed on top of a cup (no text or symbols)

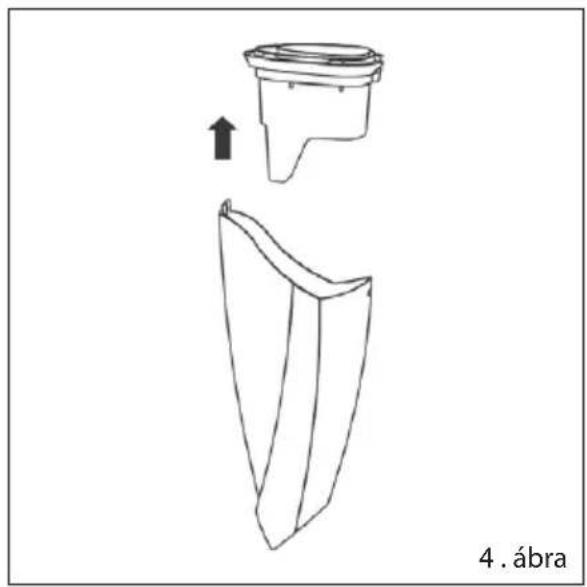

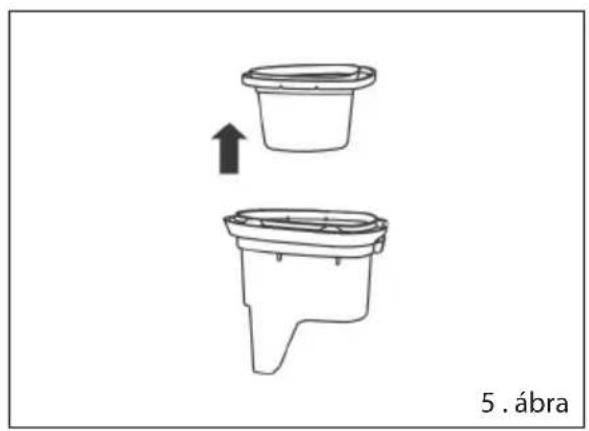

TISZTÍTÁS

Technical line drawings of a mechanical device with two views (A and B), no visible text or symbols

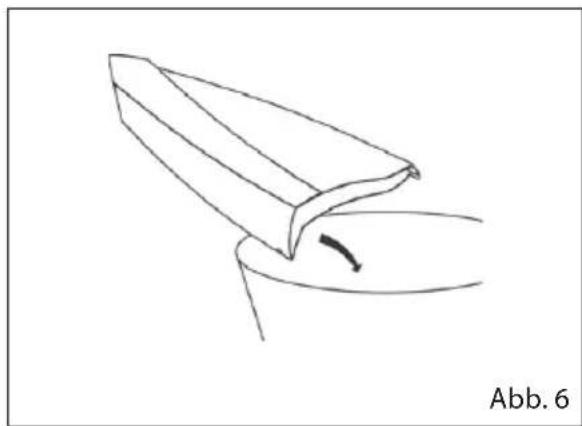

AUFLADEN DES STAUBSAUGERS

Diagram of a device with a curved arrow indicating rotation or change, labeled 'Abb. 3' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with an arrow indicating upward motion (no text or symbols)

Diagram of a two-part container with an upward arrow indicating motion, labeled 'Abb. 5' (no text or symbols on the diagram itself)

Simple line drawing of a folded paper or sheet with a curved edge, resting on a circular surface (no text or symbols)

REINIGUNG

Read carefully and store for future use!

Warning: The safety steps and instructions in this user's manual do not include all the possible conditions and situations which may arise. The user must understand that a factor that cannot be designed into any product is common sense, caution and care. These factors must come from the user/users using and operating this product. We take no responsibility for damages caused during transport, by incorrect use, by voltage fluctuations or by the change or modification of any part of the product.

To prevent the danger of a fire occurring or injury by electric shock, basic provisions should be adhered to when using electric products, including the following:

1. Before use read all instructions.
2. Make sure that the voltage in your power socket corresponds to the voltage on the product's label and that the power socket is properly earthed. The power socket must be installed according to valid safety regulations.
3. Do not use the recharge base if the power cord is damaged. Have all repairs and changes of the power cord or battery exchanges of the vacuum cleaner done at a professional service centre! Do not remove protective covers from the product as there exists a danger of injury by electric shock!
4. Protect the product against direct contact with water and other liquids, do not place near containers with liquids so that a potential injury by electric shock does not occur.
5. On purchase the hand vacuum cleaner is only partially charged, it is therefore necessary to fully charge it before use by placing it in the recharge base. Never use the vacuum cleaner without a filter.
6. Do not use the vacuum cleaner outdoors or in a wet environment. Do not touch the vacuum cleaner or the recharging holded with wet hands. There is a danger of injury by electric shock.
7. Do not allow children to play with the vacuum cleaner. The vacuum cleaner is not a toy. Pay extra attention when using the vacuum cleaner near children.
8. Use only with the supplied power adapter, recharger, attachment and accessories, authorised by the manufacturer.
9. If the vacuum cleaner is not functioning correctly, the vacuum cleaner was dropped (e.g. fell into water), if it is damaged or forgotten outdoors, have it professionally inspected at an authorised service centre.
10. Use the hand vacuum cleaner and battery at a sufficient distance from sources of heat, do not use the vacuum cleaner while it is connected to the recharge base. Before carrying out maintenance on the recharge base, pull out the power cord from the power socket.
11. Never pull out the power plug of the recharge base by pulling on the cord. Pull the cord out of the power socket by holding the power plug.
12. Do not place any objects into the openings of the vacuum cleaner. Do not use the vacuum cleaner if the openings are blocked in any way. Ensure that the vacuum cleaner and the filter are clean, without dust particles and other residual materials, which could reduce the suction performance of the vacuum cleaner.
13. Never use the slot nozzle near eyes and ears. Pay extra attention when working on stairs.
14. Do not vacuum sharp objects such as glass, screws, coins, keys, etc.
15. Do not vacuum burning or smouldering materials such as ambers, cigarettes or other burning materials.
16. During extreme use or temperatures the batteries may leak. If the liquid comes in contact with your skin, immediately wash the affected area with soap and water or neutralise with a mild acid, e.g. lemon juice or vinegar. If the liquid comes into contact with eyes, immediately rinse out with clean water as soon as possible and seek medical help.
17. Use the vacuum cleaner only in accordance with the instructions included in this user's manual. This vacuum cleaner is designed for household use only. The manufacturer takes no responsibility for damages caused by the incorrect use of this product.
18. This appliance can be used by children ages 8 and older and by the physically and mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand potential dangers. Children shall not play with the appliance. Cleaning

and maintenance operations performed by the user shall not be carried out by children, if they are not older than 8 years and under supervision.

1. Children under the age of 8 shall keep away from the appliance and its power supply.

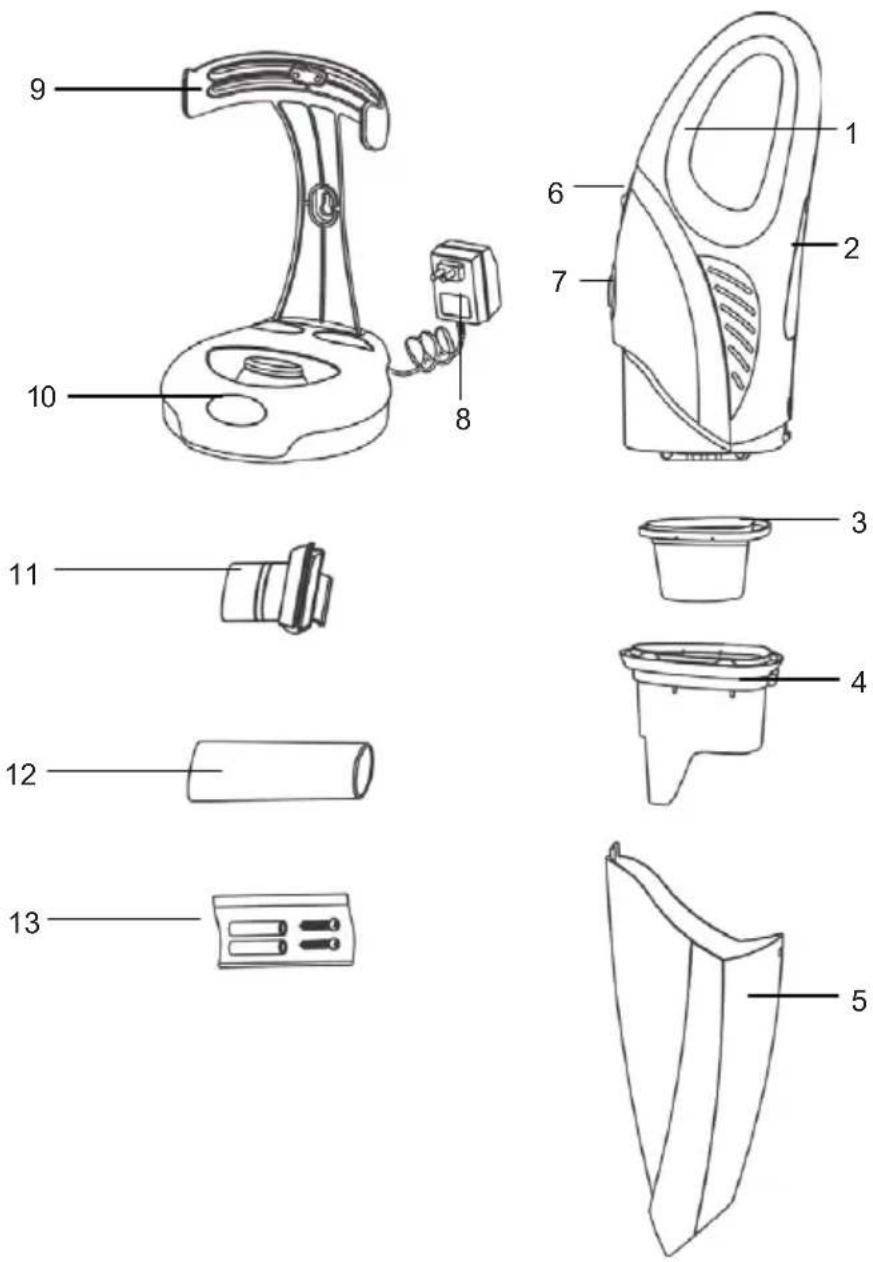

DESCRIPTION

1. Handle
2. Battery cover
3. Washable filter
4. Filter holder
5. Dust and liquid container
6. On/off button

7. Container release button

8. Adapter

9. Recharge base
10. Battery recharge indicator
11. Nozzle for liquids (wiper)
12. Narrow nozzle
13. Screws and dowels

EN

INSTALLATION OF THE RECHARGE BASE

The hand vacuum cleaner comes with a specially designed base designed for placement on the floor or for mounting on the wall, which at the same time serves to recharge the vacuum cleaner battery.

1. Place the base in the location where you wish to install it and using a sharp pencil mark the openings in the base directly on the wall. Make sure that the base is positioned vertically.
2. Drill holes in the marked points and insert dowels into them.
3. Insert a screw into the bottom opening and do not tighten fully.
4. Put the base on to the screw, insert it down so that the screw fi ts into the slit.
5. Insert the second screw through the top opening of the base and screw in tightly.

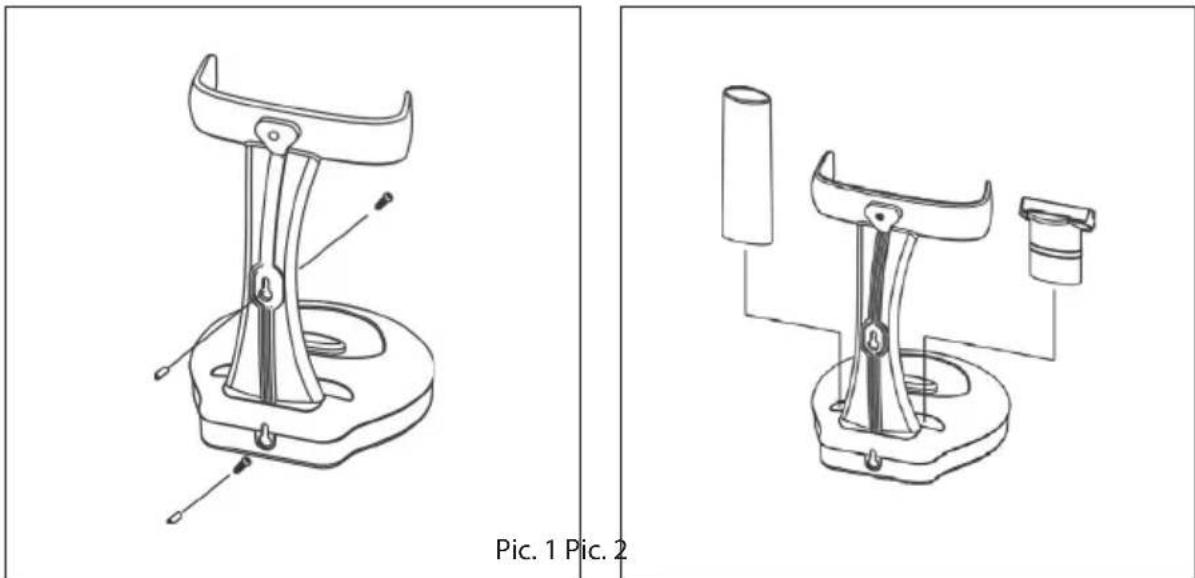

Technical line drawings of two mechanical devices, one with a handle and base, the other with a cylindrical component and base (no text or symbols)

RECHARGING THE VACUUM CLEANER

Connect the adapter into a power socket, after connection a battery recharging light will turn on on the base. The approximate recharging time is 14 hours.

When the performance of the vacuum cleaner starts to slowly decline and makes it impossible to vacuum as usual, leave the vacuum cleaner in operation until it discharges full and then recharge the product again. We recommend to repeat this procedure at least once a month. If this procedure does not suit you, you can recharge the product as you wish, but after 5 standard recharge cycles allow the product to fully discharge and then recharge again.

VACUUM CLEANER OPERATING INSTRUCTIONS

By switching the on/off button forward the vacuum cleaner will be turned on. When you have the feeling that the performance of the vacuum cleaner has declined or the vacuum cleaner stop vacuuming then it is necessary to recharge it again. The operating time of the vacuum cleaner is approximately 15 minutes.

If you wish to vacuum dust in tight areas or in corners, which are not easy to access, we recommend the use of the slot nozzle. When vacuuming liquids on a smooth surface use the nozzle for liquids (wiper).

By holding the vacuum cleaner in the vertical position with the nozzle facing down toward the ground, you will see the extent to which the container is full. Empty the dust and liquid container before you reach the maximum level.

EMPTYING THE CONTAINER

Always turn off the vacuum cleaner before carrying out maintenance!

To ensure the maximum performance of the vacuum cleaner it is very important to regularly clean the fi iter.

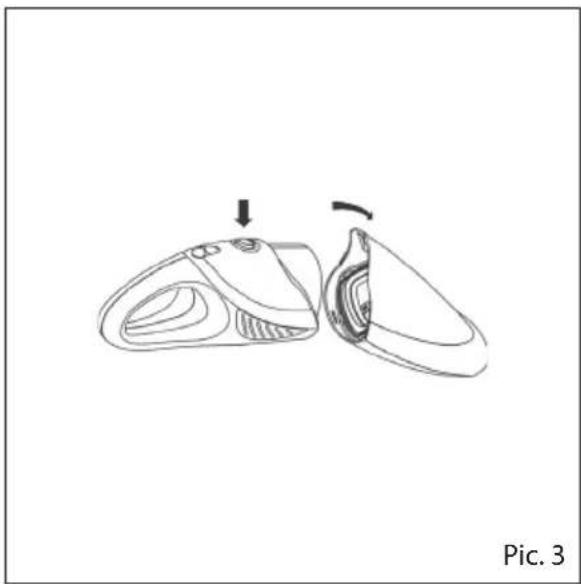

1. Press the release button and remove the dust container (pic. 3).

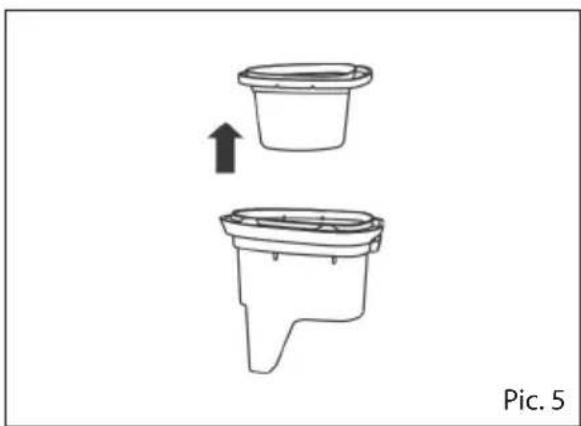

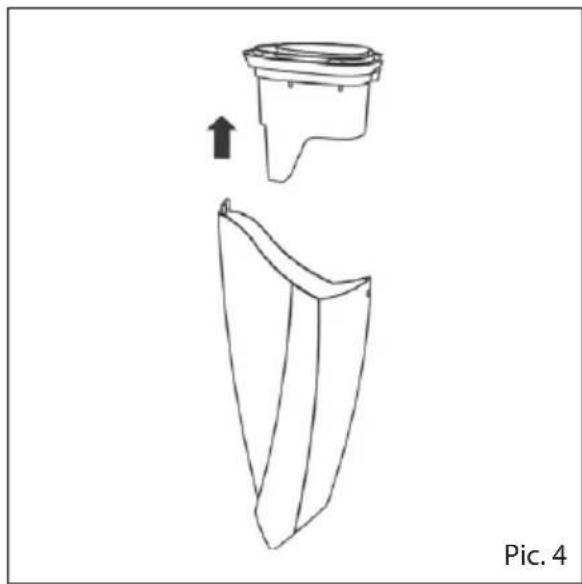

2. Take the filter out of the dust container and empty the container (pics. 4 and 5).
3. Clean out the dust and dirt from the filter, a more thorough cleaning of the filter is carried out by washing it with cold or lukewarm water. To clean the dust container use a damp cloth.
4. Allow the container and filter to dry properly before inserting it back into the dust container. Keep the filter sufficiently far away from heat sources, e.g. heating, otherwise it may be damaged.
5. Insert the filter back into the container and check that it is correctly and firmly inserted (pic 6).
6. Put the container back by pushing until you hear a click.

Diagram of a device with an arrow indicating rotation, labeled 'Pic. 3' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with an arrow indicating assembly or transformation (no text or symbols)

Diagram showing two plastic containers with an upward arrow indicating movement or change (no text or symbols)

Simple line drawing of a book with a curved spine and a small object inside, labeled 'Pic. 6' (no text or symbols on the diagram itself)

CLEANING

Before cleaning the base always disconnect the power plug from the power socket.

To clean the vacuum cleaner base use a soft and lightly dampened cloth with a few drops of a cleaning agent.

Never use solvents or any other abrasive cleaning agents.

Never submerge the recharge base or the vacuum cleaner under water or in another liquid and do not leave it under running water.

TECHNICAL INFORMATION

Vacuuming of dry and wet materials.

Washable fi Iter

Recharging time: approx. 14 hours

Operating time: approx. 15 minutes

Container capacity – dust 700 ml

- liquids 140 ml

Battery recharge indicator

7 batteries (7 × 1200 mAh)

Wall mountable recharge base

Accessories: slot nozzle, wiper

Noise level: 80 dB

Weight: 1.15 kg

Dimensions: 45.7 x 12.3 x 11.6 cm

Nominal voltage: DC 8.4 V

Nominal input power: 71 W

Adapter:

Type DK8-150-0200-EU

100–240 V \~ 50–60 Hz, 0,2 A

15 V — 0,2 A

Manufacturer: Zhongshan Fuduo Transformer Manufacturing Co., Ltd.

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

Changes in text and technical parameters reserved.

08/05
