KOM0470 - Tablet Quer - Free user manual and instructions

Product Type	Tablet
Brand	Quer
Model	KOM0470
Screen Size	10.1 inches
Display Resolution	1280 x 800 pixels
Processor	Quad-core 1.6 GHz
RAM	2 GB
Internal Storage	32 GB
Expandable Storage	microSD up to 128 GB
Operating System	Android 12 (Go Edition)
Battery Capacity	5000 mAh
Battery Life	Up to 8 hours of mixed usage
Charging Port	USB-C
Dimensions (W x H x D)	240 x 160 x 8.5 mm
Weight	450 g
WiFi	802.11 b/g/n
Bluetooth	Bluetooth 5.0
Rear Camera	5 MP
Front Camera	2 MP
Sensors	Accelerometer, Light sensor
Ports	1x USB-C, 1x 3.5mm headphone jack
Speakers	Built-in mono speaker
Care Instructions	Wipe with a soft, dry cloth. Do not use liquid cleaners.
Safety Warnings	Do not expose to extreme temperatures. Keep away from water.
Warranty	1 year limited warranty

Frequently Asked Questions - KOM0470 Quer

How do I turn on the tablet for the first time?

Press and hold the power button for 3 seconds until the Quer logo appears. Follow the on-screen setup wizard to select language, connect to Wi-Fi, and sign in to your Google account.

How can I charge the tablet?

Connect the included USB-C cable to the tablet's charging port and plug the power adapter into a wall outlet. The battery indicator will show charging status. A full charge takes approximately 3 hours.

Can I expand the storage on the KOM0470?

Yes, the tablet supports microSD cards up to 128 GB. Insert the card into the slot located on the side of the device (use a SIM ejector tool or paperclip to open the tray).

How do I connect to Wi-Fi?

Go to Settings > Network & Internet > Wi-Fi. Toggle Wi-Fi on, select your network from the list, and enter the password if required.

How do I perform a factory reset?

Back up your data first. Go to Settings > System > Reset options > Erase all data (factory reset). Confirm by tapping 'Reset tablet'. The device will reboot and restore to original settings.

What should I do if the screen is unresponsive?

Try a forced restart: press and hold the power button for 10 seconds until the device vibrates and restarts. If the problem persists, check for software updates or contact support.

Can I use a Bluetooth keyboard with this tablet?

Yes, the tablet supports Bluetooth 5.0. Go to Settings > Connected devices > Bluetooth, turn on pairing mode on your keyboard, and select it from the list.

How do I clean the tablet safely?

Turn off the device and unplug any cables. Use a soft, lint-free cloth slightly dampened with water (or a 70% isopropyl alcohol wipe) to gently wipe the screen and body. Avoid abrasive materials or harsh chemicals.

What are the safety precautions for battery and charging?

Use only the provided charger and cable. Do not charge the tablet in direct sunlight or near heat sources. Avoid overcharging – unplug once fully charged. If the battery swells or leaks, stop use immediately and contact support.

Where can I find the user manual for the KOM0470?

The user manual is available for free download in PDF format at notice-facile.com. You can also request a translated version by providing your email and desired language on the product page.

USER MANUAL KOM0470 Quer

Exterior view of a modern tablet device with a digital display showing time, location, and security symbol (no readable text or symbols on the device itself)

Tablet 10.1"

KOM0470

Rückseite

Black tablet device with control buttons and a small screen (no visible text or symbols on screen)

DE

I. Erste Schritte

Digital photo editing app interface showing purple flower background with camera icon and status bar (no readable text or symbols)

defghij

DE

5.2 Video

Product appearance 21

I. Getting started 22

1.1 Turn on/off 22

1.1.1 Turn on 22
1.1.2 Turn off 22
1.2 Lock/unlock the screen (sleep mode) 22
1.3 Connect to computer 23

II. Your Home Screen 23

2.1 Change wallpaper for home screen 24
2.2 Add/delete applications on home screen 24
2.3 Add widgets to home screen 24

III. Network Connection 24

3.1 Wi-Fi 24

3.1.1 Turn on Wi-Fi 24
3.1.2 Turn off Wi-Fi 25
3.1.3 Add a Wi-Fi network 25

IV. Internet Browsing 26

V. Multi-media Functions 27

5.1 Music 27
5.2 Video 28
5.3 Gallery 29
5.4 Camera 30

VI. Settings 30

VII. Battery 32

Troubleshooting 32

Specification 33

Welcome

Thank you for purchasing this tablet.

It brings you much convenience for your business (supports Word, Excel, send & receive e-mails...) and entertainment (supports 3D game, chatting, movie playback.....).

Running on Android 4.0, with a 1GHz processor and highly responsive capacitive touch screen, it brings you wonderful user experience.

Before beginning, please refer to this user manual carefully.

Important Notices

• The new battery will be in its best condition after 2-3 times full charge and discharge.
• While using the earphone, if the volume is excessively high it may cause hearing damage. So please adjust the volume of the player to a moderate level and balance the time of using.
• Do not disconnect the tablet suddenly when formatting or uploading and downloading, which can lead to program errors.
• Do not dismantle the tablet by yourself, and do not use alcohol, thinner or benzene to clean its surface.
• Do not use the tablet while driving or walking.
• The tablet is not moisture and water resistant. Please do not use it in a damp environment.
• Do not drop or hit it to hard surface, or the screen may get damaged.
• Do not upgrade the firmware by yourself. This would cause damage to your tablet.

EN

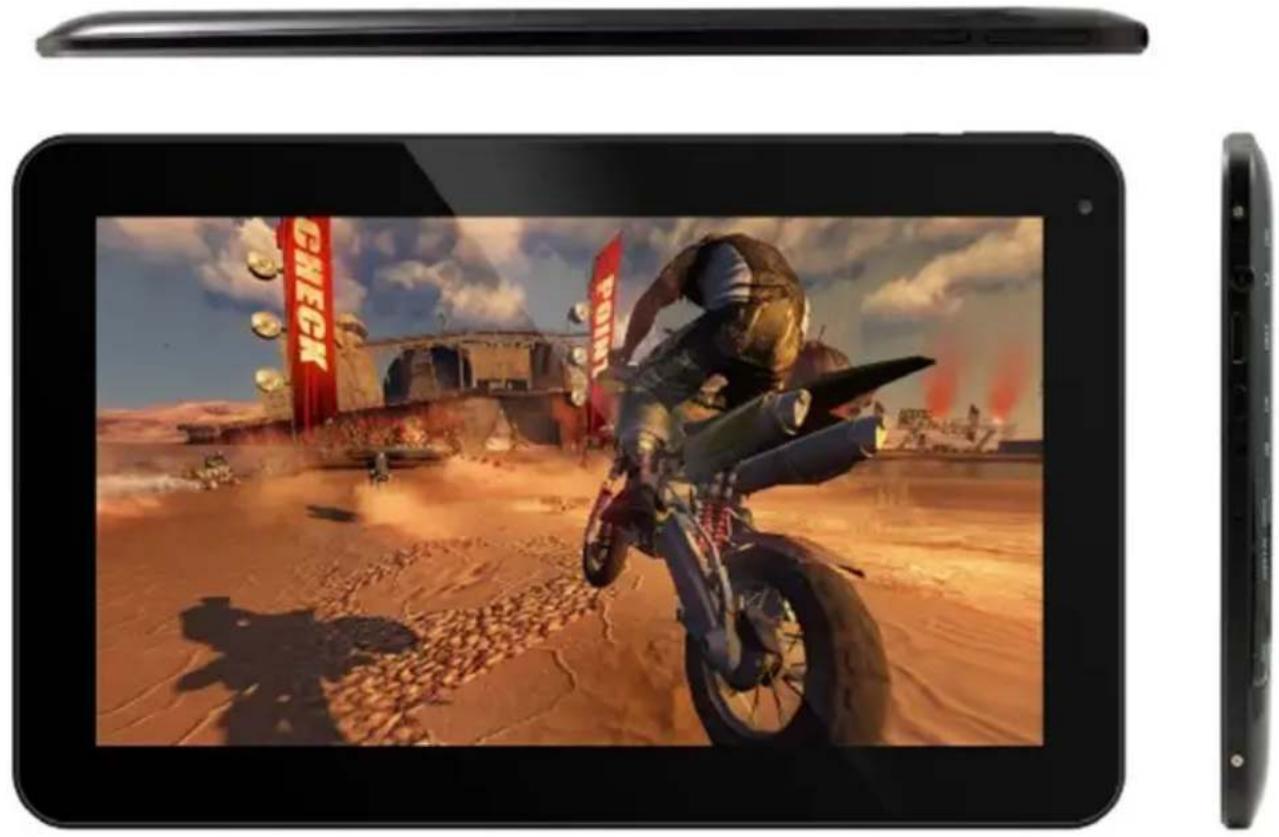

Product appearance

Front panel

Tablet displaying a futuristic action scene with a character on a motorcycle, banners labeled 'CHECK' and 'MINI', and a desert backdrop (no readable text or symbols)

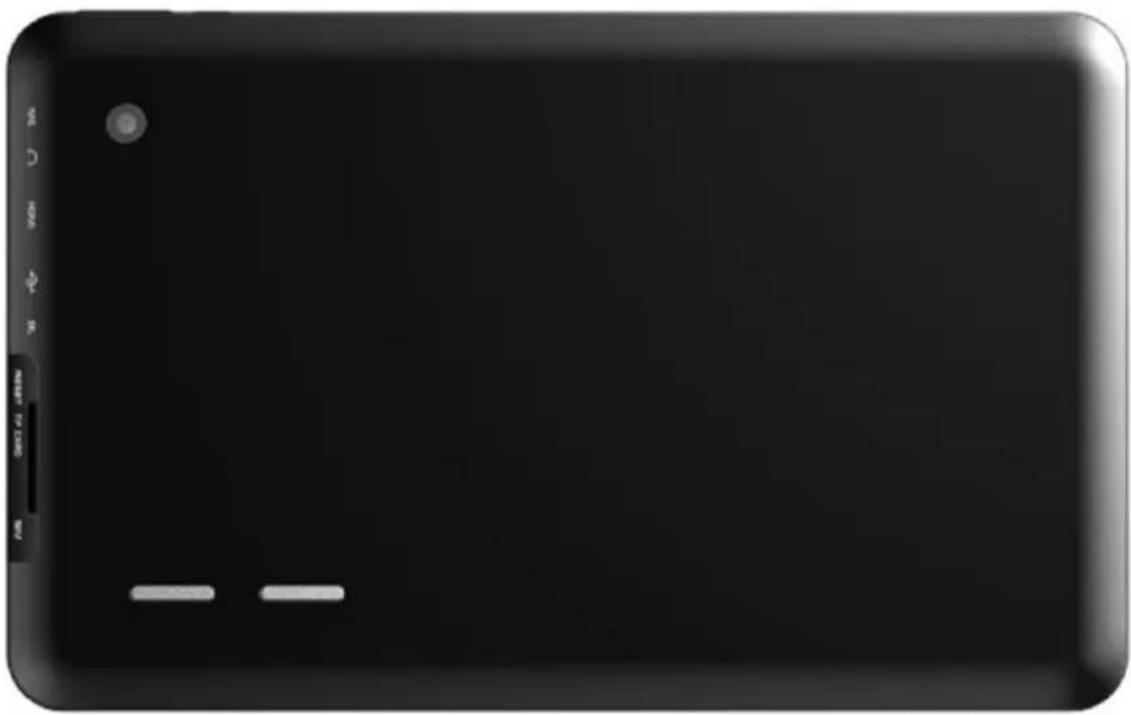

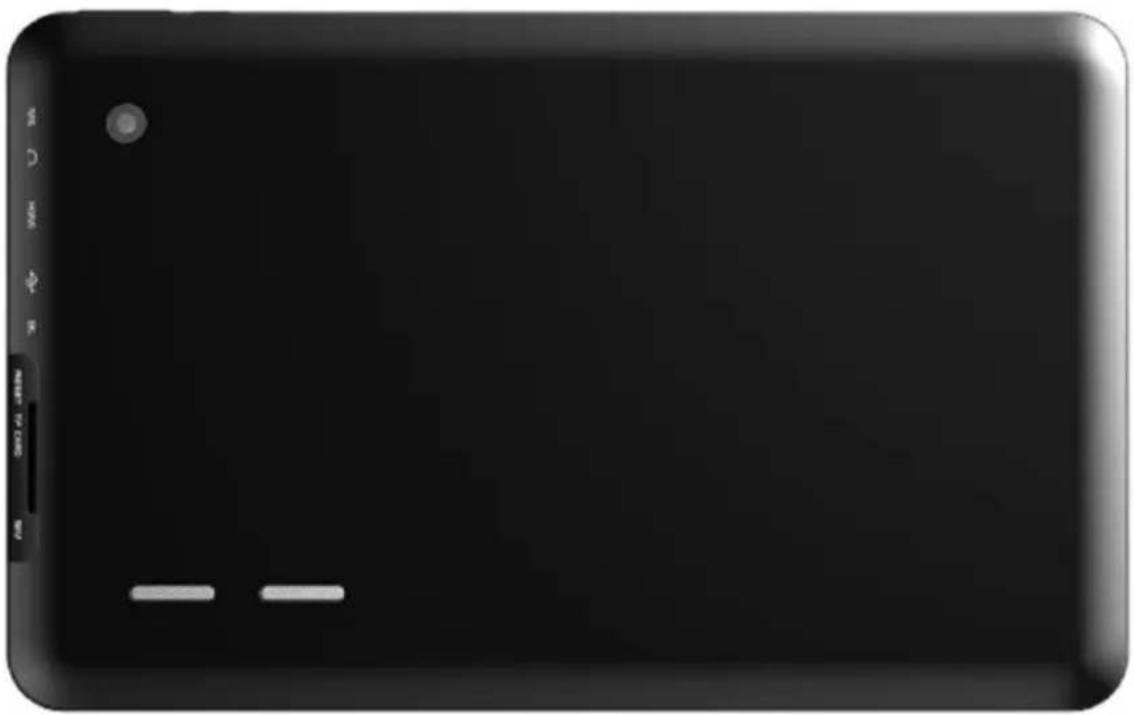

Rear panel

Black tablet device with control buttons and a small screen (no visible text or symbols on screen)

EN

I. Getting Started

1.1 Turn on/off

1.1.1 Turn on

To start your tablet, press and hold the power key for a while. Tab and drag the lock out of the circle to unlock.

Tab and drag the lock out of the circle to unlock.

1.1.2 Turn off

EN

To power off your tablet, press and hold the power button until the "Would you like to shut down?" dialog appears and tap "OK" to power it off.

1.2 Lock/unlock the screen (sleep mode)

To save battery, you should put your tablet in sleep mode by turning off the LCD display. To do this, shortly press the power key. Press it again to wake up the screen.

1.3 Connect to computer

You can connect your tablet to your computer with the supplied USB cable so you can transfer media files.

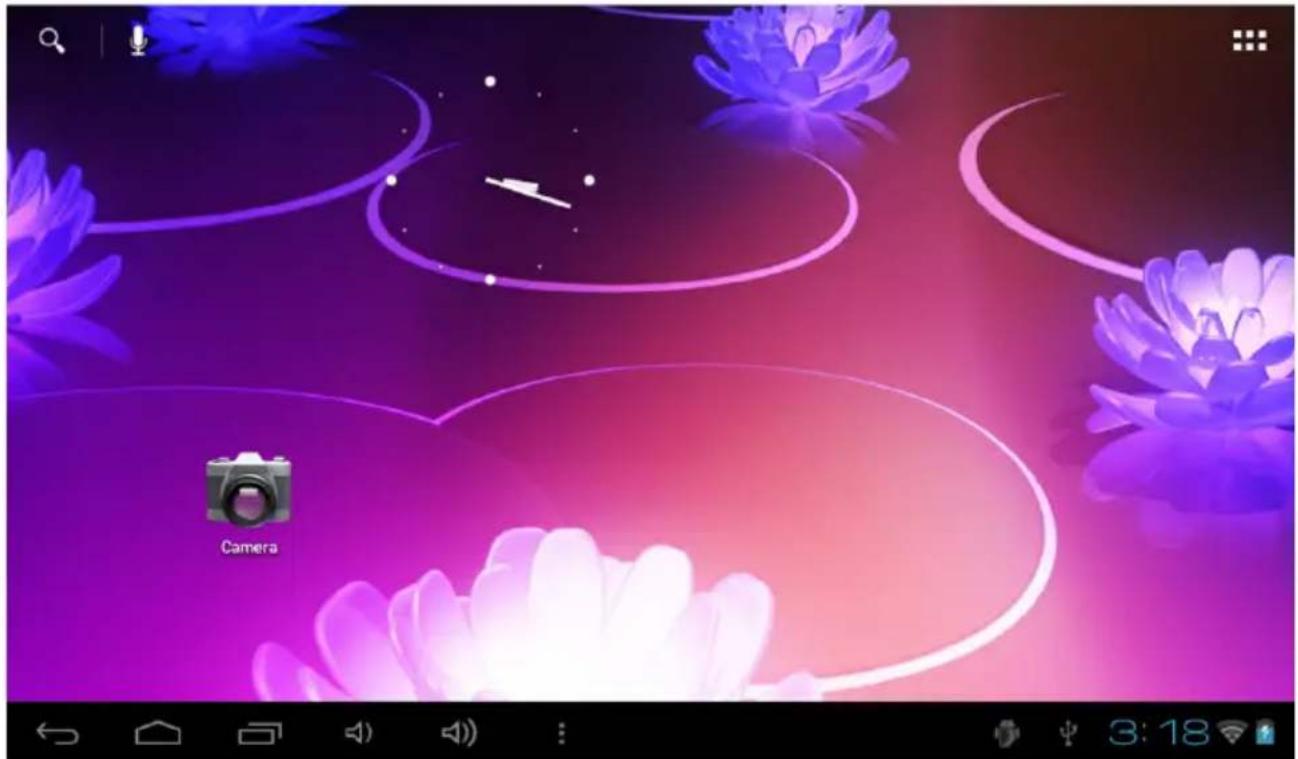

II. Your Home Screen

a b

C

Digital photo editing app interface showing purple flower-themed background with a camera icon and status bar (no readable text or symbols)

defgh ij

a. Google search Tap to	enter Google search page
b. Voice search Tap to open voice search
c. All apps Launcher Tap to show all the applications installed
d. ESC key Tap to return to the previous screen/ page.
e. Home Tap to return to your home page
f. Recent operations Tap to show your recent operations
g. Connect to PC When connect to PC, this icon will show here. Slide to choose connected as a media device or camera
h. System time Show the system current time
i. Wi-Fi Wi-Fi signal show here if connected with Wi-Fi
j. Battery status Show battery status

2.1 Change wallpaper for home screen

Tab and hold your finger in any blank space of the home screen, you will see a pop-up options; you can choose wallpaper from Gallery, live Wallpapers or Wallpapers.

2.2 Add/delete applications on home screen

There are several apps in the home screen, you can also add more frequently-used app icons in this home page and delete some less frequently-used ones.

Tab the app launcher in the top right corner to go to all apps panel, tap and move the app you want to the home screen.

To delete an app from home screen, tap and hold it, and them movie it to the remove

icon ✗ Remove

2.3 Add widgets to home screen

Tab all Apps launcher→Tab WIDGETS. There are Analog clock, bookmarks, calendar, Email, and lots of other widgets. Drag the widget you want to the home screen.

Tips: Besides your home screen, you can access to other four panels by sliding left or right in your home screen. You can also customize these panels.

III. Network Connection

3.1 Wi-Fi

Wi-Fi can only be used when it connects with home Wi-Fi Access Point (AP) or a free unsecured Wi-Fi hotpot. Under “Wireless & networks”, tap “Wi-Fi” to turn it on. After a moment, your Wi-Fi networks list should populate. If you need to rescan for available networks, tap "scan".

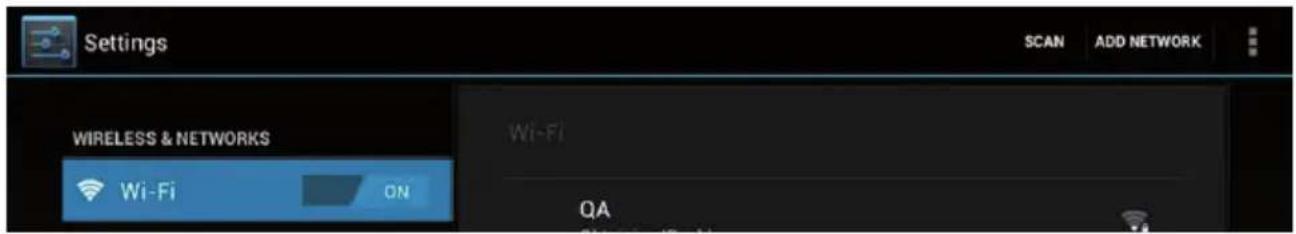

3.1.1 Turn on Wi-Fi

Within the App Panel, tap “Settings” → then “Wireless & networks” → “Wi-Fi” to turn on wifi.

Your tablet lists the networks it finds within range. Tap a network to connect. If necessary, enter Network SSID, Security, and Wireless password, and tap "Connect".

When your tablet is connected to the network, the wireless indicator 📄 appears in the status bar. Waves indicate connection strength.

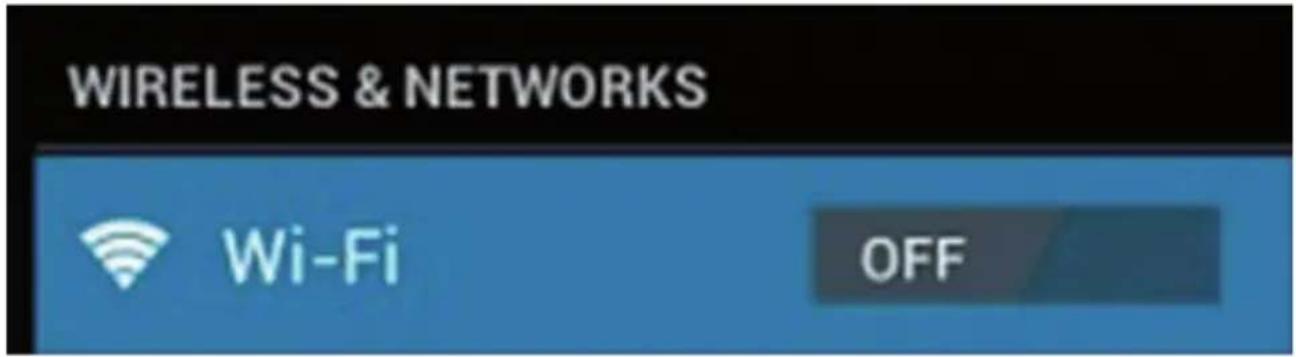

3.1.2 Turn off Wi-Fi

Please turn off Wi-Fi if you're not using it to save the battery. To turn off Wi-Fi, Tab it again.

3.1.3 Add a Wi-Fi network

Users may also add a Wi-Fi network under "Wi-Fi settings". In "Wi-Fi settings", tap "Add network". Enter the SSID (name) of the network. If necessary, enter security or other network configuration details. Touch Save.

EN

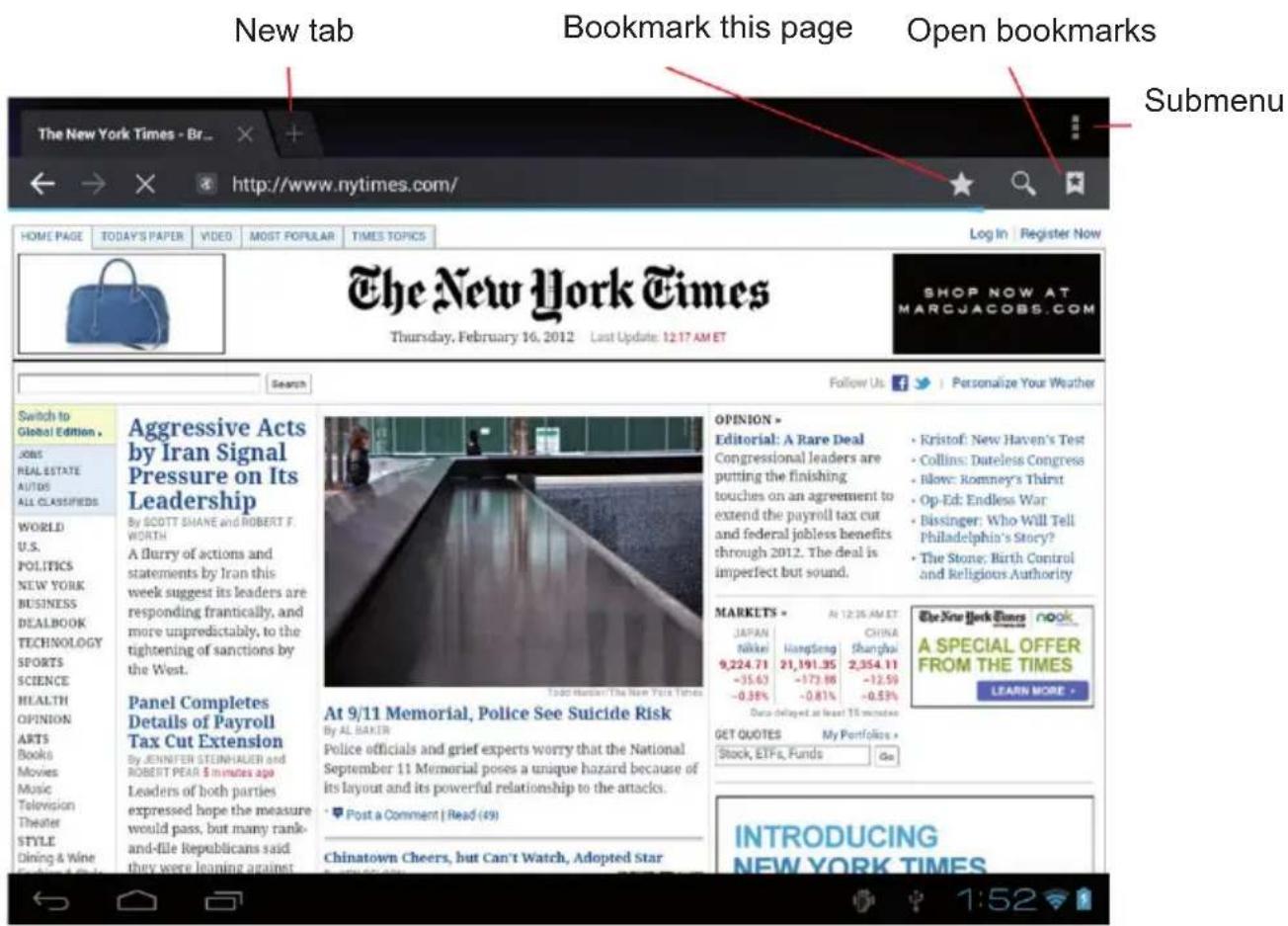

IV. Internet Browsing

Before using your browser, make sure Wi-Fi or internet is connected. In your app panel, Tab the browser icon to open your browser. Tap the address bar, the Android keyboard will appear for your entry of keywords or URL.

Tab the 📄 icon in the top corner of the brower page to open the submenu.

EN

V. Multi-media function

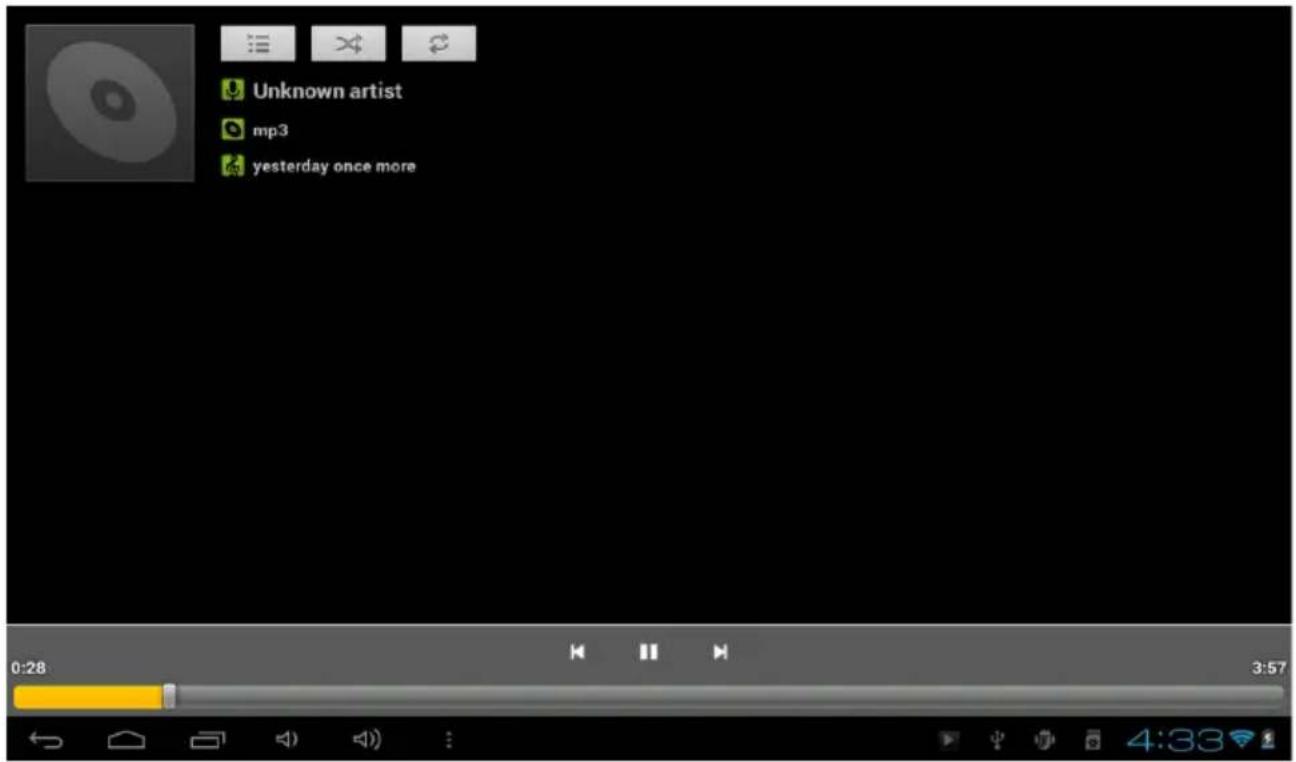

5.1 Music

After loading your music into your tablet, tap the music icon 📄 open the music player. You can select songs by Artist, Albums, songs or Playlists. Tap to select. The media player allows you to shuffle, skip, or pause your current selection and even displays the album artwork when available.

EN

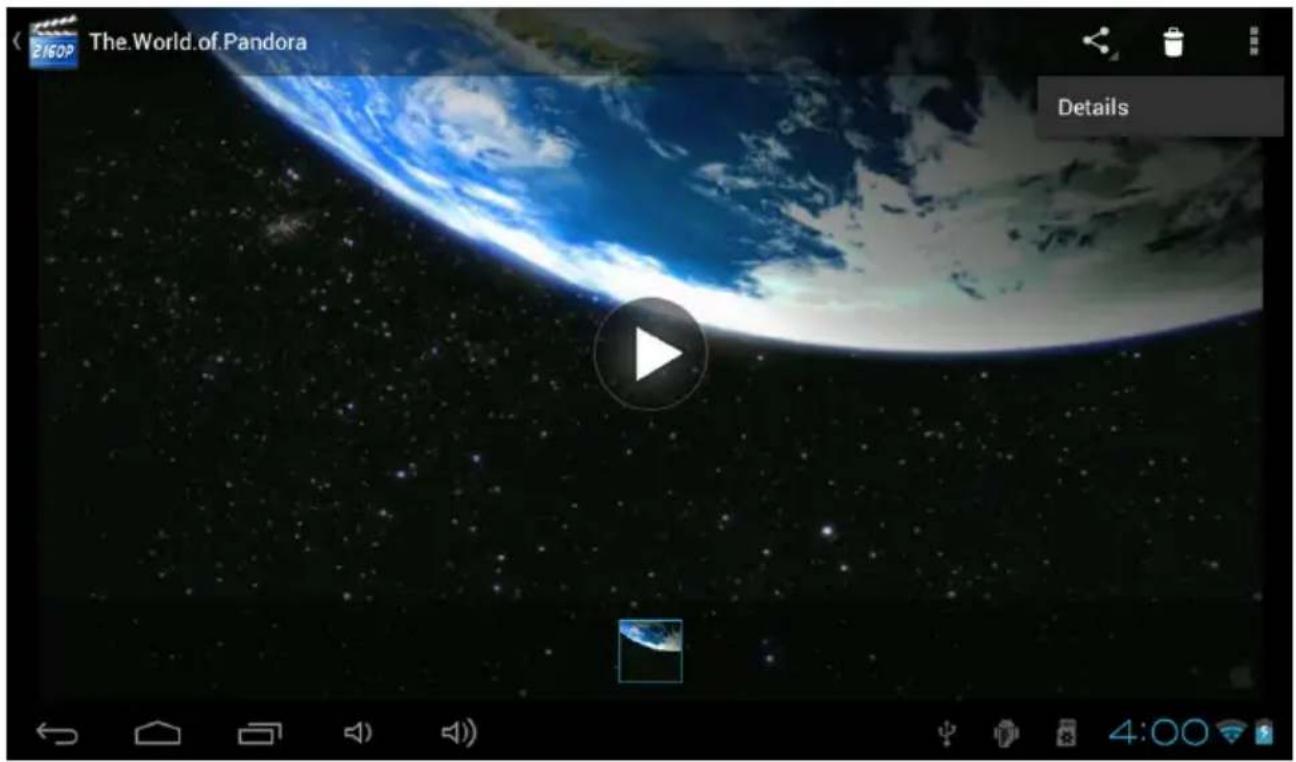

5.2 Video

You can play videos saved in your tablet or TF card. To play, tap Video icon to launch the video player:

EN

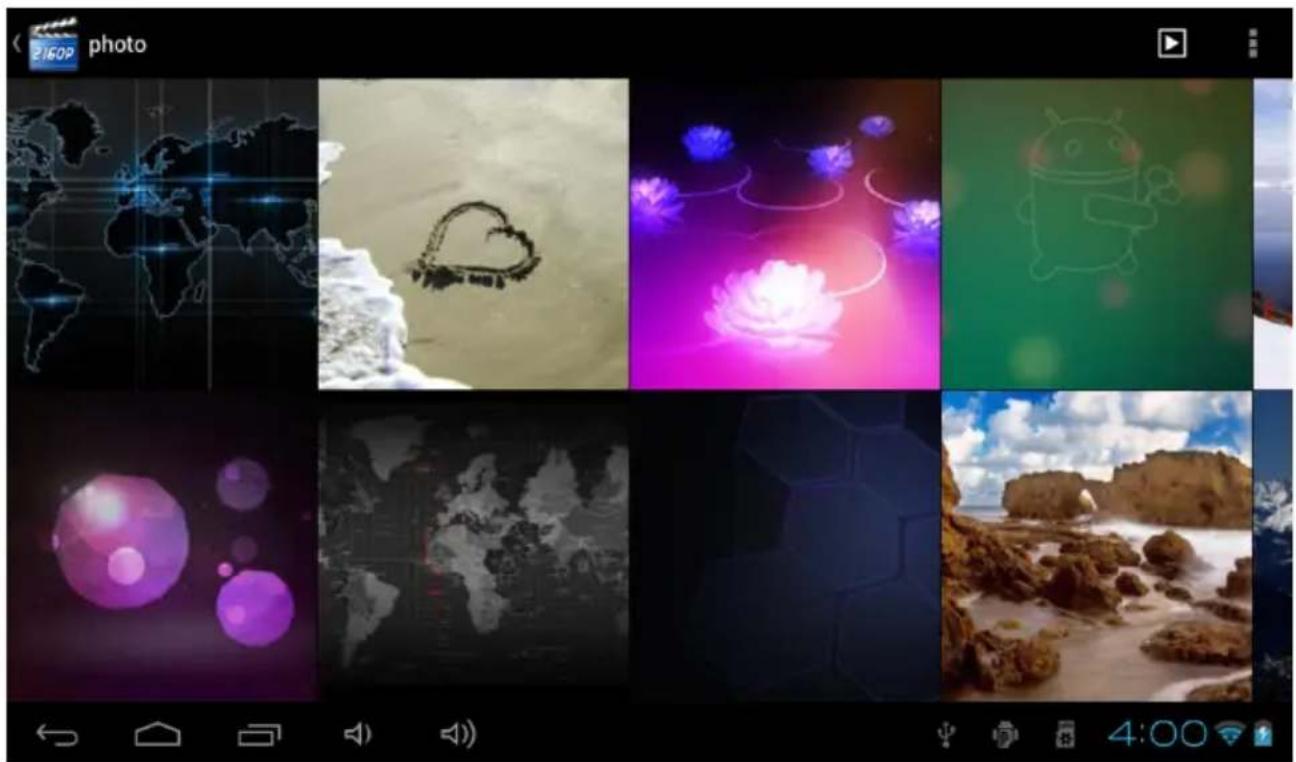

5.3 Gallery

You can view, show off, and even edit your digital pictures on the tablet's full color, high-resolution display. After loading your media, tap Gallery 📋 to display your pictures:

Tab the picture you want to display it, and slide right or left to show other pictures. Tap the menu icon, you can edit, rotate, crop, or set it as wallpaer.

EN

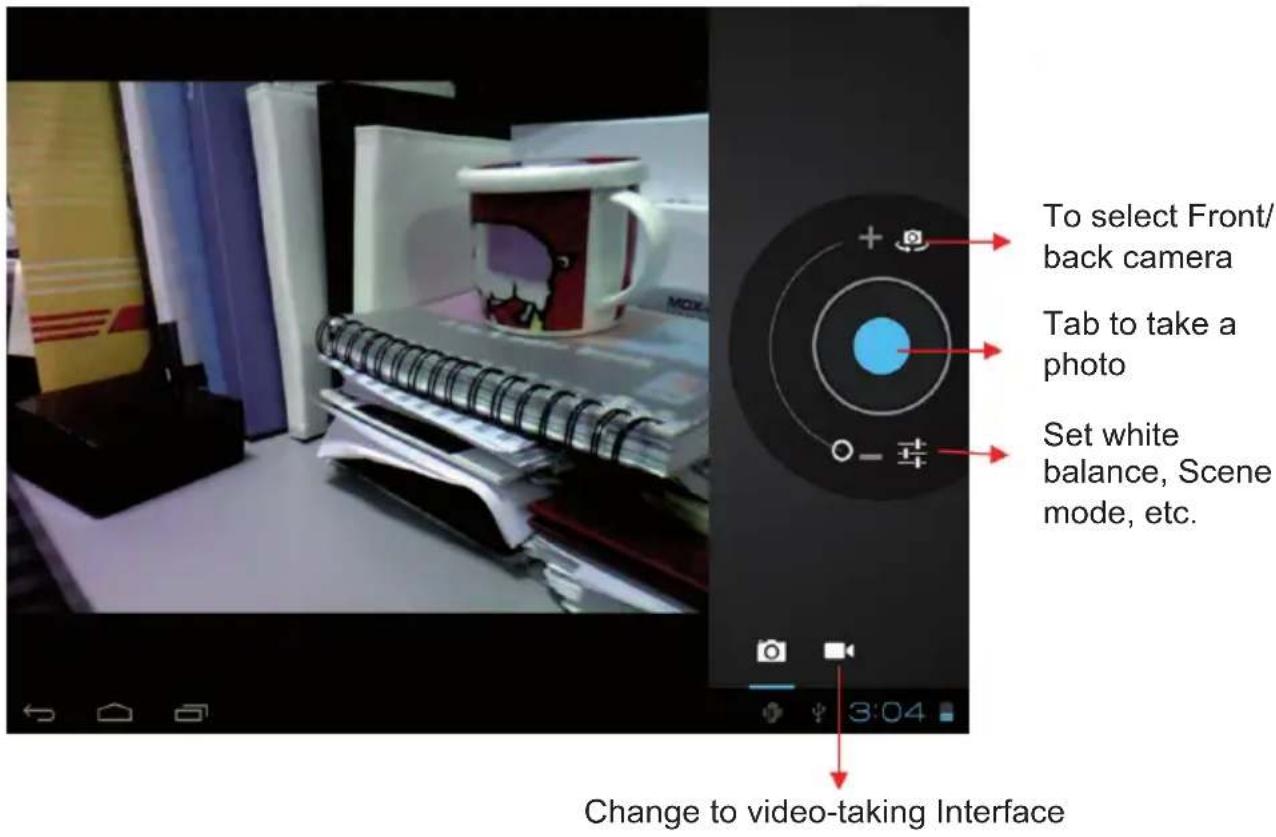

5.4 Camera

Tap the 📷 on to open camera. Your tablet is built in 0.3M front camera dn 0.3M rear camera. You can take a photo, or a video both by front camera and rear camera.

Note: After you power on your tablet, you can go to camera directly by drag the lock to left.

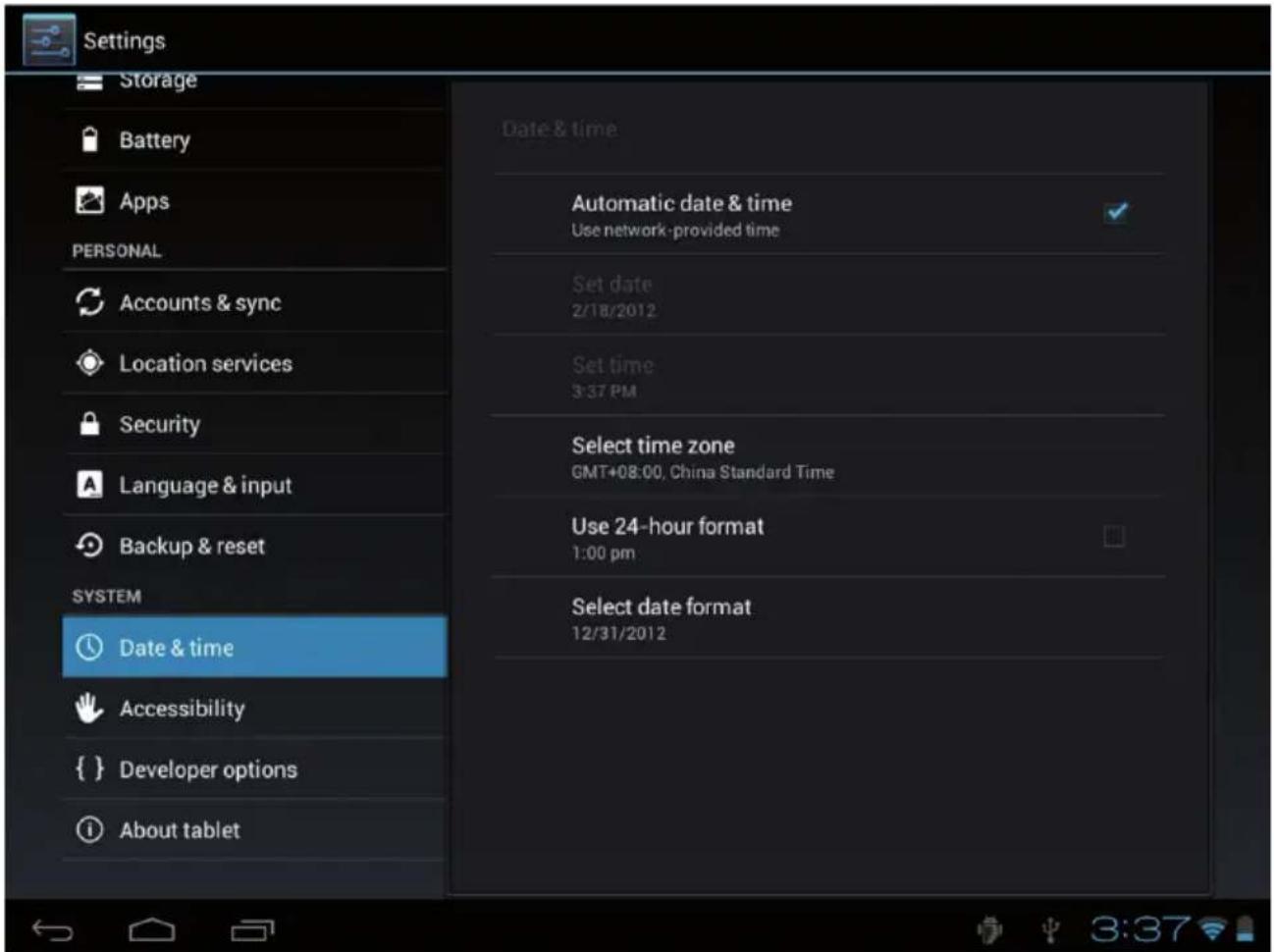

VI. Settings

EN

Tap the "Settings" icon go to settings.

you can check and set wireless&networks, sound, display, storage, Battery, Accounts &sync, security, language, date&time, about tablet, etc.

Wi-Fi: tap "Settings" → "Wireless & networks" to turn on wifi and scan. It will show a list of Wi-Fi networks scanned in range. Choose a strong Wi-Fi network to connect. (You may need to input the password).

Storage: Check internal storage here. If you insert an Micro SD card, or USB disk, you can check the total and available space for your Micro SD card or USB disk. Please unmount it to safely remove it.

Battery: Check the Battery status here.

Display: Tab "Settings" → "Display" to set brightness, screen time-out, etc.

Language & input: to set language and keyboard input.

Backup & reset: to go to submenu „back up my data” and „Factory data reset”. If you choose factory data reset, all data from your tablet's internal storage will be erased. Choose this option carefully.

About Tablet: To check information about your tablet, such as Model number, android version, etc.

VII. Battery

Very Low Battery

Full Battery

Charging Battery

indicates that the power of Battery is full. When the battery level becomes too low, a prompt comes up to note you to charge your tablet.

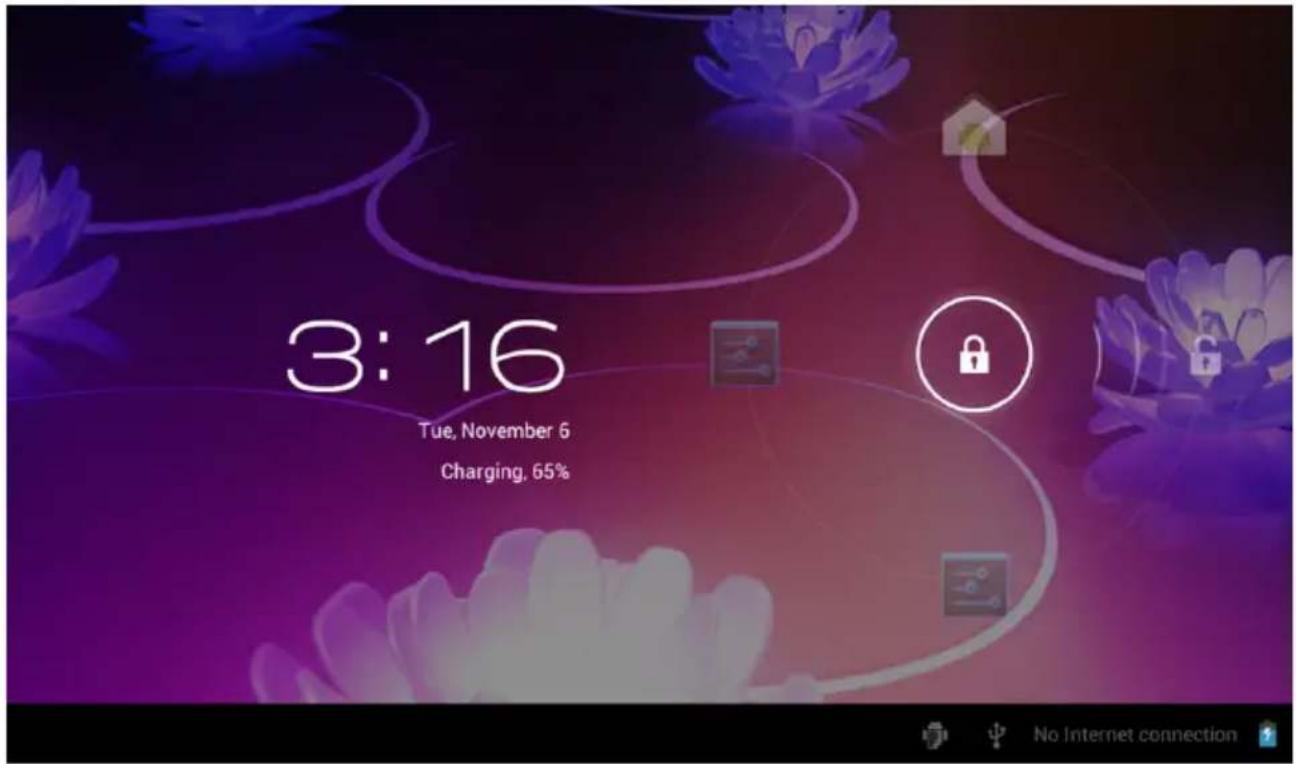

While charging, you can check the charging status in the lock screen:

3:42

Sat, February 18

Charging, 33%

Troubleshooting

1. Can not turn on the tablet

Check the tablet's power level, please charge it before starting it. In case your tablet still cannot be turned on, you may try to reset it

1. No sound from earphone

Check if volume is set to '0'. Or earphone may be broken, please change for another one.

1. Big noise

Check if there is dust in the earphone or speaker. Check if the file is broken.

1. Frozen to any operation

Please use a pin to reset and then restart your tablet.

1. Application not workable

Possible reasons may be that this app is not compatible with your OS or the downloaded .apk file is broken so you may need to download a full version.

1. How delete a Google account?

If an account is added, the account is shown in “Accounts & sync” of “Settings”, where you may also add another account. To delete an undesired account, go to “Settings” → “Privacy settings” → “Factory data reset”. Your tablet’s internal storage, downloaded apps, etc. will also be deleted, except the info in your flash memory. Be careful before you carry out this operation.

Specification

Display 10.1" (1024x600, 16:9), Capacitive touch panel, multitouch
Operation System Android 4.0
CPU 1.0 GHz - Allwinner Boxchip A10 (Cortex-A8)
GPU Mali 400
DDR RAM 1 GB DDR3
Interior storage 4 GB
Camera Front 0.3 Mpx,	Back 0.3 Mpx
G-Sensor YES
Speaker YES
Microphone YES
WiFi IEEE 802.11 b/g/n
Interfaces microUSB, microSD, miniHDMI, 3.5 mm Earphone Jack, DC
Audio Format MP3, WMA, MP2, OGG, AAC, FLAC, APE, WAV
Video Format AVI, MKV, WMV, MOV, MP4, MPEG, MPG, FLV, 3GP
Photo Format	JPG, JPEG, GIF, BMP, PNG
E-Book Format TXT, EPUB, PDF, WORD
Power Supply (AC Adapter)	5.0 V, 2.0 A
Battery Capacity	5000 mAh

Specifications are subject to change without notice.

EN

The Lechpol company declares that product KOM0470 is consistent with the essential requirements and other relevant provisions of directive 1999/5/EC. The proper declaration for download from www.lechpol.eu

English

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or Its literature, indicates that It should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal

Made in China for LECHPOL Zbigniew Leszek, Miętne, 1 Garwolińska Street 08-400 Garwolin.

EN
