KOM0615 - Tablet Quer - Free user manual and instructions

Product Type	Tablet
Brand	Quer
Model	KOM0615
Display Size	10.1 inches
Display Resolution	1280 x 800 pixels
Processor	Quad-core 1.3 GHz
RAM	2 GB
Internal Storage	32 GB
Operating System	Android 10
Battery Capacity	5000 mAh
Battery Type	Li-ion
Dimensions (W x D x H)	240 x 160 x 8 mm
Weight	500 g
Rear Camera	5 MP
Front Camera	2 MP
Wi-Fi	802.11 b/g/n
Bluetooth	4.2
Ports	Micro USB, 3.5 mm audio, microSD slot
Sensors	G-sensor
Power Supply	DC 5V, 2A
Package Contents	Tablet, USB cable, power adapter, user manual

Frequently Asked Questions - KOM0615 Quer

How do I turn on the Quer KOM0615 tablet for the first time?

Press and hold the power button located on the side or top of the tablet for about 3 seconds until the screen lights up. Follow the on-screen setup wizard to choose your language, connect to Wi-Fi, and sign in to your Google account.

What should I do if the tablet freezes or becomes unresponsive?

Try a forced restart by pressing and holding the power button for 10-15 seconds until the device shuts down and restarts. If the problem persists, perform a factory reset from the recovery menu (usually Power + Volume Up during boot).

How can I extend the battery life of my tablet?

Reduce screen brightness, turn off Wi-Fi and Bluetooth when not in use, close unused apps, and enable battery saver mode from Settings > Battery. Also avoid extreme temperatures.

Is it possible to expand the storage on the KOM0615?

Yes, the tablet has a microSD card slot (up to 128 GB) located under the back cover or on the side. Insert a compatible card to expand storage for photos, videos, and apps.

How do I connect the tablet to a Wi-Fi network?

Go to Settings > Wi-Fi, toggle it on, and select your network from the list. Enter the password if prompted. The tablet will remember the network for future connections.

What should I do if the screen is cracked or damaged?

Contact Quer customer support or a certified repair center. Using a damaged screen can be hazardous. Do not attempt to replace the screen yourself unless you have the proper tools and experience.

Can I use the KOM0615 tablet for video calls?

Yes, the tablet is equipped with a front-facing 2 MP camera and microphone, suitable for video calls via apps like Skype, Zoom, or Google Meet.

How do I update the operating system?

Go to Settings > System > System Update. The tablet will check for available updates. Download and install any updates over a Wi-Fi connection to avoid data charges.

My tablet won't charge. What can I do?

Check the charging cable and adapter for damage. Try a different USB port or wall outlet. Ensure the micro USB connector is fully inserted. If still not charging, the battery may need replacement.

How do I perform a factory reset on the Quer KOM0615?

Back up your data first. Go to Settings > System > Reset > Factory data reset. Confirm the action. The tablet will erase all data and restart. Alternatively, boot into recovery mode (Power + Volume Up) and select 'Wipe data/factory reset'.

USER MANUAL KOM0615 Quer

Tablet 9"

KOM0615

Side view of a black smartphone with visible ports and screen (no text or symbols)

Front view of a black rectangular electronic device with no visible text or symbols on its body.

DE

I. Erste Schritte

Product appearance 15

I. Getting started 16

1.1 Turn on/off 16
1.1.1 Turn on 16
1.1.2 Turn off 16
1.2 Lock/unlock the screen (sleep mode) 16
1.3 Connect to computer 16

II. Your Home Screen 17

2.1 Change wallpaper for home screen 17

III. Network Connection 18

3.1 Wi-Fi 18

3.1.1 Turn on Wi-Fi 18
3.1.2 Turn off Wi-Fi 18

IV. Settings 19
V. Battery 20
VI. Troubleshooting 20
VII. Specification 21

EN

Welcome

Thank you for purchasing this tablet.

It brings you much convenience for your business (supports Word, Excel, send & receive e-mails...) and entertainment (supports 3D game, chatting, movie playback.....).

Running on Android 4.2, with a 1GHz Dual-Core A20 (Cortex-A7) processor and highly responsive capacitive touch screen, it brings you wonderful user experience.

Before beginning, please refer to this user manual carefully.

Important Notices

• The new battery will be in its best condition after 2-3 times full charge and discharge.
• While using the earphone, if the volume is excessively high it may cause hearing damage. So please adjust the volume of the player to a moderate level and balance the time of using.
• Do not disconnect the tablet suddenly when formatting or uploading and downloading, which can lead to program errors.
• Do not dismantle the tablet by yourself, and do not use alcohol, thinner or benzene to clean its surface.
• Do not use the tablet while driving or walking.
• The tablet is not moisture and water resistant. Please do not use it in a damp environment.
• Do not drop or hit it to hard surface, or the screen may get damaged.
• Do not upgrade the firmware by yourself. This would cause damage to your tablet.

EN

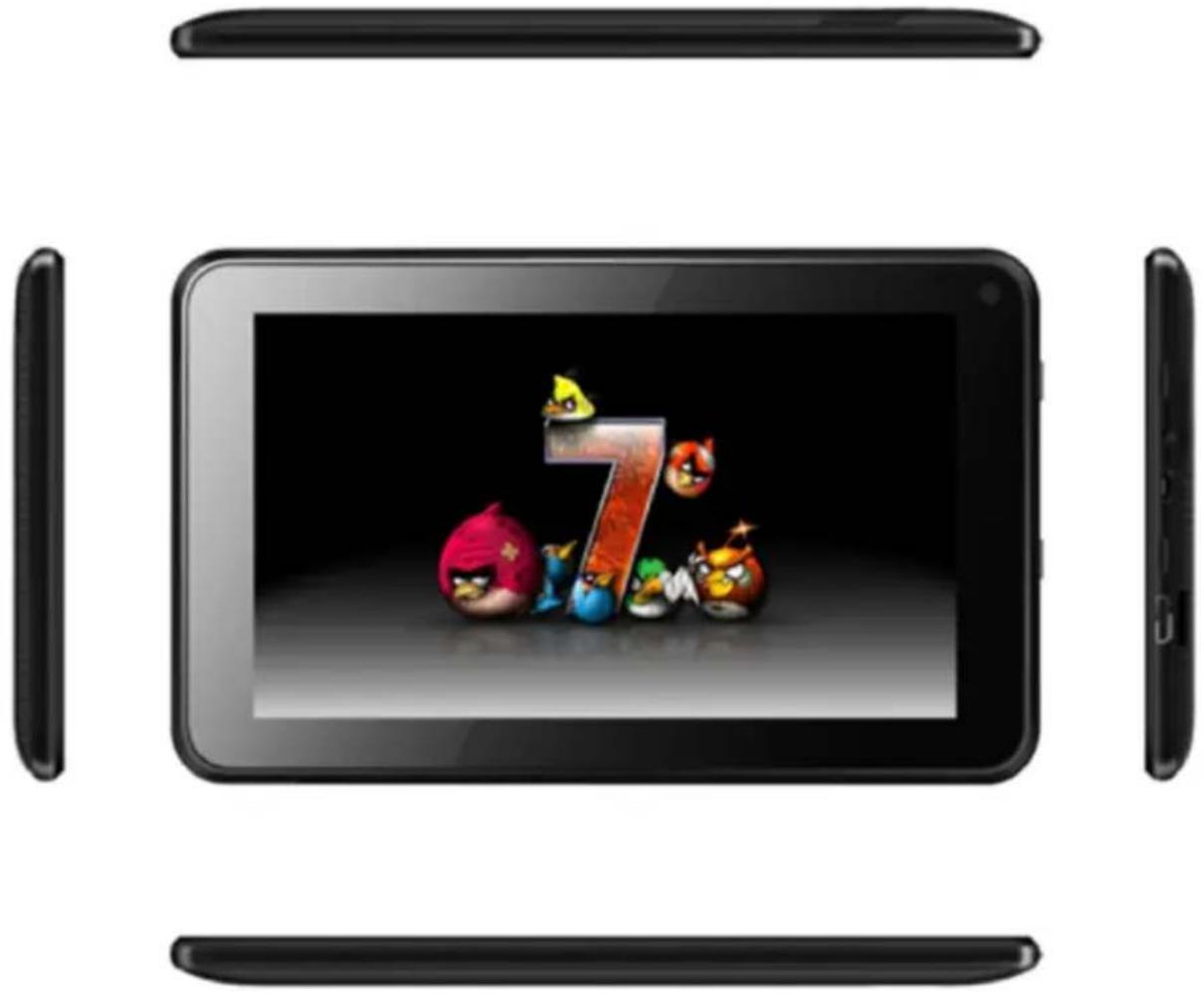

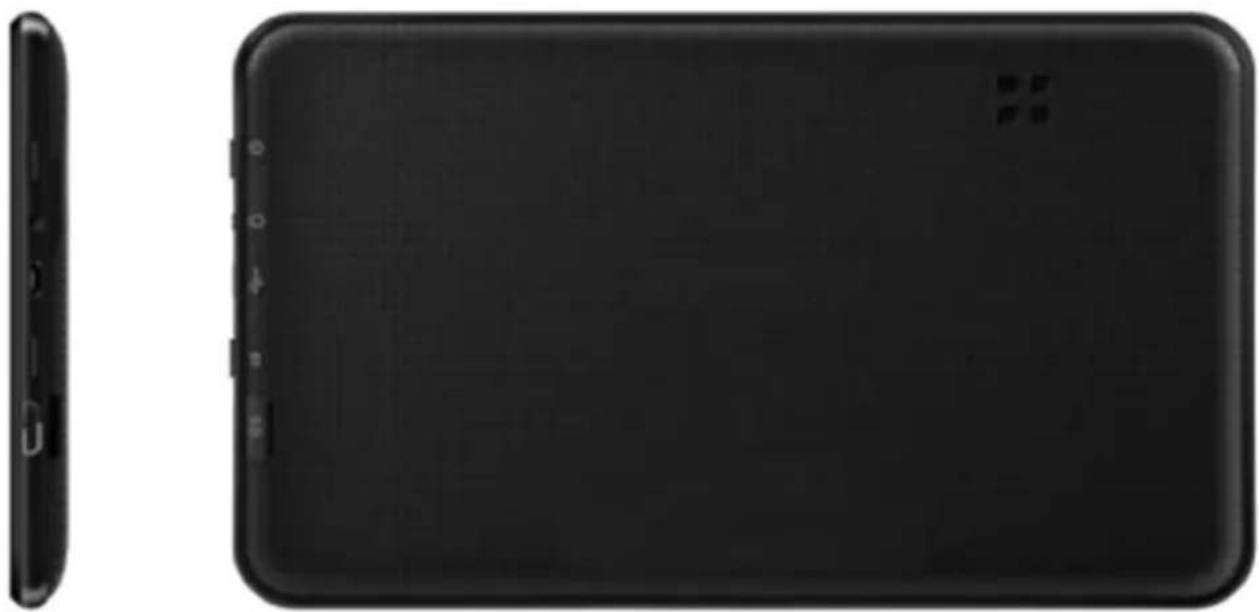

Product appearance

Front panel

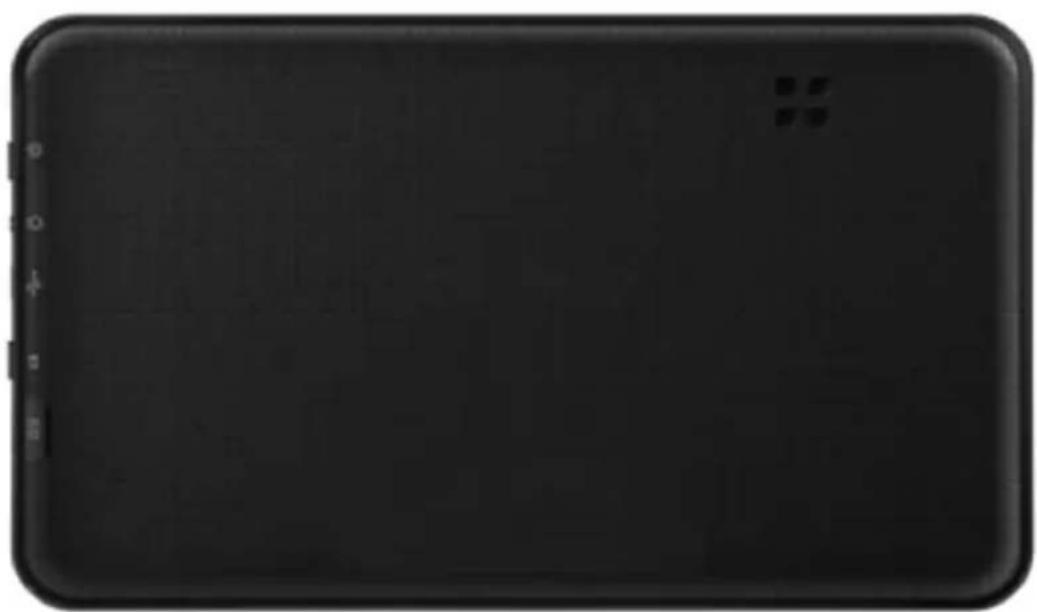

Rear panel

EN

I. Getting Started

1.1 Turn on/off

1.1.1 Turn on

To start your tablet, press and hold the power key for a while. Tab and drag the lock out of the circle to unlock.

Tab and drag the lock out of the circle to unlock. Drag the lock to right: you will go to the home screen Drag the lock to left: you will go to camera directly.

1.1.2 Turn off

After pressing the power key for a long time, the shutdown option will pop up.

1.2 Lock/unlock the screen (sleep mode)

To save battery, you should put your tablet in sleep mode by turning off the LCD display. To do this, shortly press the power key. Press it again to wake up the screen.

1.3 Connect to computer

You can connect your tablet to your computer with the supplied USB cable so you can transfer media files.

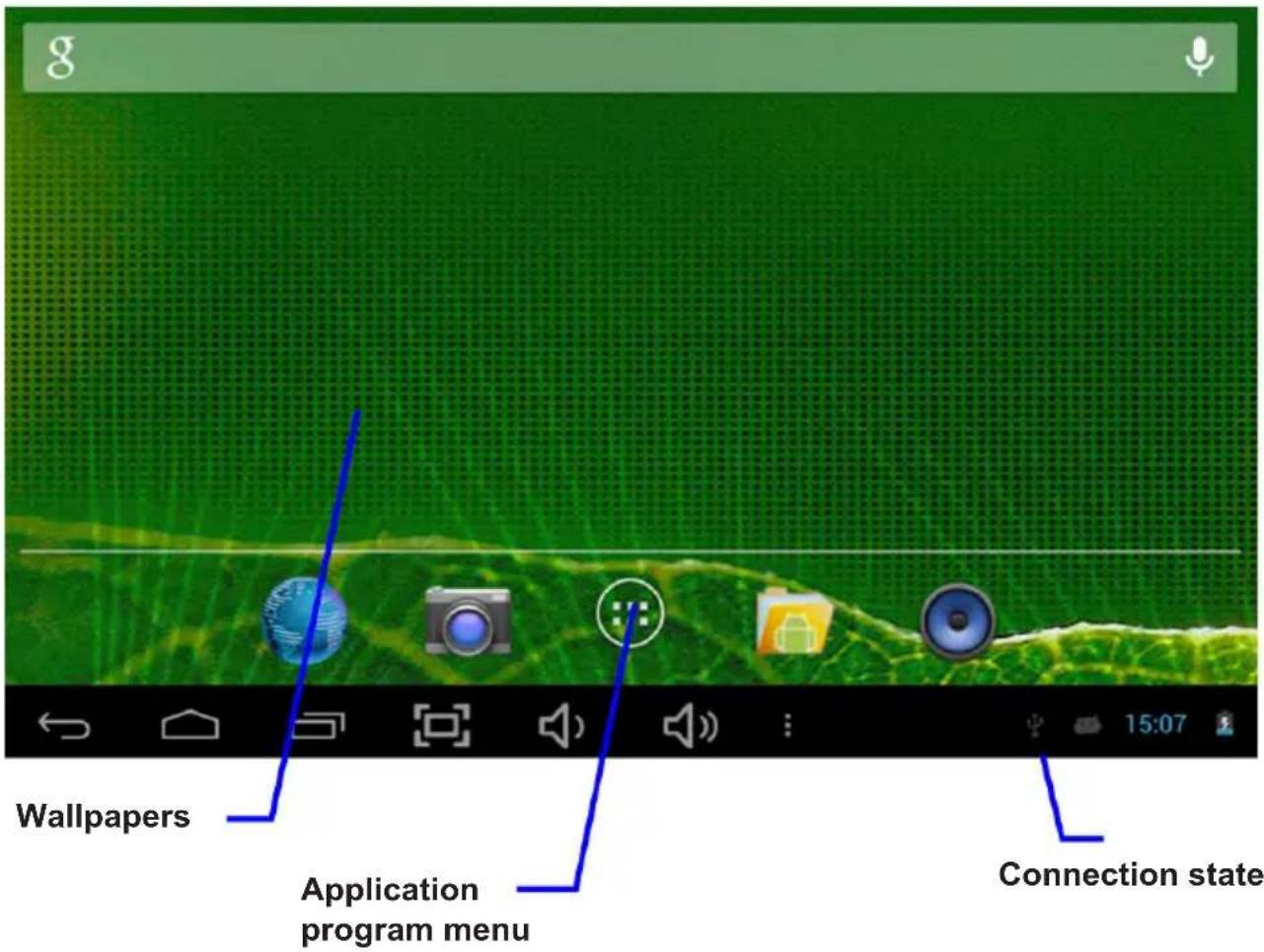

II. Your Home Screen

2.1 Change wallpaper for home screen

Tab and hold your finger in any blank space of the home screen, you will see a pop-up options; you can choose wallpaper from Gallery, live Wallpapers or Wallpapers.

EN

III. Network Connection

3.1 Wi-Fi

Wi-Fi can only be used when it connects with home Wi-Fi Access Point (AP) or a free unsecured Wi-Fi hotpot. Under "Wireless & networks", tap "Wi-Fi" to turn it on. After a moment, your Wi-Fi networks list should populate. If you need to rescan for available networks, tap "scan".

3.1.1 Turn on Wi-Fi

Within the App Panel, tap "Settings" → then "Wireless & networks" → "Wi-Fi" to turn on wifi.

EN

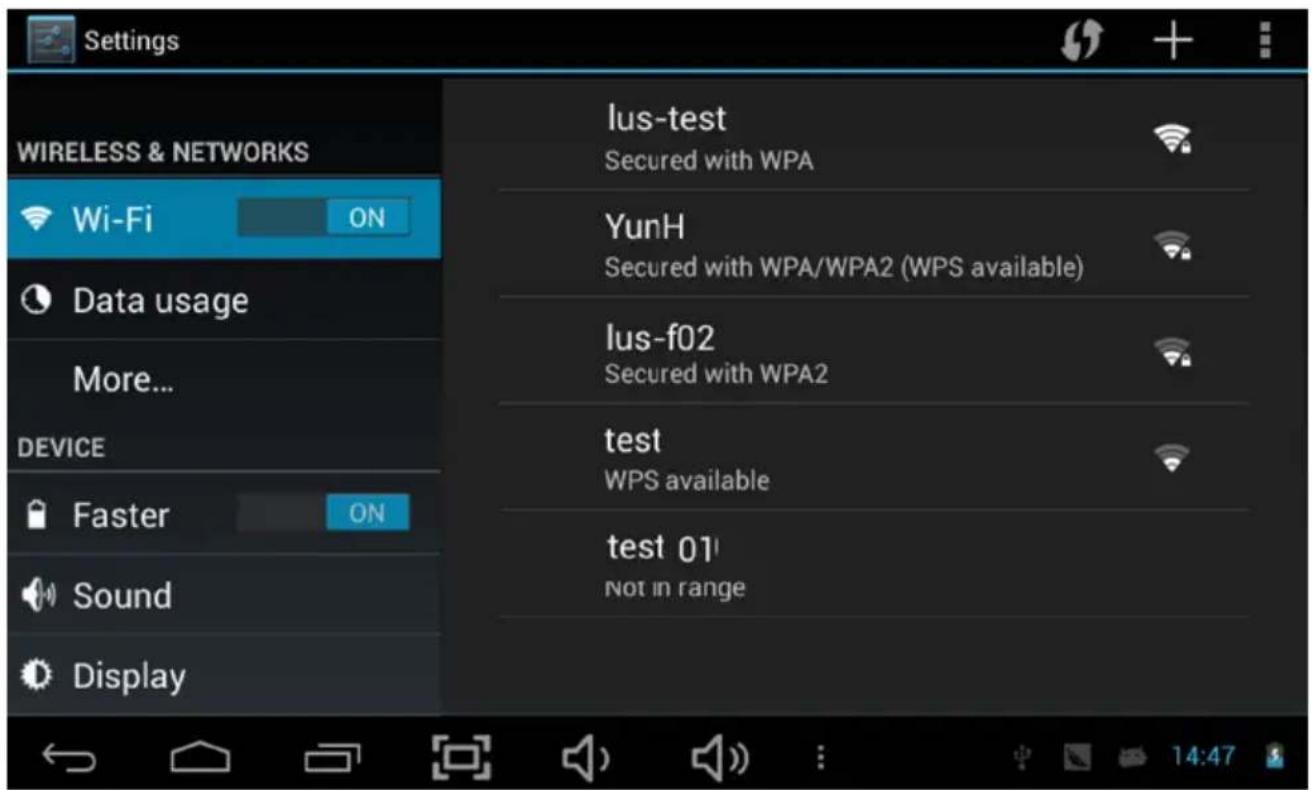

Your tablet lists the networks it finds within range. Tap a network to connect. If necessary, enter Network SSID, Security, and Wireless password, and tap "Connect".

When your tablet is connected to the network, the wireless indicator 📋 appears in the status bar. Waves indicate connection strength.

3.1.2 Turn off Wi-Fi

Please turn off Wi-Fi if you're not using it to save the battery. To turn off Wi-Fi, Tab it again.

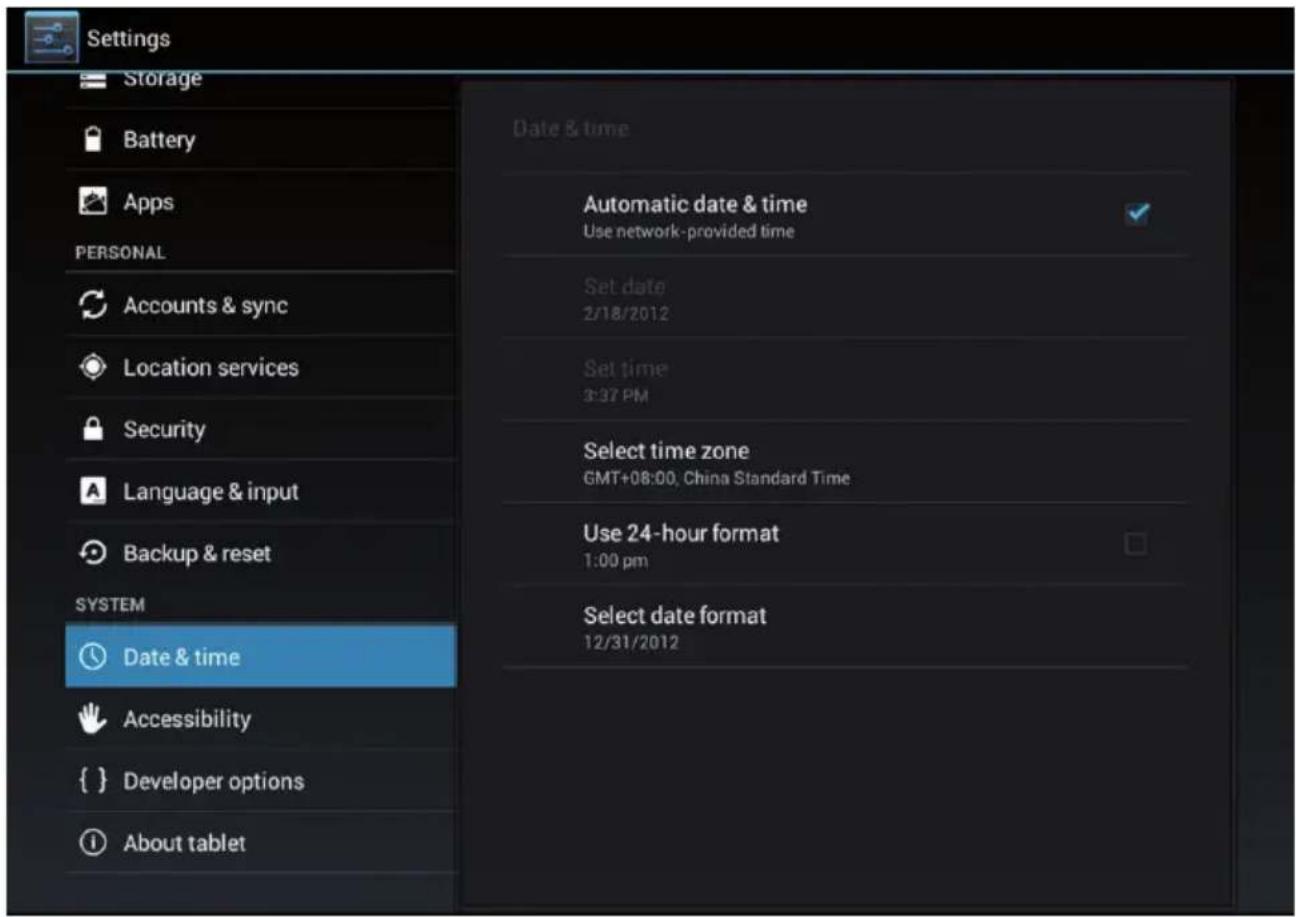

IV. Settings

Tap the "Settings" icon to go to settings.

you can check and set wireless&networks, sound, display, storage, Battery, Accounts &sync, security, language, date&time, about tablet, etc.

Wi-Fi: tap "Settings" → "Wireless & networks" to turn on wifi and scan. It will show a list of Wi-Fi networks scanned in range. Choose a strong Wi-Fi network to connect. (You may need to input the password).

Storage: Check internal storage here. If you insert an Micro SD card, or USB disk, you can check the total and available space for your Micro SD card or USB disk. Please unmount it to safely remove it.

Battery: Check the Battery status here.

Display: Tab "Settings" → "Display" to set brightness, screen time-out, etc.

Language & input: to set language and keyboard input.

Backup & reset: to go to submenu „back up my data” and „Factory data reset”. If you choose factory data reset, all data from your tablet's internal storage will be erased.

Choose this option carefully.

About Tablet: To check information about your tablet, such as Model number, android version, etc.

V. Battery

Very Low Battery

Full Battery

Charging Battery

indicates that the power of Battery is full. When the battery level becomes too low, a prompt comes up to note you to charge your tablet.

VI. Troubleshooting

1. Can not turn on the tablet

Check the tablet's power level, please charge it before starting it. In case your tablet still cannot be turned on, you may try to reset it

1. No sound from earphone

Check if volume is set to '0'. Or earphone may be broken, please change for another one.

1. Big noise

Check if there is dust in the earphone or speaker. Check if the file is broken.

1. Frozen to any operation

Please use a pin to reset and then restart your tablet.

1. Application not workable

Possible reasons may be that this app is not compatible with your OS or the downloaded .apk file is broken so you may need to download a full version.

1. How delete a Google account?

If an account is added, the account is shown in "Accounts & sync" of "Settings", where you may also add another account. To delete an undesired account, go to "Settings"

→ “Privacy settings” → “Factory data reset”. Your tablet’s internal storage, downloaded apps, etc. will also be deleted, except the info in your flash memory. Be careful before you carry out this operation.

VII. Specification

Display 9" (1024x600, 1)	6:9), Capacitive touch panel, multitouch
Operation System Android 4.2
CPU 1.0 GHz - Dual-Core A20 (Cortex-A7)
GPU Mali-400MP2
DDR RAM 1 GB DDR3
Interior storage 4 GB
Camera Front 0.3 Mpx
G-Sensor Yes
Speaker Yes
Microphone Yes
WiFi IEEE 802.11 b/g/n
Interfaces microUSB, microSD, 3.5 mm Earphone Jack, miniHDMI
Power Supply (AC Adapter)	5.0 V, 2.0 A
Battery Capacity 3000 mAh

Specifications are subject to change without notice.

The Lechpol company declares that product KOM0615 is consistent with the essential requirements and other relevant provisions of directive 1999/5/EC. The proper declaration for download from www.lechpol.eu

EN

English

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or Its literature, indicates that It should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal

Made in China for LECHPOL Zbigniew Leszek, Miętne, 1 Garwolińska Street 08-400 Garwolin.

EN

Spis treści

Wstęp 24

Ważne informacje 24

Wygląd 25

I. Start 26

Close-up of a black cylindrical object with no visible text or symbols

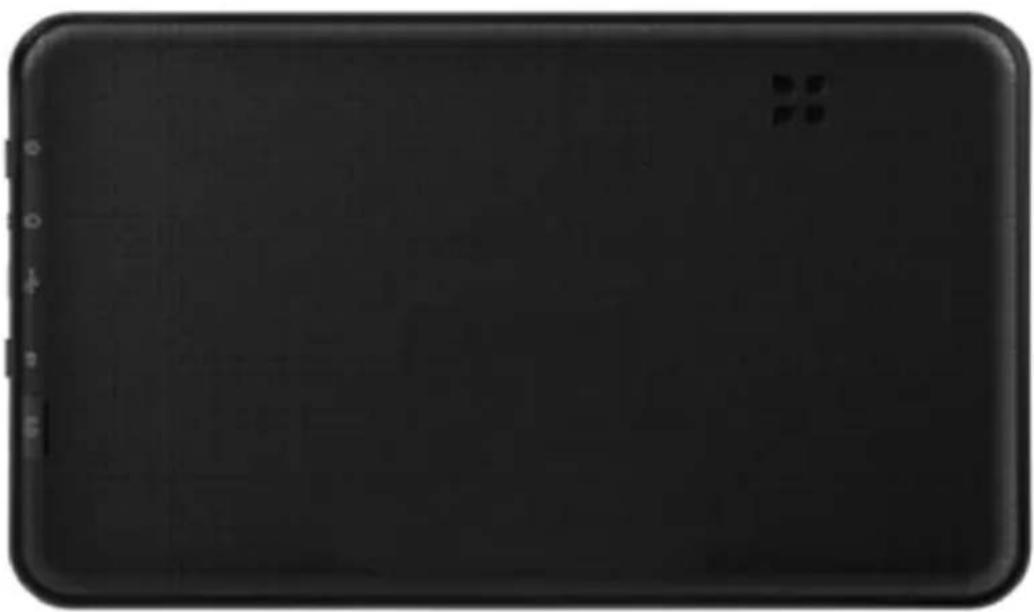

Front view of a black rectangular electronic device with no visible text or symbols on its surface.

PL

I. Start

Front and back view of a black smartphone with visible buttons and front panel (no text or symbols)

RO

I. Notiuni de baza

1.1 Pornire/oprire

1.1.1 Pornire
