AVX-DVI-TP-100M - Audio/video extender Black Box - Free user manual and instructions

Product Type	DVI Extender over Twisted Pair
Model	AVX-DVI-TP-100M
Brand	Black Box
Max Transmission Distance	100 m (328 ft)
Supported Video Resolution	Up to 1920 x 1200 @ 60 Hz
Connector Type (Transmitter)	1 x DVI-D (Single Link) Input, 1 x RJ-45 Output
Connector Type (Receiver)	1 x RJ-45 Input, 1 x DVI-D (Single Link) Output
Power Supply	External AC/DC adapter (5 V DC, 2 A)
Power Consumption	5 W max per unit
Dimensions (each unit)	10 cm x 6 cm x 2.5 cm (3.9" x 2.4" x 1.0")
Weight (each unit)	200 g (0.44 lb)
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	20% to 80% RH (non-condensing)
Supported Cable Type	Cat5e / Cat6 UTP or STP
EDID Pass-Through	Yes
HDCP Support	Yes (single-link)
Maintenance	Keep dry; clean with soft, dry cloth; no user-serviceable parts
Safety	Use only provided power adapter; avoid liquid exposure; protect from static discharge
Spare Parts & Repairability	Contact Black Box support for replacement power adapters; device not field-repairable

Frequently Asked Questions - AVX-DVI-TP-100M Black Box

What is the maximum distance supported by the AVX-DVI-TP-100M?

The extender supports transmission up to 100 meters (328 feet) over Cat5e/6 cable.

What video resolutions does the extender support?

It supports resolutions up to 1920x1200 @ 60 Hz, including standard 1080p.

Do I need separate power for both the transmitter and receiver?

Yes, each unit requires its own 5V DC power adapter (included).

What type of cable should I use?

Use Cat5e or Cat6 twisted pair cable (UTP or STP) with RJ45 connectors.

Is the extender compatible with HDCP content?

Yes, it supports HDCP pass-through for single-link DVI signals.

Can I use this extender with a DVI-to-HDMI adapter?

Yes, as long as the source and sink are DVI-compatible, adapters may work but are not guaranteed due to HDCP or EDID differences.

How do I connect the extender?

Connect the DVI source to the transmitter, then run a Cat5e/6 cable to the receiver, and connect the receiver to the display. Power both units.

What should I do if there is no video output?

Check all connections, ensure power is applied, verify cable length within 100m, and confirm EDID handshake. Try a different source or display.

Can I daisy-chain multiple extenders?

No, the AVX-DVI-TP-100M is designed for point-to-point extension only. For longer distances, use a repeater.

How do I clean the unit?

Disconnect power and wipe with a soft, dry cloth. Do not use liquids or abrasive cleaners.

USER MANUAL AVX-DVI-TP-100M Black Box

Extended Range DVI-D Extender with Audio and RS-232

Extends your PC DVI transmission distance up to 330 feet (100 m).

Includes two compact units: transmitter and receiver.

Customer Support Information

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) • FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax [phone] • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com • E-mail: [e-mail]

Trademarks Used in this Manual

Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc.

UL is a registered trademark of Underwriters Laboratories.

Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.

FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS

This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his own expense will be required to take whatever measures may be necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of Industry Canada.

The Extended Range DVI-D Extender has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment, the extender should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

• Follow all instructions and warnings marked on this unit.
• Do not attempt to service this unit yourself, except where explained in this manual.
• Provide proper ventilation and air circulation and do not use near water.
• Keep objects that might damage the device away from it and be sure to place this unit on a stable surface.
• Use only the power adapter and power cords and connection cables designed for this unit.
• Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.

Table of Contents

1. Specifications 8
2. Overview 10

2.1 Introduction....10
2.2 Features 10
2.3 What's Included....10
2.4 Hardware Description....11

2.4.1 Transmitter.... 11
2.4.2 Receiver....13

1. Hardware Installation ....15
2. Cable 16

Appendix. Troubeshooting....17

A.1 Contacting Black Box....17
A.2 Shipping and Packaging 17

1. Specifications

Audio Support — Stereo 2-channel analog audio

Approvals — Converter Unit: FCC, CE, RoHS, WEEE

Power Supply: UL ^® , FCC

Compliance — HDMI, DVI 1.1, HDCP

Computer Interface — DVI-D

ESD Protection — Human body model: ±19 kV (air-gap discharge) and ±12 kV (contact discharge);

Core chipset: ±8 kV

Equalization — Automatic

Heat Dissipation — 3.41 BTU/hr.

Input DDC Signal — 5 volts p-p, TTL

Input TMDS Signal — 1.2 volts p-p

Input TMDS Signal — 1.2 volts p-p

Maximum Distance between TX and RX — 328 ft. (100 m) using

CAT5e/CAT6/CAT7 cable

Operating System Support — All known operating systems, all known

hardware that supports/follows the HDMI/DVI spec

Rackmount Kits — Wallmount brackets and hardware included

RS-232 Support — Transmitter: Acts as DCE device;

Receiver: Acts as DTE device;

RX and TX: additional control signals not supported

Video Bandwidth — 340 MHz (10.2 Gbps)

Video Support — 480p/720p/1080p60/1920x1200 @ 60 Hz/

1600 x 1200 @60 Hz

Connectors — Transmitter: (1) DVI F input, (1) 3.5-mm audio input, (1) 2.5-mm

barrel connector for power, (1) RJ-45 8P8C output, (1) RS-232 DB9 F for serial extension;

Receiver: (1) DVI F output, (1) 3.5-mm audio output, (1) 2.5-mm barrel

connector for power, (1) RJ-45 8P8C input, (1) RS-232 DB9 M for serial extension

Indicators — (2) LEDs on both the transmitter and receiver: Power, Link

Temperature Tolerance — Operating: 32 to 104°F (0 to 40°C)

Operating Humidity — 90%, noncondensing

Power — Source: Desktop power supply; Power supply cord length: 4 ft. (12.8 m);

For both the transmitter and receiver: AC input: 100–240 VAC, 50–60 Hz, 0.8 A,

Consumption: 20 W;

Output: 5 VDC, 4 A

Size — Each unit: 1.3"H x 4.1"W x 3"D (3.2 x 10.5 x 7.6 cm)

Weight — Each unit: 0.9 lb. (0.4 kg)

2. Overview

2.1 Introduction

The Extended Range DVI-D Extender extends your PC DVI transmission distance up to 330 ft. (100 m) at up to 1920 x 1200 or 1080p resolution. With the extender, users can transmit high quality digital video from PC applications over one inexpensive CAT5e/6/7 LAN cable to a remote monitor or projector, instead of using short and expensive DVI cables. You can disconnect the monitor, place it in a remote location, and reconnect it without rebooting the operating system. The XR DVI Extender also supports serial port RS-232 (TXD and RXD) control.

The extender includes two compact units: a transmitter and a receiver. The transmitter unit connects to your PC DVI output and serial port, such as COM1, and the receiver unit connects to a monitor with serial control (such as touch panels). While successfully connected, the two LED lights on the RJ-45 connector will blink.

2.2 Features

• Complies with DVI 1.0 standard.
  • Supports EDID and HDCP bypass.
• Extends the transmission length from the sources up to 330 ft. (100 m) at 1920 x 1200 or 1080p resolutions.
• Features auto equalization.
  • Supports HDTV resolutions and VESA standards.
  • Supports serial port RS-232 (TXD and RXD) control.
• Direct plug-in at TX and wall-mounting with screws at RX.

2.3 What's Included

Your package should contain the following items. If anything is missing or damaged, contact Black Box Technical Support at 724-746-5500 or [e-mail].

• (1) DVI Transmitter with built-in wallmount brackets
• (1) DVI Receiver with built-in wallmount brackets
• (2) 5-VDC, 4-A power supplies with power cords
• (4) screws
- This user manual

2.4 Hardware Description

2.4.1 Transmitter

Figures 2-1 and 2-2 show the front and back panels of the Transmitter. Table 2-1 describes its components.

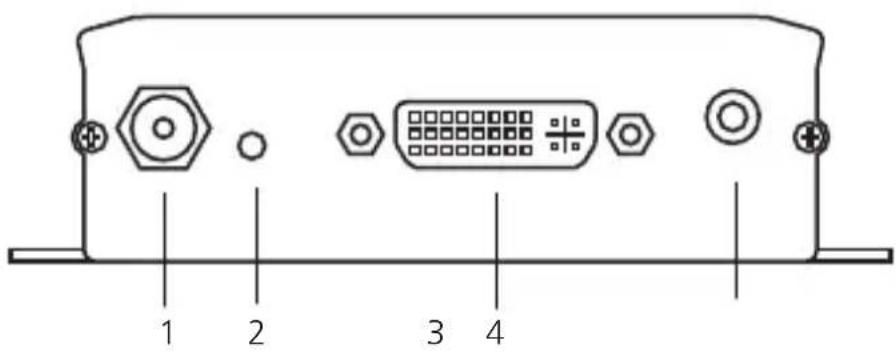

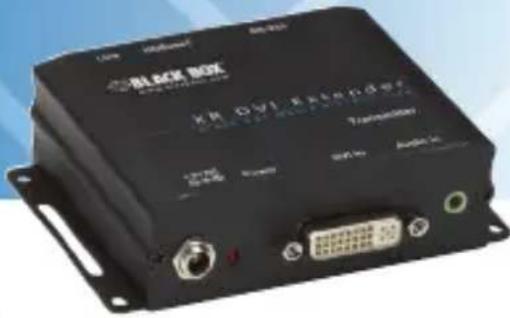

Figure 2-1. Transmitter's front panel.

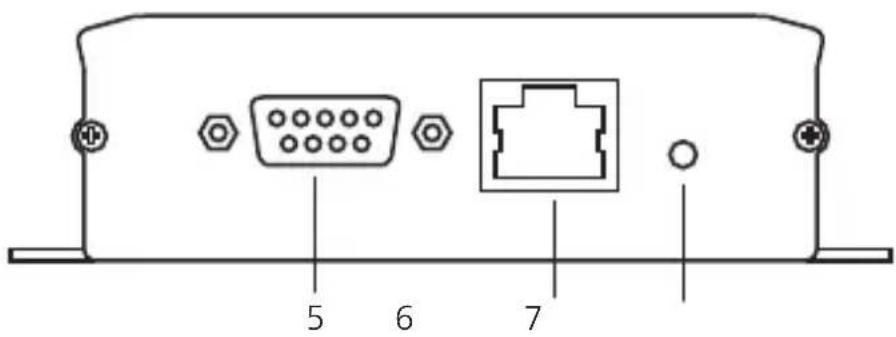

Figure 2-2. Transmitter's back panel.

Table 2-1. Transmitter's components.

Number Component Description
1 Barrel connector Links to 5-VDC power supply.
2 Power LED Lights when the unit is receiving power.
3 DVI-D input	Connect to a DVI source with a DVI female-to-male cable.
4 Audio input Connect to audio input.
5 RS-232 input	Connect to a PC's serial port with a DB9 female-to-male cable.
6 RJ-45 connector	Plug a CAT5/5e/6 cable in that needs to be linked to the receiver.
7 Link LED Data is being transmitted.

2.4.2 Receiver

Figures 2-3 and 2-4 show the front and back panels of the receiver unit. Table 2-2 describes its components.

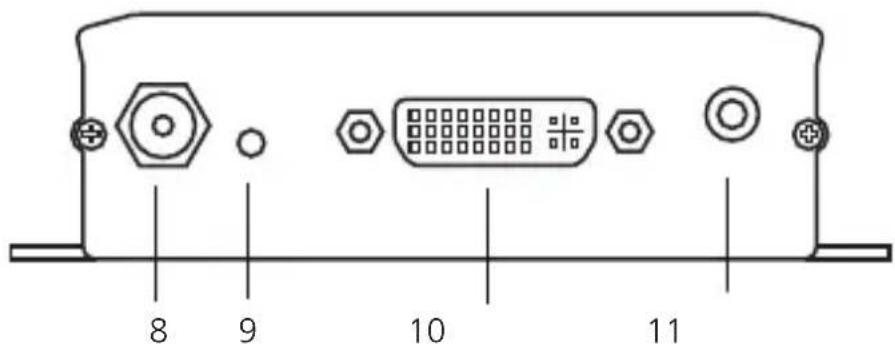

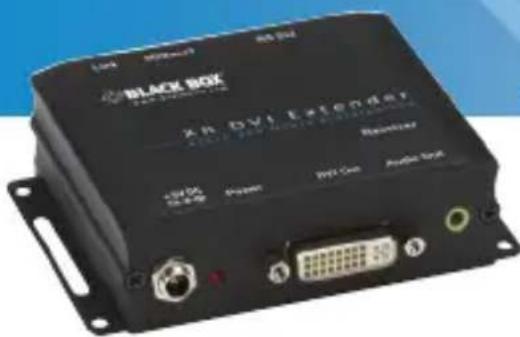

Figure 2-3. Receiver's front panel.

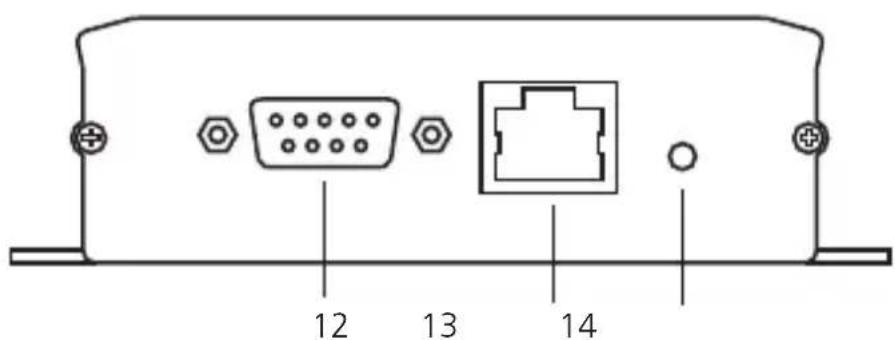

Figure 2-4. Receiver's back panel.

Table 2-2. Receiver's components.

Number Component Description
8 Barrel connector Links to 5-VDC power supply.
9 Power LED Lights when the unit is receiving power.
10 DVI-D output	Connect to a DVI display with a DVI male-to-male cable.
11 Audio output Connect to audio output.
12 RS-232 output	Connect to an RS-232 enabled device or touch panel with serial port control.
13 RJ-45 connector	Plug a CAT5/5e/6 cable in that needs to be linked to the transmitter.
14 Link LED Data is being received.

1. Hardware Installation

2. Connect the transmitter to your DVI source (PC).

3. Connect the transmitter to your serial controlled device.
4. Connect the receiver to the remote DVI monitor.
5. Connect the receiver to the serial control device or monitor.
6. Make sure your CAT5/5e/6 cable is tightly connected and not loose.
7. High quality PC video displays on the screen.


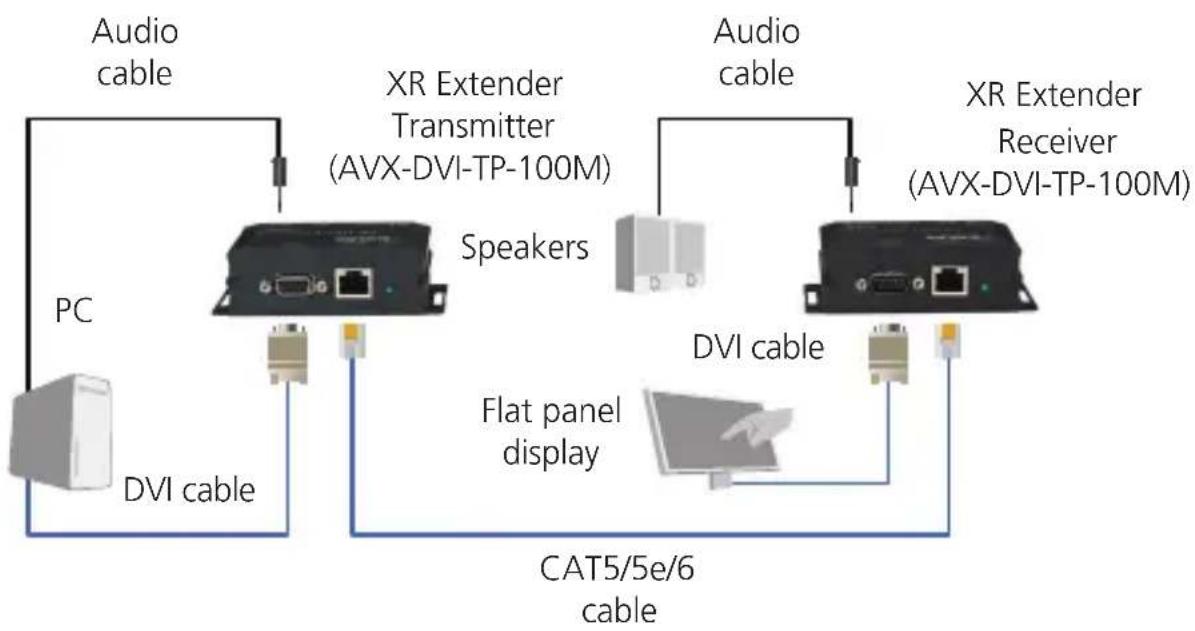

Figure 3-1. Connection diagram.

4. Cable

1. The transmission length is largely affected by the type of LAN cables, the type of HDMI sources, and the type of HDMI display. The testing result shows solid LAN cables (usually bulk cable (100 ft. [300 m]) can transmit a lot longer signals than stranded LAN cables (usually in patch cord form). Shielded STP cables are better suited than unshielded UTP cables. For long extension users, choose solid core LAN cables.
2. We recommend using EIA/TIA-568-B termination (T568B) for LAN cables for better performance.
3. To reduce the interference among the unshielded twisted pairs of wires in LAN cable, you can use shielded LAN cables to improve EMI problems, which are worse in long transmissions.

Appendix. Troubleshooting

A.1 Contacting Black Box

If you determine that your extender is malfunctioning, do not attempt to alter or repair the unit. It contains no user-serviceable parts. Contact Black Box Technical Support at 724-746-5500 or [e-mail].

Before you do, make a record of the history of the problem. We will be able to provide more efficient and accurate assistance if you have a complete description, including:

• the nature and duration of the problem.
• when the problem occurs.
• the components involved in the problem.
• any particular application that, when used, appears to create the problem or make it worse.

A.2 Shipping and Packaging

If you need to transport or ship your extender:

• Package it carefully. We recommend that you use the original container.
• If you are returning the unit, make sure you include everything you received with it. Before you ship for return or repair, contact Black Box to get a Return Authorization (RA) number.
