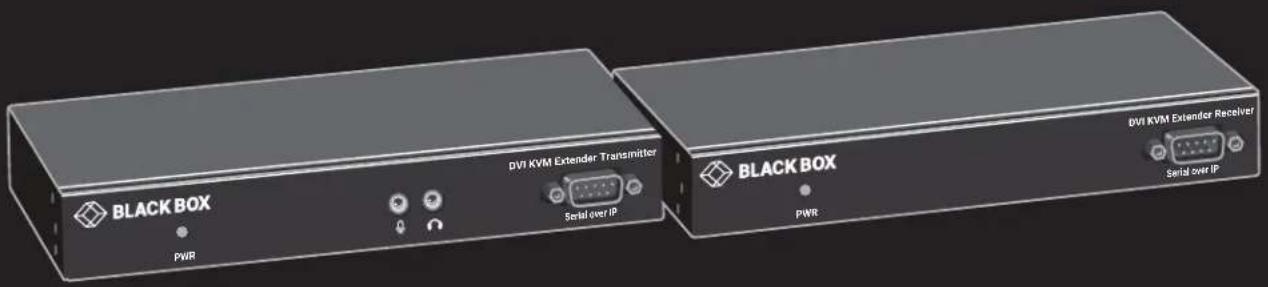

Product Type	Single-Head DVI KVM CATx Extender
Model	KVXLC-100
Video Input	(1) DVI-I female (single link)
Video Output (Local)	(1) DVI-I female (single link)
Video Resolution	Up to 1920 x 1200 @ 60 Hz
Host Connection	(1) USB Type B female
Console USB (Device)	(2) USB 2.0 Type A female + (2) USB HID ports
Audio	2-way analog: (1) Line In, (1) Line Out (TX); (1) MIC In, (1) Speaker Out (RX)
Serial Control	Bi-directional RS-232 via DB9 (RX)
Link Port	(1) RJ-45 for CATx cable
Maximum Distance (CATx)	330 ft (100 m)
Power Supply	External 5-VDC, 2-A (includes US, EU, UK plugs)
Power Consumption	10 W (max)
Dimensions (TX/RX)	1.06" H x 7.09" W x 3.27" D (2.7 x 18.0 x 8.3 cm)
Weight (TX)	0.79 lb (0.36 kg)
Weight (RX)	0.84 lb (0.38 kg)
Operating Temperature	32 to 122°F (0 to 50°C)
Storage Temperature	-4 to +140°F (-20 to +60°C)
Relative Humidity	0 to 80%
Housing Material	Metal
OS Compatibility	OS Independent
Supported DDC	DDC, DDC2, DDC2B
What's Included	Transmitter, Receiver, 2 power supplies, DVI-I cable (6 ft), audio cable (6 ft), USB-B to USB-A cable (6 ft)
Compliance	FCC Class A, Industry Canada

Frequently Asked Questions - KVXLC-100 Black Box

What is the maximum distance supported by the KVXLC-100 over CATx cable?

The KVXLC-100 supports extension up to 330 feet (100 meters) over standard CATx cable.

Can I use this extender with VGA monitors?

Yes, the DVI-I ports accept DVI or VGA signals using appropriate adapters or cables. The extender supports video resolutions up to 1920 x 1200 @ 60 Hz.

How do I connect USB peripherals?

Connect the transmitter's USB Type B port to your computer. The receiver provides 2 USB 2.0 Type A ports for devices and 2 dedicated USB HID ports for keyboard and mouse.

What type of cable is required for connection?

Use CATx cable (EIA/TIA 568B compliant) for up to 100 m. For longer distances, consider the fiber models (KVXLCF-100) which support up to 30 km with approved SFPs.

Can I extend RS-232 serial signals?

Yes, the extender supports bi-directional RS-232 communication. Connect the serial device to the DB9 connector on the receiver (front panel for single-head, rear for dual-head). Default baud rate is 115,200 bps, 8 data bits, no parity, 1 stop bit.

Does the extender support audio?

Yes, it provides 2-way analog audio extension. The transmitter has line-in and line-out jacks; the receiver has mic-in and speaker-out jacks.

What power supply is required?

The extender uses an external 5-VDC, 2-A power supply (included with US, EU, and UK plugs). Both the transmitter and receiver need power.

How do I reset to factory defaults?

Factory default settings are: baud rate 115,200 bps, 8 data bits, no parity, 1 stop bit. There is no user reset button; restore defaults by cycling power or using the configuration software.

Is the extender compatible with all operating systems?

Yes, the KVXLC-100 is OS independent and works with Windows, macOS, Linux, and other platforms without additional drivers.

What should I do if there is no video output?

Check that all cables are firmly connected. Ensure the display's input source is set to DVI. Verify the computer's BIOS video output settings. Test the video source directly to isolate the issue. If problem persists, contact Black Box technical support at 1.877.877.2269.

USER MANUAL KVXLC-100 Black Box

KVXLC-100, KVXLCF-100, KVXLC-200, KVXLCF-200

KVX SERIES DVI KVM EXTENDER

24/7 TECHNICAL SUPPORT AT 1.877.877.2269 OR VISIT BLACKBOX.COM

TABLE OF CONTENTS

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.8 7 7.2269

QUICK INSTALLATION GUIDE....3

1. SPECIFICATIONS....4
2. OVERVIEW....6

2.1 Introduction......6
2.2 Features 6
2.3 What's Included....6
2.4 Hardware Description....7

2.4.1 Transmitter 7
2.4.2 Receiver 10

1. CONNECTION DIAGRAM 13

2. INSTALLATION 14
   4.1 Factory Default Settings....14
   APPENDIX A. REGULATORY INFORMATION .... 15

A.1 FCC Statement 15

A.2 NOM Statement....16

APPENDIX B. DISCLAIMER/TRADEMARKS 17

B.1 Disclaimer....17
B.2 Trademarks....17

QUICK INSTALLATION GUIDE

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

Follow these steps to install the extender:

1. If you have the fiber models, install the SFPs in the transmitter and receiver. Compatible SFPs from Black Box are listed in the table below.

COMPATIBLE SFP MODULES

PART NUMBER DESCRIPTION DISTANCE
1-GBPS CONNECTIONS
LFP441 SFP 1.25-Gb, 850-nm Multimode Fiber, LC 550 m
LFP442 SFP 1.25-Gb, 1310-nm Single-mode Fiber, LC 20 km
LFP412	SFP with Extended Diagnostics - 1250-Mbps Multimode Fiber, 1310-nm	2 km
LFP413	SFP with Extended Diagnostics - 1250-Mbps Single-Mode Fiber, 1310-nm	10 km
LFP414	SFP with Extended Diagnostics - 1250-Mbps, Singlemode Fiber, 1310-nm	30 km
LFP416	SFP 1250-Mbps, Extended Diagnostics, 10/100/1000BASE-T, SGMII Interface, RJ-45	100 m

NOTE: Other SFPs may work but have not been validated by Black Box, we recommend you use the suggested SFPs to avoid technical incompatibilities.

NOTE: SFP is not included, must be ordered separately.

1. Connect the video source(s) to the Transmitter (Computer Unit).
2. Connect the monitor(s) to the Receiver unit.
3. Use CATx cables (EIA/TIA 568B industry standard compliant) or fiber cables for connection between Transmitter/Receiver.
4. Apply the proper power to all connecting devices.

NOTES:

a. We recommend using the highest quality materials (cables, SFP, etc.) to ensure optimal transmission quality.
b. If the screen does not display when you connect the computer:

1. Make sure the device cables are correctly and firmly attached.
2. Set your display device's (TV, monitor, etc.) input source as DVI.
3. Check the PC BIOS configuration of the video output setting.
4. Connect your video source to the Display DIRECTLY to check if the video signal gets through.

CHAPTER 1: SPECIFICATIONS

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

TABLE 1-1. TRANSMITTER SPECIFICATIONS

Console Connection
Video Output N/A
Serial Control Port N/A
Host Connection
Video Input	KVXLC-100, KVXLCF-100: (1) DVI-I female; KVXLC-200, KVXLCF-200: (2) DVI-I female
Local Out Video Connection
Local Out	KVXLC-100, KVXLCF-100: (1) DVI-I female; KVXLC-200, KVXLCF-200: (2) DVI-I female
Link Port
RJ-45	KVXLC-100: (1) RJ-45 using CATx cable - max. length: 330 feet (100 meters); KVXLC-200: (2) RJ-45 using CATx cable - max. length: 330 feet (100 meters)
SFP	KVXLCF-100: (1) SFP cage using Fiberoptic cable - max. length: 18.6 miles (30 km), depending on SFP; KVXLCF-200: (2) SFP cages using Fiberoptic cable - max. length: 18.6 miles (30 km), depending on SFPNOTE: SFP is not included. Must be ordered separately.
USB Interface
Host (1) USB Type B female
Device N/A
Audio
2-way analog audio (1) Line In, (1) Line Out
General
LED indicator Power: White LED
DDC Supported	DDC, DDC2, DDC2B
Max. Video Resolution	1920 x 1200 @ 60 Hz
OS Compatibility	OS Independent
Housing material	Chassis Metal
Operating Temperature	32 to 122° F (0 to 50° C)
Storage Temperature	-4 to +140° F (-20 to +60° C)
Relative Humidity	0 to 80%
Power Supply	External 5-VDC, 2-A power supply
Dimensions	KVXLC-100, KVXLCF-100 transmitters: 1.06' H x 7.09" W x 3.27" D (2.7 x 18.0 x 8.3 cm); KVXLC-200, KVXLCF-200 transmitters: 1.71' H x 7.09" W x 3.27" D (4.4 x 18.0 x 8.3 cm)
Weight	KVXLC-100 transmitter: 0.79 lb. (0.36 kg); KVXLCF-100 transmitter: 0.77 lb. (0.35 kg); KVXLC-200, KVXLCF-200 transmitter: 1.12 lb. (0.51 kg)

CHAPTER 1: SPECIFICATIONS

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

TABLE 1-2. RECEIVER SPECIFICATIONS

Console Connection
Video Output	KVXLC-100, KVXLCF-100: (1) DVI-I female;KVXLC-200, KVXLCF-200: (2) DVI-I female
Serial Control Port (1) DB9 male
Host Connection
Video Input N/A
Link Port
RJ-45	KVXLC-100: (1) RJ-45 using CATx cable - max. length: 330 feet (100 meters);KVXLC-200: (2) RJ-45 using CATx cable - max. length: 330 feet (100 meters)
SFP	KVXLCF-100: (1) SFP cage using Fiberoptic cable - max. length: 18.6 miles (30 km), depending on SFP;KVXLCF-200: (2) SFP cages using Fiberoptic cable - max. length: 18.6 miles (30 km), depending on SFPNOTE: SFP is not included. Must be ordered separately.
USB Interface
Host N/A
Device	(2) USB 2.0 Type A female for USB device extension;(2) USB HID ports for keyboard and mouse
Audio
2-way analog audio (1) MIC In, (1) Speaker Out
General
LED indicator Power: White LED
DDC Supported DDC, DDC2, DDC2B
Max. Video Resolution 1920 x 1200 @ 60 Hz
OS Compatibility	OS Independent
Housing material	Chassis Metal
Operating Temperature	32 to 122° F (0 to 50°C)
Storage Temperature	-4 to +140° F (-20 to +60°C)
Relative Humidity	0 to 80%
Power Supply	External 5-VDC, 2-A power supply
Dimensions	KVXLC-100, KVXLCF-100 receivers: 1.06" H x 7.09" W x 3.27" D (2.7 x 18.0 x 8.3 cm);KVXLC-200, KVXLCF-200 receivers: 1.71" H x 7.09" W x 3.27" D (4.4 x 18.0 x 8.3 cm)
Weight	KVXLC-100 receiver: 0.84 lb. (0.38 kg);KVXLCF-100 receiver: 0.81 lb. (0.37 kg);KVXLC-200, KVXLCF-200 receiver: 1.12 lb. (0.51 kg)

2.1 INTRODUCTION

The KVX Series DVI KVM Extender enables you to locally use one or two DVI/VGA monitors, USB keyboard/mouse/other devices, speaker, and microphone to operate a remote computer, server or other IT device.

There are four models of the KVX Series DVI KVM Extender: a single-head KVXLC-100 and dual-head KVXLC-200 version via a CATx link, and a single-head KVXLCF-100 and dual-head KVXLCF-200 version via a fiberoptic link. Each extender consists of a transmitter (TX) and a receiver (RX).

2.2 FEATURES

◆ Supports DVI and VGA input/output video quality up to 1920 x 1200 @ 60 Hz.
♦ Provides remote access for video/USB/RS-232/audio extension distance up to 330 feet (100 meters) over CATx cable for model KVXLC-100 or KVXLC-200; up to 18.6 miles (30 km) over fiberoptic cable for model KVXLCF-100 or KVXLCF-200, depending on the SFP used.
The DVI KVM Console Extender lets you control a server, or computer over single-mode or multimode fiber optic cable at distances of up to 30 km (depending on the SFP used, fiber type, and fiber bandwidth*).
- Single-head models with (1) DVI connector and dual-head models with (2) DVI connectors are available.
- Offers transparent USB 2.0/1.1 extension.
- Uses analog audio LINE-IN/LINE-OUT extension.
◆ Supports bi-directional RS-232 control communication.
- Firmware upgradable.

*NOTE: Reference the supported SFP chart on page 3.

2.3 WHAT'S INCLUDED

KVXLC-100:

(1) Single-Head DVI KVM CATx Extender Transmitter (TX)
(1) Single-Head DVI KVM CATx Extender Receiver (RX)
◆ (2) Power Supplies (includes US, EU, UK plug types)
(1) DVI-I cable (6-ft./1.8-m)
(1) 3.5-mm audio cable (6-ft./1.8-m)
(1) USB-B to USB-A cable (6-ft./1.8-m)

KVXLC-200:

(1) Dual-Head DVI KVM CATx Extender Transmitter (TX)
(1) Dual-Head DVI KVM CATx Extender Receiver (RX)
◆ (2) Power Supplies (includes US, EU, UK plug types)
(2) DVI-I cables (6-ft./1.8-m)
(1) 3.5-mm audio cable (6-ft./1.8-m)
(1) USB-B to USB-A cable (6-ft./1.8-m)

KVXLCF-100:

(1) Single-Head DVI KVM Fiber Extender Transmitter (TX)
(1) Single-Head DVI KVM Fiber Extender Receiver (RX)
(2) Power Supplies (includes US, EU, UK plug types)
(1) DVI-I cable (6-ft./1.8-m)
(1) 3.5-mm audio cable (6-ft./1.8-m)
(1) USB-B to USB-A cable (6-ft./1.8-m)

KVXLCF-200:

◆ (1) Dual-Head DVI KVM Fiber Extender Transmitter (TX)
(1) Dual-Head DVI KVM Fiber Extender Receiver (RX)
♦ (2) Power Supplies (includes US, EU, UK plug types)
(2) DVI-I cables (6-ft./1.8-m)
(1) 3.5-mm audio cable (6-ft./1.8-m)
(1) USB-B to USB-A cable (6-ft./1.8-m)

2.4 HARDWARE DESCRIPTION

2.4.1 TRANSMITTER

FRONT PANEL

Figure 2-1 shows the front panel that is common to the single-head CATx and fiber transmitters. Table 2-1 describes its components.

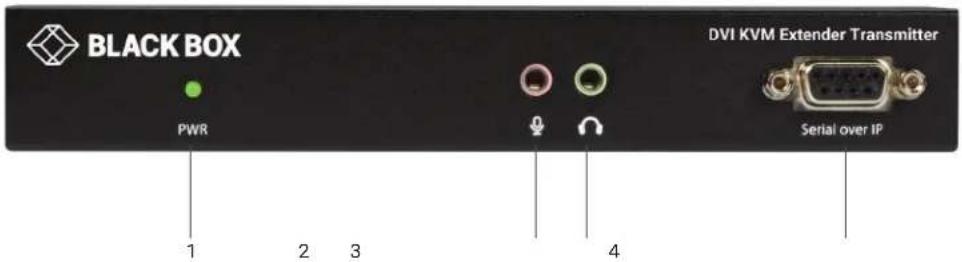

FIGURE 2-1. TRANSMITTER FRONT PANEL

Figure 2-2 shows the front panel that is common to the dual-head CATx and fiber transmitters. Table 2-1 describes its components.

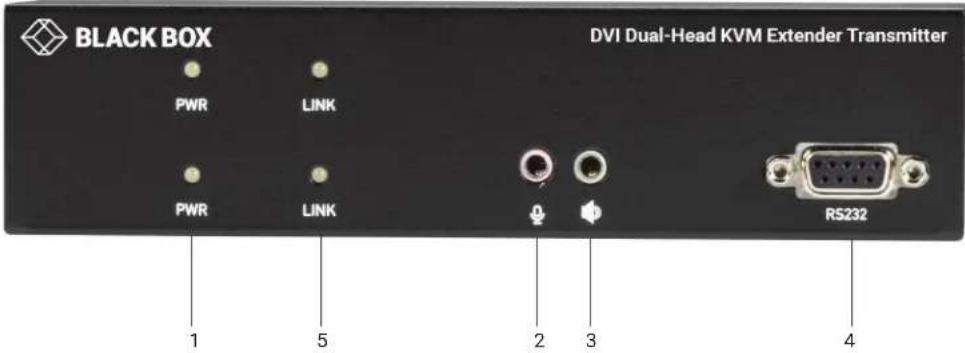

FIGURE 2-2. DUAL-HEAD TRANSMITTER FRONT PANEL

TABLE 2-1. TRANSMITTER FRONT-PANEL COMPONENTS

NUMBER IN FIGURE 2-1 OR 2-2 COMPONENT DESCRIPTION
1 PWR LED Lights when power to the transmitter is ON
2	Audio jack	Connects to analog audio input for audio extension
3	Audio jack	Connects to analog audio output for audio extension
4	DB9 female connector	Connects to source device's RS-232 port for serial extension
5 Link LED	Lights when the TX/RX link is active

CHAPTER 2: OVERVIEW

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

BACK PANEL

Figures 2-3 and 2-4 show the back panels of the single-head CATx and fiber transmitters. Table 2-2 describes their components.

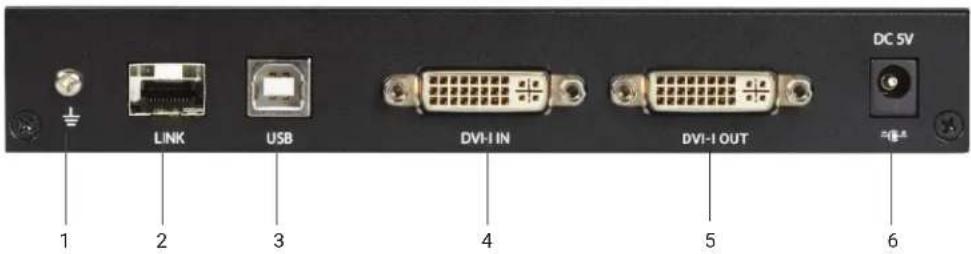

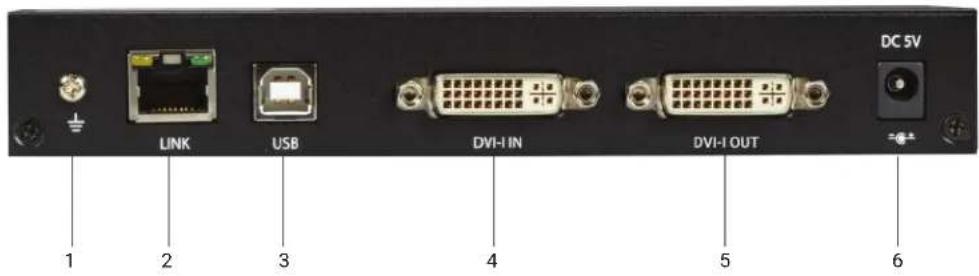

FIGURE 2-3. SINGLE-HEAD CATX TRANSMITTER BACK PANEL

FIGURE 2-4. SINGLE-HEAD FIBER TRANSMITTER BACK PANEL

TABLE 2-2. SINGLE-HEAD TRANSMITTER BACK-PANEL COMPONENTS

NUMBER IN FIGURE 2-3 OR 2-4 COMPONENT DESCRIPTION
1 Ground screw Links to ground
2	For CATx model: RJ-45 connectorFor Fiber model: SFP cage	For CATx Model: CATx linkFor Fiber model: Install fiber SFP module here
3 USB Type B connector Connects to source device's USB port
4 DVI In port Connects to source device's signal for DVI/VGA extension
5 DVI Out port Connects to local out
6	Power connector	Links to 5-VDC power supply

CHAPTER 2: OVERVIEW

NEED HELP? LEAVE THE TECH TO US

LIVE 24/7 TECHNICAL SUPPORT

1.87 7.877.2269

Figures 2-5 and 2-6 show the back panels of the dual-head CATx and fiber transmitters. Table 2-3 describes their components.

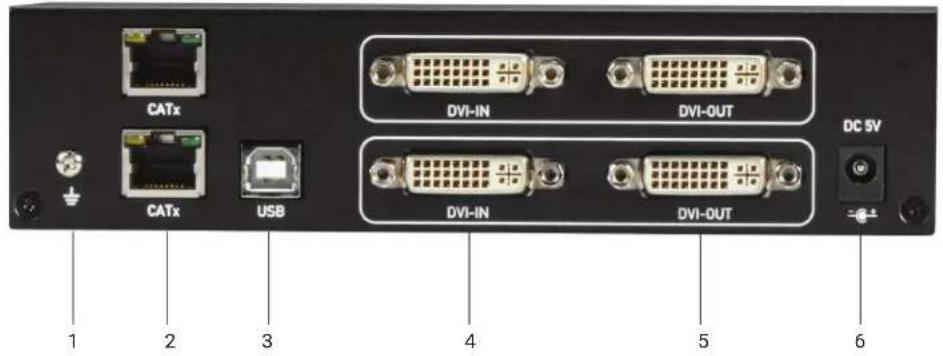

FIGURE 2-5. DUAL-HEAD CATX TRANSMITTER BACK PANEL

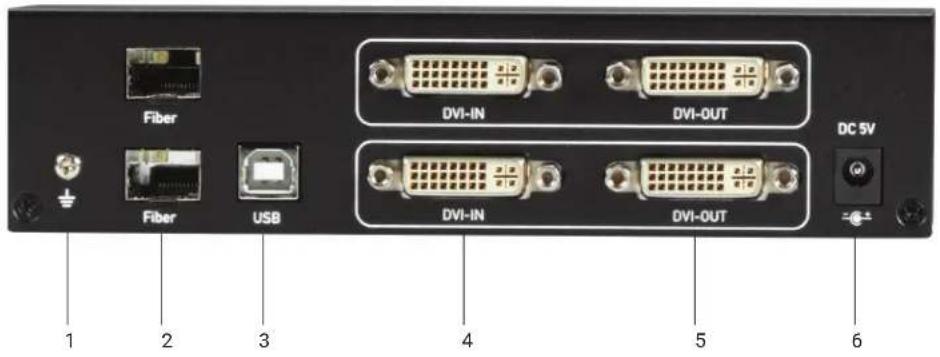

FIGURE 2-6. DUAL-HEAD FIBER TRANSMITTER BACK PANEL

TABLE 2-3. DUAL-HEAD TRANSMITTER BACK-PANEL COMPONENTS

NUMBER IN FIGURE 2-5 OR 2-6 COMPONENT DESCRIPTION
1 Ground screw Links to ground
2	For CATx model: (2) RJ-45 connectorsFor Fiber model: (2) SFP cages	For CATx Model: CATx linksFor Fiber model: Install fiber SFP modules here
3 USB Type B connector Connects to source device's USB port
4 (2) DVI In ports Connect to source devices' signals for DVI/VGA extension
5 (2) DVI Out ports Connect to local out
6 Power connector Links to 5-VDC power supply

CHAPTER 2: OVERVIEW

2.4.2 RECEIVER

FRONT PANEL

Figure 2-7 shows the front panel that is common to the single-head CATx and fiber receivers. Figure 2-8 shows the front panel that is common to the dual-head CATx and fiber receivers. Table 2-4 describes the components.

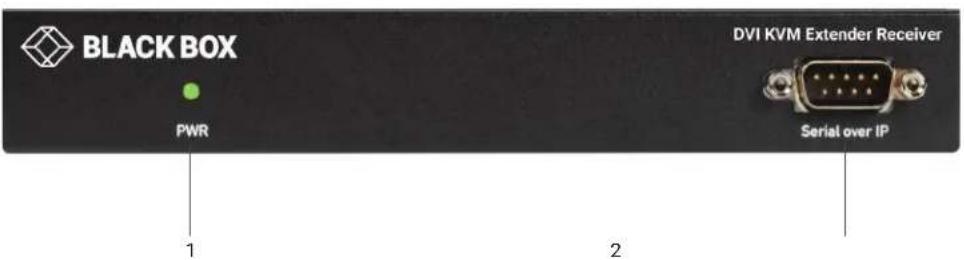

FIGURE 2-7. SINGLE-HEAD RECEIVER FRONT PANEL

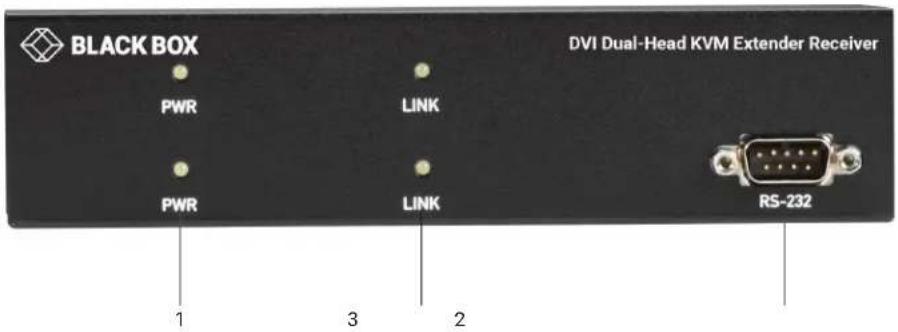

FIGURE 2-8. DUAL-HEAD RECEIVER FRONT PANEL

TABLE 2-4. RECEIVER FRONT-PANEL COMPONENTS

NUMBER IN FIGURE 2-7 OR 2-8 COMPONENT DESCRIPTION
1 PWR LED Lights when power to the receiver is ON
2	DB9 male connector	Connects to sink device's RS-232 port for serial extension
3 Link LED	Lights when the TX/RX link is active

CHAPTER 2: OVERVIEW

NEED HELP? LEAVE THE TECH TO US

LIVE 24/7 TECHNICAL SUPPORT

1.87 7.877.2269

BACK PANEL

Figures 2-9 and 2-10 show the back panels of the single-head CATx and fiber receivers. Table 2-5 describes their components.

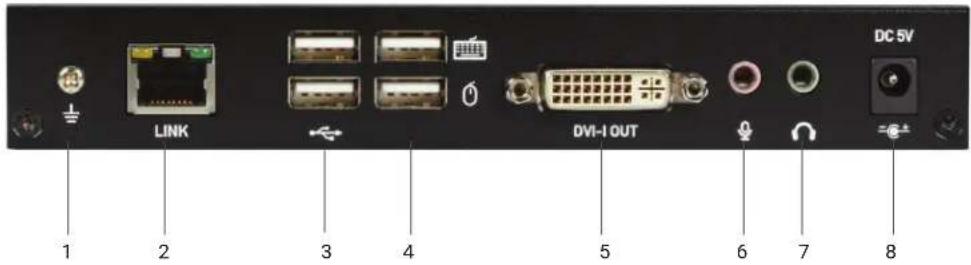

FIGURE 2-9. SINGLE-HEAD CATX RECEIVER BACK PANEL

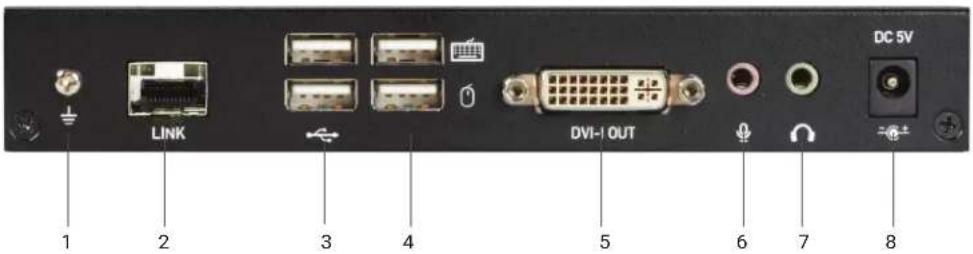

FIGURE 2-10. SINGLE-HEAD FIBER RECEIVER BACK PANEL

TABLE 2-5. SINGLE-HEAD RECEIVER BACK-PANEL COMPONENTS

NUMBER IN FIGURE 2-9 OR 2-10 COMPONENT DESCRIPTION
1 Ground screw Links to ground
2	For CATx model: (1) RJ-45 connectorFor Fiber model: (1) SFP cage	For CATx Model: CATx linkFor Fiber model: Install fiber SFP module here
3 (2) USB 2.0 ports Connects to USB device's ports for extension
4 (2) USB HID ports Connects to USB keyboard and mouse
5 DVI Out port Connects to sink device's signal for DVI/VGA extension
6 Audio jack	Links to analog audio input for audio extension
7 Audio jack	Links to analog audio output for audio extension
8	Power connector	Links to 5-VDC power supply

CHAPTER 2: OVERVIEW

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

Figures 2-11 and 2-12 show the back panels of the dual-head CATx and fiber receivers. Table 2-6 describes their components.

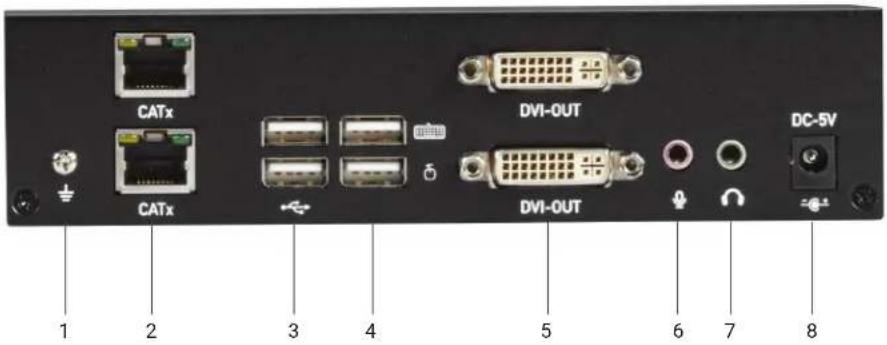

FIGURE 2-11. DUAL-HEAD CATX RECEIVER BACK PANEL

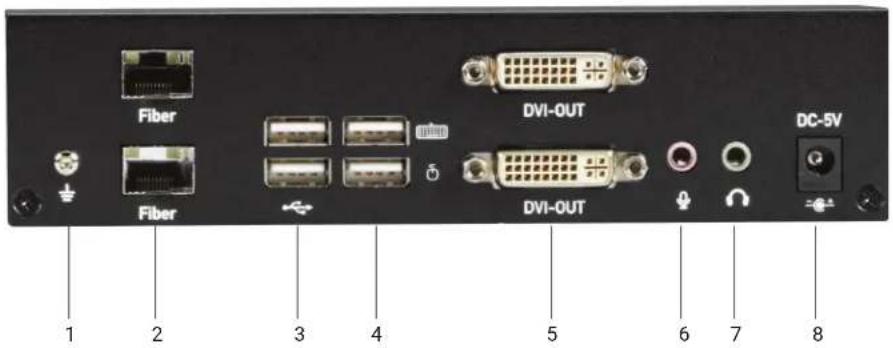

FIGURE 2-12. DUAL-HEAD FIBER RECEIVER BACK PANEL

TABLE 2-6. DUAL-HEAD RECEIVER BACK-PANEL COMPONENTS

NUMBER IN FIGURE 2-11 OR 2-12 COMPONENT DESCRIPTION
1 Ground screw Links to ground
2	For CATx model: (2) RJ-45 connectorsFor Fiber model: (2) SFP cages	For CATx Model: CATx linksFor Fiber model: Install fiber SFP modules here
3 (2) USB 2.0 ports Connects to USB device's ports for extension
4 (2) USB HID ports Connects to USB keyboard and mouse
5 (2) DVI Out ports Connect to sink devices' signals for DVI/VGA extension
6 Audio jack Links to analog audio input for audio extension
7 Audio jack Links to analog audio output for audio extension
8	Power connector	Links to 5-VDC power supply

CHAPTER 3: CONNECTION DIAGRAM

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

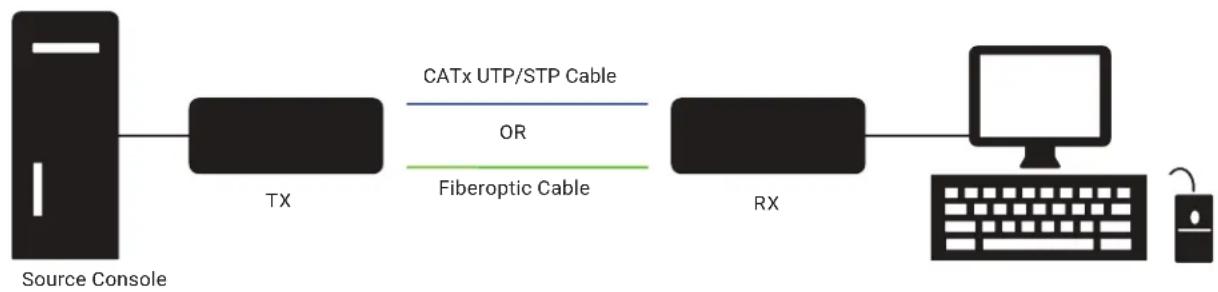

Figure 3-1 shows a typical connection.

FIGURE 3-1. CONNECTION DIAGRAM

CHAPTER 4: INSTALL ATION

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

4.1 FACTORY DEFAULT SETTINGS

Below are the factory default baud rate settings for the DVI KVM Extender's serial ports.

Baud rate: 115,200 bps
Data bits: 8
Parity: None
- Stop bits: 1

APPENDIX A: REGULATORY INFORMATION

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

A.1 FCC CLASS A STATEMENT

This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his own expense will be required to take whatever measures may be necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of Industry Canada.

Black Box Corporation shall not be liable for damages of any kind, including, but not limited to, punitive, consequential or cost of cover damages, resulting from any errors in the product information or specifications set forth in this document and Black Box Corporation may revise this document at any time without notice.

B.2 TRADEMARKS USED IN THIS MANUAL

Black Box and the Black Box logo type and mark are registered trademarks of Black Box Corporation.

Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.

NOTES

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

NOTES

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.87 7.2269
