Product Type	Audio/Video Extender (Encoder/Decoder) over 10GbE IP
Model	MCX-S7-ENC, MCX-S7-DEC, MCX-S7-FO-ENC, MCX-S7-FO-DEC
Video Input	1 x HDMI 2.0 (Type A) with HDCP 2.2
Video Output (Encoder)	1 x 10GbE copper (RJ45) or 1 x 10GbE SFP+ fiber port
Video Output (Decoder)	1 x HDMI 2.0 (Type A) with HDCP 2.2
Audio Input	1 x HDMI, 1 x 3.5 mm analog audio jack
Audio Output (Decoder)	1 x HDMI, 1 x 3.5 mm analog audio jack
Maximum Video Resolution	4096 x 2160 @ 60 Hz; 3840 x 2160 @ 60 Hz (4:4:4); 3840 x 2160 @ 60 Hz (4:2:0 10-bit HDR)
Latency	Zero-frame latency
Transmission Distance (Copper)	Up to 100 m (328 ft) over CAT6a or better
Transmission Distance (Fiber)	Up to 300 m (984 ft) over multimode fiber
Control Interface	10/100/1000 BASE-T LAN port, RS-232, IR, PC configurator software for Windows
Power Supply	12 VDC, 2 A (adapter included with interchangeable US, UK, EU, AU plugs)
Power Consumption (Encoder)	13.56 W (MCX-S7-ENC); 9.96 W (MCX-S7-FO-ENC)
Power Consumption (Decoder)	15.6 W (MCX-S7-DEC); 10.44 W (MCX-S7-FO-DEC)
Dimensions (H x W x D)	0.98 x 6.3 x 6.79 in (2.5 x 16.0 x 17.2 cm)
Weight	1.72 lb (0.78 kg)
Operating Temperature	32 to 113 °F (0 to 45 °C)
Storage Temperature	-4 to 140 °F (-20 to 70 °C)
Certifications	CE, RoHS2, FCC Class B
Maintenance	Clean with a dry cloth only; do not use liquids
Safety	Avoid exposure to rain, moisture, heat sources; unplug during storms; keep ventilation unobstructed
Included Accessories	Power adapter (12 VDC, 2 A), 3.5 mm 4-pin Phoenix connector, IR emitter (encoder) or IR receiver (decoder), mounting ears with screws
Spare Parts / Repairability	Use only manufacturer-specified accessories; refer servicing to qualified personnel

Frequently Asked Questions - MCX S7 Black Box

How do I connect a single transmitter to a single receiver (point-to-point)?

Connect an HDMI source to the encoder's HDMI input, and a display to the decoder's HDMI output. Connect the 10GbE port of the encoder to the decoder's 10GbE port using a CAT6a or better cable (up to 100 m) or a multimode fiber cable (up to 300 m) if using fiber models. Connect both units to power; the display should show the source content.

What is the maximum video resolution supported?

The MCX-S7 series supports resolutions up to 4096 x 2160 @ 60 Hz, 3840 x 2160 @ 60 Hz (4:4:4), and 3840 x 2160 @ 60 Hz (4:2:0 10-bit HDR).

How do I reset the unit to factory defaults?

Press and hold the P1 button on the top panel, then connect the device to power. When the Link TX and Link RX LEDs start blinking normally, release the button. The device will reset to factory defaults.

Can I use a network switch with these extenders?

Yes. Connect all encoders and decoders to a 10GbE switch using appropriate cables (CAT6a or fiber). Ensure LAN ports are not connected to the switch. Use the PC configurator software to discover and manage all devices.

What is the end-to-end latency of the system?

The MCX-S7 series offers zero-frame latency, meaning there is no noticeable delay between input and output.

How do I configure the devices?

Connect your PC to the decoder's LAN port (or to the switch). Set your PC's IP address to 169.254.1.11 and subnet mask to 255.255.0.0. Launch the PC configurator software; it will discover all encoders and decoders automatically. Adjust settings as needed.

What HDCP version is supported?

The units are HDCP 2.2 compliant. The HDCP output follows the input signal.

Can I use fiber optic cables?

Yes, the MCX-S7-FO-ENC and MCX-S7-FO-DEC models have 10GbE SFP+ fiber ports. Use multimode fiber with SFP+ transceivers. Connect the encoder's Optical Out to the decoder's Optical In.

How do I update firmware?

Firmware updates are performed via the PC configurator software. Connect the unit to your PC through the LAN port, open the software, select the device, and use the upgrade function.

What is the bandwidth required for 4K video?

4K signals require approximately 6 to 8 Gbps bandwidth; 1080p signals require about 1.485 Gbps.

USER MANUAL MCX S7 Black Box

QUICK INSTALL GUIDE AND USER MANUAL

MCX-S7-ENC, MCX-S7-DEC, MCX-S7-FO-ENC, MCX-S7-FO-DEC

MCX S7 ENCODERS & DECODERS

24/7 TECHNICAL SUPPORT AT 1.877.877.2269 OR VISIT BLACKBOX.COM

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS .... 4

QUICK INSTALLATION GUIDE....5

Preparation 5

Connecting One TX to One RX Directly....5

Connecting TX to RX....5

Configuring TX and RX 5

Connecting the TX and RX to a Switch 5

1. SPECIFICATIONS....6

2. OVERVIEW....10

2.1 About this Manual 10
2.2 Introduction ...... 10
2.3 Port Differences....10
2.4 Features 10
2.5 What's Included 11
2.6 Hardware Description....12

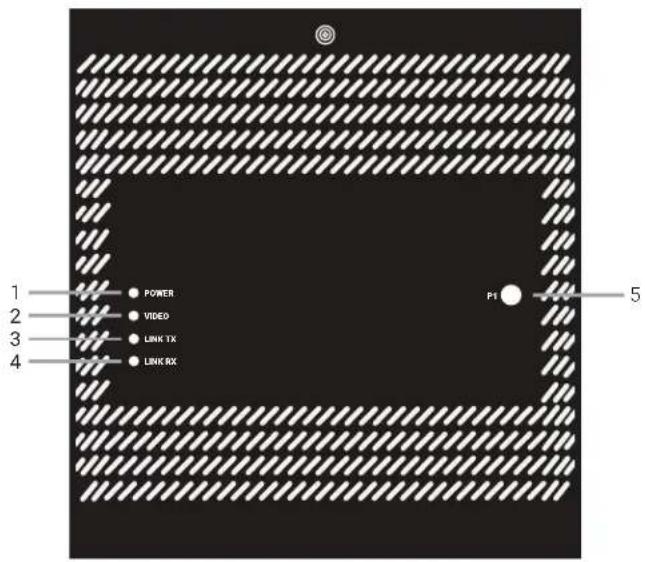

2.6.1 Top Panel (All MCX-S7-ENC and MCX-S7-DEC Series Units)....12

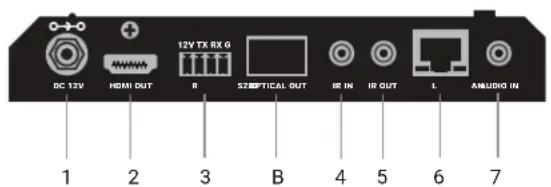

2.6.2 Front Panel 13

MCX-S7-ENC Series Units 13

MCX-S7-DEC Series Units 14

2.6.3 Back Panel 14

3. TYPICAL APPLICATIONS .... 15

3.1 Point-to-Point....15

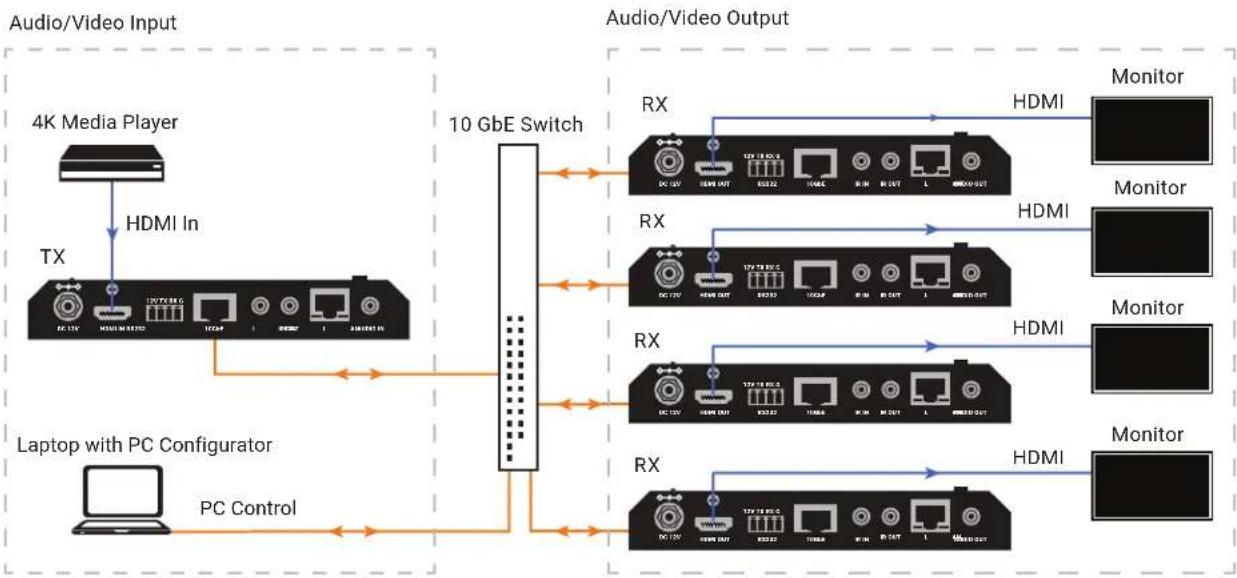

3.2 Point-to-Multipoint 15

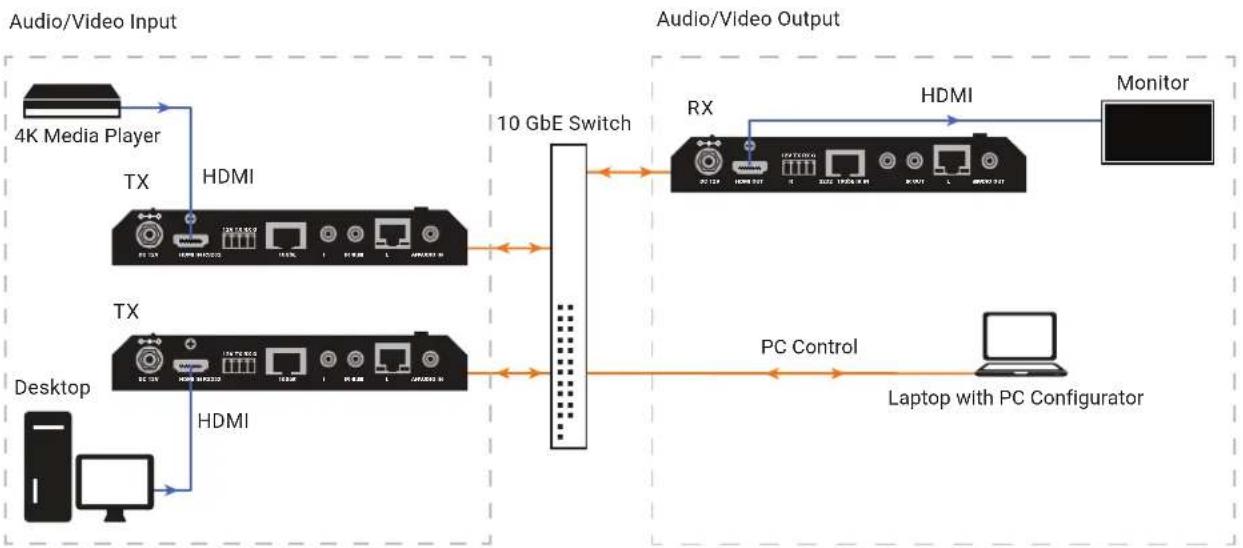

3.3 Multipoint-to-Point....16

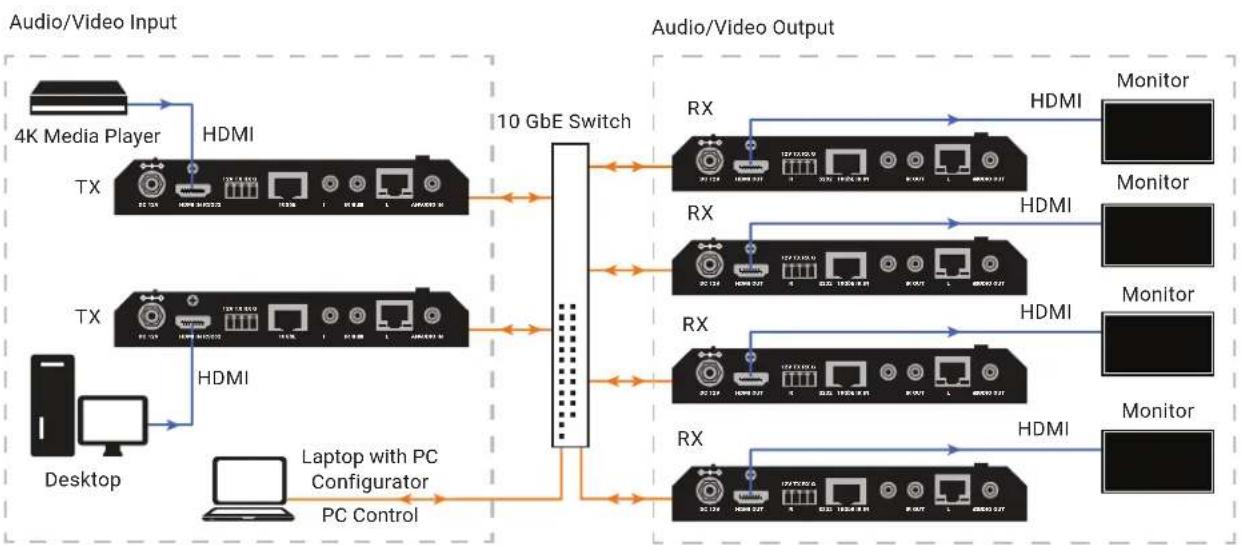

3.4 Multipoint-to-Multipoint 16

4. HARDWARE INSTALLATION....17

TABLE OF CONTENTS

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

APPENDIX A. REGULATORY INFORMATION....18

A.1 FCC Class B Statement 18
A.2 CE and RoHS2....18
A.3 NOM Statement 19

APPENDIX B.DISCLAIMER/TRADEMARKS 20

B.1 Disclaimer 20
B.2 Trademarks Used in this Manual 20

IMPORTANT SAFETY INSTRUCTIONS

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

1. Do not expose this apparatus to rain, moisture, dripping or splashing and do not place objects filled with liquids, such as vases, on the apparatus.
2. Clean this apparatus only with a dry cloth.
3. Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure that the unit is well ventilated.
4. To prevent the risk of electric shock or a fire hazard caused by overheating, do not obstruct the unit's ventilation openings with newspapers, tablecloths, curtains and similar items.
5. Do not install near any heat sources, such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
6. Do not place sources of naked flames, such as lighted candles, on the unit.
7. Unplug this apparatus during lightning storms or when unused for long periods of time.
8. Protect the power cord from being walked on or pinched, particularly at plugs.
9. Only use attachments/accessories specified by the manufacturer.
10. Refer all servicing to qualified service personnel.

QUICK INSTALLATION GUIDE

PREPARATION

Before you start installing MCX-S7 products, carefully read and strictly follow the instructions below.

- Only use accessories and cables that are supplied with Black Box products or purchased as required

- Correctly connect all the cables

Use the correct power supplies and connect them to Black Box devices in accordance with the specification for electric construction

CONNECTING ONE TX TO ONE RX DIRECTLY

CONNECTING TX TO RX

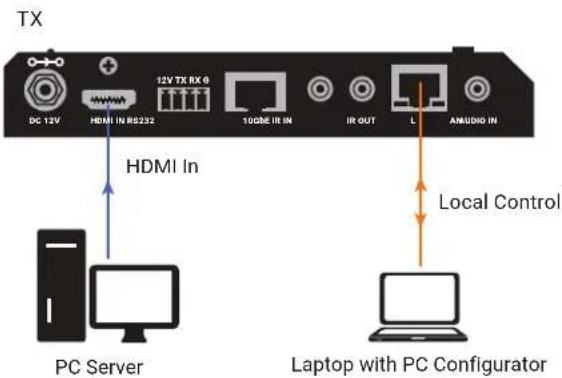

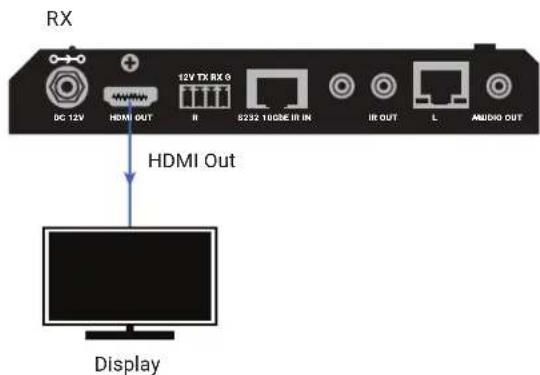

1. Connect a video source to the encoder and a display device to the decoder.
2. Connect the MCX-S7-DEC to the MCX-S7-ENC with a network cable that meets the 10GbE specification. Be careful to plug the network cable's RJ-45 connectors into these devices' 10GbE ports.

Or, you can connect the MCX-S7-FO-DEC to the MCX-S7-FO-ENC with a multimode fiber optic cable. Be careful to plug the optical fiber module into the Optical Out (MCX-S7-FO-ENC) and Optical In (MCX-S7-FO-DEC) ports.

1. Connect all the devices to their power supplies. After a while, the display will show the content of the video source.

CONFIGURING TX AND RX

1. Connect your PC to the receiver with a network cable. Plug the network cable's one end into the device's LAN port and the other end into your PC's Ethernet port.
2. Configure your PC's network settings with IP address 169.254.1.11 and subnet mask 255.255.0.0, leaving gateway and DNS blank.
3. Launch the matching Manager software, then maximize its window to view more contents. The software will automatically discover the two devices: the transmitter would be shown in the Encoders section and the receiver would be shown in the Decoders section.
4. Adjust the configurations of the two devices if necessary.

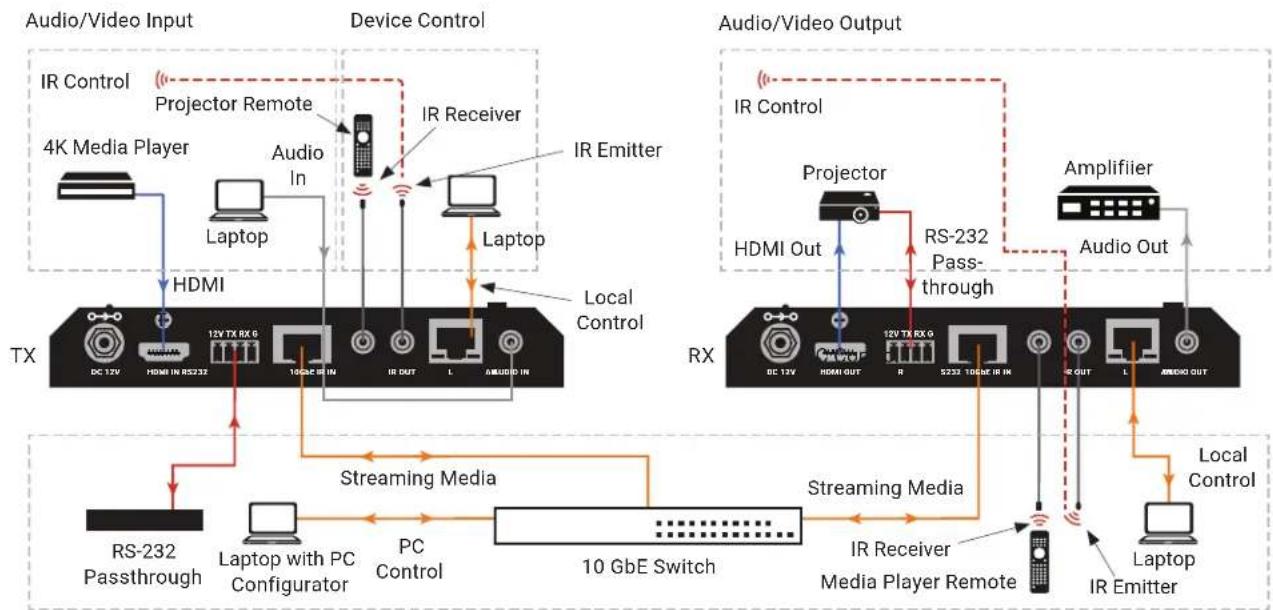

CONNECTING THE TX AND RX TO A SWITCH

1. Connect all MCX-S7-ENC and MCX-S7-DEC units to a 10GbE switch with network cables that meet the 10GbE specification. Be careful to plug the network cable's RJ-45 connectors into the devices' 10GbE ports.
   Or, you can connect all MCX-S7-FO-ENC and MCX-S7-FO-DEC units to the fiber switch with multimode fiber optic cables. Be careful to plug the optical modules into the Optical Out (MCX-S7-FO-ENC) and Optical In (MCX-S7-FO-DEC) ports.
2. Connect your PC to the switch, making sure that all devices' LAN ports aren't plugged into any network cables.
3. Configure your PC's network settings with IP address 169.254.1.11 and subnet mask 255.255.0.0, leaving gateway and DNS blank.
4. Start the Manager software and maximize its window and the software will discover all devices automatically. The transmitters will be shown in the Encoders section and the receivers will be shown in the Decoders section.
5. Adjust the configurations and control all devices with the Manager.

CHAPTER 1: SPECIFICATIONS

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

TABLE 1-1. SPECIFICATIONS, MCX-S7-ENC SERIES UNITS

SPECIFICATION DESCRIPTION
Video
Input Video Port MCX-S7-ENC, MCX-S7-FO-ENC: (1) HDMI In, Type A
Input Video Type HDMI 2.0 with HDCP 2.2 (HDCP in output follows input)
Input Video Resolutions	640 x 480 ^8 , 800 x 600 ^8 , 1024 x 768 ^8 , 1280 x 1024 ^8 , 1360 x 768 ^8 , 1440 x 900 ^8 , 1440 x 1050 ^8 , 1600 x 1200 ^8 , 720 x 480 ^r (480i59), 720 x 480 ^r (480p59), 720 x 576 ^6 (576i50), 720 x 576 ^6 (576p50), 1280 x 720 ^b (720p50), 1280 x 720 ^r (720p59), 1280 x 720 ^8 (720p60), =1920 x 1080 ^6 (1080i50), 1920 x 1080 ^r (1080i59), 1920 x 1080 ^B (1080i60), 1920 x 1080 ^1 (1080p23), 1920 x 1080 ^7 (1080p24),1920 x 1080(1080p25), 1920 x 1080 ^f (1080p29), 1920 x 1080 ^b (1080p30), 1920 x 1080 ^6 (1080p50), 1920 x 1080 ^r (1080p59), 1920 x 1080 ^B (1080p60), 3840 x 2160 ^1 (2160p23), 3840 x 2160 ^9 (2160p24), 3840 x 2160 ^4 (2160p25), 3840 x 2160 ^4 (2160p29), 3840 x 2160 ^b (2160p30), 3840 x 2160 ^b (2160p60), 4096 x 2160 ^5 , 4096 x 2160 ^8 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = at 75 Hz
Input Video 0.5 to 1.2 V p-p
Input DDC Signal 5 V p-p (TTL)
Video Impedance 100 ohms
End-to-End Time Latency	Zero-frame latency
Output Video Port	MCX-S7-ENC: (1) 10GbE copper port;MCX-S7-FO-ENC: (1) 10GbE SFP+ port
Output Video Type	4K UHD uncompressed or light compressed IP stream
Output Video Resolutions	640 x 480 ^8 , 800 x 600 ^8 , 1024 x 768 ^8 , 1280 x 1024 ^8 , 1360 x 768 ^8 , 1440 x 900 ^ , 1440 x 1050 ^ , 1600 x 1200 ^ , 720 x 480 ^r (480i59), 720 x 480 ^r (480p59), 720 x 576 ^6 (576i50), 720 x 576 ^6 (576p50),1280 x 720 ^b (720p50), 1280 x 720 ^r (720p59), 1280 x 720 ^B (720p60), =1920 x 1080 ^6 (1080i50), 1920 x 1080 ^r (1080i59), 1920 x 1080 ^B (1080i60), 1920 x 2160 ^1 (1080p23), 1920 x 1080 ^7 (1080p24),1920 x 1080(1080p25), 1920 x 1080 ^f (1080p29), 1920 x 1090 ^6 (1080p30), 1920 x 1080 ^6 (1080p50), 1920 x 1080 ^7 (1080p59), 1920 x 1080 ^B (1080p60), 3840 x 2160 ^1 (2160p23), 3840 x 2160 ^9 (2160p24), 3840 x2160 ^4 (2160p25), 3840 x 2160 ^4 (2160p29), 3840 x 2160 ^5 (2160p30), 3840 x 2160 ^6 (2160p60), 4096 x 2160 ^5 , 4096 x 2160 ^8 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 5 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = at 75 Hz
Audio
Input Audio Port (1) HDMI IN (Type A), (1) AUDIO IN (3.5-mm audio jack)
Input Audio Format	HDMI;DP: HDMI multi-channel digital audio: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master
Analog Audio	2 channels, 24 bits @ 48 kHz / channel
Output Audio Port	MCX-S7-ENC: (1) 10GbE copper port;MCX-S7-FO-ENC: (1) 10GbE SPF+ port
Control
Control Method	PC configurator for Windows
General
Operating Temperature	32 to 113° F (0 to 45°C)
Storage Temperature	-4 to +140° F (-20 to +70°C)
Operating Humidity	10 to 90%, non-condensing
Storage Humidity 10 to 90%, non-condensing

CHAPTER 1: SPECIFICATIONS

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

TABLE 1-1 (CONTINUED). SPECIFICATIONS, MCX-S7-ENC SERIES UNITS

SPECIFICATION DESCRIPTION
General (continued)
Power 12 VDC, 2 A
Power Consumption(Maximum)	MCX-S7-ENC: 13.56 W;MCX-S7-F0-ENC: 9.96 W
ESD Protection	Human body model: ± 8 kV (air-gap discharge), ± 4 kV (contact discharge)
Surge Protection Voltage: ± 1 kV
Dimensions 0.98" H x 6.3" W x 6.79" D (2.5 x 16.0 x 17.2 cm)
Weight 1.72 lb. (0.78 kg)
Certifications CE, RoHS compliant

TABLE 1-2. SPECIFICATIONS, MCX-S7-DEC SERIES UNITS

SPECIFICATION DESCRIPTION
Video
Input Video Port	MCX-S7-DEC: (1) 10GbE copper port;MCX-S7-FO-DEC: (1) 10GbE SPF+ port
Input Video Type 4K UHD uncompressed or light compressed IP stream
Input Video Resolutions	640 x 480 ^8 , 800 x 600 ^8 , 1024 x 768 ^8 , 1280 x 1024 ^8 , 1360 x 768 ^8 , 1440 x 900 ^8 , 1440 x 1050 ^8 , 1600 x 1200 ^8 ,720 x 480 ^7 (480i59), 720 x 480 ^7 (480p59), 720 x 576 ^6 (576i50), 720 x 576 ^6 (576p50), 1280 x 720 ^6 (720p50),1280 x 720 ^7 (720p59), 1280 x 720 ^8 (720p60), =1920 x 1080 ^6 (1080i50), 1920 x 1080 ^7 (1080i59), 1920 x 1080 ^8 (1080i60), 1920 x 1080 ^1 (1080p23), 1920 x 1080 ^2 (1080p24), 1920 x 1080(1080p25), 1920 x 1080 ^4 (1080p29),1920 x 1080 ^6 (1080p30), 1920 x 1080 ^6 (1080p50), 1920 x 1080 ^7 (1080p59), 1920 x 1080 ^8 (1080p60), 3840 x 2160 ^1 (2160p23), 3840 x 2160 ^7 (2160p24), 3840 x 2160 ^4 (2160p25), 3840 x 2160 ^4 (2160p29), 3840 x 2160 ^5 (2160p30),3840 x 2160 ^6 (2160p60), 4096 x 2160 ^5 , 4096 x 2160 ^8 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz,9 = at 75 Hz
Output Video Port (1) HDMI OUT (Type A)
Output Video Type HDMI 2.0 with HDCP 2.2 (HDCP of output follows input)
End-to-End Time Latency Zero-frame latency
Output Video Resolutions	640 x 480 ^5 , 800 x 600 ^5 , 1024 x 768 ^8 , 1280 x 1024 ^8 , 1360 x 768 ^8 , 1440 x 900 ^5 , 1440 x 1050 ^5 , 1600 x 1200 ^8 ,720 x 480 ^7 (480i59), 720 x 480 ^7 (480p59), 720 x 576 ^6 (576i50), 720 x 566 ^6 (576p50), 1280 x 720 ^5 (720p50),1280 x 720 ^7 (720p59), 1280 x 720 ^5 (720p60), =1920 x 1080 ^6 (1080i50), 1920 x 1080 ^7 (1080i59), 1920 x 1080 ^8 (1080i60), 1920 x 1O80 ^1 (1080p23), 1920 x 1080 ^2 (1080p24), 1920 x 1080(1080p25), 1920 x 1080 (1080p29),1920 x 1080 ^6 (1080p30), 1920 x 1080 ^6 (1080p50), 1920 x 1080 ^7 (1080p59), 1920 x 108O ^8 (1080p60), 3840 x 2160 ^1 (2160p23), 3840 x 2160 ^2 (2160p24), 3840 x 2160 ^4 (2160p25), 3840 x 2160 ^4 (2160p29), 3840 x 2160 ^5 (2160p30),3840 x 1260 ^6 (2160p60), 4096 x 2160 ^5 , 4096 x 2160 ^8 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz,9 = at 75 Hz
Output Video Signal 0.5 to 1.2 V p-p
Output DDC Signal 5 V p-p (TTL)
Video Impedance	100 ohms
Audio
Input Audio Port	MCX-S7-DEC: (1) 10GbE copper port;MCX-S7-FO-DEC: (1) 10GbE SFP+ port
Output Audio Port	(1) HDMI OUT (Type A);(1) AUDIO OUT (3.5 mm audio jack)
Output Audio Format	HDMI: HDMI multi-channel digital audio & ARC:·32 channels, all HDMI 2.0 modes·LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master
Analog audio	2 channels, 24 bits @ 48 kHz/channel
Control
Control Method	PC configurator for Windows
General
Operating Temperature	32 to 113 ^ F (0 to 45 ^ C)
Storage Temperature	-4 to +140 ^ F (-20 to +70 ^ C)
Operating Humidity	10 to 90%, non-condensing
Storage Humidity	10 to 90%, non-condensing

CHAPTER 1: SPECIFICATIONS

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

TABLE 1-2 (CONTINUED). SPECIFICATIONS, MCX-S7-DEC SERIES UNITS

SPECIFICATION DESCRIPTION
General (continued)
Power 12 VDC, 2 A
Power Consumption(Maximum)	MCX-S7-DEC: 15.6 W;MCX-S7-FO-DEC: 10.44 W
ESD Protection	Human body model: ± 8 kV (air-gap discharge), ± 4 kV (contact discharge)
Surge Protection Voltage: ± 1 kV
Dimensions 0.98" H x 6.3" W x 6.79" D (2.5 x 16.0 x 17.2 cm)
Weight 1.72 lb. (0.78 kg)
Certifications CE, RoHS compliant

2.1 ABOUT THIS MANUAL

This manual provides information on the MCX-S7 series encoders and decoders that deliver 4K UHD uncompressed or light compressed video over 10GbE Ethernet networks, and discusses how to install and use them.

The term MCX-S7 series units are used to refer to all encoder and decoder models, MCX-S7-ENC/MCX-S7-DEC series units indicate all encoders or decoders, while an MCX-S7 series unit means a single encoder or decoder.

2.2 INTRODUCTION

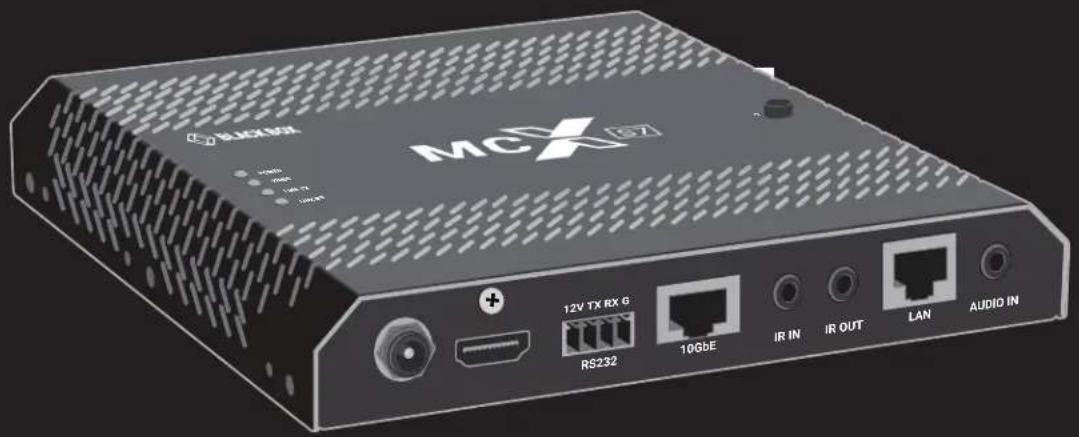

MCX-S7 series encoders and decoders provide the flexible, powerful, and scalable solution at resolutions up to 4096 x 2160 @ 60 Hz, 3840 x 2160 @ 60 Hz (4:4:4) and 3840 x 2160 @ 60 Hz (4:2:0 10-bit HDR). They allow uncompressed UHD media to be switched and distributed over standard 10GbE Ethernet networks. A local area network is covered with a range up to 984 feet (300 m) over fiber optic cable, up to 328 feet (100 m) over a single CAT6a cable or above. Standard features such as bi-directional serial, bi-directional IR, and independent analog audio input/output are included. They are the perfect solution for any zero-frame latency and signal routing applications. Common applications include classrooms, conference rooms, performing arts, and broadcasts.

2.3 PORT DIFFERENCES

The following three ports are the main differences among MCX-S7 series units. "Yes" means this model contains the corresponding port while "No" means not included.

TABLE 2-1. PORT DIFFERENCES

MODELS 10GBE COPPER PORT 10GBE FIBER PORT USB PORT
MCX-S7-ENC Yes No No
MCX-S7-DEC Yes No No
MCX-S7-FO-ENC	No	Yes	No
MCX-S7-FO-DEC	No	Yes	No

2.4 FEATURES

♦ HDMI 2.0 and HDCP 2.2 compliant
- Lossless distribution of most timing formats
- Light compression when the raw data rate exceeds the 10Gb Ethernet bandwidth
◆ Supports input and output resolutions up to 4096 x 2160 @ 60 Hz, 3840 x 2160 @ 60 Hz (4:4:4) and 3840 x 2160 @ 60 Hz (4:2:0 10-bit HDR)
Supports point-to-point transmission distance up to 328 feet (100 meters) through the 10GbE copper port or up to 984 feet (300 meters) through the 10GbE small-form-pluggable (SFP+) port
- Zero-frame latency
◆ Supports independent analog audio input and output at 2 channels, 24 bits @ 48 kHz/channel
◆ Supports bi-directional IR, allowing control of remote source and display devices
◆ Supports bi-directional serial, allowing control of remote RS-232 devices

CHAPTER 2: OVERVIEW

◆ Bandwidth needed: 4K signals at about 6 to 8 Gbps, 1080p signals at about 1.485 Gbps
◆ Works with Windows PC configurator for device control, device management, and device upgrade
- Offers point-to-point, point-to-multipoint, multipoint-to-point, and multipoint-to-multipoint applications
Input: one HDMI input and one analog audio input (for MCX-S7-ENC, MCX-S7-FO-ENC), 10GbE copper input (for MCX-S7-DEC), one 10GbE fiber input (for MCX-S7-FO-DEC)
Output: one 10GbE copper output (for MCX-S7-ENC), one 10GbE fiber output (for MCX-S7-FO-ENC), one HDMI output and one analog audio output (for MCX-S7-DEC, MCX-S7-FO-DEC)
- Streams HDMI signals over IP networks
◆ Capable of outputting IP streams that can easily be decoded and viewed on the multiple decoders
◆ Supports communications protocols used on the Internet such as TCP/IP, ARP, DHCP, ICMP (ping), IGMP

2.5 WHAT'S INCLUDED

MCX-S7-ENC or MCX-S7-FO-ENC:

(1) Encoder
◆ (1) 12-VDC, 2-A power adapter (with changeable plug for US, UK, EU and AU)
(1) 3.5-mm, 4-pin Phoenix male connector
(1) IR Emitter
(2) Mounting ears (with screws)

MCX-S7-DEC or MCX-S7-FO-DEC:

(1) Decoder
◆ (1) 12-VDC, 2-A power adapter (with changeable plug for US, UK, EU and AU)
(1) 3.5-mm, 4-pin Phoenix male connector
(1) IR Wideband Receiver (30 to 50 kHz)
(2) Mounting ears (with screws)

2.6 HARDWARE DESCRIPTION

2.6.1 TOP PANEL (ALL MCX-S7-ENC AND MCX-S7-DEC SERIES UNITS)

Figure 2-1 shows the top panel of the units. Table 2-2 describes its components.

FIGURE 2-1. TOP PANEL (ALL MCX-S7-ENC AND MCX-S7-DEC SERIES UNITS)

TABLE 2-2. TOP PANEL COMPONENTS

NUMBER IN FIGURE 2-1 COMPONENT DESCRIPTION
1 Power LED	On: The device is powered on.Off: The device is powered off.
2 Video LED	On: A stable video signal is detected.Off: No stable video signal is detected.
3 Link TX LED	Blinking: The device is linked to an Ethernet Switch. / The link between TX and RX is normal.Off: The device is not linked to an Ethernet Switch. / No link between TX and RX.
4 Link RX LED	Blinking: The device is linked to an Ethernet Switch. / The link between TX and RX is normal.Off: The device is not linked to an Ethernet Switch. / No link between TX and RX.
5 P1 button	Press and hold this button and then connect the device to power. When the Link TX and Link RX LEDs start blinking normally, release the button and the device will be reset to factory defaults.

2.6.2 FRONT PANEL

MCX-S7-ENC Series Units

Figure 2-2 shows the front panel of the MCX-S7-ENC series units. Table 2-3 describes its components.

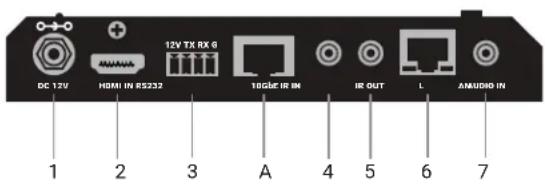

FIGURE 2-2. FRONT PANEL (MCX-S7-ENC SERIES UNITS)

TABLE 2-3. FRONT PANEL (MCX-S7-ENC SERIES UNITS) COMPONENTS

NUMBER IN FIGURE 2-2 COMPONENT DESCRIPTION
1	12-VDC power connector	Connect to the power adapter provided.
2 HDMI IN Connect to an HDMI video source.
3	RS-232	Connect to an RS-232 device, such as a PC, for bi-directional serial communication with an RS-232 device connected to another MCX-S7 series unit on the network.
A	10GbE OUT	Connect this 10GbE copper port to a 10GbE Ethernet switch for IP stream output.NOTE: This port exists on the MCX-S7-ENC only.
B	Optical OUT	Connect this 10GbE fiber port to a 10GbE Ethernet switch for IP stream output using a 10GbE SFP+ fiber optic transceiver.NOTE: This port exists on the MCX-S7-F0-ENC only.
4	IR IN	Connect to an IR receiver for IR communication with an IR transmitter in another MCX-S7 series unit on the network.
5	IR OUT	Connect to an IR transmitter for IR communication with an IR receiver in another MCX-S7 series unit on the network.
6	LAN	10/100/1000 BASE-T: Connect this port to a switch, a router or a computer for signal routing, device management, and device upgrading via control software PC configurator.
7	Audio IN	Connect to an audio input device, such as a computer or a mobile phone, for audio input.

CHAPTER 2: OVERVIEW

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

MCX-S7-DEC Series Units

Figure 2-3 shows the front panel of the MCX-S7-DEC series units. Table 2-4 describes its components.

FIGURE 2-3. FRONT PANEL (MCX-S7-DEC SERIES UNITS)

TABLE 2-4. FRONT PANEL (MCX-S7-DEC SERIES UNITS) COMPONENTS

NUMBER IN FIGURE 2-2 COMPONENT DESCRIPTION
1	12-VDC power connector	Connect to the power adapter provided.
2 HDMI OUT Connect to an HDMI display source.
3 RS-232		Connect to an RS-232 device, such as a PC, for bi-directional serial communication with an RS-232 device connected to another MCX-S7 series unit on the network.
A	10GbE IN	Connect this 10GbE copper port to a 10GbE Ethernet switch for IP stream input.NOTE: This port exists on the MCX-S7-DEC only.
B	Optical IN	Connect this 10GbE fiber port to a 10GbE Ethernet switch for IP stream input using a 10GbE SFP+ fiber optic transceiver.NOTE: This port exists on the MCX-S7-F0-DEC only.
4 IR IN		Connect to an IR receiver for IR communication with an IR transmitter in another MCX-S7 series unit on the network.
5 IR OUT		Connect to an IR transmitter for IR communication with an IR receiver in another MCX-S7 series unit on the network.
6 LAN		10/100/1000 BASE-T: Connect this port to a switch, a router or a computer for signal routing, device management, and device upgrading via control software PC configurator.
7	Audio OUT	Connect to an audio receiver such as an amplifier, a speaker or an earphone for audio input.

2.6.3 BACK PANEL

There are no connectors or indicators on the back panels of the encoders and decoders.

CHAPTER 3: TYPICAL APPLICATIONS

NEED HELP? LEAVE THE TECH TO US

LIVE 24/7 TECHNICAL SUPPORT

1.87 7.877.2269

MCX-S7 series units allow any model of encoder and decoder to be linked, offering various applications to meet your requirements.

The following four typical applications are available for your reference: Point-to-Point, Point-to-Multipoint, Multipoint-to-Multipoint, and Multipoint-to-Point.

This section uses units with 10GbE copper ports as an example.

The fiberoptic units' cabling is similar.

3.1 POINT-TO-POINT

FIGURE 3-1. POINT-TO-POINT APPLICATION

3.2 POINT-TO-MULTIPOINT

FIGURE 3-2. POINT-TO-MULTIPOINT APPLICATION

CHAPTER 3: TYPICAL APPLICATIONS

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

3.3 MULTIPOINT-TO-POINT

FIGURE 3-3. MULTIPOINT-TO-POINT APPLICATION

3.4 MULTIPOINT-TO-MULTIPOINT

    style Audio/Video Input fill:#f9f,stroke:#333
    style Audio/Video Output fill:#ccf,stroke:#333

FIGURE 3-4. MULTIPOINT-TO-MULTIPOINT APPLICATION

CHAPTER 4: HARDWARE INSTALLATION

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

WARNINGS:

Before the installation, disconnect the power supplies from all the devices.

Transmitter and receiver modules in fiber optic transceivers should be correctly connected to separate fiber cables.

This section uses units with 10GbE copper ports as an example. The fiberoptic units' cabling is similar.

Device Control
FIGURE 4-1. INSTALLATION DIAGRAM

A.1 FCC CLASS B STATEMENT

Class B Digital Device. This equipment has been tested and found to comply with the limits for a Class B computing device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. If this equipment does cause harmful interference to radio or telephone reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

◆ Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult an experienced radio/TV technician for help.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

To meet FCC requirements, shielded cables and power cords are required to connect this device to a personal computer or other Class B certified device.

This digital apparatus does not exceed the Class B limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of Industry Canada.

This product complies with CE and ROHS2 certifications.

APPENDIX A: REGULATORY INFORMATION

A.3 NOM STATEMENT

Black Box Corporation shall not be liable for damages of any kind, including, but not limited to, punitive, consequential or cost of cover damages, resulting from any errors in the product information or specifications set forth in this document and Black Box Corporation may revise this document at any time without notice.

B.2 TRADEMARKS USED IN THIS MANUAL

Black Box and the Black Box logo type and mark are registered trademarks of Black Box Corporation.

Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.

NOTES

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

NOTES

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

NOTES

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.87 7.2269
