Product Type	4K UHD Audio/Video Extender (Encoder and Decoder)
Video Input (Encoder)	1x HDMI 2.0, 1x DisplayPort 1.2a
Video Output (Encoder)	1x RJ-45 10GBASE-T
Video Input (Decoder)	1x RJ-45 10GBASE-T
Video Output (Decoder)	1x HDMI 2.0
Max Resolution	4096x2160 @ 60 Hz, 3840x2160 @ 60 Hz (4:4:4, 10-bit HDR)
Audio Input (Encoder)	1x HDMI, 1x DisplayPort, 1x 3.5mm analog stereo
Audio Output (Decoder)	1x HDMI, 1x 3.5mm analog stereo
Audio Support	LPCM 2.0/5.1/7.1, Dolby TrueHD, DTS-HD Master (up to 7.1 at 192 kHz)
Control Methods	Ethernet (PC software, web browser, API), RS-232 (Phoenix connector), IR (in/out 3.5mm)
Network Interface	1x RJ-45 10GBASE-T (Video), 1x RJ-45 10/100/1000BASE-T (Control/LAN)
Transmission Distance	Up to 100 m over CAT6a/7; up to 30 m over CAT6
Latency	Zero-frame (real-time)
Power Supply	12 VDC, 3 A (adapter included with US/UK/EU/AU cords)
Dimensions (with brackets)	1.38 x 8.27 x 5.47 in (3.51 x 21.01 x 13.89 cm)
Weight	3.31 lb (1.50 kg) per unit
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	10 to 90% noncondensing
ESD Protection	±8 kV air-gap / ±4 kV contact (Human-body Model)
Regulatory Compliance	FCC Class B, CE, RoHS2
Included Accessories	Power adapter, Phoenix connector, IR emitter/receiver, mounting ears
Maintenance	Clean with a dry cloth; do not expose to moisture or heat sources
Safety	Do not obstruct ventilation; unplug during storms; use only specified attachments

Frequently Asked Questions - MCX S9C Black Box

What is the maximum video resolution supported by the Black Box MCX S9C?

The MCX S9C supports resolutions up to 4096x2160 @ 60 Hz and 3840x2160 @ 60 Hz with 4:4:4 chroma subsampling and 10-bit HDR.

How do I connect the encoder and decoder directly?

Use a 10GbE rated network cable to connect the encoder's 10GbE OUT port to the decoder's 10GbE IN port. Ensure both units are powered on.

Can I use this extender with a standard Gigabit switch?

No, the MCX S9C requires a 10GbE switch for proper operation. A Gigabit switch will not provide sufficient bandwidth for 4K video.

Does the MCX S9C support audio de-embedding?

Yes, the decoder provides a 3.5mm analog audio output for de-embedded stereo audio from the HDMI or embedded stream.

What is the maximum transmission distance over copper?

Up to 100 meters (328 feet) using CAT6a or CAT7 cable, or up to 30 meters with CAT6.

How can I control the MCX S9C remotely?

You can control it via PC configurator software over the LAN port, via web browser, or through API integration. RS-232 and IR are also available.

What video input sources can I use with the encoder?

The encoder accepts HDMI 2.0 and DisplayPort 1.2a sources. You can switch between them using the P1 button on the front panel.

Is the MCX S9C compatible with HDCP 2.2?

Yes, the unit is HDCP 2.2 compliant, allowing playback of protected 4K content.

How do I update the firmware on the MCX S9C?

Firmware updates can be performed via the PC configurator software over the Ethernet LAN port. Connect the device to your network and use the software's upgrade function.

What mounting options are available?

Each unit comes with mounting ears (with screws) that allow rack or wall mounting. The dimensions with brackets are 1.38 x 8.27 x 5.47 inches.

USER MANUAL MCX S9C Black Box

Exterior view of a black and white MCU S9 device with ventilation slots and control buttons (no readable text beyond branding)

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS .... 4

QUICK INSTALLATION GUIDE....5

Preparation 5

Connecting One TX to One RX Directly....5

Connecting TX to RX....5

Configuring TX and RX 5

Connecting the TX and RX to a Switch 5

1. SPECIFICATIONS....6

2. OVERVIEW....14

2.1 About this Manual 14

2.2 Introduction ...... 14

2.3 Port Differences....14

2.4 Features 14

2.5 What's Included 15

2.6 Hardware Description....16

2.6.1 MCX-S9-ENC or MCX-S9D-ENC Unit 16

2.6.2 MCX-S9-DEC Unit 18

2.6.3 MCX-S9C-ENC Unit 20

2.6.4 MCX-S9C-DEC Unit 22

3. TYPICAL APPLICATIONS ...... 24

3.1 Point-to-Point....24

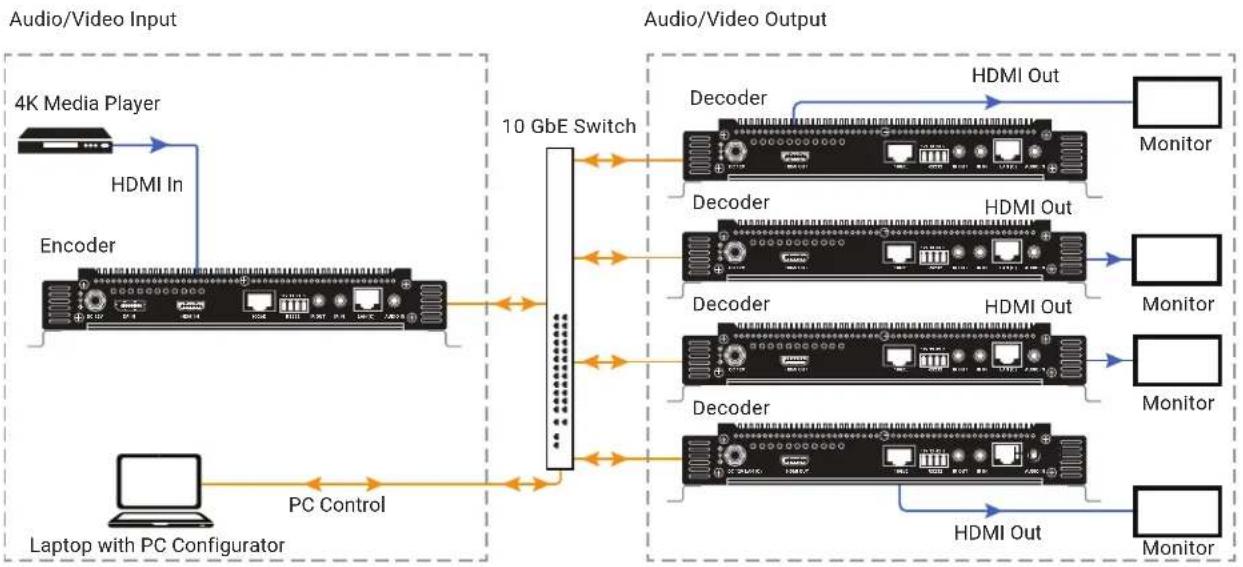

3.2 Point-to-Multipoint 25

3.3 Multipoint-to-Point 26

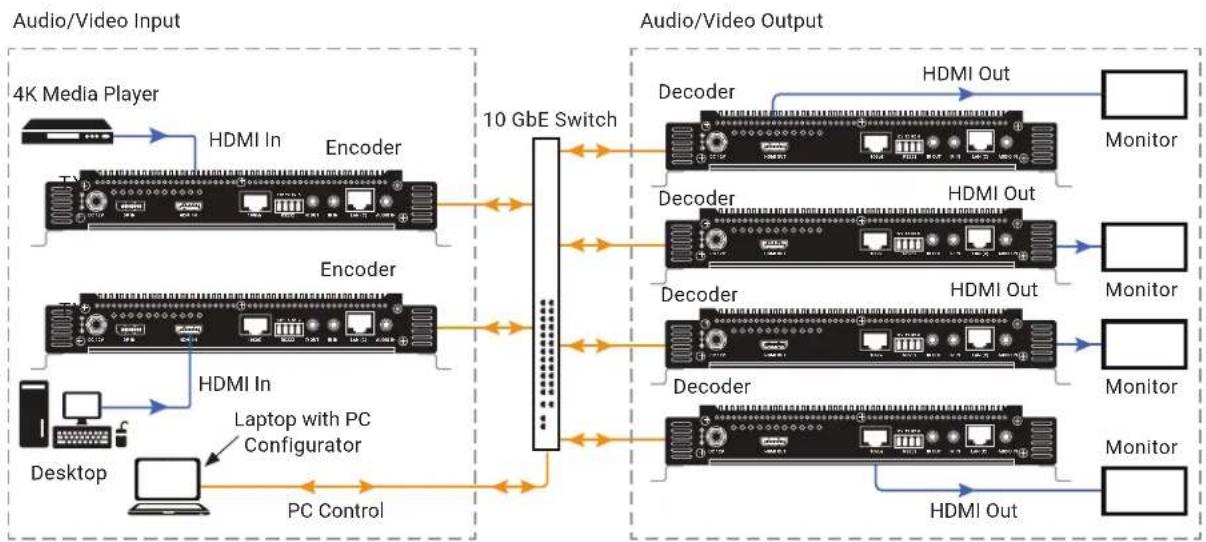

3.4 Multipoint-to-Multipoint 26

4. HARDWARE INSTALLATION....27

TABLE OF CONTENTS

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

APPENDIX A. REGULATORY INFORMATION 28

A.1 FCC Class B Statement 28
A.2 CE and RoHS2....28
A.3 NOM Statement 29

APPENDIX B.DISCLAIMER/TRADEMARKS 30

B.1 Disclaimer 30
B.2 Trademarks Used in this Manual....30

IMPORTANT SAFETY INSTRUCTIONS

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

1. Do not expose this apparatus to rain, moisture, dripping or splashing and do not place objects filled with liquids, such as vases, on the apparatus.
2. Clean this apparatus only with a dry cloth.
3. Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure that the unit is well ventilated.
4. To prevent the risk of electric shock or a fire hazard caused by overheating, do not obstruct the unit's ventilation openings with newspapers, tablecloths, curtains and similar items.
5. Do not install near any heat sources, such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
6. Do not place sources of naked flames, such as lighted candles, on the unit.
7. Unplug this apparatus during lightning storms or when unused for long periods of time.
8. Protect the power cord from being walked on or pinched, particularly at plugs.
9. Only use attachments/accessories specified by the manufacturer.
10. Refer all servicing to qualified service personnel.

QUICK INSTALLATION GUIDE

PREPARATION

Before you start installing MCX-S9 products, carefully read and strictly follow the instructions below.

Only use accessories and cables that are supplied with Black Box products or purchased as required

Correctly connect all the cables

Use the correct power supplies and connect them to Black Box devices in accordance with the specification for electric construction

CONNECTING ONE TX TO ONE RX DIRECTLY

CONNECTING TX TO RX

1. Connect a video source to the encoder and a display device to the decoder.
2. Connect the MCX-S9-DEC to the MCX-S9-ENC with a network cable that meets the 10GbE specification. Be careful to plug the network cable's RJ-45 connectors into these devices' 10GbE ports.
3. Connect all the devices to their power supplies. After a while, the display will show the content of the video source.

CONFIGURING TX AND RX

1. Connect your PC to the receiver with a network cable. Plug the network cable's one end into the decoder's LAN port and the other end into your PC's Ethernet port.
2. Configure your PC's network settings with IP address 169.254.1.11 and subnet mask 255.255.0.0, leaving gateway and DNS blank.
3. Launch the matching Manager software, then maximize its window to view more contents. The software will automatically discover the two devices: the transmitter would be shown in the Encoders section and the receiver would be shown in the Decoders section.
4. Adjust the configurations of the two devices if necessary.

CONNECTING THE TX AND RX TO A SWITCH

1. Connect all MCX-S9-ENC and MCX-S9-DEC units to a 10GbE switch with network cables that meet the 10GbE specification. Be careful to plug the network cable's RJ-45 or fiber connectors into the devices' 10GbE ports.
2. Connect your PC to the switch, making sure that all devices' LAN ports aren't plugged into any network cables.
3. Configure your PC's network settings with IP address 169.254.1.11 and subnet mask 255.255.0.0, leaving gateway and DNS blank.
4. Start the Manager software and maximize its window and the software will discover all devices automatically. The transmitters will be shown in the Encoders section and the receivers will be shown in the Decoders section.
5. Adjust the configurations and control all devices with the Manager.

CHAPTER 1: SPECIFICATIONS

TABLE 1-1. SPECIFICATIONS, MCX-S9-ENC SERIES UNITS

SPECIFICATION DESCRIPTION
Video
Input Connectors (1) HDMI 2.0, (1) DisplayPort 1.2a
Input Video Resolutions	640 x 480 ^8 , 800 x 600 ^8 , 1024 x 768 ^3 , 1280 x 1024 ^5 , 1360 x 768 ^8 , 1440 x 900 ^8 , 1440 x 1050 ^8 , 1600 x 1200 ^8 ,720 x 480 ^7 (480i59), 720 x 480 ^7 (480p59), 720 x 576 ^5 (576i50), 720 x 576 ^5 (576p50), 1280 x 720 ^3 (720p50),1280 x 720 ^7 (720p59), 1280 x 720 ^8 (720p60), =1920 x 1080 ^6 (1080i50), 1920 x 1080 ^7 (1080i59), 1920 x 1080 ^8 (1080i60),1920 x 1080 ^1 (1080p23), 1920 x 1080 ^2 (1080p24),1920 x 1080 (1080p25), 1920 x 1080 (1080p29), 1920 x 1080 ^5 (1080p30), 1920 x 1080 ^6 (1080p50), 1920 x 1080 ^7 (1080p59), 1920 x 1080 ^8 (1080p60), 3840 x 2160 ^1 (2160p23),3840 x 2160 ^2 (2160p24), 3840 x 2160 ^4 (2160p25), 3840 x 2160 ^2 (2160p29), 3840 x 2160 ^5 (2160p30), 3840 x 2160 ^3 (2160p60), 4096 x 2160 ^5 , 4096 x 2160 ^8 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz,9 = at 75 Hz
Output Connectors (1) RJ-45 10GBASE-T, (1) SFP+
Output Video Resolutions	640 x 480 ^8 , 800 x 600 ^8 , 1024 x 768 ^3 , 1280 x 1024 ^5 , 1360 x 768 ^8 , 1440 x 900 ^8 , 1440 x 1050 ^8 , 1600 x 1200 ^8 ,720 x 480 ^7 (480i59), 720 x 480 ^7 (480p59), 720 x 576 ^5 (576i50), 720 x 576\( ^5 (576p50), 1280 x 720\( ^3 (720p50),1280 x 720 ^7 (720p59), 1280 x 720 ^8 (720p60), =1920 x 1080 ^6 (1080i59), 1920 x 1080 ^7 (1080i59), 1920 x 1080 ^8 (1080i60),1920 x 1080 ^1 (1080p23), 1920 x 1080 ^2 ((1080p24),1920 x 1080 (1080p25), 1920 x 1080 (1080p29), 1920 x 1080 ^5 (1080p30), 1920 x 1080 ^6 (1080p50). 1920 x 1080 ^7 (1080p59), 1920 x 1080 ^8 (1080p60), 3840 x 2160 ^1 (2160p23),3840 x 2160 ^2 (1080p24), 3840 x 2160 ^4 (2160p25), 3840 x 2160 ^2 (2160p29), 3840 x 2160 ^5 (2160p30), 3840 x 2160 ^ 5 (2160p60), 4096 x 2160 ^5 , 4096 x 2160 ^8 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6= at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz,9 = at 75 Hz
Audio
Input Connectors (1) HDMI, (1) DisplayPort 1.2a, (1) 3.5-mm jack
Supported Input	HDMI/DP:LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHzDolby True HD, up to 7.1, 192 kHzDTS-HD Master, up to 7.1, 192 kHzDolby Digital AC-3 (DVD format)DTS version 1 (DVD format);3.5 mm jack:Unbalanced stereo audio
Output Connectors None
Supported Output None
USB
Connectors (1) USB Type B
Control
IR Input	(1) 3.5 mm jack connector, connects to an IR receiver for IR communication with an IR transmitter connecting to another device
IR Output	(1) 3.5 mm jack connector, connects to an IR transmitter for IR communication with an IR receiver connecting to another device
Control Connectors	(1) 3.5-mm 4-pin Phoenix connector for RS-232 communication; (1) RJ-45 10/100/1000BASE-T Ethernet port
Control Method	Ethernet:PC software: for configuring, controlling and upgradingWeb browser: for controllingAPI set: for integrating with the 3rd party control systemRS-232:PC software: for testing and upgrading the device itselfCommon RS-232 device: for bi-directional communication with an RS-232 device connected to another device

CHAPTER 1: SPECIFICATIONS

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

TABLE 1-1 (CONTINUED). SPECIFICATIONS, MCX-S9-ENC SERIES UNITS

SPECIFICATION DESCRIPTION
General
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to +158 F (-20 to +70°C)
Humidity 10 to 90%, noncondensing
Product Weight 3.31 lb. (1.50 kg)
Power Supply 12 VDC
Transport Distance	Twisted Pair:98.4 ft. (30 m) with CAT6 cable,328 ft. (100 m) with CAT6a or CAT7 cable;Fiber:Depends on SFP+ installed
Dimensions	Including brackets: 1.8" H x 10.4" W x 5.5" D (4.5 x 23 x 13.9 cm)Without brackets: 1.4" H x 9.1" W x 5.5" D (3.5 x 23 x 13.9 cm)
ESD Protection	Human-body Model: ±8 kV (Air-gap discharge)/±4 kV (Contact discharge)

TABLE 1-2. SPECIFICATIONS, MCX-S9-DEC SERIES UNITS

SPECIFICATION DESCRIPTION
Video
Input Connectors (1) RJ-45 10GBASE-T, (1) SFP+
Input Video Resolutions	640 x 480 ^8 , 800 x 600 ^8 , 1024 x 768 ^3 , 1280 x 1024 ^5 , 1360 x 768 ^8 , 1440 x 900 ^8 , 1440 x 1050 ^8 , 1600 x 1200 ^8 ,720 x 480 ^7 (480i59), 720 x 480 ^7 (480p59), 720 x 576 ^5 (576i50), 720 x 576 ^5 (576p50), 1280 x 720 ^3 (720p50),1280 x 720 ^7 (720p59), 1280 x 720 ^8 (720p60), =1920 x 1080 ^6 (1080i50), 1920 x 1080 ^7 (1080i59), 1920 x 1080 ^8 (1080i60),1920 x 1080 ^1 (1080p23), 1920 x 1080 ^2 (1080p24),1920 x 1080 (1080p25), 1920 x 1080 (1080p29), 1920 x 1080 ^5 (1080p30), 1920 x 1080 ^6 (1080p50), 1920 x 1080 ^7 (1080p59), 1920 x 1080 ^8 (1080p60), 3840 x 2160 ^1 (2160p23),3840 x 2160 ^2 (2160p24), 3840 x 2160 ^4 (2160p25), 3840 x 2160 ^2 (2160p29), 3840 x 2160 ^5 (2160p30), 3840 x 2160 ^3 (2160p60), 4096 x 2160 ^5 , 4096 x 2160 ^8 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz,9 = at 75 Hz
Output Connectors (1) HDMI 2.0
Output Video Resolutions	640 x 480 ^8 , 800 x 600 ^8 , 1024 x 768 ^3 , 1280 x 1024 ^5 , 1360 x 768 ^8 , 1440 x 900 ^8 , 1440 x 1050 ^8 , 1600 x 1200 ^8 ,720 x 480 ^7 (480i59), 720 x 480 ^7 (480p59), 720 x 576 ^5 (576i50), 720 x 576\( ^5 (576p50), 1280 x 720 ^3 (720p50),1280 x 720 ^7 (720p59), 1280 x 720 ^8 (720p60), = 1920 x 1080 ^6 (1080i50), 1920 x 1080 ^7 (1080i59), 1920 x 1080 ^8 (1080i60),1920 x 1080 ^1 (1O80p23), 1920 x 1080 ^7 (1080p24),1920 x 1080 (1080p25), 1920 x 1080 (1080p29), 1920 x 1080 ^5 (1080p30), 1920 x 1080 ^6 (108Op50), 1920 x 1080 ^7 (108Op59), 1920 x 1080 ^8 (108Op60), 3840 x 2160 ^1 (2160p23),3840 x 2160 ^2 (2160p24), 3840 x 2160 ^4 (2160p25), 3840 x 2160 ^2' (2160p29), 3840 x 2160 ^5 (2160p30), 3840 x 2160 ^5 (2160p60), 4096 x 2160 ^5 , 4096 x 2160 ^8 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6= at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz,9 = at 75 Hz
Audio
Input Connectors None
Supported Input None
Output Connectors (1) HDMI 2.0, (1) 3.5-mm jack
Supported Output	HDMI:LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHzDolby True HD, up to 7.1, 192 kHzDTS-HD Master, up to 7.1, 192 kHzDolby Digital AC-3 (DVD format)DTS version 1 (DVD format);3.5 mm jack:Unbalanced stereo audio
USB
Connectors (2) USB Type A
Control
IR Input	(1) 3.5 mm jack connector, connects to an IR receiver for IR communication with an IR transmitter connecting to another device
IR Output	(1) 3.5 mm jack connector, connects to an IR transmitter for IR communication with an IR receiver connecting to another device
Control Connectors	(1) 3.5-mm 4-pin Phoenix connector for RS-232 communication; (1) RJ-45 10/100/1000BASE-T Ethernet port
Control Method	Ethernet:PC software: for configuring, controlling and upgradingWeb browser: for controllingAPI set: for integrating with the 3rd party control systemRS-232:PC software: for testing and upgrading the device itselfCommon RS-232 device: for bi-directional communication with an RS-232 device connected to another device

CHAPTER 1: SPECIFICATIONS

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

TABLE 1-2 (CONTINUED). SPECIFICATIONS, MCX-S9-DEC SERIES UNITS

SPECIFICATION DESCRIPTION
General
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to +158 F (-20 to +70°C)
Humidity 10 to 90%, noncondensing
Product Weight 3.31 lb. (1.50 kg)
Power Supply 12 VDC
Transport Distance	Twisted Pair:98.4 ft. (30 m) with CAT6 cable,328 ft. (100 m) with CAT6a or CAT7 cable;Fiber:Depends on SFP+ installed
Dimensions	Including brackets: 1.8" H x 10.4" W x 5.5" D (4.5 x 23 x 13.9 cm)Without brackets: 1.4" H x 9.1" W x 5.5" D (3.5 x 23 x 13.9 cm)
ESD Protection Human-body Model: ±8 kV (Air-gap discharge)/±4 kV (Contact discharge)

TABLE 1-3. SPECIFICATIONS, MCX-S9C-ENC SERIES UNITS

SPECIFICATION DESCRIPTION
Video
Input Connectors (1) HDMI 2.0, (1) DisplayPort 1.2a
Input Video Resolutions	640 x 4805, 800 x 6005, 1024 x 7686, 1280 x 10245, 1360 x 7688, 1440 x 9005, 1440 x 10508, 1600 x 12008, 720 x 4807(480i59), 720 x 4807(480p59), 720 x 5765(576i50), 720 x 5765(576p50), 1280 x 7205(720p50), 1280 x 7207(720p59), 1280 x 7205(720p60), =1920 x 10806(1080i50), 1920 x 10807(1080i59), 1920 x 10808(1080i60), 1920 x 10801(1080p23), 1920 x 10802(1080p24),1920 x 1080(1080p25), 1920 x 1080(1080p29), 1920 x 10805(1080p30), 1920 x 10806(1080p50), 1920 x 10807(1080p59), 1920 x 10808(1080p60), 3840 x 21601(2160p23), 3840 x 21602(2160p24), 3840 x 21604(2160p25), 3840 x 21604(2160p29), 3840 x 21605(2160p30), 3840 x 21605(2160p60), 4096 x 21605, 4096 x 216081 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = at 75 Hz
Output Connectors (1) RJ-45 10GBASE-T
Output Video Resolutions	640 x 4805, 800 x 6005, 1024 x 7686, 1280 x 10245, 1360 x 7688, 1440 x 9005, 1440 x 10508, 1600 x 12008. 720 x 4807(480i59), 720 x 4807(480p59), 720 x 5765(576i50), 720 x 5765(576p50), 1280 x 7205(720p50), 1280 x 7107(720p59), 1280 x 7205(720p60), =1920 x 10806(1080i50), 1920 x 10807(1080i59), 1920 x 10808(1080i60), 1920 x 21601(1080p23), 1920 x 10807(1080p24),1920 x 1080(1080p25), 1920 x 1080(1080p29), 1920 x 10805(1080p30), 1920 x 10806(1080p50), 1920 x 10707(1080p59), 1920 x 10808(1080p60), 3840 x 21601(2160p23), 3840 x 21602(2160p24), 3840 x 21604(2160p25), 384O x 21604(2160p29), 3840 x 21605(2160p30), 3840 x 21605(2160p60), 4096 x 21605, 4096 x 216081 = at 23.98 Hz, 2 = at 34 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = at 75 Hz
Audio
Input Connectors (1) HDMI, (1) 3.5-mm jack
Supported Input	HDMI/DP:LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHzDolby True HD, up to 7.1, 192 kHzDTS-HD Master, up to 7.1, 192 kHzDolby Digital AC-3 (DVD format)DTS version 1 (DVD format);3.5 mm jack:Unbalanced stereo audio
Output Connectors None
Supported Output None
Control
IR Input	(1) 3.5 mm jack connector, connects to an IR receiver for IR communication with an IR transmitter connecting to another device
IR Output	(1) 3.5 mm jack connector, connects to an IR transmitter for IR communication with an IR receiver connecting to another device
Control Connectors	(1) 3.5-mm 4-pin Phoenix connector for RS-232 communication; (1) RJ-45 10/100/1000BASE-T Ethernet port
Control Method	Ethernet:PC software: for configuring, controlling and upgradingWeb browser: for controllingAPI set: for integrating with the 3rd party control systemRS-232:PC software: for testing and upgrading the device itselfCommon RS-232 device: for bi-directional communication with an RS-232 device connected to another device

CHAPTER 1: SPECIFICATIONS

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

TABLE 1-3 (CONTINUED). SPECIFICATIONS, MCX-S9C-ENC SERIES UNITS

SPECIFICATION DESCRIPTION
General
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to +158 F (-20 to +70°C)
Humidity 10 to 90%, noncondensing
Product Weight 3.31 lb. (1.50 kg)
Power Supply 12 VDC
Transport Distance	Twisted Pair:98.4 ft. (30 m) with CAT6 cable,328 ft. (100 m) with CAT6a or CAT7 cable
Dimensions 1.38" H x 8.27" W x 5.47" D (3.51 x 21.01 x 13.89 cm)
ESD Protection	Human-body Model: ±8 kV (Air-gap discharge)/±4 kV (Contact discharge)

CHAPTER 1: SPECIFICATIONS

TABLE 1-4. SPECIFICATIONS, MCX-S9C-DEC SERIES UNITS

SPECIFICATION DESCRIPTION
Video
Input Connectors (1) RJ-45 10GBASE-T
Input Video Resolutions	640 x 480 ^8 , 800 x 600 ^5 , 1024 x 768 ^3 , 1280 x 1024 ^5 , 1360 x 768 ^6 , 1440 x 900 ^8 , 1440 x 1050 ^8 , 1600 x 1200 ^8 , 720 x 480 ^7 (480i59), 720 x 480 ^7 (480p59), 720 x 576 ^5 (576i50), 720 x 576 ^5 (576p50), 1280 x 720 ^5 (720p50), 1280 x 720 ^7 (720p59), 1280 x 720 ^5 (720p60), =1920 x 1080 ^6 (1080i50), 1920 x 1080 ^7 (1080i59), 1920 x 1080 ^8 (1080i60), 1920 x 1080 ^1 (1080p23), 1920 x 1080 ^2 (1080p24), 1920 x 1080 (1080p25), 1920 x 1080 (1080p29), 1920 x 1080 ^5 (1080p30), 1920 x 1080 ^6 (1080p50), 1920 x 1080 ^7 (1080p59), 1920 x 1080 ^8 (1080p60), 3840 x 2160 ^1 (2160p23), 3840 x 2160 ^2 (2160p24), 3840 x 2160 ^4 (2160p25), 3840 x 2160 ^4 (2160p29), 3840 x 2160 ^5 (2160p30), 3840 x 2160 ^5 (2160p60), 4096 x 2160 ^3 , 4096 x 2160 ^8 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = at 75 Hz
Output Connectors (1) HDMI 2.0
Output Video Resolutions	640 x 480 ^8 , 800 x 600 ^5 , 1024 x 768 ^3 , 1280 x 1024 ^5 , 1360 x 768 ^6 , 1440 x 900 ^8 , 1440 x 1050 ^8 , 1600 x 1200 ^8 , 720 x 480 ^7 (480i59), 720 x 480 ^7 (480p59), 720 x 576 ^5 (576i50), 720 x 576 ^5 (576p50), 1280 x 720 ^5 (720p50), 1280 x 720 ^7 (720p59), 1280 x 720 ^8 (720p60), =1920 x 1080 ^6 (1080i50), 1920 x 1080 ^7 (1080i59), 1920 x 1080 ^8 (1080i60), 1920 x 2160 ^7 (1080p23), 1920 x 1080 ^7 (1080p24), 1920 x 1080 (1080p25), 1920 x 1080 (1080p29), 1920 x 1080 ^5 (1080p30), 1920 x 1080 ^6 (1O80p50), 1920 x 1080 ^7 (1080p59), 1920 x 1080 ^8 (1080p60), 3840 x 2160 ^1 (2160p23), 3840 x 2160 _2 (2160p24), 3840 x 2160 ^4 (2160p25), 3840 x 2160 ^4 (2160p29), 3840 x 2160 ^5 (2160p30), 384O x 2160 ^5 (2160p60), 4096 x 2160 ^3 , 4096 x 2160 ^8 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz,5 = at 30 Hz,6 = at 50 Hz,7 = at 59.94 Hz,8 = at 60 Hz,9 = at 75 Hz
Audio
Input Connectors None
Supported Input None
Output Connectors (1) HDMI 2.0, (1) 3.5-mm jack
Supported Output	HDMI:LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHzDolby True HD, up to 7.1, 192 kHzDTS-HD Master, up to 7.1, 192 kHzDolby Digital AC-3 (DVD format)DTS version 1 (DVD format);3.5 mm jack:Unbalanced stereo audio
Control
IR Input	(1) 3.5 mm jack connector, connects to an IR receiver for IR communication with an IR transmitter connecting to another device
IR Output	(1) 3.5 mm jack connector, connects to an IR transmitter for IR communication with an IR receiver connecting to another device
Control Connectors	(1) 3.5-mm 4-pin Phoenix connector for RS-232 communication; (1) RJ-45 10/100/1000BASE-T Ethernet port
Control Method	Ethernet:PC software: for configuring, controlling and upgradingWeb browser: for controllingAPI set: for integrating with the 3rd party control systemRS-232:PC software: for testing and upgrading the device itselfCommon RS-232 device: for bi-directional communication with an RS-232 device connected to another device

CHAPTER 1: SPECIFICATIONS

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

TABLE 1-4 (CONTINUED). SPECIFICATIONS, MCX-S9C-DEC SERIES UNITS

SPECIFICATION DESCRIPTION
General
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to +158 F (-20 to +70°C)
Humidity 10 to 90%, noncondensing
Product Weight 3.31 lb. (1.50 kg)
Power Supply 12 VDC
Transport Distance	Twisted Pair:98.4 ft. (30 m) with CAT6 cable,328 ft. (100 m) with CAT6a or CAT7 cable
Dimensions 1.38" H x 8.27" W x 5.47" D (3.51 x 21.01 x 13.89 cm)
ESD Protection	Human-body Model: ±8 kV (Air-gap discharge)/±4 kV (Contact discharge)

2.1 ABOUT THIS MANUAL

This manual provides information on the MCX-S9 series encoders and decoders that deliver 4K UHD uncompressed or light compressed video over 10GbE Ethernet networks, and discusses how to install and use them.

The term MCX-S9 series units are used to refer to all encoder and decoder models, MCX-S9-ENC/MCX-S9-DEC series units indicate all encoders or decoders, while an MCX-S9 series unit means a single encoder or decoder.

2.2 INTRODUCTION

MCX-S9 series encoders and decoders provide a flexible, powerful, and scalable solution at resolutions up to 4096 x 2160 @ 60 Hz, 3840 x 2160 @ 60 Hz (4:4:4) and 3840 x 2160 @ 60 Hz (4:2:0 10-bit HDR). They allow uncompressed UHD media to be switched and distributed over standard 10GbE Ethernet networks. A local area network is covered long distances over fiber optic cable (distance depends on the SFP+ installed), or up to 328 feet (100 m) over a single CAT6a cable or above. Standard features such as bi-directional serial, bi-directional IR and independent analog audio input/output are included. They are the perfect solution for any zero-frame latency and signal routing applications. Common applications include classrooms, conference rooms, performing arts, and broadcasts.

2.3 PORT DIFFERENCES

The following three ports are the main differences among MCX-S9 series units. "Yes" means this model contains the corresponding port while "No" means not included.

TABLE 2-1. PORT DIFFERENCES

MODELS 10GBE COPPER PORT 10GBE FIBER PORT USB PORT
MCX-S9-ENC Yes Yes Yes
MCX-S9-DEC Yes Yes Yes
MCX-S9D-ENC Yes Yes Yes
MCX-S9C-ENC	Yes	No	No
MCX-S9C-DEC	Yes	No	No

2.4 FEATURES

♦ HDMI 2.0 and HDCP 2.2 compliant
- Lossless distribution of most timing formats
◆ Light compression when the raw data rate exceeds the 10Gb Ethernet bandwidth
- Supports input and output resolutions up to 4096 x 2160 @ 60 Hz, 3840 x 2160 @ 60 Hz (4:4:4) and 3840 x 2160 @ 60 Hz (4:2:0 10-bit HDR)
- Supports point-to-point transmission distance up to 328 feet (100 meters) through the 10GbE copper port or up to long distances (distance depends on the SFP+ installed) through the 10GbE small-form-pluggable (SFP+) port
- Zero-frame latency
◆ Supports independent analog audio input and output at 2 channels, 24 bits @ 48 kHz/channel
◆ Supports bi-directional IR, allowing control of remote source and display devices
◆ Supports bi-directional serial, allowing control of remote RS-232 devices

CHAPTER 2: OVERVIEW

◆ Bandwidth needed: 4K signals at about 6 to 8 Gbps, 1080p signals at about 1.485 Gbps
◆ Works with Windows PC configurator for device control, device management, and device upgrade
- Offers point-to-point, point-to-multipoint, multipoint-to-point, and multipoint-to-multipoint applications
Input: one HDMI 2.0 input, one DisplayPort 1.2a input, and one 3.5-mm jack audio input (for MCX-S9-ENC, MCX-S9D-ENC, MCX-S9C-ENC), one 10GbE copper input (for MCX-S9-DEC, MCX-S9C-DEC), one 10GbE fiber input (for MCX-S9-DEC)
Output: one 10GbE copper output (for MCX-S9-ENC, MCX-S9D-ENC, MCX-S9C-ENC), one 10GbE fiber output (for MCX-S9-ENC, MCX-S9D-ENC), one HDMI output and one analog audio output (for MCX-S9-DEC, MCX-S9C-DEC)
- Streams HDMI or DisplayPort signals over IP networks
◆ Capable of outputting IP streams that can easily be decoded and viewed on the multiple decoders
◆ Supports communications protocols used on the Internet such as TCP/IP, ARP, DHCP, ICMP (ping), IGMP

2.5 WHAT'S INCLUDED

MCX-S9-ENC, MCX-S9D-ENC or MCX-S9C-ENC:

(1) Encoder
(1) 12-VDC, 3-A power adapter (with US/UK/EU/AU cord)
(1) 3.5-mm, 4-pin Phoenix male connector
(1) IR Emitter
(2) Mounting ears (with screws)

MCX-S9-DEC or MCX-S9C-DEC:

(1) Decoder
(1) 12-VDC, 3-A power adapter (with US/UK/EU/AU cord)
(1) 3.5-mm, 4-pin Phoenix male connector
(1) IR Wideband Receiver (30 to 50 kHz)
(2) Mounting ears (with screws)

2.6 HARDWARE DESCRIPTION

2.6.1 MCX-S9-ENC OR MCX-S9D-ENC UNIT

MCX-S9-ENC or MCX-S9D-ENC Series Unit Front Panel

Figure 2-1 shows the front panel of the MCX-S9-ENC series unit. Table 2-2 describes its components.

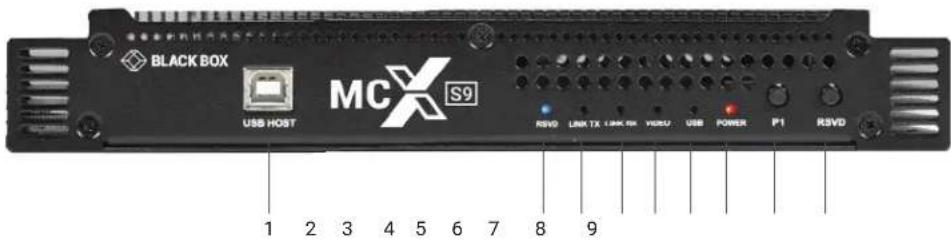

FIGURE 2-1. FRONT PANEL (MCX-S9-ENC OR MCX-S9D-ENC SERIES UNIT)

TABLE 2-2. FRONT-PANEL (MCX-S9-ENC OR MCX-S9D-ENC SERIES UNIT) COMPONENTS

NUMBER IN FIGURE 2-1 COMPONENT DESCRIPTION
1 (1) USB Type B port Connect to a host computer.
2 (1) RSVD LED Reserved for future use.
3 (1) Link TX LED	Blinking: The device is sending Ethernet data.Off: The device is not sending Ethernet data.
4 (1) Link RX LED	On: The device is processing the video signal but is not receiving Ethernet data.Off: The device is not processing the video signal nor receiving Ethernet data.Blinking: The device is processing the video signal and receiving Ethernet data.
5 (1) Video LED	On: A stable video signal is detected.Off: No stable video signal is detected.
6 (1) USB LED Blinking: A USB device is connected.
7 (1) Power LED	On: The encoder is powered on.Off: The encoder is powered off.
8 (1) P1 button Press once to select input from HDMI or DisplayPort.
9 (1) RSVD button Reserved for future use.

MCX-S9-ENC or MCX-S9D-ENC Series Unit Back Panel

Figure 2-2 shows the back panel of the MCX-S9-ENC or MCX-S9D-ENC series unit. Table 2-3 describes its components.

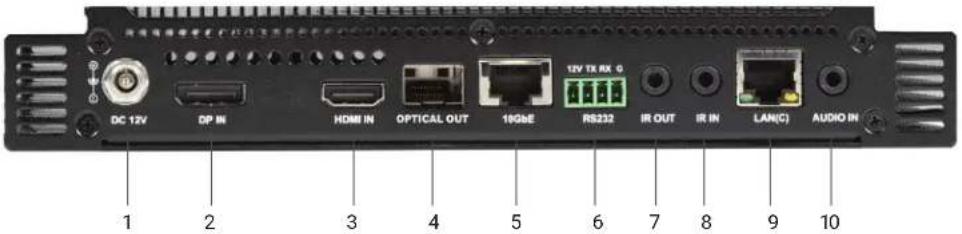

FIGURE 2-2. BACK PANEL (MCX-S9-ENC OR MCX-S9D-ENC SERIES UNIT)

TABLE 2-3. BACK-PANEL (MCX-S9-ENC OR MCX-S9D-ENC SERIES UNIT) COMPONENTS

NUMBER IN FIGURE 2-2 COMPONENT DESCRIPTION
1	(1) 12-VDC power connector	Connect to the power adapter provided.
2	(1) DisplayPort in connector	Connect this port to a DisplayPort source device.
3	(1) HDMI in connector	Connect this port to an HDMI source device.
4 (1) Optical OUT port		Connect this 10GbE fiber port to a 10GbE Ethernet switch for IP stream output using a 10GbE SFP+ fiber optic transceiver.
5 (1) 10GbE OUT port Connect this 10GbE copper port to a 10GbE Ethernet switch for IP stream output.
6 (1) RS-232 port		Connect this port to an RS-232 device such as a computer for bidirectional serial communication with an RS-232 device connected to another MCX-S9 unit on the network.
7 IR OUT		Connect to an IR transmitter for IR communication with an IR receiver in another MCX-S9 series unit on the network.
8 IR IN		Connect to an IR receiver for IR communication with an IR transmitter in another MCX-S9 series unit on the network.
9 (1) RJ-45 LAN port		10/100/1000BASE-T: Connect this port to a switch, a router or a computer for signal routing, device management, and device upgrading via control software PC configurator.
10	Audio IN	Connect to an audio input device, such as a computer or a mobile phone, for audio input.

2.6.2 MCX-S9-DEC UNIT

MCX-S9-DEC Series Unit Front Panel

Figure 2-3 shows the front panel of the MCX-S9-DEC series unit. Table 2-4 describes its components.

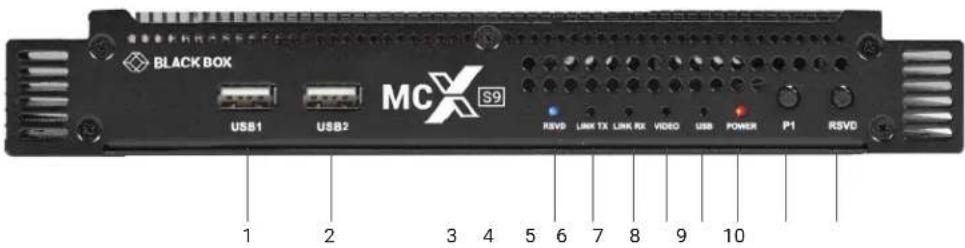

FIGURE 2-3. FRONT PANEL (MCX-S9-DEC SERIES UNIT)

TABLE 2-4. FRONT PANEL (MCX-S9-DEC SERIES UNIT) COMPONENTS

NUMBER IN FIGURE 2-3 COMPONENT DESCRIPTION
1, 2	(2) USB Type A ports	Connect to a USB device such as a keyboard or mouse.
3 (1) RSVD LED Reserved for future use.
4 (1) Link TX LED		Blinking: The device is sending Ethernet data.Off: The device is not sending Ethernet data.
5 (1) Link RX LED		On: The device is processing the video signal but is not receiving Ethernet data.Off: The device is not processing the video signal nor receiving Ethernet data.Blinking: The device is processing the video signal and receiving Ethernet data.
6 (1) Video LED		On: A stable video signal is detected.Off: No stable video signal is detected.
7 (1) USB LED Blinking: A USB device is connected.
8 (1) Power LED		On: The encoder is powered on.Off: The encoder is powered off.
9	(1) P1 button	Press once to copy the connected HDMI display's EDID to all MCX transmitters in the network.
10	(1) RSVD button	Reserved for future use.

CHAPTER 2: OVERVIEW

NEED HELP? LEAVE THE TECH TO US

LIVE 24/7 TECHNICAL SUPPORT

1.87 7.877.2269

MCX-S9-DEC Series Units Back Panel

Figure 2-4 shows the front panel of the MCX-S9-DEC series unit. Table 2-5 describes its components.

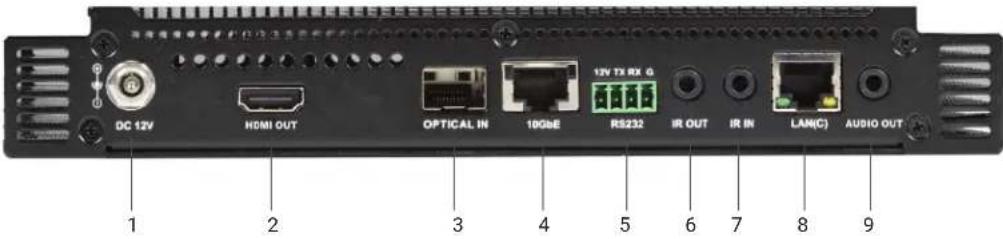

FIGURE 2-4. BACK PANEL (MCX-S9-DEC SERIES UNIT)

TABLE 2-5. BACK PANEL (MCX-S9-DEC SERIES UNIT) COMPONENTS

NUMBER IN FIGURE 2-4 COMPONENT DESCRIPTION
1	(1) 12-VDC power connector	Connect to the power adapter provided.
2	(1) HDMI Out connector	Connect this port to an HDMI display device.
3 (1) Optical IN port		Connect this 10GbE fiber port to a 10GbE Ethernet switch for IP stream input using a 10GbE SFP+ fiber optic transceiver.
4 (1) 10GbE IN port Connect this 10GbE copper port to a 10GbE Ethernet switch for IP stream output.
5 (1) RS-232 port		Connect this port to an RS-232 device such as a computer for bidirectional serial communication with an RS-232 device connected to another MCX-S9 unit on the network.
6 IR OUT		Connect to an IR transmitter for IR communication with an IR receiver in another MCX-S9 series unit on the network.
7 IR IN		Connect to an IR receiver for IR communication with an IR transmitter in another MCX-S9 series unit on the network.
8 (1) RJ-45 LAN port		10/100/1000 BASE-T: Connect this port to a switch, a router or a computer for signal routing, device management, and device upgrading via control software PC configurator.
9 Audio OUT		Connect to an audio output device, such as an amplifier, speaker, or an earphone for audio output.

2.6.3 MCX-S9C-ENC UNIT

MCX-S9C-ENC Series Unit Front Panel

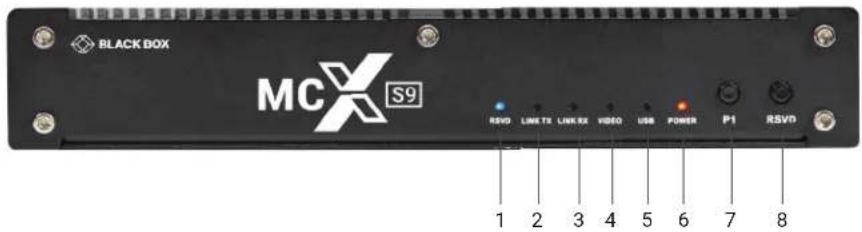

Figure 2-5 shows the front panel of the MCX-S9C-ENC series unit. Table 2-6 describes its components.

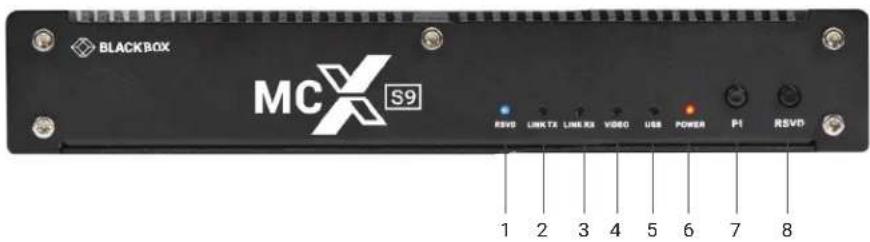

FIGURE 2-5. FRONT PANEL (MCX-S9C-ENC SERIES UNIT)

TABLE 2-6. FRONT PANEL (MCX-S9C-ENC SERIES UNIT) COMPONENTS

NUMBER IN FIGURE 2-5 COMPONENT DESCRIPTION
1 (1) RSVD LED Reserved for future use.
2 (1) Link TX LED	Blinking: The device is sending Ethernet data.Off: The device is not sending Ethernet data.
3 (1) Link RX LED	On: The device is processing the video signal but is not receiving Ethernet data.Off: The device is not processing the video signal nor receiving Ethernet data.Blinking: The device is processing the video signal and receiving Ethernet data.
4 (1) Video LED	On: A stable video signal is detected.Off: No stable video signal is detected.
5 (1) USB LED Blinking: A USB device is connected.
6 (1) Power LED	On: The encoder is powered on.Off: The encoder is powered off.
7 (1) P1 button Press once to select input from HDMI or DisplayPort.
8 (1) RSVD button Reserved for future use.

CHAPTER 2: OVERVIEW

NEED HELP? LEAVE THE TECH TO US

LIVE 24/7 TECHNICAL SUPPORT

1.87 7.877.2269

MCX-S9C-ENC Series Unit Back Panel

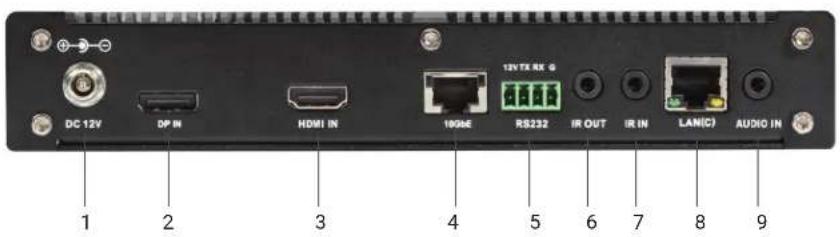

Figure 2-6 shows the back panel of the MCX-S9C-ENC series unit. Table 2-7 describes its components.

FIGURE 2-6. BACK PANEL (MCX-S9C-ENC SERIES UNIT)

TABLE 2-7. BACK PANEL (MCX-S9C-ENC SERIES UNIT) COMPONENTS

NUMBER IN FIGURE 2-6 COMPONENT DESCRIPTION
1	12-VDC power connector	Connect to the power adapter provided.
2	(1) DisplayPort in connector	Connect this port to a DisplayPort source device.
3	(1) HDMI in connector	Connect this port to an HDMI source device.
4 (1) 10GbE OUT port Connect this 10GbE copper port to a 10GbE Ethernet switch for IP stream output.
5 (1) RS-232 port		Connect this port to an RS-232 device such as a computer for bidirectional serial communication with an RS-232 device connected to another MCX-S9 unit on the network.
6 IR OUT		Connect to an IR transmitter for IR communication with an IR receiver in another MCX-S9 series unit on the network.
7 IR IN		Connect to an IR receiver for IR communication with an IR transmitter in another MCX-S9 series unit on the network.
8 (1) RJ-45 LAN port		10/100/1000 BASE-T: Connect this port to a switch, a router or a computer for signal routing, device management, and device upgrading via control software PC configurator.
9	Audio IN	Connect to an audio input device, such as a computer or a mobile phone, for audio input.

CHAPTER 2: OVERVIEW

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

2.6.4 MCX-S9C-DEC UNIT

MCX-S9C-DEC Series Unit Front Panel

Figure 2-7 shows the front panel of the MCX-S9C-DEC series unit. Table 2-8 describes its components.

FIGURE 2-7. FRONT PANEL (MCX-S9C-DEC SERIES UNIT)

TABLE 2-8. FRONT PANEL (MCX-S9C-DEC SERIES UNIT) COMPONENTS

NUMBER IN FIGURE 2-7 COMPONENT DESCRIPTION
1 (1) RSVD LED Reserved for future use.
2 (1) Link TX LED	Blinking: The device is sending Ethernet data.Off: The device is not sending Ethernet data.
3 (1) Link RX LED	On: The device is processing the video signal but is not receiving Ethernet data.Off: The device is not processing the video signal nor receiving Ethernet data.Blinking: The device is processing the video signal and receiving Ethernet data.
4 (1) Video LED	On: A stable video signal is detected.Off: No stable video signal is detected.
5 (1) USB LED Blinking: A USB device is connected.
6 (1) Power LED	On: The encoder is powered on.Off: The encoder is powered off.
7 (1) P1 button Press once to copy the connected HDMI display's EDID to all MCX transmitters in the network.
8 (1) RSVD button Reserved for future use.

CHAPTER 2: OVERVIEW

NEED HELP? LEAVE THE TECH TO US

LIVE 24/7 TECHNICAL SUPPORT

1.87 7.877.2269

MCX-S9C-DEC Series Unit Back Panel

Figure 2-8 shows the back panel of the MCX-S9C-DEC series unit. Table 2-9 describes its components.

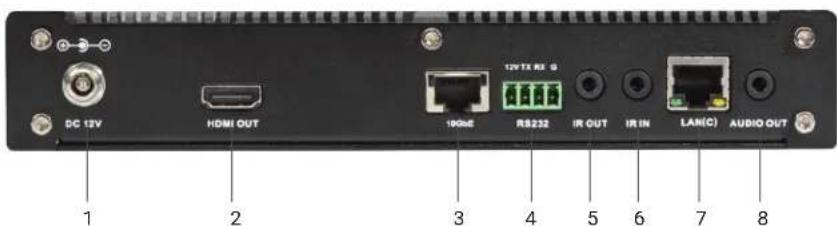

FIGURE 2-8. BACK PANEL (MCX-S9C-DEC SERIES UNIT)

TABLE 2-9. BACK PANEL (MCX-S9C-DEC SERIES UNIT) COMPONENTS

NUMBER IN FIGURE 2-8 COMPONENT DESCRIPTION
1	12-VDC power connector	Connect to the power adapter provided.
2 HDMI OUT Connect to an HDMI display source.
3 10GbE IN Connect this 10GbE copper port to a 10GbE Ethernet switch for IP stream input.
4 RS-232		Connect to an RS-232 device, such as a PC, for bi-directional serial communication with an RS-232 device connected to another MCX-S7 series unit on the network.
5 IR OUT		Connect to an IR transmitter for IR communication with an IR receiver in another MCX-S7 series unit on the network.
6 IR IN		Connect to an IR receiver for IR communication with an IR transmitter in another MCX-S7 series unit on the network.
7 LAN		10/100/1000 BASE-T: Connect this port to a switch, a router or a computer for signal routing, device management, and device upgrading via control software PC configurator.
8	Audio OUT	Connect to an audio receiver such as an amplifier, a speaker or an earphone for audio input.

CHAPTER 3: TYPICAL APPLICATIONS

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

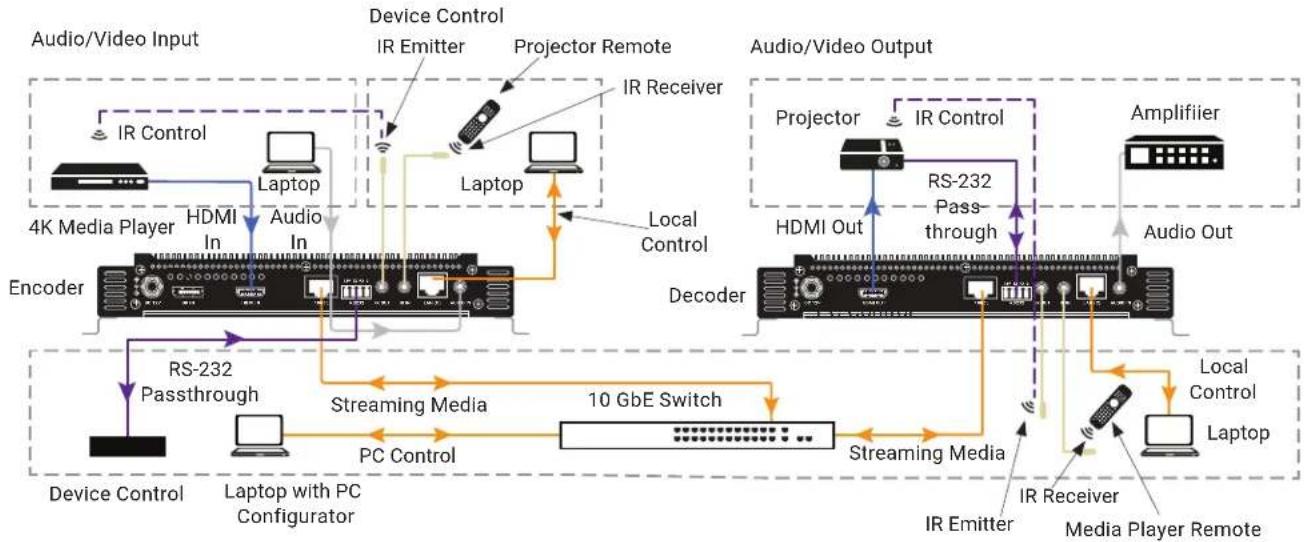

MCX-S9 series units allow any model of encoder and decoder to be linked, offering various applications to meet your requirements.

The following four typical applications are available for your reference: Point-to-Point, Point-to-Multipoint, Multipoint-to-Multipoint, and Multipoint-to-Point.

This section uses units with 10GbE copper ports as an example.

The fiberoptic ports' cabling configuration is similar.

3.1 POINT-TO-POINT

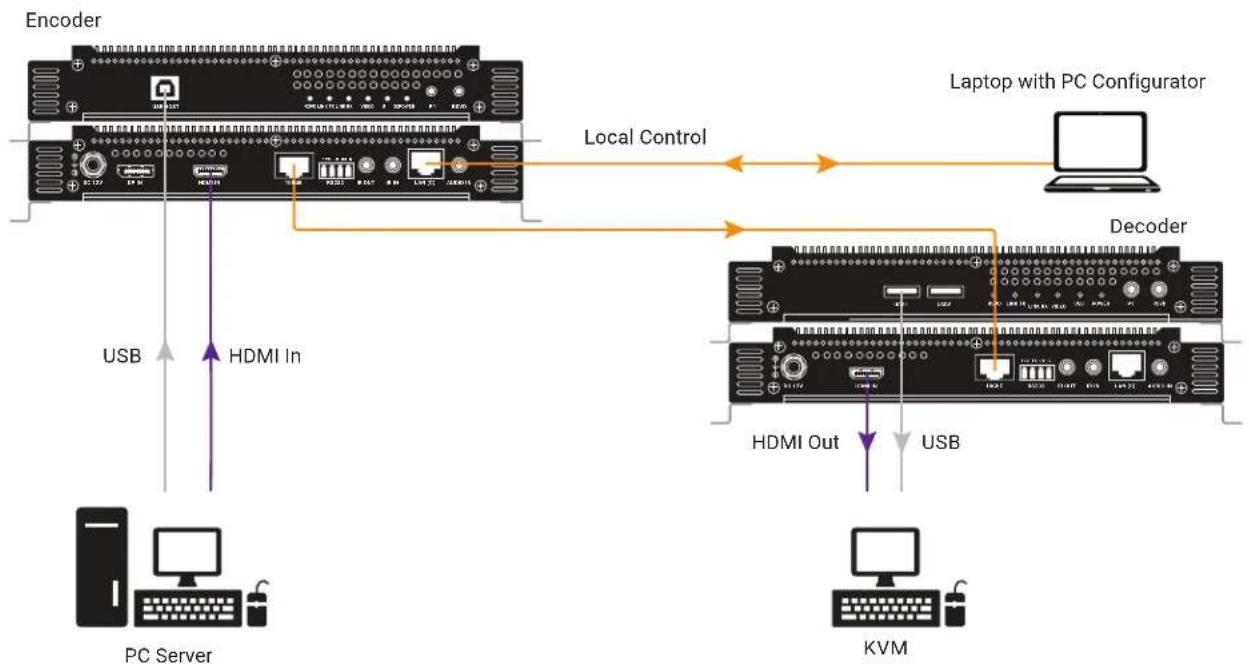

FIGURE 3-1. POINT-TO-POINT APPLICATION

3.2 POINT-TO-MULTIPOINT


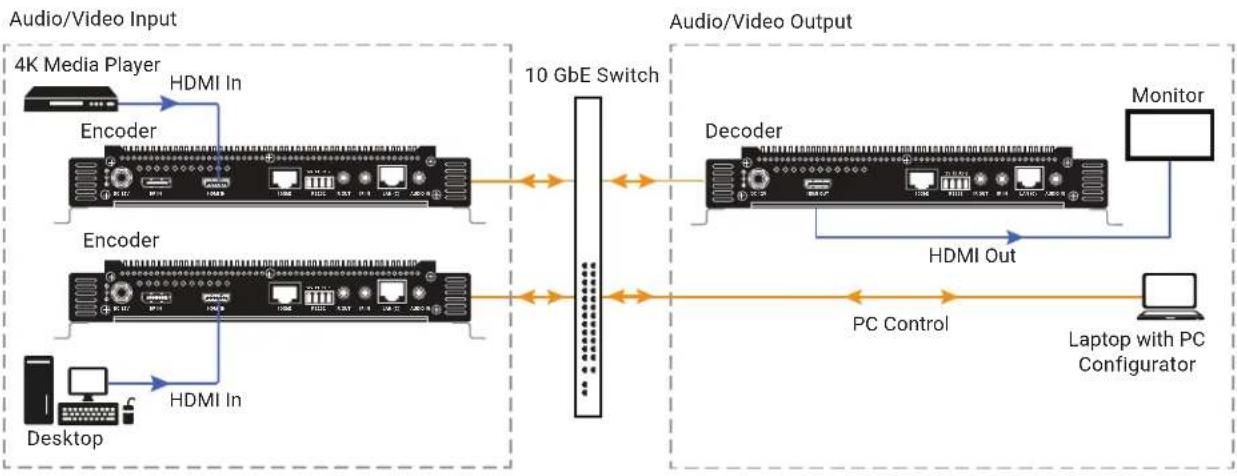

FIGURE 3-2. POINT-TO-MULTIPOINT APPLICATION

CHAPTER 3: TYPICAL APPLICATIONS

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

3.3 MULTIPOINT-TO-POINT

FIGURE 3-3. MULTIPOINT-TO-POINT APPLICATION

3.4 MULTIPOINT-TO-MULTIPOINT

FIGURE 3-4. MULTIPOINT-TO-MULTIPOINT APPLICATION

CHAPTER 4: HARDWARE INSTALLATION

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

WARNINGS:

Before the installation, disconnect the power supplies from all the devices.

Transmitter and receiver modules in fiber optic transceivers should be correctly connected to separate fiber cables.

This section uses units with 10GbE copper ports as an example. The fiberoptic units' cabling is similar.

    subgraph Audio/Video Output
        G --> G1["Projector"]
        G1 --> G1a["IRS Control"]
        G1a --> G1a1["Amplifier"]
        G1a --> G1a2["Radio System"]
        G1a2 --> G1a2a["Radio System"]
        G1a2 --> G1a2b["Radio System"]
        G1a2 --> G1a2c["Radio System"]
        G1a2 --> G1a2d["Radio System"]
        G1a2 --> G1a2e["Radio System"]
        G1a2 --> G1a2f["Radio System"]
        G1a2 --> G1a2g["Radio System"]
        G1a2 --> G1a2h["Radio System"]
        G1a2 --> G1a2i["Radio System"]
        G1a2 --> G1a2j["Radio System"]
        G1a2 --> G1a2k["Radio System"]
        G1a2 --> G1a2l["Radio System"]
        G1a2 --> G1a2m["Radio System"]
        G1a2 --> G1a2n["Radio System"]
        G1a2 --> G1a2o["Radio System"]
        G1a2 --> G1a2p["Radio System"]
        G1a2 --> G1a2q["Radio System"]
        G1a2 --> G1a2r["Radio System"]
        G1a2 --> G1a2s["Radio System"]
        G1a2 --> G1a2t["Radio System"]
        G1a2 --> G1a2u["Radio System"]
        G1a2 --> G1a2v["Radio System"]
        G1a2 --> G1a2w["Radio System"]
        G1a2 --> G1a2x["Radio System"]
        G1a2 --> G1a2y["Radio System"]
        G1a2 --> G1a2z["Radio System"]
        G1a2 --> G1a2x
    end

FIGURE 4-1. INSTALLATION DIAGRAM

APPENDIX A: REGULATORY INFORMATION

A.1 FCC CLASS B STATEMENT

Class B Digital Device. This equipment has been tested and found to comply with the limits for a Class B computing device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. If this equipment does cause harmful interference to radio or telephone reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

◆ Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult an experienced radio/TV technician for help.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

To meet FCC requirements, shielded cables and power cords are required to connect this device to a personal computer or other Class B certified device.

This digital apparatus does not exceed the Class B limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of Industry Canada.

This product complies with CE and ROHS2 certifications.

APPENDIX A: REGULATORY INFORMATION

A.3 NOM STATEMENT

Black Box Corporation shall not be liable for damages of any kind, including, but not limited to, punitive, consequential or cost of cover damages, resulting from any errors in the product information or specifications set forth in this document and Black Box Corporation may revise this document at any time without notice.

B.2 TRADEMARKS USED IN THIS MANUAL

Black Box and the Black Box logo type and mark are registered trademarks of Black Box Corporation.

Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.

NOTES

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.87 7.2269
