WZ CRIMP 09 - Pliers Fixpoint - Free user manual and instructions

Product Type	Crimping Pliers
Brand	Fixpoint
Model	WZ CRIMP 09
Application	Crimping wire connectors and terminals
Material	High-carbon steel with induction hardened cutting edges
Handle Material	Bi-material ergonomic grips with slip-resistant coating
Overall Length	Approximately 200 mm (7.9 inches)
Weight	Approximately 300 g (10.6 oz)
Crimping Capacity	AWG 22-10 (0.3-6.0 mm²)
Number of Crimping Positions	Multiple (typically 4-6)
Additional Functions	Wire cutter and stripper integrated
Safety Features	Insulated handles (tested to 1000V) for electrical work
Standards Compliance	Meets IEC/EN 60900 for insulated tools
Maintenance	Clean with dry cloth; apply light oil to pivot point; store in dry place
Warranty	2 years

Frequently Asked Questions - WZ CRIMP 09 Fixpoint

What wire sizes can the Fixpoint WZ CRIMP 09 handle?

The WZ CRIMP 09 accommodates wire sizes from AWG 22 to 10 (0.3 to 6.0 mm²) for insulated and non-insulated terminals.

Can the pliers cut wire as well?

Yes, the tool features an integrated wire cutter and stripper for convenience, located near the pivot.

Are the handles insulated for live electrical work?

Yes, the bi-material handles are insulated and tested to 1000V, meeting IEC/EN 60900 safety standards.

How do I maintain the crimping pliers?

After use, clean the tool with a dry cloth. Apply a drop of light machine oil to the pivot joint periodically. Store in a dry environment to prevent rust.

What types of terminals can I crimp with this tool?

It is suitable for insulated and non-insulated terminals, including ring, spade, butt, and quick-disconnect connectors.

Does the tool have a ratcheting mechanism?

The WZ CRIMP 09 typically features a ratcheting mechanism to ensure consistent crimp pressure and full crimp cycle completion.

Is the Fixpoint WZ CRIMP 09 suitable for heavy-duty use?

Yes, it is built with high-carbon steel and induction-hardened jaws, making it durable for professional and DIY applications.

Can I replace the crimping dies?

The crimping dies are interchangeable in some models; check your manual. For the WZ CRIMP 09, they are typically fixed but cover most common sizes.

What is the overall length of the pliers?

The length is approximately 200 mm (7.9 inches), providing good leverage for crimping.

Where can I find the user manual for this product?

The user manual is available for free download in PDF format on notice-facile.com in multiple languages.

USER MANUAL WZ CRIMP 09 Fixpoint

Close-up of a mechanical wire crimping tool (no visible text or symbols)

50284 77267

Close-up of a mechanical wire crimping tool (no text or symbols visible)

Close-up of a black crimping tool with handle and internal components (no text or symbols visible)

Close-up of a gray wire crimping tool with a visible number 1 on the handle (no text or symbols beyond the number)

11951 77124

Close-up of a mechanical crimping tool with handle and socket (no text or symbols visible)

77138 77146

Close-up of a mechanical crimping tool with no visible text or symbols

Close-up of a wire crimping tool with a metallic handle and internal components (no text or symbols visible)

Close-up of a gray crimping tool with no visible text or symbols

77272 77126
WZ Crimpzangen | crimping pliers

DE

ATTENTION! Read the manual completely and carefully. It is part of the product and contains important advices for correct implementing and use. Retain this manual for availability when passing to other persons and if there are further questions.

Content: Page:

1 Description and Function 10
2 Intended Use 10
3 Scope of Delivery 10
4 Safety Instructions 11
5 Field of Application and Configuration 11
6 Construction 12
7 Instruction 14
8 Cutting and Stripping Cables 14
9 Crimping 14
10 Care, Maintenance, Storage and Transport 14
11 Troubleshooting 15
12 Warranty and Liability 15
13 Specifications 16
14 Disposal Notes 16

1 Description and Function:

Your crimping tool is made for connecting western plugs to unshielded or shielded cables. Depending on the model, the tool is useable for several sizes of western plugs and can cut and strip cables, too. Crimping tools with ratch have a finishing mechanism and an emergency release.

2 Intended Use:

Your Fixpoint ^® product is provided for using like described in chapter 1. It is only allowed to use it in dry interior rooms. Disregarding and non-compliance of these terms and of the Notes on Safety may cause massive accidents and damages to people and things.

3 Parts Package:

• 1 pc crimping tool
• 1 pc manual

4 Safety Instructions:

ATTENTION! Demounting of the product is only permitted to skilled mechanics! There is a risk of e.g. bruises and cutting!

• This product is no toy and children must not use it anyway, because it contains fragile, small and swallowable parts such as mechanics, which can bruse or cut people with incorrect use!
• Remove and dispose packaging materials, because playing children could cut on it. Furthermore there is a danger of swallowing and inhaling of incidentals and insulating of materials.
• Do not interrupt the product to extreme heat, coldness or direct sun insulation.
• Lock the tool after use, if a lock is included.
  • Work under good light conditions to minimize the risk of injuries.
• Do not modify or alter the device or its accessories! Therefor mind chapter "warranty and liability".
  • Furthermore avoid liquid or dust effects.
• If defects, mechanical damages, disturbances or other problems occur, which are not solvable with this manual, take the device out of work immediately and consult your dealer for questions, repairing or change like it is described in chapter "warranty and liability".
• Mind the specifications for transporting and use applicable methods for it, e.g. by transporting in the original packaging.
• Do not use any damaged parts.
• Attend to the terms of use in chapter 2.
• Don't put limbs between movable parts to avoid brusing and cutting.

5 Field of Application and Configuration:

50284	RJ 10, 11, 12, 45	+ for shielded and unshielded cables + 4/6/8-pole + stripper 6 + 12 mm + cable cutter + stripper + finishing mechanism + emergency release
77267	RJ 10, 11, 12, 45	+ for shielded and unshielded cables + 4/6/8-pole + stripper 6 + 12 mm + cable cutter + stripper + finishing mechanism + emergency release

11951 RJ 10, 11, 12, 45 + cable cutter + stripper + 4/6/8-pole + for western plugs + plastic cable isolation

77124 RJ 45 + for shielded and unshielded cables + cable cutter + stripper + metal finish + with security lock

77138 RJ 11, 12 + cable cutter + stripper + for shielded and unshielded cables + for western plugs + metal finish + with security lock

77146 RJ 11, 12, 45 + cable cutter + stripper + for shielded and unshielded cables + for western plugs + metal finish + finishing mechanism + emergency release

77272 RJ 45 + for shielded western plugs + with auto ratch + finishing mechanism + emergency release

77126 RJ 11, 12 + cable cutter + stripper + for shielded and unshielded cables + for western plugs + plastic cable isolation

6 Construction:

The pictures are showing the front of the tool. Put in the cable from this site.

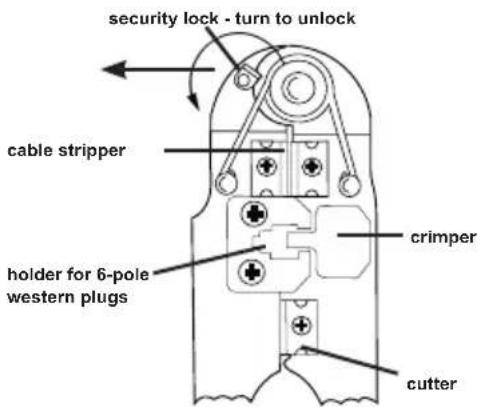

77124+77138:

security lock - turn to unlock cable stripper holder for 6-pole western plugs crimper cutter

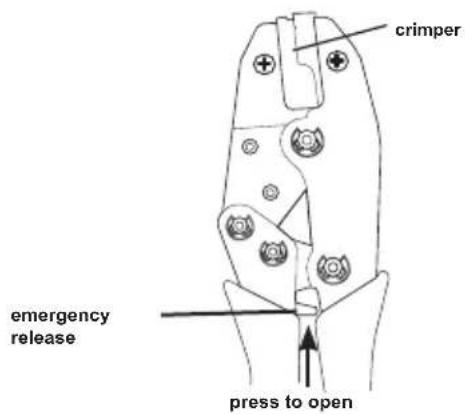

77272:

crimper emergency release press to open

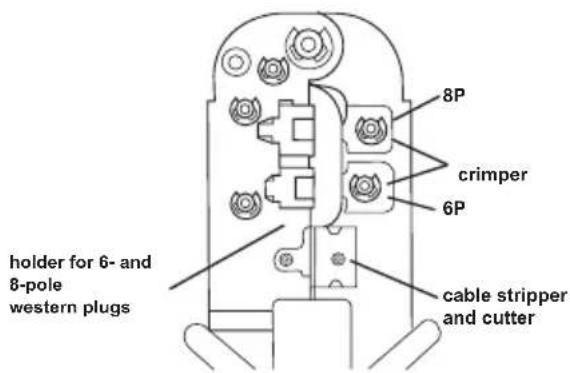

77146:

holder for 6- and 8-pole western plugs 8P crimper 6P cable stripper and cutter

crimper cable stripper and cutter finishing mechanism + emergency release

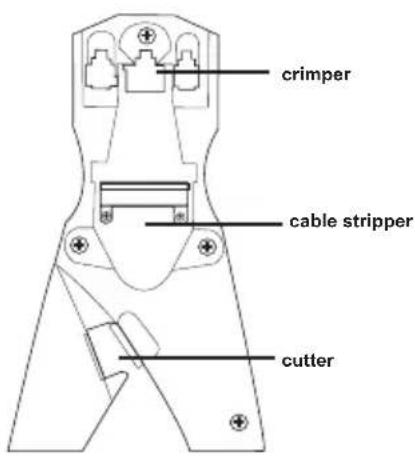

11951+77126:

crimper cable stripper cutter

7 Instruction:

• The crimping plier must be in correct and cleaned condition before starting work.
• Remove crimping residues from cheeks and plier after each crimping.
• Protect the angles from dirt and grease them regularly with light machine oil.

8 Cutting and Stripping:

• If a cutter and stripper is included, cut cables by putting it into the plier from the labeled site up to the right length and compress the plier until opening automatically.
• To strip a cable, put it into the plier angularly from the labeled site up to the 6 mm dead stop and compress it completely. To strip 12 mm, put the cable through completely.

9 Crimping:

1. Compress the plier completely to open it or unlock the security lock.
2. Select the fitting crimp terminals for your cable diameter.
3. Put in the cable with cable end sleeve sidewise into the plier.
4. Compress the plier until it is completely closed. (models 11951, 77124, 77138, 77272 and 77126) or until the last ratch step is reached and it opens automatically.
5. Remove the crimped and finished cable from the crimping plier.

10 Care, Maintenance, Storage and Transport:

• Clean the product only with a dry, soft cloth. Be careful with cleaning to avoid scratches. For intensive staining you can damp the cloth with some water. Do not use cleaning supplies and chemicals, because they can corrode the plastic material.
• Remove residues with a small knife carefully.
• Store your product in a dry and dustproof surround when not used for longer time. The product must be stored impenetrable for children.
• Retain the packaging to avoid damages during transport.
• Protect the angles from dirt and grease them regularly with light machine oil.

11 Troubleshooting:

Problem Help
The tool does not open.	Compress the tool strongly until opening automatically.
	Open a trapped tool by using the emergency release by turning the small wheel or by pressing.
	Unlock the tool like described in chapter “Construction”.
bad crimping Mind	orthogonal and complete putting in the cable.
	Strip the cable and compress the tool.
	Remove residues from the tool.
other questions Consult your dealer.

12 Warranty and Liability:

• The producer grants a 2 years guarantee to a new device.
• As the manufacturer has no influence on installation, warranty of the product only applies to the product itself.
• If any fault or damage is detected on your device, please contact your dealer and provide your sales slip or invoice as evidence of the purchase, if necessary. Your dealer will repair the fault either on site, or send the device to the manufacturer. You make the work of our technicians considerably easier, when you describe possible faults in detail – only then you can be assured that faults occurring only rarely will be found and repaired with certainty!
• The manufacturer is not liable for damages to persons or property caused by improper installation or operation not described in this guide. This includes, among others, any alteration and modification of the product and its accessories.
• Any use other than described in this user's guide is not permitted, and causes loss of warranty, loss of guarantee, and non-liability.
  • We reserve our right for misprints and changes of the device, packing, or user's guide.

13 Specifications:

model weight dimensions
50284 560 g 310 x 117 x 20 mm
77267 536 g 265 x 100 x 25 mm
11951 192 g 310 x 130 x 30 mm
77124 270 g 260 x 114 x 25 mm
77138 255 g 270 x 116 x 20 mm
77146 320 g 290 x 102 x 25 mm
77272 520 g 310 x 116 x 25 mm
77126 120 g 250 x 142 x 20 mm

14 Note on Waste Disposal:

This product should not be disposed together with domestic waste. Please return your device free of charge at the end of its service life at public collection points established for this purpose, or at the sales outlet. Details for disposal are regulated in the relevant federal state law. Potential recyclable materials are fed into the recycling cycle to obtain new raw materials from them. Following recyclable materials are collected a local collection points:

- Waste glass, plastic, waste metal, metal sheet, and more.

This type of recycling of waste equipment contributes significantly to the protection of our environment.

GB

GB

Revision Date: 2011-09-13

Version 2

Fixpoint®

Pillmannstraße 12

38112 Braunschweig

Germany

Made in China
