WZ HK 8 - Glue gun Fixpoint - Free user manual and instructions

Product Type	Hot Glue Gun
Brand	Fixpoint
Model	WZ HK 8
Dimensions (approx.)	200 x 50 x 80 mm
Weight (approx.)	300 g
Power Supply	220-240 V AC, 50/60 Hz
Power Consumption	100 W
Heating Element	PTC ceramic
Temperature Range	Approx. 150-200 °C (fixed)
Glue Stick Diameter	11 mm
Glue Stick Length	200 mm (standard)
Warm-up Time	3-5 minutes
Flow Control	Trigger operated
Nozzle Type	Standard round tip
Stand	Foldable, included
Cable Length	1.5 m
Safety Features	Overheat protection, insulated handle
Maintenance	Clean nozzle when hot with a cloth
Spare Parts	Nozzles, glue sticks
Repairability	Replaceable heating element
Intended Use	DIY, crafts, light repairs
Color	Black and orange

Frequently Asked Questions - WZ HK 8 Fixpoint

What type of glue sticks does the WZ HK 8 use?

The WZ HK 8 uses 11 mm diameter glue sticks, standard length of 200 mm.

How long does it take to heat up?

The warm-up time is approximately 3-5 minutes.

Can I adjust the temperature?

No, the temperature is fixed at around 150-200 °C.

Is it safe for children to use?

No, this glue gun is not a toy. Always use with adult supervision and keep away from children.

How should I clean the nozzle?

Wipe the nozzle with a dry cloth while it is still hot. Do not use water.

What materials can I glue with this gun?

It works on wood, plastic, fabric, cardboard, foam, and many other materials. Not suitable for metal or glass without proper adhesive.

Why is no glue coming out?

Check if the gun is plugged in and heated. Ensure a glue stick is inserted and push it gently. If still stuck, unplug and clean the nozzle.

Can I use this glue gun for electronics?

It is not recommended for sensitive electronics as the high temperature may damage components. Use a low-temperature gun instead.

How should I store the glue gun?

Place it on its stand and allow it to cool completely before storing. Keep in a dry place.

Where can I buy spare parts?

Spare parts such as nozzles and glue sticks are available online or at major hardware stores.

USER MANUAL WZ HK 8 Fixpoint

Black electric glue gun with attached power strip and terminal plug (no visible text or symbols)

WZ HK 8 Heißklebepistole

Artikelnummer: 77022

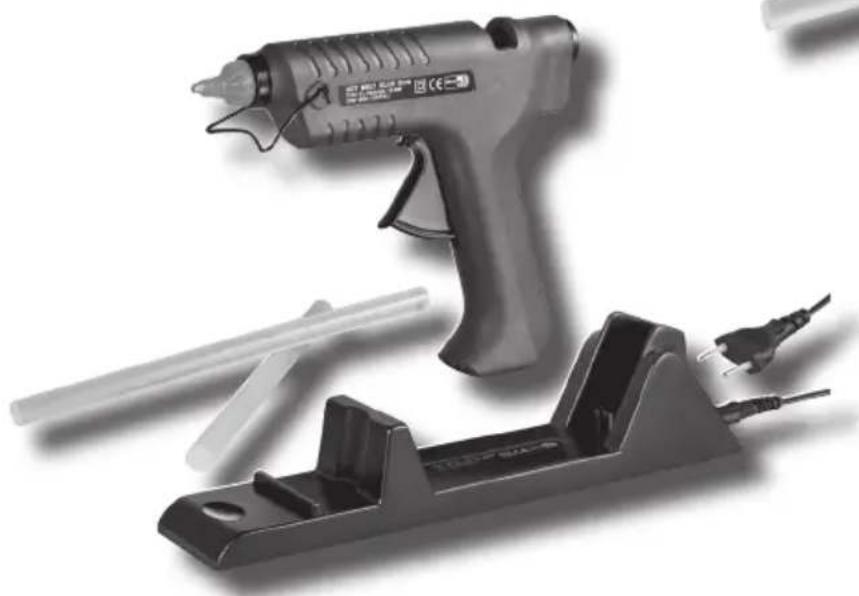

WZ HK 8 glue gun

Item No. 77022

WZ HK 11 Heißklebepistole

Black electric iron gun with attached power plug and terminal fins (no visible text or symbols)

Black-and-white photo of a glue gun and a mechanical clamp tool (no visible text or symbols)

WZ HK 11-WL Heißklebepistole kabellos

Artikelnummer: 77026

WZ HK 11-WL glue gun

wireless

Item No. 77026

Bedienungsanleitung

Manual

Fixpoint® - Heißklebepistolen WZ HK

Labeled diagram of a portable electrical tool with numbered parts for identification

Fixpoint® - WZ HK glue guns

ATTENTION! Read the manual completely and carefully. It is part of the product and contains important advices for correct implementing and use. Retain this manual for availability when passing to other persons and if there are further questions.

Content: Page:

1 Description and Function 8
2 Intended Use 8
3 Parts Package 8
4 Construction 9
5 Notes on Safety 9
6 Startup 10
7 Work guide 10
8 Care, Maintenance, Storage and Transport 10
9 Troubleshooting 11
10 Warranty and Liability 11
11 Specifications 12
12 Notes on Waste Disposal 12
13 CE Declaration 12

1 Description and Function:

Your glue gun is made for one-component PUR hot melt adhesives. It's applicable to:

• wood, glass, ceramics, some plastics, (not PP, PE styrofoam and silicone), leather, textiles, etc.
• The glue is made for interior and exterior use because it is stabil at temperatures from -40^ to +100^ . It offers fast and high fixity. Furthermore it is solvent free and thermally stable, because removable not under 130^ .

Model WZ HK 11-WL is operatable wireless or with mains cable.

2 Intended Use:

Your Fixpoint ^® - glue gun is provided for using like described in chapter 1. It is only allowed to use it in dry interior rooms. Disregarding and non-compliance of these terms and of the Notes on Safety may cause massive accidents and damages to people and things.

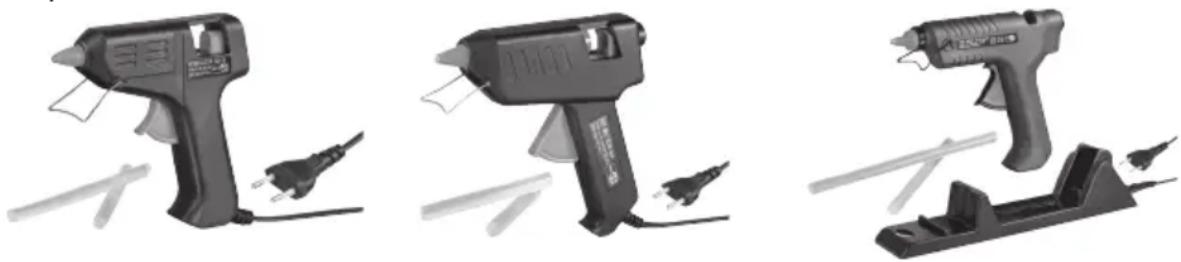

3 Parts Package: 1 pc Fixpoint® - WZ HK glue gun

2 pcs 8mm or 11mm glue sticks

1 pc user manual

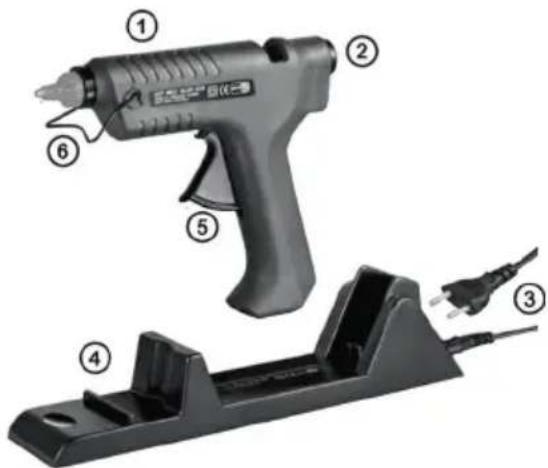

4 Construction:

1) glue gun
2) opening for glue sticks
3) mains cable
4) heating station (only WZ HK 11-WL)
5) drain
6) stand and blast pipe

Labeled diagram of a soldering iron with numbered parts showing internal components and part outline

5 Notes on Safety:

ATTENTION! Demounting of the housing is only permitted to skilled electricians! There is a danger of electric-shock and burns!

• Your Fixpoint ^® product is no toy and children must not use it anyway, because it contains fragile, small and swallowable parts such as cables, which can strangle and shock people by electricity with incorrect use!
• Remove and dispose packaging materials, because playing children could cut on it. Furthermore there is a danger of swallowing and inhaling of incidentals and insulating of materials.
• Do not interrupt the product to extreme heat, coldness or direct sun insulation. Mind warmed up parts of the device during operating!
• Only place the product on fire resistant, not heat conducting and solid surfaces. Place model WZ HK 11-WL only on the heating station.
• Unplug the mains plug during thunder storms.
• Do not modify or alter the device or its accessories! Therefor mind chapter "warranty and liability".
  • Furthermore avoid vibrations, mechanical, magnetic and electro-magnetic influences, as well as liquid or dust effects.
• If defects, mechanical damages, disturbances or other problems occur, which are not solvable with this manual, take the device out of work immediately and consult your dealer for questions, repairing or change like it is described in chapter 11.
• Mind the specifications for transporting and use applicable methods for it, e.g. by transporting in the original packaging.
• Do not use any damaged parts.
• Never open the housing, because of working with a voltage of 230 Volts AC!
• Please attend to the terms of use in chapter 2.
  • The glue heats up to 140^ C. There is a risk of burning!
• Wear applicable gloves to avoid injuries.
• In case of burning, cool down the injured skin by flowing and cool water. Do not try to remove the glue until the glue is hard cured. Immediately call a doctor for emergencies.
• Mind the heating-up time and only use original Fixpoint ^ glue sticks for efficient operating.
• The device must be cooled down before placing it in storage to avoid smoldering fire.

6 Startup:

1. Place the glue gun on solid, fire resistant and not heat conducting surfaces, model WZ HK 11-WL on the heating station.
2. If requested, connect the mains cable to the glue gun, then to a mains socket.

ATTENTION! The glue guns heat up promptly!

Connect the mains cable of model WZ HK 11-WL also with its heating station and then with a mains socket for wireless operation.

ATTENTION! If the mains cable of WZ HK 11-WL is directly connected to the glue gun, a solid depositing on the heating station is not possible!

1. After a heating-up time of around 10 minutes, the glue gun is ready to use.

Model WZ HK 11-WL then is ready to operate for around 5 minutes and has to be charged again in the heating station.

7 Work guide:

• Only Fixpoint ^ glue sticks ensure precise operating.
• Surfaces of areas to be glued, must be dry, greaseless and clean.
• It is recommended to abrade some materials, such as metals like aluminium or zinc-plated metal for better hold.
• Work the material at ambient temperature, e.g. by heating materials like stones or metals for a slower curing process of the glue and a better alignment!
• Remove excessive glue after curing of about 2 minutes by scatching it with a knife.
• Put on the glue in points or stripes. Do not rod it.
• Unplug the mains plug for working brakes of more than 30 minutes.
• Connect the materials directly after putting on the glue for optimal fixity.
• Avoid direct sun insolation and UV light by gluing glass. Protect the gluing area e.g. with a sticker.

8 Care, Maintenance, Storage and Transport:

• Unplug the mains plug and let the device cool down before all further actions!
• Please clean the product only with a dry linen. Be careful with the cleaning to avoid scratches. For intensive pollution you can damp the linen with some water. Do not use cleaning supplies and chemicals, because they can corrode the plastic material.
• Remove residues of glue with a small knife carefully.
• Please store your Fixpoint ^® product in a dry and dustproof surround when not used for longer time. The product must be stored impenetrable for children. Please disconnect the device from mains when not in use.
• Please retain the packaging to avoid damages during transport.

9 Troubleshooting:

Problem Help
The glue gun does not heat up. Check the connection to an operating mains socket.
The glue sticks move very hardly. Make sure of using the right glue stick diameter of 7.2mm or 11mm by reading chapter 11.
other questions and problems Disconnect the device from mains immediately!Do not touch the device and consult your dealer!Mind chapter 5 and 10.

10 Warranty and Liability:

• The producer grants a 2 years guarantee to a new device.
- As the manufacturer has no influence on installation. warranty of the product only applies to the product itself.
- If any fault or damage is detected on your device. please contact your dealer and provide your sales slip or invoice as evidence of the purchase. if necessary. Your dealer will repair the fault either on site. or send the device to the manufacturer. You make the work of our technicians considerably easier. when you describe possible faults in detail – only then you can be assured that faults occurring only rarely will be found and repaired with certainty!
- The manufacturer is not liable for damages to persons or property caused by improper installation or operation not described in this guide. This includes. among others. any alteration and modification of the product and its accessories.
- Any use other than described in this user's guide is not permitted. and causes loss of warranty. loss of guarantee. and non-liability.
• We reserve our right for misprints and changes of the device. packing. or user's guide.

11 Specifications:

Model 77022 77023 77026
operating voltage 220-240V~ 50Hz
heating power 10(60)W 25(80)W 15(80)W
heating-up time ca. 10min.
handling the glue T = 100 - 170°C T = 100 - 200°C
offene Zeit des Klebers ca. 45s
battery operating time	-	-	10 - 15 min.
battery charging time	-	-	5 - 7 min.
max. gluing capacity	4.5g/min.	7.0g/min.	20.0g/min.
glue stick diameter	∅ 7.2mm Stick	∅ 11mm Stick
cable length	ca. 1.5m
dimensions	196 x 130 x 50mm	250 x 160 x 42mm	282 x 176 x 70mm
weight	144g	230g	472g

12 Notes on Waste Disposal:

According to the European WEEE directive, electrical and electronic equipment must not be disposed with consumers waste. Its components must be recycled or disposed apart from each other. Otherwise contaminative and hazardous substances can pollute our environment.

You as a consumer are committed by law to dispose electrical and electronic devices to the producer, the dealer, or public collecting points at the end of the devices lifetime for free. Particulars are regulated in national right. The symbol on the product, in the user's manual, or at the packaging alludes to these terms. With this kind of waste separation, application, and waste disposal of used devices you achieve an important share to environmental protection.

WEEE Directive: 2012/19/EU

WEEE No: 82898622

13 CE Declaration:

This device corresponds to EU directives 2004/108/EC and 2006/95/EC: With the CE sign Fixpoint ^® , a registered brand of the Wentronic GmbH ensures, that the product is conformed to the basic standards and directives. These

standards can be found online on www.wentronic.com. The mentioned directives replace all former national permissions in the European Union. All trademarks and registered brands are the property of their respective owners.

GB

GB

Revision Date: 2012-11-19

Version 2

Fixpoint ^® is a registered

trademark of Wentronic GmbH

in Germany and/or other countries.

Wentronic GmbH

Pillmannstraße 12

38112 Braunschweig, Germany

Designed and Developed

in Germany.

Assembled in China
