68034 - Heating Blanket / Heating Pad SOEHNLE - Free user manual and instructions

Brand	Soehnle
Model	68034
Product type	Heating pad
Supply voltage	220-240 V, 50 Hz
Rated power	100 W
Number of temperature levels	6 levels
Auto shut-off	After 90 minutes
Double insulation	Yes
Protection class	II
Removable and washable cover	Yes, machine wash at 30°C
Warranty	5 years
Certifications	Ökotex 100, Safety Concept, TÜV Süd
Usage	Household only
Storage	Fold carefully, dry place
Repairs	By an authorized technician only

Frequently Asked Questions - 68034 SOEHNLE

What are the available temperature levels?

The Soehnle 68034 heating pad has 6 temperature levels adjustable via the thermostat.

How long before the auto shut-off?

The device automatically shuts off after 90 minutes of continuous use to save energy and ensure safety.

Can I wash the heating pad in the washing machine?

No, only the removable cover can be machine washed at 30°C. The internal heating pad must never be washed or wet.

What is the warranty of this product?

Soehnle offers a 5-year warranty against defects in materials and workmanship from the date of purchase.

Can I use the heating pad on animals?

No, the device is intended exclusively for household use on humans. Never use it on animals.

What to do in case of malfunction?

Immediately turn off the device and unplug it. Repairs must only be carried out by an authorized technician from Soehnle customer service.

How to store the heating pad?

Fold it carefully without creasing and store it in a dry place. Avoid placing heavy objects on it.

Is it safe for heat-sensitive people?

Sensitive individuals should use the device with caution and stop using it if discomfort occurs. Consult a doctor if necessary.

Can I use the heating pad in the bathroom?

No, the device must only be used in dry rooms. Never use it in the bathtub, shower, or near water.

How to install the cover on the heating pad?

Slide the heating pad into the cover, ensuring the cable and thermostat remain outside, then close the zipper.

USER MANUAL 68034 SOEHNLE

Black textured pillow with a white electric shaper attached, no visible text or symbols

Deutsch 4

English 13

Français 22

Italiano 31

Nederlands 40

Español 49

Svenska 58

Český 67

Русский 76

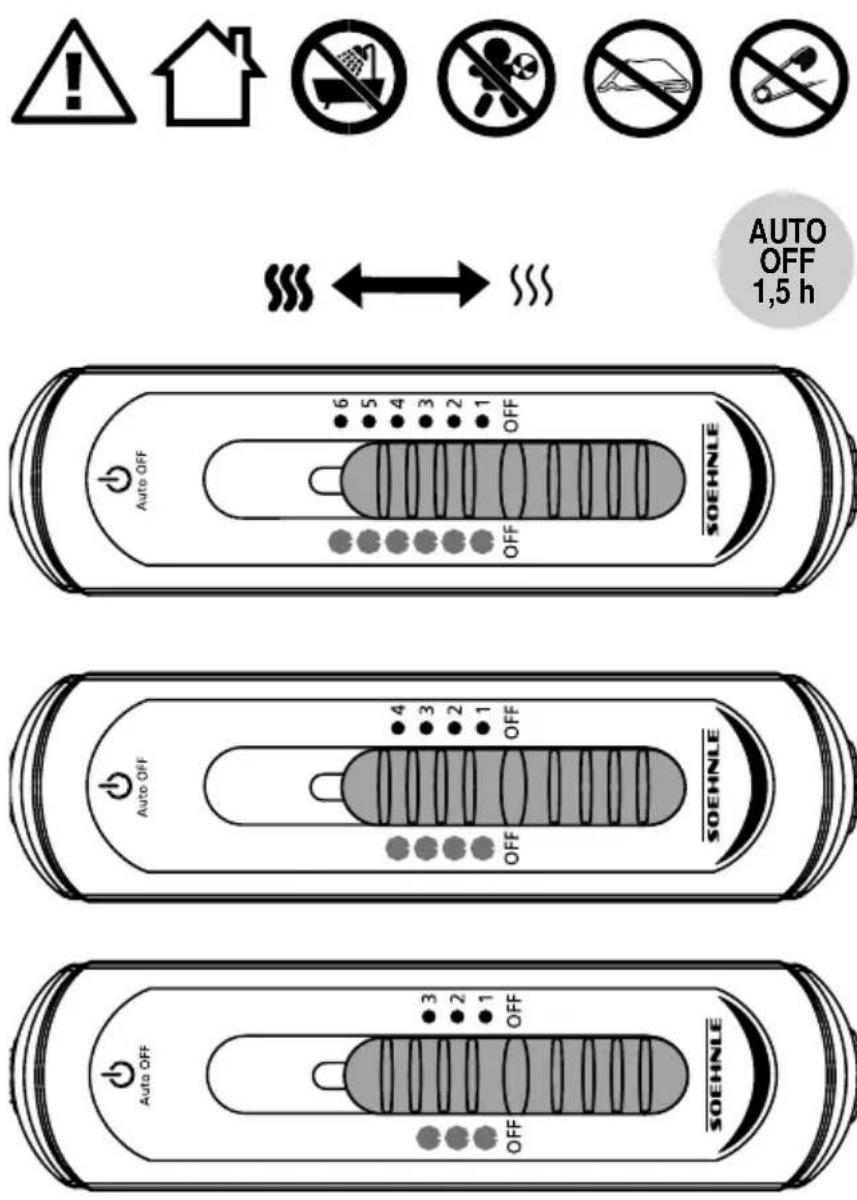

Quick Start

Bezug / Cover / Housse / Fodera / Overtrek / Funda / Överdrag / Potah / Чехол из ткани

Wärmekissen / Heating pad / Coussin chauffant / Termoforo / Warmtekussen / Cojín térmico / Värmekudden / Nahřívací poduška / Grelka

Five abstract geometric symbols arranged horizontally, each with a unique line drawing (no text or labels)

6 Temperaturstufen

4 Temperaturstufen

3 Temperaturstufen

4. Inbetriebnahme

Wichtig

Electrical and Electronic Equipment).

1. Proper use 13
2. Safety information 14
3. Operating elements 16
4. Start-up operation 16
5. Temperature control 17
6. Auto Off 17
7. Cleaning and care 18
8. Storage and periodic inspection 19
9. Technical information 19

10. Declaration of conformity 20

11. Disposal 20

12. Consumer service 20

13. Guarantee 21

1. Proper use

This electric warming device gently warms your body or specific regions of your body. The treatment will support blood circulation and therefore enhances the relaxation of tight muscles as well as your overall well-being. Enjoy the cozy warmth at any time and any place.

The device is intended exclusively for domestic use, not for commercial applications or the use in hospitals or medical offices.

In order to be able to utilize all the benefits of your electric warming device, please thoroughly read these instructions and observe the notes on care and safety. You will then be able to enjoy this device for a long time.

Please store these instructions for further use or in case you hand this device over to another person.

Further information can be found at our website at www.soehnle.com.

2. Safety information

Danger

- This device uses supply voltage. Therefore, the same safety regulations apply as for any other electric device.

- Operate the device only with the stated supply voltage.

- Inspect that all components of the device are in a faultless condition prior to each start-up of the device. In the event of a defect or a malfunction, switch the device off immediately and disconnect the power plug from the power network. Repairs must be performed exclusively by authorized customer service technicians. Never open the device. The individual components of this device may not be disassembled, repaired or modified.

- Use the device only in dry rooms and with a dry body – never in the bathtub, shower, above filled sinks, in pools, saunas, or outdoors.

- Never operate the device too close to other heat sources.

- Do not pull the power cord across sharp edges.

- Do not pull on the cord or the device to disconnect the power plug or transport the device.

- Disconnect the power plug if the device is not in use.

- If you dispose of the device at any one point in time, please cut off the cable to make it useless.

- This device may not be used by persons (to include children) with physical, sensory, or mental disabilities or by persons with insufficient experience or knowledge, unless such persons use the device under the supervision of a responsible person or after receiving necessary instructions.

- Please ensure that children do not use the device as a toy.

• Disconnect the device from the power network prior to cleaning it.
  During cleaning, ensure that no liquids come into contact with the switch and buttons and that the device is used only in an
  absolutely dry condition.

- Do not insert any needles or pointy objects into the heat unit.

Warnings

• Please consult a physician prior to using the device if you suffer from an illness (e.g. varicose veins, thrombosis, etc.).
• Never use the device with open wounds, burns, hematoma, swellings, or similar conditions.
• Stop treatment if it feels uncomfortable to you. Heat-sensitive persons in particular should use the device with care and stop the treatment in a timely manner.
• Never use the heat device on animals.
• The use of this device at maximum heat setting for a long period of time can lead to burns of the skin.
• If the device is to be used continuously for a long period of time, the control must be set to the lowest position.

Attention

- In order to ensure the proper functionality of the operating element (thermostat), do not place it on top of or underneath the heat unit.

Do not cover the thermostat with other objects.

- Never use the heat device if it is folded, wrinkled, or pushed together.

3. Operating elements

Controller with thermostat

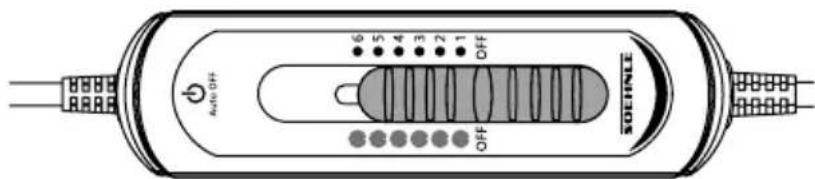

6 temperature levels

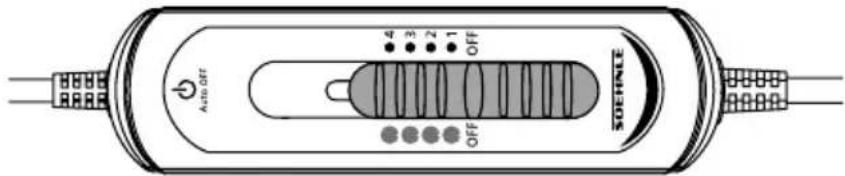

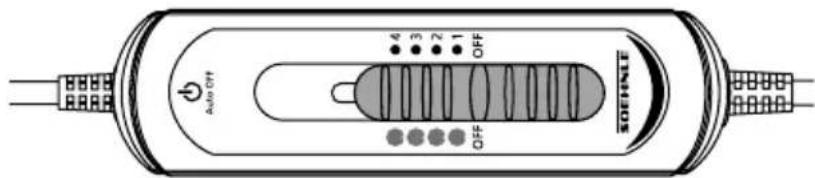

4 temperature levels

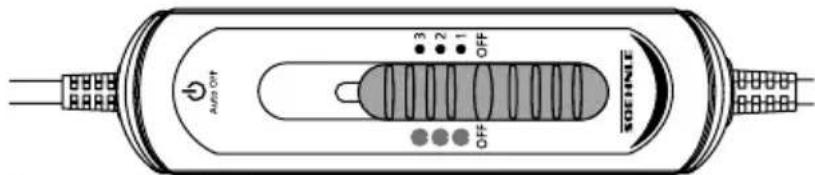

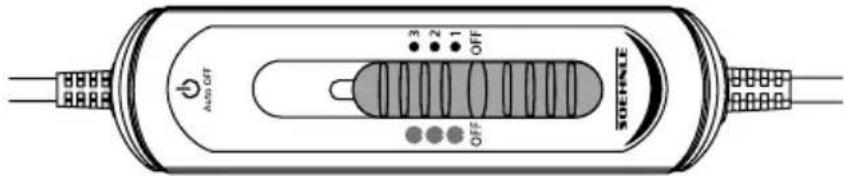

3 temperature levels

4. Start-up operation

Important

This heating pad is equipped with an integrated thermostat, which regulates the temperature automatically and keeps the heat at a constant level. The temperature of the heating pad corresponds to the maximum permissible value of the applicable IEC regulation regarding user safety. The device generates a mild heat that does not have any harmful effect.

Place the heating pad in the cover. Ensure that the power cord and the thermostat are outside of the cover. Close the zipper. Before switching the heating pad on, please ensure that the operating element is in the "OFF" position. Then insert the power plug into the power outlet.

5. Temperature setting

Use the controller to set the desired temperature. The heating pad switches on automatically when the controller is set to a temperature, and the corresponding LED light will light up. The heating pad shuts off and the LED light goes out if the thermostat is set to "OFF".

Attention

Please ensure that the heating pad sits loosely, i.e. some air circulates between the heating pad and your skin during use.

Accumulation of heat must be prevented. Never use the heating pad without the cover.

6. Automatic off

The electric heating pad shuts off automatically after 90 minutes of continuous use. This saves energy and provides additional safety, because the heating pad is never used without supervision. The LED light will blink. In order to switch the heating pad back on, first set the controller to “OFF” and then back to the desired temperature.

After use please disconnect the power plug from the power outlet.

7. Cleaning and care

Cover

The fabric cover of the pad can be cleaned in the washing machine. Please observe the notes on the labels and the laundry care symbols of the cover.

Disconnect the power plug from the power outlet and remove the heating pad prior to washing the cover.

• Close the hook-and-loop fasteners for washing.
  • Machine or hand-wash at 30°C
• Wash separately or with similar colors.
• Do not bleach
• Iron on low temperature
  • No chemical dry-cleaning
• Dry in dryer at low temperature (delicate)

Heating pad

• Never wash the interior part of the device.
• The electric heating pad may never be cleaned in a washer nor with chemical agents or at the dry-cleaners.
• The heating pad cannot be dried in a dryer.
• Never use the heating pad while it is damp.
• The thermostat cannot come into contact with water under any circumstance. Never hold the heating pad under running water and do not submerge it into any liquids! The moisture could damage the thermostat.

Five identical abstract geometric symbols arranged horizontally (no text or labels)

- The cleaning of the heating pad should be done with dry-cleaning methods, such as brushing or vacuum cleaning.

8. Storage and periodic inspection

• Do not wrinkle the device. Fold the product carefully for storage.
• Store the device at a dry location if it is not in use.
• Let the device cool off prior to folding or rolling it up.
• Inspect the device and power cord regularly for possible signs of wear or damage.
• Do not use chemical moth protection.
• Never place any heavy objects on top of the device as these could damage the electric wires.
• Please return the device to your point of sale in case of any wear or malfunction.

9. Technical information

Dimensions 68001 emotion 45 x 35 cm

68002 sunshine 40 x 30 cm

68003 sunflower 37 x 27 cm

68053 Inspiration 40 x 30 cm

Rated power 100 W

Rated voltage 220 - 240 V / 50 Hz

The device is equipped with double protective insulation and corresponds to protection class II.

10. Declaration of conformity

SOEHNLE herewith declares that this device is in compliance with the basic requirements and all other relevant regulations of applicable European directives. You will find the EU compliance declaration on www.soehnle.com.

11. Disposal of used electronic devices

After its service life, please dispose of this device according to the Directive on Waste Electrical and Electronic Equipment 2002/96/EC (WEEE).

The symbol on the product or its packaging informs you that this product cannot be treated as normal

household waste, but must be returned at a collection point for recycling electronic and electrical devices.

12. Customer service

Our SOEHNLE customer service will be happy to assist you if you have any questions or comments:

Germany Ph.: (08 00) 5 34 34 34 (free of charge)

International Ph.: [phone]

Monday through Friday 08:30 a.m. to 12:00 noon CET

If you'd like to contact us in writing, please use the contact form at the SOEHNLE homepage www.soehnle.com.

13. Guarantee

SOEHNLE guarantees rectification of faults based on material or production errors, free of charge, either by repair or replacement, for 5 years as of the date of purchase. Please retain the receipt of purchase and guarantee slip. In case of a guarantee claim, please return the device, guarantee slip and receipt of purchase to your seller.

All SOEHNLE heat products are marked with the Eco-Tex Certificate 100, which is globally recognized and certifies that none of the textile components contain any substances that are harmful to your health.

The SOEHNLE Safety Concept guarantees the consumer the maximum level of safety. Exclusive manufacture, additional test criteria, and high SOEHNLE safety standards, e.g. switch monitoring, heating element insulation, auto-off timer, mains-in safety, and thermal safety with auto-off function, convey a good feeling all around.

With this certification mark, the products as well as the production processes are subject to periodic control by TÜV Süd.
