Product type	Car navigation GPS
Brand	Sony
Model	NVD-U13E
Power supply	AC adapter (included) via USB cable
Compatible operating system	Windows XP, Windows Vista
Required disk space (PC)	2 GB minimum for NVD-U13E
Internal device memory	1907.42 MB used, 12.71 MB free, 1903.36 MB total
Memory card support	Memory Stick (MS)
Connectivity	USB, DVD-ROM drive
Main functions	GPS navigation, map update, address book, route calculation
Models compatible with the update	NV-U71T/U51, NV-U93T/U92T/U83/U82/U73T/U72T/U53/U52, NVD-U13E
Available languages	English, French, German, Spanish, etc.
Included accessories	USB cable, AC adapter, update disc

Frequently Asked Questions - NVD-U13E SONY

Are the «Address Book» and «Home Address» data retained after the update?

In many cases, this data is retained. However, some data may cause an error after update. Note all your address books before updating.

Can previous map data be restored after the update?

No, it is impossible to restore the device's default maps.

What to do if a cable disconnects during the update?

Cancel the process, reconnect the cable, then restart.

I cannot set a destination saved in the «Address Book». What should I do?

Check that the destination is within the limits of the selected map. If so, save the point again.

I cannot use a saved route. What should I do?

Check that the route is within the limits of the map. If so, save it again.

How to free up space on the device before an update?

Delete unused languages via the «Delete Languages» menu.

Can I install the maps on a Memory Stick instead of internal memory?

Yes, for compatible models, you can select «Memory Stick in nav-u» or «Memory Stick in PC» as destination.

What is the transfer time for the maps?

It varies depending on the computer and the map. For example, transferring the Europe A map can take about 8 hours.

How to connect the device to the computer?

Use the provided USB cable. Depending on the model, turn on the device after connection.

What to do if the device is not detected by the computer?

Make sure the device is powered on and the necessary drivers (ActiveSync for XP, Windows Mobile Device Center for Vista) are installed.

USER MANUAL NVD-U13E SONY

The map and POI data may contain copyrighted material. Copyrighted data on a “Memory Stick Duo” should be used within the limits of the copyright law. Do not violate the previsions of the copyright law.

On trademarks

• Microsoft, Windows, Windows Vista and ActiveSync are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• “Memory Stick”, MEMORY STICK, “Memory Stick Duo”, MEMORY STICK DUO, “Memory Stick PRO Duo”, MEMORY STICK PRO Duo, “Memory Stick Micro” (“M2”), “MagicGate”, MAGICGATE, “nav-u” and NAV-U are trademarks of Sony Corporation. “MagicGate” is a generic name of a copyright protection technology, developed by Sony Corporation.
• All other trademarks are trademarks of their respective owners.

V-Trafic Information in France is provided by Mediamobile company.

Traffic Information in the UK is provided by ITIS Holdings Plc.

© 1993 – 2008 NAVTEQ. All Rights Reserved.

Austria

Croatia, Estonia, Latvia, Lithuania, Poland, Slovenia

© EuroGeographics

France

source: @ IGN2009-BD TOPO®

Germany

© Based upon Crown Copyright material.

Greece

Copyright Geomatics Ltd.

Hungary

Copyright © 2003; Top-Map Ltd.

Italy

Copyright © 2000; Norwegian Mapping Authority

Portugal

Source: IgeoE – Portugal

Spain

Based upon electronic data © National Land Survey Sweden.

Switzerland

Customer Support Portal

If you have any questions or for the latest support information on navigation, visit the website below: http://www.navu.sony-europe.com/support

http://www.sony.net/

Sony Corporation Printed in Japan

SONY®

4-156-955-11 (1)

Operating Instructions

GB

Bedienungsanleitung

DE

Mode d'emploi

FR

Gebruiksaanwijzing

NL

Operating Instructions

nav-u

NVD-U13E

NVD-U13R

©2009 Sony Corporation Printed in Japan

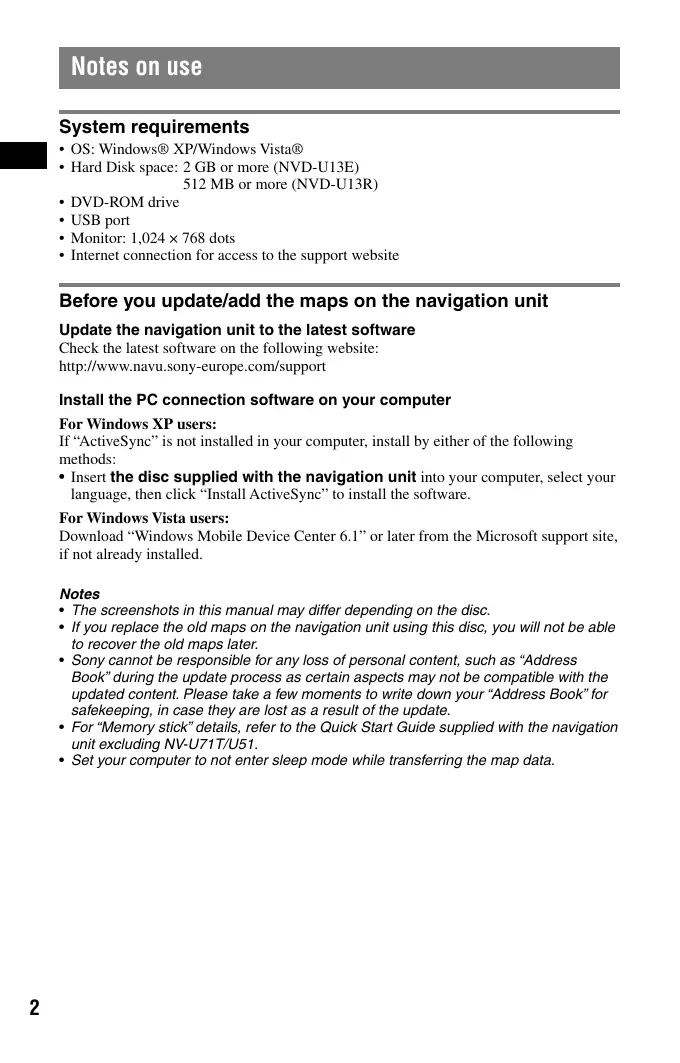

System requirements

• OS: Windows® XP/Windows Vista®
• Hard Disk space: 2 GB or more (NVD-U13E) 512 MB or more (NVD-U13R)
• DVD-ROM drive
• USB port
  • Monitor: 1,024 × 768 dots
• Internet connection for access to the support website

Before you update/add the maps on the navigation unit

Update the navigation unit to the latest software

Check the latest software on the following website: http://www.navu.sony-europe.com/support

Install the PC connection software on your computer

For Windows XP users:

If “ActiveSync” is not installed in your computer, install by either of the following methods:

- Insert the disc supplied with the navigation unit into your computer, select your language, then click “Install ActiveSync” to install the software.

For Windows Vista users:

Download “Windows Mobile Device Center 6.1” or later from the Microsoft support site, if not already installed.

Notes

• The screenshots in this manual may differ depending on the disc.
• If you replace the old maps on the navigation unit using this disc, you will not be able to recover the old maps later.
• Sony cannot be responsible for any loss of personal content, such as “Address Book” during the update process as certain aspects may not be compatible with the updated content. Please take a few moments to write down your “Address Book” for safekeeping, in case they are lost as a result of the update.
• For “Memory stick” details, refer to the Quick Start Guide supplied with the navigation unit excluding NV-U71T/U51.
• Set your computer to not enter sleep mode while transferring the map data.

For NV-U71T/U51 users:

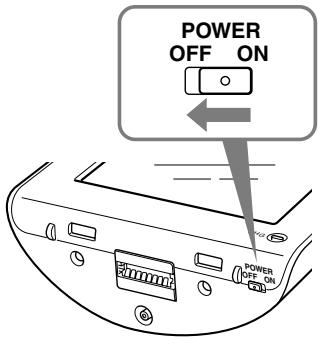

1 Switch off the main power by sliding the POWER switch of the navigation unit to the OFF position.

2 Connect the navigation unit to the power supply with the supplied AC adapter.
3 Connect the navigation unit to your computer using the supplied USB cable.
4 Switch on the main power by sliding the POWER switch of the navigation unit to the ON position.

Wait until your computer has detected the navigation unit.

For NV-U93T/U92T/U83/U82/U73T/U72T/U53/U52 users:

1 Connect the navigation unit to your computer using the supplied USB cable, then turn the navigation unit on.

Setting up the PC connection software on your computer

For Windows XP users:

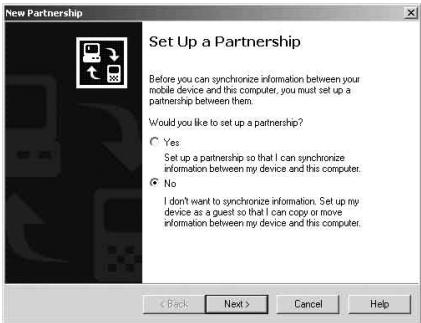

“Connecting” appears on the navigation unit display, and “Set Up a Partnership” appears on your computer display.

1 Select "No."
2 Click "Next."

For Windows Vista users:

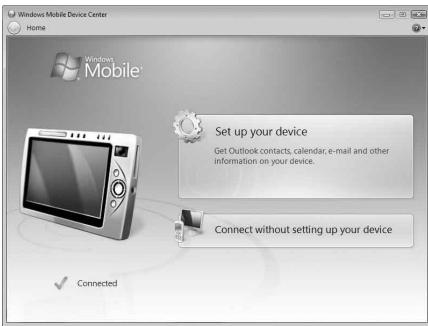

“Connecting” appears on the navigation unit display, and the setup screen of the “Device” display appears on your computer.

1 Select "Connect without setting up your device."

Note

The language on the displays in this step differs depending on your computer.

1 Insert the disc into your computer, then select your language.

Freeing up free space on the navigation unit

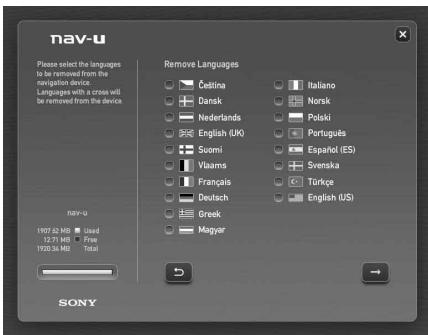

As map data volume increases, free space on the navigation unit is necessary. Before installing the map, delete unnecessary language data from the navigation unit.

1 Select "Delete languages" from the Main Menu.
2 Select an unused language, and then click →.

For NV-U71T/U51 users:

1 Select "Transfer New Maps" from the Main Menu.
2 Select "nav-u Internal Memory."

Note

The transfer destination can be set only to “nav-u Internal Memory,” and the existing map data will be replaced.

For NV-U93T/U92T/U83/U82/U73T/U72T/U53/U52 users:

1 Select "Transfer New Maps" from the Main Menu.

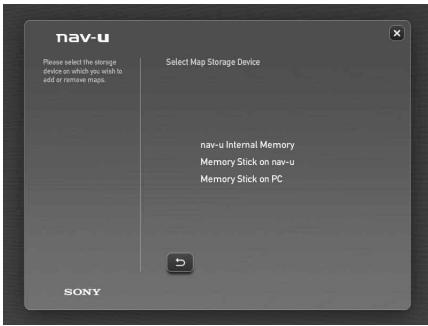

2 Select the transfer destination of the map data.

Note

The existing map data will be replaced when you select "nav-u Internal Memory."

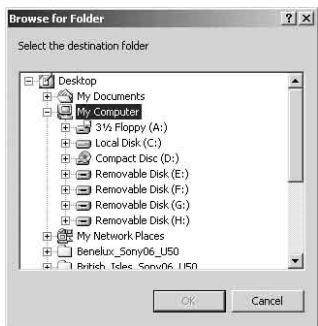

3 If the transfer destination is set as "Memory Stick on PC," select the drive corresponding to the "Memory Stick."

Tip

You can add the map data to a "Memory Stick" without any change to the map data in the internal memory of the navigation unit.

Selecting the maps to add/remove

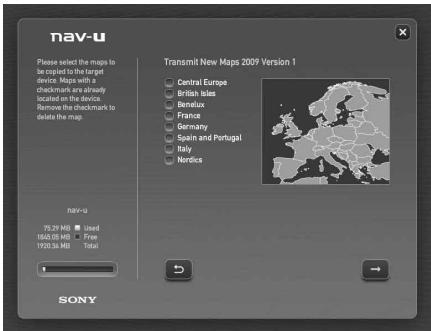

1 Check the map(s) that you want to add, and uncheck any map(s) you want to remove.
2 Click →.

The confirmation display appears.

3 Click "OK."

Addition or removal of the map starts.

Notes

• The display differs depending on the model, etc.
• Addition/removal time differs depending on the computer performance or map type. (For example, it takes approximately 8 hours to transfer the map of Europe A to the navigation unit.)
• Due to the nature of the updated, highly-detailed map content, the area may be different from the map data used now.
• If you cannot select the map, refer to "Freeing up free space on the navigation unit" (page 5).

The addition/removal of the map is completed when the above message is displayed.

1 Click "OK."
2 Click "Exit" to quit the application.

For NV-U71T/U51 users:

Turn off the navigation unit by the POWER switch on its bottom, and disconnect the cables. Turn on the navigation unit again.

For NV-U93T/U92T/U83/U82/U73T/U72T/U53/U52 users:

Disconnect the cables to use the navigation unit.

1 Does your "Address Book" and "Home Address" data remain after the update?

In many cases this data will remain, however, some data may generate an error message as a result of the updated map data. In this case, you will need to delete the particular “Address Book” and re-register it with the revised map data installed. Prior to updating your navigation unit, please make a note of all “Address Book” for safekeeping.

2 Can previous map data be restored after updating the navigation unit?

Cannot be restored to the factory default map of the navigation unit.

3 I cannot set the destination registered in "Address Book." What should I do?

You may have selected a destination out of the range of the selected map. Confirm whether the selected destination is within the range of the selected map data.

The destination may not be set even within the range of the selected map, since the map data was updated. If the selected destination is within the range of the selected map, register the destination point again.

4 I cannot use a saved route. What should I do?

You may have selected a route out of the range of the selected map. Confirm whether the selected route is within the range of the selected map data.

The route may no longer be set within the range of the selected map, since the map data was updated. If the selected route is within the range of the selected map, register the route again.

5 What should be done if a cable gets disconnected during the update process?

Cancel the process, reconnect the cable and start over.
