NVD-U03N - Gps SONY - Free user manual and instructions

Product Type	Personal navigation GPS
Brand	Sony
Model	NVD-U03N
Dimensions (estimated)	10 x 8 x 2 cm
Weight (estimated)	180 g
Power supply	Built-in rechargeable battery, mains adapter supplied
Battery life (estimated)	4 to 6 hours
Screen	4.3-inch, touch screen
Main functions	GPS navigation, map update, favorites management, route planning, traffic information
Map update	Via PC software, DVD-ROM support
Storage	Internal memory, expandable via card (not specified)
Connectivity	USB 2.0
Compatible operating system	Windows XP / Windows Vista
Available languages	French, English, German, Spanish, Italian, Dutch, Portuguese, Swedish, Danish, Norwegian, Polish, Czech, Greek, Finnish, Flemish
Included accessories	Mains adapter, USB cable, mounting bracket, installation disc
Care and cleaning	Clean with a soft, dry cloth. Avoid moisture and abrasive products.
Safety	Use the appropriate mount for the vehicle. Do not operate while driving.
Spare parts and repairability	Mains adapter, USB cable and mount available separately. Repair at an authorized Sony center.

Frequently Asked Questions - NVD-U03N SONY

How do I update the maps on my Sony NVD-U03N?

Insert the supplied disc into your computer, install the connection software, then connect the GPS via USB. Launch the application and select 'Transfer new maps'. Follow the on-screen instructions. Ensure the computer does not go into sleep mode during the transfer.

What should I do if the screen displays 'The destination is not on the current map' after an update?

This message may appear if the favorites saved before the update no longer match the new map data. Check that the destination is within the selected map area. If it is, delete and re-save the destination in favorites.

How do I free up space on my device before an update?

In the main menu of the connection software, select 'Delete languages'. Check unused languages and click 'Delete →'. This will free up space for new maps.

Is it possible to restore the original maps after an update?

No, once the new maps are installed, it is impossible to revert to the default map data. Therefore, it is recommended to note your favorites before the update.

How do I keep my favorites during the update?

Before the update, note the addresses of your favorites. You can view them by going to 'New destination' > 'Route' > 'Favorites'. After the update, if a favorite is no longer recognized, delete it and re-save it.

What should I do if the USB cable disconnects during the transfer?

Cancel the current process, firmly reconnect the USB cable, then restart the transfer from the beginning.

The device no longer turns on, what should I do?

Check that the battery is charged. Plug in the mains adapter and try to turn on the device. If the problem persists, contact Sony support.

Can I use the device in another country?

Yes, the device accepts maps from different regions. You can add or delete maps via the connection software. Make sure you have enough memory space.

How do I clean the GPS screen?

Use a soft, dry cloth. Never use liquid, alcohol or abrasive products which could damage the touch screen.

My computer does not detect the GPS, what should I do?

Ensure the GPS is switched on (POWER switch to ON) and the USB cable is properly connected. Under Windows XP, check that ActiveSync is installed; under Vista, install Windows Mobile Device Center. Restart the computer if necessary.

USER MANUAL NVD-U03N SONY

The map and POI data may contain copyrighted material.

Do not violate the previsions of the copyright law.

On trademarks

• Microsoft, Windows, Windows Vista and ActiveSync are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• “nav-u” and nav-u are trademarks of Sony Corporation.
• All other trademarks are trademarks of their respective owners.

V-Trafic Information in France is provided by Mediamobile company.

Traffic Information in the UK is provided by ITIS Holdings Plc.

© 1993 – 2008 NAVTEQ. All Rights Reserved.

Austria

Croatia, Estonia, Latvia,

Lithuania, Poland, Slovenia

© EuroGeographics

France

source: @ IGN2009-BD TOPO®

Germany

© Based upon Crown Copyright material.

Greece

Copyright Geomatics Ltd.

Hungary

Copyright © 2003; Top-Map Ltd.

Italy

Copyright © 2000; Norwegian Mapping Authority

Portugal

Source: IgeoE – Portugal

Spain

Based upon electronic data © National Land Survey Sweden.

Switzerland

Customer Support Portal

If you have any questions or for the latest support information on navigation, visit the website below:

For customers in U.S.A.

http://www.sony.com/nav-u/support

For customers in Canada

http://www.sony.ca/nav-u

For customers in Mexico

For customers in Europe

http://www.navu.sony-europe.com/support

http://www.sony.net/

Sony Corporation Printed in Japan

SONY®

4-156-954-11 (1)

Operating Instructions

GB

Bedienungsanleitung

DE

Mode d'emploi

FR

Gebruiksaanwijzing

NL

©2009 Sony Corporation Printed in Japan

System requirements

• OS: Windows® XP/Windows Vista®
• Hard Disk space: 1 GB or more (NVD-U03E, NVD-U03N) 512 MB or more (NVD-U03R, NVD-U03M)
  • DVD-ROM drive (CD-ROM drive for NVD-U03M)
• USB port
  • Monitor: 1,024 × 768 dots
• Internet connection for access to the support website

Before you update/add the maps on the navigation unit

Install the PC connection software on your computer

For Windows XP users:

If “ActiveSync” is not installed in your computer, install by either of the following methods:

- Insert the disc supplied with the navigation unit into your computer, select your language, then click “Install PC connection software” to install the software.

For Windows Vista users:

Download “Windows Mobile Device Center 6.1” or later from the Microsoft support site, if not already installed.

Notes

• If you update the maps on the navigation unit using this disc, data other than on this disc cannot be restored.
• Sony cannot be responsible for any loss of personal content, such as “Favorites” during the update process as certain aspects may not be compatible with the updated content. Please take a few moments to write down your “Favorites” for safekeeping, in case they are lost as a result of the update.
• Set your computer to not enter sleep mode while transferring the map data.

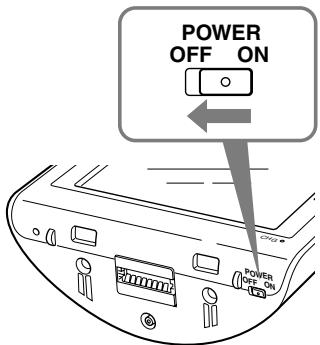

1 Switch off the main power by sliding the POWER switch of the navigation unit to the OFF position.

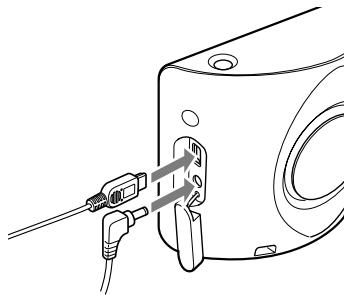

2 Connect the navigation unit to the power supply with the supplied AC adapter.
3 Connect the navigation unit to your computer using the supplied USB cable.

Line drawing of a device with a cable inserted into a housing (no text or symbols)

4 Switch on the main power by sliding the POWER switch of the navigation unit to the ON position.

Wait until your computer has detected the navigation unit.

Setting up the PC connection software on your computer

For Windows XP users:

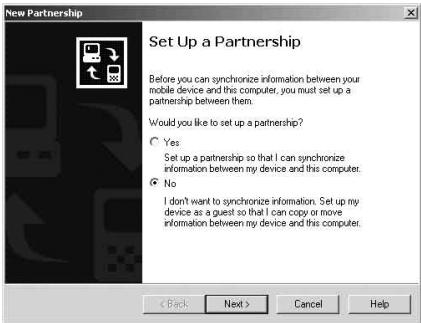

“Connecting” appears on the navigation unit display, and “Set Up a Partnership” appears on your computer display.

1 Select "No."
2 Click "Next."

For Windows Vista users:

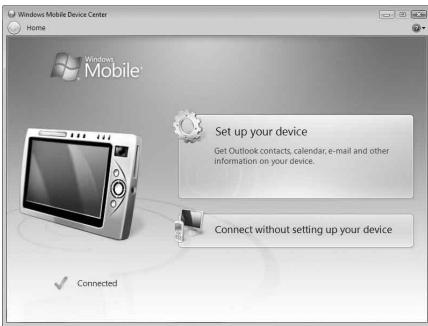

“Connecting” appears on the navigation unit display, and the setup screen of the “Device” display appears on your computer.

1 Select "Connect without setting up your device."

Note

The language on the displays in this step differs depending on your computer.

1 Insert the disc into your computer, then select your language.

Freeing up free space on the navigation unit

As map data volume increases, free space on the navigation unit is necessary. Before installing the map, delete unnecessary language data from the navigation unit.

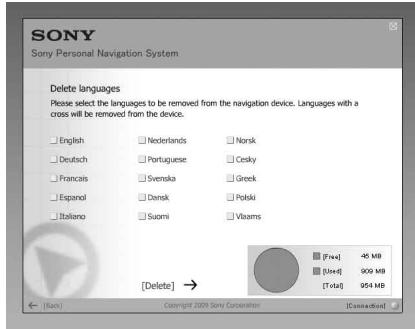

1 Select "Delete languages" from the Main Menu.
2 Select an unused language, and then click "Delete →."

Selecting the maps to add/remove

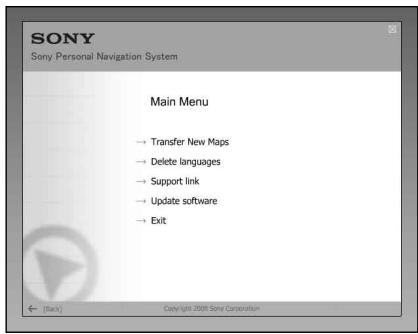

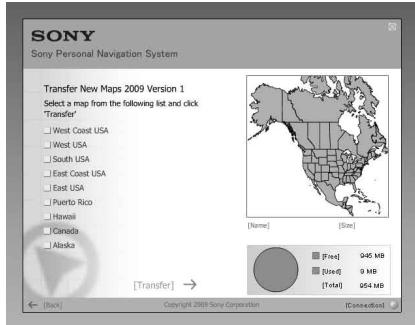

1 Select "Transfer New Maps" from the Main Menu.

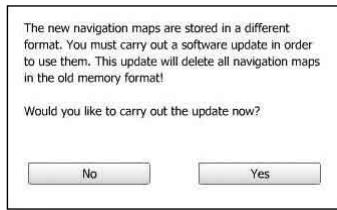

If an update is necessary, the following display appears, and follow the procedure of the display.

Loading new software to your navigation unit will delete all pre-existing maps. In some cases your “Favorites” will no longer be compatible. (See “Important notice” on page 9.) Update the software, and the user setting will be reset. Set the data again after updating. If you agree to these terms, select “Yes.”

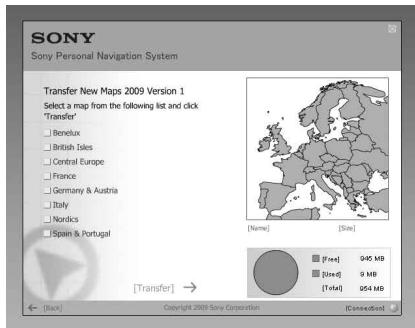

2 Check the map(s) that you want to add, and uncheck any map(s) you want to remove.
3 Click "Transfer →."

The confirmation display appears.

4 Click "OK."

Addition or removal of the map starts.

Notes

• The display differs depending on the map data, model, etc.
• Addition/removal time differs depending on the computer performance or map type.
• Due to the nature of the updated, highly-detailed map content, the area may be different from the map data used now.
• If you cannot select the map, refer to "Freeing up free space on the navigation unit" (page 5).

Completing the map addition/removal

The addition/removal of the map is completed when the above message is displayed.

1 Click "OK."
2 Click "Exit" to quit the application.

Turn off the navigation unit by the POWER switch on its bottom, and disconnect the cables. Turn on the navigation unit again.

1 Does your "Favorites" and "Home" data remain after the update?
In many cases this data will remain, however, some data may generate an error message as a result of the updated map data. In this case, you will need to delete the particular “Favorites” and re-register it with the revised map data installed. Prior to updating your navigation unit, please make a note of all “Favorites” for safekeeping.

2 Can previous map data be restored after updating the navigation unit?

Cannot be restored to the factory default map of the navigation unit.

3 Are any functions updated during the update process?

No functions are updated.

4 What should be done if a route number is not displayed correctly?

Turn the unit OFF using the power switch located on the bottom of the unit and then turn it back ON. The map data will be re-read and the route number should appear correctly, unless it has recently changed.

5 I cannot set the destination registered in "Favorites." What should I do?

You may have selected a destination out of the range of the selected map. Confirm whether the selected destination is within the range of the selected map data.

The destination may not be set even within the range of the selected map, since the map data was updated. If the selected destination is within the range of the selected map, register the destination point again.

6 I cannot use a saved route. What should I do?

You may have selected a route out of the range of the selected map. Confirm whether the selected route is within the range of the selected map data.

The route may no longer be set within the range of the selected map, since the map data was updated. If the selected route is within the range of the selected map, register the route again.

7 What should be done if a cable gets disconnected during the update process?

Cancel the process, reconnect the cable and start over.

About the data on "Favorites"

- Before installation, we recommend that you write down the addresses of important data on “Favorites.”

The addresses can be checked by the following procedure.

1 From the top menu, touch "New Destination" → "Route planning."
2 Touch → "Favorites."
3 Select the desired item.
4 Touch → ↗.

The address appears.

- After installing the new map data, the message below may appear when you select the destinations on “Favorites,” “Home,” or “Recent destinations” which are registered prior to the installation.

"The selected destination is not within the range of the selected map. Please select another map or another destination."

This is due to the map data format being renewed, and the area being divided as a result of an increase in data capacity.

Check if the selected destination point is within the range of the selected map.

If so, delete the destination once, then register again to use.

Line drawing of a device with a cable inserted into a housing (no text or symbols)

„The selected destination is not within the range of the selected map. Please select another map or another destination.“

Line drawing of a cable inserted into a device housing (no text or symbols)

Line drawing of a device with a cable inserted into a housing (no text or symbols)

1 Selecteer "Connect without setting up your device".

Opmerking

Line drawing of a device with a cable inserted into a housing (no text or symbols)

Line drawing of a device with a cable inserted into a housing (no text or symbols)

1 Seleccione "Connect without setting up your device".

Nota

"The selected destination is not within the range of the selected map. Please select another map or another destination."
