Product Type	Universal Wall Bracket for Flat Screen TVs
Brand	Acme United
Model	PLB103B
VESA Compatibility	100x100mm to 400x400mm
Maximum TV Weight Capacity	50 kg (110 lbs)
Color	Black
Material	Steel
Mounting Type	Wall mount (vertical wall)
Wall Compatibility	Wood stud, solid concrete, brick
Included Hardware	Wall plate, left and right monitor brackets, locking bar, bolts (M4, M5, M6, M8), lock washers, spacers, washers, lag bolts, concrete anchors, plastic knobs
Safety Features	Locking bar with padlock slot for additional security
Installation Requirements	Drill, screwdriver, wrench, level, stud finder; not for steel studs or cinder block
Warranty	As indicated on product package; see warranty card for details
Maintenance	Periodically check bolts and mounting for tightness; clean with damp cloth

Frequently Asked Questions - PLB103B Acme United

What VESA patterns does the PLB103B support?

The PLB103B supports VESA patterns from 100x100mm up to 400x400mm. It includes bolts for M4, M5, M6, and M8 threads to accommodate different TV models.

What is the maximum TV weight this mount can hold?

The maximum weight capacity is 50 kg (110 lbs). Always ensure your TV does not exceed this limit to prevent accidents.

Can I install this mount on a steel stud wall?

No. The included hardware is not designed for steel studs or cinder block walls. For such surfaces, consult a qualified installer or use appropriate aftermarket hardware.

Does the mount include a locking mechanism?

Yes. The mount comes with a locking bar that secures the TV to the wall plate. A padlock can be added for extra security (padlock not included).

What tools are needed for installation?

You will need a 5/32" drill bit (or 10mm masonry bit for concrete), screwdriver, wrench or socket set, stud finder, and a carpenter's level.

Is this mount compatible with curved-back TVs?

Yes. The package includes spacers and longer bolts (M4x30, M5x30, M6x35, M8x40) to accommodate curved backs. Follow the curved back mounting diagram in the manual.

How do I ensure the mount is level?

Use a carpenter's level when marking holes and attaching the wall plate. Ensure the left and right monitor brackets are vertically centered and level with each other.

Are the bolts for my TV included?

Yes. The package contains M4, M5, M6, and M8 bolts of varying lengths, along with lock washers and spacers to fit most TVs. Check the diameter and length required for your TV.

Can I install this mount on drywall?

Only if the drywall is over a wood stud or solid concrete. The mount must be anchored into a structural wall. For drywall alone, use appropriate toggle bolts (not included).

What should I do if I lost the installation manual?

A free PDF manual is available for download on notice-facile.com. You can also request a translated version by providing your language preference and email.

USER MANUAL PLB103B Acme United

Universal Wall Bracket

GB 4 Installation Instruction 88 Warranty card

LT 11 Montavimo instrukcija 89 Garantinis lapas

Unpacking instructions

• Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage.
• Check package contents against the Supplied Parts List in the next page to assure that all components were received undamaged. Do not use damaged or defective parts.
• Carefully read all instructions before attempting installation.

Important safety information

Install and operate this device with care. Please read this instruction before beginning the installation, and carefully follow all instructions contained herein. Use proper safety equipment during installation.

Please call a qualified installation contractor for help if you:

• If you don't understand these directions or have any doubts about the safety of the installation.
• If you are uncertain about the nature of your wall, consult a qualified installation contractor.

Do not use this product for any purpose or in any configuration not explicitly specified in this instruction. We hereby disclaim any and all liability for injury or damage arising from incorrect assembly, incorrect mounting, or incorrect use of this product.

WARNING	This TV mount must be securely attached to the vertical wall. If the mount is not properly installed it may fall, resulting in possible injury and/or damage.
Tools Required	5/32"(4mm) Drill BitScrewdriver	3/8"(10mm) Masonry BitStud Finder	Wrench or Socket SetCarpenter's Level

Note: The mounting components and hardware supplied in this package are not designed for installations to walls with steel studs or to cinder block walls. If the hardware you need for your installation is not included, please consult your local hardware store for proper mounting hardware for the application.

GB

Supplied parts list

(1)Wall Plate-a	(1)Left Monitor Bracket-b	(1)Right Monitor Bracket-c	(1)Locking Bar-d
(4)M4x12 Bolt-e	(4)M5x12 Bolt-f	(4)M6x12 Bolt-g	(4)M8x16 Bolt-h
(4)M4x30 Bolt-i	(4)M5x30 Bolt-j	(4)M6x35 Bolt-k	(4)M8x40 Bolt-l
(4)M4 Lock Washer-m	(4)M5 Lock Washer-n	(4)M6 Lock Washer-o	(4)M8 Lock Washer-p
(4)M4/M5 Space-q	(4)M6/M8 Space-r	(8)M4/M5 Washer-s	(4)M6/M8 Washer-t
(6)Lag Bolt-u	(6)Lag Bolt Washer-v	(6)Concrete Anchor-w	(2)Plastic Knob-x
		Pls install the Plastic Knob(x) on the Monitor Bracket(b,c) as left diagram before do the next step. Pls note the two knobs should be installed in the opposite way on the two monitor brackets.

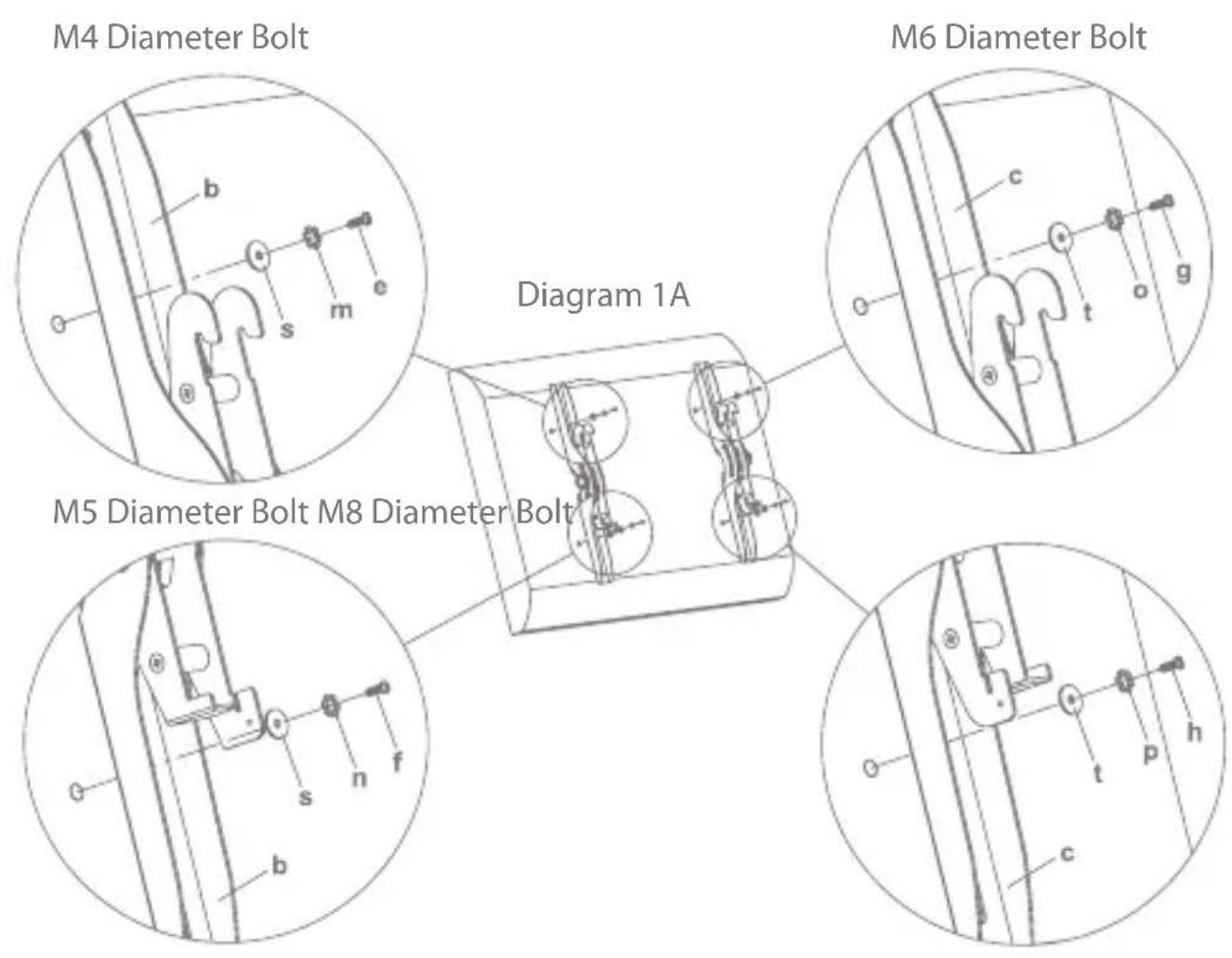

Mounting the monitor brackets to a TV with flat back

First of all, make sure the diameter of the Bolt (e,f,g,h) your TV requires. Once you have determined the correct diameter, please see the relative diagram as below. You will thread the Bolt into the TV using the correct Lock Washer (m,n,o,p) and Washer (s,t). Please make sure the Monitor Brackets (b,c) are vertically centered and level with each other.

GB

Mounting the monitor brackets to a TV with curved back

First of all, make sure the diameter of the Bolt (i,j,k,l) your TV requires. Once you have determined the correct diameter, please see the relative diagram as below. You will thread the Bolt into the TV using the correct Lock Washer(m,n,o,p), Washer(s,t) and spacer (q,r). For the M4 or M5 diameter bolt, you will need another M4/M5 Washer between the Monitor Bracket and the Spacer. Please make sure the Monitor Brackets are vertically centered and level with each other.

Mounting the wall plate to the wall

Brick, Solid Concrete and Concrete Block mounting:

Use the Wall Plate(a) as a template to mark 6 hole locations on the wall. Three in the top row of slots and three more in the bottom row. Make sure these holes are level and there is at least 6"(150mm) distance between any two holes. Pre-Drill these holes with a 3/8"(10mm) masonry bit to at least 2.4"(60mm) in depth. Insert a Concrete Anchor(w) into each of these holes. Make sure the anchor is seated completely flush with the concrete surface even if there is a layer of drywall or other material in front. Attach the Wall Plate to the wall using 6pcs Lag Bolts(u) and 6pcs Lag Bolt Washers(v), shown in Diagram 2A.

Wood Stud mounting:

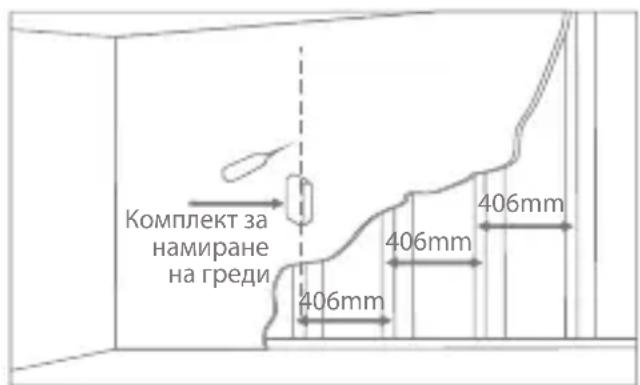

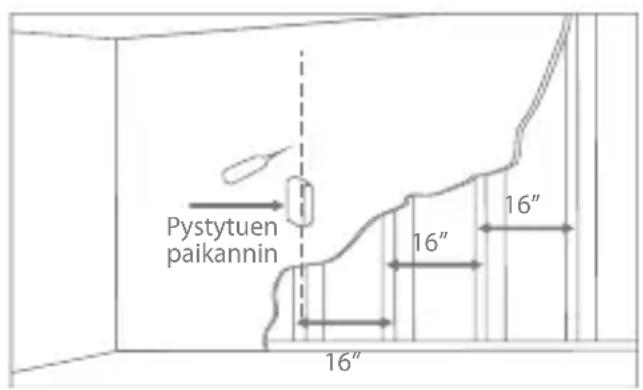

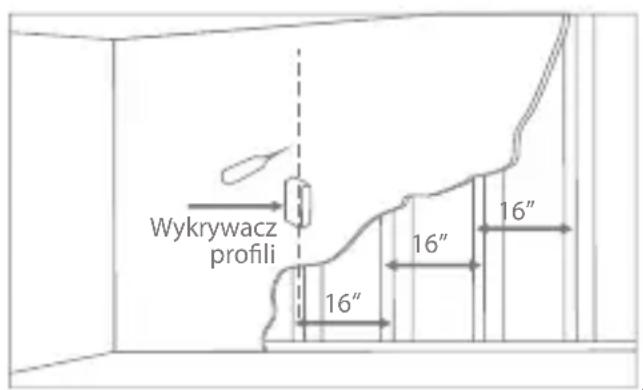

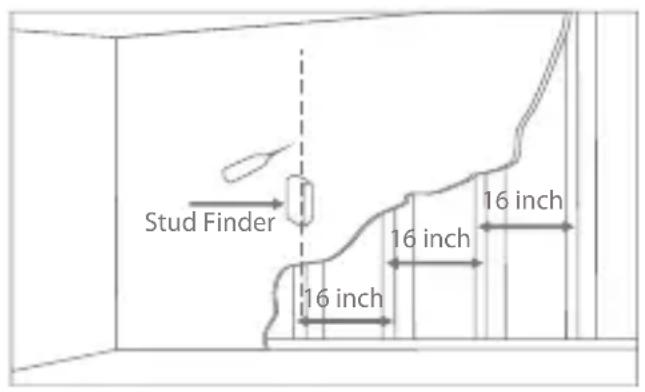

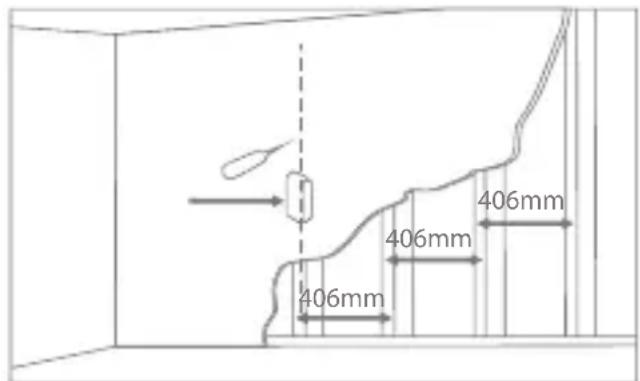

The Wall Plate(a) must be mounted to two wood studs at least 16"(406mm) apart. Use a stud finder to locate two adjacent studs. It is a good idea to verify where the studs are located with an awl or thin nail shown in Diagram 2B. Pre-drill a 2.4"(60mm) deep hole at the desired height in each stud using a 5/32"(4mm) drill bit. Make sure these holes are in the center area of the studs and level with each other. Use the Wall Plate as a template to mark the location of the second hole in each stud. Drill 2.4"(60mm) deep holes using the 5/32"(4mm) drill bit in the marked locations. Attach the Wall Plate to the wall using the 4pcs Lag Bolts(u) and 4pcs Lag Bolt Washers(v).

GB

Attaching Monitor to Wall Plate and Insert the Locking Bar

Warning: Some TVs may require two people to lift! We are not responsible for personal injury or product damage.

First hook the Monitor Brackets(b,c) over the top of the wall Plate(a), then let the bottom of the Monitor Brackets rotate to the bottom of the Wall Plate as shown in the Diagram 3A. Insert the Locking Bar(d) into the slots in the bottom of the Monitor Brackets so that is sits behind the bottom tab on the Wall Plate. Once the Locking Bar passes out from the other side of wall plate, a padlock can be added for additional security. Details see Diagram 3B.

Thanks for choosing our products, enjoy the using.

LV

Monitori kinnitamine seinaplaadile

PL

FI

RO

RU

Product Product model
Product purchase date Seller name, address
Failures (date, description, position of the person who accepts the product, first name, last name and signature)

1. Warranty period

Warranty enters into force starting with the day when the buyer acquires the product from the seller. Warranty period is indicated on the package of the product.

2. Warranty conditions

The warranty is valid only by providing an original document of the product acquisition and this warranty sheet, which includes name of the product model, product purchase date, name and address of the seller.

If it is noticed during the warranty period that the product has faults and these faults where not caused by any of the reasons when the warranty is not applied as indicated in the paragraphs below, manufacturer undertakes to replace the product.

The warranty is not applied to regular testing, maintenance and repair or replacement of the parts which are worn out naturally.

The warranty is not applied if damage or failures occurred due to the following reasons:

• Inappropriate installation of the product, inappropriate usage and/or open product without following the manual, technical requirements and safety standards as provided by the manufacturer, and additionally, inappropriate warehousing, falling from heights as well as hard strikes.
  • Corrosion, mud, water and sand.
• Repair works, modifications or cleaning, which were performed by a authorised by the manufacturer.
• Usage of the spare parts, software or consumptive materials which do not apply to the product.
• Accidents or events or any other reasons which do not depend on the manufacturer, which includes lightning, water, fire, magnetic field and inappropriate ventilation.
• If the product does not meet standards and specifications of a particular which it was not bought. Any attempt to adjust the product in order to meet technical and safety requirements such as those in the other countries withdraws all the rights to the warranty service.

If no failures are detected in the product, all the expenses in relation to the service are covered by the buyer.
