USER MANUAL PCU-R 100 Nibe
EN User and Installer Manual – Accumulator tank
Svenska
4Viktig information
6Till användaren
6Till installatören
This manual describes installation and service ures for implementation by specialists.
The manual must be left with the customer.
The serial number can be found on top of the process
proced-
Caution
Always give the product's serial number when reporting a fault.
This appliance can be used by children
aged from 8 years and above and
with reduced physical, sensory or me capabilities or lack of experience and
knowledge if they have been given vision or instruction concerning use appliance in a safe way and under the hazards involved. Children shall play with the appliance. Cleaning an maintenance shall not be made by without supervision.
Rights to make any design or technical modi cations are reserved.
©NIBE 2019.
RECOVERY persons
Leave the disposal of the packaging to the in staller who installed the product or to special waste stations.
Do not dispose of used products with normal household waste. It must be disposed of at a special waste station or dealer who provides this type not service.
Improper disposal of the product by the user results and administrative penalties in accordance with current legislation.
SYMBOLS

NOTE
This symbol indicates danger to person or machine.

Caution
This symbol indicates important information about what you should consider when installing or servicing the installation.
INSPECTION OF THE INSTALLATION
Current regulations require the heating installation to be inspected before it is commissioned. The ins be carried out by a suitably qualified person.
| √ | DateSignat | |||
| Hot water (page 20) | ||||
| Shut off valves | ||||
| Cold water (page 20) | ||||
| Shut off valves | ||||
| Non-return valve | ||||
| Safety valve | ||||
| Mixing valve | ||||
For the User
For the Installer
MAINTENANCE
SAFETY VALVE (NOT SUPPLIED)
DESIGN
PCU-R 80, 100, 120 has a container and a charge made of stainless steel.
The accumulator tank's/water heater's safety valve sometimes releases a little water after hot water usage. The outer casing is made from painted sheet metal. This is because the cold water, which enters sides of accu-durable plastic.
mulator tank/water heater, expands when heated. The container is designed for a maximum cut-off pressing the pressure to rise and the safety valve is to open bar (0.9 MPa), which is the equivalent to design pressure in compliance with current standards checked, about four times a year, to prevent of 10 kg of carbon (1.0 MPa). Maximum pressure in the char coil is 16 bar (1.6 MPa). The maximum temperature to inspect the valve, open the safety valve manually and check that water ows through the over ow pipe.
If this does not happen then the safety valve. This container is insulated with EPS (environmentally and must be replaced. friendly cellular plastic), which provides good thermal insulation.
EMPTYING
For suspended installations
PCU-R 80, 100, 120 must be equipped with
TRANSPORT
a PCLU-R 80,100, 120 should be transported and stored in the dry.
- Close the incoming ow to the accumulator tank/water heater (connection XL3).
ASSEMBLY
- Open the drain valve (connection XL4).
The accumulator tank/water heater may be installed suspended from a wall or upright.
During draining, air must be let into the accumulator tank/water heater by loosening a hot water connection (XL4) or opening a hot water tap. The area where PCU-R 80, 100, 120 is located mus equipped with oor drainage.
To ensure that the accumulator tank/water heater is supplied completely, a hose or a pipe with an outlet below the lowest level of the water heater must be attached to the drain connection or drain valve.
When installed where there is a risk of frost, the accumulator tank/water heater must be emptied whenever it is not in operation. Freezing could result in the accumulator tank/water heater bursting.
For upright installations
For upright installations, drain the container through the siphon (using hose) in the cold water connection (XL3).
The charge coil is emptied through the siphon (with hose) in the cold water connection (XL9).
SERVICE
For service, contact the installer. Serial number (PF3) (14 digits) and installation date should always be stated.
Only replacement parts supplied by NIBE may be used.
COMPONENTS


Suspended mount

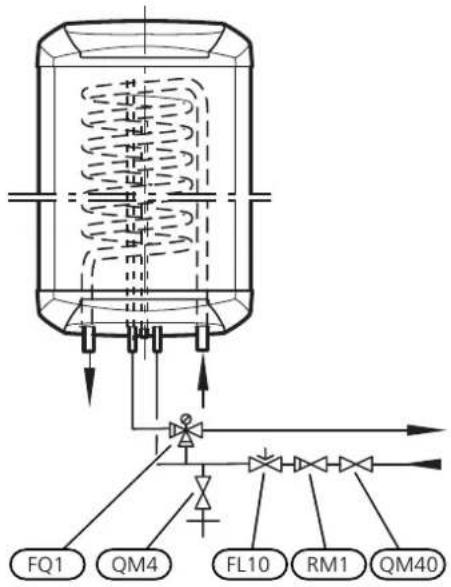

PIPE CONNECTIONS AND COMPONENT LOCATION
Component locationsPipe connections PCU-R 80, 100, 120 su


Pipe connections PCU-R 80, 100, 120 upright installation


| NameDesignation | |
| Safety valve (not included in delivery)FL10 | |
| Mixer valve (not included in delivery)FQ1 | |
| Cold water, ∅ 15 mmXL3* | |
| Hot water, ∅ 15 mmXL4* | |
| Docking connection, incoming ∅ 22 mmXL8* | |
| Docking connection, outgoing ∅ 22 mmXL9* | |
| Drain valve (not included in delivery)QM4 | |
| Shut-off valve (not included in delivery)QM40 | |
| Non-return valve (not included in delivery)RM1 | |
| Submerged tube, docking heat pump BT6, ∅ 9,5 mm (int)UA1 | |
| UL1 | Base |
| UL2 | Hanging bracket |
| UL3 | Securing bracket |
| PF3 | Serial number plate |
INSTALLATION
PCU-R 80, 100, 120 can be mounted hanging vertically on a at wall with the connections downward, or standing on a base (UL1) with the connections upward
UL3
SUSPENDED INSTALLATION
Use the enclosed suspension brackets (UL2) when hanging on a wall; these are mounted rst (∅8 - 10 screws), see the dimensions diagram and gure below. The accumulator tank/water heater is then mounted on the bracket. The accumulator tank/water heater can now be slid sideways a little, which facilitates installation of the pipes. To secure further, the enclosed securing bracket (UL3) is mounted on the wall against the top of the accumulator tank/water heater as a tip guard, see the gure below. An area of 200 mm free space is required in front of/under the accumulator tank/water heater for service work.



NOTE
For suspended installation, these spacers must be glued onto the water heater to keep it parallel with the wall.
The door is removed by "lifting" the front edge so that the plastic clips unhook.

INSTALLING SIGNS
In the case of upright installation, the NIBE logo and the product designation sign must be installed as illustrated.


NOTE
The accumulator tank/water heater must filled with water before charging via the coil is started.
Pipe installation must be carried out in accordance current norms and directives.
The accumulator tank/water heater must be tted_500 the requisite valves, such as a safety valve, shut- v_400 valve and non-return valve.
The accumulator tank/water heater must be provided with a mixer valve, which limits the temperature ^200 of outgoing hot water to 60 °C. If this valve is not some other measure must be taken to prevent the of scalding.
Internal support bushes must be tted when a plastic or annealed copper pipe is used. An over ow pipe must be routed from the safety valve to a suitable drain. The overflow pipe must be the same size as the safety valve COU
Route the over ow pipe from the safety valve, sloping along its entire length and ensure that it is frost proof. The mouth of the over ow pipe must be visible and not
placed close to electrical components.

FILLING
Fill the accumulator tank/water heater as follows:
- Open a hot water tap in the system.
-
Open the shut-off valve QM40 on the incoming cold water. This valve must then be fully open during operation.
-
The hot water tap can be shut off when the accumulator tank/water heater is lled, which is when only water comes out of the tap (initially an air-water mixture comes out of the tap).
HOT WATER CAPACITY
The diagram applies during charge ow at 1000 l/h.

line
| Charge temperature (°C) | PCU-R 80 | PCU-R 100 | PCU-R 120 | | ----------------------- | -------- | --------- | --------- | | 70 | 400 | 350 | 300 | | 90 | 800 | 600 | 350 |CHARGE COIL
e sloping Maximum charge ow 1650 l/h. A circulation pump is frost proof.
required sible and not
The pressure drop in the coil is determined according to the diagram.
The primary temperature for the coil must not exceed 90 °C.
To bleed the charge coil, ll the coil with a large of water.

line
| Charge flow (l/h) | Pressure drop (kPa) - PCU-R 80 | Pressure drop (kPa) - PCU-R 100 | Pressure drop (kPa) - PCU-R 120 | | ----------------- | ------------------------------ | ------------------------------- | ------------------------------- | | 740 | 4.0 | 3.5 | 3.0 | | 1000 | 8.0 | 6.0 | 5.0 | | 1300 | 15.0 | 11.0 | 9.0 |Technical data
DIMENSIONS

PCU-R 80, 100, 120 Upright installation PCU-R 80, 100, 120

TECHNICAL SPECIFICATIONS
| PCU-R 120PCU-R 100PCU- | ||||
| 413631kgNet weight | ||||
| heater | 1,0 (10)MPa (bar)Max. permitted pressure, w | |||
| 353125kWCapacity, 90 | ||||
| 272420kWCapacity, 80 | ||||
| approx. 14min.Heating time to 60 °C | ||||
| 087 002087 001087 000 | ||||
ENERGY LABELLING
| Supplier | NIBE | |||
| Model | PCU-R 80 | PCU-R 100 | PCU-R 120 | |
| Energy efficiency class | B | C | C | |
| Heat loss | W | 44 | 54 | 68 |
| Volume | I | 80 | 100 | 120 |
