USER MANUAL AVENT PHILIPS

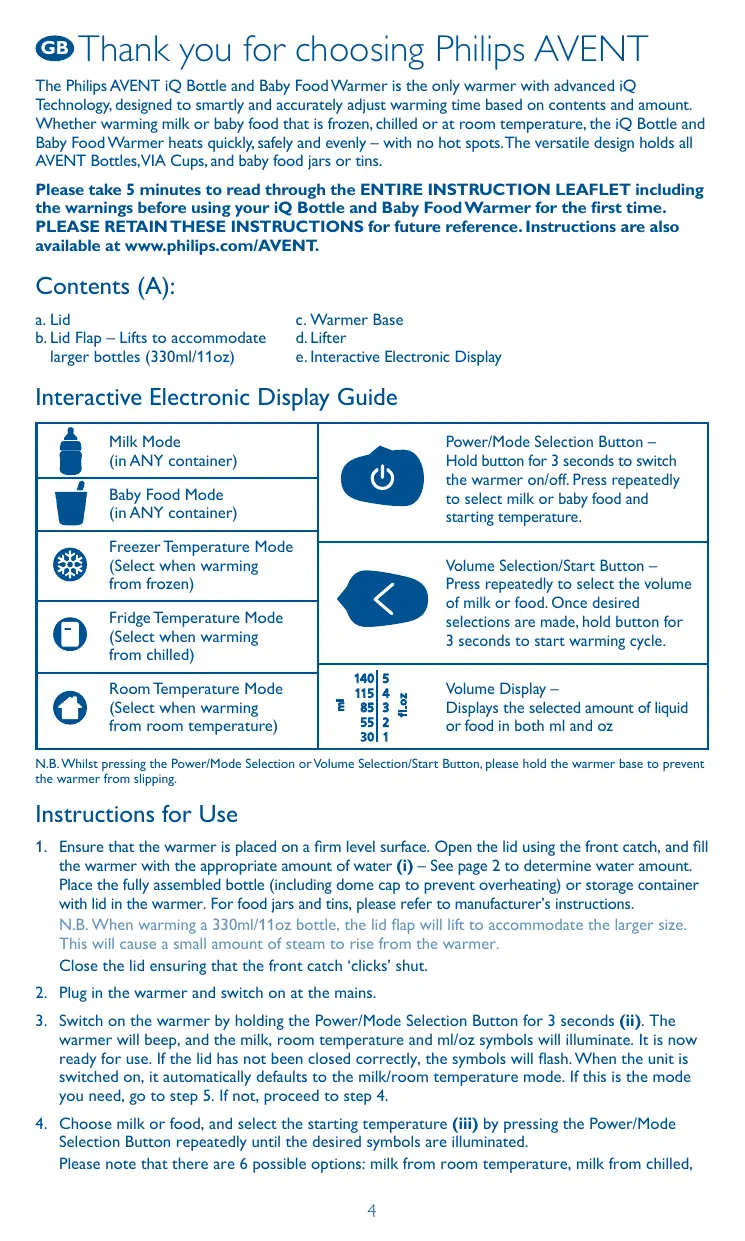

Thank you for choosing Philips AVENT The Philips AVENT iQ Bottle and Baby Food Warmer is the only warmer with advanced iQ Technology, designed to smartly and accurately adjust warming time based on contents and amount. Whether warming milk or baby food that is frozen, chilled or at room temperature, the iQ Bottle and Baby Food Warmer heats quickly, safely and evenly – with no hot spots. The versatile design holds all AVENT Bottles,VIA Cups, and baby food jars or tins. Please take 5 minutes to read through the ENTIRE INSTRUCTION LEAFLET including the warnings before using your iQ Bottle and Baby Food Warmer for the first time. PLEASE RETAIN THESE INSTRUCTIONS for future reference. Instructions are also available at www.philips.com/AVENT. Contents (A): a. Lid b. Lid Flap – Lifts to accommodate larger bottles (330ml/11oz) Interactive Electronic Display Guide Milk Mode (in ANY container) Power/Mode Selection Button – Hold button for 3 seconds to switch the warmer on/off. Press repeatedly to select milk or baby food and starting temperature. Baby Food Mode (in ANY container) Room Temperature Mode (Select when warming from room temperature)

Fridge Temperature Mode (Select when warming from chilled)

Volume Selection/Start Button – Press repeatedly to select the volume of milk or food. Once desired selections are made, hold button for 3 seconds to start warming cycle. fl.oz Freezer Temperature Mode (Select when warming from frozen) Volume Display – Displays the selected amount of liquid or food in both ml and oz N.B. Whilst pressing the Power/Mode Selection or Volume Selection/Start Button, please hold the warmer base to prevent the warmer from slipping. Instructions for Use

1. Ensure that the warmer is placed on a firm level surface. Open the lid using the front catch, and fill

the warmer with the appropriate amount of water (i) – See page 2 to determine water amount. Place the fully assembled bottle (including dome cap to prevent overheating) or storage container with lid in the warmer. For food jars and tins, please refer to manufacturer’s instructions. N.B. When warming a 330ml/11oz bottle, the lid flap will lift to accommodate the larger size. This will cause a small amount of steam to rise from the warmer. Close the lid ensuring that the front catch ‘clicks’ shut.

2. Plug in the warmer and switch on at the mains.

3. Switch on the warmer by holding the Power/Mode Selection Button for 3 seconds (ii). The

warmer will beep, and the milk, room temperature and ml/oz symbols will illuminate. It is now ready for use. If the lid has not been closed correctly, the symbols will flash. When the unit is switched on, it automatically defaults to the milk/room temperature mode. If this is the mode you need, go to step 5. If not, proceed to step 4.

4. Choose milk or food, and select the starting temperature (iii) by pressing the Power/Mode

Selection Button repeatedly until the desired symbols are illuminated. Please note that there are 6 possible options: milk from room temperature, milk from chilled,

milk from frozen, food from room temperature, food from chilled, and food from frozen. (See Display Guide if needed.) N.B. Warming food jars or tins from frozen is NOT recommended. However, you can warm frozen food in VIA Cups within the warmer. N.B. Please ensure that the correct options are selected, as milk and food should not be heated for too long.

5. Select the amount of milk or food in the bottle or container by repeatedly pressing the Volume

Selection/Start Button until the desired volume is illuminated (iv). If the desired amount is not shown on the display, please select the amount nearest to it. N.B. For volumes in grams, select the same amount in ml (e.g. for 85g select 85ml). N.B. The maximum volume that may be selected when warming food from frozen is 230ml/8oz.

6. Start the warming cycle (v): Once the desired settings are illuminated, hold down the Volume

Selection/Start Button until the warmer beeps. The volume display will now flash ascending and descending lights up to the selected amount. The warming cycle is in progress – Do not open the lid.

7. Completion of warming cycle (vi):When the cycle is complete, the warmer will beep intermittently

for 30 seconds and all the volume display lights will continuously flash for 3 minutes.You can remove the contents as soon as the warmer begins beeping. After 3 minutes, the warmer will beep 5 times and will turn off automatically. N.B. Philips AVENT recommends removing and using the contents immediately when the warming cycle is complete, even before the warmer automatically turns off.

8. Open the lid carefully to avoid any residual steam. Be careful when opening the lid as steam can

escape and cause injury. Use a cloth when removing the container, as it may be hot (vii). Use the lifter to raise small bottles,VIA Cups, small food jars or tins. Pull the lifter just above the circular rim. Rest the lifter on the rim where it naturally sits. N.B. Do not remove the lifter from the warmer.

9. Before feeding your baby: Always check feed temperature before feeding

(a) Milk – shake the bottle or milk storage container and check the temperature of the milk by sprinkling a few drops on the back of your hand. (b) Food – stir the food thoroughly and test it yourself with a spoon to ensure it is not too hot. If food is not warm enough, consult the Troubleshooting Guide. N.B. Please ensure the lid of the container is tightly secured prior to shaking.

10. Unplug at the mains, and empty any residual water (viii). Ensure that the plug does not come

into contact with water. If warming an additional bottle or container, continue from step 1. Otherwise, clean the inside and outside of the warmer with a damp cloth (viii). To remove the lifter for cleaning purposes ONLY, lift vertically up until it naturally resists. Push the handle away from you and rotate 90º or until it can naturally be removed, then lift out. N.B. For microbiological and hygienic reasons, once heated, milk and food should not be reheated again, and should be discarded if not used immediately. Please consult your health professional/breastfeeding adviser for further guidance about safety recommendations on feeding. N.B. If at any time the warmer is switched on and not running a cycle, it will automatically turn off after 3 minutes if no selections have been made. Approximate Warming Times Milk 115ml/4oz from room temperature 2 mins Milk 115ml/4oz from chilled 3 mins Milk 255ml/9oz from room temperature 3 mins Milk 255ml/9oz from chilled

4.5 mins

Food 230ml/8oz from room temperature 5 mins Food 230ml/8oz from chilled 7 mins

Care of your iQ Bottle and Baby Food Warmer Always unplug the warmer and allow it to cool before cleaning. Wipe the inside and outside of the warmer with a damp cloth. DO NOT USE AN ABRASIVE CLEANER. Using cool pre-boiled or filtered water in your warmer may reduce limescale build-up. When the warmer needs de-scaling, the mode and starting temperature symbols will flash on the electronic display. To ensure maximum effectiveness, you should de-scale your warmer every time it is required. To acknowledge the de-scale warning, press and hold the Power/Mode Selection or Volume Selection/Start Button for 3 seconds. If you do not wish to de-scale, please be aware that the unit will not remind you to de-scale on your next use, but will instead begin re-counting cycles until the next de-scaling is needed. IMPORTANT! DE-SCALING Under no circumstances should anything other than citric acid or vinegar be used as it may cause irreparable damage. Avoid contact with eyes as this may cause irritation. Keep out of the reach of children. EITHER: Mix one sachet of citric acid* (10g) with 200ml/7oz of water. Pour solution into the empty warmer. DO NOT place a bottle, jar or cup into the warmer when de-scaling. Close the lid of the warmer and programme the warmer to run with 310ml/11oz of milk from frozen. After the warming cycle has ended, leave the solution to cool for 30 minutes before emptying the warmer and rinsing with tap water. Wipe the inside and outside of the warmer with a damp cloth only. OR: Pour 100ml/3.5oz of vinegar mixed with 200ml/7oz of cold water into the warmer. Allow liquid to stand in the unit until any limescale has dissolved. DO NOT place a bottle, jar or cup into the warmer when de-scaling. DO NOT start the warming cycle. Empty the unit and rinse thoroughly. Wipe the inside and outside of the warmer with a damp cloth only. *Citric acid is available from most chemists and through Philips AVENT Customer Service. WARNING! The iQ Bottle and Baby Food Warmer is fitted with a non-rewirable moulded plug. The mains supply lead of the appliance CANNOT be replaced. If the lead is damaged, the appliance should be discarded. The supplied lead must not be used on any other appliance and no other cord should be used with the iQ Bottle and Baby Food Warmer. This product is manufactured to comply with the Radio Interference Requirements and the EEC Directive 89/336/EEC. Failure to follow instructions may cause scalding or damage to product.

• Always ensure water has been added before switching on the warmer.
• Always ensure that you are using the correct volume of water before beginning the warming cycle. The warmer should be emptied of residual water before each subsequent use.
• Heating food jars or tins from frozen within this warmer is NOT RECOMMENDED.
• To avoid possible scalding, do not place hands over the lid flap or open the lid flap during the warming cycle.
• When warming a 330ml/11oz bottle, the lid flap will lift to accommodate the larger size. This will cause a small amount of steam to rise from the warmer.
• To avoid possible scalding, take care when opening the lid after a completed cycle as there may be some residual steam.
• When in use, the warmer contains hot water. Be careful to avoid spilling any water on yourself when removing contents from the warmer.
• Use the lifter to remove small bottles,VIA Cups, and small baby food jars or tins.
• Always use a cloth when removing bottles, cups, jars and tins from the warmer.
• Always check feed temperature before feeding.
• For microbiological and hygienic reasons, once heated, milk and food should not be reheated again.
• Never immerse the warmer or power cord in water.
• This appliance is intended for use by responsible persons, keep out of the reach of small children and the infirm.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play with the appliance.
• Failure to follow de-scaling instructions may cause irreparable damage.
• There are no serviceable parts inside the iQ Warmer. Do not attempt to open, service or repair the warmer yourself. Spoon

• Small-bowled spoons specially designed for small mouths and tender gums.
• Long handle – easy to hold, use and clean.
• Shaped for easier feeding without spills. For your child’s safety and health Warning! Before first use clean the product. Dishwasher safe. Sterilise using a Philips AVENT Steam Steriliser or boil for 5 minutes. Before each use, inspect the product. Throw away at the first sign of damage or weakness. Do not leave in sunlight when not in use or for longer than recommended in heat or sterilising solution, as this may weaken the product. Always use this product with adult supervision. Always check food temperature before feeding.

Troubleshooting Guide Food is not warm enough The temperature of warmed food depends on the consistency of the food. Philips AVENT recommends that, ideally, pureed food only should be heated with this warmer. If you find that thicker food is not warm enough at the end of the warming cycle, fill the warmer with an additional 30ml/1oz of water. On step 4 and 5, choose the food from room temperature mode and programme the warmer at the 30ml/1oz option. Before feeding your baby, stir the food. Always check food temperature before feeding. Milk is not warm enough If you find that milk is not warm enough at the end of a warming cycle, fill the warmer with an additional 30ml/1oz of water. On step 4 and 5, choose the milk from room temperature mode and programme the warmer at the 30ml/1oz option. Before feeding your baby, shake the bottle or storage container gently and check the temperature of the milk by sprinkling a few drops on the back of your hand. Display will not illuminate / Warmer will not turn on Check that the lid is closed correctly. Check that the mains lead is plugged into the mains and the power outlet is switched on.Then hold the Power/Mode Selection Button for 3 seconds. Symbols on the display are flashing

• If the milk, room temperature and ml/oz symbols are flashing, then the lid has not been closed correctly.
• If all volume symbols are flashing, and the warmer beeps intermittently for 30 seconds then the cycle is complete. Follow Step 8 onwards to remove the bottle or container from the warmer.
• If all mode and starting temperature symbols are flashing, then the unit requires de-scaling. See section ‘Care of your iQ Bottle and Baby Warmer’ on page 6.To acknowledge the de-scale warning, press and hold the Power/Mode Selection or Volume Selection/Start Button for 3 seconds. If you do not wish to de-scale, please be aware that this may cause irreparable damage. The warmer is beeping

• If ml/oz symbols flash, and the warmer beeps twice, insufficient water has been placed in the warmer. Unplug the warmer, discard the milk or food and empty any remaining water. Be careful as the warmer is hot. Follow instructions from Step 1 onwards.
• If all volume symbols are flashing, and the warmer beeps intermittently for 30 seconds then the cycle is complete. Follow Step 8 onwards to remove the bottle or container from the warmer. To stop the warming cycle Press the Power/Mode Selection Button and the warmer will beep and return to default settings. To start the warming cycle Once the correct mode, starting temperature and volume have been selected, press and hold the Volume Selection/Start Button until the warmer beeps. If the lid is opened during warming cycle If the lid is opened at any time during the warming cycle, the lights on the display panel will flash and the warmer will stop and return to default settings. In order to reset the warmer after the lid has been opened, empty out any residual water, then follow instructions for use from step 1 onwards. Since this could occur at any stage of the warming cycle, milk or food should be discarded for safety reasons. Difficulty setting the appropriate amount of frozen food The maximum volume that may be selected when warming food from frozen is 230ml/8oz. Guarantee Philips AVENT guarantees that should the iQ Bottle and Baby Food Warmer become faulty during twelve months from the date of purchase, it will be replaced free of charge during this time. Please return it to the retailer where it was purchased. Please keep your receipt as proof of purchase, together with a note of when and where purchased. For the guarantee to be valid, please note:
• The iQ Bottle and Baby Food Warmer must be used according to the instructions in this leaflet and connected to a suitable electricity supply.
• The claim must not be a result of accident, misuse, dirt, neglect or fair wear and tear. This guarantee does not affect your statutory rights.

Takk for at du velger Philips AVENT GB Call FREE on 0800 289 064 IRL Call FREE on 1800 509 021 AU 1 300 364 474

Numéro Vert 0800 90 81 54 Philips AVENT is a member of the Philips Group. Philips Centre, Guildford Business Park, Guildford, Surrey, GU2 8XH Trademarks owned by the Philips Group. © 2008 Koninklijke Philips Electronics N.V. All Rights Reserved. EN 14350, EN 14372 42133 5435 170 #2 www.philips.com/AVENT
