USER MANUAL Filterballs System 400W Swim & Fun

USER MANUAL

Filter system with filterballs

Art. 1927/1928

Danish 2

Swedish.... 14

Finnish 26

Norwegian 38

English 50

German 52

Dutch 64

Polish 76

Indholdsfortegnelse

Generelt 2

5. Problemløsning

5. Felsökning

5. Vianetsintä

5. Feilsøking

Storing in winter 57

Trouble shooting.... 60

Service 60

Guarantee.... 61

Complaints 61

Specifications 1927 1928
Maximum pool size 28.000 40.000
Pump Power (230 V) 300 W	400 W
Circulation power 8.000 l/h 10,000 l/h
Maximum water temperature 35 °C
Tank ∅ 356 mm 410 mm
Filterballs are required 1200 g	1550 g
Connector ∅ 32/38 mm

1. In general

Read operating manual and store safely

This instruction manual contains important information on starting your product for the first time and how to operate it. Carefully read through the instruction manual – particularly the safety instructions – before using the product. Non-compliance with this instruction manual may lead to major injuries or damage to your product. The instruction manuals based on standards and regulations applicable within the European Union. If the product is being used abroad, please follow any country-specific guidelines and laws. Store the instruction manual in a safe location for later consolation and submission to third parties, where applicable.

Intended use

This product is solely intended for private use and is not suitable for commercial use. Only use the product as described in this instruction manual. Any other use is considered improper use an may lead to personal injury or damage to property. This item is not a toy.

The manufacturer or retailer assumes no liability for damage resulting from improper or incorrect use.

Important!

Warning: children must not be allowed to clean and play with this product.

Warning: Risk of damage! This product may be damaged through improper use.

2 Safety warnings

Warnings and safety instructions

Read and observe all instructions. Non-compliance with these warnings and instructions may result in damage to property, severe personal injury or even death. These product warnings, instructions and safety regulations are extensive but cannot cover all potential risks and dangers and are thus not to be considered exhaustive. Please be cautious and assess potential dangers appropriately. Incorrect use/handling of the product can lead to life-threatening situations.

Caution! Leave repairs to experts in order to prevent hazards. Consult a specialist workshop. Liability is waived and warranty claims expire if repairs are carried out indecently of if the product is improperly installed or used incorrectly. Only original parts corresponding to the original product specifications may be used during repairs.

Danger of electrocution. Faulty electrical installation or too high mains voltage can lead to electrocution. Only connect the product if it mains voltage on the socket corresponds to the technical specifications. Only connect this product using an easily accessible socket to ensure it can be rapidly disconnected from the mains in the event of a fault. Do not operate the product if it exhibits visible damage or the mains cable/plug is defective. As additional protection, it is recommended to install a residual current device with a tripping current of no more than 30 mA. Consult with a electrician for advice.

Only open the product as described in the manual. Leave repairs to experts in order to prevent hazards. Consult a specialist workshop. Liability is waived and warranty claims expire if repairs or changes to the product are carried out independently of if the product is improperly connected or operated incorrectly. This product features electrical and mechanical parts which are indispensable for protecting against potential hazards.

Never touch the plug with wet hands. Never pull out the plug from the socket using the cable – always pull on the plug. Keep the product, plug and cables away from open fires and hot surfaces. Lay the cable so that it does not pose a tripping risk and do not place it under the ground. Lay cables in such a way that they will not be damaged by lawn mowers and other similar devices. Do not kink the cable and do not lay it over sharp edges. Do not use an extension cable, multiple cable adapters or other adapters.

Filtration may not run dry (without water). The water takes the cooling – in case of dry running there is no warranty replacement. Never place the pump or filter in your pool. The filter system must not be operated when the pool is in use. Install this product with a sufficient safety margin from the pool to prevent children from using the system to

access the pool. Do not immerse the filter system, power cable or plug in water or in any other liquids. The filter system's pump is designed to ensure good protection against water spray. However, it should still be installed in such a way to ensure adequate protection from the weather.

Check scoop of delivery

Note! Risk of damage! The product may be damaged if you open the packaging with a sharp knife or other sharp objects without due care and attention. Please open the packaging very carefully.

• Remove the product from the packaging
• Check that all the included items have been delivered in full
• Check whether the item, or parts thereof, exhibit damager. If there is damage, do not use the product. Get in contact with the service address stated at the end of the manual.

Operation

The filter balls in the filter tank ensure that dirt particles and floating debris are effectively filtered over a long period of time. Dirty water is drawn from the pool via the suction pipe through the filter pump and then fed from above into the filter tank. As the water flows through the filter balls in the filter tank, dirt particles are deposed in the filter balls and thus filtered out of the pool water. The purified water then flows through the return pipe back into the pool.

For the operation of the filter system, you need a skimmer (surface skimmer). Either an integrated skimmer (built into the pool wall) or a suspended skimmer (attachment to the pool wall).

Positioning

The installation area you set between the skimmer and the inlet nozzle so, that there is an adequate safety margin to the pool wall. We recommend putting the filter system in addiction on base plates (for example: washed concrete slabs etc.). these have to be installed with the spirit level.

If you have sunk your pool partially or completely, so it makes sense to place the filter pump in a filter slot, which should connect directly to the pool. Is your filter pump housed in a filter slot, so it has to be insured, that the filter slot can't be flooded. For this purpose, you should bring in a roller-burnishing (crushed rock) in the range of the filter slot, so that the surrounding- and rain water can seep away. It would be ideal if there is a direct connection to the drain in the sump of the filter shaft (or sludge pump, with automatic floating switch). It is important to ensure that the filter slot should never be airtight, because this may cause damage, due to the condensation water, on the filter pump. The size of the filter shaft should be selected so that work can be performed on the filter system.

3. Installation

Assembly of the filter system

Assemble the filter system at the location where the pump finally will be.

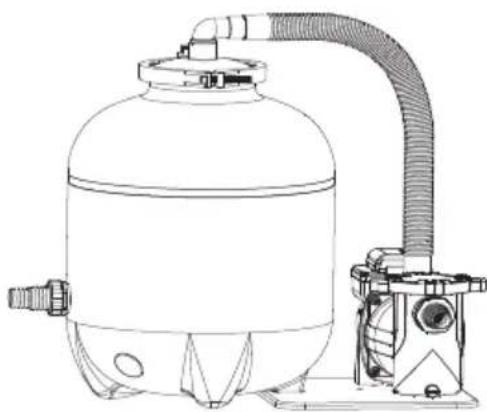

The filter pump consists of the following parts:

1. 90° connection bracket
2. Transparent cover
3. Camping ring

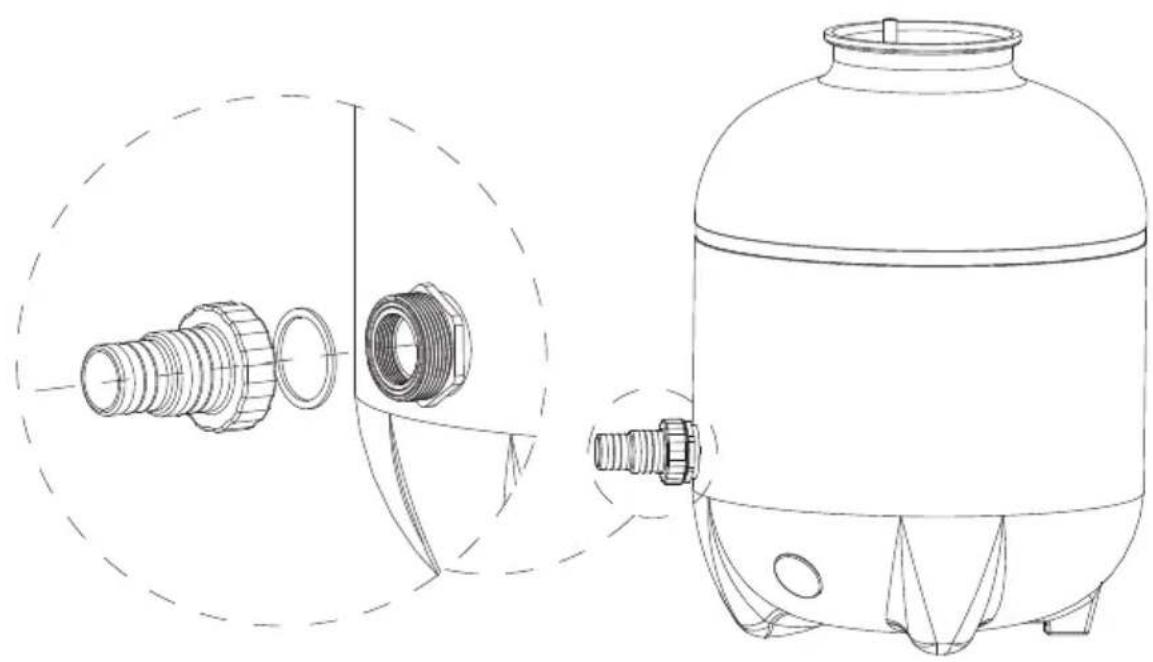

4. Filter tank
5. Screw connection ∅ 32/38 mm
6. Bracket for filter pump
7. Filter pump
8. Connection hose ∅ 32 mm

Assembly of the filter system

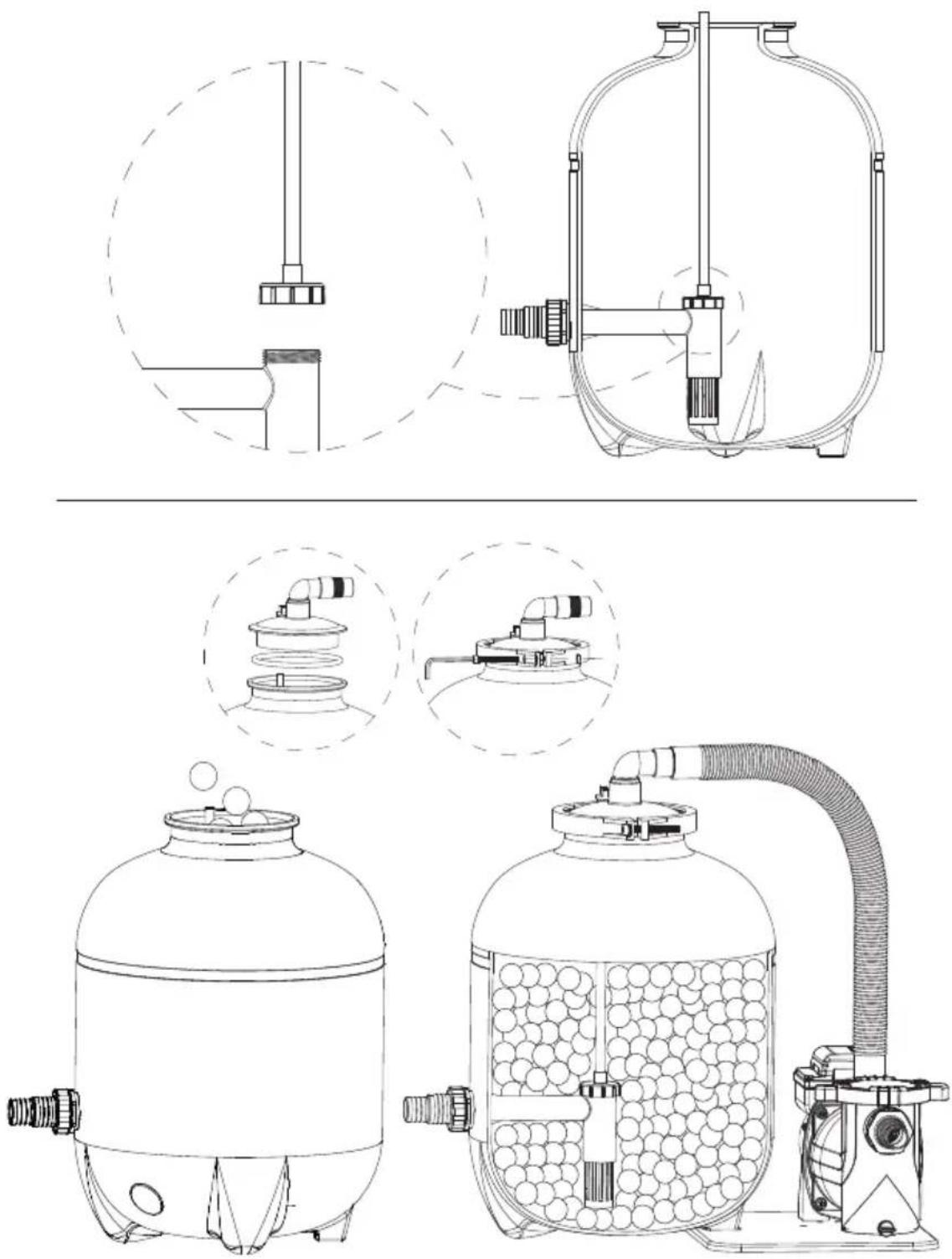

1. Open the clamping ring and remove the transparent cover from the filter tank.
2. Fill the filter tank with the filter balls which are included with the order (approx. 1200g)
3. Now place the seal onto the underside of the transparent cover.
4. Lay the transparent cover once again onto the upper side of the filter tank.

It is very important to ensure that all surfaces have been cleaned once again and are free from any dirt before you do this.

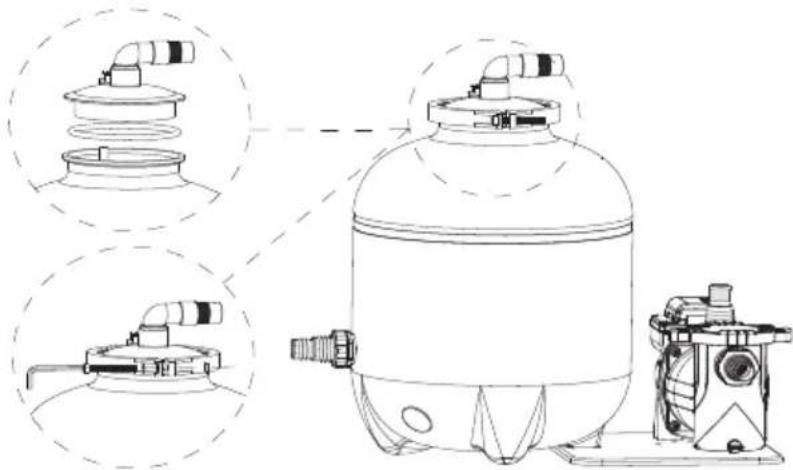

1. The transparent cover is connected to the filter tank using the clamping ring.

The clamping ring is screwed together with the clamping ring screw and clamping ring screw nut.

1. Fit the connection bracket on the upper side of the transparent cover.

2. Finally, connect the connection bracket with the filter pump. Fasten all connections with hose clips and ensure that the pump connecting pieces are adequately sealed using teflon tape.

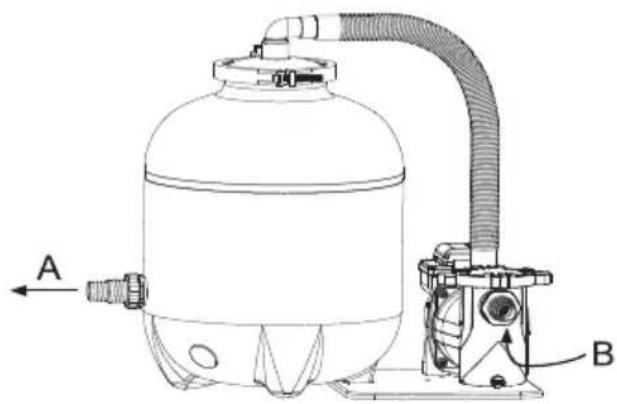

Pump hose connections

A. Return line - connection between the filter tank and the connection to the inlet nozzle (pool).

The filtered water is fed back into the pool at this point.

B. Skimmers – connection between the skimmer connection (pool) and the filter pump.

The water that is going on to be cleaned is drawn in from the pool at this point.

Filter system installation instructions

- Once the filter system has been properly assembled, the sand chamber filled with sand and the hoses connected as described above, you may begin with filtration.

- Do not plug the system in until advised to do so below.

• Make certain the pump is not plugged in to a power supply.

- Before operating the filter system, it is important to ensure that the filter system is positioned outside the pool and is lower that the pool's water level. The hose connections must also be correctly connected and fastened.

- If you haven't done so already, fill your pool with water. Ensure that the water level is at least 2.5 - 5 cm above the top of the hose intake (Skimmer) and return ports in the pool.

- The filter system is now vented. If applicable, open the vent screw on the upper side of the transparent filter cover until the water flows out.

- Release the shut off valve at the intake port (Skimmer) in the pool. If you plugged the intake port (Skimmer), remove the plug to allow the water to flow into the intake hose.

- With the filter-pump system installed in a location level lower than your pool's water level – water will automatically flow into the pump-filter system.

- Allow the filter tank to fill with water.

- Check the filter system and the connection hoses for leaks and resolve, if necessary. Leakage points may possibly arise due to manufacturing tolerances, which need to be resolved by wrapping teflon tape around the connections before the connection hose is attached.

- Your filter system is now ready to use.

Cleaning the filter balls

The filter balls in the filter tank ensure that dirt particles and floating debris are effectively filtered over a long period of time.

The filter system will reduce its level of performance in accordance with the amount of contamination in the water. This must be checked at regular intervals.

If you establish that performance levels are decreasing, please follow one of these two options:

A. Replace the filter balls.
B. Wash the filter balls in a washing machine with soap free water at a maximum temperature of 30° C

Filtering time

The swimming pool's water should be circulated and filtered at least 3-5 times in a 24 hour period, depending on the load and the size of the filter system. The time required is based on the performance of the filter system and the size of the swimming pool. However, we recommend a minimum running time of 12 hours per day.

Power source Instructions

The filter system you have purchased is equipped with a connection cable, which may only be connected to a circuit with a residual current circuit breaker (RCCB) with a rated residual current of no more than 30mA.

Technical data:

• Maximum water temperature 35 °C
- 230 V / 300 W
- Connector ∅ 32/38 mm
- Ground plate

Important Note

Filterballs: Vi recommend changing the Filterballs at the beginning of each season. They can however also be washed in the washing machine without the use of soap.

Care instructions

Visible contaminants are removed through the filtration system. This is a not true for algae, bacteria and other microorganisms, which are also a constant threat to clear, clean and healthy pool water.

For their prevention or removal, special water treatment is available, properly and permanently dosed, guarantee for swimmers any kind of harassment and ensure proper hygienic bath water.

Cleaning

Use conventional cleaning products. Do not use solvent-based or abrasive cleaning agents/tools, i.e. no hard sponges, brushes etc..

Storage

The product must be thoroughly dried after cleaning. After which, it is to be stored in a dry location protected from frost.

Disposal

Disposing of packaging: The packaging material has been selected in view of environmental concerns and disposability and is therefore recyclable. The paper and cardboard can be recycled, as can the plastic coverings.

Disposing of the product: Applicable in the European Union and other European states with the systems in place for collecting and sorting recyclable materials. Dispose of the product in accordance with any laws and regulations applicable at your place of residence.

4. Storing in winter

At the end of the bathing season, disconnect the hoses, remove water from the filter by opening the drain valve (8). Water MUST be emptied from the pump as well and it must be placed in a dry place, where it cannot be damaged by the cold. The pump and filter tank cannot endure frost – frost will damage the materiel and the warranty is no longer valid.

Water care products

For specific water care products see page 2 and visit swim-fun.com for product specifications, guides, tips and useful information on how you maintain crystal clear pool water.

5. Trouble shooting

Problem Cause Solution
At start the pump is running but not pumping water into the pool.	Air trapped inside suction hose.Pump is not placed at ground level of the pool.No water passage through hoses?	The pump must be located at ground level below the water line!Prime the hoses.
Pressure is to low Suction hose/skimmer basket/pump or filter to valve can be blocked by leaves or debris		Clean suction hose/pool skim-mer and top valve. Check fee-ding hose connections for air.
Leaking filter con- nection (between filter and top valve)	Damaged gasket or sand Inspect the gasket and replace with a new one if necessary.
The pump is not running	The filter system has been deactivated by the filter timer or a filter control.The plug is not connected.The HFI device turns the pump off.Damaged pump motor.	Examine the settings.Connect the plug.Turn on the HFI device again.If it immediately turns itself off again this means that the pump or the HFI device is damaged.Replace the pump.

Repairs of the filter and pump may only be performed by a qualified, professional firm. Otherwise, the warranty will be void.

6. Service

We have specialist knowledge of our products and the field in general, so you can get help quickly and easily. If you have any questions or need more information, please feel free to call

Customer service on [phone]

If you need service or to make a warranty claim, you must create a case directly in our support system. Go to the home page under SUPPORT.

7. Guarantee

The product is covered by a 12-month guarantee (plus 12-month right to claim). The warranty period applies from the date of purchase on your purchase receipt. Proof of purchase must be provided when claiming for service under the guarantee. NB: Keep your purchase receipt in a safe place!

The guarantee does not cover normal wear and tear, scratches, wear and tear or cosmetic damage. Specifically, the guarantee does not cover damage caused as a result of:

• Improper use or handling including frost damage by improper storage.
• A fall or shock.
• Repairs, modifications or etc. performed by anyone other than Swim & Fun Scandinavia service center.

8. Complaints

If you have a claim, you must contact Swim & Fun Scandinavia at swim-fun.com/Support.

By submission of a defective item it must be packaged so that the product is protected against transport damage. It is your responsibility that the product arrives safely. Please notify us on your name, address and e-mail - to enable us to return the product to you. Remember to let us know what is wrong with the product.
