USER MANUAL AZ2770 PHILIPS

Portable CD Mini System

AZ 2770

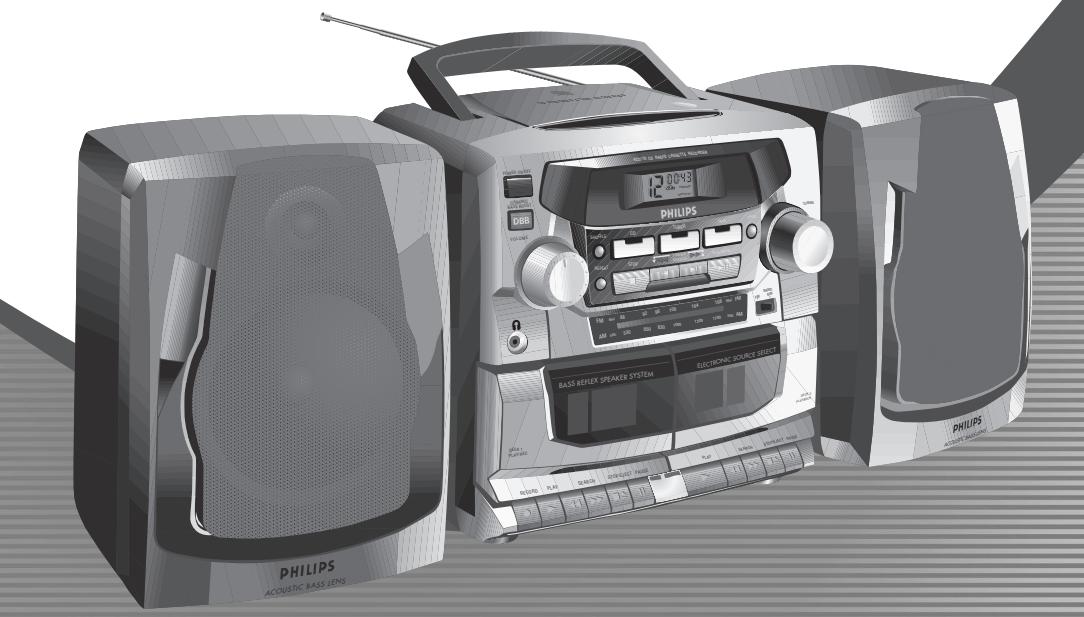

3D rendering of a Philips acoustic bass lens and digital audio synthesizer (no visible text or symbols on the device body)

Toll Free Help Line

Return your Warranty Registration card today to ensure you receive all the benefits you're entitled to.

- Once your Philips purchase is registered, you're eligible to receive all the privileges of owning a Philips product.

- So complete and return the Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.

Warranty Verification

Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your Philips warranty.

Owner Confirmation

Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.

Model Registration

Returning your Warranty Registration Card right away guarantees you'll receive all the information and special offers which you qualify for as the owner of your model.

Know these

safety symbols

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This “bolt of lightning” indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The “exclamation point” calls attention to features for which you should read the

enclosed literature closely to prevent operating and maintenance problems.

For Customer Use

Enter below the Serial No. which is located on the bottom of the cabinet. Retain this information for future reference.

Model No. ____

Serial No. ____

WARNING: TO PREVENT

FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert.

Labeled diagram of a portable radio and acoustic bass lens system with numbered parts for identification.

Diagram of a device layout with labeled components and numbered parts

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure.

ATTENTION

The set complies with the FCC-Rules, Part 15 and with 21 CFR 1040.10.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

English: This digital apparatus does not exceed the Class B limits for noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.

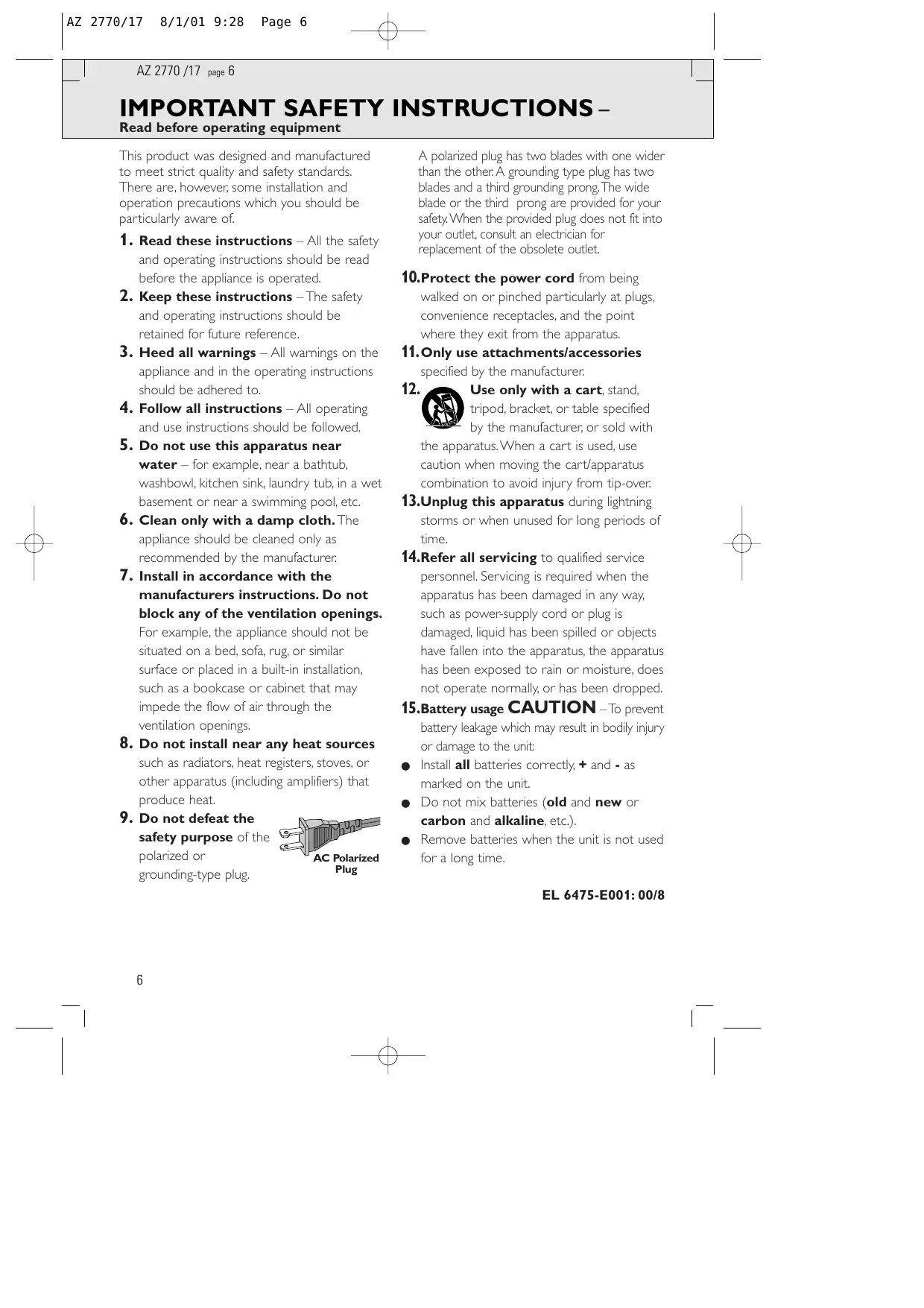

IMPORTANT SAFETY INSTRUCTIONS –

Read before operating equipment

This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of.

1. Read these instructions – All the safety and operating instructions should be read before the appliance is operated.
2. Keep these instructions – The safety and operating instructions should be retained for future reference.
3. Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow all instructions – All operating and use instructions should be followed.
5. Do not use this apparatus near water – for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool, etc.
6. Clean only with a damp cloth. The appliance should be cleaned only as recommended by the manufacturer.
7. Install in accordance with the manufacturers instructions. Do not block any of the ventilation openings.

For example, the appliance should not be situated on a bed, sofa, rug, or similar surface or placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

1. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

2. Do not defeat the safety purpose of the polarized or grounding-type plug.

AC Polarized Plug

A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

1. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

2. Only use attachments/accessories specified by the manufacturer.

Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with ratus. When a cart is used, use when moving the cart/apparatus tion to avoid injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

3. Battery usage CAUTION – To prevent battery leakage which may result in bodily injury or damage to the unit:

4. Install all batteries correctly, + and - as marked on the unit.

5. Do not mix batteries (old and new or carbon and alkaline, etc.).
6. Remove batteries when the unit is not used for a long time.

EL 6475-E001:00/8

PORTABLE AUDIO

One Year Free Exchange

This product must be carried in for an exchange.

WHO IS COVERED?

You must have proof of purchase to exchange the product. A sales receipt or other document showing that you purchased the product is considered proof of purchase. Attach it to this owner's manual and keep both nearby.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. For one year thereafter, a defective or inoperative product will be replaced with a new, renewed or comparable product at no charge to you. A replacement product is covered only for the original warranty period. When the warranty on the original product expires, the warranty on the replacement product also expires.

WHAT IS EXCLUDED?

Your warranty does not cover:

• labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.
• product repair and/or part replacement because of misuse, accident, unauthorized repair or other cause not within the control of Philips Consumer Electronics Company.
  • reception problems caused by signal conditions or cable or antenna systems outside the unit.
• a product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.
• incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.)
• a product used for commercial or institutional purposes.

WHERE IS EXCHANGE AVAILABLE?

You may exchange the product in all countries where the product is officially distributed by Philips Consumer Electronics Company. In countries where Philips Consumer Electronics Company does not distribute the product, the local Philips service organization will attempt to provide a replacement product (although there may be a delay if the appropriate product is not readily available).

BEFORE REQUESTING EXCHANGE...

Please check your owner's manual before requesting an exchange. Adjustments of the controls discussed there may save you a trip.

EXCHANGING A PRODUCT IN U.S.A., PUERTO RICO OR U.S. VIRGIN ISLANDS...

Contact your dealer to arrange an exchange. Or, ship the product, insured and freight prepaid, and with proof of purchase enclosed, to the address listed below.

Small Product Service Center

Philips Service Company

907 Snapps Ferry Road, Plant 2, Building 6

Greeneville, TN 37743

(In U.S.A., Puerto Rico and U.S. Virgin Islands, all implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express warranty. But, because some states do not allow limitations on how long an implied warranty may last, this limitation may not apply to you.)

EXCHANGING A PRODUCT IN CANADA...

Please contact Philips at:

1-800-661-6162 (French Speaking)

1-800-363-7278 (English Speaking)

(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct, indirect, special, incidental or consequential damages, howsoever incurred, even if notified of the possibility of such damages.)

TO GET OUT-OF-WARRANTY EXCHANGE...

In U.S.A., Puerto Rico or U.S. Virgin Islands, contact Philips Service Company at [phone] to obtain the cost of out-of-warranty exchange. Then carefully pack the product and ship it to the Small Product Service Center (address listed above). In Canada, call the phone number listed above under “Exchanging a Product in Canada” to obtain the cost of out-of-warranty exchange.

REMEMBER...

Please record the model and serial numbers found on the product below. Also, please fill out and mail your warranty registration card promptly. It will be easier for us to notify you if necessary.

MODEL#

SERIAL # ____

This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.

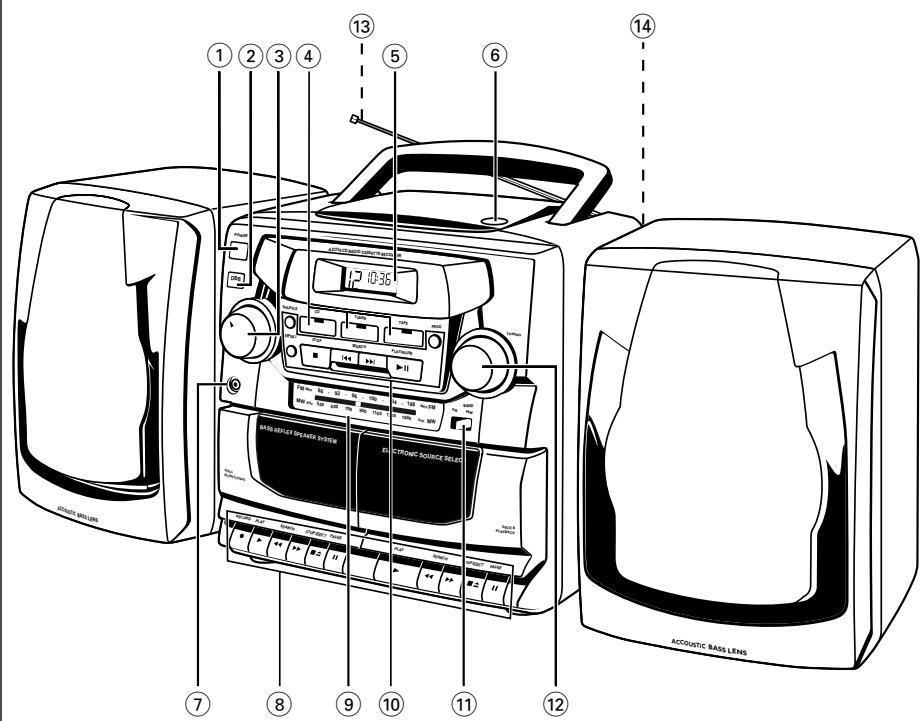

TOP AND FRONT PANELS

① POWER - to switch the set ON/OFF
② DBB (Dynamic Bass Boost) - to enhance bass response
③ VOLUME - to adjust volume level
④ CD, TUNER, TAPE - to select source of sound
⑤ CD Display - to show the CD functions
⑥ OPEN - to open/ close the CD door
⑦ 3.5 mm jack for stereo headphone connection
⑧ CASSETTE RECORDER:

Deck 1:

RECORD ● - to start recording

PLAY ▶ - to start playback

SEARCH ◀◀ or ▶▶ - to fast rewind/wind the tape.

STOP•EJECT ■ ▲ - to stop the tape and to open the cassette holder

PAUSE II - to interrupt recording or playback

Deck 2:

PLAY ▶ - to start playback

SEARCH ◀◀ or ▶▶ - to fast rewind/ wind the tape.

STOP/EJECT ■ ▲ - to stop the tape and to open the cassette holder

PAUSE II - to interrupt recording or playback

⑨ Tuning dial pointer
⑩ CD PLAYER:

SHUFFLE - play a CD/ program in random track order

REPEAT - to repeat a track/ CD/ program

STOP ■ - to stop playback - to erase a program

SEARCH ◀ / ▶ - to skip or search a passage/ track backwards or forward

PLAY/PAUSE ▶II - to start or interrupt CD play

PROG - to program and review programmed track numbers

⑪ BAND - to select FM/ AM waveband
⑫ TUNING - to tune to radio stations

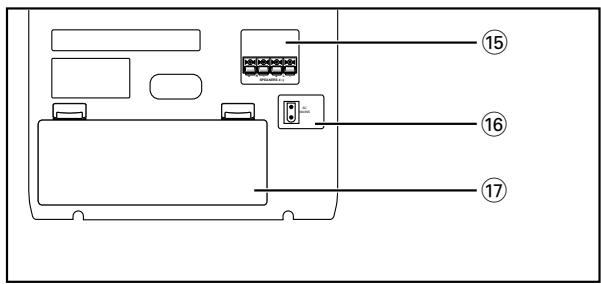

BACK PANEL

⑬ Telescopic antenna - to improve FM reception
⑭ Speaker levers - to unlock the loudspeaker boxes
⑮ Speaker - loudspeaker terminals
⑯ AC MAINS - inlet for power cord
⑰ Battery door - to open the battery compartment

BATTERIES (OPTIONAL)

1. Open the battery compartment and insert six batteries, type R-20, UM-1 or D-cells, (preferably alkaline) with the correct polarity as indicated by the "+" and "-" symbols inside the compartment.
2. Replace the compartment door, making sure the batteries are firmly and correctly in place. The set is now ready to operate.
3. Remove the batteries if the set is not to be used for a long time.

Incorrect use of batteries can cause electrolyte leakage and will corrode the compartment or cause the batteries to burst.

Therefore:

• Do not mix battery types: e.g. alkaline with carbon zinc. Only use batteries of the same type for the set.
• When inserting new batteries, do not try to mix old batteries with the new ones.
• Remove the batteries if the set is not to be used for a long time.

Using AC POWER

1. Check if the power voltage as shown on the type plate on the base of the set, corresponds to your local power supply. If it does not, consult your dealer or service center.
2. Connect the power cord to the MAINS inlet and the wall outlet. The power supply is now connected and ready for use.
3. To switch off completely, withdraw the power cord from the wall outlet.
4. Disconnect the power cord from the wall outlet to protect your set during heavy thunderstorms.

Batteries contain chemical substances, so they should be disposed of properly.

The type plate is located on the bottom of the set.

Switching POWER on/off: Save energy

Whether you are using mains or battery supply, to avoid unnecessary energy consumption always push the POWER button to the off position after using the set.

6 x R20×D-CELL×UM-1

AC MAINS

REMOVABLE LOUDSPEAKERS

Taking off the speakers

Keep the lever (found on the back corner of the speaker) pressed and slide the speaker upwards.

Attaching the speakers

Slide the speakers from above into the sleeves on the sides of the cabinet. The speakers will click into position.

CONNECTING THE SPEAKERS

1. Connect the right speaker to the R terminal, with the red marked wire to "+" and the black wire to "-"
2. Clip the exposed portion of wire into the corresponding color terminal.
3. Repeat the wiring procedure for the left speaker to terminal L, making sure that you connect the red wire to "+" and black to "-"

Note:

• Speakers with an impedance of 4 Ohms or higher other than as supplied may be used instead. Speakers with a lower impedance, however, are unsuitable and will damage your set.
• When headphones are inserted into the headphone jack the speakers are disconnected.

R SPEAKERS 4 Ω

GENERAL OPERATION

1. Press POWER to on position.
2. A source indicator lights up.
3. Select and press your source button CD, TUNER or TAPE.
4. The selected source indicator lights up.
5. Operate sound source according to the instructions of the respective chapter about the function.
6. Adjust the sound using the VOLUME and DBB controls.
7. Press POWER again to switch off the set.
8. The selected source indicator goes out.

POWER OFFICE 12:10:36 PUBS ON TURSU

RADIO RECEPTION

1. Press POWER to on position.

2. Press TUNER source button.

- The TUNER indicator lights up.

1. Adjust BAND to select the desired FM/AM waveband.

2. Tune to a radio station using the tuning knob.

- For FM, pull out the telescopic antenna. Incline and turn the antenna. Reduce its length if the signal is too strong (very close to a transmitter).

- For AM, the set is provided with a built-in antenna so the telescopic antenna is not needed. Direct the antenna by turning the whole set.

1. Adjust the sound using VOLUME and DBB.

2. Press POWER again to switch off the set.

- The TUNER indicator goes out.

POWER OFF 17:10:36

10:36 Signal CD TAPL RPG Signal 14.4 2.5 11 F8 min 8.0 9.0 10.0 11.0 12.0 13.0

DISPLAY INDICATION FOR CD FUNCTIONS

Cd ^OPEN

d 15C

CD door open

CD inserted

- In stop mode

total track number and total playback time

– During CD playback

elapsed playback time of current track and current track number

- PAUSE

elapsed playback time freezes and flashes

pr og

when CD program active;

also appears briefly when you store a track

no SEL

program activated but no tracks selected

no ^pr og

program cancelled/ PROG pressed for more than 2 seconds

no d15C

no disc/error in CD operation or with the CD (see Troubleshooting)

FULL

program memory full

- SHUFFLE/ REPEAT

modes

when the respective mode is activated

16 73:42 CD

8 2:54 CD

12 2:30 CD

1 4:26 1 REPEAT SHUFFLE CD

Playing a CD

1. Press POWER to on position.
2. Press CD source button.
   – The CD indicator lights up.
3. To open the CD door, press OPEN on the CD door.
4. Insert a CD with the printed side facing up and press the CD door gently to close.
5. Press PLAY/PAUSE ▶II on the set to start playback.
6. Adjust the sound using VOLUME and DBB.
7. To interrupt playback press PLAY/PAUSE ▶II. To resume, press PLAY/PAUSE ▶II again.
8. To stop CD play, press STOP ■.
9. Press POWER again to switch off the set.
10. The CD indicator goes out.

Note: CD playback will also stop when:

• you press the CD door open;
• TUNER or TAPE source is pressed;
• the CD has reached the end.

Selecting a different track

During playback, you can use the SEARCH buttons to select a particular track.

• If you have selected a track number in the stop or pause position, press PLAY/PAUSE ▶II to start playback.
• Press SEARCH ▶I once briefly for the next track, or press repeatedly until the desired track number appears in the display.
• Press SEARCH ◀ once briefly to return to the beginning of a current track.
• Press SEARCH ◀ more than once briefly for a previous track.

Finding a passage within a track

1. Press and hold down SEARCH ◀ or ▶l.
2. The CD is played at high speed and low volume.
3. When you recognize the passage you want, release the SEARCH button.

POMS OFFICE WITH MAXIMETERS REACHING 17:10:36

10:50 MP30 MP31 MP32 MP33 MP34 MP35 MP36 MP37 MP38 MP39 MP40 MP41 MP42 MP43 MP44 MP45 MP46 MP47 MP48 MP49 MP50 750 ms 800 ms 850 ms 900 ms 950 ms 1000 ms 1050 ms 1100 ms 1150 ms 1200 ms 1250 ms 1300 ms 1350 ms 1400 ms 1450 ms 1500 ms 1550 ms 1600 ms 1650 ms 1700 ms 1750 ms 1800 ms 1850 ms 1900 ms 1950 ms 2000 ms 2050 ms 2100 ms 2150 ms 2200 ms 2250 ms 2300 ms 2350 ms 2400 ms 2450 ms 2500 ms 2550 ms 2600 ms 2650 ms 2700 ms 2750 ms 2800 ms 2850 ms 2900 ms 2950 ms 3000 ms 3050 ms 3100 ms 3150 ms 3200 ms 3250 ms 3300 ms 3350 ms 3400 ms 3450 ms 3500 ms 3550 ms 3600 ms 3650 ms 3700 ms 3750 ms 3800 ms 3850 ms 3900 ms 3950 ms 4000 ms

STOP 1 +1 >>1 PLAYWISE 7 32 50 100 150 200 min.100 500 min 100 500 min 150 750 100 150 200 350 500 600 750 800 950 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 6000 6500 7000 7500 8000 8500 9000 9500 1000

Different play modes : Shuffle and Repeat

The SHUFFLE and REPEAT buttons allow you to select various play modes. The modes can be selected or changed during playback.

SHUFFLE - all tracks are played in random order REPEAT - plays the current track continuously REPEAT ALL - repeats the entire CD

1. In the stop position or during playback, select your play mode by pressing SHUFFLE or REPEAT once or more until the desired play mode is shown.
2. You can use SEARCH ◀ or ▶ to skip tracks during the SHUFFLE/ REPEAT modes.

The SHUFFLE/ REPEAT play options can be combined and used with a program: e.g. SHUFFLE REPEAT ALL - repeats the entire CD in random order.

1. To return to normal playback press SHUFFLE/ REPEAT until the various SHUFFLE/ REPEAT modes are no longer shown.
2. You can also press STOP ■ to quit the play mode.

13 4:27 SHUFFLE CD

5 2:59 SHUFFLE REPEAT CD

9:5:13 SHUFFLE REPEAT ALL CD

Programming track numbers

You may store up to 20 tracks in the desired sequence. If you like, store any track more than once.

1. In the stop position, press SEARCH ◀ or ▶ for your desired track.
2. When your chosen track number appears, press PROG once to store the track.
3. The display shows 'PROG' and 'PR 09' briefly followed by your selected track number.
4. Repeat steps 1. and 2. to select and store all desired tracks in this way.

Reviewing your set program

- In the stop position, press and hold down PROG for one second or more.

The display shows all your stored track numbers in sequence.

• You can also review the program during playback.
• To play your program press PLAY/PAUSE ▶II.

Erasing a program

You can erase the contents of the memory by:

• pressing the CD door open;
• pressing TUNER or TAPE source button;
• pressing STOP ■ twice during playback/ in stop position
• The display shows 'no' ^prog ' briefly when the program is cancelled.

STOP 111 >> 7 >>>

9 PROG CD

PROG CD

no PR 09 CD

PLAYING A CASSETTE

1. Press POWER to on position.
2. Press TAPE source button.

– The TAPE indicator lights up.
3. Press STOP/EJECT ■ ▲ to open the cassette holder and insert a cassette.
4. Press the cassette holder shut.
5. Press PLAY ▶ to start playback.
6. Adjust the sound using the VOLUME and DBB controls
7. To interrupt playback press PAUSE II. To resume, press the key again.
8. By pressing ◀◀ or ▶▶, fast winding of the tape is possible in both directions. To stop fast winding, press STOP/EJECT ■ ▲.
9. To stop the tape, press STOP/EJECT ■ ▲.
- The keys are automatically released at the end of the tape, except if PAUSE II has been activated.
10. Press POWER again to switch off the set.
- The TAPE indicator goes out.

12:10:36 SUNTER SUNTER SUNTER PUB PUB PUB PUB PUB PUB PUB PUB PUB PUB PUB PUB PUB PUB PUB PUB PUB PUB PUB PUB PUB PUB PUB PUB PUB PUB PUB PUB PUB PUB PUB PUB PUB PUB

RICHED PLAY HAPP HISTORY ● ▶ +4 ▶ +2 ■ 11

Continuous Playback

1. Repeat steps 1 - 4 above, but load both decks. Press PLAY ▶ on deck 2 and deck 2 will start.
2. Press PAUSE II on deck 1 and then PLAY ▶. As soon as deck 2 stops (end of tape or STOP/EJECT ■ ▲ pressed), PAUSE II on deck 1 is released and deck 1 will start playback.

PLAY MATCH WORDS PALM

GENERAL INFORMATION ON RECORDING

• Recording is permissible insofar as copyright or other rights of third parties are not infringed.
• Recording is only possible on deck 1.
• This deck is not suitable for recording on CHROME (IEC II) or METAL (IEC IV) type cassettes. For recording, use NORMAL type cassettes (IEC I) on which the tabs have not been broken.
• The best recording level is set automatically. Altering the VOLUME and DBB controls will not affect the recording in progress.
• At the very beginning and end of the tape, no recording will take place during the 7 seconds, when the leader tape passes the recorder heads.
• To protect a tape from accidental erasure, have the tape in front of you and break out the left tab. Recording on this side is no longer possible. To record over this side again, cover the tabs with a piece of adhesive tape.

Dubbing: Copying from deck 2 to 1

For best results, use mains power or fresh batteries.

1. Press TAPE source button.
2. Press both STOP/EJECT ■ ▲ keys and insert a recorded tape into deck 2 and a suitable tape for recording in deck 1.
3. Press PAUSE II on deck 1 and then RECORD ●.
4. To start dubbing, press PLAY ▶ on deck 2. PAUSE II on deck 1 is then released.
5. By pressing PAUSE II on deck 1, you can omit undesired passages while deck 2 continues. Press deck 1 PAUSE II to resume dubbing.
6. Pressing PAUSE II on deck 2 will create pauses.
7. To stop recording, press both STOP/EJECT ■ ▲ keys.

Recording from the radio

1. Press TUNER source button.
2. Tune to the desired radio station (See 'RADIO RECEPTION').
3. Press STOP/ EJECT ■▲ to open the cassette holder.
4. Insert a blank tape and close the cassette holder.
5. Press RECORD ● to start recording.
6. For brief interruptions, press PAUSE II. To resume recording, press PAUSE II again.
7. To stop recording, press STOP/EJECT ■▲.

10:36 START OFF F/100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100%

RECORD PLAY REACH STOP/RESET FATORE 0 ▶ <6 > > 离二 11

Synchro Start CD recording

1. Press CD source button.
2. Insert a CD and if desired, program track numbers.
3. Press STOP/EJECT ■ ▲ to open the cassette holder. Insert a blank tape.
4. Press the cassette holder shut.
5. Press RECORD ● to start recording.
6. Playing of the CD program starts automatically from the beginning of the program. It is not necessary to start the CD player separately.
7. For brief interruptions press PAUSE II. To resume recording, press PAUSE II again.
8. To stop recording, press STOP/EJECT ■ ▲.

12:10:36 INPUT START SELECT SELECT PEN RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET Re 100% Re 100% Re 100% Re 100% Re 100% Re 100% Re 100% Re 100% Re 100% Re 100% Re 100% Re 100% Re 100% Re 100% Re 100% Re 100% Re 100% Re 150% Re 150% Re 150% Re 150% Re 150% Re 150% Re 150% Re 150% Re 150% Re 150% Re 150% Re 150% Re 150% Re 150% Re 150% Re 150% Re 150% Re150% Re150% Re150% Re150% Re150% Re150% Re150% Re150% Re150% Re150% Re150% Re150% Re150% Re150% Re150% Re150% Re150% Re150% Re150% Re150% Ret 88% Ret 88% Ret 88% Ret 88% Ret 88% Ret 88% Ret 88% Ret 88% Ret 88% Ret 88% Ret 88% Ret 88% Ret 88% Ret 88% Ret 88% Ret 88% Ret 88% Ret 88% Ret 88% Ret 88% Ret 88%

B ↑ ←← → → 11 STOP/RESET FAIRLE

To select and record a particular passage

During CD playback, press and hold down the SEARCH button ◀◀ or ▶▶to find your passage.

- Press PLAY/PAUSE ▶II to put the CD player on pause at the selected passage.

- Recording will begin from this exact point in the track when you press RECORD ●.

PRECAUTIONS AND SYSTEM MAINTENANCE

• Place the set on a hard, flat surface so that the system does not tilt.
• Do not expose the set, batteries, CDs or cassettes to humidity, rain, sand or excessive heat caused by heating equipment or direct sunlight.
• Do not cover the set. Adequate ventilation with a minimum gap of 15 cm between the ventilation holes and surrounding surfaces is necessary to prevent heat build-up.
• The mechanical parts of the set contain self-lubricating bearings and must not be oiled or lubricated.
• To clean the set, use a soft, slightly dampened chamois leather. Do not use any cleaning agents containing alcohol, ammonia, benzene or abrasives as these may harm the housing.

Diagram illustrating sunlight passing through a lens and interacting with a surface, showing light rays and wavy patterns (no text or symbols)

Warning symbol with three bottles crossed out, indicating no chemical hazard or toxicity

Tape deck maintenance

To ensure quality recording and playback of the tape deck, clean parts A, B and C shown in the diagram below, after approx. 50 hours of operation, or on average once a month. Use a cotton bud slightly moistened with alcohol or a special head cleaning fluid to clean both decks.

1. Open the cassette holder by pressing STOP/EJECT ■ ▲.
2. Press PLAY ▶ and clean the rubber pressure rollers ©.
3. Press PAUSE II and clean the magnetic heads Ⓐ and also the capstan Ⓑ.
4. After cleaning, press STOP/EJECT ■ ▲.

CD player and CD handling

• The lens of the CD player should never be touched!
• Sudden changes in the surrounding temperature can cause condensation to form and the lens of your CD player to cloud over. Playing a CD is then not possible. Do not attempt to clean the lens but leave the set in a warm environment until the moisture evaporates.
  • Use only Digital Audio CDs.
• To take a CD out of its box, press the center spindle while lifting the CD. Always pick up the CD by the edge and replace the CD back in its box after use to avoid scratching and dust.
• To clean the CD, wipe in a straight line from the center towards the edge using a soft, lint-free cloth. Do not use cleaning agents as they may damage the disc.
• Never write on a CD or attach any stickers to it.

A A B C

Diagram showing a hand using a tool to mark a point labeled 'X' on a surface, likely indicating a step or measurement.

Illustration of a hand using a compass to measure a circular object (no text or symbols present)

If a fault occurs, first check the points listed below before taking the set for repair.

If you are unable to remedy a problem by following these hints, consult your dealer or service center.

WARNING: Do not open the set as there is a risk of electric shock. Under no circumstances should you try to repair the set yourself, as this would invalidate the guarantee.

PROBLEM

- POSSIBLE CAUSE

- REMEDY

No sound/power

• VOLUME is not adjusted
• Adjust the VOLUME
• Headphones connected
• Disconnect headphones
  – Power cord not securely connected
• Connect AC power cord properly
• Batteries dead/ incorrectly inserted
• Insert (fresh) batteries correctly

Display does not function properly/ No reaction to operation of any of the controls

• Electrostatic discharge
• Switch off set, disconnect the power plug and reconnect after a few seconds

CD playback does not work

• CD is badly scratched/ dirty
• Replace/ clean CD (see MAINTENANCE)
  – Laser lens steamed up
• Wait until lens has acclimatized

The CD skips tracks

• CD is damaged or dirty
• Replace or clean the CD
• SHUFFLE or a program is active
• Quit SHUFFLE/PROGRAM mode(s)

Poor cassette sound quality

– Dust and dirt on the heads, etc.
- Clean deck parts etc., see maintenance
- Use of incompatible cassette types (METAL or CHROME).
- Only use NORMAL (IEC I) for recording.

Recording does not work

• Cassette tab(s) may be broken
• Apply a piece of adhesive tape over the missing tab space.

Environmental information

All unnecessary packaging material has been omitted. The packaging can be easily separated into three materials: cardboard, polystyrene and plastic.

Your set consists of materials which can be recycled if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packing materials, dead batteries and old equipment.

Small Product Service Center

Philips Service Company

907 Snapps Ferry Road, Plant 2, Building 6

Greeneville, TN 37743 É.-U.

10:36 Signal CD TAPL RPG Signal 14.4 2.5 11 F8 10.0 8.0 7.0 6.0 5.0 4.0 3.0 2.0 1.0 0.0 dB 10.0

AFFICHAGE DES FONCTIONS CD

Cd ^OPEN

16 7:33:42 CD

8 2:54 CD

12 2:30 CD

1 4:26 SHUFFLE REPEAT CD

Lecture d'un CD

9 PROG CD

PROG CD

NOTED PLAY SHIFT ● ▶ 44 44 100% 100% 100%

PLAY SONOH STOPJECT PLUS ←← →← ■← 11

INFORMATIONS GÉNÉRALES À PROPOS DE L'ENREGISTREMENT

MCDM PLAY WATCH STORMECT MODE ● ↑ ↓ ↑ ↑ ↑ 11

Warning sign with three labeled items and a crossed-out 'NO' symbol, indicating no chemical hazard or absence.

A A B C

Diagram showing a hand holding a tool with an 'X' mark and a circular button, likely illustrating a process or operation.

Illustration of a hand using a compass to measure a circular dial (no text or symbols)

• CAUSE POSSIBLE
• REMEDE

Small Product Service Center

Philips Service Company

907 Snapps Ferry Road, Plant 2, Building 6

Greeneville,TN 37743 USA

16 7:33:42 CD

8 2:54 CD

12 2:30 CD

1 4:26 SHUFFLE REPEAT CD

9 PROG CD

PROG CD

MCIQD PLAY HMO TPO/POST Facing ● ▶ +4 ▶+1 ■= 11

Warning symbol with three labeled objects and a crossed-out arrow, indicating no clear safety or hazard.

A A B C

Diagram showing a hand using a tool to mark a point labeled 'X' on a surface, with an X symbol indicating the point.

Illustration of a hand holding a compass and pointer (no text or symbols)

• POSIBLE CAUSA
• REMEDIO

A Division of Philips Electronics North America Corporation Knoxville, Tennessee 37914-1810, U.S.A.

Recycling symbol composed of three interlocking arrows forming a triangle (no text or labels)

Meet Philips at the Internet

http://www.philips.com

CLASS 1 LASER PRODUCT
