USER MANUAL VIVO GRACO

AND KEEP THEM FOR FUTURE REFERENCE. YOUR

CHILD'S SAFETY MAY BE AFFECTED IF YOU DO NOT

FOLLOW THESE INSTRUCTIONS.

Owners Manuel - Adult assembly required.

Parts List 3

Pushchair Use and Features 4-34

Warnings / Care & Maintenance 35-37

WARNING: Choking hazard: dispose of all extra packaging.

Pull FIRMLY on wheel assembly to be sure it is securely attached.

WARNING: Choking hazard: dispose of all extra packaging.

Pull FIRMLY on axle assembly to be sure it is securely attached.

WARNING: The tray is not a restraint device. Use care when clamping the tray onto the pushchair with a child in the pushchair.

WARNING: Always apply brake when parking pushchair.

Check to make sure brake is on by trying to push the pushchair.

Front swivel wheels lock for use on uneven surfaces such as grass, stones or gravel.

WARNING: Avoid serious injury from falling or sliding out. Always use the crotch strap in combination with the waist belt.

Shoulder harness anchor—larger child

Shoulder harness anchor—smaller child

Use either shoulder harness anchor in the slots that are closest to child's shoulder height.

Use slide adjuster for further adjustment.

To raise, pull recline strap up.

To recline, pull recline tab down.

Raise or lower legrest with the wire located underneath the legrest as shown.

WARNING: When using the seat in the fully reclined position, ALWAYS use the enclosure flap properly secured with the VELCRO straps (see steps 27-30). Failure to do so could result in injury.

Lift legest up and unfasten Velcro straps as shown.

Thread straps through button holes on each side of seat cover.

To lock off enclosure, slide wire down as shown.

Slide Velcro underneath slots in leg rest and fasten VELCRO® straps together.

Zip tray cover onto hood.

Fully recline seat back and place carrycot into pushchair as shown. Reverse the canopy and wrap the tray cover around the bottom of tray as shown in 33.

Attach D-ring from the pushchair seat pad, to the clip attached to the carrycot as shown. Repeat on other side.

Insert straps from head support into shoulder holes in the seat pad and fasten VELCRO straps together.

To provide head support for smaller children, choose the upper snap (A) on both sides as shown.

To provide head support for larger children, choose the lower snap (B) on both sides as shown.

Place foot muff in seat and pull harness through slits in foot muff.

Graco Infant Carrier (sold separately, on certain models)

• Porte-bébe Graco (vendu séparation, sur certains modèles)
• GRACO Babyschale (wird für einige Modèle separat verkauft).

• Porta-bebés Graco (vendido porSeparated en ciertos modelos)

• Graco autostoei (apart verkocht, op bepaalde modellen)

• Porta Neonato Graco (venduto separatamente, in determinati modelli)

• Graco-vauvan kantokori (myydaan erikseeneräille malleille)

• Gracos barnkorg (säljs separat, på vissa modeller)

• Suporte paracriançaGraco(vendido separadamente nalgunsmodelos)

WARNING: Make sure pushchair is fully assembled according to the preceding instructions.

ALWAYS secure your child with the safety seat harness when using the safety seat on the pushchair.

Recline the stroller back to its lowest position. Fold the canopy. Snap carrier into position onto tray.

IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP THEM FOR FUTURE REFERENCE. YOUR CHILD'S SAFETY MAY BE AFFECTED IF YOU DO NOT FOLLOW THESE INSTRUCTIONS.

SAFETY NOTES

WARNING: Remember a child's safety is your responsibility.

WARNING: It may be dangerous to leave your child unattended.

Children should be harnessed in at all times and should never be left unattended.

The child should be clear of all moving parts while making adjustments.

This vehicle requires regular maintenance by the user.

Overloading, incorrect folding and the use of non-approved accessories may damage or break this vehicle.

Read the instructions.

EN1888:2003

Do not hang shopping bags from the handle or carry shopping bags on the pushchair except in a Graco-approved shopping tray. Maximum load 5kg NEVER ON THE FOOTREST.

It may be unsafe to use accessories e.g. child seats, bag hooks, rain covers, etc. other than those approved by Graco®.

It may be unsafe to use replacement parts other than those approved by Graco.

Use of this pushchair with a child weighing more than 15kg will cause excessive wear and stress on this pushchair.

This vehicle is intended for a child from birth and up to 15kg

Only the Graco Autobaby car seat is compatible with this pushchair.

Pushchair is designed to be used with only one child at a time.

WARNING check that the pram body or seat unit attachment devices are correctly engaged before use.

WARNING: It may be dangerous to leave your child unattended.

WARNING: Ensure that all the locking devices are engaged before use.

WARNING: Use a harness as soon as your child can sit unaided.

WARNING: Always use the crotch strap in combination with the waist belt.

WARNING: Any load attached to the handle affects the stability of the pram/pushchair.

WARNING :Regularly lubricate all moving parts sparingly with a light general purpose machine oil, making sure that the oil penetrates between the components where these move against each other in use.

WARNING: Combined canopy pocket weight not to exceed 1kg

Check the various safety devices and use them correctly.

Keep your child away from the folded free-standing unit so that it does not fall and injure your child.

Pushchairs should be serviced after an extended period of no use.

If your pushchair is used by anyone unfamiliar with it, e.g. grandparents, always show them how it works.

D rings are provided at the ends of the waist belts on either side of the seat for the attachment of a safety harness approved to BS 6684 or EN13210.

WARNING · CARE AND MAINTENANCE

Do not use a PVC rain hood indoors, in a hot atmosphere or near a direct heat source—baby may overheat.

Do not let go of your pushchair when close to moving road vehicles or trains, even with the brake on, the draught from the vehicle or train may move a free standing pushchair.

When ascending or descending stairs or escalators, always remove your child and fold the puschchair.

Avoid strangulation. DO NOT suspend strings from your pushchair or place items with strings on your child.

NEVER use in full recline position unless enclosure flap is up. Child may slip into leg openings and strangle. Do not use enclosure flap with an older child that can lift up on hands and knees or crawl out.

WARNING : The carrycot is suitable only for a child who cannot sit up unaided, roll over and cannot push itself on its hands and knees. Maximum weight of the child 9kg.

WARNING : Never use this carrycot on a stand.

WARNING: Carry cot is only suitable for a child who cannot sit up unaided.

WARNING: Do not let other children play unattended near the carrycot.

WARNING: DO NOT use if any part is broken torn or missing.

USE only replacement parts approved by the manufacturer.

Use carrycot on a firm, horizontal level and dry surface.

WARNING: CARRYCOT TO BE USED ONLY WITH GRACO VIVO PUSHCHAIR.

WARNING: always ensure the brake is ON before you position the carrycot.

Immediately after you put the carrycot inside the pushchair, you must connect it to the pushchair using the buckles on either side. Do not move the pushchair until you have checked that the left and right buckles are locked and the carrycot is securely fixed to the pushchair.

ALWAYS have wedge and plastic stiffeners inserted prior to use.

NEVER leave child unattended.

Carrycot is NOT to be used for long term sleeping.

NEVER allow carry straps to lay on inside of unit.

WARNING: DO NOT add a water mattress or any mattress.

Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, etc., in the near vicinity of the carrycot.

The handles and bottom of carrycot should be inspected regularly for signs of damage and wear.

ALWAYS read and understand instruction booklet before using your carrycot. If you are missing your instruction booklet, please contact the manufacturer to obtain one.

Check the correct and safe assembly before the use.

WARNING · CARE AND MAINTENANCE

CARE AND MAINTENANCE

REMOVABLE SEAT PAD may be machine washed in cold water on delicate cycle and drip-dried.

WHEN USING YOUR PUSHCHAIR at the beach, completely clean your pushchair afterwards to remove sand and salt from the wheel assemblies.

FROM TIME TO TIME CHECK YOUR PUSHCHAIR for loose screws, worn parts, torn material or stitching. Replace or repair the parts as needed.

DISCONTINUE USING YOUR PUSHCHAIR should it become damaged or broken.

TO CLEAN PUSHCHAIR FRAME, use only household soap or detergent and warm water. NO BLEACH, SPIRIT OR ABRASIVE CLEANERS. Allow to dry before storing.

EXCESSIVE EXPOSURE TO THE SUN could cause premature fading of pushchair plastic and fabric.

CARRYCOT may be machine washed in cold water on delicate cycle and drip-dried.

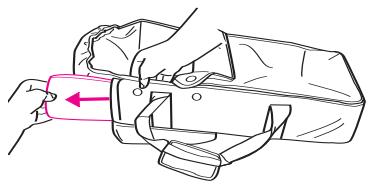

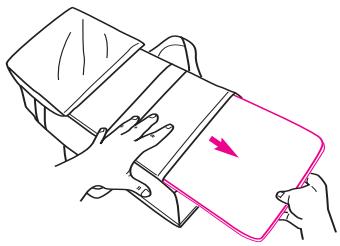

For carrycot, remove wedge and plastic stiffeners before washing.

NEVER use carrycot without the plastic stiffeners and wedge assembled.

Newell Rubbermaid
Graco Children's Product
Consumer Services Department
First Floor
900 Pavilion Drive
Northampton NN4 7RG, UK
