Brand	PHILIPS
Model	AZ1141
Product type	Portable CD player with cassette deck and tuner
Power supply	6 R14/UM-2/C batteries (alkaline recommended) or 230 V AC mains
Supported CD formats	CD, CD-R, CD-RW
Cassette deck	Yes, compatible with Normal (IEC I) cassettes
Tuner	FM, MW, LW
FM antenna	Telescopic
MW/LW antenna	Built-in
Headphone jack	3.5 mm stereo
Bass enhancement	DBB (Dynamic Bass Boost)
CD playback modes	Normal, Shuffle, Repeat, Program (up to 20 tracks)
Radio presets	Up to 30 stations
Recording	From CD or tuner onto cassette
Display	Digital: mode, frequency, track number, time
Low battery indicator	BATT LOW indicator
Maintenance	Clean with a soft, slightly damp cloth; avoid alcohol, ammonia, benzene, abrasives
Cassette head cleaning	Cotton swab and alcohol or special cleaning fluid every 50 hours
Safety	Do not open the device; avoid moisture, excessive heat, direct sunlight
After-sales service	Contact the dealer or an authorized service center

Frequently Asked Questions - AZ1141 PHILIPS

How to change the batteries?

Open the battery compartment and insert six R14, UM-2 or C batteries (preferably alkaline) observing polarity (+/-). Close the compartment. The BATT LOW indicator lights up when the batteries are low.

How to tune a radio station?

Select TUNER with the POWER slide switch. Choose the band (FM, MW, LW) with BAND. Press SEARCH ◀◀ or ▶▶ for automatic search, or press briefly for fine manual tuning.

How to record from a CD?

Select CD and insert a CD. Open the cassette compartment with STOP•OPEN, insert a blank Normal (IEC I) cassette, then press RECORD ●. CD playback starts automatically and recording begins.

What to do if the display shows 'no disc'?

Make sure a CD is inserted correctly (printed side up). If the CD is scratched or dirty, clean it with a soft cloth from center to edge. If the problem persists, wait for the lens to defog (in case of condensation) or use a cleaning CD.

How to clean the cassette heads?

Open the cassette compartment. Press PLAY ◀ to clean the pinch rollers, or PAUSE II to clean the magnetic heads and capstan with a cotton swab moistened with alcohol or special cleaning fluid. Perform this operation every 50 hours of use.

How to program radio stations?

Tune to the desired station. Press PROGRAM (the indicator flashes). Use PRESET ▲/▼ to select a number from 1 to 30, then press PROGRAM again to store. Up to 30 stations can be saved.

Can I use rechargeable batteries?

The manual recommends alkaline batteries of type R14/UM-2/C. Rechargeable batteries of the same size can be used, but their slightly lower voltage (1.2 V instead of 1.5 V) may reduce battery life. Make sure they are fully charged.

How to activate Shuffle mode?

During playback or when stopped, press CD MODE until SHUFFLE appears on the display. Tracks will be played in random order. To repeat continuously, press until SHUFFLE REPEAT ALL appears. To cancel, press again until the indicators disappear.

How to adjust volume and bass?

Turn the VOL knob to increase or decrease volume. Press DBB to activate or deactivate the Dynamic Bass Boost which enhances bass.

What to do if the cassette does not play correctly?

Clean the deck heads (see cleaning question). Make sure you are using Normal (IEC I) cassettes and not Chrome or Metal cassettes. If the protective tabs are broken, recording is impossible (cover them with adhesive tape if necessary).

USER MANUAL AZ1141 PHILIPS

PHILIPS CD RADIO CARD TIE RECORDS DYNAMIC BASS BOOST PLAY/NUSE 3 PROGRAM 17:04 CO MODE STOP SEARCH PROGRAM AZ1140

Important notes for users in the U.K.

Mains plug

This apparatus is fitted with an approved moulded 13 Amp plug. To change a fuse in this type of plug proceed as follows:

• Remove fuse cover and fuse.
• Fix new fuse which should be a BS1362 5 Amp, A.S.T.A. or BSI approved type.
• Refit the fuse cover.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place.

If the mains plug contains a fuse, this should have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5 Amp.

Note: The severed plug must be disposed to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.

How to connect a plug

The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L). As these colours may not correspond with the colour markings identifying the terminals in your plug, proceed as follows:

• Connect the blue wire to the terminal marked N or coloured black.
• Connect the brown wire to the terminal marked L or coloured red.
• Do not connect either wire to the earth terminal in the plug, marked E (or 12 ) or coloured green (or green and yellow).

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the two wires. Copyright in the U.K.: Recording and playback of material may require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

N Norge

Philips Consumer Electronics

Philips, Glaslaan 2,

5616 JB Eindhoven, The Netherlands

English 4

Français 14

Español 24

Deutsch 34

Nederlands 44

Italiano 54

Polski 64

Português 74

Dansk 84

Svenska 94

Suomi 104

'Ελληνικά 114

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 PHILIPS AZI 40 CD RADIO CASO TE RECORDER DYNAMIC ASS BOOST PLA/PUSSS PROG STICK RUM KU SEARCH PRO RAM LIPS AVIS RISQUE DE CROC ELECTROULE/NE PAS OUVRR AC ~ MAINS 20 21

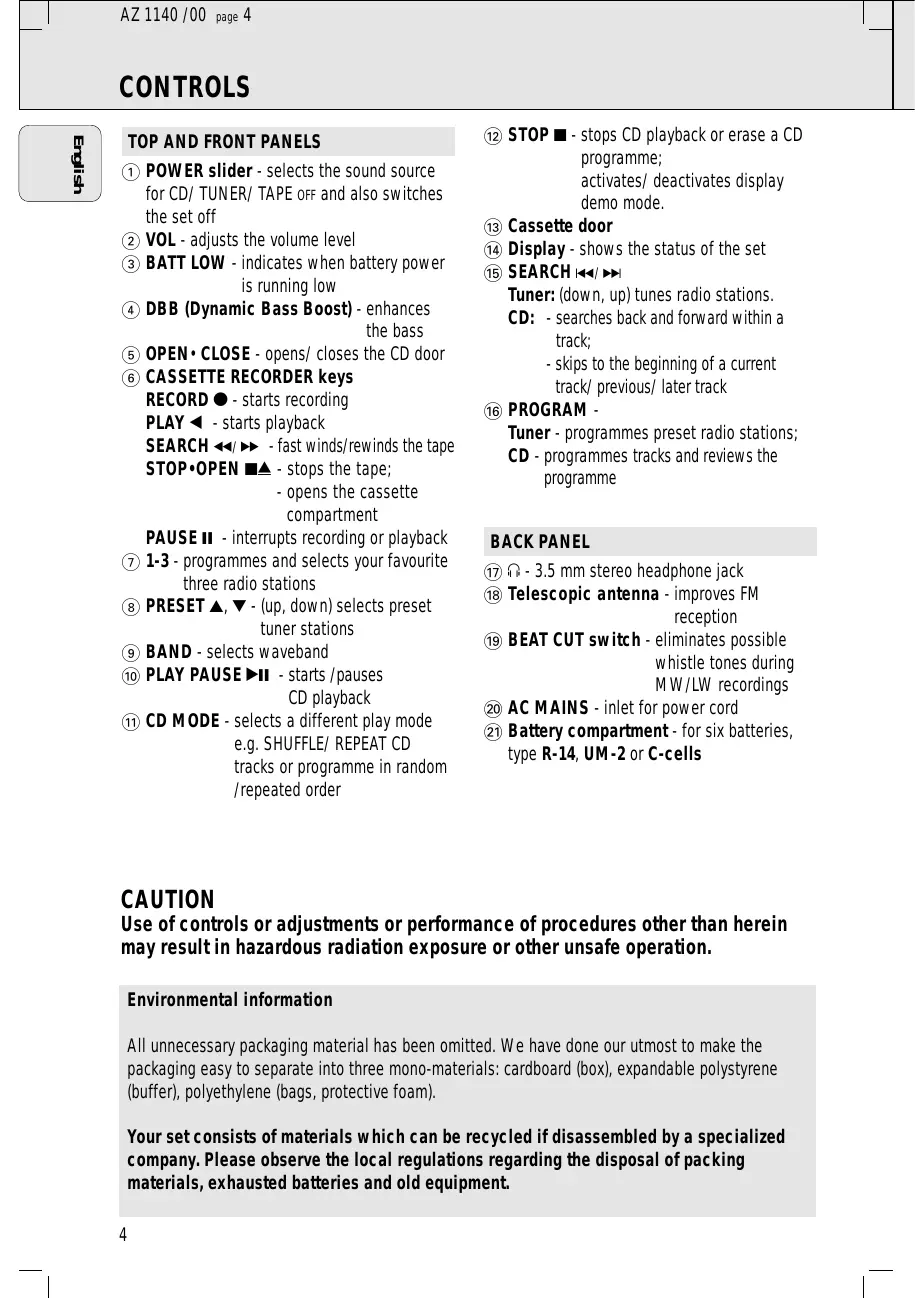

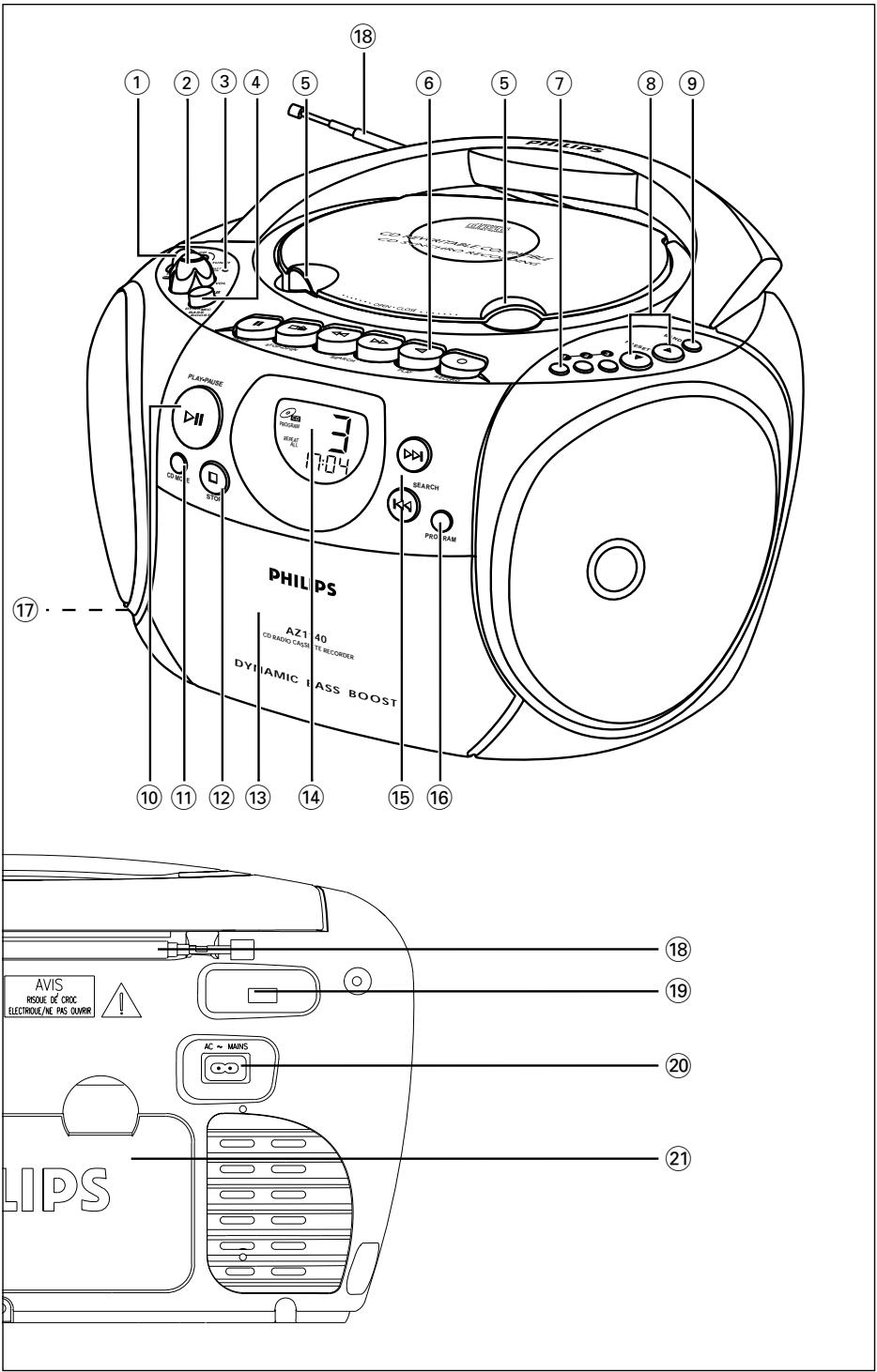

TOP AND FRONT PANELS

① POWER slider - selects the sound source for CD/ TUNER/ TAPE OFF and also switches the set off
② VOL - adjusts the volume level
③ BATT LOW - indicates when battery power is running low
④ DBB (Dynamic Bass Boost) - enhances the bass
⑤ OPEN•CLOSE - opens/ closes the CD door
⑥ CASSETTE RECORDER keys

RECORD ● - starts recording

PLAY ◀ - starts playback

SEARCH ◀◀/▶▶ - fast winds/rewinds the tape

STOP•OPEN ■▲ - stops the tape;

- opens the cassette compartment

PAUSE II - interrupts recording or playback

⑦ 1-3 - programmes and selects your favourite three radio stations
⑧ PRESET ▲, ▼ - (up, down) selects preset tuner stations
⑨ BAND - selects waveband
⑩ PLAY PAUSE ▶II - starts /pauses CD playback
⑪ CD MODE - selects a different play mode e.g. SHUFFLE/ REPEAT CD tracks or programme in random /repeated order

⑫ STOP ■ - stops CD playback or erase a CD programme; activates/ deactivates display demo mode.
⑬ Cassette door
⑭ Display - shows the status of the set
⑮ SEARCH ◀◀/▶▶

Tuner: (down, up) tunes radio stations.

CD: - searches back and forward within a track;

- skips to the beginning of a current track/ previous/ later track

⑯ PROGRAM -

Tuner - programmes preset radio stations;

CD - programmes tracks and reviews the programme

BACK PANEL

⑰ - 3.5 mm stereo headphone jack
⑱ Telescopic antenna - improves FM reception
⑲ BEAT CUT switch - eliminates possible whistle tones during MW/LW recordings
⑳ AC MAINS - inlet for power cord
②1 Battery compartment - for six batteries, type R-14, UM-2 or C-cells

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

Environmental information

All unnecessary packaging material has been omitted. We have done our utmost to make the packaging easy to separate into three mono-materials: cardboard (box), expandable polystyrene (buffer), polyethylene (bags, protective foam).

Your set consists of materials which can be recycled if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packing materials, exhausted batteries and old equipment.

Whenever convenient, use the mains supply if you want to conserve battery life. Make sure you remove the plug from the set and wall socket before inserting batteries.

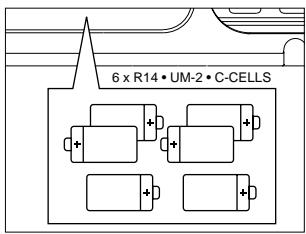

BATTERIES (OPTIONAL)

1. Open the battery compartment and insert six batteries, type R-14, UM-2 or C-cells, (preferably alkaline) with the correct polarity as indicated by the "+" and "-" symbols inside the compartment.
2. Replace the compartment door, making sure the batteries are firmly and correctly in place. The set is now ready to operate.
3. If BATT LOW lights up, battery power is running low.

- The BATT LOW indicator eventually goes out if the batteries are too weak.

Incorrect use of batteries can cause electrolyte leakage and will corrode the compartment or cause the batteries to burst.

Therefore:

• Do not mix battery types: e.g. alkaline with carbon zinc. Only use batteries of the same type for the set.
• When inserting new batteries, do not try to mix old batteries with the new ones.
• Remove the batteries if the set is not to be used for a long time.
• Batteries contain chemical substances, so they should be disposed of properly.

For users in the U.K.: please follow the instructions on page 2.

Using AC MAINS

1. Check if the mains voltage as shown on the type plate on the base of the set, corresponds to your local mains supply. If it does not, consult your dealer or service centre.
2. If your set is equipped with a voltage selector, adjust the selector so that it matches with the local mains supply.
3. Connect the mains lead to the wall socket and the set is now ready for use.
4. To disconnect the set from the mains supply completely, remove the plug from the wall socket.

6 x R14 • UM-2 • C-CELLS

AC ~ MAINS

Switching on and off

• Adjust the POWER slider to the desired sound source: CD, TUNER or TAPE/OFF.
• The set is switched off when the POWER slider is in the TAPE/OFF position and the keys on the tape deck are released.
  → The volume and tuner presets will be retained in the set's memory.

n D+1 D+2 D+3

Adjusting volume and sound

1. Turn the VOL control to increase or decrease VOLUME.
2. Adjust the DBB control to select dynamic bass boost on or off.
