Product Type	Cordless Vacuum Cleaner
Brand	Concept
Model	VP-4310
Power Supply	Accumulator: DC 4.8 V; Charging adaptor input: AC 100-240 V, 50/60 Hz, output: DC 6.4 V, 200 mA
Power Consumption	30 W
Noise Level	80 dB (A)
Charging Time	Approximately 6.5 hours
Operating Time	Approximately 8 minutes
Battery Type	NiMH (Nickel-Metal Hydride)
Battery Life	150–200 charging cycles
Charging Indicator	Red light glows while charging
Filter Type	Permanent (washable) filter
Filter Maintenance	Clean by shaking or washing with lukewarm water; do not use detergents
Accessories Included	Charging base, charging adaptor
Optional Accessories	Motor filter (Order No. 42391667), Accumulator (Order No. 42391668)
Safety Features	Do not vacuum liquids or hot objects; always use with filter; keep away from children
Usage	Domestic use only
Warranty	24 months from date of purchase
Service	Contact authorized service center; do not attempt self-repair
Environmental	Contains NiMH battery; recycle properly at designated collection point

Frequently Asked Questions - VP-4310 Concept

How long does it take to fully charge the vacuum cleaner?

The charging time is approximately 6.5 hours. The red indicator light will glow while charging. For best battery life, charge only after the battery is fully depleted.

What should I do if the motor does not run?

First, check if the battery is depleted. If so, place the vacuum cleaner in the charging base and charge for about 6.5 hours. If the motor still does not run, contact an authorized service center.

How do I clean the filter?

Remove the dust receptacle and take out the filter. Shake it mechanically and clean with a soft brush. For heavy soiling, you can wash the filter in lukewarm water without detergents. Let it dry thoroughly before reuse. Never use a hair dryer.

Can I use the vacuum cleaner without a filter?

No, never operate the vacuum cleaner without the filter properly installed. Doing so can damage the appliance. Always ensure the filter is in place before use.

What is the operating time after a full charge?

After a full charge (6.5 hours), the vacuum cleaner runs for approximately 8 minutes. The operating time may decrease as the battery ages.

How do I empty the dust receptacle?

To empty the dust receptacle, hold the unit with the receptacle pointing downward. Twist the receptacle to release it, then empty the contents. Reattach by following the reverse steps, ensuring the filter is properly installed.

Why is the suction power reduced?

Reduced suction power can be due to a full dust receptacle or a clogged filter. Empty the dust receptacle and clean or replace the filter. Also check for blockages in the suction inlet.

Can I vacuum liquids or wet surfaces?

No, the vacuum cleaner is designed for dry use only. Do not vacuum liquids, wet objects, or flammable fluids. Using it on wet surfaces can cause electric shock and damage the appliance.

How do I replace the battery?

The battery replacement should be done by an authorized service center. If you need to remove the old battery for disposal, open the lower cover of the unit and take out the NiMH accumulator. Dispose of it at a designated collection point.

What is the warranty period and what does it cover?

The warranty period is 24 months from the date of purchase. It covers defects in materials and workmanship but does not cover normal wear and tear (e.g., battery life), damage from misuse, or unauthorized repairs.

USER MANUAL VP-4310 Concept

Cordless Vacuum Cleaner

Black and white photo of a handheld air purifier device (no visible text or symbols)

VP 4310

PODĚKOVÁNÍ

INSTRUKCJA OBSŁUGI

Montaż odkurzacza

UWAGA:

Thank you for purchasing a Concept product. We hope you will be satisfied with our product throughout its service life.

Please study the entire Operating Manual carefully before you start using the product. Keep the manual in a safe place for future reference. Make sure other people using the product are familiar with these instructions.

Technical parameters
Accumulator voltage DC 4,8 V
Charging adaptor voltage	Input: AC 100-240 V, 50/60 HzOutput: DC 6,4 V, 200 mA
Power input 30 W
Noise level 80 dB (A)
Charging time Approx. 6,5 hours
Operation time Approx. 8 minutes

Reinforced insulation. Protection class III.

IMPORTANT SAFETY INSTRUCTIONS

- Use the unit only as described in this operating manual.

- Make sure the mains voltage corresponds to the values on the rating plate of the charging adaptor.

- Do not leave the unit unattended when switched on.

- When disconnecting the unit from the wall outlet, never pull the power cord. Grasp the plug and disconnect it by pulling.

- Do not allow children or unskilled people to handle the unit. Use the unit out of the reach of these individuals.

• Take extra care when using the unit near children.

- Don't let anyone use the appliance as a toy.

- Use only accessories recommended by the manufacturer.

- Never use a charging adaptor with a damaged power cord or plug. Contact an authorized service center immediately to have the defective components repaired or replaced.

- Keep the vacuum cleaner away from heat sources such as radiators, ovens, etc. Do not expose the unit to direct sunlight or moisture.

- Do not touch the unit with wet or damp hands.

- Do not insert any objects into the openings. Do not use the vacuum cleaner if any openings are obstructed.

- Extra care should be taken while vacuuming on stairs.

- If the suction inlet of the unit is obstructed, turn the vacuum cleaner off and remove the blockage before resuming operation.

- Turn off the product and disconnect the plug from the mains outlet before installing accessories, performing cleaning, or in the case of any failure.

- The unit is suitable for domestic use only. It is not designed for commercial operation.

- Do not vacuum any burning objects such as cigarettes, matches, or hot ash.

- Do not use the product in wet rooms. Do not vacuum wet objects, liquids, or flammable fluids such as gasoline. Do not use the vacuum cleaner in areas where such substances may be located.

EN

concept

concept

EN

• Never use the vacuum cleaner without filters. Before each use, make sure that the filters of the vacuum cleaner are installed properly.
• Do not immerse the power cord, charging adaptor, or appliance into water or any other liquid.
• Check the appliance and the charging adaptor power cord for damage regularly. Do not switch on a damaged unit.
• Turn the unit off, and let it cool down before cleaning and after use.
• Prior to vacuuming, it is necessary to remove large or sharp objects that could damage the dust filter from the surface to be cleaned.
• Do not use the product if the filters are fouled.
• Do not throw the accumulator in fire, and do not expose it to temperatures higher than 40^ .
• Do not touch the moving driven parts of the unit during operation.
• Do not repair the appliance yourself. Contact an authorized service center. This appliance may be used by children 8 years of age and older and by persons with physical or mental impairments or by inexperienced persons if they are properly supervised or have been informed about how to use of the product in a safe manner and understand the potential dangers. Children must not play with the appliance. This appliance may be cleaned by children 8 years of age and older if they are properly supervised. Keep this appliance and the power cord out of reach of children younger than 8 years of age.

Failure to follow the manufacturer's instructions may lead to refusal of warranty repair.

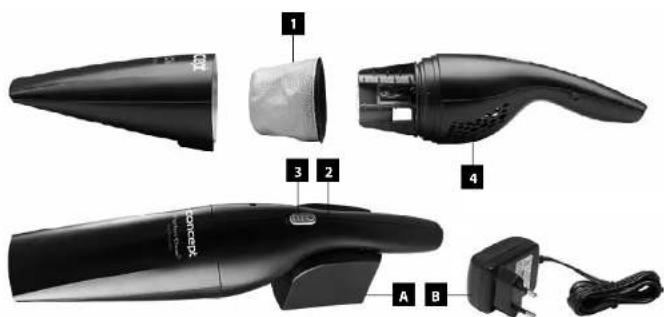

PRODUCT DESCRIPTION

1 Dust receptacle
2 Charging indicator light
3. Switch
4 Body of the unit

Accessories

A Charging base
B Charging adaptor

OPERATING INSTRUCTIONS

Assembling the vacuum cleaner

NOTE

Always turn off the unit and disconnect the plug from the mains outlet prior to mounting or removing accessories!

Charging the accumulator

Before the first use, or after the accumulator is depleted, let the unit charge for about 6.5 hours. To charge the accumulator, place switched off unit in the charging base, connect the power cord, and connect the adaptor to wall outlet. If you want to preserve the accumulator's service life, charge it only after it is depleted. The service life is about 150–200 charging cycles.

Note: Charging indicator glows red if the unit is in the charging base and the connected adaptor is connected to a wall outlet.

The time of operation of the unit after the accumulator is fully charged is about 8 minutes.

Position of the charging base.

• You can fix the charging base to a wall, or leave it standing.
• Insert the charging adaptor power cord into the hole in the charging base, and fix it by turning it by 90^ .

Using the vacuum cleaner

1. Take the unit out of the charging base.
2. Turn the unit on using the switch.
3. Release the switch after use, and the unit will turn off.

Checking the dust receptacle content level

If the suction power is decreased, or the dust receptacle is full, empty it and clean the filter

MAINTENANCE

As a preventive measure, we recommend emptying the dust receptacle and cleaning the filter of the vacuum cleaner after each use.

Emptying the dust receptacle

1. Disconnect the charging adaptor from the wall outlet.
2. Hold the unit with the dust receptacle pointing downwards.
3. Release the dust container by twisting.
4. Empty the dust receptacle.
5. Follow the reverse procedure to put back the filter, and install the dust receptacle.

EN

concept

concept

EN

Cleaning and replacing the permanent filter

This filter can be cleaned by mechanical shaking and cleaning with a soft brush. A heavily fouled filter can be washed after this step and cleaned with a soft brush in lukewarm water. Do not use detergents. It is important to let the wet parts dry thoroughly. A wet filter would be damaged if used for vacuuming! Do not use a hair dryer for drying!

Note: Wet cleaning can cause more wear and tear of the filter, and a correspondingly shorter service life.
- The filter should be cleaned or replaced whenever it is visibly fouled, or when the suction power decreases. The filter should be checked after each use of the vacuum cleaner.
- Never use the vacuum cleaner without a properly installed filter to avoid damage to the appliance.
- A suitable filter type is available at your local retailer, or it can be ordered from the manufacturer.

CLEANING AND MAINTENANCE

The vacuum cleaner and its accessories can be cleaned with a wet cloth. Do not immerse the power cord, charging adaptor, or appliance into water or any other liquid. Do not use aggressive substances for cleaning, such as solvents or abrasives!

TROUBLESHOOTING

Problem Cause Solution
Motor does not run. Depleted	accumulator Charge accumulator
Reduced suction power	Dust receptacle full or clogged.	Empty and clean the dust receptacle.
	Obstructed filter. Clean or replace the filter.
Operation time after full recharging is less than 1 minute.	Service life of the accumulator is coming to an end.	The accumulator must be replaced. Contact an authorized service center.
Vacuum cleaner heats up	Slight heating of the vacuum cleaner is normal and cannot be considered a failure.

ACCESSORIES

The following accessories can be bought with the unit: Motor filter Ord. No. 42391667 Price: See price list Accumulator Ord. No. 42391668 Price: See price list

DISPOSING OF THE ACCUMULATOR

The unit contains NiMH accumulator. This accumulator type contains substances that may damage the environment when decomposing. Before disposal of the unit, or replacing the accumulator, the original accumulator has to be taken away and brought to a designated collection point. To rake out the accumulator, open the lower cover.

SERVICING

Any extensive maintenance or repair requiring access to the inner parts of the product must be performed by an expert service centre.

ENVIRONMENTAL PROTECTION

• Packaging materials and obsolete appliances should be recycled.
• The transport box may be disposed of as sorted waste.
• Polyethylene bags shall be handed over for recycling.

Appliance recycling at the end of its service life:

A symbol on the product or its packaging indicates that this product should not go into household waste. It must be taken to the collection point of an electric and electronic equipment recycling facility. By making sure this product is disposed of properly, you will help prevent the negative effects on the environment and human health that would otherwise result from inappropriate disposal of this product. You can learn more about recycling this product from your local authorities, a household waste disposal service or in the shop where you bought this product.

This product meets all the basic EU regulation requirements that relate to it. Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

DANKE FÜR IHR VERTRAUEN

The manufacturer (or importer) is responsible for ensuring the product complies with the requirements of applicable legal regulations as well as those of the relevant technical standards. Moreover, they are responsible for ensuring the product has the properties the manufacturer described in documents related to the goods or those reasonably expected by the customer with regard to the nature of the goods or based on advertising produced by the manufacturer, and further they are responsible for ensuring the product is fit for the purpose proposed by the manufacturer or that a product of the same type is normally used for.

The quality warranty term is 24 months from product takeover by the customer.

The warranty does not apply to wear and tear caused by regular use. The customer shall not be entitled to any warranty claims if, prior to taking the product over, they knew the product contained a defect or if the defect is attributable to the customer.

The warranty specifically does not apply:

• if the product installation, operation and service conditions stipulated in the product operating manual have not been adhered to,
  • to malfunctions caused due to mechanical, heat or chemical damage, short circuit, over voltage or Incorrect Installation,
  • to malfunctions caused by an inexpert third-party intervention,
  • to malfunctions caused by natural disaster,
  • to malfunctions caused by insufficient or inappropriate maintenance in violation of the operating manual, including malfunctions caused by water and other sediments,
  • to changes in colour of the heating surface or to scratching of the surface caused as a result of using the products in an unusual manner,
  • to appearance and functional changes caused by exposure to sunlight, thermal radiation of water and other sediments,
• if the service life of certain product parts expires, e.g. for accumulators, bulbs, etc.

The warranty does not apply to any products and services provided along with the product (gifts, promotional articles, etc.).

Filing a complaint

A complaint against a product defect must be fi led as soon as identifi ed, yet no later than before the end of the warranty term.

The customer must file a product complaint with the dealer from which they have purchased the product, or with any authorised service centre, a list of which is included in the product package, or available at www.my-concept.com.

While fi ling a product complaint, the product must be duly cleaned and securely packed so as to prevent any damage during its transport to an authorised service centre, where relevant, unless the product is delivered in person.

The customer must submit proof of having concluded a purchase contract for the product by producing the receipt.

While fi ling their complaint, the customer must indicate the noted defect and identify the preferred complaint application method.

Complaints processing

As long as the noted defect may be removed, the user has the right to have the defect duly removed free of charge on a timely basis.

Where such a procedure is not reasonable with regard to the nature of the defect, the user may require to be supplied a new defect-free product (replacement), or, where the defect applies to a part of the product only, replacement of the part concerned. However, if replacement of the product or any part thereof is not proportionate with regard to the nature of the defect, especially if the defect can be removed without undue delay, the customer has the right to have the defect removed free of charge.

If the noted defect is not removable, or if the customer becomes entitled to replacement of the product or a part thereof, yet the replacement is not possible, for example due to the product having been sold out, the customer has the right to return the product (withdrawal from the contract).

The customer shall have the right to a new product (replacement) or to replacement of a part of the product even if the defect can be removed, provided they cannot properly use the product due to repeated occurrence of the defect or due to a high number of such defects. In such a case, the customer also has the right to return the product (by withdrawing from the contract).

If the product is not returned (the customer does not withdraw from the contract), or if the customer does not apply the right to a new defect-free product (replacement), to replacement of a part thereof or to repair of the product, they may request a reasonable discount. The customer also has a right to a reasonable discount if a new defect-free product cannot be supplied to them, or if a product part cannot be replaced or the product repaired unless the situation is remedied within a reasonable time limit, or if remedying the situation would create major discomfort on the part of the customer.

The seller, authorised service centre or a staff member authorised by them must decide about each complaint immediately or within three business days in complicated cases. This term does not include a reasonable period of time, depending on the type of product concerned,

required for the defect to be assessed by an expert. A complaint, including defect removal, must be dealt with without any undue delay, yet no later than within 30 calendar days of the complaint fi ling date, unless the seller and the customer agree on a later deadline.

On returning the product (withdrawing from the contract) the customer must return any accessories and documents supplied along with the product.

The customer does not have the right to keep the defective parts and components of the product replaced as part of a repair of the product.

This shall be without prejudice to any other rights the customer may have in relation to the purchase of the product.

Remark: Complaints against products damaged in transport are governed by the carrier's complaints procedure.

Manufacturer

Jindřich Valenta – Concept

Vysokomytska 1800, 565 01 Chocen

Czech Republic

tel.: [phone]

fax [phone]

Company ID No. 13216660

email: [e-mail]

www: www.my-concept.com

Product data

Model:
Production number:
Date of purchase: Seal and signature of vendor:
