R7060 - Bevattningstimer WOOX - Gratis bruksanvisning och manual

Produkttyp	Bevattningstimer
Märke	WOOX
Modell	R7060
Strömförsörjning	2 AA-batterier (ingår ej)
Inloppsanslutning	Honkoppling 3/4" med O-ring
Utloppsanslutning	Hankoppling 3/4" och Quick-Click hankoppling
Maximalt vattentryck	6 bar
Maximalt flöde	25 L/min
Programmering	Upp till 4 bevattningar per dag, 7 dagar
Bevattningstid	1 min till 3 timmar
Antal zoner	1 zon
Väderskydd	IP54
Höljesmaterial	UV-beständigt ABS
Mått	12 x 7 x 7 cm
Vikt	250 g (utan batterier)
Underhåll	Rengör filtret regelbundet; använd inte lösningsmedel
Säkerhet	Manuell avstängningsfunktion; automatisk frostskydd
Garanti	2 år

Vanliga frågor - R7060 WOOX

Hur installerar jag bevattningstimern R7060?

Fäst timern på en utomhuskran med honkopplingen 3/4" med O-ring. Se till att O-ringen sitter ordentligt för att undvika läckage. Skruva sedan fast bevattningsslangen på utloppet med hankoppling eller Quick-Click.

Vilken typ av batterier ska jag använda?

Använd två alkaliska AA 1,5V-batterier. Blanda inte nya och gamla batterier. Byt ut dem varje säsong eller om displayen blir svag.

Hur programmerar jag bevattningstiderna?

Tryck på PROGRAM-knappen för att komma till inställningarna. Använd pilarna för att ställa in starttid, varaktighet (1 min till 3 timmar) och veckodagar. Bekräfta med OK.

Vad gör jag om timern inte startar?

Kontrollera att batterierna är korrekt isatta (följ polariteten). Om displayen förblir tom, byt batterier. Om problemet kvarstår, kontakta kundtjänst.

Hur rengör jag filtret?

Skruva av filterlocket vid vatteninloppet. Ta ut filtret och skölj det i rent vatten. Sätt tillbaka det och skruva fast ordentligt. Gör detta minst en gång i månaden.

Kan jag använda R7060 med en regnvattentank?

Ja, förutsatt att vattentrycket är tillräckligt (minst 0,5 bar). Om trycket är för lågt kan timern inte öppna korrekt.

Vad gör jag om det läcker vid anslutningarna?

Kontrollera att O-ringarna är i gott skick och sitter rätt. Dra åt anslutningarna för hand utan att överdriva. Om läckan kvarstår, byt ut O-ringarna.

Är timern frostbeständig?

Ja, den har en frostskyddsfunktion som stänger ventilen automatiskt vid temperaturer nära 0°C. Det rekommenderas dock att ta in den under vintern.

Hur många zoner kan den hantera?

Denna modell är utformad för en enda zon i trädgården. För flera zoner behöver du en multizonstimer eller en extra enhet.

Hur återställer jag till fabriksinställningarna?

Tryck samtidigt på PROGRAM- och OK-knapparna i 5 sekunder. Displayen visar CLR och inställningarna återställs till fabriksvärdena. Batterierna måste vara isatta.

BRUKSANVISNING R7060 WOOX

W00X

Green industrial water pump device with black fittings and a small pipe fitting (no visible text or symbols)

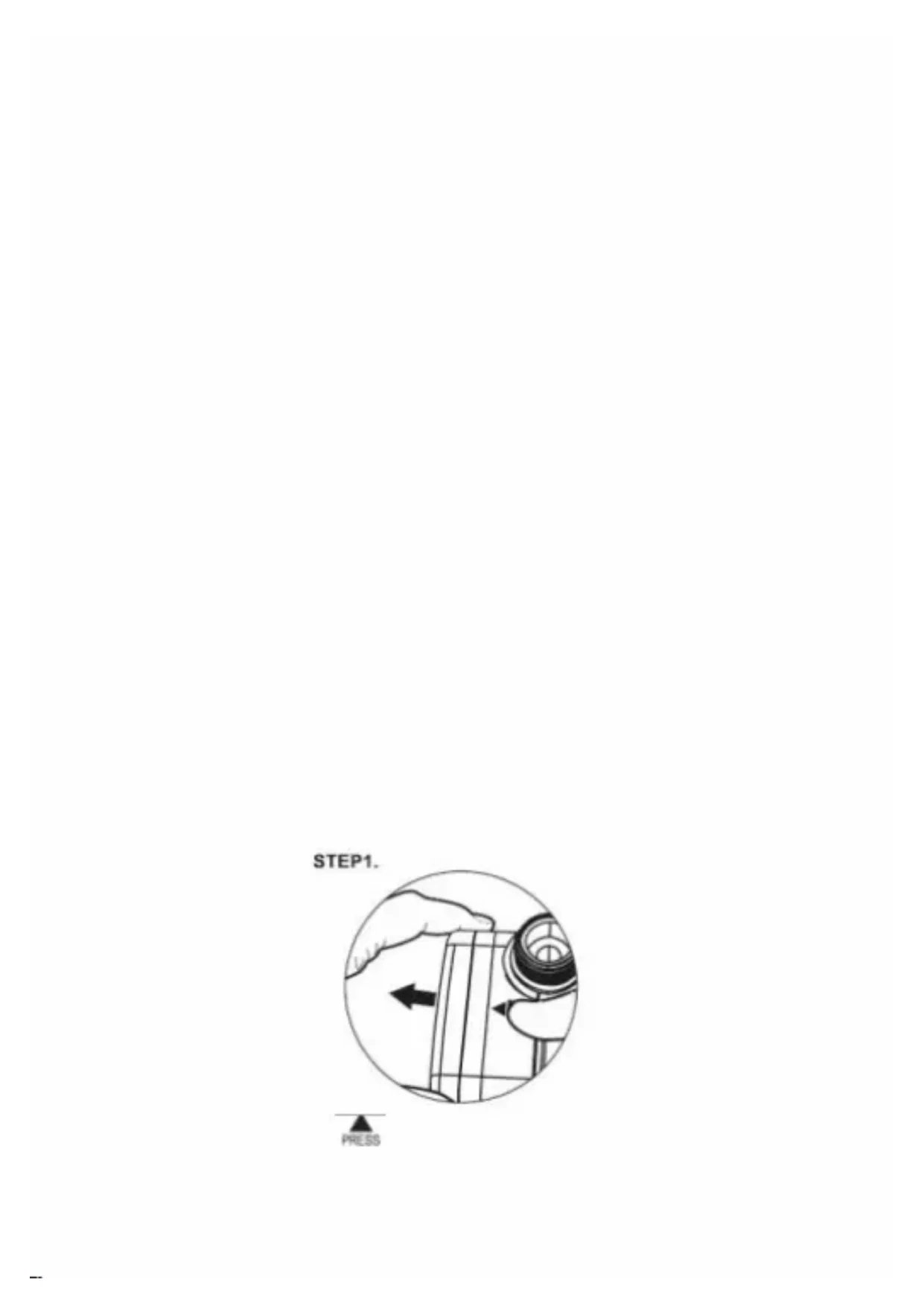

If necessary, you can change Male Quick-Click connector to 3/4" Male connector

English

English

English

STEP2.

Illustration of hands assembling or adjusting a mechanical component (no text or symbols visible)

STEP3.

Technical line drawing of a mechanical device with internal components, enclosed in a circular frame (no text or symbols)

English

STEP4.

Illustration of hands assembling or adjusting a mechanical component, no text or symbols present

English

STEP1.

Illustration of a hand holding a mechanical component with an arrow indicating direction (no text or symbols present)

STEP2.

Illustration of hands assembling or adjusting a mechanical component, enclosed in a circular frame (no text or symbols)

STEP3.

Technical line drawing of a mechanical device with internal components, enclosed in a circular frame (no text or symbols)

STEP4.

Illustration of hands assembling a cylindrical object with a cap, enclosed in a circular frame (no text or symbols)

STEP1.

Illustration of a hand holding a mechanical component with an arrow indicating direction (no text or symbols present)

STEP2.

Illustration of hands assembling or adjusting a mechanical component, enclosed in a circular frame (no text or symbols)

STEP3.

Technical line drawing of a mechanical device with internal components, enclosed in a circular frame (no text or symbols)

STEP4.

Illustration of hands assembling a cylindrical object with a cap, enclosed in a circular frame (no text or symbols)

STEP1.

Illustration of a hand holding a mechanical component with an arrow indicating direction (no text or symbols present)

STEP2.

Illustration of hands assembling or adjusting a mechanical component (no text or symbols visible)

STEP3.

Technical line drawing of a mechanical device with internal components, enclosed in a circular frame (no text or symbols)

STEP4.

Illustration of hands assembling a cylindrical object with a cap, enclosed in a circular frame (no text or symbols)

STEP1.

Illustration of a hand holding a mechanical component with an arrow indicating direction (no text or symbols present)

STEP2.

Illustration of hands assembling or adjusting a mechanical component, enclosed in a circular frame (no text or symbols)

STEP3.

Technical line drawing of a mechanical device with internal components, enclosed in a circular frame (no text or symbols)

STEP4.

Illustration of hands assembling a cylindrical object with a cap, enclosed in a circular frame (no text or symbols)

STEP1.

Illustration of a hand holding a mechanical component with an arrow indicating direction (no text or symbols present)

STEP2.

Illustration of hands assembling or adjusting a mechanical component, enclosed in a circular frame (no text or symbols)

STEP3.

Technical line drawing of a mechanical device with internal components, enclosed in a circular frame (no text or symbols)

STEP4.

Illustration of hands assembling a cylindrical object with a cap, enclosed in a circular frame (no text or symbols)

STEP1.

Illustration of a hand holding a mechanical component with an arrow indicating direction (no text or symbols present)

STEP2.

Illustration of hands assembling or adjusting a mechanical component, enclosed in a circular frame (no text or symbols)

STEP3.

Technical line drawing of a mechanical device with internal components, enclosed in a circular frame (no text or symbols)

STEP4.

Illustration of hands assembling or adjusting a mechanical component, no text or symbols present

STEP1.

Illustration of a hand holding a mechanical component with an arrow indicating direction (no text or symbols present)

STEP2.

Illustration of hands assembling or adjusting a mechanical component, enclosed in a circular frame (no text or symbols)

STEP3.

Technical line drawing of a mechanical device with internal components, enclosed in a circular frame (no text or symbols)

STEP4.

Illustration of hands assembling or adjusting a mechanical component, no text or symbols present

STEP1.

Illustration of a hand holding a mechanical component with an arrow indicating direction (no text or symbols present)

STEP2.

Illustration of hands assembling or adjusting a mechanical component, enclosed in a circular frame (no text or symbols)

STEP3.

Technical line drawing of a mechanical device with internal components, enclosed in a circular frame (no text or symbols)

STEP4.

Illustration of hands assembling a cylindrical object with a cap, enclosed in a circular frame (no text or symbols)

STEP1.

Illustration of a hand holding a mechanical component with an arrow indicating direction (no text or symbols present)

STEP2.

Illustration of hands assembling or adjusting a mechanical component, enclosed in a circular frame (no text or symbols)

STEP3.

Technical line drawing of a mechanical device with internal components, enclosed in a circular frame (no text or symbols)

STEP4.

Illustration of hands assembling a cylindrical object with a cap, enclosed in a circular frame (no text or symbols)

STEP1.

Illustration of a hand holding a mechanical component with an arrow indicating direction (no text or symbols present)

STEP2.

Illustration of hands assembling or adjusting a mechanical component, enclosed in a circular frame (no text or symbols)

STEP3.

Technical line drawing of a mechanical device with internal components, enclosed in a circular frame (no text or symbols)

STEP4.

Illustration of hands assembling a cylindrical object with a cap, enclosed in a circular frame (no text or symbols)

STEP1.

Illustration of a hand holding a mechanical component with an arrow indicating direction (no text or symbols present)

STEP2.

Illustration of hands assembling or adjusting a mechanical component, enclosed in a circular frame (no text or symbols)

STEP3.

Technical line drawing of a mechanical device with internal components, enclosed in a circular frame (no text or symbols)

STEP4.

Illustration of hands assembling a cylindrical object with a cap, enclosed in a circular frame (no text or symbols)

STEP1.

Illustration of a hand holding a mechanical component with an arrow indicating direction (no text or symbols present)

STEP2.

Illustration of hands assembling or adjusting a mechanical component, no text or symbols present

STEP3.

Technical line drawing of a mechanical device with internal components, enclosed in a circular frame (no text or symbols)

STEP4.

Illustration of hands assembling a cylindrical object with a cap, enclosed in a circular frame (no text or symbols)

STEP1.

Illustration of a hand holding a mechanical component with an arrow indicating direction (no text or symbols present)

STEP2.

Illustration of hands assembling or adjusting a mechanical component, enclosed in a circular frame (no text or symbols)

STEP3.

Technical line drawing of a mechanical device with internal components, enclosed in a circular frame (no text or symbols)

STEP4.

Illustration of hands assembling a cylindrical object with a cap, enclosed in a circular frame (no text or symbols)

STEP1.

Illustration of a hand holding a mechanical component with an arrow indicating direction (no text or symbols present)

STEP2.

Illustration of hands assembling or adjusting a mechanical component, enclosed in a circular frame (no text or symbols)

STEP3.

Technical line drawing of a mechanical device with internal components, enclosed in a circular frame (no text or symbols)

STEP4.

Illustration of hands assembling a cylindrical object with a cap, enclosed in a circular frame (no text or symbols)
