DVD-L1200 - Lecteur dvd SAMSUNG - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Lecteur DVD portable
Caractéristiques techniques principales	Lecture de DVD, CD, et fichiers multimédias
Alimentation électrique	Adaptateur secteur et batterie rechargeable
Dimensions approximatives	230 x 190 x 40 mm
Poids	1,2 kg
Compatibilités	DVD, CD, MP3, JPEG
Type de batterie	Batterie lithium-ion rechargeable
Tension	DC 9V
Puissance	15W
Fonctions principales	Lecture de disques, sortie vidéo, écran LCD
Entretien et nettoyage	Nettoyer avec un chiffon doux, éviter l'humidité
Pièces détachées et réparabilité	Disponibilité de pièces de rechange limitée
Sécurité	Ne pas exposer à l'eau, utiliser uniquement avec l'adaptateur fourni
Informations générales	Garantie de 2 ans, support technique disponible

FOIRE AUX QUESTIONS - DVD-L1200 SAMSUNG

Pourquoi mon lecteur DVD SAMSUNG DVD-L1200 ne s'allume pas ?

Vérifiez que le câble d'alimentation est correctement branché et que la prise fonctionne. Essayez de brancher le lecteur sur une autre prise.

Le disque ne se lit pas, que faire ?

Assurez-vous que le disque est propre et exempt de rayures. Vérifiez également que le format du disque est compatible avec le lecteur (DVD, CD, etc.).

Comment réinitialiser mon lecteur DVD SAMSUNG DVD-L1200 ?

Débranchez le lecteur de la prise électrique, attendez quelques minutes, puis rebranchez-le pour effectuer une réinitialisation.

Le son ne fonctionne pas lors de la lecture d'un DVD, que faire ?

Vérifiez les connexions audio du lecteur à votre téléviseur ou système audio. Assurez-vous que le volume n'est pas coupé ou réglé trop bas.

Puis-je lire des fichiers MP3 sur mon lecteur DVD SAMSUNG DVD-L1200 ?

Non, le SAMSUNG DVD-L1200 ne prend pas en charge la lecture de fichiers MP3. Il est conçu principalement pour les disques DVD et CD.

Comment changer la langue des sous-titres sur un DVD ?

Utilisez le bouton 'Subtitle' de votre télécommande pour changer la langue des sous-titres, si le DVD le permet.

Mon lecteur DVD fait un bruit étrange, est-ce normal ?

Un bruit de fonctionnement est normal, mais des bruits forts ou inhabituels peuvent indiquer un problème. Vérifiez si le disque est correctement inséré et si le lecteur est propre.

Comment puis-je connecter mon lecteur DVD à ma télévision ?

Utilisez un câble HDMI ou des câbles RCA (rouge, blanc, jaune) pour connecter le lecteur à votre télévision. Assurez-vous de sélectionner la bonne source sur votre téléviseur.

Le lecteur ne reconnaît pas le disque, que faire ?

Testez le disque sur un autre lecteur pour vérifier s'il fonctionne. Si le problème persiste, essayez de nettoyer le disque ou le plateau de lecture.

Comment mettre à jour le firmware de mon SAMSUNG DVD-L1200 ?

Le SAMSUNG DVD-L1200 ne prend pas en charge les mises à jour de firmware. Assurez-vous de consulter le manuel pour toutes les fonctionnalités disponibles.

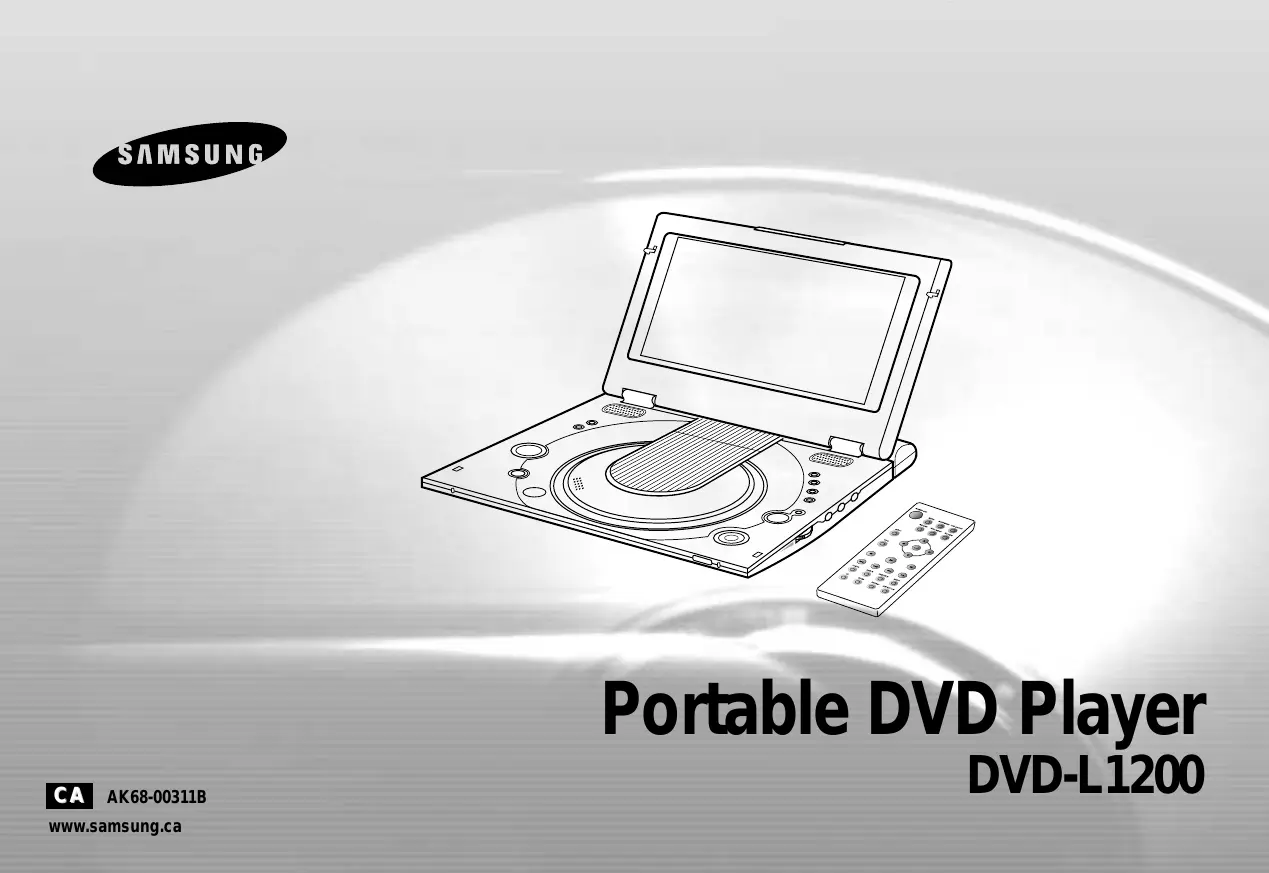

MODE D'EMPLOI DVD-L1200 SAMSUNG

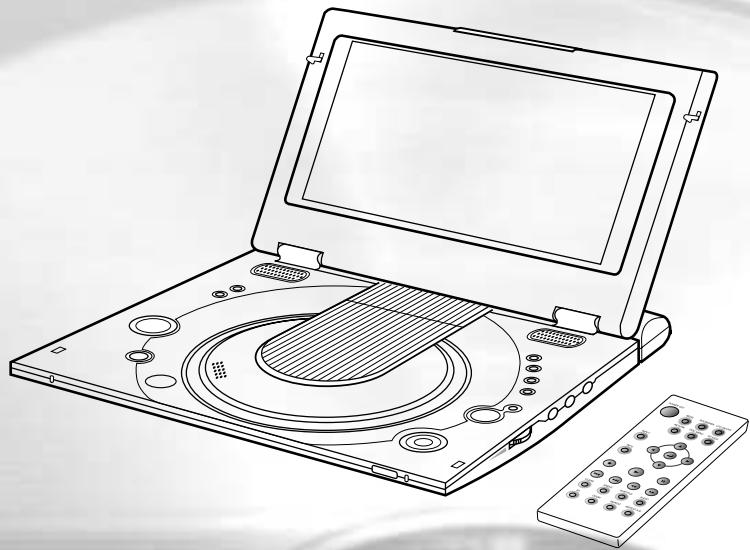

Portable DVD Player

DVD-L1200

Notices and Safety Instructions

Safety Instructions

To prevent electric shock, match wide blade of plug to wide slot and fully insert.

1. READ INSTRUCTIONS:

All the safety and operating instructions should be read before the DVD is operated.

2. RETAIN INSTRUCTIONS:

The safety and operating instructions should be retained for future reference.

3. HEED WARNINGS:

All warnings on the DVD and in the operating instructions should be adhered to.

4. FOLLOW INSTRUCTIONS:

All operating and maintenance instructions should be followed.

5. CLEANING:

Unplug this DVD from the wall outlet before cleaning.

Do not use liquid or aerosol cleaners.

Use a dry cloth used for dusting cabinets.

6. ATTACHMENTS:

Do not use attachments not recommended by the DVD product manufacturer as they may be hazardous.

This symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of fire or electric shock.

This symbol is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying this product.

7.WATER AND MOISTURE:

Do not use this DVD near water; for example, a bathtub, wash bowl, kitchen sink, laundry tub, in a wet basement, a swimming pool or lake.

8. ACCESSORIES:

Do not place this DVD on an unstable cart, stand, tripod, bracket or table. The DVD may fall, causing serious injury to a child or adult, and seriously damage the unit. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the DVD. Any mounting of the unit should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.

A. An appliance and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the appliance and cart combination to overturn.

PORTABLE CART WARNING (Symbol provided by RETAC)

Notices and Safety Instructions

9. VENTILATION:

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the DVD and to protect it from overheating. These openings must not be blocked or covered. Never place your DVD on a bed, sofa, rug, or other similar surface: on or near a radiator or heat register.

This DVD should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

10. POWER SOURCES:

The DVD should be operated only from the type of power source indicated on the label.

If you are not sure of the type of power supply at your home, consult your appliance dealer or local power company.

If a DVD is intended to be operated from battery power, or other sources, refer to the operating instructions.

11. GROUNDING OR POLARIZATION:

This DVD may be equipped with either a polarized 2-wire

AC line plug (a plug having one blade wider than the other) or a 3-wire that has grounding type plug, a plug having a third (grounding) pin. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still fails to fit, contact your electrician to replace your outlet. Do not defeat the safety purpose of the polarized plug.

12. POWER-CORD PROTECTION:

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them.

Pay particular attention to cords or plugs, convenient receptacles, and the point where they exit from the unit.

13. OUTDOOR ANTENNA GROUNDING:

If an outside antenna or cable system is connected to the DVD, be sure the antenna or cable system is grounded to provide protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No. 70-1984 provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire and supporting structure, grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding to conductors, location of antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

14. LIGHTNING:

For added protection of this DVD during a lightning storm or when it is left unattended and unused for long periods of time unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the DVD due to lightning and power-line surges.

15. POWER LINES:

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits since contact with them might be fatal.

16. OVERLOADING:

• Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

Notices and Safety Instructions

17. OBJECTS AND LIQUIDS:

• Never push objects of any kind into this DVD through openings as they may touch dangerous voltage points or short out a part that could result in a fire or electric shock.
• Never spill liquids of any kind onto the DVD. Should spillage occur, unplug unit and have it checked by a technician before use.

18. SERVICING:

Do not attempt to service this DVD yourself. Opening or removing covers may expose you to dangerous voltage or other hazards.

Refer all servicing to qualified service personnel.

19. DAMAGE REQUIRING SERVICE:

Unplug this DVD from the wall outlet and refer servicing to qualified service personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If any liquid has been spilled onto, or objects have fallen into the DVD.
c. If the DVD has been exposed to rain or water.
d. If the DVD does not operate normally by following the operating instructions, adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the DVD to its normal operation.
e. If the DVD has been dropped or the cabinet has been damaged.
f. When the DVD exhibits a distinct change in performance this indicates a need for service.

20. REPLACEMENT PARTS:

When replacement parts are required be sure the service technician has used replacement parts specified by the manufacturer and that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

21.SAFETY CHECK:

Upon completion of any service or repairs to this DVD, ask the service technician to perform safety checks to determine that the DVD is in safe operating order.

CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

Copy Protection

• Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.
• This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Safety Information

Assuring the Finest Performance

This product is designed with the latest technology to provide trouble-free operation.

If the pick-up lens or disk drive gets dirty, the video quality will decrease.

Moisture Condensation

Condensation may form inside this player under following conditions:

• If warm air comes in contact with any cold parts inside the player
• If the player is located in a room with high humidity
• If the player is exposed to sudden temperature changes from cold to hot.

When condensation forms inside the player, the player may not operate correctly.

If this occurs, leave the player at room temperature until the inside of the player becomes dry and operational.

Laser Safety

Table of Contents

Setup

Features 8

Accessories 9

Disc Type and Characteristics 10

Description-Front Panel 12

Tour of the Remote Control 15

Using the Remote Control Unit 16

Connections

Connecting Headphones to the DVD 17

Connecting to an External Component (Input Select) 18

Viewing a Video from an External Component 19

Connecting to a TV 20

Connecting to a Stereo Component 21

Adapter directions

Using the AC adapter 24

Using the battery pack 26

Battery level display 27

Basic Functions

Playing a Disc 28

Using the Search & Skip Functions 30

Using the Display Function 31

Using the Disc and Title Menu 32

Using the Function Menu 33

Repeat Play 34

Table of Contents

Advanced Functions

Slow Repeat Play 35

Adjusting the Aspect Ratio (EZ View) 36

Selecting the Audio Language 38

Selecting the Subtitle Language 39

Changing the Camera Angle 40

Using theBookmark Function 41

Using the Zoom & 3D Sound Functions 42

43

Folder Selection 44

MP3/WMAPlayback 45

Picture CDPlayback 47

Changing Setup menu

Using the Setup Menu 49

Setting Up the Language Features 50

Setting Up the Audio Options 52

Setting Up the Display Options 53

Setting Up the Parental Control 54

Reference

Cautionary Notes 55

Troubleshooting 60

Specifications 63

Warranty 64

Features

Plays DVD discs and audio CDs

• CD-R/RW discs containing MP3/WMA files can be played.

12 in. LCD display and built-in stereo speakers

• With the built-in 12 in. LCD display and stereo speakers, you can enjoy a DVD movie without requiring a separate TV.

Convenient 2-Way power supply

• You can use your DVD player virtually anywhere by using the supplied AC adapter indoors and the battery pack outdoors.

Compact size/light-weight design

• Compact and lightweight design makes the player easy to carry.

High-resolution image

• High-resolution LCD screen with 384,000 pixels provides clear pictures.

AV input/output, optical digital output jack

• • ^1 Dolby Digital 5.1-CH audio and * ^2 DTS digital audio can be output through the optical digital output jack. You can enjoy unsurpassed surround sound when a Dolby Digital/DTS digital surround processor or amplifier is connect to this jack.

• You can connect a VCR or camcorder to your DVD player using the AV input/output jacks or you can connect to a TV for a larger screen.

• Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic", and the double-D symbol (DIX) are trademarks of Dolby Laboratories. Confidential unpublished works © 1992-1997. Dolby Laboratories. Inc. All rights reserved.
  ^*2 "DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc.

EZ VIEW

• Easy View can convert Letter Box images to full screen viewing on your conventional TV.

INPUT : For viewing a video from an external component such as a VCR, Camcorder etc.

Accessories

Remocon Lithium battery	AC Cord	AC power Adapter	Battery pack
User's Manual	Video cable	Audio cable

If disc features differ from the explanation in the manual

• Some functions or operations are disc-dependent and may not work in all cases.
  Follow the instructions shown on the screen. This manual only covers basic disc operations.
• may appear during some operations. This mark indicates that the disc in use does not currently support operations explained in this manual.

Disc Type and Characteristics

This DVD player is capable of playing the following types of discs with the corresponding logos:

Disc Types (Logos)	Recording Types	Disc Size	Max. Playing Time	Characteristics
DVD DVD VIDEO	Audio + Video	5"	Single-sided 240 min. Double-sided 480 min.	DVD contains excellent sound and video due to Dolby Digital and MPEG-2 system. Various screen and audio functions can be easily selected through the on-screen menu.
		31/2"	Single-sided 80 min. Double-sided 160 min.
VIDEO-CD COMPACT DISC DIGITAL VIDEO	Audio + Video	5"	74 min.	Video with CD sound, VHS quality & MPEG-1 compression technology.
		31/2"	20 min.
AUDIO-CD COMPACT DISC DIGITAL AUDIO	Audio	5"	74 min.	CD is recorded as a Digital Signal with better audio quality, less distortion and less deterioration of audio quality over time.
		31/2"	20 min.

Play Region Number

Both the DVD player and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.

The Region Number for this player is described on the bottom housing of the player.

* Caution 1

NTSC

Play

Region Numbe

NTSC broadcast system in U.S.A, Canada, Korea, Japan, etc.

DOLBY DIGITAL

• Dolby Digital disc

STEREO

DIGITAL SOUND

DISC PLAN

• Stereo disc

Digital Audio

DTS disc

MP3

disc

NOTE:

• Discs which cannot be played with this player:

DVD-ROM

DVD-RAM

CD-ROM

CDV

CDI
HD layer of super Audio CD
- CDGs play audio only, not graphics.

Ability to play back may depend on recording conditions:

DVD-R
CD-RW
DVD+RW, -RW
- Picture CD

• It may not play CD-R, CD-RW and DVD-R in some cases due to the type of disc or condition of the recording.

• It plays a VCD 2.0 disc like VCD 1.1 mode (MENU Off Mode).

Disc Type and Characteristics

* Caution 2

• Some playback functions of a DVD vary by manufacturer.

This DVD player reproduces the disc data according to guidelines provided by the disc manufacturer. If appears during disc operations, the disc manufacturer has placed a limit on that function.

* Caution 3

• The LCD display does not support Closed Captions. However, you can view captions by connecting this unit to a TV with the caption function.

Discs that cannot be played

1. Illegally manufactured discs
2. Discs with scratches

3. Discs with fingerprints, dirt, and debris.

4. If the disc surface has dirt or scratches, No Disc will be displayed and the disc will not be played correctly. (Refer to page 5 and clean the surface of the disc.)

If the player encounters dirt or scratches while playing, video playback may be interrupted.

(Some block-like patterns appear. When this occurs, your player will restore the image in 2~3 seconds.)

About Copyrights

• Any kind of unauthorized and commercial duplication, public performance, broadcasting, renting, copying and making transmittable of the content of discs is strictly prohibited by law.
• This product is equipped with anti-copy protection device and connecting to a VCR for recording purposes results in a distorted picture.
• This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision.

Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Manufactured under license from Dolby Laboratories.
"Dolby", "Pro Logic", and the double-D symbol (DOLBY) are trademarks of Dolby Laboratories.
- "DTS" is a trademark of Digital Theater System, Inc.

Description-Front Panel

Front View

1. POWER

• Press the POWER button for 1 second to power off.

2. OPEN

3.DISCOVER

4. REVERSE DISPLAY

5.EZVIEW

6. AIC (Adaptive Image Control)

• Standard : The basic mode for ordinary viewing.

• Indoor : The best mode for partial lighting environment. Displays a more vivid, detailed picture under artificial lighting conditions, with enhancement of signal components.

• Outdoor: The perfect mode for sunny outdoor conditions. Increases the contrast and sharpness level to compensate for outdoor lighting conditions.

• Low light: The optimum mode for low light viewing situations.
  (1) If the viewing environment is very dark, use this mode to decrease brightness, and increase contrast and edge sharpness.

7. LCD

8. SPEAKER

9. INPUT

10. MENU

11. RETURN

12. CLEAR

1. ENTER (←), DIRECTION (UP/DOWN/LEFT/RIGHT)

14. PLAY etc.

PLAY/PAUSE(II),INFO,STOP(),REV-SKIP(I), FWD-SKIP(1)

Description-Front Panel

Right View

1. HEADPHONES A, B, C
   2.VOLUME
2. CHARGING INDICATOR
3. REMOTE SENSOR
4. OPEN
5. STANDBY INDICATOR

Left View

1. AUDIO IN/OUT / DIGITAL OUT
   2.VIDEO IN/OUT/S-VIDEO OUT
   3.DC IN 8.4V
2. BATTERY PACK

Description-Front Panel

Bottom View

1. BATTERY PACK

2. RELEASE (Battery pack separation switch)

3. OPEN

Battery pack separation method

① Press in the direction of the arrow.
② Slide battery pack to the left, then out.

Tour of the Remote Control

1.DVD POWER OFF Button

• If you power off the unit with the remote, it remains in low power consumption mode. To turn the unit on, you must press the main POWER button on the unit.

• BOOKMARK Button

• MENU Button

• Brings up the DVD player's setup menu.

• LCD CON. Button

Changes the LCD display status.

1. RETURN Button

2. Returns to the previous menu.

15.EZVIEWButton

• Easy View can convert Letter Box images to full screen viewing on your screen.

• INPUT Button

• Use to select signals from external sources.

16.DISCMENUButton

• Brings up the Disc menu.

• ENTER/DIRECTION Buttons

(UP/DOWN or LEFT/RIGHT buttons)

• Pauses disc play.

• This button functions as a toggle switch.

19.SEARCH Buttons

1. INFO Button

2. Displays the current disc mode

3. Allow you to search forward/backward through a disc.

4. STOP Button

5. Stops disc play

20.AUDIO Button

• Use this button to access various audio functions on a disc.

• SKIP Buttons

• Use to skip the title, chapter, or track.

• SUBTITLE Button

• CLEAR Button

• Use to remove menus or status displays from the screen.

• REPEAT A-B Button

• Use to mark a segment to repeat between A and B.

• ANGLE Button

• Use to access various camera angles on a DVD.

• REPEAT Button

• Allows you to repeat play a title, chapter, track, or disc.

11.3D Button

1. ZOOM Button

Using the Remote Control Unit

Installing the Battery in the Remote

1. Remove the battery compartment in the direction of the arrow.

2. Place the lithium battery in the battery compartment and put the battery compartment cover back on the remote.

3. Match the polarities (+ and -) on the battery with the marks in the battery compartment. If the battery is inserted in the wrong direction, your remote control may not work correctly.

(Back of the remote control)

Operating Range of Remote Control Unit

Important!

Do not subject the remote control unit to strong vibration or shock. Keep the remote control unit free from moisture and water.

Caution

• After battery replacement, your remote control unit may not work. If this occurs, remove the battery and re-insert.
• It may be difficult to operate the remote control unit if the remote control sensor on the DVD player is exposed to direct sunlight or strong artificial light. Try operating the remote away from such light sources.
• Remove the battery when not planning to use the remote control unit for a long period of time.

Connecting Headphones to the DVD

You can attach headphones with a stereo mini-jack plug (not supplied) to the PHONES jack for private listening. There are three jacks available.

How to use headphones

1. Insert headphones into the A, B or C PHONES jack.

This jack is a stereo mini-jack.

Important!

• Turn the headphone volume down to the minimum setting before connecting.

Caution

• Once you connect headphones to the DVD, your DVD Player's speakers will be disconnected.

• Adjust the volume level by using the VOLUME control dial.

Connecting to an External Component (Input Select)

You can enjoy video from your VCR or Camcorder on your DVD player.

When connecting to an external component

VCR or other component equipped with external output connectors

Important!

• Always turn off the DVD Player and other components before you connect any cables.
  Refer to owner's manual of the components you are connecting for more information on those particular components.

NOTE:

• In the INPUT mode, the video input must be the standard NTSC.

Viewing a Video from an External Component

Use the procedure below to view a video from a VCR or Camcorder on your DVD player.

To view video from an external component

1. Connect the external component according to the procedure outlined on page 18.
2. Turn on the external component.
3. Turn on the DVD player.

4. Press the INPUT button to set the INPUT mode.

5. The input mode is available for no disc or disc stop mode.

6. Press the PLAY button on the external component.

Caution

• Power is not supplied from this device to the connected DVD player.
• When not using your DVD player, always remove all connecting cables from the video or audio input/output jacks.
• At the beginning of INPUT mode you could see a unstable display for a moment if the input signal is unstable.

INPUT

Connecting to a TV

You can enjoy high-resolution video using a S-VIDEO cable when connecting your DVD player

to a TV equipped with an S-VIDEO input jack.

• Always turn off the DVD Player and TV before you connect any cables.

To view video with a TV

1. Turn on the TV.
2. Press the TV/VIDEO button on your TV to select the input from the DVD player.
3. Turn on the DVD player, and start playback.

Caution

• If you wish to view video on your TV only, close the display panel of your DVD player. Playback will continue and audio to the speakers will be cut off, but you still will be able to use the remote to control the DVD player.
• For power saving, press the LCD CON. button to power off the LCD display.

Connecting to a Stereo Component

When you connect the DVD player to an audio system, you can listen to higher quality sound.

2-CH Audio Playback

■ Analog Connection

Connecting to a Stereo Component

Digital Audio Output (optical)

After the completion of above connections;

Set the "Digital Output" to "PCM" (see page 52) in "Audio Setup".

Digital connection to an audio component without a Dolby Digital decoder
Audio CD

Play the disc.

When connecting digitally, DTS-encoded audio tracks will produce distorted sound.
DVD Disc

When playing a Linear PCM Audio encoded disc, you must use the digital connection method shown above.

NOTE:

Only use an optical Digital Cable which has been designed for use with portable DVD.

Connecting to a Stereo Component

Playing Dolby Digital (5.1-CH) and DTS Audio

• You can enjoy full and dynamic surround sound by connecting a Dolby Digital/DTS digital surround processor or amplifier to the optical digital jack on the DVD player.
• When using DTS digital surround, select the DTS audio by using the disc menu screen or function adjustment screen.

After making the connections shown above;

Set the "Digital Output" to "Bitstream" (see page 52) in "Audio Setup".

Caution

• To play a DTS disc, you need a DTS processor or amplifier.
• If the DTS processor or amplifier you want to use does not have an optical digital input jack, digital connection is not possible.
• Refer to owner's manual of the processor or amplifier for details on connections.

Using the AC adapter

• Always turn off the DVD player before connecting or disconnecting the AC cord
• Be sure to use the supplied AC adapter. Using a different type of adapter may cause malfunction or damage to the product.
• When the AC adapter is used for prolonged periods of time, the adapter may heat up. This is normal and is not a cause for concern.
• When not using the adapter, unplug it from the wall outlet.
• Keep the AC adapter free from moisture, cold, and dust. Otherwise, this can result in a risk of fire or electric shock.

Warning

• Only use the AC adapter supplied with this player.
• Be sure to unwind the AC adapter cable (DC output cable) before using, as electromagnetic interference may cause problems with other devices.
• If this power supply is used at 240V ac, a suitable plug adapter should be used.

Using the AC adapter

Important!

• Always turn off the DVD player when inserting or removing the AC adapter.
• Before storing the battery pack, make sure it is completely drained.
• Be sure to recharge the battery at least once every six months to ensure proper battery life.

Caution

• When charging or using the battery pack, it heats up.

This is normal and is not a cause for concern.

NOTE:

Connecting the battery pack to the AC Adapter;

• You can recharge the battery pack in the DVD player by turning off the player and connecting the AC adapter to the player.

Charge Time: Approx. 2.5 hours

• Charge time may be longer when using the battery pack in a cold environment.

DVD Continuous Playing Time with a Fully charged Battery pack (with speaker): Approx. 2.5 hours

DVD continuous playing time is a reference indicating the maximum playing time at average speaker volume.
- The playback time may be shortened depending on the disc, surrounding temperature, battery pack conditions, and speaker volume.

Using the battery pack

Important!

• When inserting the battery pack, make sure that it is inserted correctly. Otherwise, your DVD player may malfunction.

Charging the battery pack

Use the AC adapter (included) to charge the battery pack.
- Before charging, make sure that the battery pack is correctly seated.

1. Connect the AC cord to the jack on the AC adapter (①).
2. Connect the DC cord to the DC IN jack on the left side of the DVD player ( ②).
3. Plug the other end of the AC cord into an AC outlet (③).

Blinking time	Charging rate
Once per second	Less than 50%
Twice per second	50%~75%
Three times per second	75%~90%
Blinking stops and stays on	90%~100%
On for a second and off for a second	Error-Reset the battery pack and the DC cable

Power Charge Lamp

-Green light will flash while charging.
-When the battery pack is fully charged, the light will stop blinking and remain green.

Battery level display

• The battery level display indicates the amount of power remaining in the battery pack.

a. Fully charged
b. 20 40% used
c. 40 80% used
d. Completely used (flickers)

(If the battery mark flickers the DVD will turn off soon. Change the battery as soon as possible)

*The playing time is affected by environmental temperature and conditions.

The playing time becomes very short in a cold environment. The continuous playing times in the operating instructions are measured using a fully charged battery pack at 77^(25^) . As the environmental temperature and conditions may differ when you actually use the DVD, the remaining battery time may not be the same as the approximate continuous playing times given in these instructions.

NOTE:

• When the operation time is noticeably shorter than normal, it is time to buy a new battery. The battery level display time changes depending on the battery operating time.
• As the battery is completely used, the noise screen might be displayed intermittently.

Playing a Disc

Before Play

After plugging in the player, the first time you press the POWER button, this screen comes up: Press the UP/DOWN buttons to select the language, and then press the ENTER button. (This screen will only appear when you plug in the player for the first time.) If you don't select language, at first time, setting value of Setup menu will be lost.

Play

1. Press the OPEN button to open the disc cover.

2. The disc cover opens up to around a 60-degree angle.

Do not attempt to open the cover to an angle beyond this range. The cover may become damaged.

1. Place a disc gently into the tray.

2. You should hear and feel the disc snap firmly into place.

Caution

• Place a disc into the tray with the disc's label facing up.

• Close the disc cover and then press the part marked "PUSH" until it clicks shut.

1. Stopping Play

2. Press the STOP (■) button during play.

3. Pausing Play

Press the PAUSE ( II ) button on the remote during play.
- Screen stops, no sound.
- To resume, press PLAY (▶) button once again.

Playing a Disc

1. Step Motion Play (Except CD)

Press the PAUSE ( II)/STEP button on the remote during play.
- Each time the button is pressed, a new frame will appear.
- No sound is heard during STEP mode.
- Press PLAY (▶) to resume normal play.

(You can only perform step motion play in the forward direction.)

1. Slow Motion Play (Except CD)

Press the button on the remote during PAUSE or STEP mode. By pressing the button, you can select slow motion play for 1/8, 1/4 or 1/2 of normal speed.

Press and hold the button to choose the play speed between 1/8, 1/4 and 1/2 of normal during PAUSE or STEP mode.

• No sound is heard during slow mode.
• Press PLAY (▶) to resume normal play.

NOTE: Reverse slow motion play will not work.

RESUME function

When you stop disc play, the player remembers where you stopped, so when you press PLAY (▶) again,

it will pick up where you left off. (unless the disc is removed or the player is unplugged, or if you pressed the STOP ( ) button twice.)

Important!

• Make sure that the disc is correctly placed. Otherwise, the disc and/or the DVD player may be damaged.
• If the disc is placed upside down in the disc tray or the region number of the DVD is not supported, No Disc will appear on the screen.

NOTE:

• If the player is left for 5 minutes in pause mode, it will stop.
• If the player is left in the stop mode for more than one minute without any user interaction, a screen saver will be activated. Press the PLAY (▶) button to resume normal play.
• If the player is left in the stop mode for more than 5 minutes, the power will automatically shut off. (Automatic Power-Off Function)
• This icon indicates an invalid button press.
• Do not remove the disc until it has completely stopped.
• Press the POWER button for 1 second to power off.

Using the Search & Skip Functions

During play, you can search quickly through a chapter or track or use the skip function to jump to the next selection.

Searching through a Chapter or Track

During play, press the SEARCH (or ) button on the remote.

• Press the SEARCH (← or →) button on the remote for more than 1 second and press again or press continuously to search at a faster speed on a DVD, VCD, CD.
• Press the SKIP (or) button for more than 2 seconds to use the SEARCH feature.

DVD	2X, 4X, 8X, 16X, 32X, 128X
VCD	4X, 8X
CD	2X, 4X, 8X

Skipping Tracks

During play, press the NEXT SKIP (▶I) or BACK SKIP (I←) button.

• When playing a DVD, if you press the NEXT SKIP button, it moves to the next chapter. If you press the BACK SKIP button, it moves to the beginning of the chapter. One more press makes it move to the beginning of the previous chapter.
• When playing VCD or a CD, if you press the NEXT SKIP button, it moves to the next track. If you press the BACK SKIP button, it moves to the beginning of the track. One more press makes it move to the beginning of the previous track.
• If a track exceeds 15 minutes when playing a VCD and you press the NEXT SKIP button, it moves forward 5 minutes. If you press the BACK SKIP button, it moves backward 5 minutes.

Using the Display Function

When Playing a DVD/VCD/CD

1. Press the INFO button during playback.
2. Use the UP/DOWN buttons to select the desired item.
3. Use the LEFT/RIGHT buttons to make the desired setup, then press ENTER.
4. To make the screen disappear, press the INFO button again.

To access the desired title when there is more than one in the disc.

For example, if there is more than one movie on a DVD, each movie will be identified

Most of DVD discs are recorded in chapters so that you can quickly find a specific passage. (similar to tracks on an audio CD).

Allows playback of the film from a desired time.

You must enter the starting time as a reference.

Refers to the language of the film soundtrack. In the example, the soundtrack is played in English 5.1CH. A DVD disc can have up to eight different soundtracks.

Refers to the subtitle languages available in the disc.

You will be able to choose the subtitle languages or, if you prefer, turn them off from the screen. A DVD disc can have up to 32 different subtitles.

A surround sound effect is generated using two front speakers and headphones.

NOTE:

• If you want to see the battery level display in the bettery mode, press the INFO button.

DVD

VCD

CD

Using the Disc and Title Menu

Using the Disc Menu

1. Press the MENU button during playback.
2. Select Disc Menu using the UP/DOWN buttons, then press the RIGHT or ENTER button.

Using the Title Menu

1. Press the MENU button during playback.
2. Select Title Menu using the UP/DOWN buttons, then press the RIGHT or ENTER button.

NOTE:

• Depending on the disc, the Title and Disc Menus may not work.
• Title Menu will only be displayed if there are at least two titles in the disc.
• You can also use the Disc Menu, using the DISC MENU button on the remote.

Using the Function Menu

Using the Function Menu

1. Press the MENU button during playback.
2. Use the UP/DOWN buttons to highlight Function, then press the RIGHT or ENTER button.

3. Function selection screen appears, Info, Zoom, Bookmark, Repeat and EZ View.

4. Info (See Page 31)

5. Zoom (See Page 42)
   -Bookmark (See Page 41)
6. Repeat (See Page 34)

7. EZ View (See Page 36~37)

8. Use the UP/DOWN button to highlight one of the 5 functions.

Then press the RIGHT or ENTER button to access the function.

NOTE:

• You can use also directly select these functions using their respective buttons on the remote.

Repeat Play

Repeat the current track, chapter, title, a chosen section (A-B), or all of the disc.

When playing a DVD/VCD/CD

1. Press the REPEAT button on the remote. Repeat screen appears.

2. Select Chapter, Title or A-B using the LEFT/RIGHT buttons.

3. REPEAT A-B

4. Press the REPEAT button. Select A-B on screen with the LEFT/RIGHT buttons or press the REPEAT A-B button on the remote.

5. Press ENTER at the point where you want the repeat play to start (A). The B is automatically highlighted.
6. Press ENTER at the point where you want the repeat play to stop (B).
7. To terminate the function, press the 'CLEAR' button or the 'REPEAT A-B' button again.

8. A-B REPEAT does not allow you to set point (B) until at least 5 seconds has elapsed after point (A) has been set.

9. Press ENTER.

10. To return to normal play, press REPEAT again, then press the LEFT/RIGHT buttons to select Off and press ENTER.

NOTE:

DVD repeats play by chapter or title, CD and VCD repeat play by disc or track.
- Depending on the disc, the Repeat function may not work.

DVD

VCD/CD

Slow Repeat play

This feature allows you slowly to repeat scenes containing sports, dancing, musical instruments being played etc. so you can study them more closely.

When playing a DVD/VCD

1. During play, press the PAUSE (II)/STEP button on the remote..
2. By pressing the button, you can select slow motion play for 1/8, 1/4 or 1/2 of normal speed.
3. Press the REPEAT A-B button to select the point where the function starts. (A)
4. Press the REPEAT A-B button to select the point where the function ends. (B)

NOTE:

• The disc will play from A to B repeatedly at the speed you chose.
• To terminate the function, press the 'CLEAR' button or the 'REPEAT A-B' button again.
• A-B REPEAT does not allow you to set point (B) until at least 5 seconds has elapsed after point (A) has been set.

Adjusting the Aspect Ratio (EZ View)

To play back using aspect ratio (DVD)

Press the EZ VIEW button.

• The screen size changes when the button is pressed repeatedly.
• The screen zoom mode operates differently depending on the screen setting in the initial setup menu.
  To ensure correct operation of the EZ VIEW button, you should set the correct aspect ratio in the initial setup (See page 53).

If you are using a 16:9 TV

1 For 16:9 aspect ratio discs

• Wide Screen

Displays the content of the DVD title in 16:9 aspect ratio.

Screen Fit

The top and bottom of the screen are cut off. When playing a 2.35:1 aspect ratio disc, the black bars at the top and bottom of the screen will disappear. The picture will look vertically stretched. (Depending on the type of disc, the black bars may not disappear completely.)

• Zoom Fit

The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged.

For 4:3 aspect ratio discs

Normal Wide

Displays the content of the DVD title in 16:9 aspect ratio. The picture will look horizontally stretched.

Screen Fit

The top and bottom of the screen are cut off and the full screen appears. The picture will look vertically stretched.

Zoom Fit

The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged.

Vertical Fit

When a 4:3 DVD is viewed on a 16:9 TV, black bars will appear at the left and right of the screen in order to prevent the picture from looking horizontally stretched.

Adjusting the Aspect Ratio (EZ View)

If you are using a 4:3 TV

1 For 16:9 aspect ratio discs

4:3 Letter Box

Displays the content of the DVD title in 16:9 aspect ratio. The black bars will appear at the top and bottom of the screen.

4:3 Pan Scan

The left and right of the screen are cut off and displays the central portion of the 16:9 screen.

Screen Fit

The top and bottom of the screen are cut off and the full screen appears. The picture will look vertically stretched.

• Zoom Fit

The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged.

For 4:3 aspect ratio discs

Normal Screen

Displays the content of the DVD title in 4:3 aspect ratio.

Screen Fit

The top and bottom of the screen are cut off and the full screen appears. The picture would look vertically stretched.

Zoom Fit

The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged.

NOTE:

• This function may behave differently depending on the type of disc.

Selecting the Audio Language

You can select a desired language quickly and easily with the AUDIO button.

Using the AUDIO button

1. Press the AUDIO button.
2. Use the LEFT/RIGHT buttons to select the desired language on a DVD. - The audio languages are represented by abbreviations.
3. Use the LEFT/RIGHT buttons to select Stereo, RIGHT or LEFT. (On VCD/CD)

DVD

VCD/CD

NOTE:

• This function depends on what languages are encoded on the disc and may not work with all DVDs.
• A DVD disc can contain up to 8 audio languages.
• How to have the same audio language come up whenever you play a DVD; Refer to "Setting Up the Language Features" on page 51.

Selecting the Subtitle Language

You can select a desired subtitle quickly and easily with the SUBTITLE button.

Using the SUBTITLE button

1. Press the SUBTITLE button.
2. Use the LEFT/RIGHT buttons to select the desired subtitle language.

3. Use the UP/DOWN buttons to determine whether or not the subtitle will be displayed.

4. Initially, the subtitle will not appear on screen.

5. The subtitle languages are represented by abbreviations.

NOTE:

• This function depends on what languages are encoded on the disc and may not work with all DVDs.
• A DVD disc can contain up to 32 subtitle languages.
• How to have the same subtitle language come up whenever you play a DVD; Refer to "Setting Up the Language Features" on page 51.

Changing the Camera Angle

When a DVD contains multiple angles of a particular scene, you can select the Angle function.

Using the ANGLE button

If the disc contains multiple angles, the ANGLE mark appears on the screen.

1. When an ANGLE mark is shown, press the ANGLE button, then an ANGLE select icon will appear at the upper left hand corner of the screen.
2. Use the LEFT/RIGHT buttons to select the desired screen angle.
3. To turn off the display, press the ANGLE button again.

Using theBookmark Function

The Bookmark function lets you select parts of a DVD or VCD so that you can quickly find the section at a later time.

Using theBookmark Function (DVD/VCD)

1. During play, press the BOOKMARK button on the remote. The Bookmark icons will be displayed.
2. Use the LEFT/RIGHT buttons to move to the desired bookmark icon.
3. When you reach the scene you want to mark, press the ENTER button. The icon will change to a number (1, 2, or 3).
4. Press the BOOKMARK button to turn off the display.

Recalling a Marked Scene

1. During play, press the BOOKMARK button on the remote.
2. Use the LEFT/RIGHT buttons to select a marked scene.
3. Press the PLAY (▶) button to skip to the marked scene.

Clearing aBookmark

1. During play, press the BOOKMARK button on the remote.
2. Use the LEFT/RIGHT buttons to select the bookmark number you want to delete.
3. Press the CLEAR button to delete a bookmark number. Press the BOOKMARK button to turn off display.

NOTE:

• Up to three scenes may be marked at a time.
• Depending on the disc, the Bookmark function may not work.

Using the Zoom & 3D Sound Functions

Using the Zoom Function (DVD/VCD)

1. During play or pause mode, press the ZOOM button on the remote.

A Zoom mark will be displayed on screen.

1. Use the UP/DOWN or LEFT/RIGHT button to select the part of the screen you want to zoom in on.

2. Press the ENTER button.

3. Press ENTER to zoom in 2X/4X/2X/Normal in order.(DVD)

4. Press ENTER to zoom in 2X/Normal in order.(VCD)

Using the 3D Sound Function

The simulated surround effect depends on the disc contents. If you connect the unit to your stereo system, you can enhance sound quality and produce a greater surround effect.

This feature is useful when you are using the DVD player with a two channel stereo through the analog outputs.

(Discs which are recorded with LPCM or DTS will not work.)

1. During play, press the 3D button. The 3D SOUND mark will be displayed on screen.
2. Press the UP/DOWN buttons to turn the 3D Sound feature on or off.

NOTE:

• 3D Sound is possible only on discs recorded using DOLBY SURROUND or DOLBY DIGITAL. However, some of these discs do not contain rear channel sound signals.
• Depending on the disc, the Zoom and 3D Sound function may not work.

Clips Menu for MP3/WMA/JPEG

Discs with MP3/WMA/JPEG contain individual songs or pictures that can be organized into folders as shown below. They are similar to how you use your computer to put files into different folders.

1. Open the disc cover.

2. Place the disc in the player.

3. Place the disc with the labeled side up.

4. Close the cover.

5. The cover is closed and you should get a screen that looks like the one below.

: Name of currently playing file.

: Current Playback Time.

: CurrentPlaybackMode : There are 4 modes. They can be selected in order by pressing the REPEAT button.

• Off : Normal Playback
• Track: Repeats the current track.
• Folder : Repeats the current folder.
• Random : Files in the disc will be played in random order.

MP3 file icon.

JPEG file icon.

WMAfile icon.

Folder icon.

Current Folder icon.

Folder Selection

The folder can only be selected in the Stop mode.

To select the Parent Folder
Press the RETURN button to go to Parent folder, or use the UP/DOWN buttons to select ". . ." and press ENTER to go to the parent folder.
To select the Peer Folder

Use the LEFT/RIGHT buttons to highlight left window. Use the UP/DOWN buttons to select the desired folder, then press ENTER.

To select the Sub-Folder

Use the LEFT/RIGHT buttons to highlight right window. Use the UP/DOWN buttons to select the desired folder, then press ENTER.

MP3/WMA Playback

1. Open the disc cover.

2. Place the disc in the player.

3. Place the disc with the labeled side up.

4. Close the cover.

5. The cover is closed and you should get a screen that looks like the one below.

MP3/WMA Play Function

1. Select the desired folder. (See page 44 to change folder.)
2. Use the UP/DOWN buttons to select a song file.
3. Press ENTER to begin playback of the song file.

Repeat/Random playback

Press the REPEAT button to change playback mode.

There are 4 modes, such as Off, Track, Folder and Random.

• Off : Normal Playback
• Track: Repeats the current song file.
• Folder : Repeats the song files which have the same extension in the current folder.

• Random : Song files which have the same extension will be played in random order.

• To resume normal play, press the CLEAR button.

CD-R MP3/WMA discs

When playing CD-R/MP3 or WMA discs, please follow all the recommendations for CD-R above, plus the comments below:

• Your MP3 or WMA files should be ISO 9660 or JOLIET format.
  ISO 9660 format and Joliet MP3 or WMA files are compatible with Microsoft's DOS and Windows, and with Apple's Mac. These two formats are the most widely used.
• When naming your MP3 or WMA files do not exceed 8 characters, and place ".mp3, .wma" as the file extension.

General name format of: Title.mp3. or Title.wma. When composing your title, make sure that you use 8 characters or less, have no spaces in the name, and avoid the use of special characters including: (.,/, =,+).

• Use a decompression transfer rate of at least 128 Kbps when recording MP3 files.
  Sound quality with MP3 files basically depends on the rate of compression/decompression you choose. Getting audio CD quality sound requires an analog/digital sampling rate, that is conversion to MP3 format, of at least 128 Kbps and up to 160 Kbps. However, choosing higher rates, like 192 Kbps or more, only rarely give better sound quality.
  Conversely, files with decompression rates below 128 Kbps will not be played properly.
• Use a decompression transfer rate of at least 64Kbps when recording WMA files.

Sound quality with WMA files basically depends on the rate of compression/decompression you choose. Getting audio CD quality sound requires an analog/digital sampling rate, that is conversion to WMA format, of at least 64Kbps and up to 192Kbps.

Conversely, files with decompression rates below 64Kbps or over 192Kbps will not be played properly.

• Do not try recording copyright protected MP3 files.

Certain "securized" files are encrypted and code protected to prevent illegal copying. These files are of the following types: Windows Media™ (registered trade mark of Microsoft Inc) and SDMI™ (registered trade mark of The SDMI Foundation). You cannot copy such files.

• Important: The above recommendations cannot be taken as a guarantee that the DVD player will play MP3 recordings, or as an assurance of sound quality. You should note that certain technologies and methods for MP3 file recording on CD-Rs prevent optimal playback of these files on your DVD player (degraded sound quality and in some cases, inability of the player to read the files).
• This unit can play a maximum of 3000 files and 300 folders per disc.

Picture CD Playback

1. Select the desired folder. (See page 44 to select the folder)

2. Use the UP/DOWN buttons to select a Picture file in clip menu and the press ENTER.

3. Select JPEG in the menu to view a Photo CD.

4. Use the UP/DOWN or LEFT/RIGHT buttons on the remote control to select the picture you want to view and then press the ENTER button. (Press the PLAY (▶) button if you want to play it in the Slide Show mode.)
   To see the next 6 pictures, press the button.
   To see the previous 6 pictures, press the button.

5. : Return to the Album Screen.

Press the UP/DOWN or LEFT/RIGHT buttons on the remote control to display the menu again.

Each time the ENTER button is pressed, the picture rotates 90 degrees clockwise.
Each time the ENTER button is pressed, the picture is enlarged up to 4X. (Normal 2X 4X 2X Normal)
- :The unit enters slide show mode.
* Before beginning the Slide Show, the picture interval must be set.
- : When this icon is selected and ENTER is pressed, the pictures change automatically with about a 6 second interval.
: The pictures change automatically with about a 12 second interval.
: The pictures change automatically with about a 18 second interval.

*Depending on the file size, each interval between images may take longer or shorter than the manual suggests.

NOTE:

• If no buttons on the remote control are pressed for 10 seconds, the menu will disappear and the selected item will be played. Press the UP/DOWN or LEFT/RIGHT buttons on the remote control to display the menu again.
• Press the STOP button to return to the Clips menu.
• When playing a Kodak Picture CD, the unit displays the Photo directly, not the clip menu.

Picture CD Playback

CD-R JPEG Discs

• Only files with the ".jpg" and ".JPG" extensions can be played.
• Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
  The name of the JPEG file may not be longer than 8 characters and should contain no blank spaces or special characters (. / = +)
• Only a consecutively written multisession disc can be played.

If there is a blank segment in the multisession disc, the disc can be played only up to the blank segment.

• A maximum of 500 images can be stored on a single CD.
• When playing a Kodak Picture CD, only the JPEG files in the pictures folder can be played.
• Kodak Picture CD : The JPEG files in the pictures folder can be played automatically.
• Konica Picture CD : If you want to see the Picture, select the JPEG files in the clips menu.
• Fuji Picture CD : If you want to see the Picture, select the JPEG files in the clips menu.
• QSS Picture CD : The unit cannot play QSS Picture CD.
• If the number of files in 1 Disc is over 3000, only 3000 JPEG files can be played.
• If the number of folders in 1 Disc is over 300, only JPEG files in 300 folders can be played.

Using the Setup Menu

The Setup menu lets you customize your DVD player by allowing you to select various language preferences, set up a parental level, even adjust the player to the type of television screen you have.

1. With the unit in Stop mode, press the MENU button. Select Setup using UP/DOWN buttons, then press the RIGHT or ENTER button.

1 Language Setup : Setup of the Language.
2 Audio Setup : Setup of the Audio Options
Display Setup: Setup of the Display Options Use to select which type of screen you want to watch and several display options.
4 Parental Setup: Setup of the Parental Level Allows users to set the level necessary to prevent children from viewing unsuitable movies such as those with violence, adult subject matter, etc.

1. Use the UP/DOWN buttons on the remote to access the different features.
2. Press the ENTER button to access the sub features.

To make the setup screen disappear after setting up, press the MENU button again.

NOTE:

• How to make the Setup menu disappear or return to menu screen during set up; Press RETURN or LEFT button.
• Depending on the disc, some Setup Menu selections may not work.

Setting Up the Language Features

If you set the player menu, disc menu, audio and subtitle language in advance, they will come up automatically every time you watch a movie.

Using the Player Menu Language

1. With the unit in Stop mode, press the MENU button.

2. Select Setup using UP/DOWN buttons, then press the RIGHT or ENTER button.

3. Select Language Setup using UP/DOWN buttons, then press the RIGHT or ENTER button.

4. Select Player Menu using UP/DOWN buttons, then press the RIGHT or ENTER button.

5. Use the UP/DOWN buttons to select the desired language.

6. Press the ENTER button.

7. The language is selected and the screen returns to Setup menu.

8. To make the Setup menu disappear, press the RETURN or LEFT button.

Using the Disc Menu Language

This function changes the text language only on the disc menu screens.

1. With the unit in Stop mode, press the MENU button.
2. Select Setup using UP/DOWN buttons, then press the RIGHT or ENTER button.
3. Select Language Setup using UP/DOWN buttons, then press the RIGHT or ENTER button.
4. Select Disc Menu using UP/DOWN buttons, then press the RIGHT or ENTER button.
5. Use the UP/DOWN buttons to select the desired language.
6. Select "Others" if the language you want is not listed.
7. Press the ENTER button.
8. The language is selected and the screen returns to Setup menu.

Setting Up the Language Features

Using the Audio Language

1. With the unit in Stop mode, press the MENU button.
2. Select Setup using UP/DOWN buttons, then press the RIGHT or ENTER button.
3. Select Language Setup using UP/DOWN buttons, then press the RIGHT or ENTER button.
4. Select Audio using UP/DOWN buttons, then press the RIGHT or ENTER button.

5. Use the UP/DOWN buttons to select the desired language.

6. Select "Original" if you want the default soundtrack language to be the original language the disc is recorded in.

7. Select "Others" if the language you want is not listed.

8. Press the ENTER button.

9. The language is selected and the screen returns to Setup menu.

Using the Subtitle Language

1. With the unit in Stop mode, press the MENU button.
2. Select Setup using UP/DOWN buttons, then press the RIGHT or ENTER button.
3. Select Language Setup using UP/DOWN buttons, then press the RIGHT or ENTER button.
4. Select Subtitle using UP/DOWN buttons, then press the RIGHT or ENTER button.

5. Use the UP/DOWN buttons to select the desired language.

6. Select "Automatic" if you want the subtitle language to be the same as the language selected as the audio preference.

7. Select "Others" if the language you want is not listed. Some discs may not contain the language you select as your initial language; in that case the disc will use its original language setting.

8. Press the ENTER button.

9. The language is selected and the screen returns to Setup menu.

NOTE:

• If the selected language is not recorded on the disc, the original pre-recorded language is selected.
• How to make the Setup menu disappear or return to menu screen during set up; Press RETURN or LEFT button.

Setting Up the Audio Options

1. With the unit in Stop mode, press the MENU button.
2. Select Setup using UP/DOWN buttons, then press the RIGHT or ENTER button.
3. Select Audio Setup using UP/DOWN buttons, then press the RIGHT or ENTER button.
4. Use the UP/DOWN buttons to select the desired item. Then press the RIGHT or ENTER button.

Digital Output

1. PCM : Converts to PCM(2CH) audio. Select PCM when using the Analog Audio Outputs.
2. Bitstream: Converts to Dolby Digital Bitstream (5.1CH). Select Bitstream when using the Digital Audio Output.

NOTE: Be sure to select the correct Digital Output or no audio will be heard.

DTS

1. Off : Doesn't output digital signal.
2. On: Outputs DTS Bitstream via digital output only. Select DTS when connecting to a DTS Decoder.

Dynamic Compression

1. On : To select dynamic compression.
2. Off : To select the standard range.

NOTE:

• How to make the Setup menu disappear or return to menu screen during set up; Press RETURN or LEFT button.
• Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories
• "DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc.

Setting Up the Display Options

1. With the unit in Stop mode, press the MENU button.
2. Select Setup using UP/DOWN buttons, then press the RIGHT or ENTER button.
3. Select Display Setup using UP/DOWN buttons, then press the RIGHT or ENTER button.
4. Use the UP/DOWN buttons to select the desired item. Then press the RIGHT or ENTER button.

1 TV Aspect

Depending on the type of television you have, you may want to adjust the screen setting (aspect ratio).

1. 4:3 Letter Box :

Select when you want to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.

2.4:3 Pan Scan :

Select this for conventional size TVs when you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.)

3.16:9 Wide :

You can view the full 16:9 picture on your widescreen TV.

2 Still Mode

These options will help prevent picture shake in still mode and display small text clearer

1. Auto : When selecting Auto, Field/Frame mode will be automatically converted.
2. Field : Select this feature when the screen shakes in the Auto mode.
3. Frame : Select this feature when you want to see small letters more clearly in the Auto mode

3 Screen Messages

Use to turn on-screen messages On or Off.

Setting Up the Parental Control

The Parental Control function works in conjunction with DVDs that have been assigned a rating level which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

1. With the unit in Stop mode, press MENU button. The Setup Menu screen appears.
2. Select Setup using UP/DOWN buttons, then press the RIGHT or ENTER button.
3. Select Parental Setup using UP/DOWN buttons, then press the RIGHT or ENTER button.
4. Use RIGHT or ENTER to select Yes if you want to use a password. The Enter Password screen appears.
5. Select your password with the UP/DOWN/LEFT/RIGHT buttons and press the ENTER button. The Re-enter Password screen appears to confirm the password. Select your password again. The Parental Control screen appears ( ).

About the Rating Level ;

The Rating Level will work only when Use Password is set to Yes. (To unlock the player, use RIGHT or ENTER to select No.) Use UP/DOWN to select Rating Level. Press ENTER.

• Use UP/DOWN to select the level(e.g. Level 6) and press ENTER.
  Discs that contain Level 7 will now not play.
• To cancel the rating level, use RIGHT or ENTER to select No in Use Password.

About the Change Password ;

• Use UP/DOWN to select Change Password.
  Press ENTER. The Change Password screen appears.
• Select your new password. Select the new password again.

NOTE:

• How to make the Setup menu disappear or return to menu screen during set up; Press RETURN or LEFT button.
• If you have forgotten your password, see Forgot Password in the Troubleshooting Guide.

Cautionary Notes

Cautions on Using the Player

• Avoid magnetic environments.
  Using the player under strong fluorescent lighting, in a car, near a TV or magnetic object may deteriorate recorded images.
• Be sure to remove the disc, turn off the player, and remove the battery pack after use.
• If used near a broadcast station or power transmission tower, the video may become distorted due to interference.
• Do not drop the player or subject it to strong vibration or shock.
• Do not place the player near a lamp.

Heat from the incandescent light bulbs may cause deformation or malfunction.

• Always observe the rules regulating the use of electrical devices on airplanes.
• Do not expose this product to high temperature and humidity.

This product can be operated within a temperature range of 50^ 86^ and humidity range of 30% 80% .

Do not expose this product to direct sunlight or in a car with its windows closed.

Doing so may result in deformation of casing and circuitry as well as cause fire or bodily injury.

• Do not let water, sand, dust, or other foreign objects in the player. Avoid using or storing the player in a place where there is smoke, steam, or moisture.

Doing so may cause malfunction or mold on the pick-up lens. Keep the player in a well-ventilated area

• When using the player in cold environments, the color LCD screen may not be visible immediately after the power is turned on.

This is not a malfunction. Do not operate the player in temperatures below 50^ .

• Be especially careful not to scratch the pick-up lens during loading/unloading of the disc, or cleaning.

Doing so may result in malfunction.

Cautionary Notes

When Moving the Player

• Be sure to remove the disc from the player before packing for moving.

It is recommended that you also remove the disc from the player and turn off the power when not using the player.

Saving Power

• It is recommended that you turn off the power to the DVD player when not in use.

If you are not going to use it for prolonged period of time, unplug the power cord from the wall outlet.

Maintenance of LCD Screen

• To keep the screen clean, turn off the power and then wipe with a soft cloth.

About LCD Screen

• This LCD panel is designed with the latest technology, ensuring 99.99% of active pixels.

Cautionary Notes

Cautions on Using Battery pack

Danger!

Always follow the safety information below when using the battery pack. Otherwise, a short circuit, overheating, smoke, fire, or damage to the product may result.

1. Never disassemble or modify the battery pack in any way. Do not touch the terminal of the battery pack with a metal object.
2. Do not let any metal object inside the battery pack.
3. Do not place the battery pack in direct sunlight, dashboard of a vehicle, or high temperature.
4. Do not expose the battery pack to water, fire, or heat.
5. Always use the included AC adapter when charging the battery pack.
6. This battery pack is designed exclusively for your portable DVD player. Do not use it with other devices.

Warning!

1. Do not drop or subject to strong vibration.
2. Keep out of reach of children.
3. The battery pack may leak fluid that is harmful to your eyes.

If this fluid gets in your eyes, wash eyes immediately with large amounts of running water and get medical attention immediately.

If the fluid gets on your skin or clothing, wash immediately with water.

Caution!

1. When not using the battery pack, remove it and store in a cool place.
2. Do not use the AC adapter or battery pack for a prolonged period of time during recharging. You might get a low temperature burn.

3. Keep the battery pack free from smoke, steam, moisture, and dust.

4. Do not place the battery pack near a kitchen, heater, or any other place where there is smoke or steam.
   Doing so may result in fire or electric shock.

5. Avoid direct sunlight, heater, or high temperature place. etc, inside of a car. It can cause explosion or fire.
   Doing so may cause a short circuit, overheating, smoke, fire, or damage to the product.
6. Using the battery pack under 50^ or over 86^ can cause reduced battery life.

Cautionary Notes

After a Recharge, store the Battery pack separately.

• This battery pack is a lithium ion battery. Even when not in use, power will drain slowly. So use a fully charged battery pack.
• Recharge until the charge lamp stays on green. A partial charging of the battery pack decreases the overall lifetime of the battery.

Cautions on Charging Battery pack

• Charge within the surrounding temperature range of 50^ 86^ . Charging at a low surrounding temperature slows down the charging time and decreases the battery pack. You cannot fully charge the battery pack at high temperature.
• If the DVD player is overheated and the battery pack's internal temperature goes up to a certain level, you will not be able to charge the battery pack. (The lamp flashes quickly and the light does not come on.) In this case, remove the battery pack. After the internal temperature reaches a safe level, charging will begin automatically.
• The battery pack becomes warm during recharge or use. This is normal and is not a cause for concern.
  A hot battery pack may take longer to charge or may not be charged at all. Wait until the battery pack cools down before charging.

Battery pack Life and Use (Low Temperature)

The lifetime of the battery pack is limited. Power is slowly drained even when not using. Though it varies for differing storage conditions, the battery pack stored unused for a year has a much shorter lifetime. If the battery pack does not last long even after a full charge, you might have to replace it with a new one.
- Total operating time of the battery pack becomes much shorter when used at temperatures below 50^ . Electrical energy is discharged due to internal chemical action of the battery pack. A very low temperature may impede this chemical action and shortens the total operating time.

Caution

• Be sure to use only the battery pack exclusively designed for your DVD player.

NOTE:

• When not using the DVD player, always turn off the power to conserve the battery pack. If the AC adapter is connected to the player, charge the battery pack with the power to the player turned off.

Cautionary Notes

Cautions on Storing Battery pack

• Even when not in use, power is consumed continuously. To reduce the power consumption, follow the procedure below.
• Remove the battery pack from the DVD player after every use.
• When not using the DVD player, turn off the power. If the player is left in the standby mode, power will be slowly drained from the battery pack and the charging capacity will decrease.
• Before storing the battery pack, completely drain the power by operating the player and store in a cool, dry place. If stored in a hot place, the capacity of the battery pack will decrease.
• The battery pack must be recharged and then used on the DVD player at least once every 6 months. This helps to prevent the loss of capacity.

AC Adapter

The supplied AC adapter is compatible with 50 / 60Hz electrical system (110V~240V range).

Use of the AC adapter depends on the specific voltage requirements and electrical outlet design.

• Using the AC adapter near a radio may cause poor reception.
• Do not let any type of flammable, liquid, or metal objects in the adapter.
• The adapter is covered with an outer plastic sheath. Do not peel open the sheath.
• Do not drop, jar, or shake the adapter.
• Do not place in direct sunlight.
• Do not use in high temperature or cold and humid environments.

Cleaning and Maintenance

• Many plastic parts are used in this DVD player casing. Do not use volatile chemicals such as benzene or thinner. This might damage the finish.
• Wipe the casing with a soft, dry cloth. For excessive dirt, use a cloth dampened in a diluted neutral detergent. and wipe again with a soft, dry cloth.
• Wipe off fingerprints or dirt on the LCD screen using a soft, dry cloth.

Troubleshooting

If your DVD player does not seem to be functioning properly, check the items below before you contact a Samsung authorized service center.

Symptom	Check
Power does not turn on or suddenly turns off.	·Make sure the AC power cord is securely plugged into an AC outlet. ·Turn the power off and then back on.
Battery pack is in place but the power does not turn on or suddenly turns off	·Check that the battery pack is charged. If not, recharge it.
Remote control won't work	·Check that the battery is inserted in the "+" and "-" directions properly. ·The batteries may be dead. Replace them with new batteries. ·Check that the signal transmission is directed at the remote control sensor on the DVD player. ·Remove the obstacle between the remote control unit and remote control sensor.
No picture or sound	·Check that the video and audio cables are securely connected. ·Check that the disc is a DVD (region number 1 or all), DVD-RW, VIDEO CD or AUDIO CD. ·Do not use a disc that has scratches or dirt. ·Check that the label-side of the disc is facing up. ·The pick-up lens of the DVD player may be dirty. Contact the service center for lens cleaning. ·Check that the TV channel is set to VIDEO or AV if viewing with a TV.
Forgot password	·Press power on from a cold start with no disc in the unit. Press the STOP and PLAY buttons simultaneously on the unit for three seconds. The Select Menu Language display will appear. Select the desired language by using UP or DOWN button. Press the MENU button on the remote control to select the Parental Mode. The Parental Mode is now unlocked as indicated on the display. Press the DOWN button to select Parental. Press ENTER and the Create Password display will appear. You can now set your rating level and change your password to a new number.

The built-in micro controller can be influenced by external electrical noise. If you believe this may be the cause of the problem, turn off the DVD player and then back on.

Troubleshooting

Symptom	Check
No picture	·Check that the LCD display is turned on.
No sound	·Check that the display panel is open. If it is closed, audio will not be output to the speakers.·Check the volume setting. If set to zero, turn up volume level.·Check that the headphones are plugged into the PHONES jack.Speakers cannot be used with the headphones.
No picture and sound	·Check that the DVD player is in the DVD mode and not in the INPUT mode.
Distorted video or sound	·Use a disc without scratches or dents.
While in the input mode, no picture is output from the external component to the DVD player	·Check that the video or audio cable is securely connected.·Make sure the S-Video cable is used for output only.·Check that the DVD player is in the INPUT mode and not in the DVD mode.

Troubleshooting

Symptom		Check
DVD	Video does not appear with a external component connected to the DVD player	·Check that the TV is set to VIDEO or AV.
		·Check that the video or audio cable is securely connected.
	Dolby Digital audio volume is too low	·Change the “Dynamic Compression” setting to “On”. This will turn up the comparatively low volume level of Dolby Digital, which provides the most wide, dynamic sound range.
Battery pack operation	Battery pack won’t charge	·Check that the DVD player is turned off. You cannot charge the battery pack with the player turned on.
		·A hot battery pack may take longer to charge. Wait until the battery pack is sufficiently cooled down.
	Power does not turn on	·Replace with a fully charged battery pack or use the AC adapter.
	Power charge lamp does not light (Battery pack won’t charge)	·Replace with a fully charged battery pack or use the AC adapter. If the DVD player is overheated and the battery pack’s internal temperature goes up to a certain level, you will not be able to charge the battery pack. In this occurs, remove the battery pack. After the battery pack has sufficiently cooled down, charging will begin automatically.
		·Check that the temperature is within the range of 50°F~86°F.
		·Check that the DC cord of the AC adapter is plugged in correctly.
Battery pack operation	Power charge lamp quickly flashes Green	·Remove the DC cord from the battery pack and then re-plug. If the battery pack is installed, remove the DC cord from the battery pack before performing above procedure.
		·Recharge a different power pack. If the same symptom occurs, your AC adapter may be defective. If the second battery pack charges without any problem, your first battery pack may be defective or needs battery replacement.

Specifications

General	Power Requirements	AC 120V, 60 Hz
	Power Consumption	16 W
	Weight	3.3 lbs (without battery pack)
	Dimensions	W 14.1 in x D 10.4 in x H 5.2 in
	Operating Temperature Range	+50°F to +86°F
	Operating Humidity Range	30 % to 80 %
Disc	DVD (DIGITAL VERSATILE DISC)	Reading Speed : 11.45 ft/sec. Approx. Play Time (Single Sided, Single Layer Disc) : 135 min.
	CD : 5" (COMPACT DISC)	Reading Speed : 3.9 to 4.6 ft/sec. Maximum Play Time : 74 min.
	CD : 31/2" (COMPACT DISC)	Reading Speed : 3.9 to 4.6 ft/sec. Maximum Play Time : 20 min.
	VCD : 5"	Reading Speed : 3.9 to 4.6 ft/sec. Maximum Play Time : 74 min. (Video + Audio)
Video Output	Composite Video	1 channel : 1.0 Vp-p (75 Ω load)
	S-VIDEO	Luminance Signal : 1.0 Vp-p (75 Ω load) Chrominance Signal : 0.286 Vp-p (75 Ω load)
Audio Output	2 channel	L(1/L), R(2/R)
	*Frequency Response	48 kHz Sampling : 4 Hz to 22 kHz 96 kHz Sampling : 4 Hz to 44 kHz
	*S/N Ratio	110 dB
	*Dynamic Range	100 dB
	*Total Harmonic Distortion	0.004 %

: Nominal specification
Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
- Weight and dimensions are approximate.

LIMITED WARRANTY TO ORIGINAL PURCHASER

Samsung Electronics Canada Inc.(SECA), warrants that this product is free from defective material and workmanship. SECA further warrants that if this product falls to operate properly within the specified warranty period and the failure is due to improper workmanship or defective materials, SECA will repair or replace the product at its option.

All warranty repairs must be performed by a SECA Authorized Service Center. (The name and address of the location nearest you can be obtained by calling toll free: 1-800-SAMSUNG)

LABOR

One year (Carry-in)

PARTS

One year

On carry-in models, transportation to and from the service center is the customer's responsibility. The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase. It must be presented to the authorized service center at the time service is requested.

EXCLUSIONS (WHAT IS NOT COVERED)

This warranty does not cover damage due to accident, fire, flood and/ or other acts of God; misuse, incorrect line voltage, improper installation, improper or unauthorized repairs, commercial use or damage that occurs in shipping. Exterior and interior finish, lamps, glass are not covered under this warranty. Customer adjustments which are explained in the instruction manual are not covered under the terms of this warranty. This warranty will automatically be voided for any unit found with a missing or altered serial number. This warranty is valid only on products purchased and used in Canada.

HEADQUARTERS

SAMSUNG ELECTRONICS CANADA, INC.

7037 FINANCIAL DRIVE MISSISSAUGA, ONTARIO L5N 6R3 CANADA

Made in Korea

TEL: [phone]

www.samsung.ca
