USER MANUAL DVD-L1200 SAMSUNG

SERVICE PERSONNEL. To prevent electric shock, match wide blade of plug to wide slot and full insert

. READ INSTRUCTIONS: All the safety and operating instructions should be read before the DVD is operated . RETAIN INSTRUCTIONS: The safety and operating instructions should be retained for future reference. . HEED WARNINGS: All warnings on the DVD and in the operating instructions should be adhered to.

4. FOLLOW INSTRUCTIONS:

All operating and maintenance instructions should be followed. . CLEANING: Unplug this DVD from the wall outiet before cleaning Do not use liquid or aerosol cleaners Use a dry cloth used for dusting cabinets. . ATTACHMENTS: Do not use attachments not recommended by the DVD product manufacturer as they may be hazardous.

voltage within the products enclosure that may be of sufficient magnitude to constitute à j This symbol is intended to alert the user to the presence of uninsulated dangerous risk offre or electric shock. This symbol is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying this product WATER AND MOISTURE: Do notuse this DVD near water; for example, a bathtub, wash bowl, kitchen sink, laundry tub, in a wet basement, à swimming pool or lake. ACCESSORIES: Do not place this DVD on an unstable cart, stand, tripod, bracket or table, The DVD may fall, causing serious injury to à child or adult, and seriously damage the unit. Use only with à cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the DVD. Any mounting of the unit should follow the manufacturers instructions and should use à mounting accessory recommended by the manufacturer. À. An appliance and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the appliance and cart combination to overturn

PORTABLE CART WARNING

(Symbol provided by RETAC) Notices and Safety Instructions

VENTILATION: Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the DVD and to protect it from overheating. These openings must not be blocked or covered. Never place your DVD on à bed, sofa, rug, or other similar surface: on or near à radiator or heat register. This DVD should not be placed in à buit-in installation such as à bookcase or rack unless proper ventilation is provided or the manufacturers instructions have been adhered to. POWER SOURCES: The DVD should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply at your home, consult your appliance dealer or local power company. if a DVD is intended to be operated from battery power, or other sources, refer to the operating instructions. GROUNDING OR POLARIZATION: This DVD may be equipped with either a polarized 2-wire AC line plug (à plug having one blade wider than the other) or a 3-wire that has grounding type plug, à plug having a third (grounding) pin. If you are unable to insertthe plug fully into the outet, try reversing the plug. f the plug still fails to fit, contact your electrician to replace your outiet, Do not defeat the safety purpose of the polarized plug POWER-CORD PROTECTION: Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords or plugs, convenient receptacles, and the point where they exit from the unit.

OUTDOOR ANTENNA GROUNDING: If an outside antenna or cable system is connected to the DVD, be sure the antenna or cable system is grounded to provide protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No. 70-1984 provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire and supporting structure, grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding to conductors, location of antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode. LIGHTNING: For added protection of this DVD during a lightning storm or when it is left unattended and unused for long periods of time unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the DVD due to lightning and power-line surges. POWER LINES: An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits since contact with them might be fatal. OVERLOADING: Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

Notices and Safety Instructions 17.0BJ ECTS AND LIQUIDS: Never push objects of any kind into this DVD through openings as they may touch dangerous voltage points or short out à part that could result in à fire or electric shock. Never spill liquids of any kind onto the DVD. Should spillage oceur, unplug unit and have it checked by a technician before use. SERVICING: Do not attempt to service this DVD yourself. Opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19. DAMAGE REQUIRING SERVICE:

Unplug this DVD from the wall outiet and refer servicing to qualiied service personnel under the following conditions: . When the power-supply cord or plug is damaged. If any liquid has been spilled onto, or objects have fallen into the DVD. . Ifthe DVD has been exposed to rain or water. Ifthe DVD does not operate normal by following the operating instructions, adjust only those controls thatare covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the DVD to its normal operation Ifthe DVD has been dropped or the cabinet has been damaged. : When the DVD exhibits a distinct change in performance this indicates a need for service.

20.REPLACEMENT PARTS: When replacement parts are required be sure the service technician has used replacement parts specified by the manufacturer and that have the same characteristics as the original part Unauthorized substitutions may result in fire, electric shock or other hazards 21.SAFETY CHECK: Upon completion of any service or repairs to this DVD, ask the service technician to perform safety checks to determine that the DVD is in safe operating order. CAUTION : USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN SPECIFIED HEREIN MAY RESULT IN

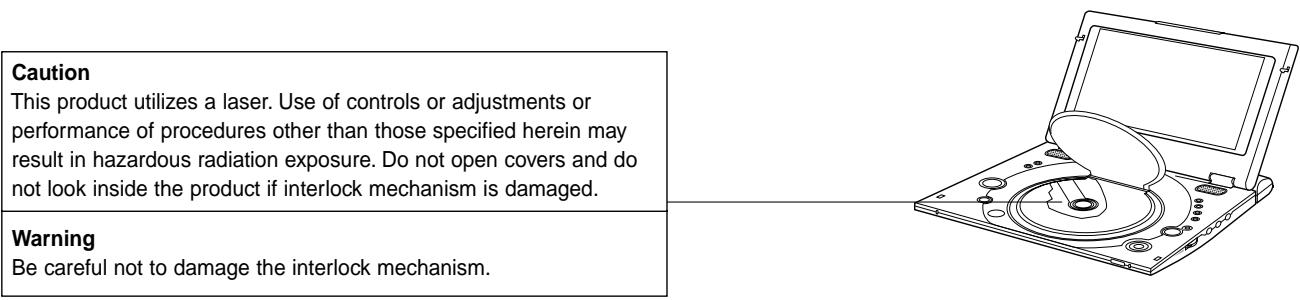

HAZARDOUS RADIATION EXPOSURE

Copy Protection + Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, notto a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs. *This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. Safety Information Assuring the Finest Performance This product is designed with the latest technology to provide trouble-free operation Ifthe pick-up lens or disk drive gets dirty, the video quality will decrease. Moisture Condensation Condensation may form inside this player under following conditions:

• If warm air comes in contact with any cold parts inside the player + Ifthe player is located in a room with high humidity + Ifthe player is exposed to sudden temperature changes from cold to hot. When condensation forms inside the player, the player may not operate correctly. If this occurs, leave the player at room temperature until the inside of the player becomes dry and operational. Laser Safety Caution This product utlizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Do not open covers and do not look inside the product if interlock mechanism is damaged Warning Be careful not to damage the interlock mechanism

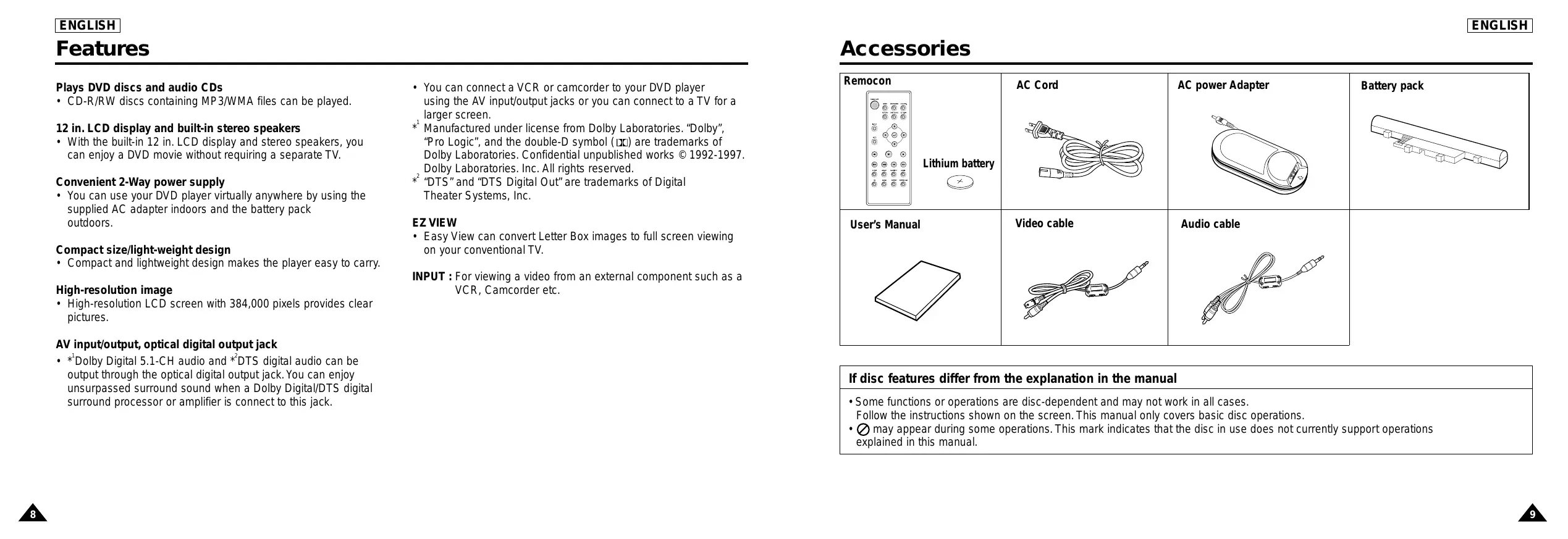

Features Plays DVD discs and audio CDs + CD-R/RW discs containing MP 3/WMA files can be played. L LCD display and built-in stereo speakers + With the built-in 12 in. LCD display and stereo speakers, you can enjoy a DVD movie without requiring a separate TV. Convenient 2-Way power supply + You can use your DVD player virtually anywhere by using the supplied AC adapter indoors and the battery pack outdoors. Compact size/light-weight design + Compact and lightweight design makes the player easy to carry. High-resolution image + High-resolution LCD screen with 384,000 pixels provides clear pictures. AV input/output, optical digital output jack + *Dolby Digital 5.1-CH audio and *DTS digital audio can be output through the optical digital output jack. You can enjoy unsurpassed surround sound when a Dolby Digital/DTS digital surround processor or amplifier is connect to this jack. + You can connect a VCR or camcorder to your DVD player using the AV inputoutput jacks or you can connect to a TV for a larger screen.

• Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic", and the double-D symbol (D) are trademarks of Dolby Laboratories. Confidential unpublished works © 1992-1997 Dolby Laboratories. Inc. Al rights reserved. # "DTS"and "DTS Digital Out” are trademarks of Digital Theater Systems, Inc EZ VIEW + Easy View can convert Letter Box images to full screen viewing on your conventional TV. INPUT : For viewing a video from an external component such as a VCR, Camcorder etc Accessories Remocon AC Cord AC power Adapter Battery pack

Lithium battery SZ User's Manual Video cable Audio cable ff disc features differ from the explanation in the manual + Some functions or operations are disc-dependent and may not work in all cases Follow the instructions shown on the screen. This manual only covers basic disc operations + @ may appear during some operations. This mark indicates that the disc in use does not currently support operations explained in this manual.

Disc Type and Characteristics This DVD player is capable of playing the following types of discs with the corresponding logos: Disc Types Recording Disc * Caution 1 (Logos) Types Size ur NTSC DOG DVD Single-sided | DVD contains excellent P'STTAT 5" AU sound and video due to «Play + NTSC broadcast *Dolby Audio 480 min. Een Region system in U.S.A, Digital & ur bus ere etant Number Canada, Korea, disc DVD Wideo Sos functions can be easily Japan, etc. 312" con selected through the VIDEO Double-sided grades | onscreen menu. srenco]| UE || dés VIDEO-CD . * Stereo + Digital *DTS disc +MP3 : 5" ur disc Audio disc Audio + Video with CD sound, disc Ier ” VHS quality & MPEG-1 NOTE ideo " il compression technology. NOTE: sua Go D D * Discs which cannot be played with this player:

AUDI 5" 74 min. * CD is recorded as a Digital *CDI | sons COCA. + HD layer of super Audio CD COMPACT Audio GARE CEE Draudio + CDGS play audio only, not graphics. List 5 na quality over time. * Ability to play back may depend on recording (DIGITAL AUDIO ; conditions: *DVD-R *CD-RW

• Picture CD Play Region Number Both the DVD player and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. t The Region Number for this player is described on the bottom housing of the player.

It may not play CD-R, CD-RW and DVD-R in some cases due to the type of disc or condition of the recording.

• Itplays a VCD 2.0 disc like VCD 1.1 mode (MENU Off Mode). Disc Type and Characteristics

• Caution 2 + Some playback functions of a DVD vary by manufacturer. This DVD player reproduces the disc data according to guidelines provided by the disc manufacturer. lf @appears during disc operations, the disc manufacturer has placed a limit on that function.

• Caution 3 *The LCD display does not support Closed Captions. However, you can view captions by connecting this unit to a TV with the caption function. Discs that cannot be played L.Illegally manufactured discs

2. Discs with scratches

3. Discs with fingerprints, dirt, and debris.

+Ifthe disc surface has dirt or scratches, No Disc will be displayed and the disc will not be played correctly. (Refer to page 5 and clean the surface of the disc.) Ifthe player encounters dirt or scratches while playing, video playback may be interrupted. (Some block-like patterns appear. When this occurs, your player will restore the image in 2-3 seconds.) About Copyrights + Any kind of unauthorized and commercial duplication, public performance, broadcasting, renting, copying and making transmittable of the content of discs is strictly prohibited by law. This product is equipped with anti-copy protection device and connecting to a VCR for recording purposes results in a distorted picture. This product incorporates copyright protection technology that is protected by method claims of certain U.S patents and other intellectual property rights owned by Macrovision. Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. + Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol (ÆÆÆ#) are trademarks of Dolby Laboratories. +*“DTS"is a trademark of Digital Theater System, Inc.

POWER +Press the POWER button for 1 second to power off. OPEN DISC COVER REVERSE DISPLAY EZ VIEW AIC (Adaptive Image Control) «Standard : The basic mode for ordinary viewing. + Indoor :The best mode for partial lighting environment. Displays a more vivid, detailed picture under artificial lighting conditions, with enhancement of signal components. + Outdoor : The perfect mode for sumny outdoor conditions increases the contrast and sharpness level to compensate for outdoor lghting conditions.

• Low light : The optimum mode for low light viewing situations: (@) lfthe viewing environment is very dark, use this mode to decrease brighness, and increase contrast and edge sharpness PDHBEWN 7.LCD

1. AUDIO IN/OUT / DIGITAL OUT

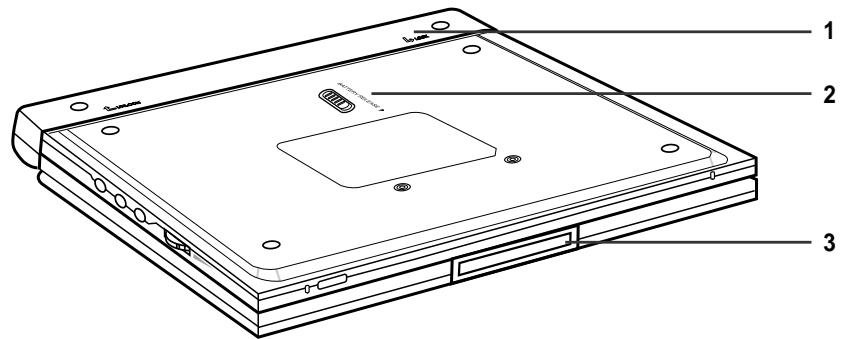

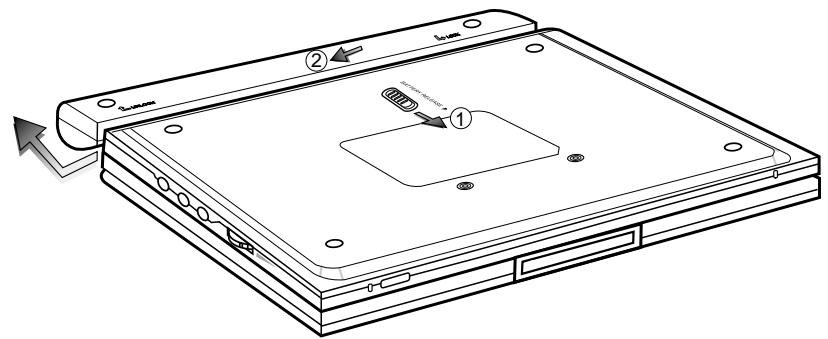

© Press in the direction of the arrow. @ Slide battery pack to the left, then out. Tour of the Remote Control ENGLISH

+ If you power off the unit with the remote, it remains in low power consumption mode. To turn the unit on, you must press the main POWER button on the unit

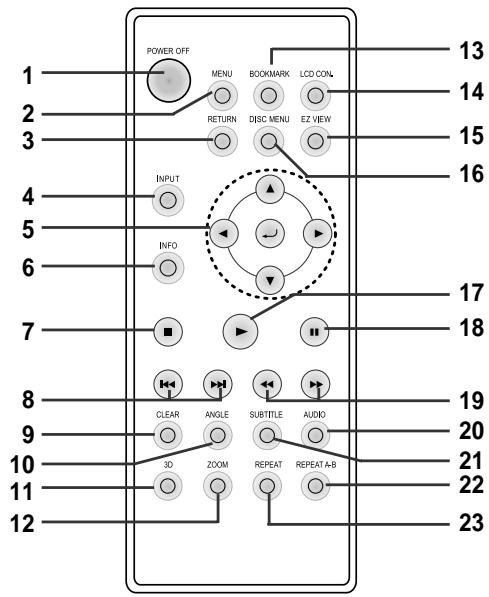

+ Brings up the DVD players setup menu

+Use to select signals from external sources

Use to skip the title, chapter, or track.

+ Use to access various camera angles on à DVD.

*Use this button to access various audio functions on a disc. SUBTITLE Button

REPEAT A-B Button +Use to mark à segment to repeat between À and B.

REPEAT Button + Alows you to repeat play a tite, chapter, track, or disc.

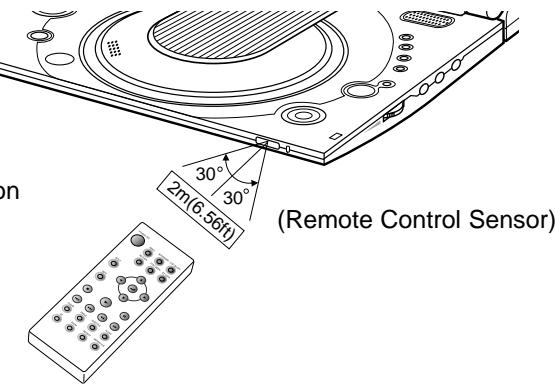

Using the Remote Control Unit Installing the Battery in the Remote 1. Remove the battery compartment in the direction of the arrow. 2. Place the lithium battery in the battery compartment and put the battery compartment cover back on the remote.

• Match the polarities (+ and -) on the battery with the marks {Back of the remote control) in the battery compartment. If the battery is inserted in the wrong direction, your remote control may not work correctly. Operating Range of Remote Control Unit Important! Do not subject the remote control unit to strong vibration or shock. Keep the remote control unit free from moisture and water. Caution + After battery replacement, your remote control unit may not work. If this occurs, remove the battery and re-insert. *1t may be difficult to operate the remote control unit if the remote control sensor on the DVD player is exposed to direct sunlight or strong artificial light. Try operating the remote away from such light sources

• Remove the battery when not planning to use the remote control unit for a long period of time. Connecting Headphones to the DVD ENGLISH You can attach headphones with a stereo mini-jack plug (not supplied) to the PHONES jack for private listening. There are three jacks available. How to use headphones

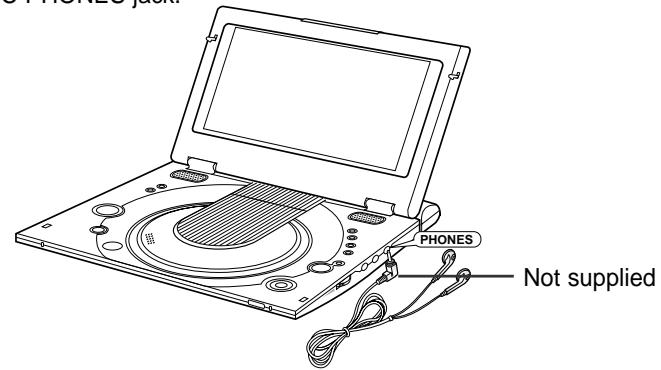

1. Insert headphones into the À, B or C PHONES jack.

This jack is a stereo mini-jack. Important! + Turn the headphone volume down to the minimum setting before connecting. Caution + Once you connect headphones to the DVD, your DVD Players speakers will be disconnected.

2. Adjust the volume level by using the VOLUME control dial.

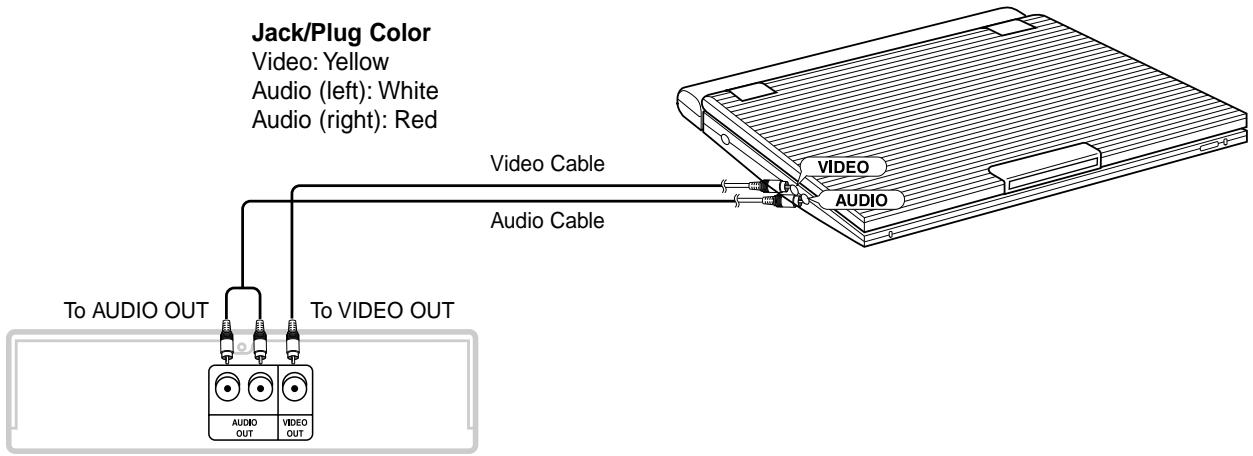

Connecting to an External Component (Input Select) You can enjoy video from your VCR or Camcorder on your DVD player. When connecting to an external component Jack/Plug Color Video: Yellow Audio (left): White Audio (right): Red Video Cable Audio Cable To AUDIO OUT To VIDEO OUT

VCR or other component equipped with external output connectors Important! + Always turn off the DVD Player and other components before you connect any cables. + Refer to owner's manual of the components you are connecting for more information on those particular components. NOTE: In the INPUT mode, the video input must be the standard NTSC. Viewing a Video from an External Component Use the procedure below to view a video from a VCR or Camcorder on your DVD player. To view video from an external component

. Connect the external component according to the procedure outlined on page 18.

2. Turn on the external component. INPUT

3. Turn on the DVD player.

4. Press the INPUT button to set the INPUT mode.

Caution + Power is not supplied from this device to the connected DVD player. + When not using your DVD player, always remove all connecting cables from the video or audio input/output jacks. + Atthe beginning of INPUT mode you could see a unstable display for a moment if the input signal is unstable.

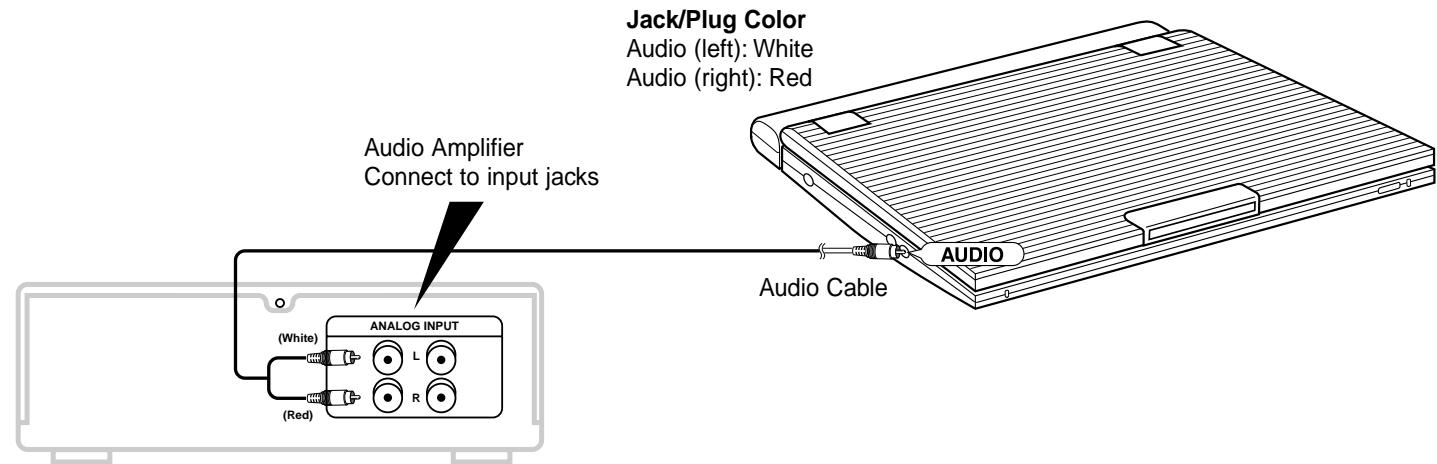

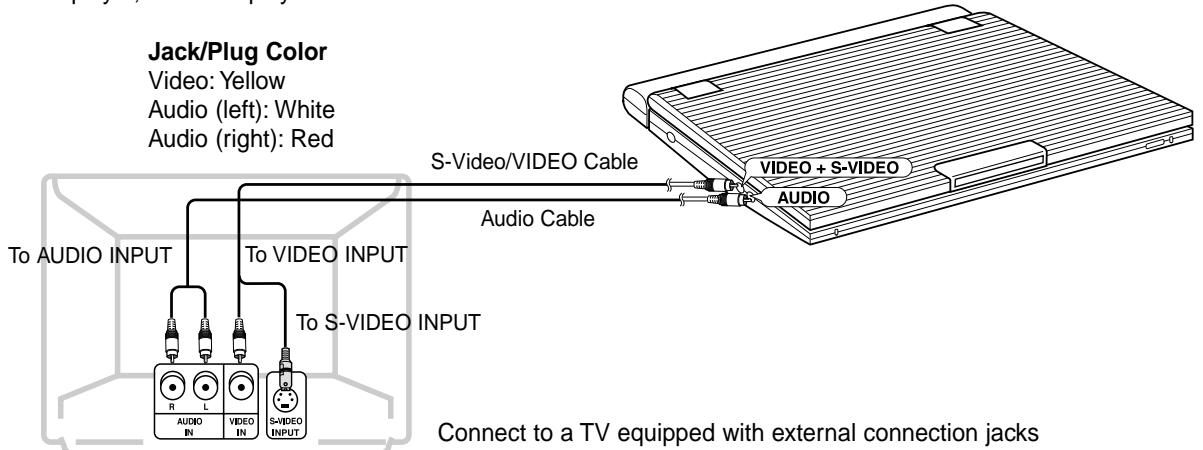

Connecting to a TV Connecting to a Stereo Component You can enjoy high-resolution video using a S-VIDEO cable when connecting your DVD player When you connect the DVD player to an audio system, you can listen to higher quality sound. to a TV equipped with an S-VIDEO input jack. + Always turn off the DVD Player and TV before you connect any cables. To view video with a TV 2-CH Audio Playback

1. Turn on the TV. mAnalog Connection

2. Press the TV/VIDEO button on your TV to select the input from the DVD player.

3. Turn on the DVD player, and start playback. Jack/Plug Color

Audio (left): White Audio (right): Red Jack/Plug Color Video: Yellow Audio (left): White Audio (right): Red Audio Amplifier S-Video/VIDEO Cable Connect to input jacks Audio Cable To AUDIO INPUT To VIDEO INPUT] To S-VIDEO INPUT Connect to a TV equipped with external connection jacks Caution +1f you wish to view video on your TV only, close the display panel of your DVD player. Playback will continue and audio to the speakers will be cut off, but you still will be able to use the remote to control the DVD player. + For power saving, press the LCD CON. button to power off the LCD display.

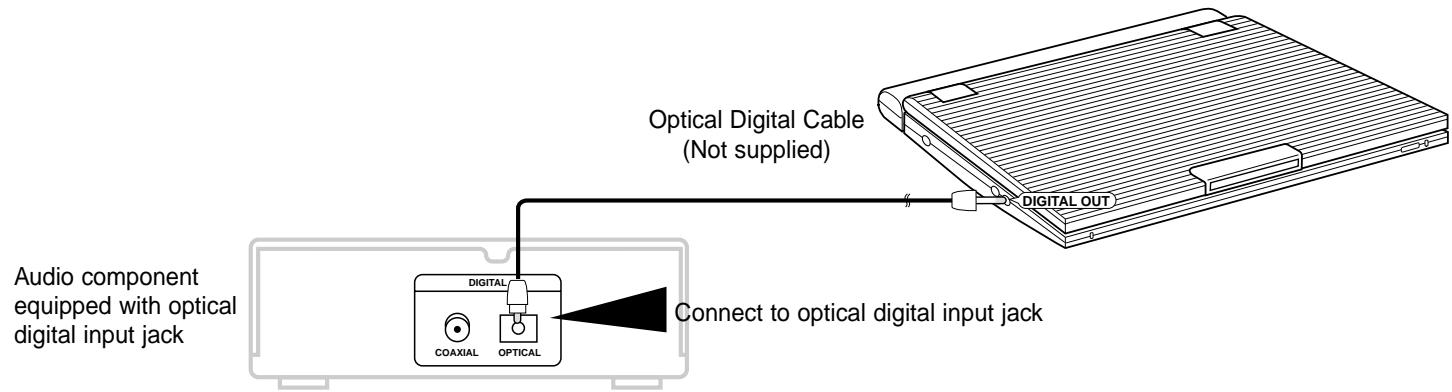

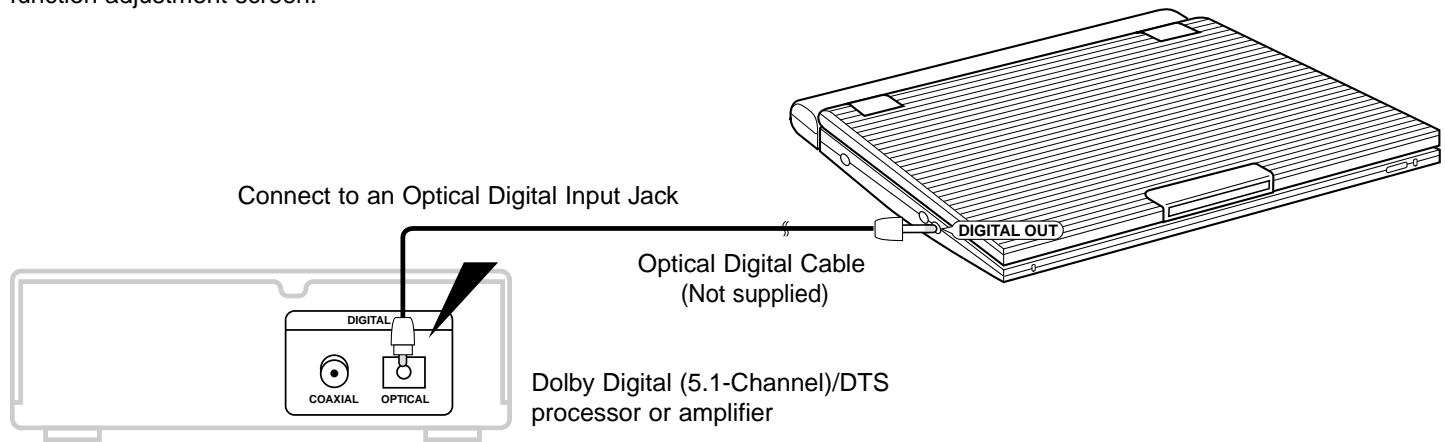

Connecting to a Stereo Component Connecting to a Stereo Component Digital Audio Output (optical) Playing Dolby Digital (5.1-CH) and DTS Audio + You can enjoy full and dynamic surround sound by connecting a Dolby Digital/DTS digital surround processor or amplifier to the optical digital jack on the DVD player. + When using DTS digital surround, select the DTS audio by using the disc menu screen Optical Digital Cable or function adjustment screen. (Not supplied) Audio component equipped with optical — Connect to optical digital input jack Connect to an Optical Digital Input J ack digital input jack © [8] pce ciel mputs Optical Digital Cable (Not supplied) After the completion of above connections; — Setthe “Digital O t'to "PCM" 52) in “Audio Setup”. etthe "Digital Output” to (see page 52) in “Audio Setup Dolby Digital (5.1-Channel)/DTS processor or amplifier m Digital connection to an audio component without a Dolby Digital decoder

• Audio CD Play the disc. When connecting digitally, DTS-encoded audio tracks will produce distorted sound. After making the connections shown above; *DVD Disc : : . Setthe ‘Digital Output” to ‘Bitstream” (see page 52) in “Audio Setup”. When playing a Linear PCM Audio encoded disc, you must use the digital connection method shown above. Caution + To play a DTS disc, you need a DTS processor or amplifier. *Ifthe DTS processor or amplifier you want to use does not have an optical digital input jack, NOTE: digital connection is not possible. Only use an optical Digital Cable which has been designed for use with portable DVD. *Refer to owners manual of the processor or amplifier for details on connections.

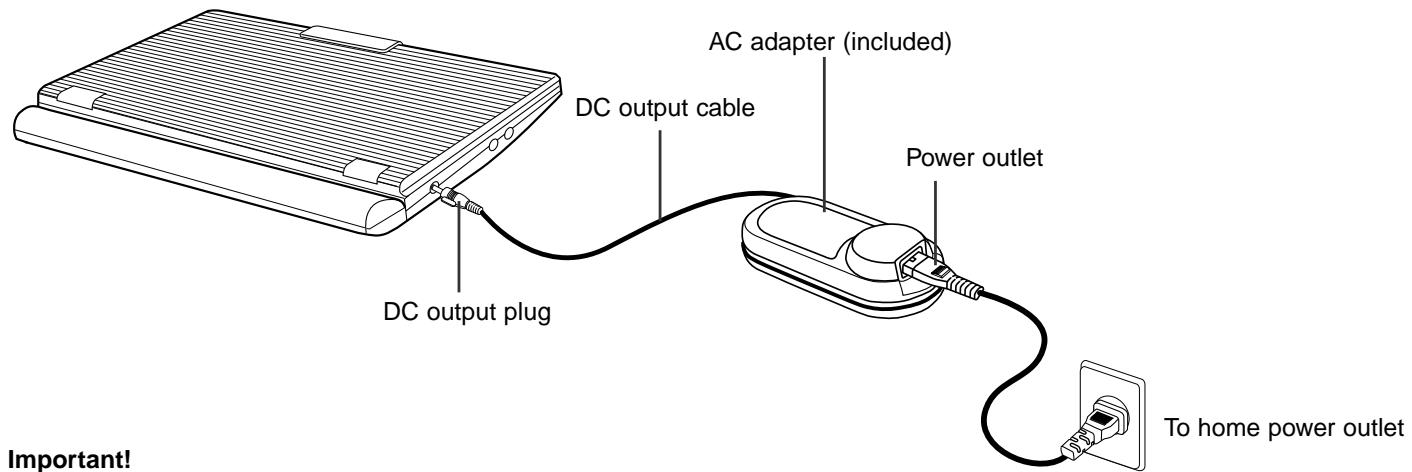

Using the AC adapter AC adapter (included) DC output cable Power outlet DC output plug To home power outlet Important! + Always turn off the DVD player before connecting or disconnecting the AC cord. *Be sure to use the supplied AC adapter. Using a different type of adapter may cause malfunction or damage to the product. + When the AC adapter is used for prolonged periods of time, the adapter may heat up. This is normal and is not à cause for concern + When not using the adapter, unplug it from the wall outlet.

• Keep the AC adapter free from moisture, cold, and dust. Otherwise, this can result in a risk of fire or electric shock. Warning

• Only use the AC adapter supplied with this player. *Be sure to unwind the AC adapter cable (DC output cable) before using, as electromagnetic interference may cause problems with other devices. *Ifthis power supply is used at 240V ac, a suitable plug adapter should be used Using the AC adapter Important! + Always turn off the DVD player when inserting or removing the AC adapter. + Before storing the battery pack, make sure itis completely drained. Be sure to recharge the battery at least once every six months to ensure proper battery life. Caution + When charging or using the battery pack, it heats up. This is normal and is not a cause for concern. NOTE: Connecting the battery pack to the AC Adapter;
• You can recharge the battery pack in the DVD player by turning off the player and connecting the AC adapter to the player. Charge Time: Approx. 2.5 hours + Charge time may be longer when using the battery pack in a cold environment. DVD Continuous Playing Time with a Fully charged Battery pack (with speaker): Approx. 2.5 hours
• DVD continuous playing time is a reference indicating the maximum playing time at average speaker vol- ume. *The playback time may be shortened depending on the disc, surrounding temperature, battery pack conditions, and speaker volume.

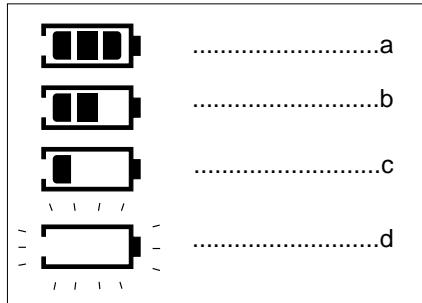

ENGLISH Using the battery pack Battery level display Important! «The battery level display indicates the amount of power remaining in the battery pack. + When inserting the battery pack, make sure that it is inserted correctly. Otherwise, your DVD player may malfunction. a. Fully charged b.20-40% used Charging the battery pack c.40-80% used ns WP d. Completely used (flickers) Use the AC adapter (included) to charge the battery pack. (Ifthe battery mark flickers the DVD will turn off soon. Change the battery as soon as possible)

• Before charging, make sure that the battery pack is correctly seated

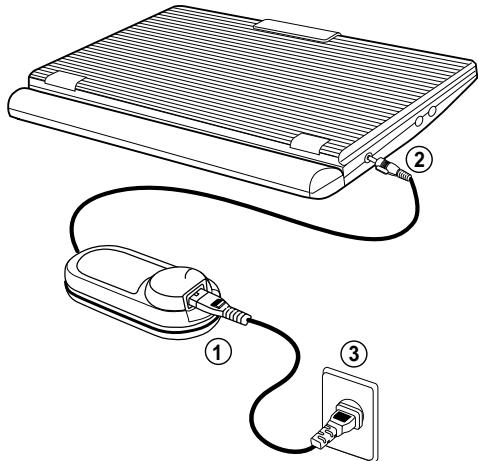

1. Connectthe AC cord to the jack on the AC adapter (@)

2. Connectthe DC cord to the DC IN jack on the left side of the DVD player (@). *The playing time is affected by environmental temperature and conditions. The playing time becomes very short in a cold environment. The continuous playing times in the operating instructions are measured using à fully charged battery pack at 77°F (25°C). As the environmental temperature and conditions may differ when you actually use the DVD, the remaining battery time may not be the same as the approximate continuous playing times given in these instructions

3. Plug the other end of the AC cord into an AC outlet (@).

Blinking time Charging rate Once per second Less than 50% Twice per second 50%-75% Three times per second 75%-90% Blinking stops and stays on | 20% 100% On for à second and ErrorResetihe battery pack and NOTE: off for a second the DC cable + When the operation time is noticeably shorter than normal, it is time to buy a new battery. The battery level display time changes depending on the battery operating time. Power Charge Lamp . : : u .

• As the battery is completely used, the noise screen might be displayed intermittently. -Green light will flash while charging. -When the battery pack is fully charged, the light will stop blinking and remain green

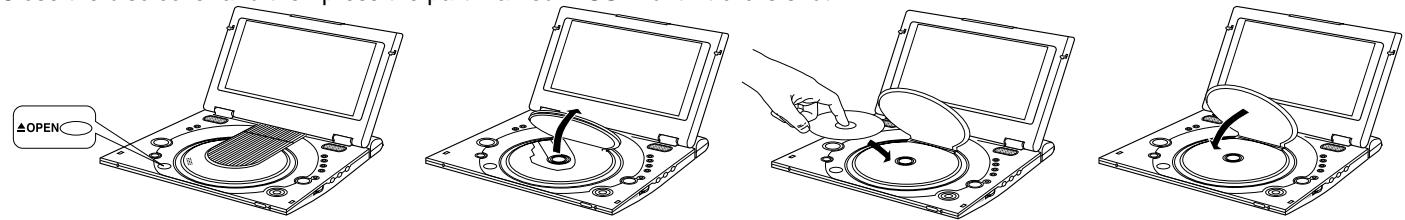

Playing a Disc Before Play After plugging in the player, the first time you press the POWER button, this screen comes up: Press the UP/DOWN buttons to select the language, and then press the ENTER button [Francais (This screen will only appear when you plug in the player for the first time.) If you don't select language, at first time, setting value of Setup menu will be lost. es Play

1. Press the OPEN button to open the disc cover.

The disc cover opens up to around a 60-degree angle. Do not attempt to open the cover to an angle beyond this range. The cover may become damaged.

. Place a disc gently into the tray. +You should hear and feel the disc snap firmly into place. Caution + Place a disc into the tray with the disc's label facing up.

. Close the disc cover and then press the part marked “PUSH” until it clicks shut.

• Press the STOP ( mm) button during play.

. Pausing Play Press the PAUSE ( 11) button on the remote during play. - Screen stops, no sound. - To resume, press PLAY ( >) button once again Playing a Disc

6. Step Motion Play (Except CD)

Press the PAUSE ( IN/STEP button on the remote during play. - Each time the button is pressed, a new frame will appear. - No sound is heard during STEP mode. - Press PLAY ( ») to resume normal play. (You can only perform step motion play in the forward direction.) 7.Slow Motion Play (Except CD) Press the » button on the remote during PAUSE or STEP mode. By pressing the button, you can select slow motion play for 1/8, 1/4 or 1/2 of normal speed Press and hold the #1 button to choose the play speed between 1/8, 1/4 and 1/2 of normal during PAUSE or STEP mode. - No sound is heard during slow mode. - Press PLAY ( ») to resume normal play. NOTE: Reverse slow motion play will not work. RESUME function When you stop disc play, the player remembers where you stopped, so when you press PLAY ( ») again, it will pick up where you left off. (unless the disc is removed or the player is unplugged, or if you pressed the STOP ( mm) button twice.) Important!

• Make sure that the disc is correctly placed. Otherwise, the disc and/or the DVD player may be damaged. *Ifthe disc is placed upside down in the disc tray or the region number of the DVD is not supported, No Disc will appear on the screen. NOTE: + Ifthe player is left for 5 minutes in pause mode, it will stop. *Ifthe player is left in the stop mode for more than one minute without any user interaction, a screen saver will be activated Press the PLAY (» ) button to resume normal play. + Ifthe player is left in the stop mode for more than 5 minutes, the power will automatically shut off. (Automatic Power-Off Function) *This @ icon indicates an invalid button press. + Do not remove the disc until it has completely stopped.
• Press the POWER button for 1 second to power off.

Using the Search & Skip Functions Using the Display Function During play, you can search quickly through a chapter or track or use the skip function to jump to the next selection Searching through a Chapter or Track During play, press the SEARCH (44 or bk) button on the remote. + Press the SEARCH (44 or px ) button on the remote for more than 1 second and press again or press continuously to search at a faster speed on a DVD, VCD, CD. + Press the SKIP (@@ or pp) button for more than 2 seconds to use the SEARCH feature. DVD 2X, 4X, 8X, 16X, 32X, 128X VCD [4x 8x cD 2X, 4X, 8X Skipping Tracks During play, press the NEXT SKIP (bp) or BACK SKIP (H&) button. + When playing a DVD, if you press the NEXT SKIP button, it moves to the next chapter. If you press the BACK SKIP button, it moves to the beginning of the chapter. One more press makes it move to the beginning of the previous chapter. + When playing VCD or a CD, if you press the NEXT SKIP button, it moves to the next track. If you press the BACK SKIP button, it moves to the beginning of the track. One more press makes it move to the beginning of the previous track + Ifa track exceeds 15 minutes when playing a VCD and you press the NEXT SKIP button, it moves forward 5 minutes. If you press the BACK SKIP button, it moves backward 5 minutes When Playing a DVD/VCD/CD

1. Press the INFO button during playback.

2. Use the UP/DOWN buttons to select the desired item.

3. Use the LEFT/RIGHT buttons to make the desired setup, then press ENTER.

4.To make the screen disappear, press the INFO button again.

NOTE: DVD To access the desired title when there is more than one in the disc For example, if there is more than one movie on a DVD, each movie will be identified Most of DVD discs are recorded in chapters so that you can quickly find a specific passage. (similar to tracks on an audio CD). Allows playback of the film from a desired time. You must enter the starting time as a reference. Refers to the language of the film soundtrack. In the example, the soundtrack is played in English 5.1CH. A DVD disc can have up to eight different soundtracks. Refers to the subtitle languages available in the disc. You will be able to choose the subtitle languages or, if you prefer, turn them off from the screen. À DVD disc can have up to 32 different subtitles.

A surround sound effect is generated using two front speakers and headphones. +1f you want to see the battery level display in the bettery mode, press the INFO button

Using the Disc and Title Menu Using the Function Menu Using the Disc Menu 1.Press the MENU button during playback.

2. Select Disc Menu using the UP/DOWN buttons, then press the RIGHT or ENTER button.

Using the Title Menu 1.Press the MENU button during playback.

2. Select Title Menu using the UP/DOWN buttons, then press the RIGHT or ENTER button.

NOTE: + Depending on the disc, the Title and Disc Menus may not work. «Tite Menu will only be displayed if there are at least two titles in the disc. *You can also use the Disc Menu, using the DISC MENU button on the remote. Using the Function Menu

1. Press the MENU button during playback.

2. Use the UP/DOWN buttons to highlight Function, then press the RIGHT or ENTER button.

3. Function selection screen appears, Info, Zoom, Bookmark, Repeat and EZ View.

Then press the RIGHT or ENTER button to access the function. NOTE: *You can use also directly select these functions using their respective buttons on the remote. Zoom Bookmark ,.… Repeat EZ View

Repeat Play Repeat the current track, chapter, title, a chosen section (A-B), or all ofthe disc. When playing a DVD/VCD/CD 1.Press the REPEAT button on the remote. Repeat screen appears. DVD

2. Select Chapter, Title or A-B using the LEFT/RIGHT buttons. ©

• REPEAT A-B + Press the REPEAT button. Select A-B on screen with the LEFT/RIGHT buttons or press the REPEAT A-B button on the remote. +Press ENTER at the point where you want the repeat play to start (A). The B is automatically highlighted. + Press ENTER atthe point where you want the repeat play to stop (B). + To terminate the function, press the 'CLEAR' button or the 'REPEAT A-B' button again. VCD/CD +A-B REPEAT does not allow you to set point (B) until at least 5 seconds has elapsed after point (A) has been set. Sen 3.Press ENTER. 4.To return to normal play, press REPEAT again, then press the LEFT/RIGHT buttons to select Off and press ENTER NOTE: + DVD repeats play by chapter or title, CD and VCD repeat play by disc or track. + Depending on the disc, the Repeat function may not work. Slow Repeat play ENGLISH This feature allows you slowly to repeat scenes containing sports, dancing, musical instruments being played etc. so you can study them more closely. When playing a DVD/VCD

1. During play, press the PAUSE ( 11 /STEP button on the remote.

2.By pressing the »# button, you can select slow motion play for 1/8, 1/4 or 1/2 of normal speed

3. Press the REPEAT A-B button to select the point where the function starts. (A)

4. Press the REPEAT A-B button to select the point where the function ends. (B)

NOTE: The disc will play from A to B repeatedly at the speed you chose +To terminate the function, press the 'CLEAR' button or the 'REPEAT A-B' button again. *A-B REPEAT does not allow you to set point (B) until at least 5 seconds has elapsed after point (A) has been set.

Adjusting the Aspect Ratio (EZ View) To play back using aspect ratio (DVD) Press the EZ VIEW button + The screen size changes when the button is pressed repeatedly. + The screen zoom mode operates differently depending on the screen setting in the initial setup menu. + To ensure correct operation of the EZ VIEW button, you should set the correct aspect ratio in the initial setup (See page 53). If you are using a 16:9 TV © For 16:9 aspect ratio discs + Wide Screen Displays the content of the DVD title in 16:9 aspect ratio. + Screen Fit The top and bottom of the screen are cut off. When playing a 2.35:1 aspect ratio disc, the black bars at the top and bottom of the screen will disappear. The picture will look vertically stretched. (Depending on the type of disc, the black bars may not disappear completely.) + Zoom Fit The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged. @ For 4:3 aspect ratio discs + Normal Wide Displays the content of the DVD title in 16:9 aspect ratio. The picture will look horizontally stretched. + Screen Fit The top and bottom of the screen are cut off and the full screen appears. The picture will look vertically stretched. + Zoom Fit The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged. + Vertical Fit When a 4:3 DVD is viewed on a 16:9 TV, black bars will appear at the left and right of the screen in order to prevent the picture from looking horizontally stretched Adjusting the Aspect Ratio (EZ View) If you are using a 4:3 TV © For 16:9 aspect ratio discs + 4:3 Letter Box Displays the content of the DVD title in 16:9 aspect ratio. The black bars will appear at the top and bottom of the screen. + 4:3 Pan Scan The left and right of the screen are cut off and displays the central portion of the 16:9 screen. + Screen Fit The top and bottom of the screen are cut off and the full screen appears. The picture will look vertically stretched + Zoom Fit The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged. @ For 4:3 aspect ratio discs + Normal Screen Displays the content of the DVD title in 4:3 aspect ratio + Screen Fit The top and bottom of the screen are cut off and the full screen appears. The picture would look vertically stretched. + Zoom Fit The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged. NOTE: +This function may behave differently depending on the type of disc.

Selecting the Audio Language You can select a desired language quickly and easily with the AUDIO button Using the AUDIO button

- The audio languages are represented by abbreviations.

NOTE: This function depends on what languages are encoded on the disc and may not work with all DVDs + A DVD disc can contain up to 8 audio languages. + How to have the same audio language come up whenever you play a DVD; Refer to “Setting Up the Language Features” on page 51. Selecting the Subtitle Language ENGLISH You can select a desired subtitle quickly and easily with the SUBTITLE button. Using the SUBTITLE button

- Initially, the subtitle will not appear on screen - The subtitle languages are represented by abbreviations. NOTE: *This function depends on what languages are encoded on the disc and may not work with all DVDs + A DVD disc can contain up to 32 subtitle languages. + How to have the same subtitle language come up whenever you play a DVD; Refer to “Setting Up the Language Features” on page 51

Changing the Camera Angle When a DVD contains multiple angles of a particular scene, you can select the Angle function. Using the ANGLE button Ifthe disc contains multiple angles, the ANGLE mark appears on the screen

1. When an ANGLE mark is shown, press the ANGLE button, then an ANGLE select icon

will appear at the upper left hand corner of the screen.

&. fé Using the Bookmark Function ENGLISH The Bookmark function lets you select parts of a DVD or VCD so that you can quickly find the section at a later time. Using the Bookmark Function (DVD/VCD) During play, press the BOOKMARK button on the remote. The Bookmark icons will be displayed. Use the LEFT/RIGHT buttons to move to the desired bookmark icon. When you reach the scene you want to mark, press the ENTER button. The icon will change to a number (1, 2, or 3). Press the BOOKMARK button to turn off the display.

Recalling a Marked Scene

During play, press the BOOKMARK button on the remote. Use the LEFT/RIGHT buttons to select a marked scene. Press the PLAY ( ») button to skip to the marked scene. w n Clearing a Bookmark During play, press the BOOKMARK button on the remote. Use the LEFT/RIGHT buttons to select the bookmark number you want to delete Press the CLEAR button to delete a bookmark number. Press the BOOKMARK button to turn off display. w pp NOTE:

• Up to three scenes may be marked at a time. + Depending on the disc, the Bookmark function may not work.

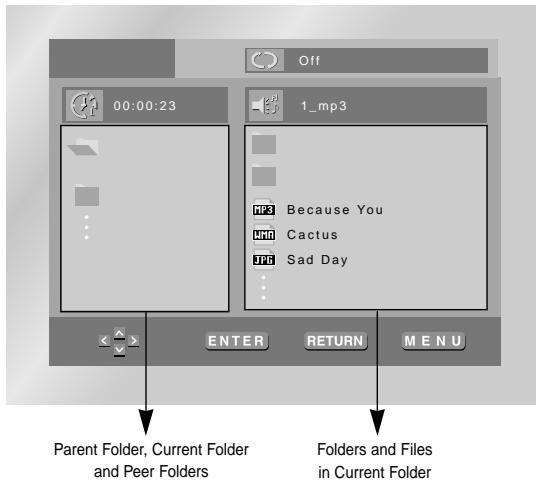

Using the Zoom & 3D Sound Functions Clips Menu for MP3/WMA/J PEG Using the Zoom Function (DVD/VCD) Discs with MP3/WMA/] PEG contain individual songs or pictures that can be organized into folders as shown below. They are similar to how you use your computer to put files into different folders.

1. During play or pause mode, press the ZOOM button on the remote.

À Zoom mark will be displayed on screen. 1. Open the disc cover.

2. Use the UP/DOWN or LEFT/RIGHT button to select the part of the screen you want to

Zoom in on. 3.Press the ENTER button. 4 - Press ENTER to zoom in 2X/4X/2X/Normal in order.(DVD) - Press ENTER to zoom in 2X/Normal in order.(VCD)

2. Place the disc in the player.

D. - Place the disc with the labeled side up.

- The cover is closed and you should get a screen that looks like the one below. :Name of currentiy playing file. + KE : Current Playback Time. | Using the 3D Sound Function The simulated surround effect depends on the disc contents. If you connect the unit to your GA 00:00:22 stereo system, you can enhance sound quality and produce a greater surround effect. 8 CES Current Playback Mode : There are 4 modes. They can be selected in order by — This feature is useful when you are using the DVD player with a two channel stereo through pressing the REPEAT button. (Dises MAC are recorded with LPCM or DTS will not work.) : 91: Normal Playback Em secause vou u - Track : Repeats the current track: ou 1. During play, press the 3D button. The 3D SOUND mark will be displayed on screen. : Rome be de be ayed in random order A seu

2. Press the UP/DOWN buttons to turn the 3D Sound feature on or off.

: MP3 file icon. NOTE: *3D Sound is possible only on discs recorded using DOLBY SURROUND or DOLBY :JPEG file icon. DIGITAL. However, some of these discs do not contain rear channel sound signals. Parent Folder, Current Folder Folders and Files + Depending on the disc, the Zoom and 3D Sound function may not work. : WMAfile icon. and Peer Folders in Current Folder . : Folder icon. . : Current Folder icon @

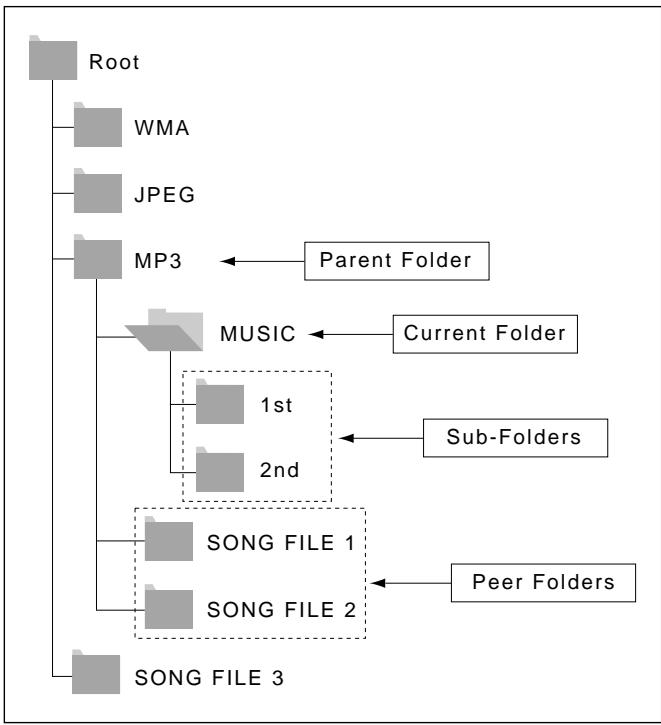

Folder Selection The folder can only be selected in the Stop mode. «To select the Parent Folder Press the RETURN button to go to Parent folder, or use the UP/DOWN buttons to select "."and press ENTER to go to the parent folder. «To select the Peer Folder Use the LEFT/RIGHT buttons to highlight left window. Use the UP/DOWN buttons to select the desired folder, then press ENTER. «To select the Sub-Folder Use the LEFT/RIGHT buttons to highlight right window. Use the UP/DOWN buttons to select the desired folder, then press ENTER. Parent Folder MUSIC Current Folder ist Sub-Folders 2nd SONG FILE 1 =. Peer Folders SONG FILE SONG FILE 3 MP3/WMA Playback

1. Open the disc cover.

2. Place the disc in the player.

- Place the disc with the labeled side up.

- The cover is closed and you should get a screen that looks like the one below. MP3/WMA Play Function

1. Select the desired folder. (See page 44 to change folder.)

2. Use the UP/DOWN buttons to select a song file.

3. Press ENTER to begin playback of the song file.

Repeat/Random playback Press the REPEAT button to change playback mode. There are 4 modes, such as Off, Track, Folder and Random. - Off: Normal Playback - Track : Repeats the current song file. - Folder : Repeats the song files which have the same extension in the current folder. - Random : Song files which have the same extension will be played in random order. *To resume normal play, press the CLEAR button. HB Because You ED Cactus eut Sad Day ENTER REPEAT

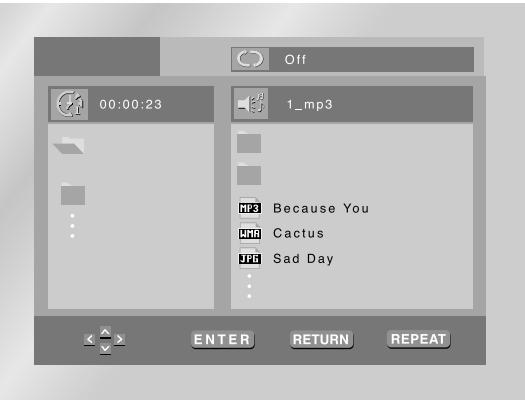

MP3/WMA Playback CD-R MP3/WMA discs When playing CD-R/MP3 or WMA discs, please follow all the recommendations for CD-R above, plus the comments below: Your MP3 or WMA files should be ISO 9660 or J OLIET format. ISO 9660 format and J oliet MP 3 or WMA files are compatible with Microsofts DOS and Windows, and with Apple's Mac. These two formats are the most widely used +When naming your MP3 or WMA files do not exceed 8 characters, and place ".mp3, wma" as the file extension. General name format of: Title.mp3. or Title.wma. When composing your title, make sure that you use 8 characters or less, have no spaces in the name, and avoid the use of special characters including: (.,/,\,=,+). *Use a decompression transfer rate of at least 128 Kbps when recording MP3 files. Sound quality with MP3 files basically depends on the rate of compression/decompression you choose. Getting audio CD quality sound requires an analog/digital sampling rate, that is conversion to MP3 format, of at least 128 Kbps and up to 160 Kbps. However, choosing higher rates, like 192 Kbps or more, only rarely give better sound quality. Conversely, files with decompression rates below 128 Kbps will not be played properly. +Use a decompression transfer rate of at least 64Kbps when recording WMA files. Sound quality with WMA files basically depends on the rate of compression/decompression you choose. Getting audio CD quality sound requires an analog/digital sampling rate, that is conversion to WMA format, of at least 64Kbps and up to 192Kbps. Conversely, files with decompression rates below 64Kbps or over 192Kbps will not be played properly. «Do not try recording copyright protected MP3 files. Certain "securized" files are encrypted and code protected to prevent illegal copying. These files are of the following types: Windows Media’" (registered trade mark of Microsoft Inc) and SDMI"* (registered trade mark of The SDMI Foundation). You cannot copy such files. + Important: The above recommendations cannot be taken as a guarantee that the DVD player will play MP3 recordings, or as an assurance of sound quality. You should note that certain technologies and methods for MP3 file recording on CD-Rs prevent optimal playback of these files on your DVD player (degraded sound quality and in some cases, inability of the player to read the files). <This unit can play a maximum of 3000 files and 300 folders per disc. Picture CD Playback

1. Select the desired folder. (See page 44 to select the folder)

2. Use the UP/DOWN buttons to select a Picture file in clip menu and the press ENTER.

*SelectJPEG in the menu to view a Photo CD. + Use the UP/DOWN or LEFT/RIGHT buttons on the remote control to select the picture you want to view and then press the ENTER button. (Press the PLAY ( ») button if you want to play it in the Slide Show mode.) + To see the next 6 pictures, press the m1 button. + To see the previous 6 pictures, press the k button. + FF: Retum to the Album Screen. Press the UP/DOWN or LEFT/RIGHT buttons on the remote control to display the menu again. + {AT : Each time the ENTER button is pressed, the picture rotates 90 degrees clockwise. . Each time the ENTER button is pressed, the picture is enlarged up to 4X. (Normal — 2X — 4X-> 2X -+ Normal) + @ : The unit enters slide show mode.

• Before beginning the Slide Show, the picture interval must be set. . G When this icon is selected and ENTER is pressed, the pictures change automatically with about a 6 second interval. . 6 The pictures change automatically with about a 12 second interval. + @ :The pictures change automatically with about a 18 second interval. *Depending on the file size, each interval between images may take longer or shorter than the manual suggests. NOTE: + If no buttons on the remote control are pressed for 10 seconds, the menu will disappear and the selected item will be played. Press the UP/DOWN or LEFT/RIGHT buttons on the remote control to display the menu again

Picture CD Playback CD-R JPEG Discs + Only files with the ".jpg" and "JPG" extensions can be played.

• Only CD-R discs with JPEG files in ISO 9660 or J oliet format can be played The name ofthe JPEG file may not be longer than 8 characters and should contain no blank spaces or special characters (. / = +). + Only a consecutively written multisession disc can be played. Ifthere is a blank segment in the multisession disc, the disc can be played only up to the blank segment. + A maximum of 500 images can be stored on a single CD. *When playing a Kodak Picture CD, only the JPEG files in the pictures folder can be played. + Kodak Picture CD :The JPEG files in the pictures folder can be played automatically.
• Konica Picture CD : If you want to see the Picture, select the J PEG files in the clips menu. + Fuji Picture CD : If you want to see the Picture, select the JPEG files in the clips menu. *QSS Picture CD : The unit cannot play QSS Picture CD. + Ifthe number of files in 1 Disc is over 3000, only 3000 JPEG files can be played. + Ifthe number of folders in 1 Disc is over 300, only JPEG files in 300 folders can be played. Using the Setup Menu The Setup menu lets you customize your DVD player by allowing you to select various language preferences, set up a parental level, even adjust the player to the type of television screen you have.

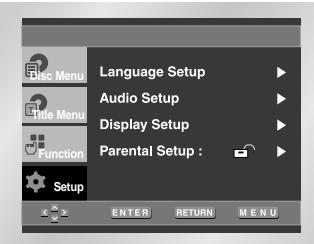

1. With the unit in Stop mode, press the MENU button.

Select Setup using UP/DOWN buttons, then press the RIGHT or ENTER button. © Language Setup : Setup of the Language. © Audio Setup : Setup of the Audio Options © Display Setup : Setup of the Display Options Use to select which type of screen you want to watch and several display options. © Parental Setup : Setup of the Parental Level Allows users to set the level necessary to prevent children from viewing unsuitable movies such as those with violence, adult subject matter, etc

2. Use the UP/DOWN buttons on the remote to access the different features.

3. Press the ENTER button to access the sub features.

To make the setup screen disappear after setting up, press the MENU button again. NOTE: +How to make the Setup menu disappear or return to menu screen during set up; Press RETURN or LEFT button. + Depending on the disc, some Setup Menu selections may not work. Language Setup Audio Setup Display Setup Parental Setup

Setting Up the Language Features If you set the player menu, disc menu, audio and subtitle language in advance, they will come up automatically every time you watch à movie. Using the Player Menu Language

- Select “Others” if the language you want is not listed.

6. Press the ENTER button.

- The language is selected and the screen returns to Setup menu.

- Select “Original” if you want the default soundtrack language to be the original language the disc is recorded in - Select “Others” if the language you wantis not listed. . Press the ENTER button. - The language is selected and the screen returns to Setup menu.

Using the Subtitle Language With the unit in Stop mode, press the MENU button. Select Setup using UP/DOWN buttons, then press the RIGHT or ENTER button. Select Language Setup using UP/DOWN buttons, then press the RIGHT or ENTER button. Select Subtitle using UP/DOWN buttons, then press the RIGHT or ENTER button. Use the UP/DOWN buttons to select the desired language. - Select “Automatic” if you want the subtitle language to be the same as the language selected as the audio preference. - Select “Others” if the language you wantis not listed. Some discs may not contain the language you select as your initial language; in that case the disc will use its original language setting.

6. Press the ENTER button.

- The language is selected and the screen returns to Setup menu. NOTE: + Ifthe selected language is not recorded on the disc, the original pre-recorded language is selected. + How to make the Setup menu disappear or return to menu screen during set up; Press RETURN or LEFT button. uewRr Subite Deutsch Español Railano Nederlands Original Others.

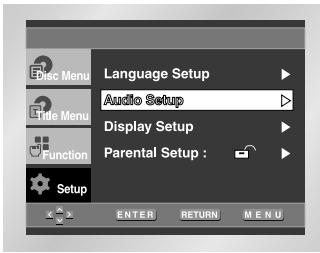

Select DTS when connecting to a DTS Decoder. © Dynamic Compression 1 On : To select dynamic compression

2. Off : To select the standard range.

NOTE: «How to make the Setup menu disappear or return to menu screen during set up; Press RETURN or LEFT button + Manufactured under license from Dolby Laboratories “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories. +“DTS" and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc. Language Setup ETTEN D Display Setup Parental Setup

© TV Aspect Depending on the type of television you have, you may want to adjust the screen setting (aspect ratio).

Select when you want to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen. 2.4:3 Pan Scan: Select this for conventional size TVs when you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.)

You can view the full 16:9 picture on your widescreen TV. © Still Mode These options will help prevent picture shake in still mode and display small text clearer.

1. Auto : When selecting Auto, Field/Frame mode will be automatically converted.

2. Field : Select this feature when the screen shakes in the Auto mode.

3. Frame : Select this feature when you want to see small letters more clearly in the Auto mode.

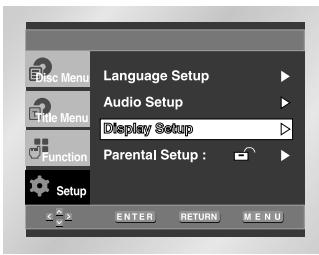

© Screen Messages Use to turn on-screen messages On or Off. Language Setup Audio Setup Parental Setup: 7 > TVASPECT

Setting Up the Parental Control The Parental Control function works in conjunction with DVDs that have been assigned a rating level which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

. With the unit in Stop mode, press MENU button. The Setup Menu screen appears.

Use RIGHT or ENTER to select Yes if you want to use a password. The Enter Password screen appears.

. Select your password with the UP/DOWN/LEFT/RIGHT buttons and press the ENTER button. The Re-enter Password screen appears to confirm the password. Select your password again The Parental Control screen appears (__ ). & About the Rating Level ; The Rating Level will work only when Use Password is set to Yes. (To unlock the player, use RIGHT or ENTER to select No.) Use UP/DOWN to select Rating Level. Press ENTER - Use UP/DOWN to select the level(e.g. Level 6) and press ENTER. Discs that contain Level 7 will now not play. - To cancel the rating level, use RIGHT or ENTER to select No in Use Password. About the Change Password ; - Use UP/DOWN to select Change Password. Press ENTER. The Change Password screen appears. - Select your new password. Select the new password again. NOTE: + How to make the Setup menu disappear or return to menu screen during set up; Press RETURN or LEFT button + If you have forgotten your password, see Forgot Password in the Troubleshooting Guide. Language setup Audie Setup Display Setup Parsrl ae à Rating Level {Change Passuord Cautionary Notes Cautions on Using the Player

• Avoid magnetic environments. Using the player under strong fluorescent lighting, in a car, near a TV or magnetic object may deteriorate recorded images. Be sure to remove the disc, turn off the player, and remove the battery pack after use. + Ifused near a broadcast station or power transmission tower, the video may become distorted due to interference.
• Do not drop the player or subject it to strong vibration or shock. + Do not place the player near a lamp. Heat from the incandescent light bulbs may cause deformation or malfunction.

• Always observe the rules regulating the use of electrical devices on airplanes.

• Do not expose this product to high temperature and humidity. This product can be operated within a temperature range of 50°F-86°F and humidity range of 30%-80% Do not expose this product to direct sunlight or in a car with its windows closed. Doing so may result in deformation of casing and circuitry as well as cause fire or bodily injury.

• Do not let water, sand, dust, or other foreign objects in the player. Avoid using or storing the player in a place where there is smoke, steam, or moisture. Doing so may cause malfunction or mold on the pick-up lens. Keep the player in a well-ventilated area. + When using the player in cold environments, the color LCD screen may not be visible immediately after the power is turned on. This is not a malfunction. Do not operate the player in temperatures below 50°F. *Be especially careful not to scratch the pick-up lens during loading/unloading of the disc, or cleaning. Doing so may result in malfunction.

Cautionary Notes When Moving the Player «Be sure to remove the disc from the player before packing for moving. Itis recommended that you also remove the disc from the player and turn off the power when not using the player. Saving Power *Itis recommended that you turn off the power to the DVD player when not in use. If you are not going to use it for prolonged period of time, unplug the power cord from the wall outlet. Maintenance of LCD Screen + To keep the screen clean, turn off the power and then wipe with a soft cloth. About LCD Screen This LCD panel is designed with the latest technology, ensuring 99.99% of active pixels. Cautionary Notes Cautions on Using Battery pack Danger! Always follow the safety information below when using the battery pack. Otherwise, a short circuit, overheating, smoke, fire, or damage to the product may result. 1. Never disassemble or modify the battery pack in any way. Do not touch the terminal of the battery pack with a metal object.

2. Do not let any metal object inside the battery pack.

3. Do not place the battery pack in direct sunlight, dashboard of a vehicle, or high temperature.

4. Do not expose the battery pack to water, fire, or heat.

5. Always use the included AC adapter when charging the battery pack.

6.This battery pack is designed exclusively for your portable DVD player. Do not use it with other devices. Warning!

1. Do not drop or subject to strong vibration.

2. Keep out of reach of children

3.The battery pack may leak fluid that is harmful to your eyes. If this fluid gets in your eyes, wash eyes immediately with large amounts of running water and get medical attention immediately. If the fluid gets on your skin or clothing, wash immediately with water. Caution!

1. When not using the battery pack, remove it and store in a cool place.

2. Do not use the AC adapter or battery pack for a prolonged period of time during recharging. You might get a low temperature burn.

3. Keep the battery pack free from smoke, steam, moisture, and dust.

+ Do not place the battery pack near a kitchen, heater, or any other place where there is smoke or steam. Doing so may result in fire or electric shock. *Avoid direct sunlight, heater, or high temperature place. etc, inside of a car. It can cause explosion or fire. Doing so may cause a short circuit, overheating, smoke, fire, or damage to the product.

4. Using the battery pack under 50°F or over 86°F can cause reduced battery life.

Cautionary Notes After a Recharge, store the Battery pack separately. This battery pack is a lithium ion battery. Even when not in use, power will drain slowly. So use a fully charged battery pack.

• Recharge until the charge lamp stays on green. À partial charging of the battery pack decreases the overall lifetime of the battery. Cautions on Charging Battery pack

• Charge within the surrounding temperature range of 50°F -86°F. Charging at a low surrounding temperature slows down the charging time and decreases the battery pack. You cannot fully charge the battery pack at high temperature. *Ifthe DVD player is overheated and the battery pack's internal temperature goes up to a certain level, you will not be able to charge the battery pack. (The lamp flashes quickly and the light does not come on.) In this case, remove the battery pack. After the internal temperature reaches a safe level, charging will begin automatically.

• The battery pack becomes warm during recharge or use. This is normal and is not a cause for concern. A hot battery pack may take longer to charge or may not be charged at all. Wait until the battery pack cools down before charging Battery pack Life and Use (Low Temperature) + The lifetime of the battery pack is limited. Power is slowly drained even when not using. Though it varies for differing storage conditions, the battery pack stored unused for a year has a much shorter lifetime. Ifthe battery pack does not last long even after a full charge, you might have to replace it with a new one. + Total operating time of the battery pack becomes much shorter when used at temperatures below 50°F. Electrical energy is discharged due to internal chemical action of the battery pack. A very low temperature may impede this chemical action and shortens the total operating time Caution Be sure to use only the battery pack exclusively designed for your DVD player. NOTE: + When not using the DVD player, always turn off the power to conserve the battery pack. Ifthe AC adapter is connected to the player, charge the battery pack with the power to the player turned off. Cautionary Notes Cautions on Storing Battery pack + Even when not in use, power is consumed continuously. To reduce the power consumption, follow the procedure below.

1. Remove the battery pack from the DVD player after every use.

2. When not using the DVD player, turn off the power. If the player is left in the standby mode, power will be slowly drained from the battery pack and the charging capacity will decrease.

3. Before storing the battery pack, completely drain the power by operating the player and store in a cool, dry place.

If stored in a hot place, the capacity of the battery pack will decrease. 4.The battery pack must be recharged and then used on the DVD player at least once every 6 months. This helps to prevent the loss of capacity. AC Adapter The supplied AC adapter is compatible with 50/60Hz electrical system (110V-240V range). Use of the AC adapter depends on the specific voltage requirements and electrical outlet design. + Using the AC adapter near a radio may cause poor reception. + Do not let any type of flammables, liquid, or metal objects in the adapter. + The adapter is covered with an outer plastic sheath. Do not peel open the sheath. + Do not drop, jar, or shake the adapter. + Do not place in direct sunlight. + Do notuse in high temperature or cold and humid environments. Cleaning and Maintenance + Many plastic parts are used in this DVD player casing. Do not use volatile chemicals such as benzene or thinner. This might damage the finish. + Wipe the casing with a soft, dry cloth. For excessive dirt, use a cloth dampened in a diluted neutral detergent. and wipe again with a soft, dry cloth. + Wipe off fingerprints or dirt on the LCD screen using a soft, dry cloth.

Troubleshooting If your DVD player does not seem to be functioning properly, check the items below before you contact a Samsung authorized service center. ENGLISH Symptom Check Power does not turn on or suddenly turns off. + Make sure the AC power cord is securely plugged into an AC outlet. + Turn the power off and then back on. Troubleshooting Symptom Check No picture + Check that the LCD display is turned on Battery pack is in place but the power does not turn on or suddenly turns off + Check that the battery pack is charged. If not, recharge it. No sound Check that the display panel is open. Ifitis closed, audio will not be output to the speakers. Check the volume setting. If set to zero, turn up volume level. Check that the headphones are plugged into the PHONES jack. Speakers cannot be used with the headphones. Remote control won't work + Check that the battery is inserted in the “+” and “-" directions properly. + The batteries may be dead. Replace them with new batteries. + Check that the signal transmission is directed at the remote control sensor on the DVD player.

• Remove the obstacle between the remote control unit and remote control sensor. No picture and sound Check that the DVD player is in the DVD mode and not in the INPUT mode. Distorted video or sound Use à disc without scratches or dents. No picture or sound + Check that the video and audio cables are securely connected. +* Check that the disc is a DVD (region number 1 or all), DVD-RW, VIDEO CD or AUDIO CD.

• Do not use a disc that has scratches or dirt. + Check that the label-side of the disc is facing up. + The pick-up lens of the DVD player may be dirty. Contact the service center for lens cleaning. + Check that the TV channel is set to VIDEO or AV if viewing with a TV. While in the input mode, no picture is output from the external component to the DVD player Check that the video or audio cable is securely connected. Make sure the S-Video cable is used for output only. Check that the DVD player is in the INPUT mode and not in the DVD mode. Forgot password

• Press power on from a cold start with no disc in the unit. Press the STOP and PLAY buttons simultaneously on the unit for three seconds. The Select Menu Language display will appear. Select the desired language by using UP or DOWN button. Press the MENU button on the remote control to select the Parental Mode. The Parental Mode is now unlocked as indicated on the display. Press the DOWN button to select Parental. Press ENTER and the Create Password display will appear. You can now set your rating level and change your password to a new number. The built-in micro controller can be influenced by external electrical noise. If you believe this may be the cause of the problem, turn off the DVD player and then back on.

ENGLISH Troubleshooting Symptom Check DVD Video does not appear with a + Check that the TV is set to VIDEO or AV. external component connected to the DVD player Dolby Digital audio volume is too low + Check that the video or audio cable is securely connected + Change the “Dynamic Compression” setting to “On”. This will turn up the comparatively low volume level of Dolby Digital, which provides the most wide, dynamic sound range. Battery pack| Battery pack won't charge + Check that the DVD player is turned off. operation You cannot charge the battery pack with the player turned on

• A hot battery pack may take longer to charge. Wait until the battery pack is sufficientiy cooled down. Power does not turn on *Replace with a fully charged battery pack or use the AC adapter. Power charge lamp does *Replace with a fully charged battery pack or use the AC adapter. not light (Battery pack won't Ifthe DVD player is overheated and the battery pack's internal temperature goes up charge) to a certain level, you will not be able to charge the battery pack. In this occurs, remove the battery pack. After the battery pack has sufficiently cooled down, charging will begin automatically. + Check that the temperature is within the range of 50°F -86°F. + Check that the DC cord of the AC adapter is plugged in correctly. Battery pack| Power charge lamp quickly * Remove the DC cord from the battery pack and then re-plug. operation flashes Green Ifthe battery pack is installed, remove the DC cord from the battery pack before performing above procedure. “Recharge a different power pack. If the same symptom occurs, your AC adapter may be defective. If the second battery pack charges without any problem, your first battery pack may be defective or needs battery replacement. Specifications Power Requirements AC 120V, 60 Hz Power Consumption 16W General Weight 3.3 Ibs (without battery pack) Dimensions W141inxD 104 in xH 5.2in Operating Temperature Range | +50°F to +86°F Operating Humidity Range 30 % to 80 % DVD Reading Speed : 11.45 füsec. (DIGITAL VERSATILE DISC) Approx. Play Time (Single Sided, Single Layer Disc) : 135 min cD:5" Reading Speed : 3.9 to 4.6 fusec. Disc {COMPACT DISC) Maximum Play Time : 74 min. CD:3r" Reading Speed : 3.9 to 4.6 füsec {COMPACT DISC) Maximum Play Time : 20 min. VCD : 5" Reading Speed : 3.9 to 4.6 füsec Maximum Play Time : 74 min. (Video + Audio) Video Composite Video 1 channel : 1.0 Vp-p (75 Q load) Output S-VIDEO Luminance Signal : 1.0 Vp-p (75 Q load) Chrominance Signal : 0.286 Vp-p (75 Q load) 2 channel L(LL), R(2/R) *Frequency Response 48 kHz Sampling : 4 Hz to 22 kHz Audio 96 kHz Sampling : 4 Hz to 44 kHz Output *S/N Ratio 110 dB #Dynamic Range 100 dB #Total Harmonic Distortion 0.004 % x: Nominal specification + Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. «Weight and dimensions are approximate

Samsung Electronics Canada Inc.(SECA), warrants that this product is free from defective material and workmanship. SECA further warrants that f this product fall to operate proper within the specified warranty period and the failure is due to improper workmanship or defective materials, SECA wil repair or replace the product at its option. All warranty repairs must be performed by a SECA Authorized Service Center. (The name and address of the location nearest you can be obtained by caling tol free: 1- 800- SAMSUNG) LABOR PARTS One year (Carry- in) One year On cany-in models, transportation to and from the service center is the customers responsibility. The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase. It must be presented to the authorized service center atthe time service is requested EXCLUSIONS (WHAT IS NOT COVERED) This warranty does not cover damage due to accident, fire, flood and/ or other acts of God; misuse, incorrect line voltage, improper installation, improper or unauthorized repairs, commercial use or damage that occurs in shipping. Exterior and interior finish, lamps, glass are not covered under this warranty, Customer adjustments which are explained in the instruction manual are not covered under the terms of this warranty. This warranty il automatically be voided for any unit found with a missing or altered serial number. This warranty is valid only on products purchased and used in Canada. HEADQUARTERS SAMSUNG ELECTRONICS CANADA, INC. 7037 FINANCIAL DRIVE MISSISSAUGA, ONTARIO L5N 6R3 CANADA Made in Korea
