USER MANUAL DVD-P250K SAMSUNG

• Refer to the identification label located on the rear of your player for its proper operating voltage.
• Install your player in a cabinet with adequate ventilation holes. (7\~10cm) Do not block ventilation holes on any of the components for air circulation.
• Do not push the disc tray in by hand.
• Do not stack components.
• Be sure to turn all components off before moving the player.
• Before connecting other components to this player, be sure to turn them off.
• Be sure to remove the disc and turn off the player after use, especially if you don't use it for a long time.

2. For your safety

• This product utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
• Do not open covers and do not repair yourself. Refer servicing to qualified personal.

3. Caution

• Your player is not intended for industrial use but for domestic purposes. Use of this product is for personal use only.
• Do not put any container filled with liquid or any small metal objects on the player.
• Exterior influences such as lightning and static electricity can affect normal operation of this player. If this occurs, turn the player off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The player will operate normally.
• When condensation forms inside the player due to sharp changes in temperature, the player may not operate correctly. If this occurs, leave the player at room temperature until the inside of the player becomes dry and operational.

4. Disc

• Do not clean record-cleaning sprays, benzene, thinner, or other volatile solvents that may cause damage to the disc surface.
• Do not touch the disc's signal surface. Hold by the edges or by one edge and the hole in the center.
• Wipe the dirt away gently; never wipe a cloth back and forth over the disc.

Diagram showing heating and cooling process of a refrigerator with visible Chinese text labels

5. Environmental info

• The battery used in this product contains chemicals that are harmful to the environment.
• So, dispose of batteries in the proper manner, according to federal, state, and local regulations.

The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/OUR 11172-3 or ISO/OUR 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/OUR 11172-3 or ISO/OUR 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/OUR 11172-3 or ISO/OUR 13818-3.

CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

Before you start

Accessories

Remote Control

Batteries for Remote Control (AAA Size)

User's Manual

Video/Audio Cable

Install Batteries in the Remote control

1 Open the battery cover on the back of the remote control.

2 Insert two AAA batteries. Make sure that the polarities (+ and -) are aligned correctly.

3 Replace the battery cover.

If the remote control doesn't operate properly - Check the polarity + - of the batteries (Dry-Cell)

- Check if the batteries are drained.

- Check if remote control sensor is blocked by obstacles.

- Check if there is any fluorescent lighting nearby.

ENG-4

TABLE OF CONTENTS

Precautions....2

Before you start 4

Chapter 1: Setup General Features....6 Disc Type and Characteristics....7 Description....8 Tour of the Remote Control....10

Chapter 2: Connections Choosing a Connection ..... 11

Chapter 3: Basic Functions Playing a Disc....17 Using the Search and Skip Functions....19 Using the Display Function....20 Using the Disc and Title Menu....22 Using the Function Menu....23 Repeat Play....24 Slow Repeat Play....25 Program Play & Random Play....26

Chapter 4: Advanced Functions Adjusting the Aspect Ratio (EZ View)....27 Selecting the Audio Language....29 Selecting the Subtitle Language....30 Changing the Camera Angle....31 Using the Instant Replay/Skip Function....31 Using the Bookmark Function....32 Using the Zoom Function....34 Clips Menu for MP3/WMA/JPEG....35 Folder Selection....35 MP3/WMA Playback....36 Picture CD Playback....38

Chapter 5: Karaoke Functions Karaoke Functions....40 Reserving a Song....41 Vocal Function....42

Chapter 6: Changing Setup Menu Using the Setup Menu....43 Setting Up the Language Features....44 Setting Up the Audio Options....48 Setting Up the Display Options....50 Setting Up the Parental Control....52

Chapter 7: Reference Troubleshooting ....55 Specifications ....56

ENG-5

Chapter 1

SETUP

General Features

Excellent Sound

Dolby Digital, a technology developed by Dolby Laboratories, provides crystal clear sound reproduction.

Screen

Both regular and widescreen(16:9) pictures can be viewed.

Slow Motion

An important scene can be viewed in slow motion.

Program Play (CD)

You can program tracks to play in desired order.

Parental Control (DVD)

The parental control allows users to set the level necessary to prohibit children from viewing harmful movies such as those with violence, adult subject matter, etc.

Various On-Screen Menu Functions You can select various languages (Audio/Subtitle) and screen angles while enjoying movies.

Progressive Scan

Progressive scanning creates an improved picture with double the scan lines of a conventional interlaced picture.

EZ VIEW (DVD)

Easy View enables picture adjustment to match your TV's screen size (16:9 or 4:3).

Digital Photo Viewer (JPEG)

You can view Digital Photos on your TV.

Repeat

You can repeat a song or movie simply by pressing the REPEAT button.

MP3/WMA

This unit can play discs created from MP3/WMA files.

Instant Replay (DVD)

This function is used to replay the previous 10 seconds of a movie from the current position.

Instant Skip (DVD)

This function skips playback ahead 10 seconds.

Note

- Discs which cannot be played with this player.

• DVD-ROM • DVD-RAM

- CD-ROM - CDV

• CDI • CVD

• Super Audio CD (except CD layer)

• CDGs play audio only, not graphics

- Ability to play back may depend on recording conditions.

• DVD-B. +B

• CD-BW

• DVD+RW. -RW (V mode)

- The unit may not play certain CD-R, CD-RW and DVD-R due to the disc type or recording conditions.

COPY PROTECTION

Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.

This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

PROGRESSIVE SCAN OUTPUTS (525p/625p)

*CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS OCCUR. IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE STANDARD DEFINITION OUTPUT. IF THERE ARE QUESTIONS REGARDING YOUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT SAMSUNG'S CUSTOMER SERVICE CENTER.*

SETUP

Disc Type and Characteristics

This DVD player is capable of playing the following types of discs with the corresponding logos:

Disc Types (Logos)	Recording Types Disc Size Max. Playing Time Characteristics
DVD	Audio+Video	12 Cm	Single-sided 240 min.Double-sided 480 min.	- DVD contains excellent sound and video due to Dobby Digital and MPEG-2 system.- Various screen and audio functions can be easily selected through the on-screen menu.
		8 Cm	Single-sided 80 min.Double-sided 160 min.
VIDEO-CD	Audio+Video	12 Cm	74 min.	- Video with CD sound, VHS quality & MPEG-1 compression technology.
		8 Cm	20 min.
AUDIO-CD	Audio	12 Cm	74 min.	- CD is recorded as a Digital Signal with better audio quality, less distortion and less deterioration of audio quality over time.
		8 Cm	20 min.

Disc Markings Region Number

	Play Region Number
PAL	PAL broadcast system in UK, France, Germany, etc.
	Dolby Digital disc
STEREO	Stereo disc
DIGITAL SOUND	Digital Audio disc
dts	DTS disc
	MP3 disc

You must only insert one DVD disc at a time. Inserting two or more discs will not allow playback and may cause damage to the DVD player.

Both the DVD player and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.

The Region Number for this player is described on the rear panel of the player.

SETUP

Description

Front Panel Controls

1 2 3 4 5 6 7 8 9 10 11

1. STANDBY/ON ( )0/

When STANDBY:ON is pressed on, the indicator goes out and the player is turned on.

1. STANDBY Indicator

When the unit is first plugged in, this indicator lights.

1. STOP()

Stops disc play.

1. PLAY/PAUSE ( )▶ Begin or pause disc play.

2. EZ VIEW

The aspect ratio of a picture can easily be adjusted to your TV's screen size (16:9 or 4:3).

1. OPEN/CLOSE ( ) ▲

Press to open and close the disc tray.

1. MIC

Connect Microphone for karaoke functions.

1. MICROPHONE VOLUME

Use to adjust microphone volume level. Use the button by pressing it. Turn it to the left or right to control the volume.

1. SKIP (/SEARCH

Allow you to search forward/backward through a disc. Use to skip the title, chapter or track.

1. DISPLAY

Operation indicators are displayed here.

1. DISC TRAY

Place the disc here.

Front Panel Display

88·8·88·88 1 2

1. Chapter/Track number indicator

2. Total playing time/Displays various

messages concerning operations such as PLAY, STOP, LOAD ...

TO DISC. NO DISC Uaded. OPEN: The fire tray is open

LOAD: Player is loading disc information.

ENG-8

SETUP

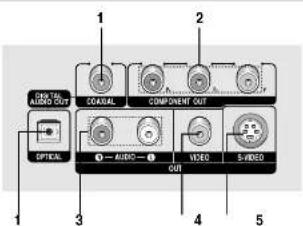

Rear Panel

1 2 3 4 5 CONJAL COMPONENT OUT OPTICAL AUDIO VIDEO S-VIDEO

1. DIGITAL AUDIO OUT JACKS

- Use either an optical or coaxial digital cable to connect to a compatible Dolby Digital receiver.

- Use either an optical or coaxial digital cable to connect to an A/V Amplifier that contains a Dolby Digital, MPEG2 or DTS decoder.

1. COMPONENT VIDEO OUT JACKS

Use these jacks If you have a TV with Component Video in jacks. These jacks provide P, P- and Y video. If Component(P-SCAN) Video Output is selected in Setup Menu, progressive scan mode will work. If Component(I-SCAN) Video Output is selected in Setup Menu, interlaced scan mode will work.

1. AUDIO OUT JACKS

Connect to the Audio input jacks of your television or audio/video receiver.

1. VIDEO OUT JACK

Use a video cable to connect to the Video input jack on your television.

- The Video Output in Setup Menu must be set to S-Video.

1. S-VIDEO OUT JACK

Use the S-Video cable to connect this jack to the S-Video jack on your television for higher picture

quality.

- The Video Output in Setup Menu must be set to S-Video.

Note

• Consult your TV User's Manual to find out if your TV supports Progressive Scan (P-SCAN).
  If Progressive Scan is supported, follow the TV User's Manual regarding Progressive Scan settings in the TV's menu system.
• If Component (P-SCAN) Video Output is selected in Setup Menu, Video and S-Video Outputs do not work.
• See pages 50 \~ 51 to get more information on how to use the setup menu.

ENG-9

SETUP

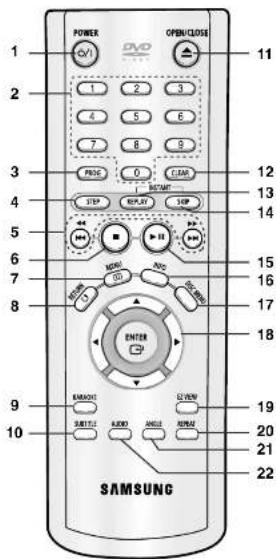

Tour of the Remote Control

POWER 1 2 3 4 5 6 7 8 9 10 SAMSUNG OPEN/CLOSE 11 1 2 3 2 4 5 6 3 7 8 9 4 PRICE 0 CLEAR 5 STOP REPLAY STOP 6 INFO 7 INFO 8 ENTER 9 RAMON 10 SWITCH AUMO ANGLE AMRON 11 12 13 14 15 16 17 18 19 20 21 22

1. DVD POWER Button Tums the power on or off.

2. NUMBER Buttons

3. PROG Button Allows you to program a specific order.

4. STEP Button Advances play one frame at a time.

5. SEARCH/SKIP Buttons ( «/», «/») Allow you to search forward/backward through a disc. Use to skip the title, chapter or track.

6. STOP Button () ■

7. MENU Button Brings up the DVD player's menu.

8. RETURN Button Returns to a previous menu.

9. KARAOKE Button Use to begin Karaoke functions.

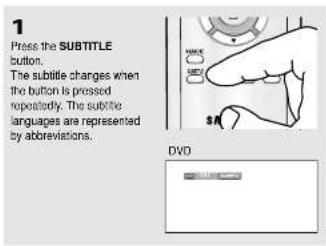

10. SUBTITLE Button

11. OPEN/CLOSE ( )Button To open and close the disc tray.

12. CLEAR Button Use to remove menus or status displays from the screen.

13. INSTANT REPLAY Button This function is used to replay the previous 10 seconds of a movie from the current position.

14. INSTANT SKIP Button This function skips playback ahead 10 seconds.

15. PLAY/PAUSE Button () Begin/Pause disc play.

16. INFO Button Displays the current disc mode.

17. DISC MENU Button Brings up the Disc menu.

18. ENTER/▲▼◀▶ Buttons This button functions as a toggle switch.

19. EZ VIEW Button The aspect ratio of a picture can easily be adjusted according to the screen size of your TV (16.9 or 4.3).

20. REPEAT Button Allows you to repeat play a title, chapter, track, or disc.

21. ANGLE Button Use to access various camera angles on a DVD.

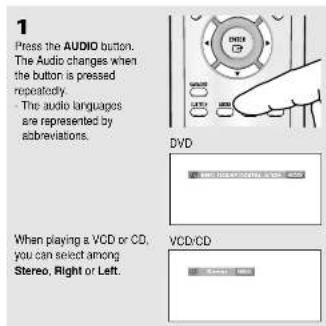

22. AUDIO Button Use this button to access various audio functions on a disc.

Chapter 2

CONNECTIONS

Choosing a Connection

The following shows examples of connections commonly used to connect the DVD player with a TV and other components.

Before Connecting the DVD Player

Always turn off the DVD player, TV, and other components before you connect or disconnect any cables.

- Refer to the user's manual of the additional components (such as a TV) you are connecting for more information on those particular components.

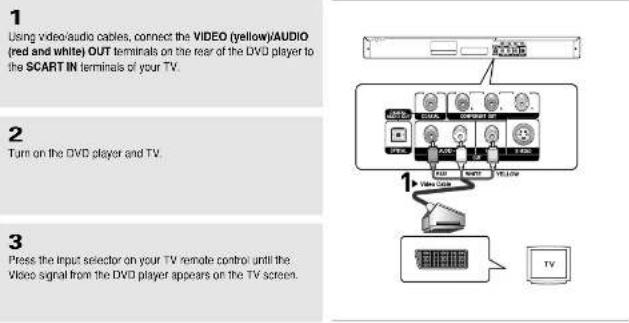

Connection to a TV (Video)

1 Using video/audio cables, connect the VIDEO (yellow)/AUDIO (red and white) OUT terminals on the rear of the DVD player to the SCART IN terminals of your TV. 2 Turn on the DVD player and TV. 3 Press the input selector on your TV remote control until the Video signal from the DVD player appears on the TV screen.

Note

- Noise may be generated if the audio cable placed too close to the power cable.

- If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 15 to 16)

- The number and position of terminals may vary depending on your TV set. Please refer to the user's manual of your TV.

- If there is one audio input terminal on the TV, connect it to the [AUDIO OUT][left] (white) terminal of the DVD player.

CONNECTIONS

Connection to a TV (S-Video)

• Connecting to your TV using an S-Video cable.
• You will enjoy high quality images. S-Video separates the picture element into black and white(Y) and color(C) signals to present clearer images than regular video input mode. (Audio signals are delivered through the audio output.)

1

Using an S-Video cable (not included), connect the S-VIDEO OUT terminal on the rear of the DVD player to the S-VIDEO IN terminal of your TV.

2

Using the audio cables (not included), connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of your TV. Turn on the DVD player and TV.

3

Press the input selector on your TV remote control until the S-Video signal from the DVD player appears on your TV screen.

4

Set the Video Output to S-Video in the Display Setup menu. (See pages 50 to 51)

2 Audio Cable Mint hsdhoders 3-Vinex Cable (mint hsdhoders) 1 TV

Note

- If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 15 to 16) - The number and position of terminals may vary depending on the TV set. Please refer to the user's manual of your TV.

CONNECTIONS

Connection to a TV (Interlace)

• Connecting to your TV using Component video cables.
• You will enjoy high quality and accurate color reproduction images. Component video separates the picture element into black and white(Y), blue(P-), red(P+) signals to present clear and clean images. (Audio signals are delivered through the audio output.)

1

Using component video cables (not included), connect the COMPONENT VIDEO OUT terminals on the rear of the DVD player to the COMPONENT IN terminals of your TV.

2

Using the audio cables (not included), connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of your TV. Turn on the DVD player and TV.

3

Press the input selector on your TV remote control until the Component signal from the DVD player appears on the TV screen.

4

Set the Video Output to Component (I-SCAN) In the Display Setup menu. (See pages 50 to 51)

AC 2+ Audio Cable 1+ Component Cable (Not included) AUDIO B. COMPONENT B. TV

Note

• If Video output is incorrectly set to S-Video with the Component cables connected, the screen will turn red.
• If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 15 to 16)
• The component terminal of your TV may be marked "R-Y, B-Y, Y" or "Cr, Cb, Y" instead of "Pn, P-, Y" depending on the manufacturer. The number and position of terminals may vary depending on the TV set. Please refer to the user's manual of your TV.

CONNECTIONS

Connection to a TV (Progressive)

1

Using component video cables (not included), connect the COMPONENT VIDEO OUT terminals on the rear of the DVD player to the COMPONENT IN terminals of your TV.

2

Using the audio cables (not included), connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of your TV. Turn on the DVD player and TV.

3

Press the input selector on your TV remote control until the Component signal from the DVD player appears on the TV screen.

4

Set the Video Output to Component (P-SCAN) in the Display Setup menu. (See pages 50 to 51)

2 3 1 Component Scale (not included) AUDIO COMPONENTS TV

To see the progressive video output,

• Consult your TV User's Manual to find out if your TV supports Progressive Scan. If Progressive Scan is supported, follow the TV User's Manual regarding Progressive Scan settings in the TV's menu system.
• Depending on your TV, the connection method may differ from the illustration above.

Note

What is "Progressive Scan"?

Progressive scan has twice as many scanning lines as the interlace output method. Progressive scanning method provides better and clearer picture quality.

CONNECTIONS

Connection to an Audio System (2 Channel Amplifier)

1

Using the audio cables (not included), connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of the Amplifier.

2

Using the video signal cable(s), connect the VIDEO, S-VIDEO or COMPONENT OUT terminals on the rear of the DVD player to the VIDEO, S-VIDEO or COMPONENT IN terminal of your TV as described on pages 11 to 14.

3

Turn on the DVD player, TV, and Amplifier.

4

Press the input select button of the Amplifier to select external input in order to hear sound from the DVD player. Refer to your Amplifier's user manual to set the Amplifier's audio input.

1 2-channel radio amplifier

Note

Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears.

Please set the audio in the menu screen according to the Amplifier. (See pages 48 to 49)

The position of terminals may vary depending on the Amplifier. Please refer to the user's manual of the Amplifier.

CONNECTIONS

Connection to an Audio System (Dolby digital, MPEG2 or DTS Amplifier)

1

If using an optical cable (not included), connect the DIGITAL AUDIO OUT (OPTICAL) terminal on the rear of the DVD player to the DIGITAL AUDIO IN (OPTICAL) terminal of the Amplifier. If using a coaxial cable (not included), connect the DIGITAL AUDIO OUT (COAXIAL) terminal on the rear of the DVD player to the DIGITAL AUDIO IN (COAXIAL) terminal of the Amplifier.

2

Using the video signal cable(s), connect the VIDEO, S-VIDEO or COMPONENT OUT terminals on the rear of the DVD player to the VIDEO, S-VIDEO or COMPONENT IN terminal of your TV as described on pages 11 to 14.

3

Turn on the DVD player, TV, and Amplifier.

4

Press the input select button of the Amplifier to select external input in order to hear sound from the DVD player. Refer to your Amplifiers user manual to set the Amplifier's audio input.

CD-ROM 1 Digital Audio IN Digital analog or DTS amplifier

Note

- When you connect the DVD player to DTS Amplifier and play a DTS disc, set the DTS to On in Audio Setup menu. If it is set to Off, sound will not be heard, or there will be a loud sound.

- Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears.

- Please set the audio in the menu screen according to the Amplifier. (See pages 48 to 49)

- The position of terminals may vary depending on the Amplifier. Please refer to the user's manual of the Amplifier.

- Please remove the dust cover before using the optical cable (not included) and put the cover on the cable again when it's not used.

Chapter 3

BASIC FUNCTIONS

Playing a Disc

Before Play

• Turn on your TV and set it to the correct Video Input on the TV's remote control.
• If you connected an external Audio System, turn on your Audio System and set it to the correct Audio Input.

After plugging in the player, the first time you press the DVD POWER button, this screen comes up: If you want to select a language, press a NUMBER button. (This screen will only appear when you plug in the player for the first time.)

If the language for the startup screen is not set, the settings may change whenever you turn the power on or off. Therefore, make sure that you select the language you want to use.

Once you select a menu language, you can change it by pressing the button on the front panel of the unit for more than 5 seconds with no disc in the unit. Then the SELECT MENU LANGUAGE window appears again where you can reset your preferred language.

Playback

1

Press the OPEN/CLOSE

(▲) button.

The STANDBY Indicator

ight goes out and the tray opens.

2

Place a disc gently into the tray with the disc's label facing up.

3

Press the PLAY/PAUSE (A) button or OPEN/CLOSE (A) button to close the disc tray.

RESUME function

When you stop disc play, the player remembers where you stopped, so when you press PLAY/PAUSE (button again, it will pick up where you left off. (unless the disc is removed or the player is unplugged, or if you press the STOP (button twice.)

BASIC FUNCTIONS

4

Stopping Play

Press the STOP (button) during play.

Note

If the player is left in the stop mode for more than one minute without any user interaction, a screen saver will be activated. Press the PLAY/PAUSE button to resume normal play.
If the player is left in the stop mode for more than 30 minutes, the power will automatically turn off except when the MIC is connected. (Automatic Power-Off Function)

5

Removing Disc

Press the OPEN/CLOSE (▲) button.

◀ Screen stops. no sound

To resume, press the PLAY/PAUSE button once again.

6

Pausing Play

Press the PLAY/PAUSE (▶) or STEP button on the remote control during play.

Note

If the player is left for about 5 minutes in pause mode, it will stop.

7

Step Motion Play (Except CD)

Press the STEP button on the remote control during play.

Each time the button is pressed, a new frame will appear.

No sound is heard during STEP mode. Press the PLAY/PAUSE (button to resume normal play.

You can only perform step motion play in the forward direction.

No sound is heard during slow mode.

Press the PLAY/PAUSE (button to resume normal play.

Reverse slow motion play will not work.

8

Slow Motion Play (Except CD)

Press and hold the SEARCH (→) button to choose the play speed between 1/8, 1/4 and 1/2 of normal during PAUSE or STEP mode.

Note

This (icon indicates an invalid button press.

BASIC FUNCTIONS

Using the Search and Skip Functions

During play, you can search quickly through a chapter or track, and use the skip function to jump to the next selection.

Searching through a Chapter or Track

During play, press the SEARCH (◀ or ▶) button on the remote control for more than 1 second.

If you want to search at a faster speed on the DVD, VCD or CD, press and hold the button.

Note

The speed marked in this function may be different from the actual playback speed.
- No sound is hearing during search mode (Except CD).

Skipping Tracks

During play, press the SKIP (or ▶) button.

Note

When VCD 2.0 is in Menu Off mode only, this function works. Select Menu Off by pressing the DISC MENU button.

BASIC FUNCTIONS

Using the Display Function

When Playing a DVD/VCD/CD

1

During play, press the INFO button on the remote control.

You can select Info in the function menu by pressing the MENU button.
Press the ▲/▼ buttons to select the desired item.

2

DVD

VCD

CD

When VCD 2.0 is in Menu Off mode only, this function works. Select Menu Off by pressing the DISC MENU button.
Press the ◀▶buttons to make the desired setup and then press the ENTER button.

3

◀ You may use the number buttons of the remote control to directly access a title, chapter or to start the playback from a desired time.

BASIC FUNCTIONS

4

To make the screen disappear, press the INFO button again.

Note

To access the desired title when there is more than one in the disc. For example, if there is more than one movie on a DVD, each movie will be identified.

Most DVD discs are recorded in chapters so that you can quickly find a specific passage (similar to tracks on an audio CD).

Allows playback of the film from a desired time. You must enter the starting time as a reference. The time search function does not operate on some discs.

Refers to the film's soundtrack language. In the example, the soundtrack is played in English 5.1CH. A DVD disc can have up to eight different soundtracks.

Refers to the subtitle languages available in the disc. You will be able to choose the subtitle languages or, if you prefer, turn them off from the screen. A DVD disc can have up to 32 different subtitles.

BASIC FUNCTIONS

Using the Disc and Title Menu

Using the Disc Menu (DVD/VCD)

1

During the playback of a DVD disc, press the MENU button on the remote control.

2

Press the ▲/▼ buttons to select Disc Menu, then press the ▶ or ENTER button.

Using the Title Menu (DVD)

1

During the playback of a DVD disc, press the MENU button on the remote control.

2

Press the ▲▼ buttons to select Title Menu, then press the ▶ or ENTER button.

Note

• Depending on a disc, the Disc Menu may not work.
• You can also use the Disc Menu, using the DISC MENU button on the remote control.
• When VCD 2.0 is in Menu Off mode only, this function works. Select Menu Off by pressing the DISC MENU button.

Note

• Depending on a disc, the Title Menu may not work.
• Title Menu will only be displayed if there are at least two titles in the disc.

BASIC FUNCTIONS

Using the Function Menu

Using the Function Menu (DVD/VCD)

1

Press the MENU button during playback.

2

Press the ▲▼buttons to select Function, then press
the ▶ or ENTER button.
- Info (See pages 20 to 21) Zong / Sep page 34

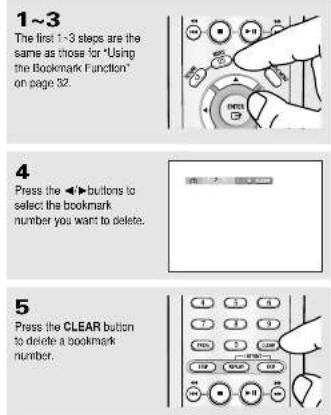

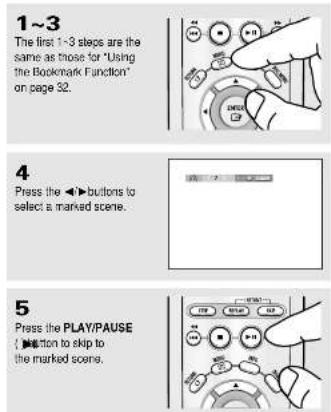

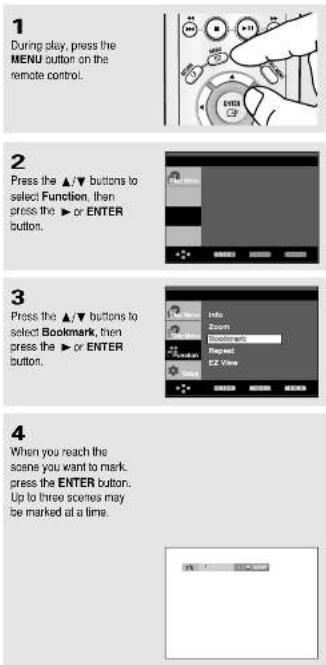

- Bookmark
(See pages 52 to 83)
- Repeat (See pages 24 to 25) - EZ View
(See pages 27 to 28)

3

Press the ▲/▼ buttons to select one of the five functions. Then press the ▶ or ENTER button to access the function.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

◀ You can also directly select these functions using their respective buttons on the remote control. - INFO - EZ VIEW - REPEAT

BASIC FUNCTIONS

Repeat Play

Repeat the current track, chapter, title, a chosen section (A-B), or all of the disc.

When playing a DVD/VCD/CD

1 Press the REPEAT button on the remote control. Repeat screen appears. SAMSUNG

2 Press the ←▶ buttons to select Chapter, Title or A-B. then press the ENTER button. DVD VCD/CD

DVD repeats play by chapter or title, CD and VCD repeat play by disc or track. Chapter ( ) repeats the chapter that is playing.

Title (●) repeats the title that is playing. Disc (●) repeats the disc that is playing. Track (●) repeats the track that is playing. A-B: repeats a segment of the disc that you select.

Using the A-B Repeat function

1. Press the REPEAT button on the remote control.
2. Press the ◀/▶ buttons to Select A-B
3. Press the ENTER button at the point where you want repeat play to start (A). B is automatically highlighted.
4. Press the ENTER button at the point where you want the repeat play to stop (B).
5. To return to normal play, press the CLEAR button.

Note

A-B REPEAT does not allow you to set point (B) until at least 5 seconds of playback time has elapsed after point (A) has been set.

3 To return to normal play, press REPEAT button again, then press the ◀► buttons to select Off and press ENTER button. DVD VCD/CD

Note

Depending on a disc, the Repeat function may not work. When VCD 2.0 is in Menu Off mode only, this function works. Select Menu Off by pressing the DISC MENU button.

ENG-24

BASIC FUNCTIONS

Slow Repeat Play

This feature allows you slowly to repeat scenes containing sports, dancing, musical instruments being played etc., so you can study them more closely.

When playing a DVD/VCD

1 During play, press the PLAY/PAUSE (按钮。

2 Press and hold the SEARCH (Heulton to choose the play speed between 1/8, 1/4 and 1/2 of normal during PAUSE or STEP mode.

3 Press the REPEAT button on the remote control. Press the ◀▶buttons to select A-B.

4 Press the ENTER button at the point where you want repeat play to start (A). B is automatically highlighted. Press the ENTER button at the point where you want the repeat play to stop (B).

The disc will play from A to B repeatedly at the speed you chose.
To set A-B REPEAT, set (A) first, then set (B) after the following slow play time has elapsed: 1/8x: wait 40 seconds, then press B
1/4x: wait 20 seconds, then press B
1/2x: wait 10 seconds, then press B

Note

When VCD 2.0 is in Menu Off mode only, this function works. Select Menu Off by pressing the DISC MENU button.

ENG-25

BASIC FUNCTIONS

Program Play & Random Play

Program Play (CD)

Program Play allows you to select the order in which you want tracks to play.

1

During play, press the PROG button.

2

Press the ◀/▶ buttons to select PROGRAM. Press the ENTER button.

3

Press the ▲/▼/◄◄ buttons to select the first track to add to the program. Press the ENTER button. The selection numbers appear in the Program Order box.

4

Press the PLAY/PAUSE (▶1) button. The disc will be played in programmed order.

Random Play (CD)

Random Play plays a disc's tracks in random order.

1

Press the PROG button.

Note

Depending on a disc, the Program and Random Play functions may not work. While in playback mode, press the CLEAR button on the remote control to cancel Program Play or Random Play.

ENG-26

Chapter 4

ADVANCED FUNCTIONS

Adjusting the Aspect Ratio (EZ View)

To play back using aspect ratio (DVD)

Press the EZ VIEW button.
- The screen size changes when the button is pressed repeatedly.
- The screen zoom mode operates differently depending on the screen setting in the Display Setup menu.
- To ensure correct operation of the EZ VIEW button, you should set the correct aspect ratio in the Display Setup menu. (See pages 50 to 51).

To make the aspect ratio bar disappear, press the CLEAR button.

If you are using a 16:9 TV

For 16:9 aspect ratio discs

• WIDE SCREEN
  Displays the content of the DVD title in 16:9 aspect ratio.

- SCREEN FIT The top and bottom portions of the screen are cut off. When playing a 2.35:1 aspect ratio disc, the black bars at the top and bottom of the screen will disappear. The picture will look vertically stretched. (Depending on a type of disc, the black bars may not disappear completely.)

- ZOOM FIT The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged.

For 4:3 aspect ratio discs

• Normal Wide
  Displays the content of the DVD title in 16:9 aspect ratio. The picture will look horizontally stretched.

- SCREEN FIT

The top and bottom portions of the screen are cut off and the full screen appears. The picture will look vertically stretched.

-ZOOM FIT

The top, bottom, left and right portions of the screen are cut off and the central portion of the screen is enlarged.

- Vertical Fit

When a 4:3 DVD is viewed on a 18:9 TV, black bars will appear at the left and right of the screen in order to prevent the picture from looking horizontally stretched.

ENG-27

ADVANCED FUNCTIONS

If you are using a 4:3 TV

For 16:9 aspect ratio discs	For 4:3 aspect ratio discs
-4:3 Letter BoxDisplays the content of the DVD title in 16:9 aspect ratio.The black bars will appear at the top and bottom of the screen.	- Normal ScreenDisplays the content of the DVD title in 4:3 aspect ratio.
-4:3 Pan ScanThe left and right portions of the screen are cut off and the central portion of the 16:9 screen is displayed.	- SCREEN FITThe top and bottom portions of the screen are cut off and the full screen appears.The picture will look vertically stretched.
- SCREEN FITThe top and bottom portions of the screen are cut off and a full screen appears.The picture will look vertically stretched.	- ZOOM FITThe top, bottom, left and right portions of the screen are cut off and the central portion of the screen is enlarged.
- ZOOM FITThe top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged.

Note

This function may behave differently depending on the type of disc.

ADVANCED FUNCTIONS

Selecting the Audio Language

You can select a desired audio language quickly and easily with the AUDIO button.

Using the AUDIO button (DVD/VCD/CD)

1 Press the AUDIO button. The Audio changes when the button is pressed repeatedy. - The audio languages are represented by abbreviations. DVD When playing a VCD or CD, you can select among Stereo, Right or Left. VCD/CD

2 To remove the AUDIO icon, press the CLEAR or RETURN button.

Note

• This function depends on audio languages are encoded on the disc and may not work.
• A DVD disc can contain up to 8 audio languages.
• To have the same audio language come up whenever you play a DVD: Refer to "Using the Audio Language" on page 46.

ADVANCED FUNCTIONS

Selecting the Subtitle Language

You can select a desired subtitle quickly and easily with the SUBTITLE button.

Using the SUBTITLE button (DVD)

2 To remove the SUBTITLE Icon, press the CLEAR or RETURN button.

Note

- Depending on DVDs, you have to change the desired subtitle in the Disc Menu. Press the DISC MENU button.

• This function depends on what subtitles are encoded on the disc and may not work on all DVDs.
• A DVD disc can contain up to 32 subtitle languages.
• To have the same subtitle language come up whenever you play a DVD: Refer to "Using the Subtitle Language" on page 47.

ADVANCED FUNCTIONS

Changing the Camera Angle

When a DVD contains multiple angles of a particular scene, you can use the ANGLE function.

Using the ANGLE button (DVD)

If the disc contains multiple angles, the ANGLE appears on the screen.

Press the ANGLE button, then the ANGLE icon will appear with the current angle number and the number of angles available.

2

Press the ANGLE button repeatedly to select the desired angle. To remove the ANGLE icon, press the CLEAR or RETURN button.

Note

If the disc has only one angle, this feature won't work. Currently, very few discs have this feature.

Using the Instant Replay/Skip Function

Using the Instant Replay function (DVD)

If you miss a scene, you can see it again using this function.

REPLAY button. - The current scene moves backward about 10 seconds, and plays back.

Using the Instant Skip function (DVD)

Use this function to skip playback about 10 seconds ahead of the current scene.

- Playback will skip ahead 10 seconds.

Note

Depending on the disc, these functions may not work.

ADVANCED FUNCTIONS

Using the Bookmark Function

This feature lets you bookmark sections of a DVD or VCD (Menu Off mode) so you can quickly find them at a later time.

Using the Bookmark Function (DVD/VCD)

1 During play, press the MENU button on the remote control. 2 Press the ▲/▼ buttons to select Function, then press the ▶ or ENTER button. 3 Press the ▲/▼ buttons to select Bookmark, then press the ▶ or ENTER button. 4 When you reach the scene you want to mark, press the ENTER button. Up to three scenes may be marked at a time.

ENG-32

ADVANCED FUNCTIONS

Recalling a Marked Scene

1~3 The first 1-3 steps are the same as those for "Using the Bookmark Function" on page 52. 4 Press the ◄▶buttons to select a marked scene. 5 Press the PLAY/PAUSE ◀▶option to skip to the marked scene.

Clearing a Bookmark

1~3 The first 1-3 steps are the same as those for "Using the Bookmark Function" on page 32. 4 Press the ◀▶buttons to select the bookmark number you want to delete. 5 Press the CLEAR button to delete a bookmark number.

ENG-39

ADVANCED FUNCTIONS

Using the Zoom Function

Using the Zoom Function (DVD/VCD)

1

During play or pause mode, press the MENU button on the remote control.

2

Press the ▲▼ buttons to select Function, then press the ▶ or ENTER button.

3

Press the ▲▼ buttons to select Zoom, then press the ▶ or ENTER button.

4

Press the ▲/▼ or ◀/► buttons to select the part of the screen you want to zoom in on. Press the ENTER button.

- During DVD play, press ENTER to zoom in 2X:4X/2X:Normal in order. - During VCD play, press ENTER to zoom in 2X:Normal in order.

Note

When VCD 2.0 is in Menu Off mode only, this function works. Select Menu Off by pressing the DISC MENU button.

ADVANCED FUNCTIONS

Clips Menu for MP3/WMA/JPEG

Discs with MP3/WMA/JPEG contain individual songs and/or pictures that can be organized into folders as shown below. They are similar to how you use your computer to put files into different folders.

Open the disc tray. Place the disc on the tray. Close the tray. The tray closes and this screen displays. Parent Folder, Current Folder and Peer Folders Folders and Files in Current Folder

modes. They can be selected in order by pressing the REPEAT button. - Off: Normal Playback - Track: Repeats the current track. - Folder: Repeats the current folder. - Random: Files in the disc will be played in random order.

ENG-35

ADVANCED FUNCTIONS

MP3/WMA Playback

1

Open the disc tray. Place the disc on the tray. Close the tray.

2

Press the ▲/▼ or ◀/► buttons to select a song file. Press ENTER to begin playback of the song file.

Only one kind of file is played back when a disc or a folder contains both MP3 and WMA files.

Repeat/Random playback

1

Press the REPEAT button to change the playback mode. There are four modes: Off, Track, Folder and Random.

- Off: Normal Playback

- Track: Repeats the current song file. - Folder: Repeats the song files which have the same extension in the current folder. - Random: Song files which have the same extension will be played in random order.

To resume normal play, press the CLEAR button.

ADVANCED FUNCTIONS

CD-R MP3/WMA file

When you record MP3 or WMA files on CD-R, please refer to the following.

- Your MP3 or WMA files should be ISO 9660 or JOLIET format. ISO 9660 format and Joliet MP3 or WMA files are compatible with Microsoft's DOS and Windows, and with Apple's Mac. This format is the most widely used.

- When naming your MP3 or WMA files, do not exceed 8 characters, and enter ".mp3, wma" as the file extension. General name format : Title.mp3, or Title.wma. When composing your title, make sure that you use 8 characters or less, have no spaces in the name, and avoid the use of special characters including: (../..+).

- Use a decompression transfer rate of at least 128 Kbps when recording MP3 files. Sound quality with MP3 files basically depends on the rate of compression/decompression you choose. Getting CD audio sound requires an analog/digital sampling rate, that is conversion to MP3 format, of at least 128 Kbps and up to 160 Kbps. However, choosing higher rates, like 192 Kbps or more, only rarely give better sound quality. Conversely, files with decompression rates below 128 Kbps will not be played properly.

Use a decompression transfer rate of at least 64Kbps when recording WMA files. Sound quality with WMA files basically depends on the rate of compression/decompression you choose. Getting CD audio sound requires an analog/digital sampling rate, that is conversion to WMA format, of at least 64Kbps and up to 192Kbps. Conversely, files with decompression rates below 64Kbps or over 192Kbps will not be played property.

- Do not try recording copyright protected MP3 files. Certain "secured" files are encrypted and code protected to prevent illegal copying. These files are of the following types: Windows Media™ (registered trade mark of Microsoft Inc) and SDMI™ (registered trade mark of The SDMI Foundation). You cannot copy such files.

- Important: The above recommendations cannot be taken as a guarantee that the DVD player will play MPS recordings, or as an assurance of sound quality. You should note that certain technologies and methods for MPS file recording on CD-Rs prevent optimal playback of these files on your DVD player (degraded sound quality and in some cases, inability of the player to read the files). This unit can play a maximum of 3000 files and 300 folders per disc.

ADVANCED FUNCTIONS

Picture CD Playback

1
Select the desired folder

2
Press the ▲▼ buttons to select a Picture file in the clips menu and then press the ENTER button.

3

Press the INFO button to display the menu. Press the ◀▶buttons to select the menu you want to view, then press the ENTER button.

Note
- If no buttons on the remote control are pressed for 10 seconds, the menu will disappear. - Press the STOP button to return to the clips menu.
- When playing a Kodak Picture CD, the unit displays the Photo directly, not the clips menu.

Album Screen

-

ms to the Album Screen.

• To see the next six pictures, press the direction.
• To see the previous six pictures, press the button.

Rotation

图

: Each time the ENTER button is pressed, the picture rotates 30 degrees clockwise.

Zoom

⊕

Press the ▲/▼ or ◀▶ buttons to select the part of the screen you want to zoom in on. Press the ENTER button. Each time the ENTER button is pressed, the picture is enlarged up to 4X. (2X → 4X → 2X → Normal)

Slide Show

• the unit enters slide show mode.

• Before beginning the Slide Show, the picture interval must be set. Press the ◀▶buttons to select a desired icon, then press the ENTER button.
  • The pictures change automatically with about a 6 second interval.
  • The pictures change automatically with about a 12 second interval.
  • The pictures change automatically with about a 18 second interval.

Note

- Depending on a file size, the amount of time between each picture may be different from the set interval time.

- If you don't press any button, the slide show will start automatically in about 10 seconds by default.

ENG-38

ADVANCED FUNCTIONS

CD-R JPEG Discs

• Only files with the ".jpg" and ".JPG" extensions can be played.
• If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
• Only CD-R discs with JPEG files in ISO 9660 or JoieI format can be played.
• The name of the JPEG file may not be longer than 8 characters and should contain no blank spaces or special characters
  (i, i = +1)
• Only a consecutively written multi-session disc can be played. If there is a blank segment in the multi-session disc, the disc can be played only up to the blank segment.
• A maximum of 3000 images can be stored on a single CD.
• Kodak Picture CDs are recommended.
• When playing a Kodak Picture CD, only the JPEG files in the pictures folder can be played.
• Kodak Picture CD: The JPEG files in the pictures folder can be played automatically
• Konica Picture CD: If you want to see the Picture, select the JPEG files in the clips menu.
• Fuji Picture CD: If you want to see the Picture, select the JPEG files in the clips menu.
• OSS Picture CD: The unit may not play OSS Picture CD.
• If the number of files in 1 Disc is over 3000, only 3000 JPEG files can be played.
• If the number of folders in 1 Disc is over 300, only JPEG files in 300 folders can be played

Chapter 5

KARAOKE FUNCTIONS

Karaoke Functions

Operation Sequence

1

Connect the Mixed Audio Out terminals with the TV or Amplifier. (see page 11 to 15)

2

Connect Mic into Mic jack. When a MIC is connected, the karaoke functions can be used.

Pressing number buttons while playing back with the DISC MENU is set to Off will make the player to skip to the directed track.

Key Control

1

Playback the Karaoke Disc containing the wanted songs. Press the KARAOKE button.

2

Press the ◀▶buttons to select Keycon, then press the ENTER button.

3

Press the ◀▶buttons to change the desired tone. - To let 7 scales down by half scale. - Original scale. - To let 7 scales up by half scale.

ENG-40

Note

- If you hear feedback(squealing or howling) while using the karaoke feature, move the microphone away from the speakers or turn down the microphone volume or the speaker volume.

- When playing MP3, WMA, DTS and LPCM disc, the karaoke functions will not operate.

When the MIC is connected, Digital Out does not work.

If the MIC is connected in VCD 2.0. Playback is selected to Menu off mode automatically.

The MIC sound outputs only from Analog Audio Out.

KARAOKE FUNCTIONS

Reserving a Song

It is the function to reserve the desired song in advance by use of Karaoke function.

Sequence of reservation

1

Playback the Karaoke Disc containing the wanted songs. Press the KARAOKE button.

2

Press the ◀▶buttons to select Request, then press the ENTER button.

3

Input the number (Track or Chapter No.) of the desired song into the flickering part (-). You can reserve up to 10 songs.

Cancellation of reservation

1

Press the KARAOKE button.

2

Press the ◀▶buttons to select Request, then press the ENTER button.

3

Press the CLEAR button to cancel the reserved song. The last reserved song will be erased first.

When you want the next reserved song during playing a song, press the SKIP (▶button. When using SKIP (▶button, it can not work at the last song.

Note

- If the reservation is required again, input the song number in the flickering part.

- When using Request function, the "INFO" and "REPEAT" function does not work.

- Pressing the CLEAR button when the cursor is located on the number of the last song reserved will cancel all reservations.

ENG-41

KARAOKE FUNCTIONS

Vocal Function

When pressing the

KARAOKE bullon twice.

this screen displays.

When pressing the

button, this screen

displays.

Vocal Fader

In VCD, SVCD or CD, you can select only the R, L or Off.

CD. VCD Karaoke Disc

	VOCAL FADER Remark
JV1	CH1, Vocal Cancel
JV2	CH2, Vocal Cancel
JV1	+ V2 CH1, CH2, Vocal Cancel
JOFF	Vocal Fader Oil

	VOCAL FADER Remark
JR	Right stereo music
IL	Left stereo music
JOFF	Vocal Fader Off

Guide Melody

The guide melody through xylophone and piano helps you sing easily.

Types of Karaoke disc

- DVD Karaoke Disc

Channel	Karako Channel	SCH, DNT-SCH, IWD
1 CH	I	Left shaker music	Left shaker music + voice
2 CH	II	Right shaker music	Right shaker music + vocal
3 CH	III	Guide melody
4 CH	VI	Vocal track
5 CH	VII	Vocal track

- CVD, VCD, CD Karaoke Disc

Channel	Kanaka Channel	CVD VCD CO
1 CF	CH LEFT	Left music music + Vocal	Left music music
1 CI	CH I SCH IT	Right stereo music - vocal	Right stereo music + Vocal
2 CF	CH2 LEFT	Left music music	-
2 CF	CH2 NSRT	Right stereo music	-

Note

- This function works only on the DVD Karaoke disc on which the vocal fader or guide melody is recorded.

Chapter 6

CHANGING SETUP MENU

Using the Setup Menu

The Setup menu lets you customize your DVD player by allowing you to select various language preferences, set up a parental level, even adjust the player to the type of television screen you have.

1

With the unit in Stop

mode, press the MENU

button on the remote

control.

Press the ▲/▼buttons to

select Setup, then press

the ▶ or ENTER button

① Language Setup: Setup of the Language.
② Audio Setup : Setup of the Audio Options
⑧ Display Setup : Setup of the Display Options. Use to select which type of screen you want to watch and several display options
- Parental Setup : Setup of the Parental Level. Allows users to set the level necessary to prevent children from viewing unsuitable movies such as those with violence, adult subject matter, etc.

2

Press the ▲▼buttons to

access the different

features. Press the ▶ or

ENTER button to access

the sub features.

3

To make the setup screen disappear after setting up, press the MENU button again.

Note

Depending on the disc, some Setup Menu selections may not work.

CHANGING SETUP MENU

Setting Up the Language Features

If you set the player menu, disc menu, audio and subtitle language in advance, they will come up automatically every time you watch a movie.

Using the Player Menu Language

With the unit in Stop mode, press the MENU button.
Press the ▲▼ buttons to select Setup, then press the ▶ or ENTER button.
Press the ▲/▼ buttons to select Language Setup, then press the ▶ or ENTER button.
Press the ▲/▼ buttons to select Player Menu, then press the ▶ or ENTER button.
Press the ▲▼ buttons to select the desired language, then press the ▶ or ENTER button.

- The language is selected and the screen returns to Language Setup menu.

To make the setup menu disappear, press the MENU button.

CHANGING SETUP MENU

Using the Disc Menu Language

This function changes the text language only on the disc menu screens.

With the unit in Stop mode, press the MENU button.
Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.

2

3
Press the ▲/▼ buttons to select Language Setup, then press the ▶ or ENTER button.

4
Press the ▲/▼ buttons to select Disc Menu, then press the ▶ or ENTER button.

5
Press the ▲/▼buttons to select the desired language, then press the ▶ or ENTER button.

• Select "Others" if the language you want is not listed.
• If the selected language is not recorded on the disc, the original pre-recorded language is selected.
  The language is selected and the screen returns to Language Setup menu.
  To make the setup menu disappear, press the MENU button.

CHANGING SETUP MENU

Using the Audio Language

1

With the unit in Stop mode, press the MENU button.

2

Press the ▲▼ buttons to select Setup, then press the ▶ or ENTER button.

3

Press the ▲▼ buttons to select Language Setup, then press the ▶ or ENTER button.

4

Press the ▲/▼ buttons to select Audio, then press the ▶ or ENTER button.

5

Press the ▲/▼ buttons to select the desired language, then press the ▶ or ENTER button.

- Select "Original" if you want the default soundtrack language to be the original language the disc is recorded in.

- Select "Others" if the language you want is not listed.

- If the selected language is not recorded on the disc, the original pre-recorded language is selected.

The language is selected and the screen returns to Language Setup menu.

To make the setup menu disappear, press the MENU button.

CHANGING SETUP MENU

Using the Subtitle Language

1

With the unit in Stop mode, press the MENU button.

2

Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.

3

Press the ▲/▼ buttons to select Language Setup. then press the ▶ or ENTER button.

4

Press the ▲/▼buttons to select Subtitle, then press the ▶ or ENTER button.

5

Press the ▲/▼buttons to select the desired language, then press the ▶ or ENTER button.

Select "Automatic" if you want the subtitle language to be the same as the language selected as the audio language.

Select "Others" if the language you want is not listed. Some discs may not contain the language you select as your initial language; in that case the disc will use its original language setting.

The language is selected and the screen returns to setup menu.

To make the setup menu disappear, press the MENU button.

CHANGING SETUP MENU

Setting Up the Audio Options

Audio Options allows you to setup the audio device and sound status settings depending on the audio system in use.

1 With the unit in Stop mode, press the MENU button.

To make the setup menu disappear, press the MENU button.

CHANGING SETUP MENU

① Dolby Digital Out

- PCM : Converts to PCM(2CH) audio.

- Bitstream : Outputs Dolby Digital via the digital output. Select Bitstream when connecting to a Dolby Digital Decoder.

② MPEG-2 Digital Out

- PCM : Converts to PCM(2CH) audio.

- Bitstream : Converts to MPEG-2 Digital Bitstream (5.1CH or 8CH). Select Bitstream when using the Digital Audio Output.

⑧ DTS

Select On when connecting to a DTS Decoder.

- Off : Doesn't output digital signal.

- On : Outputs DTS Bitstream via digital output.

Note

- There is no analog audio output when you play a DTS sound disc.

4 Dynamic Compression

- On : To select dynamic compression.

- Off : To select the standard range.

PCM Down Sampling

- On : Select this when the Amplifier connected to the player is not 96KHz compatible. In this case, the 96KHz signals will be down converted to 48KHZ.

- Off : Select this when the Amplifier connected to the player is 96KHz compatible. In this case, all signals will be output without any changes.

Note

Even when PCM Down sampling is Off

- Some discs will only output down sampled audio through the digital outputs.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

"DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc.

CHANGING SETUP MENU

Setting Up the Display Options

Display options enable you to set various video functions of the player.

1

With the unit in Stop mode, press the MENU button.

2

Press the ▲▼ buttons to select Setup, then press the ▶ or ENTER button.

3

Press the ▲/▼ buttons to select Display Setup, then press the ▶ or ENTER button.

4

Press the ▲▼ buttons to select the desired item, then press the ▶ or ENTER button.

To make the setup menu disappear, press the MENU button.

CHANGING SETUP MENU

TV Aspect

Depending on a type of television you have, you may want to adjust the screen setting (aspect ratio).

- 4:3 Letter Box : Select when you want to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.

- 4:3 Pan Scan : Select this for conventional size TVs when you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.)

- 16:9 Wide : You can view the full 16:9 picture on your wide screen TV.

Still Mode

These options will help prevent picture shake in still mode and display small text clearer.

- Auto: When selecting Auto, Field/Frame mode will be automatically converted.

- Field : Select this feature when the screen shakes in the Auto mode.

- Frame : Select this feature when you want to see small letters more clearly in the Auto mode.

⑧ Screen Messages

Use to turn on-screen messages On or Off.

Black Level

Adjusts the brightness of the screen.(On or Off) It does not function in Progressive mode.

⑤ TV System

- NTSC : In case of using NTSC disc

- If your TV system only has PAL-Video input, you must choose "PAL". When you choose "PAL", Interlace output format is PAL 60 Hz output.

- If your TV system only has NTSC, input you must choose "NTSC".

- PAL : In case of using PAL disc

- If your TV system only has NTSC-Video input, you must choose "NTSC".

- If your TV system only has PAL input, you must choose "PAL".

⑥ Video Output

Select Video Output.

- S-Video : Select when you want to use Video and S-Video Out.

- Component (I-SCAN) : Select when you want to use Component Interlace (525i) Out.

- Component (P-SCAN) : Select when you want to use Component Progressive (525p) Out.

- If the Yes/No selection in the Display Setup sub Menu is not made within 10 seconds, the screen returns to the previous menu.

- Consult your TV User's Manual to find out if your TV supports Progressive Scan. If Progressive Scan is supported, follow the TV User's Manual regarding Progressive Scan settings in the TV's menu system.

- If Video Output is set incorrectly, the screen may be blocked.

CHANGING SETUP MENU

Setting Up the Parental Control

The Parental Control function works in conjunction with DVDs that have been assigned a rating, which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

1

With the unit in Stop mode, press the MENU button.

2
Press the ▲▼ buttons to select Setup, then press the ▶ or ENTER button.

3
Press the ▲▼ buttons to select Parental Setup, then press the ▶ or ENTER button.

4
Press the ▶ or ENTER button to select Yes if you want to use a password. The Enter Password screen appears.

5
Enter your password. The Re-enter Password screen appears to confirm the password. Enter your password again. The player is locked ( ).

ENG-52

To make the setup menu disappear, press the MENU button.

CHANGING SETUP MENU

Setting Up the Rating Level

1

With the unit in Stop mode, press the MENU button.

2
Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.

3
Press the ▲/▼buttons to select Parental Setup, then press the ▶ or ENTER button.

4
Enter your password.

5
Press the ▲▼buttons to select Rating Level, then press the ▶ or ENTER button.

6
Press the ▲/▼ buttons to select the Rating Level you want, then press the ▶ or ENTER button. e.g; Setting up in Level 6
To make the setup menu disappear, press the MENU button.
For example, if you select up to Level 6, discs that contain Level 7,8 will not play.

ENG-53

CHANGING SETUP MENU

Changing the Password

1

With the unit in Stop mode, press the MENU button.

2

Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.

3

Press the ▲▼buttons to select Parental Setup, then press the ▶ or ENTER button. The Enter Password screen appears. Enter your password.

4

Press the ▲▼ button to select Change Password, then press the ▶ or ENTER button. Enter your new password. Re-enter the new password again.

To make the setup menu disappear, press the MENU button.

Note

If you have forgotten your password, see "Forgot Password" in the Troubleshooting Guide.

Chapter 7

REFERENCE

Troubleshooting

Before requesting service (troubleshooting), please check the following.

Problem Page	Action
No operations can be performed with the remote control.	· Check the batteries in the remote control. They may need replacing. · Operate the remote control at a distance of no more than 20 feet. · Remove batteries and hold down one or more buttons for several minutes to drain the microprocessor inside the remote control to reset it. Retailstall batteries and try to operate the remote control again.	P4
Disc does not play.	· Ensure that the disc is installed with the label side facing up. · Check the region number of the DVD.	P7
5.1 channel sound is not being reproduced.	· 5.1 channel sound is reproduced only when the following conditions are met. : 1) The DVD player is connected with the proper Amplifier 2) The disc is recorded with 5.1 channel sound. · Check whether the disc being played has the "5.1 cm" mark on the outside. · Check if your audio system is connected and working properly. · In a SETUP Menu, is the Audio Output set to Bitstream?	P16 P48-49
The ☑ con appears on screen.	· The features or action cannot be competed at this time because: 1. The DVD's software restricts it. 2. The DVD's software doesn't support the feature (e.g., angles); 3. The feature is not available at the moment. 4. You've requested a title or chapter number or search time that is out of range.
Disc Menu doesn't appear.	· Check if the disc has a Menu.
Play mods differs from the Setup Menu selection.	· Some of the functions selected in the Setup Menu may not work properly if the disc is not encoded with the corresponding function.	P43-54
The screen ratio cannot be changed.	· The Screen Ratio is fixed on your DVDs.	P50-51
No audio.	· Make sure you have selected the correct Digital Output in the Audio Options Menu.	P48-49
The screen is blocked	· Press the button for more than 5 seconds under no disc inside. All settings will revert to the factory settings.	P17
Forgot password	· Press the button for more than 5 seconds under no disc inside. All settings including the password will revert to the factory settings. Don't use this unless absolutely necessary.	P52-54
If you experience other problems.	· Go to the contents and find the section of the instruction book that contains the explanations regarding the current problem, and follow the procedure once again. · If the problem still cannot be solved, please contact your nearest authorized service center.
The picture is noisy or distorted	· Make sure that the disc is not dirty or scratched. · Clean the disc.	P2

REFERENCE

MEMO

Specifications

General	Power Requirements	AC 110-240 V, 60/50 Hz
	Power Consumption	10 W
	Weight	1.7 Kg
	Dimensions	430mm (W) X 207mm (D) X 42mm (H)
	Operating Temperature Range	+5°C to +35°C
	Operating Humidity Range	10% to 75%
Disc	DVD(DIGITAL VERSATILE DISC)	Reading Speed: 3.49 ~ 4.06 m/sec.Approx. Play Time(Single Skied, Single Layer Disc): 135 min.
	CD : 12Cm(COMPACT DISC)	Reading Speed: 4.8 ~ 5.6 m/sec.Maximum Play Time: 74 min.
	CD : 8Cm(COMPACT DISC)	Reading Speed: 4.8 ~ 5.6 m/sec.Maximum Play Time: 20 min.
	VCD : 12Cm	Reading Speed: 4.8 ~ 5.6 m/sec.Maximum Play Time: 74 min. (Video + Audio)
Video Output	Composite Video	1 channel: 1.0 Vp-p (75 Oload)
	Component Video	Y: 1.0 Vp-p (75 Oload)Pr: 0.70 Vp-p (75 Oload)Pb: 0.70 Vp-p (75 Oload)
	S-Video	Luminance Signal: 1.0 Vp-p (75 Oload)Chrominance Signal: 0.3 Vp-p (75 Oload)
Audio Output	2 Channel	L(1/L), R(2/R)
	*Frequency Response	48 kHz Sampling: 4 Hz to 22 kHz96 kHz Sampling: 4 Hz to 44 kHz
	*S/N Ratio	110 dB
	*Dynamic Range	100 dB
	*Total Harmonic Distortion	0.304 %

*: Nominal specification

- Samsung Electronics Co., Ltd reserves the right to change the specifications with out notice.

- Weight and dimensions are approximate.

MEMOMEMO

Diagram showing three types of household appliances with prohibition signs, indicating no protection or disapproval.

DATE:	LEARN PARATHY MELLOPH BROOF STARS RED BHAAR
ORDER:	BALANCE SHEET CABBAGE DUCTURE NO. NO BEANS OF AREAS BEANS OF WMG BALANCE SHEET MELLOPH AND BEANS OF WMG FOR WM GENDER BEANS OF WMG FOR WM GENDER
TOMATO:	BALANCE SHEET PEEACH SHEET CABBAGE BEANS OF WMG FOR WM GENDER
EXTRA:	BALANCE SHEET PEEACH SHEET CABBAGE BEANS OF WMG FOR WM GENDER
FROZEN:	BALANCE SHEET PEEACH SHEET CABBAGE BEANS OF WMG FOR WM GENDER
GREEN:	BALANCE SHEET PEEACH SHEET CABBAGE BEANS OF WMG FOR WM GENDER
JULIAND:	BALANCE SHEET PEEACH SHEET CABBAGE BEANS OF WMG FOR WM GENDER

4. Disque

• DVD +RW, -RW (mode V)

PROGRESSIF (525p/625p)

*NOTEZ QUE TOUS LES TELEVISEURS HAUTE DEFINITION NE SONT PAS ENTIEREMENT COMPATIBLES AVEC CET APPAREIL ET QUE DES ARTEFECTS PEUVENT APPARAÏTRE A L'ECRAN LORS DE LA LÉCTURE, EN CAS DE PROBLEMES D'IMAGE LORS DU BALAYAGE PROGRESSIF 526 OU 625, IL EST CONSEILLE DE RACCORDER L'APPAREIL À LA SORTIE *DEFINITION STANDARD". SI DES QUESTIONS SUBSISTENT QUANT À LA COMPATIBILITE DE VOTRE TELEVISEUR AVEC LE LECTEUR DVD MODELES 625p ET 625p. VEUILLEZ CONTACTER LE SERVICE CLIENT SAMSUNG.

FRA-6

CONFIGURATION

88·8:88:88 1 2

Diagram showing TV connection setup with labeled ports and a monitor, including icons for audio, audio, and screen.

Remarque

Diagram showing a device control panel with labeled buttons and ports, including a header and indicator lights.

4

During play, press the INFO button on the remote control.

- To return to the previous menu screen, press the RETURN button. - To cancel the selected program order, press the CLEAR button. - This unit can support a maximum of 20 programmed tracks.

Remarque

Off (Non): Lecture normale

Cancellation of reservation

1

The Parental Control function works in conjunction with DVDs that have been assigned a rating, which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

Diagram showing three types of household appliances with prohibition signs, indicating heating or cooling conditions.

4. Discos

You can view Digital Photos on your TV.

Repetición

88·8:88:88 1 2

Diagram showing TV connection with labeled components and a cable, likely illustrating a media or audio setup.

Nota

Nota

Diagram showing connections between electronic equipment and TV, with labeled components and wiring paths

Diagram showing connection between a power supply unit and a switch, with labeled components and wiring connections.

Nota

This unit can play a maximum of 3000 files and 300 folders per disc.

FUNCIONES AVANZADAS
