1. Setting up

• Refer to the identi cation label located on the rear of your player for its proper operating voltage.
• Install your player in a cabinet with adequate ventilation holes. (7\~10cm) Do not block ventilation holes on any of the components for air circulation.
• Do not push the disc tray in by hand.
• Do not stack components.
• Be sure to turn all components off before moving the player.
• Before connecting other components to this player, be sure to turn them off.
• Be sure to remove the disc and turn off the player after use, especially if you are not going to use it for a long time.
• The mains plug is used as a disconnect device and shall stay readily operable at any time.

2. For your safety

• This product utilizes a laser. Use of controls or adjustments or performance of procedures other than those speci ed herein may result in hazardous radiation exposure.
• Do not open covers and do not repair yourself. Refer servicing to qualified personal.

3. Caution

• Your player is not intended for industrial use but for domestic purposes. Use of this product is for personal use only.
• Apparatus shall not be exposed to dripping or splashing and no objects lled with liquids, such as vases, shall be placed on the apparatus.
• Exterior in uences such as lightning and static electricity can affect normal operation of this player. If this occurs, turn the player off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The player will operate normally.
• When condensation forms inside the player due to sharp changes in temperature, the

player may not operate correctly. If this occurs, leave the player at room temperature until the inside of the player becomes dry and operational.

4. Disc

• Do not clean disc using record-cleaning sprays, benzene, thinner, or other volatile solvents that may cause damage to the disc surface.
• Do not touch the disc's signal surface. Hold by the edges or by one edge and the hole in the center.
• Wipe the dirt away gently; never wipe a cloth back and forth over the disc.

5. Environmental info

• The battery used in this product contains chemicals that are harmful to the environment.
• So, dispose of batteries in the proper manner, according to federal, state, and local regulations.

The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/OUR 11172-3 or ISO/OUR 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio les conforming to the ISO/OUR 11172-3 or ISO/OUR 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/OUR 11172-3 or ISO/OUR 13818-3.

CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

before you start table of contents

Accessories

Check for the supplied accessories below

Remote Control

Batteries for Remote Control (AAA Size)

User's Manual

Video/Audio Cable

The accessories which do not supplied

1. Component cable
2. Coaxial cable

Install Batteries in the Remote control

1. Open the battery cover on the back of the remote control.
2. Insert two AAA batteries. Make sure that the polarities (+ and -) are aligned correctly.
3. Replace the battery cover.

Technical line drawing of a boat hull with directional arrows indicating movement or force (no text or symbols)

If remote control doesn't operate properly:

• Check the polarity + - of the batteries (Dry-Cell)
• Check if the batteries are drained.
• Check if remote control sensor is blocked by obstacles.
• Check if there is any fluorescent lighting nearby.

Precautions....2
Before you start ....3

Setup

General Features 4
Disc Type and Characteristics .....5
Description 6
Tour of the Remote Control....8

Connections

Choosing a Connection .....9

Basic Functions

Playing a Disc 14
Using the Search and Skip Functions .....15
Using the Display Function .....15
Using the Disc and Title Menu .....15
Repeat Play 16
Slow Play 16

Advanced Functions

Adjusting the Aspect Ratio (EZ View) .....17
Selecting the Audio Language .....17
Selecting the Subtitle Language .....18
Changing the Camera Angle .....18
Using the Bookmark Function .....19
Using the Zoom Function .....19
Clips Menu for MP3/WMA/JPEG
CD Audio 19
Folder Selection ....20
MP3/WMA/CD Audio Playback....20
Playing media les Using
the USB Host Feature .....21
CD Ripping 22
Picture CD Playback .....23

Karaoke Functions

Karaoke Functions .....24

Changing Setup Menu

Using the Setup Menu .....25
Setting Up the Language Features .....25

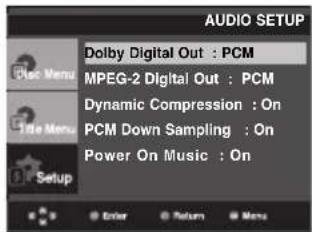

Setting Up the Audio Options .....26

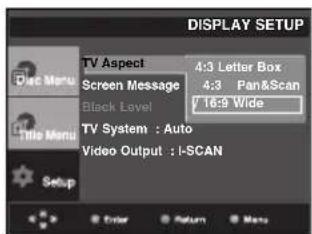

Setting Up the Display Options .....27
Setting Up the Parental Control .....28

Reference

Firmware upgrade....30

Troubleshooting....31

Speci cations ....32

General Features

Excellent Sound

Dolby Digital, a technology developed by Dolby Laboratories, provides crystal clear sound reproduction.

Screen

Both regular and widescreen(16:9) pictures can be viewed.

Slow Motion

An important scene can be viewed in slow motion.

Parental Control (DVD)

The parental control allows users to set the level necessary to prohibit children from viewing harmful movies such as those with violence, adult subject matter, etc.

Various On-Screen Menu Functions

You can select various languages (Audio/Subtitle) and screen angles while enjoying movies.

Progressive Scan

Progressive scanning creates an improved picture with double the scan lines of a conventional interlaced picture.

EZ VIEW (DVD)

Easy View enables picture adjustment to match your TV's screen size (16:9 or 4:3).

Digital Photo Viewer (JPEG)

You can view Digital Photos on your TV.

Repeat

You can repeat a song or movie simply by pressing the REPEAT button.

MP3/WMA

This unit can play discs created from MP3/WMA les.

CD Ripping

This feature lets you to copy audio les from disc to USB device into MP3 format. (Only Audio CD (CD DA)).

Note

- Discs which cannot be played with this player.

• DVD-ROM • DVD-RAM

- CD-ROM - CDV

- CDI - CVD

• Super Audio CD (except CD layer).

• CDGs play audio only, not graphics.

- Ability to play back may depend on recording conditions.

- DVD-R, +R

- CD-RW

• DVD+RW, -RW (V mode)

- The unit may not play certain CD-R, CD-RW and DVD-R due to the disc type or recording conditions.

COPY PROTECTION

Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.

This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

PROGRESSIVE SCAN

OUTPUTS (576p)

"CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE, IN CASE OF 576 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE 'STANDARD DEFINITION' OUTPUT. IF THERE ARE QUESTIONS REGARDING YOUR TV SET COMPATIBILITY WITH THIS MODEL 576p DVD PLAYER, PLEASE CONTACT SAMSUNG'S CUSTOMER SERVICE CENTER."

Disc Type and Characteristics

This DVD player is capable of playing the following types of discs with the corresponding logos:

Disc Types (Logos)	Recording Types Disc Size Max.		Playing Time	Characteristics
DVD	Audio+Video	12 Cm	Single-sided 240 min.Double-sided 480 min.	- DVD contains excellent sound and video due to Dolby Digital and MPEG-2 system.- Various screen and audio functions can be easily selected through the on-screen menu.
		8 Cm	Single-sided 80 min.Double-sided 160 min.
VIDEO-CD	Audio+Video	12 Cm	74 min.	- Video with CD sound, VHS quality & MPEG-1 compression technology.
		8 Cm	20 min.
AUDIO-CD	Audio	12 Cm	74 min.	- CD is recorded as a Digital Signal with better audio quality, less distortion and less deterioration of audio quality over time.
		8 Cm	20 min.

Disc Markings

	Play Region Number
	PAL broadcast system in U.K, France, Germany, etc.
	Dolby Digital disc
	Stereo disc
	Digital Audio disc
	DTS disc
	MP3 disc

You must only insert one DVD disc at a time. Inserting two or more discs will not allow to play them back and it may cause damage to the DVD player.

Region Number

Both the DVD player and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.

The Region Number for this player is described on the rear panel of the player.

Description

Front Panel Controls

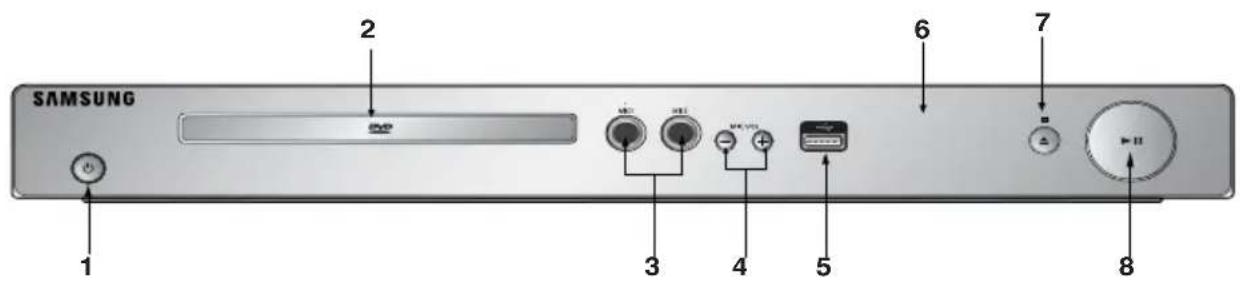

SAMSUNG 1 2 3 4 5 6 7 8

1. STANDBY/ON

Turn on/off and the player is turned on/off.

2. DISC TRAY

Place the disc here.

3. MIC 1/2

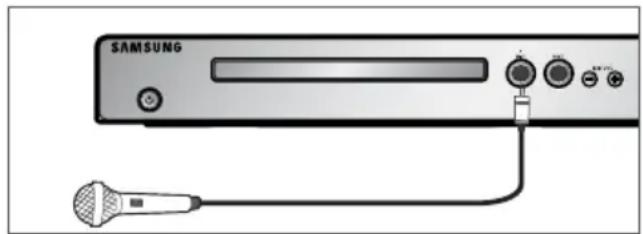

Connect Microphone for karaoke functions.

4. MICROPHONE VOLUME

Use to adjust microphone volume level. Use the button by pressing it.

5. USB Host

Connect digital still camera, MP3 player, memory stick, Card reader, or another removable storage devices

6. DISPLAY

Operation indicators are displayed here.

7. OPEN/CLOSE / STOP

Press to open and close the disc tray and stop disc play.

8. PLAY/PAUSE ▶(Ⅱ)

Begin or pause disc play.

Front Panel Display

8 8:8 8

Total playing time/Displays various messages concerning operations such as PLAY, STOP, LOAD ...

nodISC: No disc loaded.

OPEn: The disc tray is open.

LOAD: Player is loading disc information.

④ ① ② ③

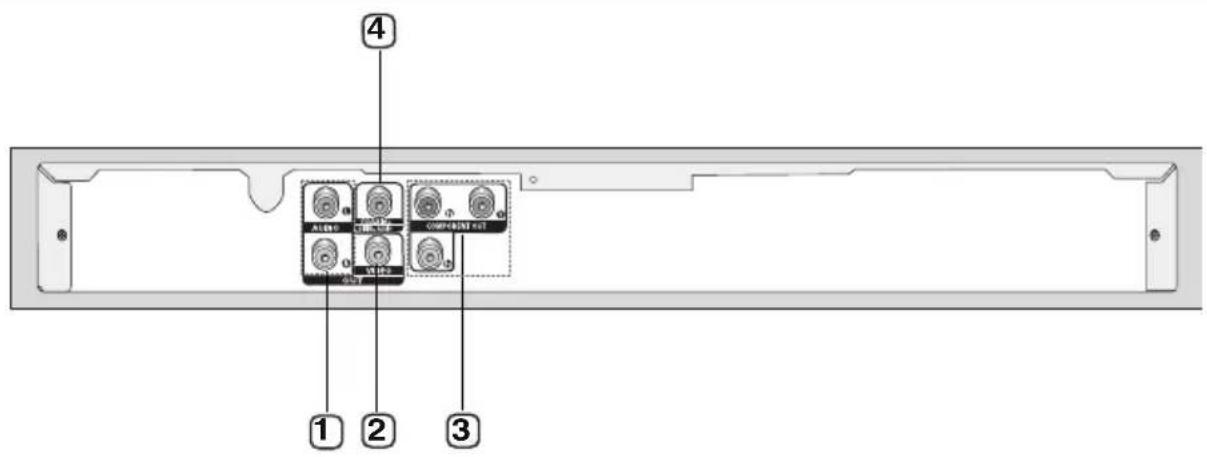

1. AUDIO OUT JACKS

- Connect to the Audio input jacks of your television or audio/video receiver.

2. VIDEO OUT JACK

- Use a video cable to connect to the Video input jack on your television.

3. COMPONENT VIDEO OUT JACKS

- Use these jacks if you have a TV with Component Video in jacks. These jacks provide P_R , P_B and Y video.

- If P-SCAN Video Output is selected in Setup Menu, progressive scan mode will work. - If I-SCAN Video Output is selected in Setup Menu, interlaced scan mode will work.

4. DIGITAL AUDIO OUT JACKS

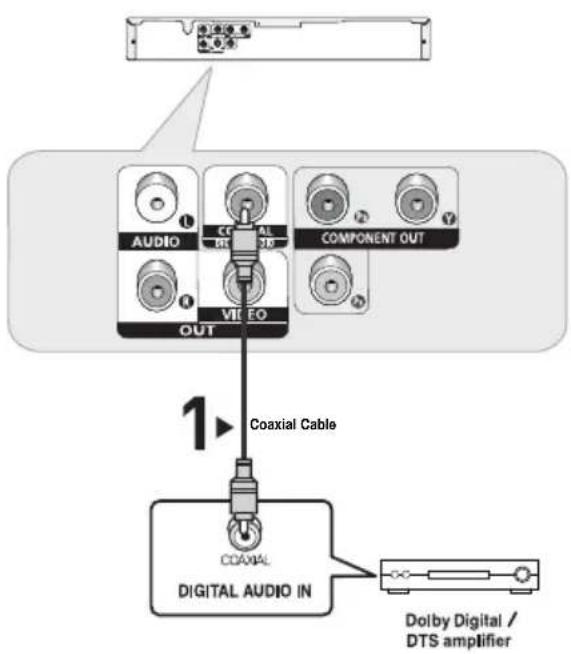

- Use either a coaxial digital cable to connect to a compatible Dolby Digital receiver. - Use either a coaxial digital cable to connect to an A/V Ampli er that contains a Dolby Digital, MPEG2 or DTS decoder.

Note

• Consult your TV User's Manual to nd out if your TV supports Progressive Scan.
  If Progressive Scan is supported, follow the TV User's Manual regarding Progressive Scan settings in the TV's menu system.
• See pages 27-28 to get more information on how to use the setup menu.

Tour of the Remote Control

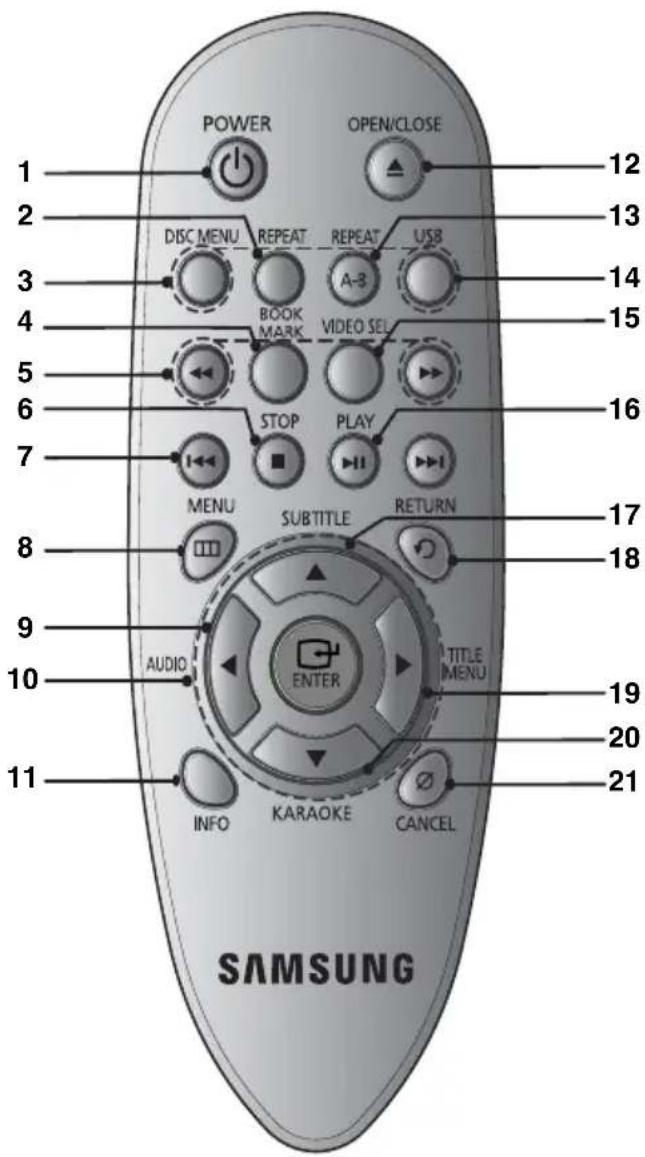

POWER OPEN/CLOSE 12 2 13 3 14 4 15 5 16 6 STOP PLAY 7 MENU SUBTITLE RETURN 8 17 18 9 AUDIO ENTER TITLE MENU 19 20 11 INFO KARAOKE CANCEL 21 SAMSUNG

1. DVD POWER Button

Turns the power on or off.

2. REPEAT Button

Allows you to repeat play a title, chapter, track, or disc.

3. DISC MENU Button

Brings up the Disc menu.

4. BOOKMARK

Quickly find bookmark sections of a DVD.

5. SEARCH Buttons◀◀(▶)

Allow you to search forward/backward through a disc.

6. STOP Button ■()

Use to skip the title, chapter or track

8. MENU Button

Brings up the DVD player's menu.

9. AUDIO Button (◀)

Use this button to access various audio functions on a disc.

10. ENTER/▲/▼,◀/▶ Buttons

This button functions as a toggle switch.

11. INFO Button

Displays the current disc mode.

12. OPEN/CLOSE (▲ Button

To open and close the disc tray.

13. REPEAT A-B Button

Allows you to repeat A-B disc.

14. USB Button

15. VIDEO SEL. Button

Selects video output formats.

16. PLAY/PAUSE Button (▶)

Begin/Pause disc play.

17. SUBTITLE Button (▲)

18. RETURN Button

Returns to a previous menu.

19. TITLE MENU Button (▶)

Brings up the Title menu.

20. KARAOKE Button (▼)

Use to begin Karaoke functions.

21. CANCEL Button

Use to remove menus or status displays from the screen.

Choosing a Connection

The following shows examples of connections commonly used to connect the DVD player with a TV and other components.

Before Connecting the DVD Player

• Always turn off the DVD player, TV, and other components before you connect or disconnect any cables.
• Refer to the user's manual of the additional components you are connecting for more information on those particular components.

Connection to a TV (For Video)

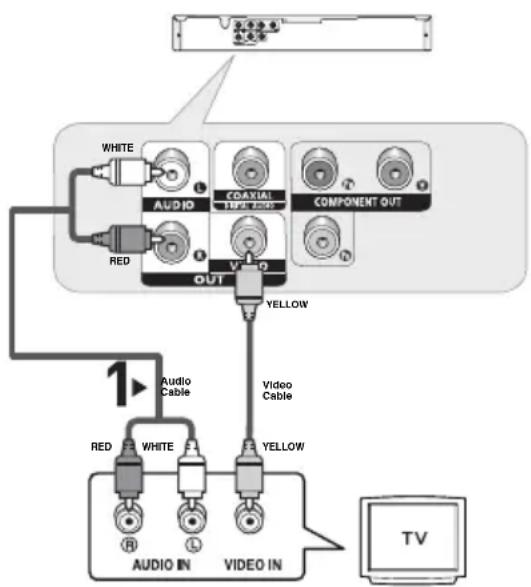

1

Using video/audio cables, connect the VIDEO (yellow)/AUDIO (red and white) OUT terminals on the rear of the DVD player to the VIDEO (yellow)/AUDIO (red and white) IN terminals of TV.

2

Turn on the DVD player and TV.

3

Press the TV/VIDEO button on the TV's remote control to select Video.

Note

• Noise may be generated if the audio cable is too close to the power cable.

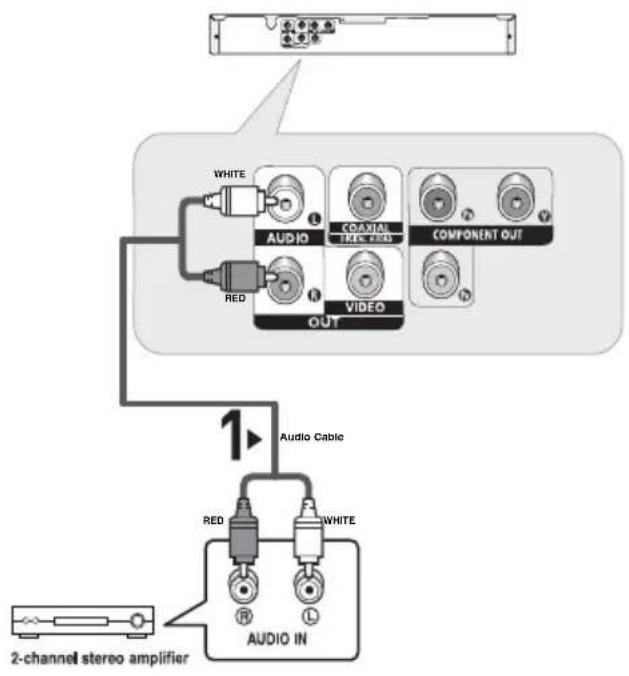

• If you want to connect to an Ampli er, please refer to the Ampli er connection page. (See pages 12 to 13)
• The number and position of terminals can vary depending on your TV set. Please refer to the user's manual of the TV.
• If there is one audio input terminal on the TV, connect it to the [AUDIO OUT][left] (white) terminal of the DVD player.
• If you press the VIDEO SEL. button when DVD Player is in stop mode or no disc is inserted, the Video Output mode changes in the following sequence: (P-SCAN → I-SCAN).

Connection to a TV (Interlace)

• Connecting to your TV using Component video cables.
• You will enjoy high quality and accurate color reproduction images. Component video separates the picture element into black and white(Y), blue(PB), red(PR) signals to present clear and clean images. (Audio signals are delivered through the audio output.)

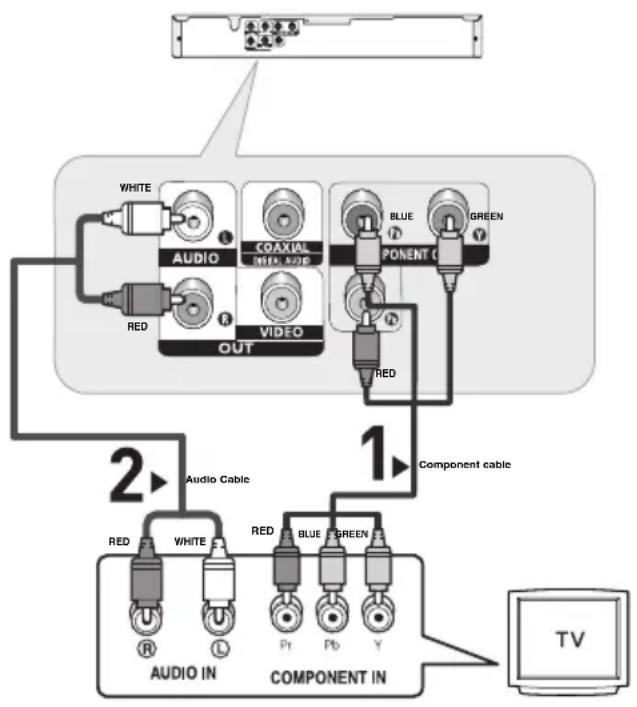

1

Using component video cables, connect the COMPONENT VIDEO OUT terminal on the rear of the DVD player to the COMPONENT IN terminal of TV.

2

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of TV. Turn on the DVD player and TV.

3

Press the input selector on your TV remote control until the Component signal from the DVD player appears on the TV screen.

4

Set the Video Output to I-SCAN in the Display Setup menu. (See pages 27-28) You can use the VIDEO SEL. button to change the Video Output mode. (See page 9).

Note

• If you want to connect to an Ampli er, please refer to the Ampli er connection page. (See pages 12 to 13)
• The component terminal of TV can be marked by "R-Y, B-Y, Y" or "Cr, Cb, Y" instead of "P_R, P_B, Y" depending on the manufacturer. The number and position of terminals can vary depending on the TV set. Please refer to the user's manual of the TV.

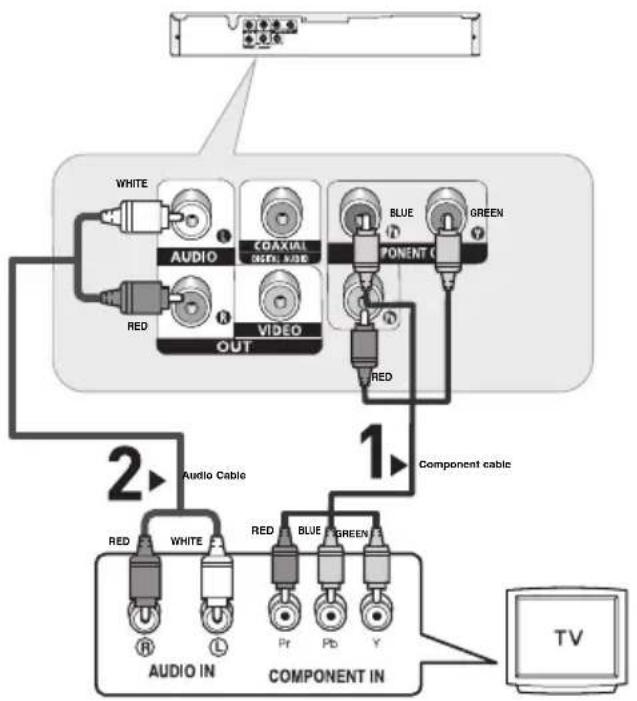

Connection to a TV (Progressive)

1

Using component video cables, connect the COMPONENT VIDEO OUT terminal on the rear of the DVD player to the COMPONENT IN terminal of TV.

2

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of TV. Turn on the DVD player and TV.

3

Press the input selector on your TV remote control until the Component signal from the DVD player appears on the TV screen.

4

Set the Video Output to P-SCAN in the Display Setup menu. (See pages 27-28)

You can use the VIDEO SEL. button to change the Video Output mode. (See page 9).

To see the progressive video output,

• Consult your TV User's Manual to find out if your TV supports Progressive Scan. If Progressive Scan is supported, follow the TV User's Manual regarding Progressive Scan settings in the TV's menu system.
• Depending on your TV, the connection method may differ from the illustration above.

Note

- What is "Progressive Scan"?

Progressive scan has twice as many scanning lines as the interlace output method has. Progressive scanning method can provide better and clearer picture quality.

Connection to an Audio System (2 Channel Amplifier)

1

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of the Ampli er.

2

Using the video signal cable(s), connect the VIDEO, COMPONENT OUT terminals on the rear of the DVD player to the VIDEO, COMPONENT IN terminal of your TV as described on pages 9 to 11.

3

Turn on the DVD player, TV, and Ampli er.

4

Press the input select button of the Ampli er to select external input in order to hear sound from the DVD player. Refer to your Ampli er's user manual to set the Ampli er's audio input.

Note

• Please turn the volume down when you turn on the Ampli er. Sudden loud sound may cause damage to the speakers and your ears.
• Please set the audio in the menu screen according to the Ampli er. (See pages 26-27)
• The position of terminals can vary depending on the Ampli er. Please refer to the user's manual of the Ampli er.

Connection to an Audio System (Dolby Digital, MPEG2 or DTS Amplifier)

1

If using a coaxial cable, connect the DIGITAL AUDIO OUT (COAXIAL) terminal on the rear of the DVD player to the DIGITAL AUDIO IN (COAXIAL) terminal of the Ampli er.

2

Using the video signal cable(s), connect the VIDEO COMPONENT OUT terminals on the rear of the DVD player to the VIDEO, COMPONENT IN terminal of your TV as described on pages 9 to 11.

3

Turn on the DVD player, TV, and Ampli er.

4

Press the input select button of the Ampli er to select external input in order to hear sound from the DVD player. Refer to your Ampli er's user manual to set the Ampli er's audio input.

Note

• Please turn the volume down when you turn on the Ampli er. Sudden loud sound may cause damage to the speakers and your ears.
• Please set the audio in the menu screen according to the Ampli er. (See pages 26-27)
• The position of terminals can vary depending on the Ampli er. Please refer to the user's manual of the Ampli er.

Playing a Disc

Before Play

• Turn on your TV and set it to the correct Video Input by pressing TV/VIDEO button on the TV remote control.
• If you connected an external Audio System, turn on your Audio System and set it to the correct Audio Input.

After plugging in the player, the rst time you press the DVD POWER button, this screen comes up: If you want to select a language, press ▲/▼ button, then press ENTER button. (This screen will only appear when you plug in the player for the rst time.) If the language for the startup screen is not set, the settings may change whenever you turn the power on or off. Therefore, make sure that you select the language you want to use. Once you select a menu language, you can change it by pressing the ▶|| button on the front panel of the unit for more than 5 seconds with no disc in the unit. Then the SELECT MENU LANGUAGE window appears again where you can reset your preferred language.

SELECT MENU LANGUAGE English Français Deutsch Español Italiano Nederlands

Playback

1. Press the OPEN/CLOSE (▲button. The tray opens.
2. Place a disc gently into the tray with the disc's label facing up.
3. Press the PLAY/PAUSE (▶) button or OPEN/CLOSE (▲) button to close the disc tray. When you stop disc play, the player remembers where you stopped, so when you press PLAY/PAUSE (▶) button again, it will pick up where you left off.
4. Stopping Play
   Press the STOP (■) button during play.
5. Removing Disc
   Press the OPEN/CLOSE (▲) button.

6. Pausing Play

Press the PLAY/PAUSE (▶II) on the remote control during play.

- Screen stops, no sound.

To resume, press the PLAY/PAUSE (▶II) button once again.

7. Step Motion Play (Except CD)

Press the SKIP (▶▶) button on the remote control during PAUSE mode.

• Each time the button is pressed, a new frame will appear.
• No sound is heard during STEP mode.
• Press the PLAY/PAUSE (▶II) button to resume normal play.
• You can only perform step motion play in the forward direction.

8. Slow Motion Play

Press the SEARCH (◀/▶) button to choose the play speed between 1/2, 1/4 and 1/8 of normal during PAUSE mode.

- No sound is heard during slow mode.

- Press the PLAY/PAUSE ( ) button to resume normal play.

Note

- If the player is left in the stop mode for more than one minute without any user interaction, a screen saver will be activated. Press the PLAY/PAUSE

(▶II) button to resume normal play.

- If the player is left in the stop mode for more than about 30 minutes, the power will automatically shut off. (Automatic Power-Off Function)

- If the player is left for about 5 minutes in pause mode, it will stop.

- This ( ∅ ) icon indicates an invalid button press.

Using the Search and Skip Functions

During play, you can search quickly through a chapter or track, and use the skip function to jump to the next selection.

Searching through a Chapter or Track

During play, press the SEARCH (◀ or ▶) button on the remote control for more than 1 second.

DVD	2X, 4X, 64X, 128X
VCD	4X, 8X
CD	2X, 4X, 8X

Note

• The speed marked in this function may be different from the actual playback speed.
• No sound is hearing during search mode (Except CD).

Skipping Tracks

During play, press the SKIP (◀◀ or ▶) button.

• When playing a DVD, if you press the SKIP (▶) button, it moves to the next chapter. If you press the SKIP (◀) button, it moves to the beginning of the chapter. One more press makes it move to the beginning of the previous chapter.
• When playing a VCD or a CD, if you press the SKIP (▶▶) button, it moves to the next track. If you press the SKIP (◀◀) button, it moves to the beginning of the track. One more press makes it move to the beginning of the previous track.
• If a track exceeds 15 minutes when playing a VCD and you press the ▶ button, it moves forward 5minutes. If you press ◀ button, it moves backward 5 minutes.

Note

- When playing the VCD the Disc Menu may not work.

Using the Display Function

When Playing a DVD/VCD

1. During play, press the INFO button on the remote control.
2. Press the ▲/▼ buttons to select the desired item.
3. When playing VCD the Disc Menu may not work.
4. Press the ◀/▶ buttons to make the desired setup and then press the ENTER button.
5. You may use the number buttons of the remote control to directly access a title, chapter or to start the play back from a desired item.
6. To make the screen disappear, press the CANCEL button.

Note

	To access the desired title when there is more than one in the disc. For example, if there is more than one movie on a DVD, each movie will be identified.
	Most DVD discs are recorded in chapters so that you can quickly nd a speci c passage (similar to tracks on an video CD).
	Allows playback of the lm from a desired time. You must enter the starting time as a reference.The time search function does not operate on some disc.
	Refers to the language of the lm soundtrack. In the example, the soundtrack is played in English 5.1CH. A DVD disc can have up to eight different soundtracks.
	Refers to the subtitle languages available in the disc. You will be able to choose the subtitle languages or, if you prefer, turn them off from the screen. A DVD disc can have up to 32 different subtitles.
	To access the desired Bookmark, Angle, Zoom or EZ View function.Some DVD discs are have more angle function from any picture.Bookmark function make you easily and quickly to nd a track or chapter from DVD or VCD.The EZ View function is use for changing the aspect ratio in DVD.The ZOOM function is use for enlarge DVD picture.

Using the Disc and Title Menu

Using the Disc Menu

1. During stop mode, press the MENU button on the remote control.
2. Press the ▲/▼ buttons to select Disc Menu, then press the ▶ or ENTER button.

Press ENTER key for Disc Menu

Note

• Depending on a disc, the Disc Menu may not work.
• You can also use the Disc Menu, using the DISC MENU button on the remote control.
• When playing the VCD the Disc Menu may not work.

Using the Title Menu

1. During stop mode, press the MENU button on the remote control.
2. Press the ▲/▼ buttons to select Title Menu, then press the ▶ or ENTER button.

Edit Menu Title Menu Setup Press ENTER key for Title Menu MenuReturnEnt

Note

• Depending on a disc, the Title Menu may not work.
• Title Menu will only be displayed if there are at least two titles in the disc.

Repeat Play

Repeat the current track, chapter, title, a chosen section (A-B), or all of the disc.

When playing a DVD/VCD

1. Press the REPEAT buttons to select Chapter, Title, Track, Disc or Repeat: Off

2. DVD repeats play by chapter or title, VCD repeat play by disc or track.

3. Chapter : repeats the chapter that is playing.
4. Title : repeats the title that is playing.
5. Track : repeats the track that is playing.
6. Disc : repeats the disc that is playing.
7. Repeat: Off

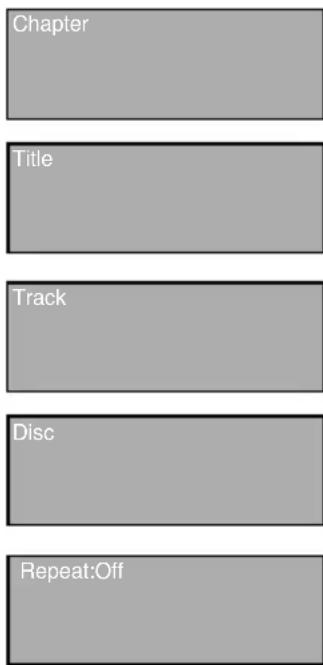

Chapter Title Track Disc Repeat:Off

Using the A-B Repeat function

1. Press the REPEAT A-B button at the point where you want repeat play to start (A).

2. Press the REPEAT A-B button at the point where you want the repeat play to stop (B).

3. To return to normal play, press the REPEAT button-

DVD/VCD

Repeat:A- Repeat:A-B Repeat:Off

Note

• A-B REPEAT allows you to set point (B) until at least 5 seconds of play back time has elapsed after point (A) has been set.
• Depending on a disc, the Repeat function may not work.
• When playing the VCD the Disc Menu may not work.

Slow Play

This feature allows you slowly to repeat scenes containing sports, dancing, musical instruments being played etc., so you can study them more closely.

When playing a DVD

1. During play, press the PLAY/PAUSE (▶button.
2. Press the SEARCH (◀/▶) button to choose the play speed between 1/2, 1/4 and 1/8 of normal during PAUSE Mode.

Adjusting the Aspect Ratio (EZ View)

To play back using aspect ratio (DVD)

1. During play, press the INFO button on the remote control.
2. Press the ▲/▼ buttons to select Shortcut, then press the ENTER button.
3. Press the ◀/▶ buttons to select EZ View, then press the ENTER button.
4. The screen size changes when the button ▶ is pressed repeatedly.
5. The screen zoom mode operates differently depending on the screen setting in the Display Setup menu.

If you are using a 16:9 TV

For 16:9 aspect ratio discs

• WIDE SCREEN
  Displays the content of the DVD title in 16:9 aspect ratio.
• SCREEN FIT
  The top and bottom portions of the screen are cut off. When playing a 2.35:1 aspect ratio disc, the black bars at the top and bottom of the screen will disappear. The picture will look vertically stretched. (Depending on a type of disc, the black bars may not disappear completely.)
• ZOOM FIT
  The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarge

For 4:3 aspect ratio discs

• NORMAL WIDE
  Displays the content of the DVD title in 16:9 aspect ratio. The picture will look horizontally stretched.
• SCREEN FIT
  The top and bottom portions of the screen are cut off and the full screen appears. The picture will look vertically stretched.

- ZOOM FIT

The top, bottom, left and right portions of the screen are cut off and the central portion of the screen is enlarged.

- VERTICAL FIT

When a 4:3 DVD is viewed on a 16:9 TV, black bars will appear at the left and right of the screen in order to prevent the picture from looking horizontally stretched.

If you are using a 4:3 TV

For 16:9 aspect ratio discs

- 4:3 Letter Box

Displays the content of the DVD title in 16:9 aspect ratio. The black bars will appear at the top and bottom of the screen.

- 4:3 Pan Scan

The left and right portions of the screen are cut off and the central portion of the 16:9 screen is displayed.

- SCREEN FIT

The top and bottom portions of the screen are cut off and a full screen appears. The picture will look vertically stretched.

- ZOOM FIT

The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged.

For 4:3 aspect ratio discs

- WIDE SCREEN

Displays the content of the DVD title in 4:3 aspect ratio.

- SCREEN FIT

The top and bottom portions of the screen are cut off and the full screen appears. The picture will look vertically stretched.

- ZOOM FIT

The top, bottom, left and right portions of the screen are cut off and the central portion of the screen is enlarged.

Note

This function may behave differently depending on the type of disc.

Selecting the Audio Language

You can select a desired audio language quickly and easily with the AUDIO button.

Using the AUDIO button (DVD/VCD)

1. Press the AUDIO / ◀ button. The Audio changes when the button is pressed repeatedly.

The audio languages are represented by abbreviations.

When playing a VCD you can select among Stereo, Left or Right

DVD

VCD

1. To remove the AUDIO icon, press the CANCEL or RETURN button.

Note

• This function depends on audio languages are encoded on the disc and may not work.
• A DVD disc can contain up to 8 audio languages.
• To have the same audio language come up whenever you play a DVD;
  Refer to "Using the Audio Language" on page 26.

Selecting the Subtitle Language

You can select a desired subtitle quickly and easily with the SUBTITLE button.

Using the SUBTITLE button (DVD)

1. Press the SUBTITLE / ▲ button. The subtitle languages are represented by abbreviations.

The subtitle changes when the button is pressed repeatedly.

DVD

1. To remove the SUBTITLE icon, press the CANCEL or RETURN button.

Note

• This function depends on what subtitles are encoded on the disc and may not work on all DVDs.
• A DVD disc can contain up to 32 subtitle languages.
• To have the same subtitle language come up whenever you play a DVD; Refer to "Using the Subtitle Language" on page 26.

Changing the Camera Angle

When a DVD contains multiple angles of a particular scene, you can use the ANGLE function.

Using the ANGLE button (DVD)

If the disc contains multiple angles, the ANGLE appears on the screen.

1. During play, press the INFO button on the remote control.
2. Press the ▲/▼ buttons to select Shortcut.
3. Press the ◀/▶ buttons to select Angle, then press the ENTER button.

1. Press the ◀/▶ buttons on the remote control to select the desired angle.

Note

• If the disc has only one angle, this feature won't work. Currently, very few discs have this feature.
• Depending on the disc, these functions may not work.

Using the Bookmark Function

This feature lets you bookmark sections of a DVD or VCD so you can quickly find them at a later time.

Using the Bookmark Function (DVD/VCD)

1. During play, press the INFO button on the remote control.
2. Press the ▲/▼ buttons to select Shortcut.

DVD/VCD

Shortcut Bookmark Enter

1. Press the ◀/▶ buttons to select Bookmark then press the ENTER button.
2. When you reach the scene you want to mark, press the ENTER button. Up to three scenes may be marked at a time.

Note

- Depending on a disc, the Bookmark function may not work.

Recalling a Marked Scene

1\~3. The rst 1\~3 steps are the same as those for "Using the Bookmark Function".
4. Press the ◀/▶ buttons to select a marked scene.

1. Press the PLAY/PAUSE (▶II) button to skip to the marked scene.

Clearing a Bookmark

1\~3. The rst 1\~3 steps are the same as those for "Using the Bookmark Function".
4. Press the ◀/▶ buttons to select the bookmark number you want to delete.
5. Press the CANCEL button to delete a bookmark number.

Using the Zoom Function

Using the Zoom Function (DVD/VCD)

1. During play, press the INFO button on the remote control.
2. Press the ▲/▼ buttons to select Shortcut.
3. Press the ◀/▶ buttons to select Zoom, then press the ENTER button.

- During DVD play, press ENTER to zoom in 2X/4X/2X/Normal in order.

- During VCD play, press ENTER to zoom in 2X/4X/2X/Normal in order.

Blank gray image with a small black plus sign in the top-right corner (no text or symbols on the main area)

2x

Clips Menu for MP3/WMA/ JPEG/ CD Audio

CD Audio or discs with MP3/WMA/JPEG contain individual songs and/or pictures that can be organized into folders as shown below. They are similar to how you use your computer to put les into different folders.

Open the disc tray.

Place the disc on the tray.

Close the tray.

The tray closes and this screen displays.

Stop Off 08:08:00 MP3 JPEG MP3 Enter Return Menu

advance functions

• : Name of currently playing le.
• : Current Playback Time.
• : Current Playback Mode : There are four modes. They can be selected in order by pressing the REPEAT button.

- Off: Normal Playback

- Track: Repeats the current track.

- Folder: Repeats the current folder

- Off: Normal Playback - Track: Repeats the current track. - Folder: Repeats the current folder

- Random: Files in the disc will be played in random order.

• MP3 : MP3 le icon. - CD : CD Audio le icon.
• : WMA le icon. - : Folder icon.
• JPEG : JPEG le icon - : Current Folder icon.

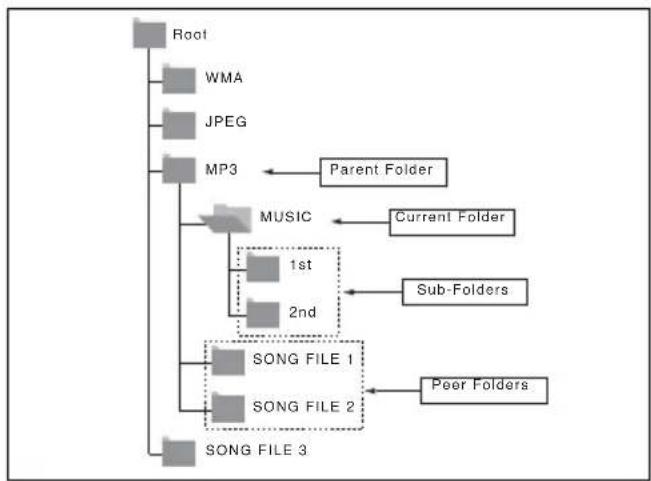

|Folder Selection

The folder can be selected in Stop or Play mode.

- To select the Parent Folder

The folder can be selected in Stop or Play mode. - To select the Parent Folder

Press the RETURN button to go to parent folder, or press the ▲/▼ buttons to select “..” and press ENTER to go to the parent folder.

- To select the Peer Folder

Press the ▲/▼ buttons to select the desired folder, then press ENTER.

- To select the Sub-Folder

Press the ▲/▼ buttons to select the desired folder, then press ENTER.

MP3/WMA/CD Audio Playback

1. Open the disc tray. Place the disc on the tray. Close the tray.
2. Only one kind of le is played back when a disc or a folder contains both MP3 and WMA les.
3. Press the ▲/▼ buttons to select a song le. Press ENTER to begin playback of the song le.

Play Because You Because You Garius Sad Beys Wonderful 100:00:23 ReturnEntarget Repeat

Repeat/Random playback

Press the REPEAT button to change the playback mode. There are four modes, such as Off, Track, Folder and Random.

• Off: Normal Playback
• Track: Repeats the current song le.
• Folder: Repeats the song les which have the same extension in the current folder.
• Random: Song les which have the same extension will be played in random order.

To resume normal play, press the CANCEL button.

CD-R MP3/WMA file

When you record MP3 or WMA les on CD-R, please refer to the following.

- Your MP3 or WMA les should be ISO 9660 or JOLIET format.

ISO 9660 format and Joliet MP3 or WMA les are compatible with Microsoft's DOS and Windows, and with Apple's Mac. This format is the most widely used.

- When naming your MP3 or WMA les, do not exceed 8 characters, and enter ".mp3, .wma" as the le extension.

General name format : Title.mp3. or Title.wma. When composing your title, make sure that you use 8 characters or less, have no spaces in the name, and avoid the use of special characters including: (.,/,\=,+).

- Use a decompression transfer rate of at least 128 Kbps when recording MP3° les.

Sound quality with MP3 les basically depends on the rate of compression/decompression you choose. Getting CD audio sound requires an analog/digital sampling rate, that is conversion to MP3 format, of at least 128 Kbps and up to 160 Kbps. However, choosing higher rates, like 192 Kbps or more, only rarely give better sound quality. Conversely, les with decompression rates below 128 Kbps will not be played properly.

- Use a decompression transfer rate of at least 64Kbps when recording WMA les.

Sound quality with WMA les basically depends on the rate of compression/decompression you choose.

Getting CD audio sound requires an analog/digital sampling rate, that is conversion to WMA format, of at least 64Kbps and up to 192Kbps. Conversely, les with decompression rates below 64Kbps or over 192Kbps will not be played properly.

- Do not try recording copyright protected MP3 les.

Certain "secured" les are encrypted and code protected to prevent illegal copying. These les are of the following types: Windows Media (registered trade mark of Microsoft Inc) and SDMI (registered trade mark of The SDMI Foundation). You cannot copy such les.

- Important:

The above recommendations cannot be taken as a guarantee that the DVD player will play MP3 recordings, or as an assurance of sound quality. You should note that certain technologies and methods for MP3 le recording on CD-Rs prevent optimal playback of these les on your DVD player (degraded sound quality and in some cases, inability of the player to read the les).

- This unit can play a maximum of 500 les and 500 folders per disc.

Playing Media Files Using the USB Host feature

You can enjoy the media les such as pictures, movies and tunes saved in an MP3 player, USB memory or digital camera in high audio by connecting the storage device to the USB port of the DVD Player.

Using the USB HOST feature

1. Connect the USB device to the USB port on the front of the unit.
2. If there is partition Of USB, Press the ▲/▼ button to select the one of partition from USB, then Press ENTER.

Disc Data SAMSUNG

1. Press the ▲/▼ buttons to select a le in USB. Press ENTER to Open le.

STOP Off 00:00:00 MMA JP3G MP3 Enter Return Menu

Note

• Each time the USB button on the remote control is pressed, a frame of the USB device selection will appear.
- "USB" appears on the display screen.
- USB MENU screen appears on the TV screen and the saved le is played.

Safe USB Removal

To prevent damage to the memory stored in the USB device, perform safe removal before disconnecting the USB cable.

- Press the STOP (■) button

- Remove the USB cable.

Skip Forward/Back

During playback, press the ( ◀◀/ ▶▶) button.

• When there is more than one file, when you press the ▶ button, the next file is selected.
• When there is more than one file, when you press the button, the previous file is selected.

To play back the disc at a faster speed, press

uring playback.

• Each time you press either button, the playback speed will change as follows:

$$ 2 x \rightarrow 4 x \rightarrow 8 x. $$

Compatible Devices

1. USB devices that support USB Mass Storage v1.0. (USB devices that operate as a removable disk in Windows (2000 or later) without additional driver installation.)
2. MP3 Player: Flash type MP3 player.
3. Digital camera: Cameras that support USB Mass Storage v1.0.

- Cameras that operate as a removable disk in Windows (2000 or later) without additional driver installation.

1. USB Flash Drive: Devices that support USB2.0 or USB1.1.

- You may experience a difference in playback quality when you connect a USB1.1 device.

1. USB card Reader: One slot USB card reader and Multi slot USB card reader

- Depending on the manufacturer. the USB card reader may not be supported.

• If you install multiple memory devices into a multi card reader, you may experience problems.

1. If you use a USB extension cable, the USB device might not be recognized.

• CBI (Control/Bulk/Interrupt) is not supported.
- Digital Cameras that use PTP protocol or require additional program installation when connected to a PC are not supported.
- A device using NTFS le system is not supported. (Only FAT 16/32 (File Allocation Table 16/32) le system is supported.)
- Some MP3 players, when connected to this product, may not operate depending on the sector size of their le system.
- The USB HOST function is not supported if a product that transfers media les by its manufacturer-speci c program is connected.
- Does not operate with Janus enabled MTP(Media Transfer Protocol) devices.
- The USB host function of this product does not support all USB devices.

CD Ripping

This feature lets you to copy audio les from disc to USB device into MP3 format.

Open the dics tray.

Place the Audio CD(CD DA) disc on the tray, and close the tray.

Connect the USB device to the USB port on the front of the unit.

This screen will displayed.

Play Off Track 01 5.5 Track 01 5.5 Track 02 5.5 Track 03 5.5 Track 04 5.5 Track 05 5.5 Track 06 5.5 Track 07 5.5 Track 08 5.5 Track 09 5.5 Track 10 5.5 Track 11 5.5 Track 12 5.5 Track 13 5.5 Track 14 5.5 Track 15 5.5 Track 16 5.5 Track 17 5.5 Track 18 5.5 Track 19 5.5 Track 20 5.5 Track 21 5.5 Track 22 5.5 Track 23 5.5 Track 24 5.5 Track 25 5.5 Track 26 5.5 Track 27 5.5 Track 28 5.5 Track 29 5.5 Track 30 5.5 Track 31 5.5 Track 32 5.5 Track 33 5.5 Track 34 5.5 Track 35 5.5 Track 36 5.5 Track 37 5.5 Track 38 5.5 Track 39 5.5 Track 40 5.5 Track 41 5.5 Track 42 5.5 Track 43 5.5 Track 44 5.5 Track 45 5.5 Track 46 5.5 Track 47 5.5 Track 48 5.5 Track 49 5.5 Track 50 DCY:- SELECT START

1. To Select DISC

With the unit in Stop mode, Press the ▲/▼ buttons to select DISC.

To Select DEV (storage media device)

Press the ▶ button to select the DEV (storage media device) menu, then press the ENTER button.

Press the ▲/▼ buttons to select USB, then press the ENTER button.

Stop Off USB 60-03-93 DEV 1 - SELECT START Enter Menu

1. Press the ▲/▼ buttons to select SELECT, then press the ENTER button to marked all les to be copying.

2. To unmarked copying all les press the ENTER button again.(UNSELECT Menu)

3. If you want to marked several les to be copying, press the ◀ button, then press the ENTER button on the selected le.

4. Press the ▲/▼ buttons to select START, then press the ENTER button.File copy begins.

- To cancel the copying in progress, press the CANCEL button.

Play Off Track 01 Track 02 Track 03 CD Ripping START Cancel Ripping Enter Send Repeat

Note

• When the CD ripping being processed the player will automatic in play mode.
• Only the Audio CD(CD DA) dics can be ripping.
• During the CD ripping process, do not use/press other button besides the CANCEL button.

Picture CD Playback

1. Select the desired folder.
2. Press the ▲/▼ buttons to select a Picture le in the clips menu and then press the ENTER button.
3. Press the INFO button on the remote control.

Press the ◀/▶ button to select the menu you want to view and then press the ENTER button.

Black and white illustration of a flower with leaves, no text or symbols present

Note

• Press the STOP button to return to the clips menu.
• When playing a Kodak Picture CD, the unit displays the Photo directly, not the clips menu.

Rotation

: Each time the ENTER button is pressed, the picture rotates 90 degrees clockwise.

Zoom

Press the ▲/▼ buttons to select the part of the screen you want to zoom in on. Press the ENTER button. Each time the ENTER button is pressed, the picture is enlarged up to 2X.

Slide Show

: The unit enters slide show mode.
- Before beginning the Slide Show, the picture interval must be set.

: When this icon is selected and ENTER is pressed, the pictures change automatically with about a 6 second interval.

: The pictures change automatically with about a 12 second interval.

: The pictures change automatically with about a 18 second interval.

Black and white illustration of a flower with leaves and stem, no text or symbols present.

Note

• Depending on a file size, the amount of time between each picture may be different from the manual.
• If you don't press any button, the slide show will start automatically in about 10 seconds by default.

CD-R JPEG Disc

• Only les with the ".jpg" and ".JPG" extensions can be played.
• If the disc is not closed, it will take longer to start playing and not all of the recorded ones may be played.
• Only CD-R discs with JPEG les in ISO 9660 or Joliet format can be played.
• The name of the JPEG le may not be longer than 8 characters and should contain no blank spaces or special characters (. / = +).
• Only a consecutively written multi-se ssion disc can be played. If there is a blank segment in the multi-session disc, the disc can be played only up to the blank segment.
• A maximum of 500 images can be stored on a single CD.
• Kodak Picture CDs are recommended.
• When playing a Kodak Picture CD, only the JPEG les in the pictures folder can be played.
• Kodak Picture CD: The JPEG Ies in the pictures folder can be played automatically.
• Konica Picture CD: If you want to see the Picture, select the JPEG les in the clips menu.
• Fuji Picture CD: If you want to see the Picture, select the JPEG les in the clips menu.
• QSS Picture CD: The unit may not play QSS Picture CD.
• If the number of les in 1 Disc is over 500, only 500 JPEG les can be played.
• If the number of folders in 1 Disc is over 500, only JPEG les in 500 folders can be played

Karaoke Functions

Operation Sequence

1. Connect the Mixed Audio Out terminals with the TV or Ampli er. (see page 9 to 13)
2. Connect Mic into Mic jack. When a MIC is connected, the karaoke functions can be used.

Diagram of a Samsung audio device with a microphone and ports, no text or symbols present

Mic Volume / Key Control

1. Playback the Karaoke Disc containing the wanted songs.

- Press the KARAOKE button to select Mic Volume then press KARAOKE button to select keycon.

1. Press the ◀/▶ buttons to change the desired item.

Mc Volume Keycon

Note

• If you hear feedback(squealing or howling) while using the karaoke feature, move the microphone away from the speakers or turn down the microphone volume or the speaker volume.
• When playing MP3, WMA, DTS and LPCM disc, the karaoke functions will not operate.
• When the MIC is connected, Digital Out does not work.

Using the Setup Menu

The Setup menu lets you customize your DVD player by allowing you to select various language preferences, set up a parental level, even adjust the player to the type of television screen you have.

1. With the unit in Stop mode, press the MENU button on the remote control. Use the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup :

① Language Setup: Setup of the Language.
②Audio Setup : Setup of the Audio Options.
⑧ Display Setup : Setup of the Display Options. Use to select which type of screen you want to watch and several display options.
④ Parental Setup : Setup of the Parental Level. Allows users to set the level necessary to prevent children from viewing unsuitable movies such as those with violence, adult subject matter, etc.

1. Press the ▲/▼ buttons to access the different features.

Press the ▶ or ENTER button to access the sub features.

1. To make the setup screen disappear after setting up, press the MENU button again.

Note

Depending on the disc, some Setup Menu selections may not work.

Setting Up the Language Features

If you set the player menu, disc menu, audio and subtitle language in advance, they will come up automatically every time you watch a movie.

Using the Player Menu Language

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.
3. Press the ▲/▼ buttons to select Language Setup, then press the ▶ or ENTER button.
4. Press the ▲/▼ buttons to select Player Menu, then press the ▶ or ENTER button.
5. Press the ▲/▼ buttons to select the desired language, then press the ▶ or ENTER button.
6. The language is selected and the screen returns to Language Setup menu.
7. To make the setup menu disappear, press the MENU button.

LANGUAGE SETUP Player Menu Disc Menu Audio Subtitle English Français Deutsch Españal Italiano Nederlands Enter Return Menu

Using the Disc Menu Language

This function changes the text language only on the disc menu screens.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.
3. Press the ▲/▼ buttons to select Language Setup, then press the ▶ or ENTER button.
4. Press the ▲/▼ buttons to select Disc Menu, then press the ▶ or ENTER button.
5. Press the ▲/▼ buttons to select the desired language, then press the ▶ or ENTER button.
6. If the selected language is not recorded on the disc, the original pre-recorded language is selected.
7. The language is selected and the screen returns to
8. Language Setup menu.To make the setup menu disappear, press the MENU button.

LANGUAGE SETUP Blue Menu Player Menu English Disc Menu Français Title Menu Deutsch Audio Espanéol Titrano Subtitle Nederlands Setup Enter Return Menu

changing setup menu

Using the Audio Language

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.
3. Press the ▲/▼ buttons to select Language Setup, then press the ▶ or ENTER button.
4. Press the ▲/▼ buttons to select Audio, then press the ▶ or ENTER button.

5. Press the ▲/▼ buttons to select the desired language, then press the ▶ or ENTER button.

6. Select "Original" if you want the default soundtrack language to be the original language the disc is recorded in.

7. If the selected language is not recorded on the disc, the original pre-recorded language is selected.
8. The language is selected and the screen returns to Language Setup menu.
9. To make the setup menu disappear, press the MENU button.

LANGUAGE SETUP Player Menu Disc Menu Audio Subtitle Original English Français Deutsch Español Italiano Title Menu Setup Enter Return Next

Using the Subtitle Language

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.
3. Press the ▲/▼ buttons to select Language Setup, then press the ▶ or ENTER button.
4. Press the ▲/▼ buttons to select Subtitle, then press the ▶ or ENTER button.

5. Press the ▲/▼ buttons to select the desired language, then press the ▶ or ENTER button.

6. Select "Automatic" if you want the subtitle language to be the same as the language selected as the audio language.

7. Some discs may not contain the language you select as your initial language; in that case the disc will use its original language setting.
8. The language is selected and the screen returns to setup menu.
9. To make the setup menu disappear, press the MENU button.

LANGUAGE SETUP Player Menu Disc Menu Audio Subtitle Automatic English Français Deutsch Español Italiano Enter Return Menu

Setting Up the Audio Options

Audio Options allows you to setup the audio device and sound status settings depending on the audio system in use.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.
3. Press the ▲/▼ buttons to select Audio Setup, then press the ▶ or ENTER button.
4. Press the ▲/▼ buttons to select the desired item, then press the ▶ or ENTER button.

Language Setup ▶ Audio Setup ▶ Display Setup ▶ Parental Setup : Setup

AUDIO SETUP Dolby Digital Out : PCM MPEG-2 Digital Out : PCM Dynamic Compression : On PCM Down Sampling : On Power On Music : On

① Dolby Digital Out

• PCM : Converts to PCM(2CH) audio.
• Bitstream : Outputs Dolby Digital or DTS via the digital output. Select Bitstream when connecting to a Dolby Digital or DTS Decoder.

② MPEG-2 Digital Out

• PCM : Converts to PCM(2CH) audio.
• Bitstream : Converts to MPEG-2 Digital Bitstream (5.1CH). Select Bitstream when using the Digital Audio Output.

③ Dynamic Compression

• On : To select dynamic compression.
• Off : To select the standard range.

Note

- There is no analog audio output when you play a DTS sound disc.

④ PCM Down Sampling

• On : Select this when the Ampli er connected to the player is not 96KHz compatible. In this case, the 96KHz signals will be down converted to 48KHZ.
• Off : Select this when the Ampli er connected to the player is 96KHz compatible. In this case, all signals will be output without any changes.

⑤ Power On Music

• On : To turn On Start up music.
• Off : To turn Off Start up music.

Note

• Even when PCM Down sampling is Off
• Some discs will only output down sampled audio through the digital outputs.
  • To make the Setup menu disappear, press the MENU button.
• There is no analog audio output when you play a DTS sound disc.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

"DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc.

Setting Up the Display Options

Display options enable you to set various video functions of the player.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.
3. Press the ▲/▼ buttons to select Display Setup, then press the ▶ or ENTER button.
4. Press the ▲/▼ buttons to select the desired item, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : Setup

① TV Aspect

Depending on a type of television you have, you may want to adjust the screen setting (aspect ratio).

- 4:3 Letter Box : Select when you want to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.

- 4:3 Pan&Scan : Select this for conventional size TVs when you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.)

- 16:9 Wide : You can view the full 16:9 picture on your wide screen TV.

DISPLAY SETUP TV Aspect 4:3 Letter Box Screen Message 4:3 Pan&Scan Black Level 16:9 Wide TV System : Auto Video Output : I-SCAN Setup Enter Return Menu

② Screen Messages

Use to turn on-screen messages On or Off.

③ Black Level

Adjusts the brightness of the screen (On or Off). It does not function in PAL & Progressive mode.

④ TV System

• NTSC : In case of using NTSC disc
• If your TV system only has PAL-Video input, you must choose "PAL". When you choose "PAL", Interlace output format is PAL 60 Hz output.
• If your TV system only has NTSC, input you must choose "NTSC".
• PAL : In case of using PAL disc
• If your TV system only has NTSC-Video input, you must choose "NTSC".
• If your TV system only has PAL input, you must choose "PAL".
• Auto

DISPLAY SETUP TV Aspect : Wide Screen Messages : On Black Level TV System NTSC PAL Video Output Auto Setup ENTER RETURN MENU

changing setup menu

Note

The TV Output will display no image color if the setting of the DVD Player Setup Menu does not follow the TV System Table as above.

⑤ Video Output

Select Video Output.

- I-SCAN : Select when you want to use Component Interlace Out.

- P-SCAN : Select when you want to use Component Progressive Out.

- If the Yes/No selection in the Display Setup sub Menu is not made within 10 seconds, the screen returns to the previous menu.

DISPLAY SETUP Blue Menu TV Aspect : Wide Screen Messages : On Black Level : On Title Menu TV System F-SCAN Setup Video Output P-SCAN ENTER RETURN MENU

• Consult your TV User's Manual to find out if your TV supports Progressive Scan. If Progressive Scan is supported, follow the TV User's Manual regarding Progressive Scan settings in the TV's menu system.
• If Video Output is set incorrectly, the screen may be blocked.

Setting Up the Parental Control

The Parental Control function works in conjunction with DVDs that have been assigned a rating, which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

Setting Up the Rating Level

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : Enter Return Menu

1. Press the ▲/▼ buttons to select Parental Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup :

1. Press the ▲/▼ buttons to select Rating Level, then press the ▶ or ENTER button.

PARENTAL SETUP Rating Level : Kids Safe Change Password Edit Menu Title Menu Setup Enter Network Menu

1. Enter your password.

By default, password-is set to 0000.

- Press the ▲/▼ buttons and ENTER button.

- Please Change password to other than 0000 to parental control function activated.

- Press the ▲/▼ buttons and ENTER button. - Please Change password to other than 0000 to parental control function activated.

PARENTAL SETUP Rating Level : Kids Safe Change Password Enter Password 0

1. Press the ▲/▼ buttons to select the Rating Level you want, then press the ▶ or ENTER button. e.g) Setting up in Kids Safe.

PARENTAL SETUP Rating Level Change Password Kids Safe Level 2 Level 3 Level 4 Level 5 Level 6 Setup Clear Return Menu

To make the setup menu disappear, press the MENU button. For example, if you select up to Level 6, discs that contain Level 7,8 will not play.

1. Press the ▲/▼ button to select Change Password, then press the ▶ or ENTER button. Enter your new password again.

PARENTAL SETUP Rating Level :Kids Safe Change Password Edit Menu Title Menu Setup Enter Return Menu

PARENTAL SETUP Rating Level : Kids Safe Change Password Enter Password 0

PARENTAL SETUP Rating Level : Kids Safe Change Password Enter New Password 0 MenuReturnEnt

Changing the Password

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup :

1. Press the ▲/▼ buttons to select Parental Setup, then press the ▶ or ENTER button. The Enter Password screen appears. Enter your password.

Language Setup ▶ Audio Setup ▶ Display Setup ▶ Parental Setup : ▶ Setup Enter Return Menu

Note

If you have forgotten your password, see "Forgot Password" in the Troubleshooting Guide.

Firmware upgrade

Introduction

Samsung will often support the software upgrade to improve the performance of this unit to the latest status, through Samsung Internet Site (www.samsung.com).

What improvements are made depends on the upgrade software you are using as well as the software that your DVD-player contained before the upgrade.

How to make an upgrade disc

Write the downloaded le onto a blank CD-R or CD-RW disc, using the following settings:

1. You have to download a new le through Download Center of Samsung Internet Site (www.samsung.com).
2. Write the le to Disc using CD-RW of your computer.

Note

• File System CD-ROM ISO Level
• Character set ISO 9660
• Finalized, single session
• Write speed low

Upgrade procedure

1. Open the disc tray. Place the disc on the tray. Close the tray. The Firmware upgrade screen appears.

Firmware upgrade Old Version : 090123.R2.B.P490K2XEG New Version : 090131.R4.B.P490K2XEG Cancel Total

Firmware upgrade appears on the display

1. Press the ◀/▶ buttons to select Total, then press the ENTER button.

Firmware upgrade Old Version : 090123.R2.B.P490K2XEG New Version : 090131.R4.B.P490K2XEG Cancel Total Now Loading... *** CAUTION !!! *** When the tray is opened Do not turn off the player until it goes off automatically

Firmware upgrade starts

• In the middle of the writing, the tray will open automatically. After taking out the disc, please wait for about 2 minutes.
• If the unit was successfully updated, the unit will turn off and on after closing the tray automatically. When the unit turns on, this screen will display.
• Press the ▲/▼ buttons then press ENTER button to select the desired language

SELECT MENU LANGUAGE English Français Deutsch Español Italiano Nederlands

Note

• If the "Select Menu Language" doesn't appear, please contact to "Samsung Service Center".
• Do not press any button and unplug the power cord during upgrade.
• The upgrade procedure may change, refer to the web site (www.samsung.com).

Before requesting service (troubleshooting), please check the following.

Problem Action	Page
No operations can be performed with the remote control.	Check the batteries in the remote control.They may need replacing.Operate the remote control at a distance of no more than 20 feet.Remove batteries and hold down one or more buttons for several minutes to drain the microprocessor inside the remote control to reset it. Reinstall batteries and try to operate the remote control again.	P3
Disc does not play.	Ensure that the disc is installed with the label side facing up.Check the region number of the DVD. P5
The icon appears on screen.	The features or action cannot be completed at this time because:1. The DVD's software restricts it.2. The DVD's software doesn't support the feature (e.g., angles).3. The feature is not available at the moment.4. You've requested a title or chapter number or search time that is out of range.
Disc Menu doesn't appear.	Check if the disc has a Menu.
Play mode differs from the Setup Menu selection.	Some of the functions selected in the Setup Menu may not work properly if the disc is not encoded with the corresponding function.	P25~29
The screen ratio cannot be changed.	The Screen Ratio is xed on your DVDs.	P27~28
No audio	Make sure you have selected the correct Digital Output in the Audio Options Menu.	P26~27
The screen is blocked	Press the ▶II button (in front panel) for more than 5 seconds under no disc inside. All settings will revert to the factory settings.	P14
Forgot password	Press the ▶II button (in front panel ) for more than 5 seconds under no disc inside. All settings including the password will revert to the factory settings. Don't use this unless absolutely necessary.	P29
If you experience other problems.	Go to the contents and nd the section of the instruction book that contains the explanations regarding the current problem, and follow the procedure once again.If the problem still cannot be solved, please contact your nearest authorized service center.
The picture is noisy or distorted	Make sure that the disc is not dirty or scratched.Clean the disc.	P2

Speci cations

General	Power Requirements	AC 110~240V 50/60Hz
	Power Consumption	8 W
	Weight	1.6 Kg
	Dimensions	430mm (W) X 203mm (D) X 37mm (H)
	Operating Temperature Range	+5°C to +35°C
	Operating Humidity Range	10 % to 75 %
Disc	DVD(DIGITAL VERSATILE DISC)	Reading Speed: 3.49 ~ 4.06 m/sec.Approx. Play Time(Single Sided, Single Layer Disc): 135 min.
	CD: 12Cm(COMPACT DISC)	Reading Speed: 4.8 ~ 5.6 m/sec.Maximum Play Time: 74 min.
	CD: 8Cm(COMPACT DISC)	Reading Speed: 4.8 ~ 5.6 m/sec.Maximum Play Time: 20 min.
	VCD: 12Cm	Reading Speed: 4.8 ~ 5.6 m/sec.Maximum Play Time: 74 min. (Video + Audio)
Video Output	Composite Video	1 channel: 1.0 Vp-p (75 Ω load)
	Component Video	Y: 1.0 Vp-p (75 Ω load)Pr: 0.70 Vp-p (75 Ω load)Pb: 0.70 Vp-p (75 Ω load)
Audio Output	*Maximum Output Level	2 Vrms
	*Frequency Response	20Hz~20 kHz
	Digital Audio Output	Terminal Coaxial S/PDIF

*: Nominal speci cation

Note

• Samsung Electronics Co., Ltd reserves the right to change the specifications with out notice.
• Weight and dimensions are approximate.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Region Country Contact Center	Web Site
North America	CANADA 1-800-SAMSUNG(726-7864) www.samsung.com/ca
	MEXICO 01-800-SAMSUNG(726-7864) www.samsung.com/mx
	U.S.A 1-800-SAMSUNG(726-7864) www.samsung.com/us
Latin America	ARGENTINE 0800-333-3733 www.samsung.com/ar
	BRAZIL 0800-124-421, 4004-0000 www.samsung.com/br
	CHILE 800-SAMSUNG(726-7864) www.samsung.com/cl
	NICARAGUA 00-1800-5077267 www.samsung.com/latin
	HONDURAS	800-7919267 www.sams
	COSTA RICA 0-800-507-7267 www.samsung.com/latin
	ECUADOR 1-800-10-7267 www.samsung.com/latin
	EL SALVADOR	800-6225 www.samsung.com/latin
	GUATEMALA	1-800-299-0013 www.samsung.com/latin
	JAMAICA	1-800-234-7267 www.samsung.com/latin
	PANAMA	800-7267 www.samsung.com/latin
	PUERTO RICO	1-800-682-3180 www.samsung.com/latin
	REP. DOMINICA	1-800-751-2676 www.samsung.com/latin
	TRINIDAD & TOBAGO	1-800-SAMSUNG(726-7864) www.samsung.com/latin
	VENEZUELA	0-800-100-5303 www.samsung.com/latin
	COLOMBIA	01-8000112112 www.samsung.com.co
Europe	BELGIUM	02 201 2418 www.samsung.com/be
	CZECH REPUBLIC	800-726-786 (800 - SAMSUNG) www.samsung.com/cz
	DENMARK	70 70 19 70 www.samsung.com/dk
	FINLAND	030-6227 515 www.samsung.com/fi
	FRANCE	3260 SAMSUNG (€ 0,15/Min) www.samsung.com/fr
	GERMANY	01805 - SAMSUNG(726-7864 € 0,14/Min) www.samsung.de
	HUNGARY	06-80-SAMSUNG(726-7864) www.samsung.com/hu
	ITALIA 800-SAMSUNG(726-7864) www.samsung.com/it
	LUXEMBURG	02 261 03 710 www.samsung.com/lu
	NETHERLANDS	0900-SAMSUNG (726-7864 € 0,10/Min) www.samsung.com/nl
	NORWAY	815-56 480 www.samsung.com/no
	POLAND	0 801 801 881, 022-607-93-33 www.samsung.com/pl
	PORTUGAL	80820-SAMSUNG(726-7864) www.samsung.com/pt
	SLOVAKIA	0800-SAMSUNG(726-7864) www.samsung.com/sk
	SPAIN	902-1-SAMSU(72678) www.samsung.com/es
	SWEDEN	0771-400 200 www.samsung.com/se
	U.K	0845 SAMSUNG (7267864) www.samsung.com/uk
	EIRE	0818 717 100 www.samsung.com/ie
	AUSTRIA	0800-SAMSUNG(726-7864) www.samsung.com/at
	SWITZERLAND	0800-SAMSUNG(726-7864) www.samsung.com/ch
CIS	RUSSIA	8-800-555-55-55 www.samsung.ru
	KAZAKHSTAN	8-10-800-500-55-500 www.samsung.com/kz_ru
	UZBEKISTAN	8-10-800-500-55-500 www.samsung.com/kz_ru
	KYRGYZSTAN	00-800-500-55-500
	TADJIKISTAN	8-10-800-500-55-500
	UKRAINE	8-800-502-0000 www.samsung.ua
	LITHUANIA	8-800-77777 www.samsung.it
	LATVIA	8000-7267 www.samsung.com/lv
	ESTONIA	800-7267 www.samsung.ee
Asia Pacific	AUSTRALIA	1300 362 603 www.samsung.com/au
	NEW ZEALAND	0800 SAMSUNG (0800 726 786) www.samsung.com/nz
	CHINA	800-810-5858, 400-810-5858, 010-6475 1880 www.samsung.com/cn
	HONG KONG	3698-4698 www.samsung.com/hk
	INDIA 3030 8282, 1800 110011, 1-800-3000-8282 www.samsung.com/n
	INDONESIA	0800-112-8888 www.samsung.com/id
	JAPAN	0120-327-527 www.samsung.com/jp
	MALAYSIA	1800-88-9999 www.samsung.com/my
	PHILIPPINES 1800-10-SAMSUNG(726-7864) www.samsung.com/ph
	SINGAPORE	1800-SAMSUNG(726-7864) www.samsung.com/sg
	THAILAND 1800-29-3232, 02-689-3232 www.samsung.com/th
	TAIWAN 0800-329-999 www.samsung.com/tw
	VIETNAM	1 800 588 889 www.samsung.com/vn
Middle East & Africa	TURKEY	444 77 11 www.samsung.com/tr
	SOUTH AFRICA	0860-SAMSUNG(726-7864) www.samsung.com/za
	U.A.E 800-SAMSUNG (726-7864), 8000-4726 www.samsung.com/ae

ung.com/latin

SAMSUNG

Lecteur Speler

1. Cable Component
2. Cable coaxial

Simple line drawing of a mechanical component with arrows indicating motion (no text or symbols)

Brings up the DVD player's menu.

9. Touche AUDIO (◀)

Ecran Large EZ VIEW

Arret Non 00:00:00 M 1 JP 0 M 3 Enter Return Menu

Remarque

Lecture Track 01 Track 02 Track 03 Track 04 Track 05 Track 06 Track 07 Track 08 ELECTRONOMER DEMARUMEN Enter Repeled Non

Lecture Track 01 Track 02 Track 03 Track 04 FOR USB1 DESCRIPTION. REMARKS ON FOUNT ITEMS... Error Repeat

Remarque

Black and white illustration of a flower with leaves and stem (no text or symbols)

Remarque

Black and white illustration of a flower with visible petals and leaves, enclosed in a border with no text or symbols.

Remarque

Diagram of a Samsung audio device with a microphone and ports (no text or symbols on the device body)

Mico Tonalite

Remarque

Firmware upgrade Old Version : 090123.R2.B.P490K2XEG New Version : 090131.R4.B.P490K2XEG Cancel total Now Loading... *** CAUTION !!! *** When the tray is opened Do not turn off the player until it goes off automatically

Technical line drawing of a boat hull with directional arrows indicating movement (no text or symbols)

Open Off SUBTITLE

Blank gray image with a small black plus sign icon in the top-right corner (no text or symbols)

2x

Play Off Track 01 Track 01 Track 02 Track 03 Track 04 Track 05 Track 06 Track 07 Track 08 00:00:01 DRS - SELECTOR RECEIVER OK Enter Reset Repeat

Play Off Track 01 Track 02 Track 03 Track 04 Track 05 Track 06 Track 07 Track 08 Track 09 Track 10 Track 11 Track 12 Track 13 Track 14 Track 15 Track 16 Track 17 Track 18 Track 19 Track 20 Track 21 Track 22 Track 23 Track 24 Track 25 Track 26 Track 27 Track 28 Track 29 Track 30 Track 31 Track 32 Track 33 Track 34 Track 35 Track 36 Track 37 Track 38 Track 39 Track 40 Track 41 Track 42 Track 43 Track 44 Track 45 Track 46 Track 47 Track 48 Track 49 Track 50 Track 51 Track 52 Track 53 Track 54 Track 55 Track 56 Track 57 Track 58 Track 59 Track 60 Track 61 Track 62 Track 63 Track 64 Track 65 Track 66 Track 67 Track 68 Track 69 Track 70 Track 71 Track 72 Track 73 Track 74 Track 75 Track 76 Track 77 Track 78 Track 79 Track 80 Track 81 Track 82 Track 83 Track 84 Track 85 Track 86 Track 87 Track 88 Track 89 Track 90 Track 91 Track 92 Track 93 Track 94 Track 95 Track 96 Track 97 Track 98 Track 99 Track 100 INIO de ripeo de CD ... Cancelar ripeo

Nota

Black and white illustration of a flower with visible petals and stem, enclosed in a frame (no text or symbols)

Nota

Black and white illustration of a flower with visible petals and leaves, enclosed in a frame (no text or symbols)

Nota

Diagram of a Samsung audio device with a microphone and connected ports (no text or symbols)

Firmware upgrade Old Version : 090123.R2.B.P490K2XEG New Version : 090131.R4.B.P490K2XEG Cancel Total Now Leading... *** CAUTION III *** When the tray is opened Do not turn off the player until it goes off automatically
