TK240 - Lecteur multimédia MPMAN - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Téléphone mobile
Caractéristiques techniques principales	Écran 2,4 pouces, résolution 240 x 320 pixels, clavier physique
Alimentation électrique	Batterie rechargeable Li-ion 800 mAh
Dimensions approximatives	118 x 50 x 14 mm
Poids	90 g
Compatibilités	Compatible avec les réseaux GSM
Type de batterie	Batterie Li-ion
Tension	3.7 V
Puissance	Non spécifiée
Fonctions principales	Appels, SMS, radio FM, lampe de poche
Entretien et nettoyage	Nettoyer avec un chiffon doux, éviter les produits chimiques
Pièces détachées et réparabilité	Disponibilité variable, consulter un professionnel pour les réparations
Sécurité	Utiliser uniquement le chargeur fourni, éviter l'exposition à l'eau
Informations générales utiles	Idéal pour les utilisateurs recherchant un téléphone simple et fonctionnel

FOIRE AUX QUESTIONS - TK240 MPMAN

Comment réinitialiser le MPMAN TK240 aux paramètres d'usine ?

Pour réinitialiser votre MPMAN TK240, allez dans le menu 'Paramètres', puis sélectionnez 'Réinitialiser' et confirmez l'action. Toutes les données seront supprimées.

Comment transférer des fichiers vers le MPMAN TK240 ?

Connectez votre MPMAN TK240 à votre ordinateur via un câble USB. Sélectionnez 'Transfert de fichiers' sur l'écran du téléphone, puis copiez vos fichiers dans le dossier souhaité.

Que faire si le MPMAN TK240 ne s'allume pas ?

Assurez-vous que la batterie est suffisamment chargée. Si le téléphone ne s'allume toujours pas, essayez de maintenir le bouton d'alimentation enfoncé pendant 10 secondes.

Comment augmenter la mémoire de mon MPMAN TK240 ?

Le MPMAN TK240 prend en charge les cartes microSD jusqu'à 32 Go. Insérez une carte microSD dans le slot prévu à cet effet pour augmenter la mémoire.

Comment activer le mode avion sur le MPMAN TK240 ?

Accédez au menu 'Paramètres', puis sélectionnez 'Réseau' et activez le 'Mode Avion' pour désactiver toutes les connexions sans fil.

Pourquoi mon MPMAN TK240 ne capte pas le réseau ?

Vérifiez si le mode avion est désactivé. Si le problème persiste, redémarrez votre appareil et vérifiez la carte SIM pour vous assurer qu'elle est correctement insérée.

Comment mettre à jour le logiciel de mon MPMAN TK240 ?

Allez dans 'Paramètres', puis dans 'À propos du téléphone' et sélectionnez 'Mise à jour du système'. Suivez les instructions pour installer les mises à jour disponibles.

Comment désinstaller une application sur le MPMAN TK240 ?

Accédez au menu 'Applications', sélectionnez l'application que vous souhaitez désinstaller, puis appuyez sur 'Désinstaller'.

Comment prendre une capture d'écran sur le MPMAN TK240 ?

Pour prendre une capture d'écran, appuyez simultanément sur le bouton d'alimentation et le bouton de réduction du volume pendant quelques secondes.

Que faire si l'écran tactile du MPMAN TK240 ne répond pas ?

Essayez de redémarrer l'appareil. Si le problème persiste, vérifiez si l'écran est propre et sans obstructions. Si nécessaire, effectuez une réinitialisation d'usine.

MODE D'EMPLOI TK240 MPMAN

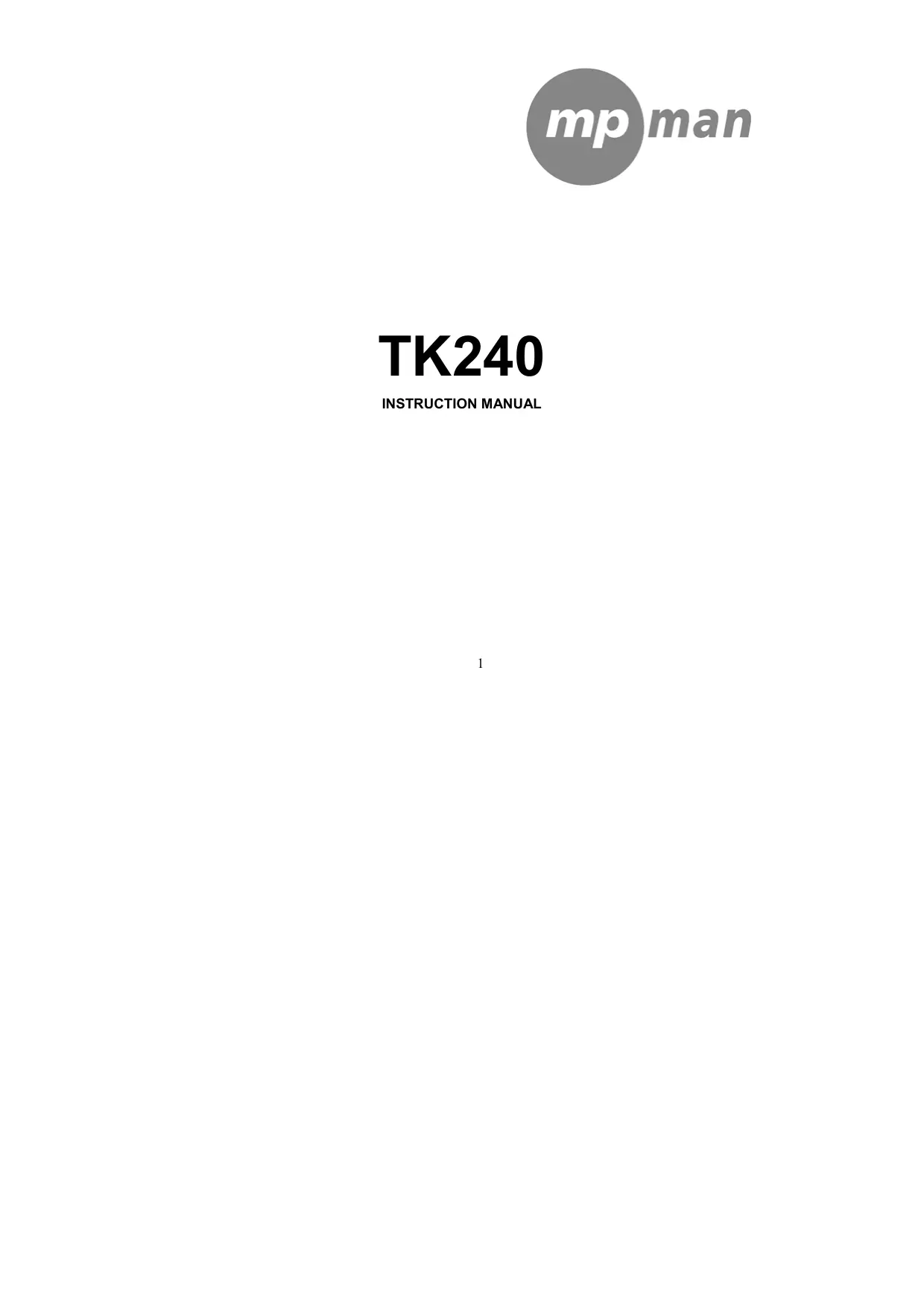

TK240

INSTRUCTION MANUAL

1. Please don't open or transform this product by yourself.
2. While cleaning this product, forbid sprinkling water or pouring water.
3. Avoid using this product in the following environments: High temperature, low temperature, moist, much dust and exposed to the strong sunshine for a long time.
4. Avoid the external force of falling, colliding etc. is struck.

2, main function

320X240 dots full-color TFT display screen

Support MP3, WMA

Support MPEG-4 (avi) after conversion using MPMANAGER

Support JPEG jpg) after conversion

Built-in microphone

Multilingual

High speed USB2.0

E-book

Game

3, appearance and button

Button explanation:

ON/OFF/HOLD

• Power on : Slide right to turn on the power
• Power off : Slide right and hold for one second or longer to turn off
• Hold function : Slide left to the lock icon. The hold icon is displayed and no button can be operated.
• Slide the button to the center to release the lock function.

MODE: Press [<, >>] buttons in the main menu to go to the desired menu, and then [M] button to confirm. Press [M] button while listening to music, viewing video, photo or text file

to move by the order of [File search] – [Current menu]. However, pressing the [M] button for a long time will make you go back to the main menu.

A-B (AB replies and reads) : In music play mode, press this key to define the starting point A, press this key again to define the destination B. Music will be played between A and B points repeatedly. If you want to cancel AB repeat press this key again.

PRE/NEXT：

Fast forward/Rewind

When you press and hold [<<,>>] button while music is playing, the status icon

changeS and it quickly moves to the beginning/end of the music.

(Normally resumed at the point where the button is released).

Moving to the previous/next music.

Pressing the [<<,>>] buttons will make you move to the pre/next music.

4, Connecting to PC

Connecting the player to PC will allow you to charge it (please put it on the ON position) and will allow you also to use your player as a USB external disk to copy any kind of document.

Function introduction

music

Record
Game

Movie

Setting

Radio

E-book

Music

Choose " Music " in the main menu, press [M] key to confirm.

• Press [>II] button while playing music to pause

Press [>II] button again to play music.

Press [>II] button one more time for 1.5 second and the music would stop immediately.

• Press VOL key and enter 'Volume menu' to regulate the volume and press "<<" or ">>" to make sound reduce or increase. ('VOL' would only work in playing mode)

• Pressing the [M] button for a long time will make you go back to the main menu.

• While you're in music mode, pressing [M] would make you see the Mp3 file list.

After choosing the Mp3 file you want, press the [>II] button to play.

Movie

Choose " Movie " in the main menu, press [M] key to confirm.

• Press [>II] button while playing movie to pause

Press [>II] button again to play movie.

Press [>ll] button one more time for 1.5 second and the movie would stop immediately.

• Press VOL key and enter 'Volume menu' to regulate the volume and press "<<" or ">>" to make sound reduce or increase. ('VOL' would only work in playing mode)
• Pressing the [M] button for a long time will make you go back to the main menu.
• While you're in movie mode, pressing [M] would make you see the movie file list.

After choosing movie file you want, press the [>11] button to play.

Note : To convert movies please use MPMANAGER software included in your player and CDROM.

Radio

Choose " Radio " in the main menu, press [M] key to confirm.

• Pressing [<<, >>] keys would make 0.05 MHZ change, go up and down.
• Pressing [<<,>>] keys for a long time would make it find broadcast itself and stop when it finds one.
• If you press [M] keys, it will turn into PRESET to SCAN. While you are in preset mode, if you press [>>I] key, automatically Preset Memory would be loading.
• Pressing [A-B] key will record the loading broadcast and one more press would make in pause recording. Pressing [M] key will save and finish the recording.
• Pressing [M] key for 1 or more second will make you go back to main menu.

Record

Choose " Record " in the main menu, press [M] key to confirm.

• In recording mode, you should press [A-B] key to begin recording. If you press the [A-B] key again, recording would pause. It will begin to record again after you press [A-B] key one more time.
• Either you were recording or pausing, pressing [A-B] key for 1 or more second will save the loading file. After saving, recording will restart, however this time, you don't need to repress [A-B] key to start.
• Pressing [M] key for 1 or more second will save the loading file. After saving, you will go back to main menu.
• If you want to listen to the voice you just saved, you should go in to the 'Music' in the main menu. Play the file which is inside the 'VOICE' folder.


Choose " Photo " in the main menu, , press [M] key to confirm.

• In the "PICTURE" list, choose any picture file by pressing [<<,>>] keys.
• Press [>ll] key to see the selected picture file,

Pressing [<<,>>] keys will make you see pre/next pictures.

• Pressing [M] key for 1 or more second will make you go back to main menu.

E-book

Choose "E-Book" in the main menu, press [M] key to confirm.

• In the "TEXT" list, choose any text file by pressing [<<, >>] keys.

• Press [>II] key to see the selected text file, Pressing [<<,>>] keys will make you see pre/next page.

• Pressing [M] key for 1 or more second will make you go back to main menu.

Setting

Choose "Setting" in the main menu, then press [M] key to confirm.

In the Setting menu, you can find " SOUND, PLAY MODE, DISPLAY, TIME, SYSTEM"

Press [<<,>>] buttons to choose one of the sub menus and press [M] key to confirm.

1,Sound

There are 7 sound modes " Flat, Rock, Pops, Jazz, Classic, Live, Dance " available.

Press [<<,>>] buttons to choose and press [M] key to confirm.

2,Play

There are 3 play modes "Play Set, Play Speed, Auto Play" available,

Press [ < , ] buttons to choose and press [M] key to confirm

(1) Play Set

There are 5 play set modes "Normal,Repeat_1, Repeat_Folder, Repeat_All, Shuffle_Folder"

Press [<<, >>] buttons to choose press [M] key to confirm.

(2) Play Speed

There are 7 play speed mode "70%, 80%, 90%, 100%, 110%, 120%"

Press [<<,>>] buttons to choose and Press [M] key to confirm.

Choose 100% in order to Play Speed normally.

(3) Auto Play

Press [<<,>>] buttons to choose ON or OFF and press [M] key to confirm.

3, DISPLAY

There are 5 display modes "Play Time, Song Tiltle, Scroll Speed, Language, Backlight "

Press [<<,>>] buttons to choose and press [M] key to confirm.

(1) Play Time

Press [<<,>>] buttons to choose and press [M] key to confirm.

• Elapse: display the time that has been already played.
• Remain: display the remaining time.

(2) Song Tittle

There are 3 song title modes "File Name, ID3, LYRIC".

Press [<<,>>] buttons to choose and press [M] key to confirm.

(3) Scroll Speed

There are 5 scroll speed modes "X1, X2, X3, X4, X5".

Press [<<,>>] buttons to choose and press [M] key to confirm.

(4) Language

There are different languages available,

Press [<<,>>] buttons to choose and press [M] key to confirm.

(5) Backlight

There are 5 backlight modes "Always On, 5 Second, 10 Second, 30 Second, 60 Second"

Press [<<,>>] buttons to choose and press [M] key to confirm.

4,Time

There are 2 time modes "Sleep Off, Auto Off"

Press [<<,>>] buttons to choose and press [M] key to confirm.

(1) Sleep Off

There are 5 sleep of modes"Off, 30 Minute, 1 Hour, 2 Hour, 3 Hour

After the amount of time you chused, the player will switch off.

(2) Auto Off

There are 5 auto off modes "Off, 30 Second, 45 Second, 60 Second, 90 Second"

When it's not in playing mode, after the amount of time you chused, the player will switch off

5,System

There are 5 system modes " Recording, FM Radio, Information, Upgrade, Format "

Press [<<, >>] buttons and press [M] key to confirm.

(1) Recording

There are 2 recording modes "Quality, VOR".

Press [<<,>>] buttons to choose and press [M] key to confirm.

• Quality: You can choose" Low, Middle, High "

• VOR: There are "On, Off" under the VOR menu. VOR means that recording will start automatically with the voice.

(2)FM Radio

There are 3 FM radio modes "Region, Stereo /Mono, Quality".

Press [<<,>>] buttons to choose and press [M] key to confirm.

(3)Information

Press [M] key to see software version, used memory, total memory, etc..

(5) Format

Pressing [M] key, you would see "FORMAT", "Are you sure?". After choosing YES or NO, press M key to confirm.

This function is used for formatting the internal flashing memory. Be careful that ALL DATA inside the player will be deleted.

Treatment of the Q&A

1, The player can't start.

Check whether the battery has been charged

Connect the player to PC to start charge

2, No output in headphone:

Please check if volume is not at zero.

Please check if earphones are well connected

3, Serious noise

Please check whether the plug of the arophone is clean.

Check whether the music file is damaged. Try another music file to see if it fixes.

4,Can't download the file

Confirm whether it is among computer and player or not and join correctly

Please check if there is enough space in the memory

Please check if the USB cable is OK

Technical specification

Display screen	2.4 inches TFT (320*240)
PC link	USB2.0 High speed
Power	Lithium-polymer battery
Recording	Sampling rate	44.1 KHz
	Format	MP3(32Kbps/64Kbps/128Kbps)
MP3, WMA	Max output	(L) 10mW+ (R) 10mW(16Ohm)
	MP3 bit rate	32K bps - 320K bps
	WMA bit rate	32K bps - 384K bps
	Frequency response	From 20Hz to 20KHz
	Noise ratio	85dB
	Distortion	0.06%
Music format	MP3, WMA, ASF
temperature	-5 to 40°
language	Many kinds of languages
Operating systems supported	WindowsSE/ME/2K/XP/VISTA

For more information, please visit our website

www.mpmaneurope.com

In case you would like to change your earphones, please use same model (or with equivalent specs) as the one supplied with this player in order to guaranty the respect of the maximal sound power. You can use MPMAN MP-IR5 model
