WM-FX487 - Radio cassette portable SONY - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Radio cassette portable
Marque	Sony
Modèle	WM-FX487
Dimensions (L x H x P)	115,5 x 83,5 x 35,5 mm (avec parties saillantes)
Poids	Environ 150 g (sans piles ni cassette) / 230 g (avec piles et cassette)
Alimentation	3 V CC – 2 piles AA (LR6) ou adaptateur secteur AC-E30HG (non fourni)
Autonomie des piles (alcalines LR6)	Lecture cassette : env. 24 h / Radio : env. 38 h (norme EIAJ)
Gammes radio	FM 87,5–108 MHz / AM 531–1 602 kHz (selon région)
Présélections radio	Jusqu’à 20 stations (5 par bande FM1, FM2, FM3 ou AM)
Types de cassettes compatibles	Normal (Type I), CrO2 (Type II), Métal (Type IV)
Modes de lecture	Une face, deux faces, répétition des deux faces
Fonctions audio	MEGA BASS (MB), GROOVE (GRV), AVLS (limiteur de volume)
Verrouillage des touches	Fonction HOLD
Réduction de bruit	Dolby NR (modèles FX487/FX485 uniquement)
Connectique	Prise écouteurs/casque Ⓞ (impédance 8–300 ohms)
Accessoires fournis	Casque/écouteurs stéréo avec télécommande (FX487), clip ceinture
Entretien de la tête de lecture	Nettoyage toutes les 10 h avec cassette CHK-1 (non fournie)
Nettoyage extérieur	Chiffon doux légèrement humide (pas d’alcool ni de solvant)
Précautions d’usage	Éviter chocs, chaleur, humidité, rayons directs du soleil
Sécurité auditive	Ne pas utiliser à volume élevé longtemps ; AVLS recommandé
Pièces détachées et réparabilité	Contacter un revendeur Sony agréé

FOIRE AUX QUESTIONS - WM-FX487 SONY

Comment insérer les piles ?

Ouvrez le compartiment à piles au dos de l'appareil et insérez deux piles AA (LR6) en respectant la polarité (+ et -). Remplacez les deux piles dans les 30 secondes pour conserver les présélections radio.

Comment présélectionner des stations radio ?

Syntonisez d'abord la station souhaitée, puis maintenez enfoncé l'un des boutons 1 à 5 pendant plus de 2 secondes. Un bip retentit et la station est mémorisée. Vous pouvez présélectionner jusqu'à 20 stations (5 par bande).

Que faire si le son est distordu ou faible ?

Vérifiez d'abord que les piles sont suffisamment chargées. Si le son est distordu avec le mode GROOVE, passez en mode MEGA BASS ou désactivez-le. Si l'icône AVLS est affichée, appuyez sur SET pour désactiver la limitation de volume.

Comment utiliser la fonction HOLD ?

Faites glisser l'interrupteur HOLD dans le sens de la flèche pour verrouiller toutes les commandes. Cela évite les déclenchements involontaires pendant le transport. Pour déverrouiller, repoussez l'interrupteur dans l'autre sens.

Comment nettoyer la tête de lecture ?

Utilisez une cassette de nettoyage CHK-1 (non fournie) toutes les 10 heures d'utilisation. Insérez-la dans le lecteur et lancez la lecture pendant quelques secondes. N'utilisez pas d'autres méthodes.

Puis-je utiliser des écouteurs autres que ceux fournis ?

Oui, vous pouvez utiliser tout casque ou écouteur avec une fiche Ⓞ et une impédance comprise entre 8 et 300 ohms. Assurez-vous que la fiche est bien enfoncée.

Comment économiser les piles ?

Éteignez l'appareil après usage. Utilisez de préférence des piles alcalines LR6 pour une autonomie maximale (jusqu'à 38 h en radio). Évitez les températures extrêmes qui réduisent la durée de vie.

Pourquoi l'affichage clignote-t-il ?

Si l'indicateur de pile clignote, remplacez les piles. En cas d'affichage erroné, les piles sont probablement faibles. Si le problème persiste après changement, contactez le service client Sony.

Comment basculer entre les bandes FM1, FM2, FM3 et AM ?

Appuyez plusieurs fois sur le bouton RADIO ON/BAND pour parcourir les bandes. Chaque bande peut mémoriser jusqu'à 5 présélections. Utilisez TUNING +/- pour syntoniser manuellement ou maintenez enfoncé pour la recherche automatique.

Le son est trop fort malgré le réglage du volume. Comment faire ?

Vérifiez si la fonction AVLS est activée (icône affichée). Si oui, désactivez-la via le menu SET. Sinon, réduisez le volume en tournant la molette sur le Walkman ou la télécommande (FX487).

MODE D'EMPLOI WM-FX487 SONY

Radio Cassette Player

Operating Instructions

WALKMAN is a registered trademark of Sony Corporation.

WM-FX487/FX485/FX483

Sony Corporation © 1998 Printed in Malaysia

For the customers in the U.S.A.

OWNER'S RECORD

The model number is located at the bottom and the serial number is located inside the cassette holder. Record the model and serial numbers in the spaces provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product.

Model No. ____ Serial No.

INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

About This Manual

The instructions in this manual are for WM-FX487, WM-FX485 and WM-FX483. Before you start reading, check your model number. WM-FX487 is the model used for illustration purposes. Any differ2ences in operation are clearly indicated in the text, for example, "FX487 only".

▶ Getting Started

Preparing a Power Source

Dry Battery

Open the battery compartment lid, and insert two size AA (R6) dry batteries with correct polarity.

If the battery compartment lid comes off

When to replace the batteries

Replace the batteries when “☐” flashes in the display. The battery remainder mark has 3 steps to show the remaining battery power.

The battery power is full.

The battery power is decreasing.

The batteries are exhausted.

Replace them with new ones.

Notes

- The battery remainder mark may temporarily show a lower level during fast forwarding or rewinding or use in extremely low temperatures.

- When replacing batteries, replace both batteries within 30 seconds; otherwise all the memories including the preset radio stations will be canceled.

Battery life (Approx. hours)
(EIAJ*)

	Tape playback	Radio reception
Sony alkaline LR6 (SG)	24	38
Sony R6P (SR)	7.5	14

* Measured value by the standard of EIAJ (Electronic Industries Association of Japan). (Using a Sony HF series cassette tape)

Note

- The battery life may shorten depending on the operation of the unit.

For maximum performance we recommend that you use alkaline batteries.

House Current

Connect the AC power adaptor AC-E30HG (not supplied) to the DC IN 3 V jack and to the mains. Do not use any other AC power adaptor. Specifications for AC-E30HG varies for each area. Check your local voltage and the shape of plug before purchasing.

Polarity of the plug

To use the belt clip

With the supplied belt clip, you can wear your Walkman on a belt for convenient use.

To remove the belt clip

To attach the belt clip

Connecting the Headphones/Earphones

FX487
FX485/FX483

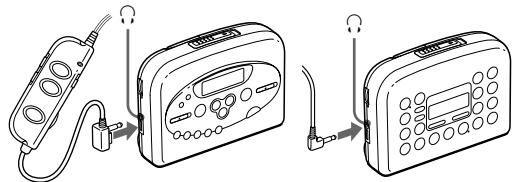

1 Connect the headphones/earphones to Ⓞ.

2 Wear the "L" marked side to the left ear and the "R" marked side to the right ear.

If the earphones do not fit to your ears or the sound is unbalanced, turn round the earphones a little to fit to your ears firmly.

▶ Operating the Walkman

Playing a Tape

1 Open the cassette holder and insert a cassette.

FX487

FX485/FX483

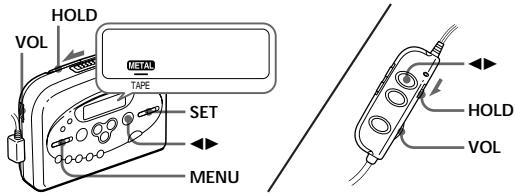

2 Make sure the HOLD function is turned off. If it is on, slide the HOLD switch to turn it off.

3 Press MENU repeatedly to set the cursor to TAPE in the display.

Then press SET to select the tape type.

No message: normal (TYPE I)

METAL: CrO_2 (TYPE II) or metal (TYPE IV)

4 Press ◀▶ (play) to start playing then adjust the volume.

When adjusting the volume on the Walkman (FX487 only)

Set the VOL control on the remote control at maximum.

When adjusting the volume on the remote control (FX487 only)

Set the VOL control on the Walkman slightly above the appropriate level.

Note on the cassette holder

When opening the cassette holder, press the ■ (stop) button and make sure the tape is stopped by checking through the cassette window, then slide the OPEN switch.

If the cassette holder is opened before the tape is stopped, the tape may loosen and be damaged.

FX487

FX485/FX483

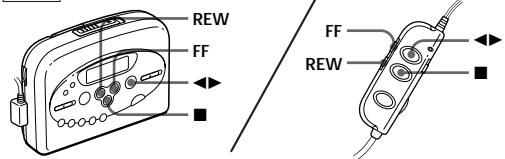

To	Press
play the other side	◀▶ (play) during playback
stop playback	■
fast forward	FF during stop
rewind	REW during stop
play the same side from the beginning (Rewind Auto Play function)	REW during playback
play the other side from the beginning (Skip Reverse function)	FF during playback

To select playback mode

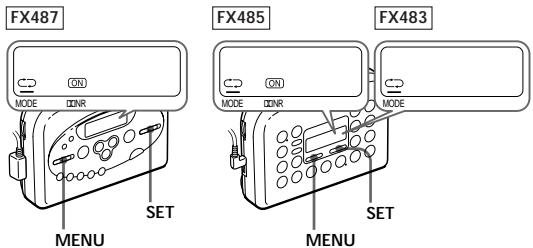

Press MENU repeatedly to set the cursor to MODE in the display. Then press SET to select the desired mode.

To play	Select
Both sides repeatedly
Both sides once from the side facing the cassette holder

To play a tape recorded with Dolby* NR system (FX487/FX485 only)

Press MENU repeatedly to set the cursor to ☐☐ NR (Dolby noise reduction) in the display. Then press SET to show “ON”.

* Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.

“DOLBY” and the double-D symbol □□ are trademarks of Dolby Laboratories Licensing Corporation.

Listening to the Radio

FX487

FX485/FX483

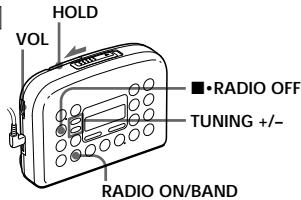

1 Make sure the HOLD function is turned off. If it is on, slide the HOLD switch to turn it off.
2 Press RADIO ON/BAND to turn on the radio.
3 Press RADIO ON/BAND repeatedly to select FM1, FM2, FM3 or AM.
4 Press TUNING+/- to tune in to the desired station. If you keep pressing TUNING+/- for a few seconds, the Walkman will start tuning to the stations automatically.

To turn off the radio

Press ■•RADIO OFF.

FX487

FX485/FX483

- For FM: Extend the cord of the remote control, the aerial (FX487 only). Extend the headphones/earphones cord, the aerial (FX485/FX483 only). If the reception is still not good, press MENU repeatedly to set the cursor to FM MODE or FM SENS in the display. Then press SET to choose the mode for best reception.

or

- For AM: The Walkman has a built-in antenna. Reorient the Walkman horizontally to obtain optimum AM reception.

Note

- Do not remove the power sources while listening to the radio, or the received stations may not be stored.

Presetting Radio Stations

You can store radio stations into the unit's memory. You can preset up to 20 radio stations, 5 for each FM1, FM2, FM3 or AM bands.

FX485/FX483

1 Tune in the station you wish to store. (Follow steps 1-4 in "Listening to the Radio".)

2 Press and hold one of the 1-5 buttons for more than 2 seconds. The display flashes twice with a beep sound, and the station is preset. If a station is already stored, and the new station replaces the old one.

To play the preset radio stations

1 Press RADIO ON/BAND to select the band.
2 Press the corresponding button (1-5) on the unit. Or press PRESET+/- on the remote control (FX487 only).

Receiving Stations Outside Your Country (Excluding models for Europe and Saudi Arabia)

The frequency range differs depending on the area (see the chart “Area indication and frequency range”). If you listen to the radio in an area of different frequency range, change the area indication in the display.

FX487

FX485/FX483

1 Turn on the radio and press RADIO ON/BAND for more than 10 seconds until the area indication flashes in the display.
2 While the display is flashing, press TUNING+/- to select either "U" or "E" indication.
3 Press RADIO ON/BAND to set the area indication.

Note

- If you change the frequency range, all the preset stations will be canceled.

Area indication and frequency range

Area*	Frequency range
	FM (MHz)	AM (kHz)
E	87.5–108	531–1,602
U	87.5–108	530–1,710

* E: European and other countries
U: USA, Canada, and Central and South America

Using Other Functions

FX487

FX485/FX483

To emphasize bass sound

Press MENU repeatedly to set the cursor to SOUND in the display. Then, press SET to select the desired mode. With each press, the indications change as follows. MB (MEGA BASS) : emphasizes bass sound GRV (GROOVE) : emphasizes deeper bass sound No message: off (normal)

Notes

• If the sound is distorted with the mode "GRV", select the mode "MB" or no message.
• Bass emphasis may not show great effect if the volume is turned up too high.

To protect your hearing—AVLS (Automatic Volume Limiter System)

When you set the AVLS function to active, the maximum volume is kept down to protect your ears.

Press MENU repeatedly to set the cursor to AVLS in the display. Then press SET to show “💡”.

Notes

• If the sound is distorted when you listen to the bass-boosted sound with the AVLS function, turn down the volume.
• The AVLS setting may be canceled when you replace the batteries.

To lock the controls

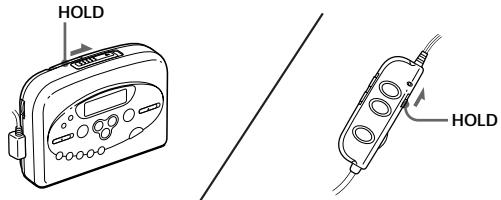

Set the HOLD switch to the direction of the arrow to lock the controls.

▶Additional Information

Precautions

On batteries

• Do not charge a dry battery.
• Do not carry the dry or rechargeable batteries with coins or other metallic objects. It can generate heat if the positive and negative terminals of the batteries are accidentally contacted by a metallic object.
• When you do not use the Walkman for a long time, remove the battery to avoid any damage caused by battery leakage and subsequent corrosion.

On the unit

• Do not drop the unit or give a shock to the unit, or it may cause a malfunction.
• Do not leave the unit in a location near heat sources, or in a place subject to direct sunlight, excessive dust or sand, moisture, rain, mechanical shock, or in a car with its windows closed.
• The LCD display may become hard to see or slow down when using the unit at high temperatures (above 40^/104^ ) or at low temperatures (below 0^/32^ ). At room temperature, the display will return to its normal operating condition.
• If the unit has not been used for long, set it in the playback mode and warm it up for a few minutes before inserting a tape.

On tapes longer than 90 minutes

We do not recommend the use of tapes longer than 90 minutes except for a long continuous playback. They are very thin and tend to be stretched easily.

On the remote control (FX487 only)

Use the supplied remote control only with this unit.

On headphones/earphones

Road safety

Do not use headphones/earphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and is illegal in some areas. It can also be potentially dangerous to play your headphones/earphones at high volume while walking, especially at pedestrian crossings.

You should exercise extreme caution or discontinue use in potentially hazardous situations.

Preventing hearing damage

Do not use headphones/earphones at high volume. Hearing experts advise against continuous, loud and extended play. If you experience a ringing in your ears, reduce volume or discontinue use.

Caring for others

Keep the volume at a moderate level. This will allow you to hear outside sounds and to be considerate to the people around you.

If you have any questions or problems concerning your unit, please consult you nearest Sony dealer.

Troubleshooting

The volume cannot be turned up.

- If “💡” appears for AVLS display, press SET so that “💡” disappears.

The sound is unstable or no audio.

- Insert two R6 (size AA) batteries properly.

- Replace all batteries if they are weak.

The display shows incorrect information.

- The batteries are weak. Replace the batteries with new ones.

Specifications

Radio section

Frequency range

FM: 65–74/87.5–108 MHz (Eastern Europe) 87.5–108 MHz (other countries)

AM: 530–1,710 kHz (North, Central and South America) 531–1,602 kHz (other countries)

Tape section

Frequency response

(Dolby NR off)

Playback: 30–14,000 Hz

Output

Headphones/earphones (○ jack) Load impedance 8–300 ohms

General

Power requirements

3 V

Two size AA (R6) batteries

Dimensions (w/h/d)

FX487:

Approx. 115.5 x 83.5 x 35.5 mm (4 ^5/8 x 3 ^3/8 x 1 ^7/16 inches) incl. projecting parts and controls FX485/FX483:

Approx. 115.5 x 83.5 x 34.0 mm ( 458 x 338 x 138 inches) incl. projecting parts and controls

Mass

Approx. 150 g (5.3 oz)/Approx. 230 g (8.2 oz) incl. batteries and a cassette

Supplied accessories

Stereo headphones or Stereo earphones with remote control (1) (FX487 only)

Stereo headphones or Stereo earphones (1) (FX485/FX483 only)

Belt clip (1)

Design and specifications are subject to change without notice.

Maintenance

To clean the tape head and path

Use the cleaning cassette CHK-1 (not supplied) every 10 hours of use.

Note

- Use only the recommended cleaning cassette.

To clean the exterior

Use a soft cloth slightly moistened with water. Do not use alcohol, benzine or thinner.

Note

- Clean the headphones/earphones plug periodically.
