| Type de produit | Alimentation secteur double rail pour systèmes hi-fi |
| Marque | Naim |
| Modèle | FlatCap XS |
| Dimensions (L x P x H) | 432 × 301 × 70 mm |
| Poids | 5,5 kg |
| Poids avec emballage | 7,5 kg |
| Couleur | Noir |
| Finition | Façade anodisée, capot peint |
| Alimentation | 100-120 V / 220-240 V, 50-60 Hz |
| Tension de sortie | 2 × 24 V double rail |
| Fonctions principales | Alimentation externe pour améliorer les performances des lecteurs CD, tuners et préamplificateurs de la série XS ; compatible avec CD5 XS, NAT05 XS et NAC 152 XS |
| Entretien et nettoyage | Débrancher avant nettoyage ; utiliser un chiffon doux et sec ; ne pas utiliser de produits abrasifs ou liquides |
| Sécurité | Ne pas exposer à l'humidité ou aux gouttes d'eau ; débrancher en cas d'orage ; ne pas obstruer les ouvertures de ventilation |
| Pièces détachées et réparabilité | Contacter le service après-vente Naim pour les pièces et réparations ; pas de pièces réparables par l'utilisateur |
| Informations générales | Fabriqué au Royaume-Uni ; garantie constructeur à vérifier |
FOIRE AUX QUESTIONS - FLATCAP XS NAIM1
Questions des utilisateurs sur FLATCAP XS NAIM1
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Casque audio au format PDF gratuitement ! Retrouvez votre notice FLATCAP XS - NAIM1 et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil FLATCAP XS de la marque NAIM1.
MODE D'EMPLOI FLATCAP XS NAIM1

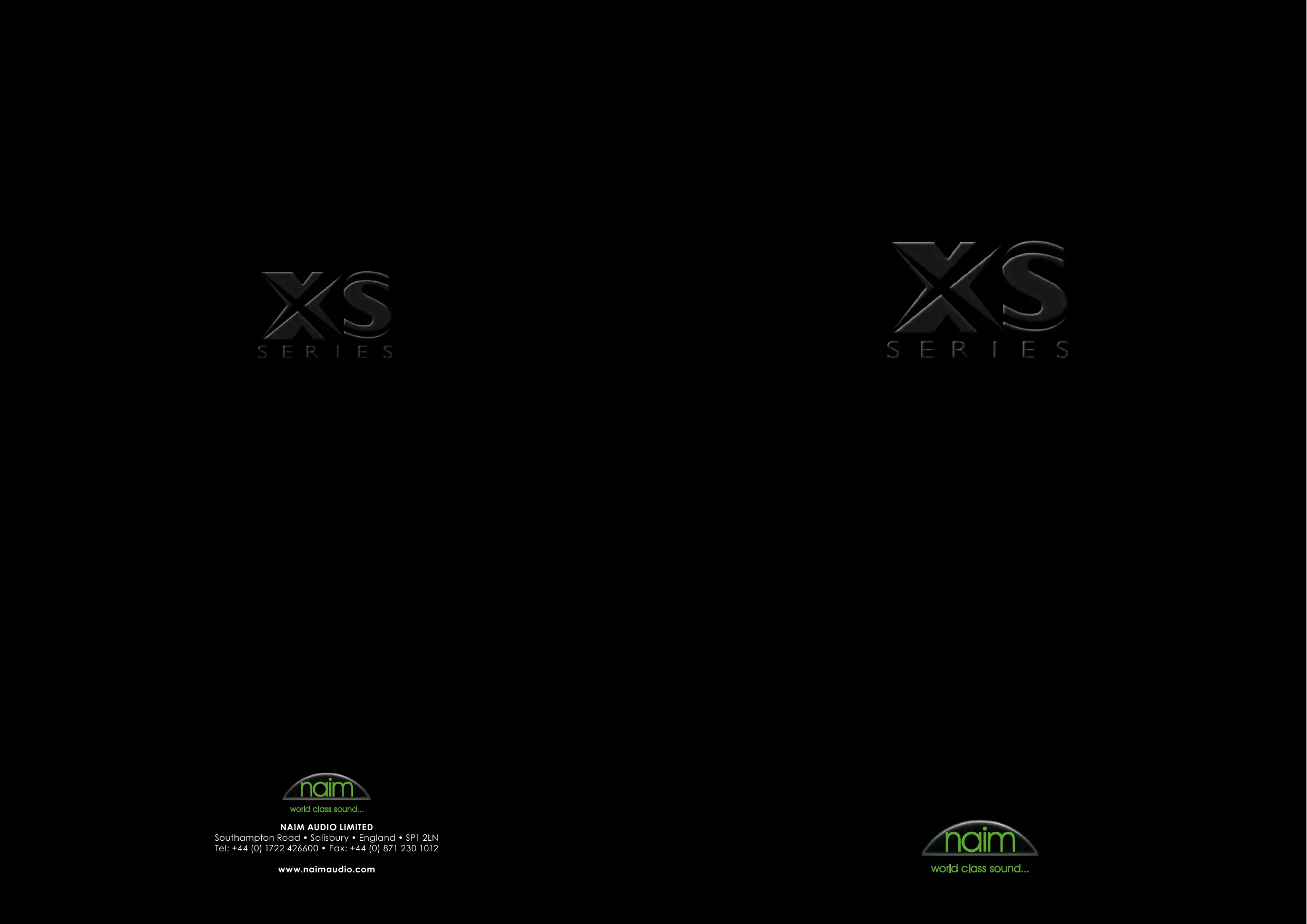

SERIES
SERIES
SERIES
The XS Series represents so much more than evolution. Behind their brushed and anodised aluminium fascias, XS Series products embody radical and innovative audio engineering that builds on Naim’s previous slimline X Series to take performance to yet greater heights. The XS Series comprises a CD player, FM tuner, integrated amplifier, preamplifier, power amplifier and power supply, each one refined and polished to offer flawless system matching and matchless performance.
CD5 XS CD Player
The CD5 XS CD player has probably seen the most changes on the journey from its CD5x predecessor. Almost every element, with the exception of the mains transformer and the disc mechanism, is new or significantly revised. Fundamental elements including critical analogue circuitry have been updated to extract yet more music from every CD. Also new in the CD5 XS is the inclusion, for the first time on a Naim CD player, of a transformer-coupled digital output that provides the choice of digital or analogue signal output.
Improving on the award winning CD5x was a tough ask, but through scrutiny and refinement of every last engineering detail, the class-leading Naim CDS XS delivers newly dramatic and vibrant music.
NAT05 XS FM Tuner
Apart from the benchmark and matchless ALPS high performance tuner head, the NAT05 XS tuner is a completely new design. The tuner head is compliantly mounted within the aluminium casework and feeds analogue circuitry that benefits enormously from Naim analogue know-how. FM remains the medium for the highest quality radio transmissions and the NAT05 XS is optimised to exploit FM like no other tuner. And if you want more, the NAT05 XS can be enhanced further through the simple addition of an external FlatCap XS power supply.
NAIT XS Integrated Amplifier
The NAIT XS takes the DNA of our best ever integrated amplifier, the SUPERNAIT, and, like a sports car stripped back to essentials for the track, delivers musical performance that truly inspires. The 60 watts per channel power amplifier section is a dynamic, fast acting musical muscle with an uncanny talent for bringing speakers to life. And the preamplifier section provides all the musical clarity and detail you could wish for. The NAIT XS is versatile thanks to six analogue line inputs on a mix of DIN and phono sockets, a phono preamplifier power supply output, and a front panel mounted auto-switching mini-jack. Like the rest of the XS Series, the NAIT XS is genuine high-end hi-fi brought within reach.
NAC 152 XS Preamplifier
When a separate preamplifier/power amplifier approach is preferred, the NAC 152 XS provides the perfect option. It was conceived around a completely new motherboard design that incorporates advances of both analogue electronics and mechanical decoupling, and its performance is detailed, refined and utterly musical. Versatility is a NAC 152 XS forfe too. Its six analogue inputs all offer DIN or phono connection options and it incorporates a front-mounted, auto-switching input socket for convenient MP3 player use. Power output for a Naim phono preamplifier is also included and a two-stage power supply upgrade regime brings true high-end preamplifier performance easily within reach.
NAP 155 XS Power Amplifier
The NAP 155 XS is the perfect companion to the NAC 152 XS preamplifier in an XS system. It features a very large main transformer – both physically and in terms of its power rating – and at the heart of its power supply uses the same reservoir capacitors as the award-winning SUPERNAIT integrated amplifier. The NAP 155 XS employs similar construction techniques to the NAIT XS integrated amplifier with a castellated heatsink and reduced earth reference routing to deliver enhanced performance and more music. The NAP 155 XS is a power amplifier straight out of the classic Naim mould: fast, detailed, dynamic and single-mindedly musical.
FlatCap XS Power Supply
The FlatCap XS is a dual-rail power supply that, either alone or in pairs, provides the most effective means to extract the ultimate performance from an XS system. One FlatCap XS can be used to enhance the performance of a CD5 XS and a NAT05 XS, while a second could be deployed to supercharge the performance of the NAC 152 XS preamplifier. The vital role played by the power supply in any hi-fi system is a long-held Naim conviction and it has no better demonstration than the increased musical fluency that the FlatCap XS brings to a system.
SERIES
System Configurations
Integrated System
The CD5 XS, NAT05 XS and NAIT XS deliver the finest CD and radio sound you will experience from a compact system, albeit or that effectively represents the first rung on the ladder towards super-performance separation. The capabilities of this potent trio can easily be enhanced with the addition of a FlatCap X power supply, and extended further by movi-. ing into the separates systems featured below, with the NAP 155 XS power amplifier and NAC 152 XS preamplifier combination.
CD Separates System
Bring together a NAC 152 XS preamplifier, a NAP 155 XS power amplifier and a CD5 XS CD player for a stunning CD replay system. Make it ever better with a FlatCap XS powering the CD player and the preamplifier.
Tuner Separates System
A NAT05 XS with a NAC 152 XS and NAP 155 XS is the ultimate FM radio. Add a FlatCap XS for the preamplifier and the tuner, and radio has never sounded better.
Complete Separates System
The complete XS system of CD5 XS and NAT05 XS, NAC 152 XS and NAP 155 XS defines brilliant music making. Adding a single FlatCap XS, which can power one or two components, upgrades the internal power supplies of the CD player, the tuner or the preamplifier, making your system shine even brighter. The system's performance can be further enhanced with the addition of a second or even a third FlatCap XS, each powering one component.
Specifications
AUDIO OUTPUTS
Audio Outputs: Analogue via DIN & RCA. S/PDIF Digital via 75Ω BNC
Line Output Fixed: 2.1V rms at 1kHz
Maximum Load Impedance: Infinite
Minimum Load Impedance: 10k
Frequency Response: 10Hz - 20kHz + 0.1dB - 0.5dB
Digital Outputs: S/PDIF via 75Ω BNC
THD: <0.1% 10Hz - 18kHz at full level
Signal to Noise Ratio: >80dB
Phase Response: Absolute phase correct
CONTROL
Remote Input: 3.5mm rear panel jack (modulated/demodulated
RC5 system)
RS232: Optional Naim RS232 board
IR Remote (handheld): NARCOM 4
CD5 XS
FORMATS
CD Formats: Red Book
Disc Compatibility: CD, CD-R
POWER
Supply Voltage: 100-120V, 220-240V, 50 to 60Hz
Power Consumption: 30VA
PHYSICAL
Dimensions (mm): 432 × 301 × 70 ( W × D × H )
Weight: 6kg
Shipping Weight: 8.4kg
Shipping Dimensions (mm): 580 × 500 × 200 (W x D x H)
Colour: Black
Finish: Anodised fascia, painted cover
AUDIO OUTPUTS
Audio Outputs: Analogue via DIN and RCA
Line Output Fixed: 600mV at 100% modulation
Maximum Load Impedance: Infinite
Minimum Load Impedance: 10k
Frequency Response: -0.5dB at 12Hz, -3dB at 15kHz
THD: <0.8%
Signal to Noise Ratio: 67dB at 1mV RF input level
CONTROL
Remote Input: 3.5mm rear panel jack (modulated/demodulated
RC5 system)
IR Remote (handheld): NARCOM 4
NAT05 XS
POWER
Supply Voltage: 100-120V, 220-240V, 50 to 60Hz
Power Consumption: 15VA
PHYSICAL
Dimensions (mm): 432 × 301 × 70 ( W × D × H )
Weight: 5.5kg
Shipping Weight: 7.85kg
Shipping Dimensions (mm): 580 × 500 × 200 ( W × D × H )
Colour: Black
Finish: Anodised fascia, painted cover
AUDIO OUTPUTS
Audio Outputs: Speakers, preamp and variable sub
Power Output: 60W per channel into 8 90W per channel into 4
Tape Output Level: 130mV at 600Ω
INPUTS
Analogue Inputs: 6 DIN and RCA on rear plus 3.5mm jack on front
Input Overload: 34dB
Input Sensitivity: 130mV at 47k
CONTROL
Remote Input: 3.5mm rear panel jack (modulated/demodulated
RC5 system)
RS232: Optional Naim RS232 board
IR Remote (handheld): NARCOM 4
NAIT XS
POWER
Supply Voltage: 100-120V, 220-240V, 50 to 60Hz
Power Consumption: Max 290VA
Quiescent Power Consumption: 20VA
PHYSICAL
Dimensions (mm): 432 × 301 × 70 ( W × D × H )
Weight: 8.6kg
Shipping Weight: 11.4kg
Shipping Dimensions (mm): 580 × 500 × 200 ( W × D × H )
Colour: Black
Finish: Anodised fascia, painted cover
AUDIO OUTPUTS
Audio Outputs: Preamp, line level and variable level sub
Maximum Load Impedance: Infinite
Minimum Load Impedance: 10kΩ
Frequency Response: 4Hz - 40kHz
THD: 0.042% THD+N @1kHz, 2Vin, 0.775V out
Signal to Noise Ratio: 67dB @ 0.775V
Phase Response: Absolute phase correct
Preamp Output: 0.775V, < 50
Line Output: 130mV , 600Ω
Sub Output: 0.775V, < 150
NAC 152 XS
CONTROL
Remote Input: 3.5mm rear panel jack (modulated/demodulated
RC5 system)
RS232: Optional Naim RS232 board
IR Remote (handheld): NARCOM 4
POWER
Supply Voltage: +24V
PHYSICAL
Dimensions (mm): 432 × 301 × 70 ( W × D × H )
Weight: 3.8kg
Shipping Weight: 6.4kg
Shipping Dimensions (mm): 580 × 500 × 200 (W x D x H)
Colour: Black
Finish: Anodised fascia, painted cover
AUDIO OUTPUTS
Audio Outputs: Speakers
Power Output: 60W per channel into 8 , 90W per channel into 4
Voltage Gain: +29dB
Minimum Load Impedance: 2
Frequency Response: 4Hz - 75kHz
THD: 0.013%
Signal to Noise Ratio: 100dB
Phase Response: Absolute phase correct
NAP 155 XS
POWER
Supply Voltage: 100-120V, 220-240V, 50 to 60Hz
Power Consumption: Max 330VA
Quiescent Power Consumption: 16VA
PHYSICAL
Dimensions (mm): 432 × 301 × 70 ( W × D × H )
Weight: 7.9kg
Shipping Weight: 10.5kg
Shipping Dimensions (mm): 580 × 500 × 200 ( W × D × H )
Colour: Black
Finish: Anodised fascia, painted cover
AUDIO OUTPUTS
DC Outputs: 2 × 24V Dual Rail
POWER
Mains Supply: 100-120V, 220-240V, 50 to 60Hz
FlatCap XS
PHYSICAL
Dimensions (mm): 432 × 301 × 70 ( W × D × H )
Weight: 5.5kg
Shipping Weight: 7.5kg
Shipping Dimensions (mm): 580 × 500 × 200 (W x D x H)
Colour: Black
Finish: Anodised fascia, painted cover
