W4300H - Lave-linge industriel ELECTROLUX LAUNDRY SYSTEMS - Notice d'utilisation et mode d'emploi gratuit
Retrouvez gratuitement la notice de l'appareil W4300H ELECTROLUX LAUNDRY SYSTEMS au format PDF.
| Type de produit | Lave-linge industriel |
| Marque | ELECTROLUX LAUNDRY SYSTEMS |
| Modèle | W4300H |
| Capacité maximale | 33 kg |
| Volume du tambour | 300 litres |
| Diamètre du tambour | 795 mm |
| Vitesse d'essorage | 820 tr/min |
| Facteur G | 300 |
| Alimentation électrique | 230 V 3 AC 50 Hz, 400 V 3N 50 Hz, etc. |
| Puissance de chauffage | 19,4 kW (électrique) |
| Consommation d'eau (cycle normal 60°C) | 219 L eau froide / 51 L eau chaude |
| Consommation d'énergie (cycle normal) | 0,55 kWh (moteur) + 1,25 kWh (chauffage) |
| Niveau sonore (pression) | 76 dB(A) |
| Niveau sonore (puissance) | 83 dB(A) |
| Dimensions (L x P x H) | 1020 x 1060 x 1445 mm |
| Poids net | 509 kg |
| Poids brut (emballé) | 528 kg |
| Diamètre d'ouverture de porte | 435 mm |
| Types de commandes | Compass Control® ou Clarus Control® |
| Fonctions principales | AWS (pesée automatique), SuperBalance™, faible consommation, faible niveau sonore |
| Options disponibles | Alimentation automatique de lessive liquide, IWS, panneaux latéraux inox, connexion à système de paiement, etc. |
| Raccordement eau | DN20, pression 150-400 kPa |
| Raccordement vapeur | DN15, pression 300-600 kPa (option) |
| Nombre de compartiments bac à savon | 4 |
FOIRE AUX QUESTIONS - W4300H ELECTROLUX LAUNDRY SYSTEMS
Questions des utilisateurs sur W4300H ELECTROLUX LAUNDRY SYSTEMS
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Lave-linge industriel au format PDF gratuitement ! Retrouvez votre notice W4300H - ELECTROLUX LAUNDRY SYSTEMS et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil W4300H de la marque ELECTROLUX LAUNDRY SYSTEMS.
MODE D'EMPLOI W4300H ELECTROLUX LAUNDRY SYSTEMS
Washer extractor
W4300H
Features and benefits
- High extraction force for efficient dewatering
- Available with two types of program controls:
Compass Control® with:
Large display and one dial for easy program selection
- Language selection
- Two Quick Start buttons for frequently used wash programs
- Wash program packages optimized on Economy, Performance and Time
Clarus Control® with:
- Fully programmable microprocessor
- All relevant wash parameters can be programmed
-
Programming from key pad or downloading via memory card
-
AWS - Automatic Weighing System with Compass Control - determine the wash load and adopt the water intake accordingly. Savings on water and energy if machine is not fully loaded
- Extremely low water and energy consumption – see table below
- Four compartment soap box for manual dosing of powder or liquid detergent
- Stainless steel front panel and grey side panels
Large door opening for easy loading/unloading - Low noise level, for pleasant working environment
SuperBalance™ guarantees the correct extraction force

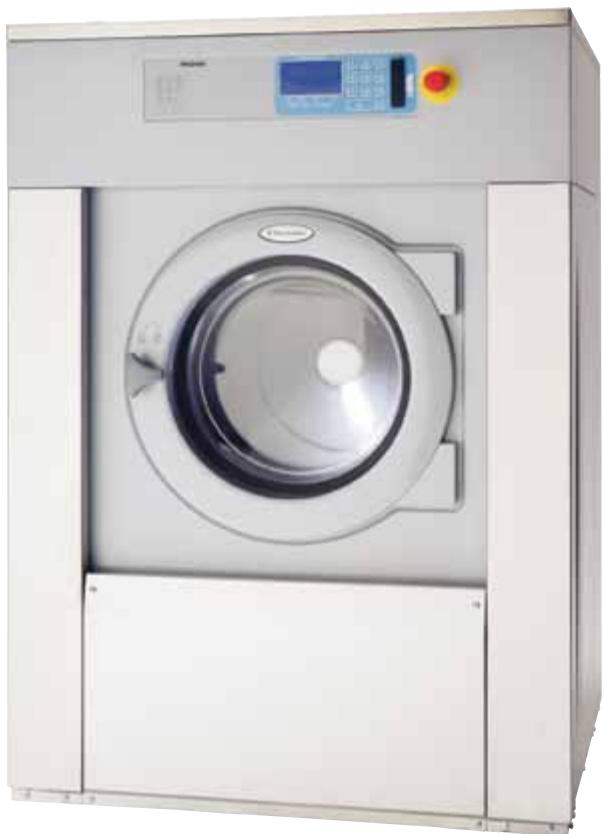

Clarus Control
Compass Control
Main options
Automatic liquid detergent supply (optional I/O board for Compass Control)
- IWS – Integrated Weighing System™ – actual load will be shown in the display (Clarus Control only)
- Stainless steel side panel (Clarus Control only)
- Connection to payment system or coin meter (Compass Control only)
- Dual drain valves for water re-use (Clarus Control only)
| Main specifications | W4300H | |||
| Max. capacity | kg/lb | 33/75 | ||
| Drum, volume diameter | litreø mm | 300795 | ||
| Extraction | rpm | 820 | ||
| G-factor | 300 | |||
| Heating alternatives, 230/400V | electricitykW | 19.4x | ||
| steam | ||||
| non-heated | x | |||
| Consumption data "Normal 60°C" * (3G01) | EI | Steam | ||
| Total time | min | 47 | ** | |
| Water consumption (cold/hot) | litre | 219/51 | 202/52 | |
| Energy consumption (motor/heating) | kWh | 0.55/1.25 | 0.55 | |
| Steam consumption | kg | - | 2 | |
| * Water temperature 15°C cold water and 65°C hot water. ** Depending on steam pressure. | ||||
| Electrical connections* | W4300H | |
| Heating Voltage | ||
| EI. | 230V 3 AC 50 Hz kW(A) | 19.4(63) |
| 208-240V 3AC 60 Hz kW(A) | 19.4(63) | |
| 400-415V 3N AC 50 Hz kW(A) | 19.4(35) | |
| Steam | 230V 1AC 60 Hz kW(A) | 2.1(10) |
| or | 208-240V 1AC 60 Hz kW(A) | 2.1(10) |
| non-heated 230V 1AC 50 Hz kW(A) | 2.1(10) | |
| Water and steam connection | ||
| Water valves | DN | 20 |
| Water pressure | kPa | 150-400 |
| Capacity at 300 kPa | l/min | 60 |
| Drain valve | ø mm | 75 |
| Draining capacity | l/min | 170 |
| Steam valve | DN | 15 |
| Steam pressure | kPa | 300-600 |
| Liquid detergent supplies | 5 | |
| Floor requirements | ||
| Frequency of the dynamic force | Hz | 13.7 |
| Max floor load at extraction | kN | 5.5 ± 1.3 |
| Sound levels | ||
| Sound pressure level** | dB(A) | 76 |
| Sound power level (IEC 60704-2-4) | dB(A) | 83 |
| Heat emission | ||
| % of installed power, max | 5 | |
| Shipping data | ||
| Weight | net, kg | 509 |
| crated, kg | 528 | |
| Shipping volume | m³ | 2.1 |
| Accessories | ||
| Steel base frame | x | |
| Water re-use tank (Clarus Control) | x | |
| Hose kits for water or steam | x | |
| Dimensions in mm | ||
| A Width | 1020 | |
| B Depth | 1060 | |
| C Height | 1445 | |
| D | 500 | |
| E | 1135 | |
| F | 1155 | |
| G | 100 | |
| H | 1360 | |
| I | 215 | |
| K | 1320 | |
| L | 300 | |
| M | 380 | |
| N | 100 | |
| O | 360 | |
| P | 330 | |
| 1 Electrical connections | 6 Liquid supply connections | |
| 2 Cold water | 7 Control panel | |
| 3 Hot water | 8 Soap box | |
| 4 Steam connection | 9 Door opening Ø435 | |
| 5 Drain | ||
- Other voltages available, see installation manual.
** Approx. value at operators position in a mid-size laundry room.

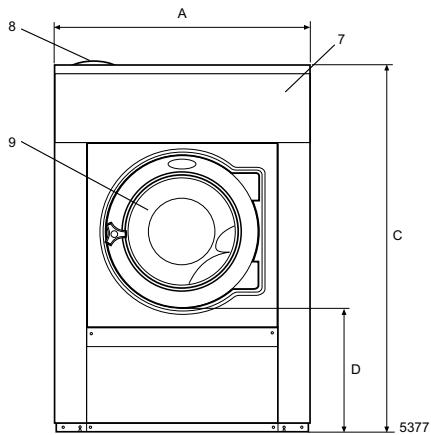

Front

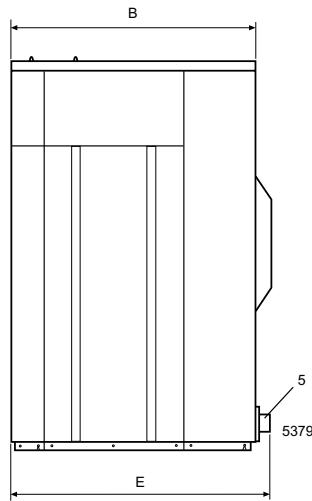

Right side

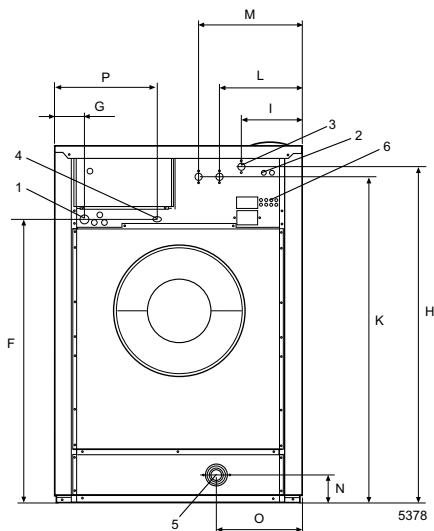

Rear side
