RECODE MULTIMEDIA SUITE 10 - Logiciel de multimédia NERO - Notice d'utilisation et mode d'emploi gratuit

Intitulé	Description
Type de produit	Logiciel de montage vidéo et audio
Caractéristiques techniques principales	Support de formats variés, outils d'édition avancés, effets spéciaux, et options de gravure
Compatibilités	Windows 10, 8, 7
Fonctions principales	Montage vidéo, conversion de fichiers, gravure de DVD, création de diaporamas
Interface utilisateur	Interface intuitive avec des options de glisser-déposer
Maintenance et mise à jour	Mises à jour régulières disponibles via le site officiel
Support technique	Assistance en ligne et documentation disponible
Sécurité	Compatible avec les logiciels antivirus, vérification des fichiers importés
Informations générales	Version complète avec toutes les fonctionnalités, possibilité d'essai gratuit

FOIRE AUX QUESTIONS - RECODE MULTIMEDIA SUITE 10 NERO

Comment installer NERO RECODE MULTIMEDIA SUITE 10 ?

Pour installer NERO RECODE MULTIMEDIA SUITE 10, insérez le disque dans votre lecteur ou téléchargez le fichier d'installation depuis le site officiel. Suivez ensuite les instructions à l'écran pour compléter l'installation.

Comment résoudre les problèmes de compatibilité avec Windows ?

Assurez-vous que votre version de Windows est compatible avec NERO RECODE MULTIMEDIA SUITE 10. Vous pouvez vérifier la liste des systèmes d'exploitation pris en charge sur le site officiel de NERO.

Pourquoi NERO RECODE ne reconnaît-il pas certains fichiers multimédias ?

NERO RECODE peut ne pas reconnaître certains fichiers si les codecs nécessaires ne sont pas installés. Assurez-vous que les codecs appropriés sont installés sur votre système ou essayez de convertir les fichiers dans un format pris en charge.

Comment mettre à jour NERO RECODE MULTIMEDIA SUITE 10 ?

Pour mettre à jour NERO RECODE, ouvrez le logiciel et allez dans le menu 'Aide'. Sélectionnez 'Vérifier les mises à jour' et suivez les instructions pour installer la dernière version.

Comment récupérer des projets perdus dans NERO RECODE ?

Si vous avez perdu un projet, vérifiez le dossier 'Projets' dans NERO RECODE. Si le projet n'est pas là, il se peut qu'il ait été supprimé. Malheureusement, il n'y a pas d'outil de récupération intégré.

Que faire si NERO RECODE plante lors de l'utilisation ?

Si le logiciel plante, essayez de le redémarrer. Si le problème persiste, vérifiez les mises à jour, désinstallez et réinstallez le logiciel ou vérifiez la configuration de votre système pour des conflits éventuels.

Comment contacter le support technique de NERO ?

Pour contacter le support technique de NERO, visitez leur site web officiel et accédez à la section 'Support'. Vous y trouverez des options pour soumettre un ticket ou utiliser le chat en direct.

NERO RECODE ne termine pas le processus de gravure, que faire ?

Si NERO RECODE ne termine pas la gravure, vérifiez que le disque est compatible et en bon état. Assurez-vous également que votre lecteur de disque fonctionne correctement et qu'il dispose des derniers pilotes.

Comment personnaliser les paramètres de sortie dans NERO RECODE ?

Pour personnaliser les paramètres de sortie, ouvrez le logiciel, sélectionnez le format de sortie souhaité, puis cliquez sur 'Paramètres' pour ajuster la qualité, la résolution et d'autres options selon vos besoins.

MODE D'EMPLOI RECODE MULTIMEDIA SUITE 10 NERO

nero

Multimedia Suite 10

Manual

Nero Recode

Copyright and Trademark Information

This document, like the software described therein, is provided as a license and may only be used or reproduced in accordance with the licensing agreement. The contents of this document, as well as the associated software, is subject to change without prior notice. Nero AG rejects any responsibility for the correctness of the contents of this document and rejects any claims that transcend the clauses of the guarantee agreement.

This document and all of its contents are protected by copyright and are the property of Nero AG. All rights reserved. In addition, this document contains material that is protected by internationally valid copyright. This document may not be reproduced, transmitted, or transcribed in whole or in part without the express written permission of Nero AG.

Please keep in mind that existing graphics, pictures, videos, music titles or other materials that you may wish to insert or transcribe into projects may be protected by copyright. The unauthorized use of this type of material in your projects may violate the rights of the owner of the copyright. Make sure that you obtain all necessary authorizations from the owner of the copyright.

Unless you own the copyright, have permission from the copyright owner or your actions fall under the "fair use" provisions of copyright law, you may be violating national or international copyright laws. The transcribing, duplication, modification or publication of copyright-protected material may lead to claims for damages and the enforcement of other legal measures against you. If you are unsure of your rights, you should contact your legal advisor.

Some Nero Multimedia Suite applications require technologies developed by third-party manufacturers and may be included in Nero Multimedia Suite as demo versions. These applications can be activated online free of charge or by sending an activation fax to have unlimited use of the version. Nero will only transmit the data necessary for activation of the technology licensed from third parties. For unlimited use of Nero Multimedia Suite, it is therefore necessary to have an Internet connection or a fax machine.

Copyright © 2006 - 2010 Nero AG and its licensors. All rights reserved.

Nero, Nero BackItUp, Nero BackItUp & Burn, Nero Burning ROM, Nero Digital, Nero DMA Manager, Nero Essentials, Nero Express, Nero ImageDrive, Nero LiquidTV, Nero MediaHome, Nero MediaHub, Nero MediaStreaming, Nero Move it, Nero Music2Go, Nero PhotoDesigner, Nero PhotoSnap, Nero Recode, Nero RescueAgent, Nero Simply Enjoy, Nero SmartDetect, Nero SmoothPlay, Nero StartSmart, Nero Surround, Nero Vision, Nero Vision Xtra, Burn-At-One, InCD, LayerMagic, Liquid Media, the SecurDisc logo, and UltraBuffer are common law trademarks or registered trademarks of Nero AG.

Adobe, Acrobat, Acrobat Reader and Premiere are trademarks or registered trademarks of Adobe Systems, Incorporated. AMD Athlon, AMD Opteron, AMD Sempron, AMD Turion, ATI Catalyst and ATI Radeon are trademarks or registered trademarks of Advanced Micro Devices, Inc. ATSC is a trademark of the Advanced Television Committee. ICQ is a registered trademark of AOL, LLC. Apple, iPhoto, iPod, iTunes, iPhone, FireWire, and Mac are trademarks or registered trademarks of Apple, Inc. ARM is a registered trademark of ARM, Ltd. AudibleReady is a registered trademark of Audible, Inc. BenQ is a trademark of the BenQ Corporation. Blu-ray Disc is a trademark of Blu-ray Disc Association. CyberLink is a registered trademark of CyberLink Corp. DLNA is a registered trademark of Digital Living Network Alliance. DivX and DivX Certified are registered trademarks of DivX, Inc. Dolby, Pro Logic and the double-D symbol are trademarks or registered trademarks of Dolby Laboratories, Inc. DTS and DTS Digital Surround are registered trademarks of DTS, Inc. DVB is a registered trademark of the DVB Project. Freescale Semiconductor, Inc. Google and YouTube are trademarks of Google, Inc. WinTV is a registered trademark of Hauppauge Computer Works, Inc. Intel, Intel XScale, Pentium and Core are trademarks or registered trademarks of Intel Corporation. Linux is a registered trademark of Linus Torvalds. Memorex is a registered trademark of Memorex Products, Inc. ActiveX, ActiveSync, DirectX, DirectShow, Internet Explorer, Microsoft, HDI, MSN, Outlook, Windows, Windows Mobile, Windows NT, Windows Server, Windows Vista, Windows Media, Xbox, Xbox 360, the Windows Vista start button and the Windows logo are trademarks or registered trademarks of Microsoft Corporation. My Space is a trademark of MySpace, Inc. NVIDIA, GeForce and ForceWare are trademarks or registered trademarks of NVIDIA Corporation. Nokia is a registered trademark of Nokia Corporation. CompactFlash is a registered trademark of SanDisk Corporation. Sony, Memory Stick, PlayStation, PLAYSTATION and PSP are trademarks or registered trademarks of Sony Corporation. HDV is a trademark of Sony Corporation and Victor Company of Japan, Limited (JVC). UPnP is a registered trademark of the UPnP Implementers Corporation. Labelflash is a registered trademark of Yamaha Corporation.

The trademarks mentioned here are named for information purposes only. All trade names and trademarks are the property of their respective owners.

Nero AG, Im Stoeckmaedle 13, D-76307 Karlsbad, Germany

Table of contents

1 Start Successfully 5
1.1 About the Manual 5
1.2 About This Application 5
1.3 Versions of Nero Recode 5
1.4 Working With Nero Recode 6
2 Starting the Program 8
3User Interface 9
3.1 Main Window 9
3.1.1 Extended area - Main window 10
3.2 Basic Settings 11
3.2.1 General Tab 12
3.2.2 DVD Tab 12
3.2.3 Nero Digital Tab 13
3.2.4 Audio Tab 14
3.2.5 File I/O Tab 14

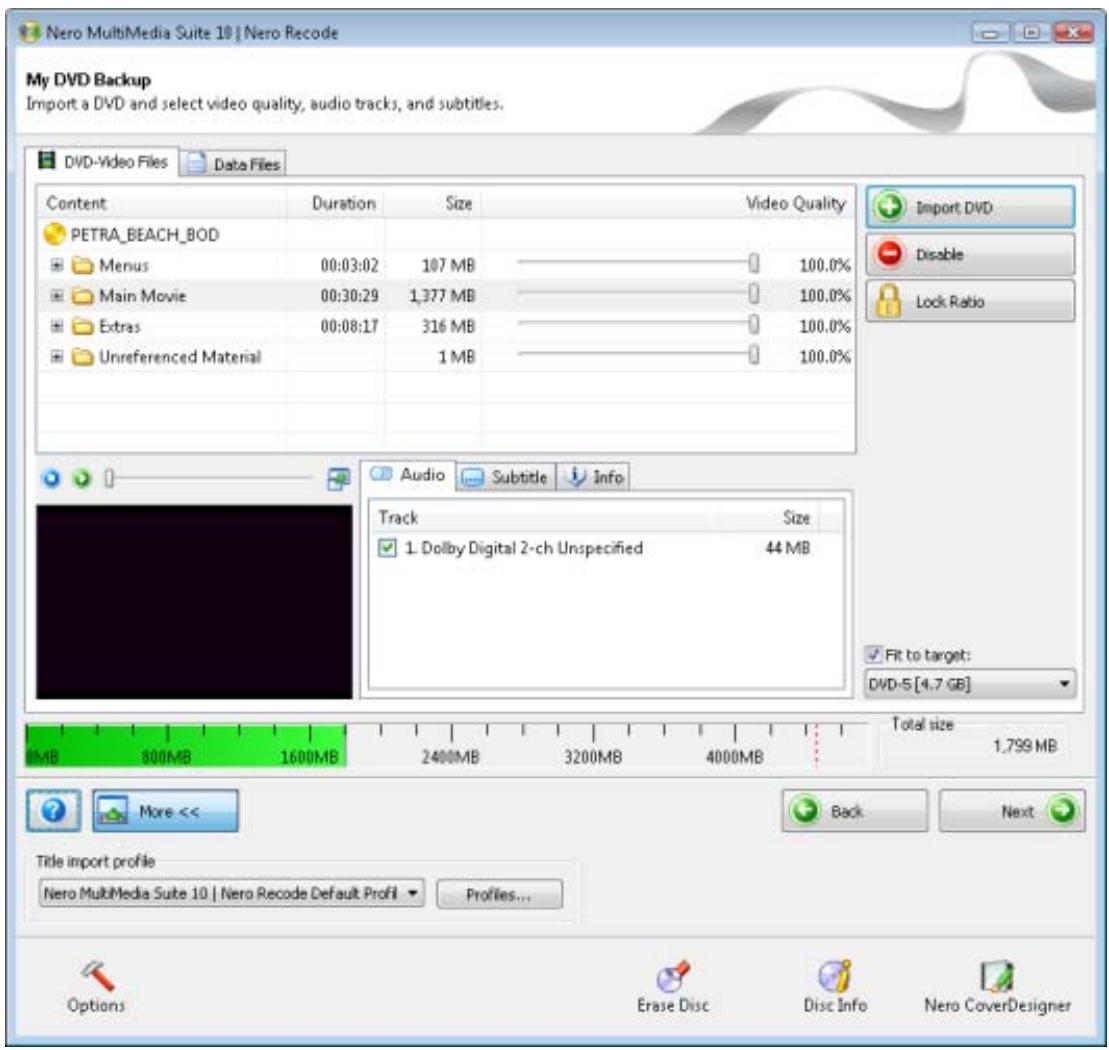

3.3 Import Screen 15
3.3.1 DVD-Video Files/Nero Digital Titles Tab 16
3.3.2 Data Files Tab 18
3.3.3 Title Import Profiles 19

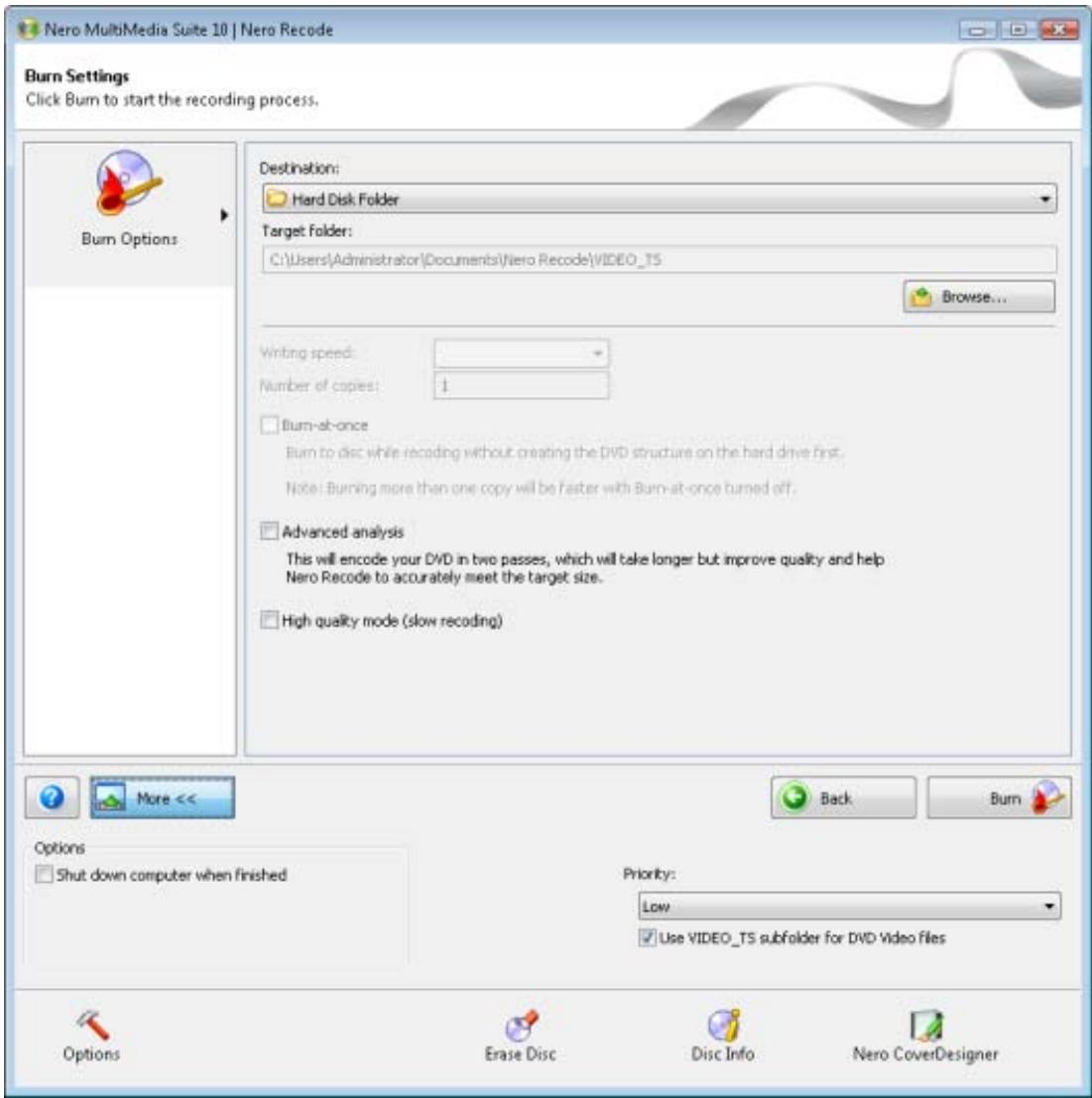

3.4 Burn Settings screen 20
3.4.1 Extended Area (Burn Settings) 22

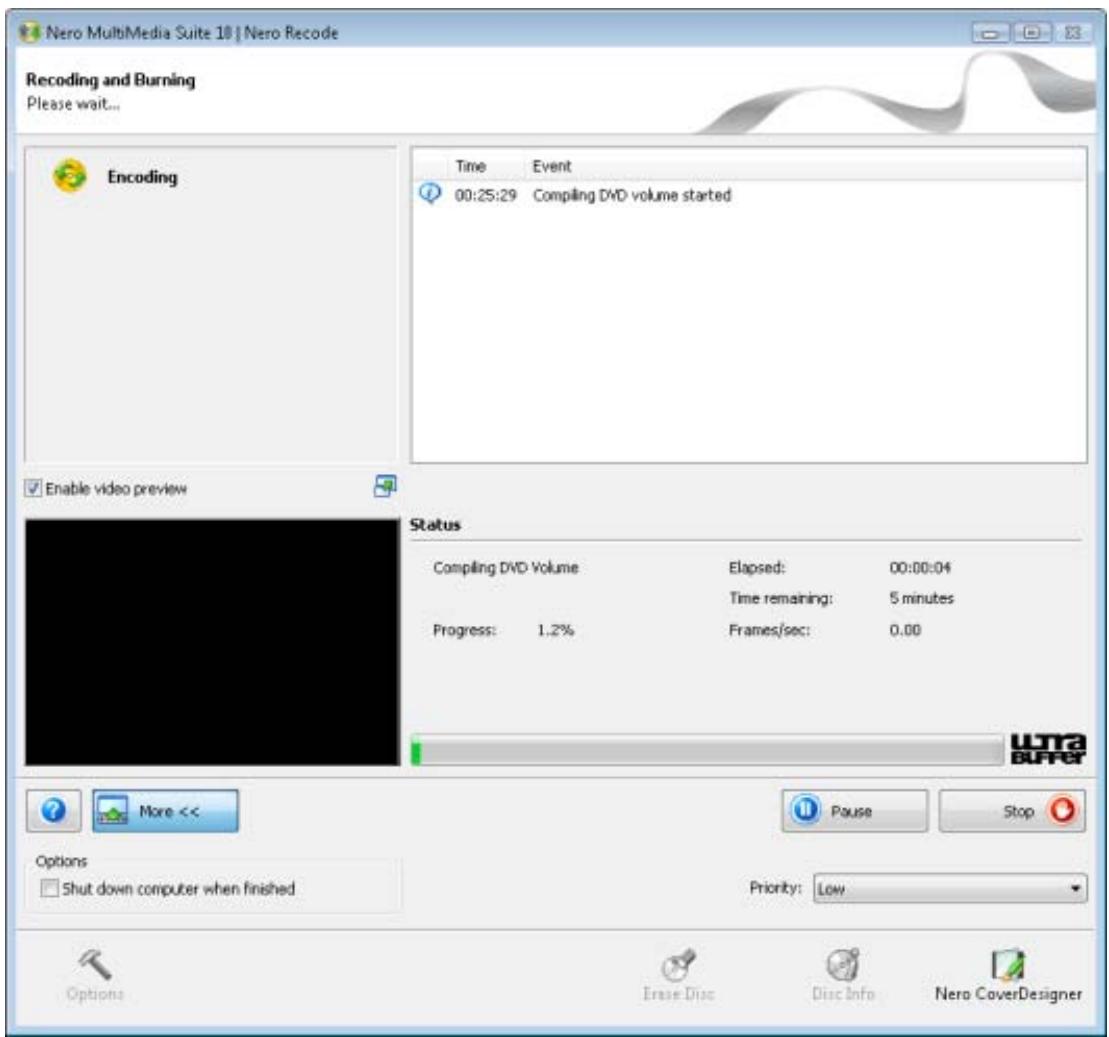

3.5 Recoding And Burning Screen 23
3.5.1 Extended Area - Recoding and Burning 25
4 Recoding an Entire DVD 26

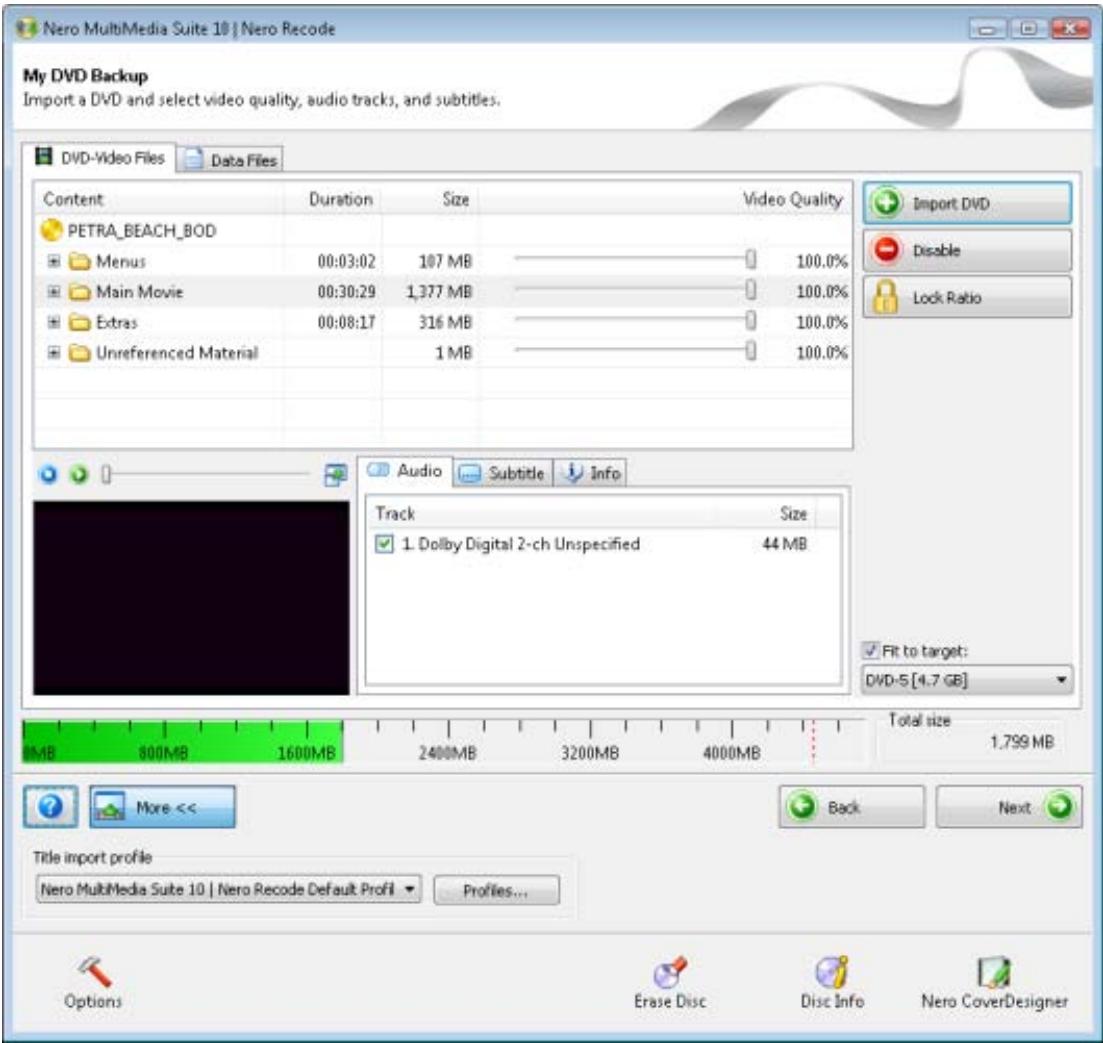

4.1 Setting Options For Recoding an Entire DVD 26
4.2 Recoding an Entire DVD to DVD 27
5 Recoding a main movie to DVD 30

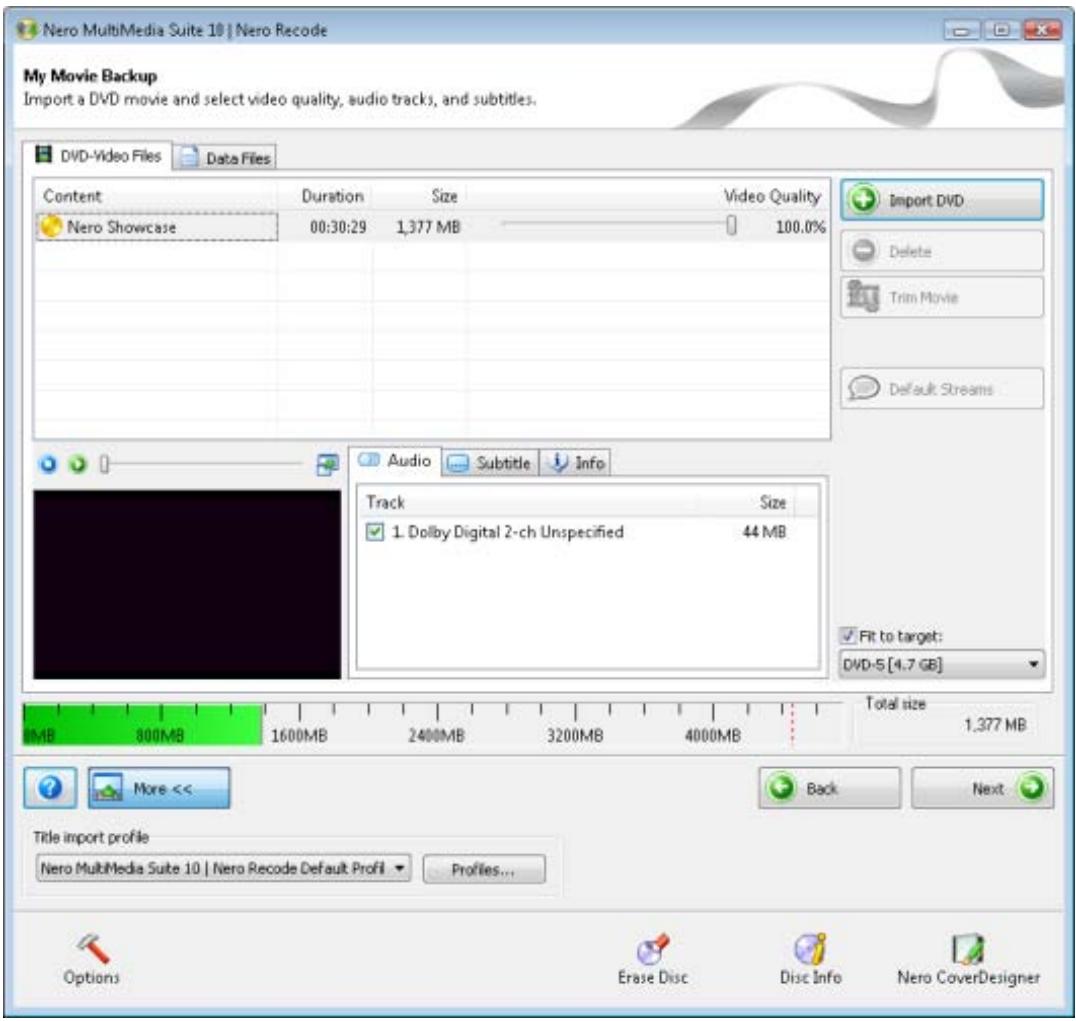

5.1 Setting Options For Recoding a Main Movie to DVD 30

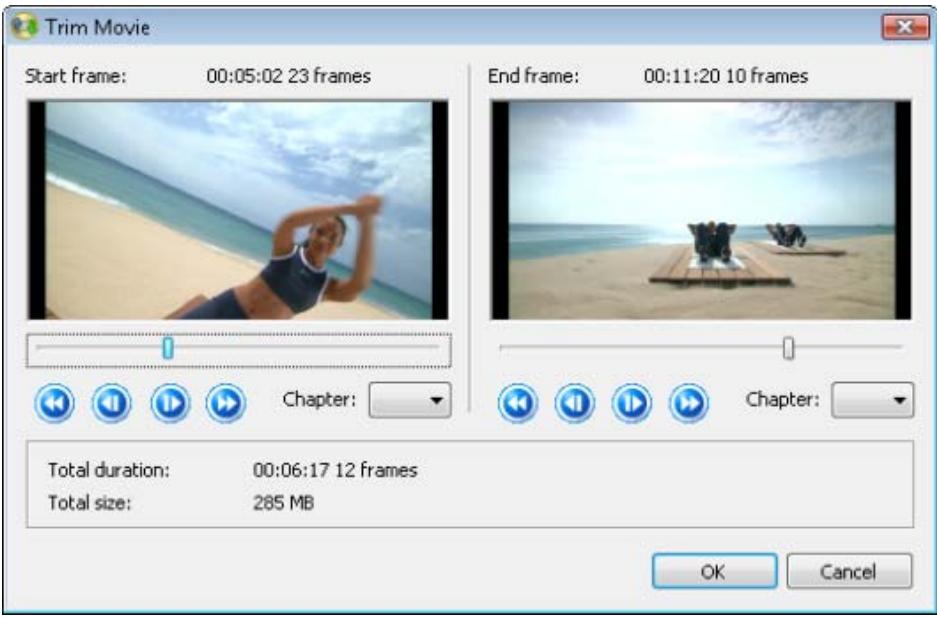

5.2 Trim Movie Window 31

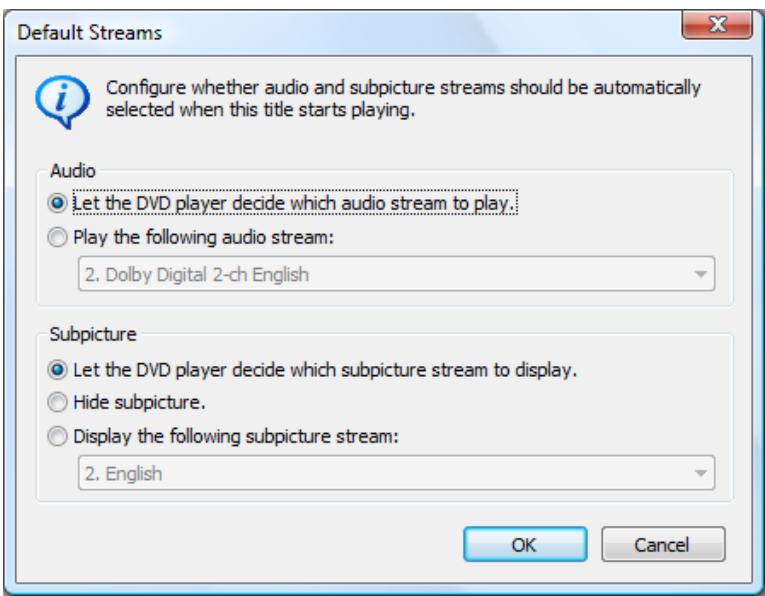

5.3 Default Streams Window 32
5.4 Recoding a Main Movie to DVD 33
6 Compiling a DVD 36

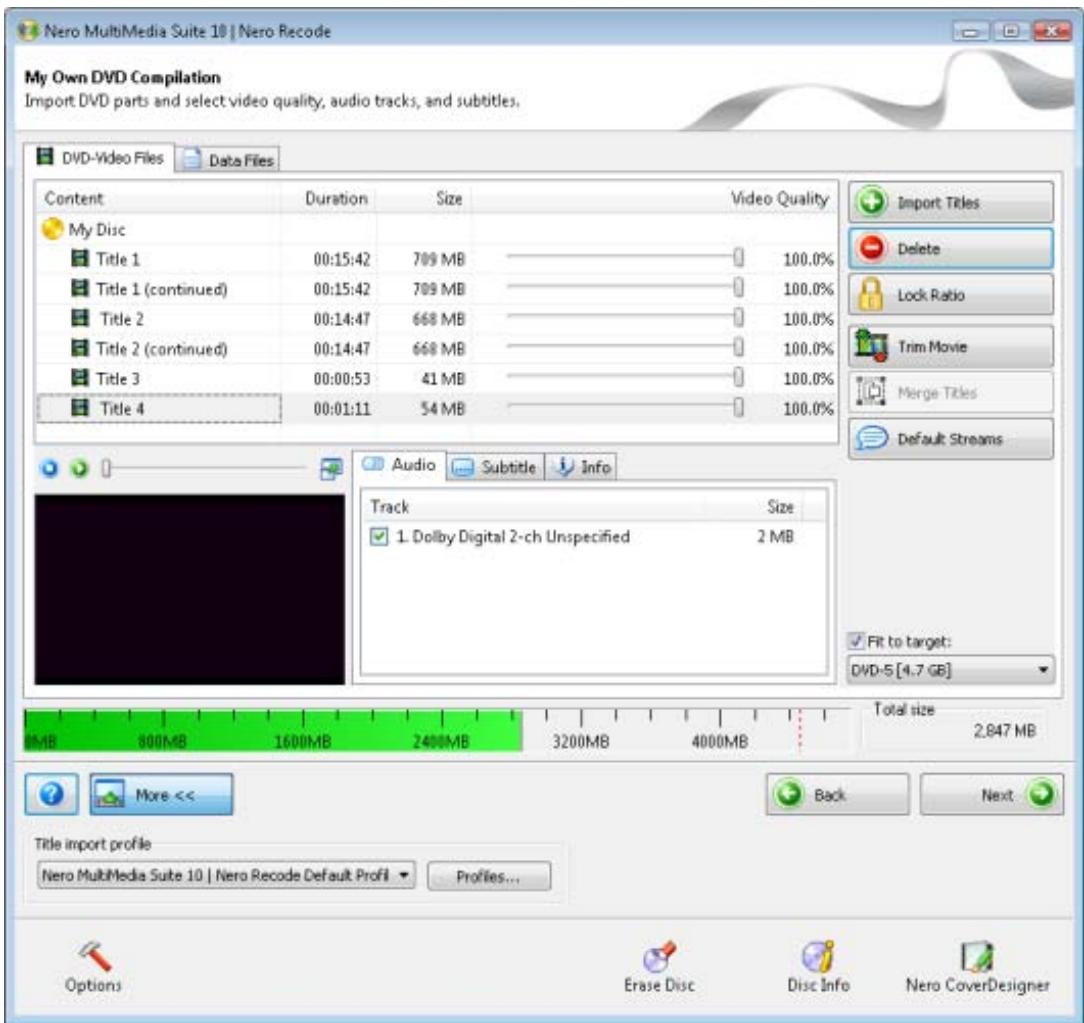

6.1 Setting Options for Compiling a DVD 36
6.2 Compiling a DVD 37
7 Recoding a DVD to Nero Digital 41
7.1 Setting Options for Recoding a DVD to Nero Digital 41

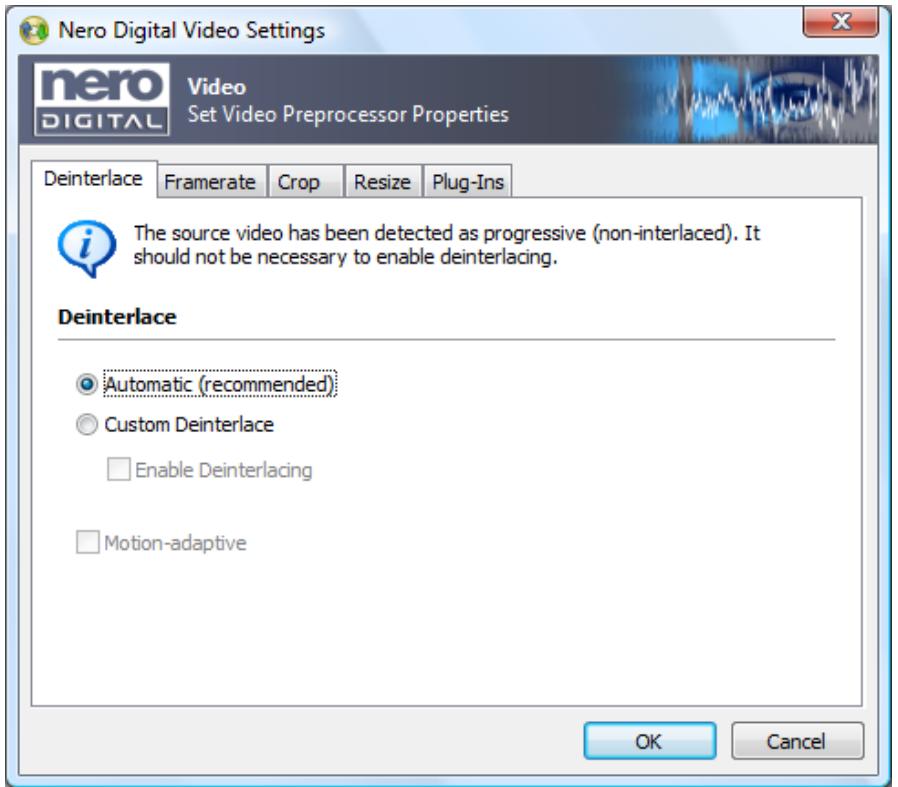

7.2 Nero Digital Video Settings 44

Table of contents

7.2.1 Deinterlace Tab 45
7.2.2 Frame Rate Tab 45
7.2.3 Crop Tab 46
7.2.4 Resolution Tab 46
7.2.5 Plug-ins Tab 47

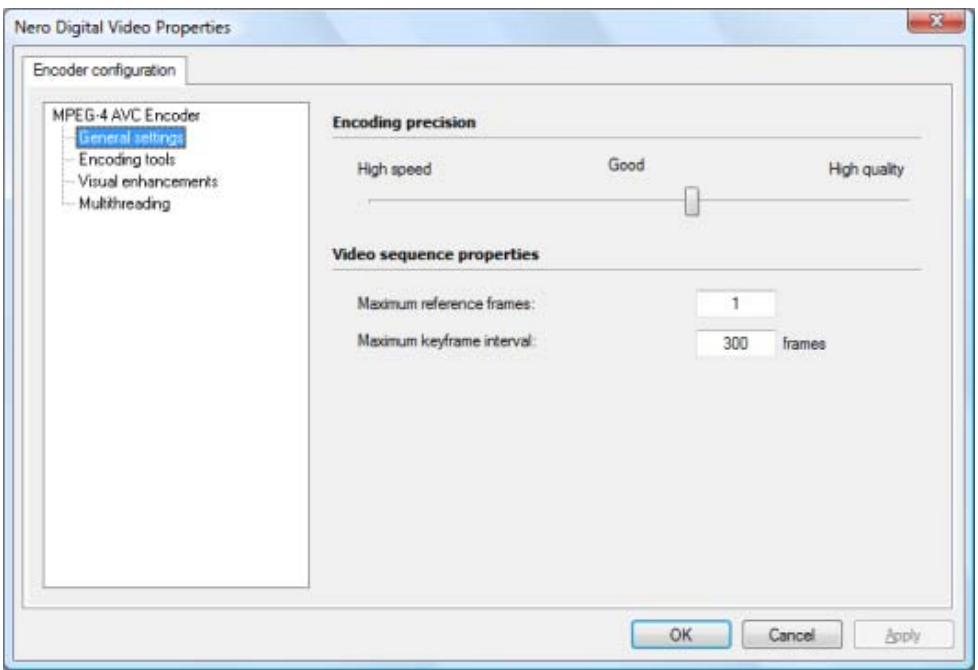

7.3 Encoder Settings 48
7.3.1 General Settings 49
7.3.2 Encoding Tools 50
7.3.3 Visual Enhancements 51
7.3.4 Multithreading 51
7.4 Nero Digital Audio Settings 51

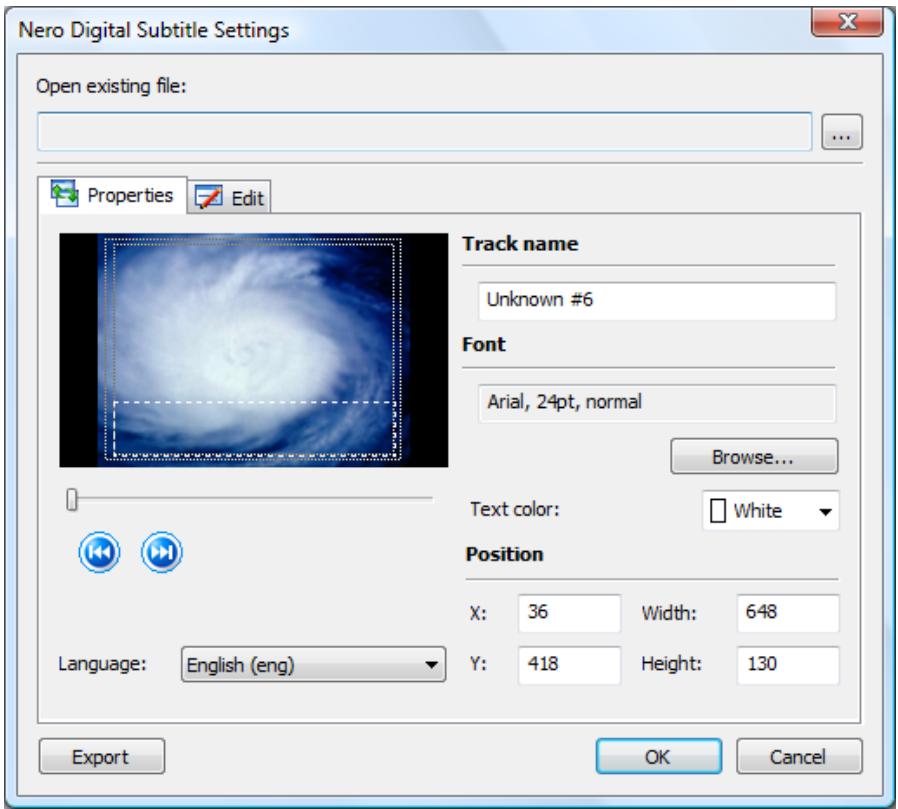

7.5 Nero Digital Subtitle Settings 52
7.5.1 Subtitle Formats 54
7.6 Chapters Window 55
7.7 Recoding DVDs And Videos to Nero Digital 56
8 Recoding a Main Movie to Nero Digital 60

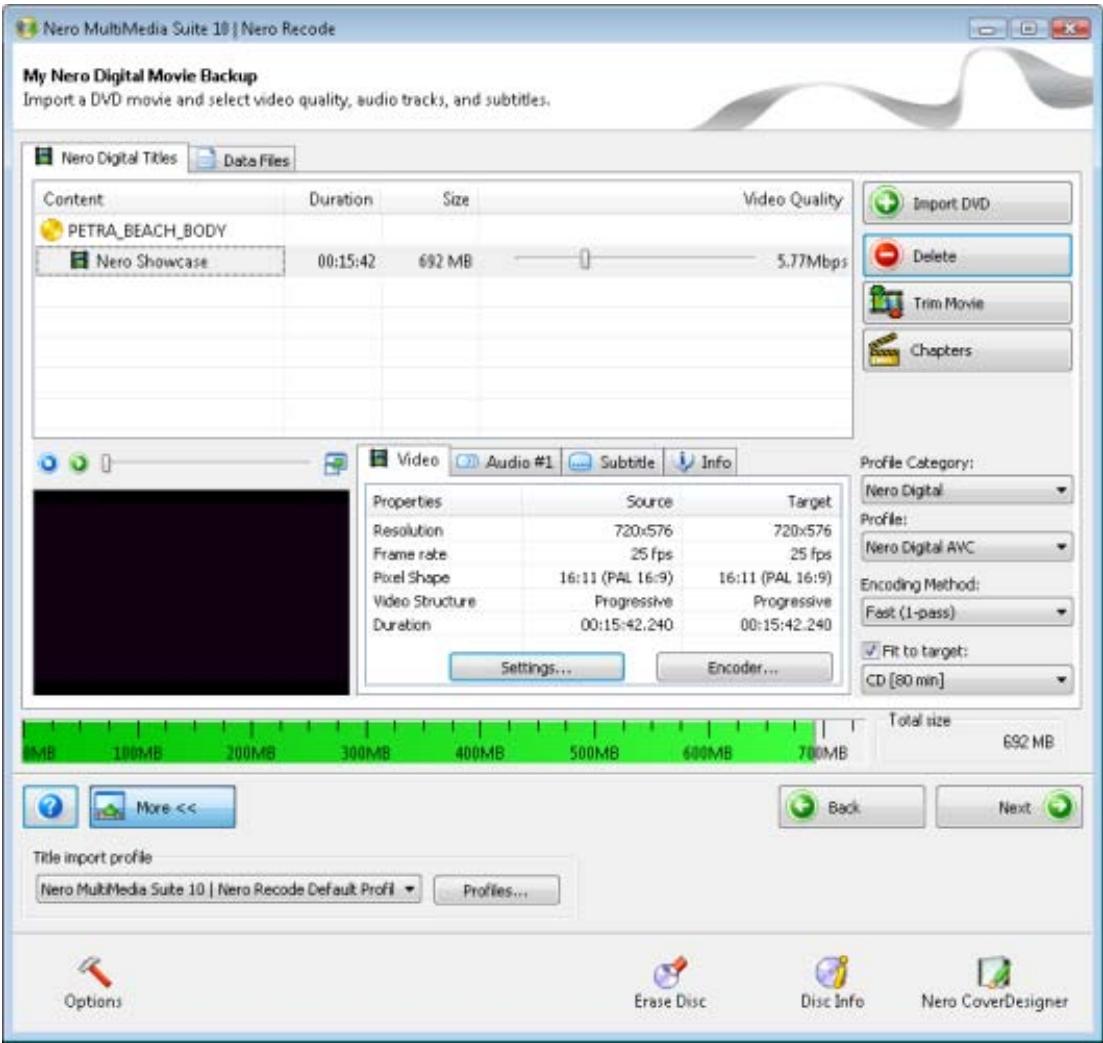

8.1 Setting Options For Recoding a Main Movie to Nero Digital 60
8.2 Recoding a Main Movie to Nero Digital 61
9 Technical Information 64
9.1 System Requirements 64
9.2 Key Combinations 64
10 Index 65
11 Contact 68

1 Start Successfully

1.1 About the Manual

This manual is intended for all users who want to learn how to use Nero Recode. It is process-based and explains how to achieve a specific objective on a step-by-step basis.

To make best use of this documentation, please note the following conventions:

○	Indicates warnings, preconditions or instructions that have to be precisely followed.
○	Indicates additional information or advice.
1. Start ...	The number at the beginning of a line indicates a prompt for action. Carry out these actions in the order specified.
→	Indicates an intermediate result.
→	Indicates a result.
OK	Indicates text passages or buttons that appear in the program interface. They are shown in boldface.
(see...)	Indicates references to other chapters. They are executed as links and are shown in red and underlined.
[...]	Indicates keyboard shortcuts for entering commands.

1.2 About This Application

Nero Recode allows you to copy non-copy-protected DVD videos to DVD, which is a method of archiving your content. If the source video is larger than 4.7 GB, it is compressed to fit on a single-layer DVD without loss of quality.

You can also exclude unwanted material on the source DVD from the copying process (including subtitles or soundtracks) thereby making space for additional videos or for better video quality. The target DVD can also be written to the hard drive as a DVD video index or as a so-called disc image.

Of course, you can also compile content from different (non-copy protected) DVDs, export them to the innovative Nero Digital MPEG-4/H.264 AVC format and burn them to create your own collection.

No matter whether the video is intended for playing on mobile devices or HDTV, the various export profiles allow you to adjust the output format to your requirements - and you always get the best quality for your respective file size thanks to the various export profiles.

Thus, Nero Recode lets you copy, recompile, and recode the content of DVs and DVDs and then to burn the results to disc.

1.3 Versions of Nero Recode

Nero Recode is also offered in versions different from the full version. These versions differ from the full version in the scope of their features, i.e. they cannot perform all the tasks described in this manual, and the user interface is adapted to the specific version.

The following versions are available:

Nero Recode

Full version

Nero Decode Essentials

The following features of the full version may not be included:

PSP export function
iPod export function

Nero Recode Essentials SE

Exclusive features:

• Recode an entire DVD to DVD
  Burn function (via Nero API)

Nero Recode Essentials CE

The following features of the full version are not included:

Recode an entire DVD
Recoding a main movie to DVD
Change the structure of a DVD

1.4 Working With Nero Recode

Basically, choose the task you wish from the selection in the Nero Recode main window. This manual contains a chapter for each task that describes all of the steps required for its completion.

To complete the task, you simply navigate through the different steps (a new screen is displayed for each step). For each screen, the manual contains a chapter in which all areas are described in detail.

All the tasks that you can carry out with Nero Recode are basically divided into four steps:

Selecting the required task
- Importing the files you want to recode
Setting the options for Nero Digital and for the burn process
Recoding and burning the disc

Use the Next and Back buttons to move back and forth through the three screens while performing a task. This means that you can also change settings that you have already made and undo actions.

Each screen contains tool tips, detailed information and explanations for the buttons, icons and menus. Move the mouse pointer over a control element for a few seconds to see the tool tip.

You should know the following definitions in Nero Recode:

Encoding	Means the conversion of a video of any format into another format, e.g. MPEG-2 or Nero Digital (MPEG-4). A corresponding encoder is required for each target format.
Transcoding	Means the conversion of a video from one particular format into another, e.g. from Xvid to MPEG-2. In this manual transcoding is used synonymously with encoding.
Recoding	Means the conversion of an existing video with certain properties (e.g. bit rate 2500 kbps) into the same format with different properties (e.g. bit rate 1990 kbps).
Decoding	Means opening or playing a video that has been encoded in a particular format.

The best way to create a simple 1:1 copy of a DVD is by using Nero Express or Nero Burning ROM. There is no compression whatsoever in this case. The recordable disc used must have as much free disk space as is shown for the content of the original DVD.

You can find detailed instructions on how to work with the application in the separate Nero Express and Nero Burning ROM user manuals.

Copyright

Unless you possess the copyright yourself, or at least have the permission of the copyright holder, the unauthorized reproduction of discs may be a breach of national or international law and may lead to severe penalties!

2 Starting the Program

To start Nero Recode via Nero StartSmart, proceed as follows:

1. Click the Nero StartSmart icon.
   The Nero StartSmart window is opened.
2. Click the button.
   The list of Nero applications is displayed.

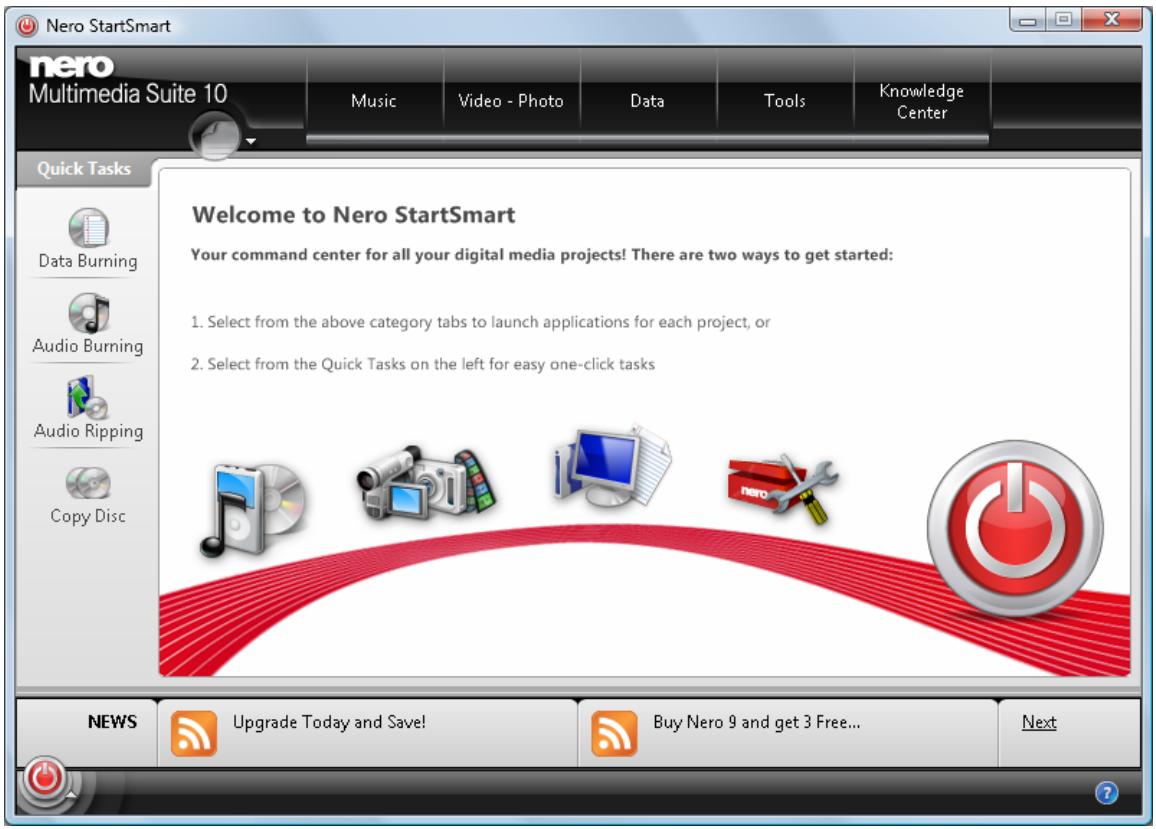

Nero StartSmart window

1. Select the Nero Recode entry in the selection list.

The Nero Decode window is opened.
You have started Nero Decode via Nero StartSmart.

3 User Interface

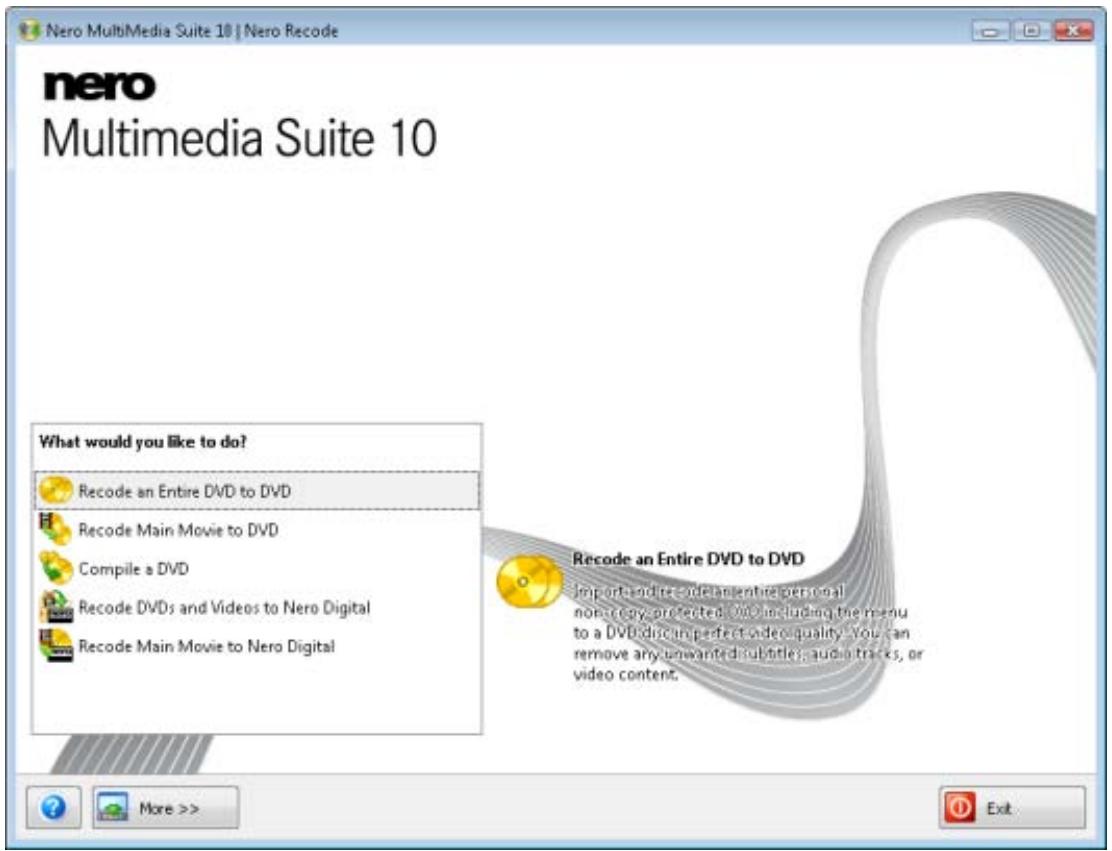

3.1 Main Window

The Nero Recode user interface consists of a main window and an extended area. After selecting a task in the Nero Recode screen, complete the task by navigating through the various steps with a new screen displayed for each.

Main window

The following selection options are available in the Nero Recode main window:

Recoding an Entire DVD to DVD	Imports DVDs including their menus and extras. Unwanted audio tracks, subtitles or video content can be removed and the structure of the video titles can be changed.
Recoding Main Movie to DVD	Imports the main movie on a DVD without menus and extras. Unwanted audio tracks, subtitles or video content can be removed and the structure of the video titles can be changed.
Compiling a DVD	Imports video titles and compiles an individual DVD from one or more DVDs. Unwanted audio tracks, subtitles or video content can be removed and the structure of the video titles can be changed.
Recoding DVDs and Videos to Nero Digital	Imports video titles from one or more DVDs and converts them to Nero Digital (MPEG-4) files. Unwanted audio tracks, subtitles or video content can be removed and the structure of the video titles can be changed.
Recode Main Movie to Nero Digital	Imports the main movie from a DVD without menus and extras and converts it to Nero Digital (MPEG-4) files. Unwanted audio tracks, subtitles or video content can be removed and the structure of the video titles can be changed.

The following buttons are available:

More	Opens and closes the extended area in which the basic Nero Recode settings can be made.
?	Displays the online help as well as the version and manufacturer information.
Exit	Closes Nero Recode.

Each screen contains tool tips, detailed information and explanations for the buttons, icons and menus. Move the mouse pointer over a control element for a few seconds to see the tool tip.

See also

Extended area - Main window 10

3.1.1 Extended area - Main window

The Nero Recode user interface consists of a main window and an extended area. Clicking the More button opens the expanded area.

The following buttons are available in the extended area:

Options	Calls up a window containing various tabs that allow you set the way the program operates.
Erasing a Disc	Erases a rewritable disc.
Disc Info	Calls up information about the disc in the drive.

Nero CoverDesigner

Launches Nero CoverDesigner in a new window.

Nero CoverDesigner is an application in the Nero Multimedia Suite and is automatically installed during the main installation procedure. Nero CoverDesigner allows you to create and print labels and booklets for burned DVDs and CDs. Please see the separate Nero CoverDesigner user manual for full instructions on how to make professional looking covers and labels.

Each screen contains tool tips, detailed information and explanations for the buttons, icons and menus. Move the mouse pointer over a control element for a few seconds to see the tool tip.

See also

Basic Settings 11
Main Window 9

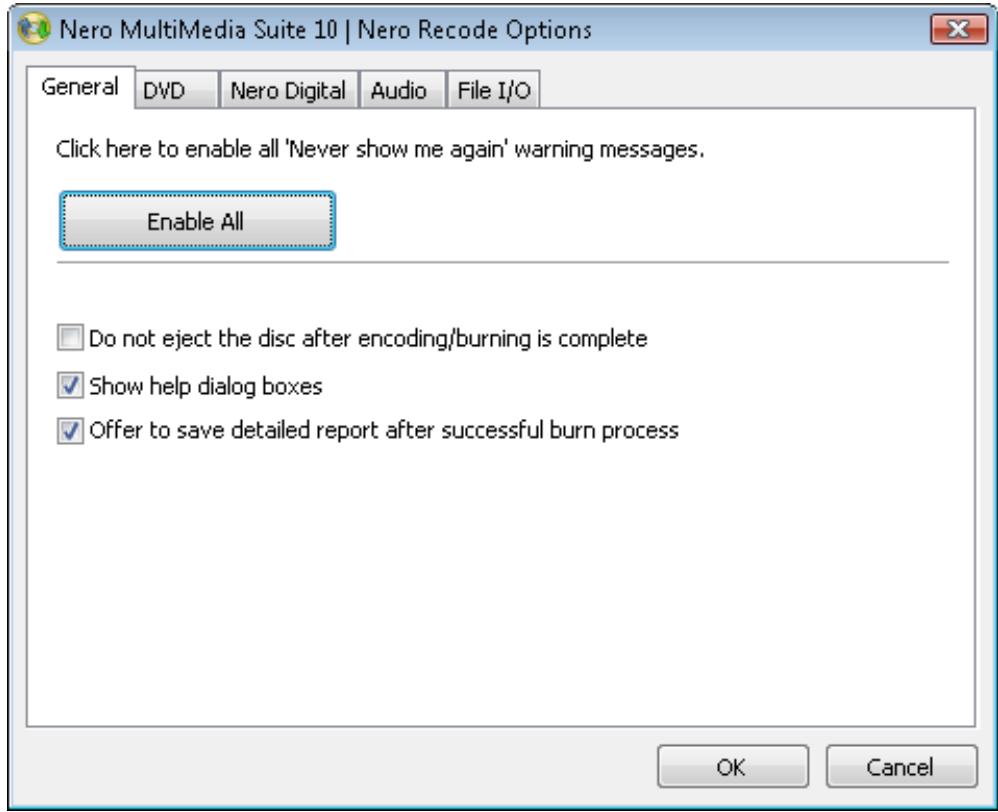

3.2 Basic Settings

The Nero Recode Options window has the General, DVD, Nero Digital, Audio, and File I/O tabs available. You can customize Nero Recode according to your preferences in this window. To open the window, click the Options button in the extended area.

Nero Decode Options window

See also

Extended area - Main window 10
File I/O Tab 14
Audio Tab 14
Nero Digital Tab 13
DVD Tab 12
General Tab 12

3.2.1 General Tab

On the General tab, you can define general Nero Recode settings.

The following setting options are available:

Button Enable All	This enables all warnings if these have been disabled manually.
Check box Do not eject the disc after encoding/burning is complete	If this check box is selected, the disc is not ejected after the burn process.
Check box Show help dialog boxes	If this check box is selected, brief explanation texts appear when you move the cursor over individual items of the Nero Recode interface.
Check box Offer to save detailed report after successful burn process	If this check box is selected, Nero Recode offers the option, after each burn process, of saving a report that was created during the burn process.

See also

Basic Settings 11

3.2.2 DVD Tab

The DVD tab is divided into the Import DVD and Output DVD areas. You can define the settings for DVD importing and outputting in this tab.

The following check boxes are available on the Import DVD area:

Prompt to include DVD data files when importing	If this check box is selected, content is transferred, i.e. copied as well, when a DVD with data content is imported.
Relax DVD-Video specification to allow 16-bit Unicode for the volume label	If this check box is selected, limitations on the use of character sets are relaxed.
	Nero Recode does not use characters from languages like Japanese or Korean, which have a 16-bit Unicode character set that does not comply with DVD-Video requirements.

The following check boxes are available on the Output DVD area:

Remove P-UOPs (Prohibited User Operations) from target disc	If this check box is selected, the locked areas of a DVD are made accessible to the user when the DVD is copied. For example, if the original DVD contains an area that cannot be skipped, you can use Nero Recode to remove the block so that users can skip or fast forward through the area.
Remove Layer Break	If this check box is selected, Nero Recode removes the layer break. If the original DVD consists of two layers, there is a command on the DVD to freeze the image briefly to allow the laser to switch from the first layer to the second. When Nero Recode is used to copy to a DVD with just one layer, this command is redundant and can be removed.

See also

Basic Settings 11

3.2.3 Nero Digital Tab

The Nero Digital tab is divided into the Import presets and Misc settings areas. You can define the settings for conversion into the Nero Digital format here.

The following configuration options are available in the Import presets area:

Check box Analyze files while importing	If this check box is selected, Nero Recode performs an analysis of the video file during the importing process.
Check box Keep interlaced content if possible	If this check box is selected, Nero Recode keeps the interlaced content of a video file, provided that this is possible.
Check box Keep input resolution for interlaced encodings	If this check box is selected, Nero Recode keeps the input resolution of the video file if encoding should be carried out with the interlaced feature. The resolution is not changed and picture edges are not trimmed.
Check box Prefer motion adaptive deinterlacing method	If this check box is selected, Nero Recode selects the motion-adaptive deinterlacing method as the preferred encoding method. Even quick motion sequences are extremely sharp and detailed. However, burning is slower.
Drop-down menu Default resizing method	Selects the method for changing video resolution. Bilinear interpolation is selected by default.

The following check boxes are available in the Misc settings area:

Enable classic set of Nero Digital profiles	Activates the classical set of Nero Digital profiles, available in the screens My Nero Digital Disc and My Nero Digital Film Backup in the drop-down menu Nero Digital Profiles. If the check box is deselected, Nero Digital AVC and Nero Digital Standard are offered.
Auto-close iTunes after iPod transfer	If this check box is selected, iTunes is automatically closed after transcoding into Apple iPod video.
Never write extra track to allow low-memory device playback	If this check box is selected, the creation of a special extra track is prevented. Certified players with low RAM can play long movies.

See also

Basic Settings 11

3.2.4 Audio Tab

The Audio tab is divided into the Preview and Decoding areas. You can define audio quality settings in this tab.

The Preview area features a drop-down menu. You can use this menu to choose the preview mode for audio that is best suited to your hardware and to your speakers.

The Decoding area features the Apply Dynamic Range Compression when decoding Dolby Digital(TM) tracks check box. If this check box is selected, the level control for Dolby Digital tracks is adjusted in order to reduce hissing and static noise.

See also

Basic Settings 11

3.2.5 File I/O Tab

On the File I/O tab you can define the method for accessing a drive for direct conversion.

You can choose the SPTI/ASPI or Windows File System entries from the drop-down menu.

When read with SPTI/ASPI, non-copy-protected DVD that feature a copyright bit will display a message stating that the DVD cannot be copied due to copy protection. In this case, you should choose the Windows File System option when reading.

See also

Basic Settings 11

3.3 Import Screen

In the screen for importing files, you can add your DVD video title, add data files, adjust the required video quality for the title, and transfer or remove audio tracks and subtitles from the selection of the original DVD.

The screen varies depending on the selected task. Following is an explanation of the setting options that are always shown on this screen. You can find the explanation for the setting options that are displayed depending on the selected tasks in the description for the individual tasks.

The screen is divided into the DVD-Video Files/Nero Digital Titles and Data Files tabs.

A capacity bar below shows how much space is occupied on the disc graphically. As long as the bar is green, all the content fit on the disc. If a red bar is shown on the display, the data volume is larger than the disc's capacity. The Total size area, located to the right of the capacity bar, is also used to indicate the space that is already occupied, in MB.

Clicking the More button displays the extended area. In this area, you can use the Title import profile area to create and save required quality settings in your own profile.

See also

Title Import Profiles 19
Data Files Tab 18
DVD-Video Files/Nero Digital Titles Tab 16

3.3.1 DVD-Video Files/Nero Digital Titles Tab

You can use the DVD-Video Files and Nero Digital Titles tabs to add your DVD tracks and video files.

Both tabs are divided into a content area, a preview area beneath it to the left, and the Audio/Subtitle/Info tabs, which show the audio tracks and subtitles on the original DVD, to the right.

The screen varies depending on the selected task. Following is an explanation of the setting options that are always shown on this screen. You can find the explanation for the setting options that are displayed depending on the selected tasks in the description for the individual tasks.

The following setting options are available:

Button Import DVD / Import Titles	Opens a window to import the required DVD and/or video title.
Check box Fit to target	If this check box is selected, the content of the imported disc is recoded automatically in such a way that it can fit on the inserted recordable disc. The check box is selected by default. If the check box is deselected, the size of the copy can be defined irrespective of the limitation of a disc. Although it may not be possible to burn the resulting DVD structure onto a typical commercial blank disc, the DVD-Video title could certainly be played from the hard drive.
Drop-down menu Fit to target	Shows the target medium. This drop-down menu is active when the Fit to target check box is selected.

The imported video titles are shown on the content area. The following information on the individual titles is available:

Column Content	Shows the structure transferred from the DVD.
Column Duration	Shows the duration of the respective area, folder, or video title.
Column Size	Shows the memory size of the respective area, folder, or video title. Feature limitation.
Column Video quality	Shows the quality (in percentage) in which Nero Recode can recode the area, folder, or video title. If the content of the imported disc must be recoded in such a way as to fit it on a smaller target recordable disc, the quality of all video titles is adjusted uniformly.

You can play a preview of the imported video title in the preview area. The following setting options are available:

Button	Ends playback.
Button	Starts playback.
Slider	Skipping to particular points.
Button	Enlarges/reduces the preview area.

The Audio/Subtitle/Info tabs show the audio tracks and subtitles on the original DVD. You can select any desired video title in the content area in order to see the corresponding audio and subtitle tracks. These are imported according to the profile chosen during the import process. The following tabs are available:

Audio	Displays the audio tracks imported in line with the import profile.
Subtitles	Displays the audio tracks imported in line with the import profile.
Info	Displays information about the imported video title.

See also

Import Screen 15

3.3.2 Data Files Tab

Data files can be burned onto the disc as well as the film. These files are imported using the Data Files tab.

The screen varies depending on the selected task. Following is an explanation of the setting options that are always shown on this screen. You can find the explanation for the setting options that are displayed depending on the selected tasks in the description for the individual tasks.

The following buttons are available:

Add Files	Opens a window for adding the desired data files.
Erase	Removes a selected data file. This is enabled only if at least one data file has been added.
	Returns to the next higher level in the folder structure. This is only active when the user is located in a subfolder.
	Opens a window for creating a new folder inside the disc's data area.
	Opens a menu for changing the way/view in which the files appear in the folders.

See also

Import Screen 15

3.3.3 Title Import Profiles

You can select the desired profile for importing a DVD or create and manage your own import profile in the Title import profile area.

Clicking the Profiles button opens the Nero Recode Profile window. You can make adjustments in the Video, Audio, and Subtitle tabs.

The following buttons are available:

Drop-down menu Current profile	Shows the current selected profile. If you create your own import profiles, these are listed in the drop-down menu as entries.
Button New	Calls up a window where a new profile can be created.
Button Delete	Deletes the current profile displayed in the Current Profile drop-down menu.

The following settings are available on the Video tab:

Quality distribution	Defines the quality ratio between the main movie and the extras.
Menu	Indicates whether the menus contained in the video file can be copied in original quality.

The following setting options are available on the Audio tab:

Check box Preselect the following audio tracks	If this check box is selected, only audio tracks in the specified languages are imported when the DVD is imported.
Button Add	Opens a window in which the desired languages for importing audio tracks can be selected. This button is enabled only if the Preselect the following audio tracks check box has been selected.
Button Remove	Removes languages from the list box. This button is only enabled if the Preselect the following audio tracks check box is selected and at least one language has been selected for removal from the list box.
Drop-down menu From multiple tracks of the same language select	Specifies the audio format used if there are several audio tracks in the same language on the DVD.
Check box Select all tracks if none meets my selection criteria	If this check box is selected and none of the audio tracks on the corresponding DVD meet the defined criteria, all audio tracks are imported as an alternative.

The following setting options are available on the Subtitle tab:

Check box Preselect the following subtitle tracks	If this check box is selected, only subtitles in the specified languages are imported when a DVD is imported.
Button Add	Opens a window in which the desired languages for importing subtitles can be selected. This button is only enabled if the Preselect the following subtitle tracks check box is selected.
Button Remove	Removes languages from the list box. This button is only enabled if the Preselect the following subtitle tracks check box is selected and at least one language has been selected in the list box for removal.
Check box Select all tracks if none meets my selection criteria	If this check box is selected and none of the subtitles on the corresponding DVD meet the defined criteria, all subtitles are imported as an alternative.

See also

Import Screen 15

3.4 Burn Settings screen

You can define the desired options for recoding and writing on the Burn Options screen.

The screen varies depending on the selected task. Following is an explanation of the setting options that are always shown on this screen. You can find the explanation for the setting options that are displayed depending on the selected tasks in the description for the individual tasks.

Clicking the More button displays the extended area. You can configure certain additional options inside this area, e.g. the burn process priority.

Once you have defined all the settings you want, click the Burn button on the bottom right to start the recording and burn process.

Burn Settings screen

The following setting options are available in the top area of the screen:

Drop-down menu Destination	This specifies the destination for the compilation. You can use a CD/DVD recorder to burn the data, store the data on a hard drive or generate an image file.
Input field Target folder	Specifies the target folder in which the compilation is stored and in which the temporary files created during burning are stored. The temporary files are automatically deleted after burning.
Button Browse	Opens a window showing the computer's directory tree. You can use this window to select the target folder where the compilation should be saved, or where the temporary files that are created during the burn process should be stored. The path is referenced automatically in the target folder input field. Temporary files are deleted after the burn process automatically.

The following setting options are available in the bottom area of the screen:

Drop-down menu Writing speed	Specifies the writing speed. This drop-down menu is only enabled when a CD/DVD recorder is selected in the Destination drop-down box.
Input field Number of copies	Shows the number of copies to be burned. This drop-down menu is only enabled when a CD/DVD recorder is selected in the Destination drop-down menu.
Check box Burn-at-once	If this check box is selected, the DVD structure is not buffered on the hard drive before the burn process. If this check-box is selected, the burn process takes longer. However, if you want to create several copies, this method is quicker, since the data only has to be recoded once. This drop-down menu is only enabled when a CD/DVD recorder is selected in the Destination list box.
Check box Advanced analysis	Improves the quality of a DVD's encoding process considerably. Recoding takes place in two steps and therefore takes longer.
Check box High quality mode	Improves the quality of the recoding process. Recoding takes longer.

See also

Extended Area (Burn Settings) 22

3.4.1 Extended Area (Burn Settings)

The following setting options are available in the extended area of the Burn Settings screen:

Check box Shut down computer when finished	If this check box is selected, the computer is automatically shut down after the burn process.
Drop-down menu DVD Book Type settings	Determines the specification of a DVD. Automatic - Automatically selects the most suitable book type for this DVD. DVD-ROM - Sets the book type to DVD-ROM. Select this setting if the DVD should play on multiple DVD players. Physical disc type - Selects the book type which is specified on the DVD. Current recorder settings - Lets the recorder choose the book type setting. This drop-down menu is enabled only if you have selected your computer's disc drive as a target.
Drop-down menu Priority	Defines how the resources available on the computer are used during the recoding and burn process.
Check box Use VIDEO_TS subfolder for DVD Video files	Creates a subfolder VIDEO_TS in your target folder in which the DVD-Video files are saved.

See also

Burn Settings screen 20

3.5 Recoding And Burning Screen

The recoding and burn process is carried out in the Recoding and Burning screen.

The screen varies depending on the selected task. Following is an explanation of the setting options that are always shown on this screen. You can find the explanation for the setting options that are displayed depending on the selected tasks in the description for the individual tasks.

You can find all the information necessary to track the individual steps of the recoding and burn process on the top area of the screen. Below, on the left, you can play a preview of the imported video title in the preview area. On the right, the Status area displays information regarding the progress of the recoding and burn process. Additionally, a progress bar shows the progress graphically.

Clicking the More button displays the extended area. You can configure certain additional options inside this area, e.g. the burn process priority.

User Interface
Recoding and Burning screen

The following buttons are available in the Recoding and Burning screen:

Button Pause	Interrupts the recoding and burn process.
Button Stop	Ends the recoding and burn process.
Button Resume	Resumes the recoding and burn process. This button is enabled only if the recoding and burn process was interrupted with the Pause button.
Button Back	Returns to the previous screen. This button is only active if the recoding and burn process has ended.
Button Next	Displays the What do you want to do now? screen. This button is only active if the recoding and burn process has ended.

The following setting options are available in the preview area:

Check box Enable video overview	If this check box is enabled, you can play the preview during the burn process.
Button	Enlarges/reduces the preview area.
Link Show Nero Digital compatible devices	Opens a browser window containing a list of devices that can reproduce the Nero Digital profile during the encoding process. This option is enabled only if you recode files into the Nero Digital format. This function requires a fully functional Internet connection.

See also

Extended Area - Recoding and Burning 25

3.5.1 Extended Area - Recoding and Burning

The following setting options are available in the extended area of the Recording and Burning screen:

Check box Shut down computer when finished	If this check box is selected, the computer is automatically shut down after the burn process.
Drop-down menu Priority	Defines how the resources available on the computer are used during the recoding and burn process.

See also

Recoding And Burning Screen 23

4 Recoding an Entire DVD

4.1 Setting Options For Recoding an Entire DVD

In addition to the basic settings that are always displayed on the screen for importing files, you can configure certain additional settings with the Recode an Entire DVD to DVD task.

My DVD Backup screen

The following buttons are available:

Disable	Removes video titles on the original DVD from your compilation. This way, you can disable, e.g. unnecessary extras, and create more space on the target DVD. Disabled files are not transferred to the copy during the burn process. This button is only enabled if at least one DVD video title has been imported into the content area and selected there.
Activate	Enables video titles that were previously disabled. The files that are added again are transferred to the target DVD when the compilation is written. This button is only enabled if at least one DVD video title has been disabled in the content area and selected there.
Lock Ratio	Locks the automatic change of recoding quality for a DVD-Video title. It is still possible to make manual changes to the quality settings by moving the slider. It could be a good idea to lock individual video titles if you want to improve the quality of other content (and therefore, the quality of the remaining content is lowered proportionately). A locked title is protected from the proportional adjustment in this case. This button is only enabled if at least one DVD video title has been imported into the content area and selected there.
Unlock Ratio	Unlocks automatic recoding quality changes for a video title. This button is only enabled if at least one DVD video title has been locked in the content area and selected there.

Import Screen 15
Recoding an Entire DVD to DVD 27

4.2 Recoding an Entire DVD to DVD

When copying a DVD, including the menu, you can use Nero Recode to adjust and modify the structure of a DVD in such a way that the data can be written to a conventional recordable disc with perfect video quality. You can remove undesired subtitles or audio tracks.

Copyright

Unless you possess the copyright yourself, or at least have the permission of the copyright holder, the unauthorized reproduction of discs may be a breach of national or international law and may lead to severe penalties!

To recode a DVD, proceed as follows:

1. Choose the Recode an Entire DVD to DVD task from the Nero Recode main window.
   → The My DVD Backup screen is displayed.
2. Insert the DVD you want to recode in the disc drive on your PC.

Keep in mind that the Fit to target check box is enabled so that the content of the source DVD can be recoded during the subsequent process in such a way that it fits the selected target format.

If the check box is disabled, the DVD-Video will be imported in its original size. In this case, it is possible that the data volume will be so large that you will only be able to store it on a double-layer DVD or on the hard drive.

1. If you created your own import profile and want to select it:

2. Click the More button.
   → The extended area is displayed.

3. Select the required import profile in the Title import profile area.

4. Click the Import DVD button.

The Browse Folder window is opened.

1. Select the drive or hard drive folder containing the DVD that you want to recode and click the OK button.

The DVD's individual video titles are imported and shown in the content area. If the source DVD is larger than the target media, you can also use this area to see how the DVD is recoded according to the selected profile.

Underneath, the capacity bar shows how much disk space is occupied by the imported files on the disc graphically.

1. If there is an individual video title you do not want to copy:

2. Select the required video title.

3. Click the Disable button.

The Disable Item window is opened.

1. Select the desired deletion method from the drop-down menu and click the OK button.
   → The video title is disabled.

2. If you want to re-enable an disabled video title:

3. Select the required video title.

4. Click the Enable button.

The video title is re-enabled.

1. If you want to lock an individual video title to protect it from loss of quality during recoding:

2. Select the required video title.

3. Click the Lock Ratio button.

→ The video title is locked.

1. If you want to unlock a locked video title in order to adjust the quality proportionally to the quality of the other titles while recoding:

2. Select the required video title.

3. Click the Unlock Ratio button.

→ The video title is unlocked.

In order to adjust the quality of a desired video title individually, you can move the slider in the Video Quality column under the content area. The quality of the remaining DVD content is lowered proportionally to the quality improvement of an individual piece of content.

The sliders in the Video Quality area are enabled only when the Fit to target check box is disabled.

1. Select the check boxes for the audio tracks that you want to copy on the Audio tab. Accordingly, deselect the check boxes for the audio tracks that you don't want to copy.
2. Select the check boxes for the subtitle tracks that you want to copy on the Subtitle tab. Accordingly, deselect the check boxes for the subtitle tracks that you don't want to copy.
3. Click the Next button.

The Burn Settings screen is displayed.

1. Make the required settings for the burn process.
2. Click the Burn button.

The recoding and burn process is started and the Recording and Burning screen is displayed. You can track the process here.

1. If you have chosen the disc drive of your computer as the target of the compilation, you will be prompted to insert an empty writable disc in the drive.

The burn process is complete when the relevant message appears in the information window.
You have recoded a DVD. Clicking the Next button displays the What do you want to do now? screen. You can select further options here or exit Nero Recode.

See also

Recoding And Burning Screen 23
Burn Settings screen 20
Import Screen 15
Setting Options For Recoding an Entire DVD 26

5 Recoding a main movie to DVD

5.1 Setting Options For Recoding a Main Movie to DVD

In addition to the basic settings that are always displayed on the screen for importing files, you can configure certain other settings with the Recode Main Movie to DVD task.

My Movie Backup screen

The following buttons are available:

Trim Movie	Opens the Trim Movie window, where the selected video title can be trimmed. This button is only enabled if at least one DVD video title has been imported into the content area and selected there.
Default Streams	Opens the window Default Streams in which the streams for audio and subtitles can be selected.
This button is only enabled if at least one DVD video title has been imported into the content area and selected there.

See also

Import Screen 15
Recoding a Main Movie to DVD 33
Default Streams Window 32
Trim Movie Window 31

5.2 Trim Movie Window

You can use the Trim Movie window to trim a video title that you do not want to use in its entirety down to a special section.

The window is divided into two areas. The left side - the area for the first frame - is used to select the frame with which the video title should start. The right side - the area for the last frame - is used to define the frame with which the video title should end.

Trim Movie window

The following setting options are available:

Button	Skipping forwards a few frames.
Button	Skipping forwards 6 seconds.
Button	Skips 6 seconds back.
Button	Skips a few frames back.
Slider	Manually regulates determination of the desired frames.
Drop-down menu	Selects the chapter markers of the video title directly. It is only possible if the video title contains chapter markers.
Display Start Frame	Indicates the start frame of the video title.
Display End frame	Indicates the end frame of the video title.
Display Total duration	Indicates the length of the video title.
Display Total size	Indicates the overall size of the video title.

See also

Setting Options For Recoding a Main Movie to Nero Digital 60
Setting Options for Recoding a DVD to Nero Digital 41
Setting Options for Compiling a DVD 36
Setting Options For Recoding a Main Movie to DVD 30

5.3 Default Streams Window

In the Default Streams window you can define the settings for audio and subtitle streams.

Default Streams window

The following option buttons are available in the Audio area:

Let the DVD player decide which audio stream to play	Allows the DVD player to choose which audio stream to play. Selection occurs automatically when title playback starts.
Play the following audio stream	Selects the audio stream to be played when a title is played back, e.g. in a DVD player.

The following option buttons are available in the Subpicture area:

Let the DVD player decide which subtitle stream to display	Lets the DVD player decide which subtitle stream will be played. The selection is made automatically when the title playback starts.
Hide subtitles	Hides the subtitles. No subtitles are shown during title playback, e.g. in a DVD player.
Display the following subtitles stream	Selects the subtitles stream to be played when a title is played back, e.g. in a DVD player.

See also

Setting Options for Compiling a DVD 36
Setting Options For Recoding a Main Movie to DVD 30

5.4 Recoding a Main Movie to DVD

You can use Nero Recode to copy the main movie of a DVD without additional extras. You have the option of customizing and modifying the main movie's structure so that the data can be written to a conventional recordable disc with perfect video quality.

Copyright

Unless you possess the copyright yourself, or at least have the permission of the copyright holder, the unauthorized reproduction of discs may be a breach of national or international law and may lead to severe penalties!

In order to recode the main movie of a DVD, proceed as follows:

1. Choose the Recode Main Movie to DVD task from the Nero Recode main window.

→ The My Movie Backup screen is displayed.

1. Insert the DVD you want to recode in the disc drive on your PC.

Keep in mind that the Fit to target check box is enabled so that the content of the source DVD can be recoded during the subsequent process in such a way that it fits the selected target format.

If the check box is disabled, the DVD-Video will be imported in its original size. In this case, it is possible that the data volume will be so large that you will only be able to store it on a double-layer DVD or on the hard drive.

1. Select the required import profile in the Title import profile area.

2. Click the Import DVD button.

The Browse Folder window is opened.

1. Select the drive or hard drive folder containing the DVD that you want to recode and click the OK button.

The main movie of the DVD is imported and shown in the content area. If the source DVD is larger than the target media, you can also see how the DVD is recoded according to the chosen profile here. Underneath, the capacity bar shows how much disk space is occupied by the imported files on the disc graphically.

1. If you want to trim an individual video title:

2. Select the required video title.

3. Click the Trim Movie button.

→ The Trim Movie window is opened.

1. Choose the first and last frames and click the OK button.
   → The video title is trimmed.

2. If you wish to configure the default streams:

3. Select the required video title.

4. Click the Default Streams button.

The Default Streams window is opened.

1. Choose the desired option buttons and click the OK button.

→ The video title's streams are adjusted.

1. Select the check boxes for the audio tracks that you want to copy on the Audio tab. Accordingly, deselect the check boxes for the audio tracks that you don't want to copy.

2. Select the check boxes for the subtitle tracks that you want to copy on the Subpicture tab. Accordingly, deselect the check boxes for the subtitle tracks that you don't want to copy.

3. Click the Next button.

The Burn Settings screen is displayed.

1. Make the required settings for the burn process.

2. Click the Burn button.

The recoding and burn process is started and the Recording and Burning screen is displayed. You can track the process here.

1. If you have chosen the disc drive of your computer as the target of the compilation, you will be prompted to insert an empty writable disc in the drive.

The burn process is complete when the relevant message appears in the information window.
You have recoded the main movie of a DVD. Clicking the Next button displays the What do you want to do now? screen. You can select further options here or exit Nero Recode.

See also

Setting Options For Recoding a Main Movie to DVD 30
Trim Movie Window 31
Default Streams Window 32
Import Screen 15
Burn Settings screen 20
Recoding And Burning Screen 23

6 Compiling a DVD

6.1 Setting Options for Compiling a DVD

In addition to the basic settings that are always displayed on the screen for importing files, you can configure certain other settings with the Compile a DVD task.

My Own DVD Compilation screen

The following buttons are available:

Delete	Deletes imported video titles from your compilation. This button is only enabled if at least one DVD video title has been imported into the content area and selected there.
Lock Ratio	Locks the automatic change of recoding quality for a DVD video title. It is still possible to make manual changes to the quality settings by moving the slider.
	It could be a good idea to lock individual video titles if you want to improve the quality of other content (and therefore, the quality of the remaining content is lowered proportionately). A locked title is protected from the proportional adjustment in this case. This button is only enabled if at least one DVD video title has been imported into the content area and selected there.
Unlock Ratio	Unlocks automatic recoding quality changes for a video title. This button is only enabled if at least one DVD video title has been locked in the content area and selected there.
Trim Movie	Opens the Trim Movie window, where the selected video title can be trimmed. This button is only enabled if at least one DVD video title has been imported into the content area and selected there.
Merge Titles	Merges selected video titles and pastes them to a common folder, Merged Titles. You can rename the folder according to your own preferences. This button is enabled only if at least two DVD video titles have been imported into the content area and selected there.
Split	Splits merged video titles. This button is enabled only if at least two DVD video titles have been merged into one.
Default Streams	Opens the window Default Streams in which the streams for audio and subtitles can be selected. This button is only enabled if at least one DVD video title has been imported into the content area and selected there.

See also

Compiling a DVD 37
Trim Movie Window 31
Default Streams Window 32
Import Screen 15

6.2 Compiling a DVD

You can use Nero Recode to compile a DVD of your own with parts from a DVD and data files.

Copyright

Unless you possess the copyright yourself, or at least have the permission of the copyright holder, the unauthorized reproduction of discs may be a breach of national or international law and may lead to severe penalties!

To compile a DVD, proceed as follows:

1. Choose the Compile a DVD task from the Nero Recode main window.

→ The My Own DVD Compilation screen is displayed.

1. Insert the DVD you want to recode in the disc drive on your PC.

Keep in mind that the Fit to target check box is enabled so that the content of the source DVD can be recoded during the subsequent process in such a way that it fits the selected target format.

If the check box is disabled, the DVD-Video will be imported in its original size. In this case, it is possible that the data volume will be so large that you will only be able to store it on a double-layer DVD or on the hard drive.

1. Select the required import profile in the Title import profile area.

2. Click the Import Titles button.

The Import Titles window is opened.

1. Select the video titles that you want to recode and click the Add titles button.

The selected video titles are imported and shown on the content area. If the source files are larger than the target media, you can also see how the files are recoded according to the selected profile here.

Underneath, the capacity bar shows how much disk space is taken up by the imported files on the disc graphically.

1. If you want to delete a single video title:

2. Select the required video title.

3. Click the Erase button.

The video title is removed from the compilation.

1. If you want to lock an individual video title to protect it from loss of quality during recoding:

2. Select the required video title.

3. Click the Lock Ratio button.

→ The video title is locked.

1. If you want to unlock a locked video title in order to adjust the quality proportionally to the quality of the other titles while recoding:

2. Select the required video title.

3. Click the Unlock Ratio button.

→ The video title is unlocked.

In order to adjust the quality of a desired video title individually, you can move the slider in the Video Quality column under the content area. The quality of the remaining DVD content is lowered proportionally to the quality improvement of an individual piece of content.

The sliders in the Video Quality area are enabled only when the Fit to target check box is disabled.

1. If you want to trim an individual video title:

2. Select the required video title.

3. Click the Trim Movie button.

→ The Trim Movie window is opened.

1. Choose the first and last frames and click the OK button.
   → The video title is trimmed.

2. If you want to merge several video titles:

3. Select at least two video titles.

4. Click the Merge Titles button.

→ The video titles are compiled in a newly created folder, Merged Titles.

Video titles can only be merged if they all have the same audio track.

1. If you wish to separate merged video titles:

2. Select the Merged Titles folder.

3. Click the Split Titles button.

→ The video titles are shown separately again; the Merged Titles folder is deleted.

1. If you wish to configure the default streams:

2. Select the required video title.

3. Click the Default Streams button.

The Default Streams window is opened.

1. Choose the desired option buttons and click the OK button.
   The video title's streams are adjusted.

2. Select the check boxes for the audio tracks that you want to copy on the Audio tab. Accordingly, deselect the check boxes for the audio tracks that you don't want to copy.

3. Select the check boxes for the subtitle tracks that you want to copy on the Subtitle tab. Accordingly, deselect the check boxes for the subtitle tracks that you don't want to copy.
4. Click the Next button.

The Burn Settings screen is displayed.

1. Make the required settings for the burn process.

2. Click the Burn button.

The recoding and burn process is started and the Recording and Burning screen is displayed. You can track the process here.

1. If you have chosen the disc drive of your computer as the target of the compilation, you will be prompted to insert an empty writable disc in the drive.

The burn process is complete when the relevant message appears in the information window.
You have compiled a DVD. Clicking the Next button displays the What do you want to do now? screen. You can select further options or exit Nero Recode here.

See also

Setting Options for Compiling a DVD 36
Trim Movie Window 31
Default Streams Window 32
Import Screen 15
Burn Settings screen 20
Recoding And Burning Screen 23

7 Recoding a DVD to Nero Digital

7.1 Setting Options for Recoding a DVD to Nero Digital

In addition to the basic settings that are always displayed on the screen for importing files, you can configure certain other options with the Recode DVDs and Videos to Nero Digital task.

My Nero Digital Disc screen

The following buttons are available:

Delete	Deletes imported video titles from your compilation. This button is only enabled if at least one DVD video title has been imported into the content area and selected there.
Lock Ratio	Locks the automatic change of recoding quality for a DVD-Video title. It is still possible to make manual changes to the quality settings by moving the slider.
	It could be a good idea to lock individual video titles if you want to improve the quality of other content (and therefore, the quality of the remaining content is lowered proportionately). A locked title is protected from the proportional adjustment in this case. This button is only enabled if at least one DVD has been imported into the content area and selected there.
Unlock Ratio	Unlocks automatic recoding quality changes for a video title. This button is only enabled if at least one DVD video title has been locked in the content area and selected there.
Trim Movie	Opens the Trim Movie window, where the selected video title can be trimmed. This button is only enabled if at least one DVD video title has been imported into the content area and selected there.
Chapters	Opens the window Chapters where chapter markers can be set. This button is only enabled if at least one DVD video title has been imported into the content area and selected there.

The following drop-down menus are available:

Profile Category	Changes the Nero Digital category. This setting refers to the respective target media for which encoding takes place. The result has different sizes depending on the selection; the entries in the Profile drop-down menu are adjusted accordingly.
Profile	Changes the Nero Digital profile. The setting relates to the target medium for which encoding is being carried out.
Encoding Method	Selects the method to be used to encode the MPEG-4 file. If you select Fast (1-pass), the movie only undergoes one conversion pass. This method requires less time but has lower quality than encoding in two steps. The movie is analyzed and converted with the available bit rate simultaneously. If you select High quality (2-pass), the movie undergoes several conversion passes. The quality is better, but the process takes longer. The first pass analyzes the movie and creates a temporary file (*log). The second pass converts the file. During this process, the bit rate data that was stored in the temporary files is used.

The Video tab shows the video title's properties. The following information is available:

Column Properties	Shows the video properties stored on the DVD, e.g. resolution, frame rate, pixel format, video structure, and duration.
Column Source	Shows the original size.
Column Target	Shows the target sizes depending on the selected Nero Digital profile.
Button Settings	Opens the Nero Digital Video Settings window, where you can define how the video should be processed.
Button Encoder	Opens the Nero Digital Video Properties window. You can configure the settings for the AVC encoding of your data here.

The Audio tab displays the properties of an audio track. If there are two audio tracks available for the target video, an additional tab is displayed accordingly. The following setting options are available:

Drop-down menu Source	Used to choose the audio track desired for the video file.
Drop-down menu Codec	Used to choose the desired audio codec.
Display Format	Shows the target data of the audio track, depending on the selected codec.
Button Settings	Opens the Nero Digital Audio Properties window. You can define the settings for the audio encoder here. Only available if you have selected the Nero Digital audio codec (AAC).

The Subtitle tab displays the available subtitle tracks. The following selection menus are available:

Main subtitle track:	Used to select a desired subtitle track for the video file. You can also choose not to use subtitles (None) or to create or import your own subtitle track. If you select the Create new subtitle entry, the Nero Digital Subtitle Settings window is opened.
Secondary subtitle track:	Chooses a secondary subtitle track in addition to the main one. You can choose not to select a secondary subtitle track (None) or to create or import your own subtitle track. If you select the Create new subtitle entry, the Nero Digital Subtitle Settings window is opened.

You can only insert our own subtitle track if you have selected the Nero Digital or AVC profile category and, accordingly, one of the following profiles for encoding: Standard, Cinema, or HDTV.

See also

Nero Digital Video Settings 44
Encoder Settings 48
Nero Digital Audio Settings 51
Nero Digital Subtitle Settings 52
Chapters Window 55
Recoding DVDs And Videos to Nero Digital 56
Trim Movie Window 31
Import Screen 15

7.2 Nero Digital Video Settings

The Deinterlace, Frame rate, Crop, Resize, and Plug-ins tabs are available on the Nero Digital Video Settings window. You can define how video should be processed here.

To open this window, click the Settings button on the Video tab.

Nero Digital Video Settings window

See also

Deinterlace Tab 45
Frame Rate Tab 45
Crop Tab 46
Resolution Tab 46
Plug-ins Tab 47
Setting Options for Recoding a DVD to Nero Digital 41

7.2.1 Deinterlace Tab

The following setting options are available on the Deinterlace tab:

Option button Automatic (recommended)	Automatically selects whether or not the video title should be encoded with deinterlace.
Option button Custom Deinterlace	Enables the Enable deinterlacing check box.
Check box Enable Deinterlacing	Enables deinterlacing for the current video title and displays the Motion-adaptive check box. This check box is only available if the Custom Deinterlace option button has been selected.
Check box Motion-adaptive	If the check box is selected, improved video quality can be achieved with a motion-adaptive conversion. Even fast motion sequences are reproduced in an extremely sharp manner with full detail accuracy. The burn process is slower, however.

See also

Nero Digital Video Settings 44

7.2.2 Frame Rate Tab

You can select the target frame rate for your Nero Digital file on the Frame rate tab. The frame rate indicates the number of frames shown per second. The Nero Recode default settings use the frame rate of the source file, provided that the selected Nero Digital profile allows it.

The following setting options are available in the Framerate area:

Option button Automatic (recommended)	Automatically selects how many frames are shown per second.
Option button Custom Framerate	Enables the Target rate drop-down menu.
Drop-down menu Target frame rate	Selects how many frames per minute to show. This drop-down menu is only available if you selected the User-defined rate option button.
Check box Motion-adaptive	If the check box is selected, improved video quality can be achieved with a motion-adaptive conversion. Even fast motion sequences are reproduced in an extremely sharp manner with full detail accuracy. The burn process is slower, however.

See also

Nero Digital Video Settings 44

7.2.3 Crop Tab

If your DVD-Video features black picture bars on the sides, you can crop them with the Crop tab. This decreases the size of the video and as a result improves its quality. The Nero Recode default settings detect the bars and crop them automatically.

The following setting options are available in the Crop area:

Option button Automatic (recommended)	Detects black picture bars and crops them automatically.
Option button Custom Crop	Enables the four text boxes for the manual cropping (top, bottom, right, left) and the Adjust button.
Button Adjust	Opens a window and displays a frame from the video. You can use the mouse to define the four cropping areas (top, bottom, left, right) by hand. The button is only enabled if the Custom Crop option button is selected.
Option button Disable	Allows the video to be converted without cropping the borders.

See also

Nero Digital Video Settings 44

7.2.4 Resolution Tab

Under the default settings, the selection of a profile for converting the DVD video title to the MPEG-4 format defines the size of the picture to be created. You can adjust these picture sizes individually under the Resize tab.

The following setting options are available in the Resize area:

Option button Automatic (recommended)	Automatically adjusts the frame size to the selected Nero Digital profile so that the frame size generated matches the output medium.
Option button Custom Resize	Activates the two text boxes for the page format (width and height). The values to be entered must be multiples of 16 and must be in the range 16 to 720 pixels for width and 16 to 576 pixels for height.
Option button Disable	Allows the video to be converted without changing the frame size.
Check box Square Pixels / Letterboxing	If this check box is selected, a Nero Digital file that consists of square pixels and uses the Letterbox method is created. This increases compatibility with some players. This can, however, result in black bars inside the video file. This option is only available if the Custom resize option button has been selected.
Drop-down menu Resizing method	Selects the desired resizing method, e.g. bilinear, bicubic, Lanczos and superresolution.

See also

Nero Digital Video Settings 44

7.2.5 Plug-ins Tab

You can select and configure plug-ins that have already been installed for use in Nero Recode under the Plug-Ins tab.

The following setting options are available:

Selection list Installed Plug-Ins	Displays the installed plug-ins.
Selection list Selected Plug-Ins	Displays the selected plug-ins.
Button Add	Adds installed plug-ins to the Selected plug-ins selection list.
Button Remove	Removes plug-ins from the Selected plug-ins list box.
Button Move Up / Move Down	Sorts the items in the Selected plug-ins selection list.
Button Options	Opens the Plug-ins Editor window, where you can define settings for the respective plug-ins. The setting options depend on the selected plug-in. You can track your adjustments in the preview area on the right side of the window. Clicking the Reset button undoes all changes.

The Nero Recode default settings include the Color Correction and Denoise plug-ins.

You can adjust brightness, contrast and saturation of your video files with sliders in the Color Correction plug-in.

Noise interference can be removed from video files with the sliders in the

Denoise plug-in.

See also

Nero Digital Video Settings 44

7.3 Encoder Settings

You can configure settings for AVC encoding of your data, save the settings you have configured, or load saved setting configurations in the Nero Digital Video Properties window, under the Encoder configuration tab. The different setting areas are selected with the directory tree on the left side of the window.

You can open the window by clicking the Encoder button on the Video tab.

Nero Digital Video Properties window

The following setting options are available under the MPEG-4 AVC Encoder entry:

Button Load Settings	Loads existing encoder settings. A window is opened.
Button Save Settings	Saves newly created encoder settings.

See also

Setting Options for Recoding a DVD to Nero Digital 41
Multithreading 51
Visual Enhancements 51
Encoding Tools 50
General Settings 49

7.3.1 General Settings

You can configure settings for Encoding precision and Video sequence properties under the General Settings entry.

The slider in the Encoding precision area specifies how good the quality of the output file should be in relation to the time used for encoding. High quality provides the best quality, but the longest encoding time. High speed takes up the least encoding time and provides the worst available quality. It is advisable to use a value in the middle within the Good range.

The following setting options are available in the Video sequence properties area:

Input field Maximum reference frames	Specifies how many frames from which a P-frame or B-frame may query information.
Input field Maximum keyframe interval	Defines the range for the size of the GOP.

See also

Encoder Settings 48

7.3.2 Encoding Tools

You can define settings for the encoding process under Encoding tools.

The following check box is available in the Baseline Profile area:

Deblocking

If this check box is selected, a soft-focus effect is applied to the sharp edges of the macroblocks. You can configure the intensity by using the Deblocking strength slider.

The following setting options are available in the Main profile area:

Check box Bidirectional prediction	If this check box is selected, encoding is carried out with the help of B-VOPs.
Input field Maximum consecutive B-frames	Specifies the maximum number of B-frames that can be used in a GOP. This input field is enabled only when the Bidirectional prediction check box is enabled.
Check box CABAC	If this check box is selected, the Context Adaptive Binary Arithmetic Coding encoding method is used.
Check box Weighted prediction	If this check box is selected, reference frames can be re-weighted during motion predictions. This increases the encoding efficiency especially during cross fading.
Check box Interlaced encoding	If this check box is selected, interlaced-encoded output material can be saved as interlaced material again. Only possible if the source video file is interlaced.

The following check box is available in the High profile area:

8 x 8 Transform

If this check box is selected, the default 4x4 transform used by the encoder is changed to an 8x8 transform. This allows for better compression with high-definition resolutions. This setting depends on the chosen profile.

See also

Encoder Settings 48

7.3.3 Visual Enhancements

The settings in the Visual enhancements entry use human perception patterns to achieve better overall quality.

This means, for example, that the quality is better in the middle of the picture than at the outer edges because the eyes tend to focus on the middle and do not notice slight blurring at the edge. Because quality is "saved" at the edge, you can either improve overall quality or achieve greater compression. This means that you can achieve greater compression without any appreciable loss of quality.

The following check boxes are available in the Psychovisual enhancement area:

Picture level	If this check box is selected, human perception is taken into account in order to achieve better compression for individual pictures at certain spots in the video.
Macroblock level	If this check box is selected, human perception is taken into account in order to achieve better compression for macroblocks in certain areas in the picture.

See also

Encoder Settings 48

7.3.4 Multithreading

You can configure multithreading settings under the Multithreading entry.

Nero Recode supports multi-core processors. If you have one of these, you can distribute the encoding process over the desired number of threads.

The following drop-down menu is available:

Number of threads/slices

Defines whether the encoding process should be performed by multiple threads (Multithreading). The number of processor cores used corresponds to the number of threads you have selected. This ensures optimal use of a multi-core processor system.

See also

Encoder Settings 48

7.4 Nero Digital Audio Settings

You can define settings for the audio encoder in the Nero Digital Audio Properties window.

You can open the window by clicking the Settings button on the Audio tab.

The following setting options are available in the Audio Settings area:

Option button Automatic (recommended)	Automatically adapts the audio profiles to the Nero Digital profile, so that the quality of the audio track best corresponds to the output medium.
Option button Custom	Activates the combo boxes Channels, Mode, Sample rate and Bit rate.
Drop-down menu Channels	Selects the audio channels. Depending on the selected Nero Digital profile, Stereo, Mono, and 5.1 are available for selection.
Drop-down menu Mode	Selects the mode with which the audio channels are processed. Depending on the Nero Digital profile selected, Low complexity and High efficiency are available. The selection affects the scan and bit rate.
Drop-down menu Sample rate	Selects the scan rate. The scan rate is the frequency that a signal is scanned per time interval.
Drop-down menu Bit rate	Selects the bit rate. The bit rate is the quantity of data transmitted within a time unit.

The following drop-down menu is available in the Audio Boost Volume area:

Drop-down menu Volume

Sets the required volume.

See also

Setting Options for Recoding a DVD to Nero Digital 41

7.5 Nero Digital Subtitle Settings

The Nero Digital Subtitle Settings window allows you to create your own subtitle track. You can also import a subtitle track that is already available. In order to be able to import the track, the file must be saved in one of the following formats: SUB, SRT, SMI, SSA, ASS, PSB.

You can only insert our own subtitle track if you have selected the Nero Digital or AVC profile category and, accordingly, one of the following profiles for encoding: Standard, Cinema, or HDTV.

Nero Digital Subtitle Settings window

The following setting options are available:

Button Open existing file	Opens a window. You can select subtitle files that are already available in this window.
Button Export	The Save as window is opened. You can save a subtitle file that you created in a folder of your choice.

The following setting options are available on the Properties tab:

Input field Track name	Allocates a name to a subtitle track you have created.
Area Font	Displays the settings from the Font window.
Button Browse	Opens the Font window. Make the settings for the font and the size of your subtitle track here.
Drop-down menu Text color	Specifies the color of your subtitle track.
Area Position	Specifies the coordinates of the text box where the subtitle track is displayed.
Drop-down menu Language	Specifies the subtitle track language to be declared.
Button ←/→	Goes to the end/beginning of the current subtitle line or the beginning/end of the next. Only available if subtitle lines have already been created.
Slider	Selects the desired frames.

The Edit tab shows the individual subtitle lines. The following information on the individual lines is available:

Column Start timecode	Shows the start time for the subtitle line. You can adjust the start time according to your preferences. Click inside the column in order to edit the duration of an interval.
Column End timecode	Shows how long the subtitle lines are displayed. You can adjust the ending time according to your preferences. Click inside the column in order to edit the duration of an interval.
Column Text	Displays the subtitle text for an interval. You can enter or edit the desired text by using the Edit button.

The following buttons are available on the Edit tab:

Button Append	Adds a new line to the end of the frame. In the standard setting the interval between the start and end of the time code is 4 seconds.
Button Edit	Opens the Edit Subtitle Line window. You can enter or edit the desired text for a subtitle line in this window.
Button Delete	Deletes a previously selected subtitle line.

See also

Subtitle Formats 54
Setting Options for Recoding a DVD to Nero Digital 41

7.5.1 Subtitle Formats

The individual subtitles in files in SUB (preSub) format consist of a single line. The lines are separated from each other by paragraph marks and must have the following form:

1 \0 \50\ Sample subtitle text

The first and last frame in which the text should be displayed are shown between curly frames. The subtitle text is shown after them, without a space between.

The SRT (SubRip) subtitle format consists of 3-line blocks. They are separated from each other by empty breaks and must have the following format:

1

Continuous number that begins with one and is increased by one for each block.

00:01:36,480 -> 00:01:38,360

The first time indication specifies in hours, minutes, seconds, and milliseconds when the text begins to be displayed.

An arrow that consists of two hyphens and a angle bracket follows, separated by a space.

After another space, the time indication that specifies when the text should cease to be displayed follows.

Sample subtitle text

Contains the subtitle's text.

The SMI (SAMI) subtitle format is based on HTML syntax. Millisecond are used as the basis for time values. This format is a standard developed by Microsoft and is intended mainly for the use of subtitles in videos. SMI can only be played back with Windows Media Player and other Microsoft products.

The subtitle format SSA (Sub Station Alpha) has the widest range of functionality. The syntax consists of sections and the included code lines. The sections begin with a bracket (e.g. "[Script Info]") followed by predefined code lines (e.g. Title, Original timing), containing the respective information. This allows the use of colors, fonts, font sizes and similar.

The subtitle format ASS (Advanced Sub Station Alpha) is an enhanced version of SSA and offers all the features of SSA. It also allows subtitles to be graphically edited, e.g. for Karaoke.

The PSB (MPsub) subtitle format was developed for the Mplayer, a movie player for Linux. Its main feature is the use of dynamic time dependencies. The code consists of numbers and of the subtitle's text. The first number in the code represents the waiting time, in seconds, for the next subtitle to be displayed after the last subtitle has elapsed. The second number shows the current subtitle for the time, in seconds, that it represents.

See also

Nero Digital Subtitle Settings 52

7.6 Chapters Window

In the Chapters window, you can add your own chapter markers to those already on the DVD. Chapter markers subdivide the content of a DVD. It is possible to access them, as chapters, with the DVD player.

The following setting options are available:

Display panel Current frame	Shows the current playing time of the video displayed in the preview window.
Display area Chapters	Shows the chapter markers already set and the starting time for every chapter marker.
Button Add	Adds a chapter marker at the selected point in the video.
Button Delete	Deletes the selected chapter marker.
Slider	Jumps to the desired frame.
Button	Starts playback.
Button	Pauses playback.
Button	Skipping 6 seconds back.
Button	Skipping a few frames back.
Button	Skipping forwards a few frames.
Button	Skipping forwards 6 frames.

See also

Setting Options For Recoding a Main Movie to Nero Digital 60
Setting Options for Recoding a DVD to Nero Digital 41

7.7 Recoding DVDs And Videos to Nero Digital

You can use Nero Recode to encode all video formats supported by Nero into Nero Digital files. The Nero Digital codec is MPEG-4-compliant. These files can be played in Nero ShowTime and in other common programs.

Copyright

Unless you possess the copyright yourself, or at least have the permission of the copyright holder, the unauthorized reproduction of discs may be a breach of national or international law and may lead to severe penalties!

To recode a DVD or video to Nero Digital, proceed as follows:

1. Choose the Decode DVDs and Videos to Nero Digital task in the Nero Decode main window.

→ The My Nero Digital Disc screen is displayed.

1. Insert the DVD you want to recode in the disc drive on your PC.

Keep in mind that the Fit to target check box is enabled so that the content of the source DVD can be recoded during the subsequent process in such a way that it fits the selected target format.

If the check box is disabled, the DVD-Video will be imported in its original size. In this case, it is possible that the data volume will be so large that you will only be able to store it on a double-layer DVD or on the hard drive.

1. Select the required import profile in the Title import profile area.

2. Click the Import Files button.

The Import Titles window is opened.

1. Select the video titles that you want to recode and click the Add titles button.

The selected video files are imported and displayed in the content area.

If the source files are larger than the target media, you can also see how the files are recoded according to the selected profile here.

Underneath, the capacity bar shows how much disk space is taken up by the imported files on the disc graphically.

1. If you want to delete a single video title:

2. Select the required video title.

3. Click the Erase button.

→ The video title is removed from the compilation.

1. If you want to lock an individual video title to protect it from loss of quality during recoding:

2. Select the required video title.

3. Click the Lock Ratio button.

→ The video title is locked.

1. If you want to unlock a locked video title in order to adjust the quality proportionally to the quality of the other titles while recoding:

2. Select the required video title.

3. Click the Unlock Ratio button.

→ The video title is unlocked.

In order to adjust the quality of a desired video title individually, you can move the slider in the Video Quality column under the content area. The quality of the remaining DVD content is lowered proportionally to the quality improvement of an individual piece of content.

The sliders in the Video Quality area are enabled only when the Fit to target check box is disabled.

1. If you want to trim an individual video title:

2. Select the required video title.

3. Click the Trim Movie button.

→ The Trim Movie window is opened.

1. Choose the first and last frames and click the OK button.
   → The video title is trimmed.

2. If you want to add additional chapters to individual video titles:

3. Select the required video title.

4. Click the Chapters button.

→ The Chapter window is opened.

1. Add the desired chapter markers and click the OK button.
   → The chapters are added.

2. Choose the desired Nero Digital category in the Profile Category drop-down menu.

3. Select the required Nero Digital profile in the Profile drop-down menu.
4. Select the desired encoding method from the Encoding Method drop-down menu.
5. If you want to change the video settings for a video title, click the Settings button under the Video tab and configure the settings according to your preferences.
6. If you wish to modify the encoder settings of a video title, click the Encoder button on the Video tab and make the required settings.
7. Select the audio tracks of a video title that you want to copy on the Audio #1 and #2 tabs.
8. If you want to change other audio settings for an audio track, click the Settings button under the corresponding Audio tab and configure the settings according to your preferences.
9. Select the subtitle tracks (of a video title) that you want to copy under the Subtitle tab.
10. Click the Next button to define the burn settings.

The Burn Settings screen is displayed.

1. Make the required settings for the burn process.

2. Click the Burn button.

The recoding and burn process is started and the Recording and Burning screen is displayed. You can track the process here.

1. If you have chosen the disc drive of your computer as the target of the compilation, you will be prompted to insert an empty writable disc in the drive.

The burn process is complete when the relevant message appears in the information window.
You have recoded a DVD or a video into Nero Digital. Clicking the Next button displays the What do you want to do now? screen. You can select further options or exit Nero Recode here.

See also

Setting Options for Recoding a DVD to Nero Digital 41
Nero Digital Video Settings 44
Encoder Settings 48
Nero Digital Audio Settings 51
Nero Digital Subtitle Settings 52
Chapters Window 55
Trim Movie Window 31
Import Screen 15
Burn Settings screen 20
Recoding And Burning Screen 23

8 Recoding a Main Movie to Nero Digital

8.1 Setting Options For Recoding a Main Movie to Nero Digital

In addition to the basic settings that are always displayed on the screen for importing files, you can configure certain other settings with the Recode Main Movie to Nero Digital task.

My Nero Digital Movie Backup screen

The following buttons are available:

Trim Movie	Opens the Trim Movie window, where the selected video title can be trimmed. This button is only enabled if at least one DVD video title has been imported into the content area and selected there.
Chapters	Opens the Chapters window where chapter markers can be set.
This button is only enabled if at least one DVD video title has been imported into the content area and selected there.

The following drop-down menus are available:

Profile Category	Changes the Nero Digital category. This setting refers to the respective target media for which encoding takes place. The result has different sizes depending on the selection; the entries in the Profile drop-down menu are adjusted accordingly.
Profile	Changes the Nero Digital profile. The setting relates to the target medium for which encoding is being carried out.
Encoding Method	Selects the method to be used to encode the MPEG-4 file. If you select Fast (1-pass), the movie only undergoes one conversion pass. This method requires less time but has lower quality than encoding in two steps. The movie is analyzed and converted with the available bit rate simultaneously. If you select High quality (2-pass), the movie undergoes several conversion passes. The quality is better, but the process takes longer. The first pass analyzes the movie and creates a temporary file (*log). The second pass converts the file. During this process, the bit rate data that was stored in the temporary files is used.

See also

Trim Movie Window 31
Import Screen 15
Recoding a Main Movie to Nero Digital 61
Chapters Window 55

8.2 Recoding a Main Movie to Nero Digital

You can use Nero Recode to encode the main movie of a DVD without additional extras into Nero Digital. The Nero Digital codec is MPEG-4-compliant. These files can be played in Nero ShowTime and in other common programs.

Copyright

Unless you possess the copyright yourself, or at least have the permission of the copyright holder, the unauthorized reproduction of discs may be a breach of national or international law and may lead to severe penalties!

In order to recode the main movie of a DVD to Nero Digital, proceed as follows:

1. Choose the Recode Main Movie to Nero Digital task in the Nero Recode main window.

→ The My Nero Digital Movie Backup screen is displayed.

1. Insert the DVD you want to recode in the disc drive on your PC.

Keep in mind that the Fit to target check box is enabled so that the content of the source DVD can be recoded during the subsequent process in such a way that it fits the selected target format.

If the check box is disabled, the DVD-Video will be imported in its original size. In this case, it is possible that the data volume will be so large that you will only be able to store it on a double-layer DVD or on the hard drive.

1. Select the required import profile in the Title import profile area.
2. Click the Import DVD button.

The Browse Folder window is opened.

1. Select the drive or hard drive folder containing the DVD that you want to recode and click the OK button.
   The DVD's main movie is imported and shown in the content area. If the source DVD is larger than the target media, you can also see how the DVD is recoded according to the selected profile here.

Underneath, the capacity bar shows how much disk space is occupied by the imported files on the disc graphically.

1. If you want to trim an individual video title:

2. Select the required video title.

3. Click the Trim Movie button.

→ The Trim Movie window is opened.

1. Choose the first and last frames and click the OK button.
   → The video title is trimmed.

2. If you want to add additional chapters to individual video titles:

3. Select the required video title.

4. Click the Chapters button.

The Chapter window is opened.

1. Add the desired chapter markers and click the OK button.

→ The chapters are added.

In order to adjust the quality of a desired video title individually, you can move the slider in the Video Quality column under the content area. The quality of the remaining DVD content is lowered proportionally to the quality improvement of an individual piece of content.

The sliders in the Video Quality area are enabled only when the Fit to target check box is disabled.

1. Choose the desired Nero Digital category in the Profile Category drop-down menu.
2. Select the required Nero Digital profile in the Profile drop-down menu.

3. Select the desired encoding method from the Encoding Method drop-down menu.

4. If you want to change the video settings for a video title, click the Settings button under the Video tab and configure the settings according to your preferences.

5. If you want to change the encoder settings for a video title, click the Encoder button under the Video tab and configure the settings according to your preferences.
6. Select the audio tracks of a video title that you want to copy on the Audio #1 and #2 tabs.
7. If you want to change the audio settings for an audio track, click the Settings button under the Audio tab and configure the settings according to your preferences.
8. Select the subtitle tracks (of a video title) that you want to copy under the Subtitle tab.
9. Click the Next button to define the burn settings.

The Burn Settings screen is displayed.

1. Make the required settings for the burn process.
2. Click the Burn button.

The recoding and burn process is started and the Recording and Burning screen is displayed. You can track the process here.

1. If you have chosen the disc drive of your computer as the target of the compilation, you will be prompted to insert an empty writable disc in the drive.

The burn process is complete when the relevant message appears in the information window.
You have recorded a DVD's main movie to Nero Digital. Clicking the Next button displays the What do you want to do now? screen, where you can select other options or exit Nero Recode.

See also

Setting Options For Recoding a Main Movie to Nero Digital 60
Trim Movie Window 31
Chapters Window 55
Import Screen 15
Burn Settings screen 20
Recoding And Burning Screen 23

9 Technical Information

9.1 System Requirements

Nero Recode is installed along with its suite. Its system requirements are the same. You can find more detailed information on the system requirements under www.nero.com.

In addition, the following requirements apply:
16-bit Windows compatible sound card and speakers or headphones
Optional: CD recorder
- Optional: DVD-Video Plug-in for DVD-Video recordings and the "DVD-9 to DVD-5" function
Multi-core processor (recommended)

9.2 Key Combinations

The following shortcuts for entering keyboard commands are available in Nero Recode.

The following general key combinations are available:

[F1]	Displays the help file.
DEL	Deletes selected items (e.g. titles or text).
[Shift+arrow key]	Selects text starting from the cursor position.
[Ctrl+Shift+arrow key]	Selects a block of text starting from the cursor position.
[Ctrl+arrow key]	Moves the cursor to the beginning of the next/previous word.
[Ctrl+C]	Copies selected title from the content area to the clipboard.
[Ctrl+X]	Cuts selected title from the content area and adds it to the clipboard.
[Ctrl+V]	Pastes title from the clipboard to the desired position in the content area.

10 Index

1:1 copy. 7

Abbreviation 64

Activate 27

Audio channels. 52

Audio codec 43

Audio encoder 43

Audio preview. 14

Audio Settings 52

Audio streams 33

Audio tab 18, 19, 43

Audio tracks 18, 19, 39, 39, 43, 43

Baseline profile. 50

Basic settings...10,11,12,12,13,14,15

Bit rate 52

Book type 23

Burn process 21, 23, 23, 25

Burn progress 23

Burn Settings. 6, 21, 23

Burn Settings screen. 6

Burn-at-once 22

B-VOP 50

CABAC 50

Capacity bar 15

Chapter 42, 56, 60

Chapter window 42, 56, 60

Color Correction 48

Compiling a DVD. 5, 10, 36, 38

Conventions, manual 5

Copy DVD 5,7

Copy protection 15

Copyright. 15, 15

Crop 46

Crop tab 46

Customizing image size 47

Data Files tab 15, 18

Deblocking. 50

Decoding 7, 14

Default streams 33

DefaultStreams 30,37

Default Streams window 33

Deinterlace 45

Deinterlace tab 45

Deleting a video title. 36, 41

Denoise 48

Disable 26

Disabling video titles 26

Disc image. 5

Disc Info 10

Dolby Digital 14

DVD tab 12

DVD-Video Files tab. 15, 16

Enabling video titles 27

Encoder 43, 48

Encoder configuration tab 48

Encoder settings 49, 49, 50, 51, 51

Encoding 7

Encoding method 61

Encoding Method 42

Encoding precision 49

Erase 36,41

Erasing a Disc 10

Extended area. 9, 10, 21, 23, 23, 25

File I/O tab. 15

Focal plane. 51

Frame rate. 45

Full version. 6

General tab. 12

GOP 50, 50

High quality mode 22

Image file. 5

Import DVD 12, 17

Import files.....18, 19, 26, 30, 36, 41, 60

Import Files 6, 16

Import Files screen . 6, 15, 16, 18, 19, 26, 30, 36, 41, 60

Import Title 17

Info tab 18

Interlaced 50

Interlaced encoding 13

iPod 14

iTunes 14

Key combinations. 64

Layer break 13

Letterbox 47

Lock Ratio 27, 36, 41

Locking a video title 27, 36, 41

Macroblock level 51

Main window 9

Manual, conventions 5

Merge Titles 37

Merge video title. 37, 37

Motion-adaptive. 14, 45, 45

Multi-Core processors 51

Multithreading. 51

My DVD Backup 26

My DVD Backup screen 26

My Movie Backup 30

My Movie Backup screen 30

My Nero Digital Disc screen. 41

My Nero Digital Movie Backup screen. 60

My Own DVD Compilation screen .... 36

Nero Burning ROM 7

Nero CoverDesigner 11

Nero Digital 10, 14, 15, 25, 42, 44, 44, 45, 45, 46, 47, 47, 48, 49, 50, 51, 51, 52, 52, 53, 60, 61

Nero Digital Audio 43

Nero Digital Audio Properties window. 43, 52

Nero Digital Subtitle Settings window . 43, 52

Nero Digital tab 13

Nero Digital Titles tab. 16

Nero Digital Video Properties window. 43, 48, 49, 50, 51, 51

Nero Digital video settings 45, 45, 46, 47, 47

Nero Digital Video settings 43

Nero Digital Video Settings 44

Nero Digital Video Settings window43, 44, 45, 45, 46, 47, 47

Nero Express 7

Nero Recode main window 6

Nero Recode Options window 11, 12, 12, 13, 14, 15

Nero Recode profile window 19

Options. 10, 11, 12, 12, 13, 14, 15

Output DVD 13

Picking a task. 6, 9

Plug-ins 47, 48

Plug-ins tab 47

Preview. 18, 25

Preview window tab 14

Priority 21, 23, 23, 25

Profile categories 44, 53

Profile category 42, 61

Profiles 14, 19, 25, 42, 44, 53, 61

Program Starting the program 8

Program versions 6

Progress bar 23

Psychovisual enhancement 51

P-UOP 13

Quick info 7,10,11

Recoding 7, 21, 23, 23, 25

Recoding a main movie to DVD. 9, 30, 34

Recoding an entire DVD to DVD 9, 26, 27

Recoding and burn process 6

Recoding and Burning screen.... 6, 23, 25

Recoding DVDs and videos to Nero

Digital 10,41

Recoding DVD's and videos to Nero

Digital 57

Recoding process 21, 23, 23, 25

Recoding the main movie to Nero Digital 10,60,61

Resolution 47

Sample rate. 52

Scope of features 6

Screen Burn Settings 21, 23

Setting chapter markers. 42, 56, 60

Split 37

Start. 8

Subtitle formats 55

Subtitle settings. 52

Subtitle streams 33

Subtitle tab 18, 19, 43

Subtitle tracks. 43, 44, 52, 53

Subtitle Tracks 18, 20, 55

Subtitles 44, 53

System requirements 64

Other. 64, 64

Target folder. 22

Task-specific setting options... 15, 17, 18, 21, 23, 26, 30, 36, 41, 60

Temporary files 22

Title import profiles. 19

Tool tips. 7, 10, 11

Transcoding 7

Trim movie 31

Trim Movie 30, 37, 42, 60

Trim Movie window 31

Unlock Ratio 27,37,42

Unlocking a video title 27,37

Unlocking video titles 42

User interface. 9

Versions 6

Video quality17, 27, 29, 37, 39, 42, 58, 62

Video resolution 14

Video sequence properties 49

Video settings. 43, 45, 45, 46

Video Settings 44, 47, 47

Video tab 19, 42

Video title. 39

Visual enhancement. 51

Volume 52

Write speed 22

Writing 21, 23, 23, 25

11 Contact

Nero Recode is a Nero AG product.

Nero AG

Im Stoeckmaedle 13

76307 Karlsbad

Germany

Internet: www.nero.com

Help: http://support.nero.com

Fax: [phone]

Nero Inc.

330 N Brand Blvd Suite 800

Glendale, CA 91203-2335

USA

Internet: www.nero.com

Help: http://support.nero.com

Fax: [phone]

E-mail: [e-mail]

Nero KK

Rover Center-kita 8F-B, 1-2-2

Nakagawa-chouu Tsuzuki-ku

Yokohama, Kanagawa

Internet: www.nero.com

Help: http://support.nero.com

Japan 224-0003

Copyright © 2010 Nero AG and its licensors. All rights reserved.
