Intitulé	Description
Type de produit	Débroussailleuse thermique
Caractéristiques techniques principales	Moteur 2 temps, 42 cm³
Alimentation	Carburant : mélange essence/huile
Dimensions approximatives	Longueur : 180 cm, Largeur : 30 cm, Hauteur : 40 cm
Poids	Poids total : 7,5 kg
Type de batterie	Non applicable (moteur thermique)
Tension	Non applicable (moteur thermique)
Puissance	1,2 kW
Fonctions principales	Débroussaillage, coupe d'herbes, entretien des jardins
Entretien et nettoyage	Vérifier régulièrement le filtre à air, nettoyer la bougie, changer l'huile moteur
Pièces détachées et réparabilité	Disponibilité de pièces détachées chez les revendeurs agréés
Sécurité	Utiliser des équipements de protection individuelle (gants, lunettes, casque)
Informations générales utiles	Consulter le manuel d'utilisation pour les instructions de montage et d'utilisation

FOIRE AUX QUESTIONS - MOTORE ELITE 4230X BP MCCULLOCH

Que faire si le moteur ne démarre pas ?

Vérifiez que le réservoir est rempli de carburant et que le mélange est correct. Assurez-vous également que la bougie d'allumage est propre et en bon état.

Comment nettoyer le filtre à air ?

Retirez le filtre à air et nettoyez-le avec de l'eau et du savon doux. Laissez-le sécher complètement avant de le remettre en place.

Que faire si la chaîne ne coupe pas correctement ?

Vérifiez que la chaîne est bien tendue et lubrifiée. Assurez-vous également qu'elle est affûtée correctement.

Comment lubrifier la chaîne ?

Utilisez une huile de chaîne appropriée et appliquez-la sur la chaîne tout en faisant tourner celle-ci. Assurez-vous de lubrifier avant chaque utilisation.

Que faire si le moteur surchauffe ?

Arrêtez immédiatement l'utilisation et laissez le moteur refroidir. Vérifiez le niveau d'huile et assurez-vous que les orifices de ventilation ne sont pas obstrués.

Comment ajuster la tension de la chaîne ?

Utilisez la clé fournie pour desserrer les boulons de la barre, ajustez la tension de la chaîne en tournant la vis d'ajustement, puis resserrez les boulons.

Où puis-je trouver des pièces de rechange ?

Les pièces de rechange peuvent être commandées auprès de votre revendeur McCulloch local ou sur le site officiel de McCulloch.

Comment stocker correctement l'appareil pendant l'hiver ?

Videz le réservoir de carburant, nettoyez l'appareil, et rangez-le dans un endroit sec et frais. Pensez à retirer la bougie d'allumage pour éviter la corrosion.

MODE D'EMPLOI MOTORE ELITE 4230X BP MCCULLOCH

Electrolux

Electrolux Outdoor Products

Via Como 72

23868 Valmadrera (Lecco)

ITALIA

Phone [phone] - Fax [phone]

www.electrolux.com

Our policy of continuous improvement means that the specification of products may be altered from time to time without prior notice. Electrolux Outdoor Products manufacture products for a number of well known brands under various registered patents, designs and

trademarks in several countries

© Electrolux Outdoor Products Italy

The Electrolux Group. The world's No. 1 choice

The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 34 billion in more than 350 countries around the world.

GB	INSTRUCTION MANUAL IMPORTANT INFORMATION: Please read these instructions carefully and make sure you understand them before using this unit. Retain these instructions for future reference.	IT	LIBRETTO D'ISTRUZIONI INFORMAZIONI IMPORTANTI: Leggere le struzioni attendamente e capire le bima prima di usare l'utensile. Conservare per ulteriorore consulazione.
DE	BETRIEBSANWEISUNG WICHTIGE INFORMATION: Lesen Sie diese Hinweise zur Handhau-bung des Gerats aufmerns durch. Verwenden Sie es erst, wenn Sie sichere sind, daß Sie alle Anweisungen verstanden haben und gut aufbewahren.	HU	HASNZALATI UTMUTATIO Jotállast vãvalini csak rendeltetesszerüen hasznalatba vett gèpekre tudunk. Kéri Ú hogy a gèp hasznalatba vetele elott gondosan olvassa è la e kezelës utasitäskot.
FR	MANUEL D'INSTRUCTIONS RENSEIGNEMENTS IMPORTANTS: Avant d'utiliser cet apparell, vaisuè lire attempent les instructions et assurez-vous de les avoir comprises. Conserve les instructions pour REFÉRENCE ultérieure.	GR	EFXEPIADIIO XEPIEMOE ΣHMANTIKE ΠAHPHOΦOPIΕΣ Διαβάστε προσεχίανις τι Εθυημες και Φουνιοτέν αντό το μιχανημα και Φιλάστε το γίαν σιουρβουλεύετε ΤΟ έμλουν.
NL	HANDLEIDING BELANGRIJKE IMPORTANTS: Leescke handleiding aandachtig en zorg dat u ailes begrijpt alvorens de kettingzaag te gelebruken en be-waar ze voor toekomstige raadpleging.	CZ	NAVOD K POUZIVANI DULEZITA INFORMACE: Než začnete stroj používat přěteže si prošim velmi pozmné tye instrukce a ujişité se, ze jste jiim porozuméli. Uschovejte si tento námro pov ozužiti i v budoucnu.
NO	BRUKERHANDBOK VIKTIG INFORMASION: Les disse anvisinngene nøye og forsirke deg om at du forstar dem før du brakerenheten og oppbevar dem for sen-ere bruik.	PL	INSTRUKCJA OBSUUGI Gwarancja traciWAYnoúw w przypadku uywiania urzadzánzi do celów inchniy ni wymienione w instrukci obssuigi. Prosimy o uwayne przeczytanie instrukci ci araz o stowanianie siae do zaleceñ i wskażoweak w niej zawartych.
FI	OHJEKIRJA TARKEAA TIETOA: LueNameda ohjeet huolellisesti ja varmistla, eta olet ymmartényt ne, Ellen kuin alat káytta tata letiatta ja saïlytá myohempàa tarvetta varten.	SK	NAVOD NA OBSLUHU DULEZITA INFORMACIA: Pred použit'm stroj sia starostvilvo preëitajte tento námro na obsluhu a uistite sa ze ste mu dokladne porozumeli. Navod starostvilvo uschovajte pre potrebu v buducnosti.
SE	BRUKSANVISING VIKTIG INFORMATION: Lás instruktionerna nogrant och forsäkra dig om att du forstar dem innan du använder utrustingen och spara dem für framtida behov.	RU	PAEOQUE M NHCTPYLKUMI BAXHBILCE BDEDEHUY: BVMATTELNo prochntaBи поэг'tь Истчукимпегдя Истчуким дя дальшх консултыци.
DK	BRUGERHANDBOG VIGTIG OPLESNINGER: Læs instruktionerne omhyggeligt, fär du bruger eheden og gemme til senere henvising.	EE	KASUTUS JUHEND TAHTIS INFORMATSION: Lugege kasutusjuhend enne seadme kasutamist kinladipl pohlialkult lâbi ning veenduge, et olete kõigest taspelt aru saanud.
ES	MANUAL DE INSTRUCTIONES INFORMATION IMPORTANTE: Lea attentamente las instrueriones y asegürese de entenderlas antes de utilizesar esta aparato. Conserve las instrueriones para la referencia en el futuro.	LV	ROKASGRAMATA SVARIGA INFORMÁCIJA: Pirms ierices izmantoðanas uzmanjgi izlasiet rokasgræmatu un pärliecinieities, ka jus labi saprotat tãs saturu. Sāgålabi jert rokasgræmatu lai nákotnc bûtu iespcjams atsvaidzinät jusu zinàðanas.

Due to a constant product improvement programme, the factory reserves the right to modify technical details mentioned in this manual without prior notice.
IM Sinne des Fortschnitts befind sich der Hersteller das Recht vor, technische Änderungen ohne vorherigen Hinweis durchzuführen.
FR La Maison se réserve la possibilité de changer des caractéristiques et des données de ce manuel à n'importe quel moment et sans préavis.
Door konstante produit ontwikkeling behoud de fabrikant zich hetrecht voor om rechnische specificatieszoalsvermeld indezehandleiding te veranderen zonder biervan vooraf bericht te geven.
NO Produsenten forbeholder seg all rett og mulighet til a forandre tekniske detaljer i donne manualen uten forhandsvarsel.
Jatkuvan tuotteen parannusohjelman tahden valmistaja pidattaa oikeeden vaihtaa ilman ennakkovaroitusta tassä ohjekirjasessa mainittuja teknisia yksityiskohtia.
SE Tilverkaren reserverar sig ratten att andere fakta och uppgifter ur handboken utan forvarning.
DK Producen to forbisher sig ret til ændringer, hvad angar karakteristika og data i nærveerende instruktion, när som helst og utden varsel.
ES Lairma productora se reserva la posibiliadecambiar las caracteristicas y datos del presentemanual en什么样iermomento y sin previo aviso.
A casa productora se reserva a possibidade de variar caracteristicas eDados do presentemanual em qualquermomento e sen aviso prévio.

La casa produttrice si riserva la possibilità di variare caratteristiche e dati del presente manuale in qualunque momento e ricerca preavviso.
HU A gyártó cég fenntartja a jogot arra, hogy a hasznalati utasitasban megadott adatokon és technikai tulajdonságokon barmikor és elözetes bejelentes nélkül valtozasson.
Gw npoypaatoc ouvexo C Atiwns Tpoivtw, to eyoataio Etniuaaooetai tou dikawatoc v atpottotio tie xvekcs AETTIOpeiecTou avapepovta oEvxepidio auto xupic Tponyouevn EIodtoian.
Vzhledem kPokručujicim inocacim si yrobie výhrazuje pravo minit technické hodnody uvedené v tétó priúrcuce bez predchozhořo upožerneni.
PL W zwiazku z programem ciaglego ulepszania swoich wyrobów, producent zastrzega sost wie prawo do wropyadzania zmian w szeczgołach technicznych wymiienionych w tej instrukcj biż uprzedniego zawiadomienia. Instrukcja jest czȩcią wyposzazenia
SK Proizvajalec si pridržuje pravico, da spremeni značilnosti in podatke prićućega priročnika v katerem koli trenutku in brez predhodnega obvestila.
KOMnAHnI npOn3BODInTeNb coXpaHReT 3a c6oB npABO n3MeHnYb XapaKTepNCTIKN I DaHHBe B HactoUeM pkyOBoDCTBe, B JIOoB MoMeHT N 6e3 npEdBaPntEhBO HorO IN3BeUeHN.
EE Tootja jatab endale oiguse muuta kaesolevas kasutusjuhendis kirjeldatud odamusi ja andmeid suvalisel hetkel ja itselfe eelnevalt ette teatamata
lv Izgavotajs saglaba tiesibas jebkurabridun bez bridinajuma mainit saja rokasgramata eosoos datus un raksurlknes.

42/46/52cc
0.095" 197" 3.0 mm	538249344 538248960
4T 9" 230 mm	538026134 538248960
4T 10" 255 mm	538026135 538248960
8T 9" 230 mm	538036711 538248960
8T 10" 255 mm	538036713 538248960
24T 9" 230 mm	538040998 538240936 538240553
80T 9" 230 mm	538040953 538240936 538240553

SUMMARY CHART TO IDENTIFY THE CORRECT GUARD NEEDED, WITH DIFFERENT CUTTING ATTACHMENTS
DE UBERSICHTABELA ZURAUSAHL DES RICHITIGEN SCHUTZBLADE DIE EINZELNEN SCHNEIDWERKZEUGE
TABLEAU RECAPITULATIF POUR LE CORRECT DIRECTION DE L'ATTACHE DU TÉTE FIL.NYLON/DEFENSE DE SECURITE
NL OVERZICHSTABEL OM TE BEPALEN WELKE BESCHERMKAP GEBRUKIT MOET WORDEN BIJ DE DIVERSE MAAI-ONDERDELEIN
TABEL FOR KORREKT MONTERING AT TRADSPOLE/ SAGBLAD OG PRUSRISKJERM/SIKKERHETSVERN
TAULOKKO LEIKKAAVAN PAAN/TURVASUOJUKSEN OIKEASTAYHIDISTMASTA
SAMMANFATTANDE TABET OVER KORREKT KOMBINATION AV SKARHUVUD/SAKERHETSSKYDD
DK OVERTSIGTSTABEL VDERØRENDE NEN CORKRETE SAMMENVIV OV BESKYTTLESSKEWM
TABLE PARA EL CORRECTO AOCLAMIENTO DE LA Cabeza CORTANTE Y PROTECTOR DE SEGURIDAD
TABELA DE RESUMPO PARA A CORRETA APPLICacao DA CABECA COURTANTE E DEFESA DE SEGURANCA
TABELLA RIASSUNTIVA PER IL CORRETO TILLOVSKI TESTA TAGLIENTE/DIFESA DI SICUREZZ.
OSSZEFOGLALO TÁLÁZAT: ANIYOROJE OSSZEALITASA / BALESÉTVEDELM
EPNIAHITIKO, PIINAKAZ, FIA THIN EIMANZHANTOHY, PIPINIPOPA, ITPPOYA,KTHTHPA, ME DAIIOPA KOTIKKA, EF APHTMA
CZ SHRNUJICI LABKUTKA PRO SNAVNOU KOMBINACI REZA HLAVA/BEZPECNOSTNI OCHRANA
TALABZIBORCZAPOPRAWNE ZEGESTAWIENIA GLOWICYT NACEJ / OSLONY ZABEPIEZCAJACEJ
SK TABELA-POVZETEK ZA PRAV/ILNO POVEZAVO GLAVA ZASCITA
053OPHA TAEJIMLA JINI PABIMILHOTOCOHTAHNAPEKUYULENTOJIOBKMIPEDJOXPAHNTIELHO TGYCTPOCTBA
KOKKUVOTLIK TABEL TRIMMIPEA JA SELLE KAITSME CORKEKUTSEKS MONTEIERISEKS
LV NOSLEGUMA TABULA PAREZAI GRIESANAS GALVINAS UN DROSIBAS AIZSARGA SAVENOSIANAS

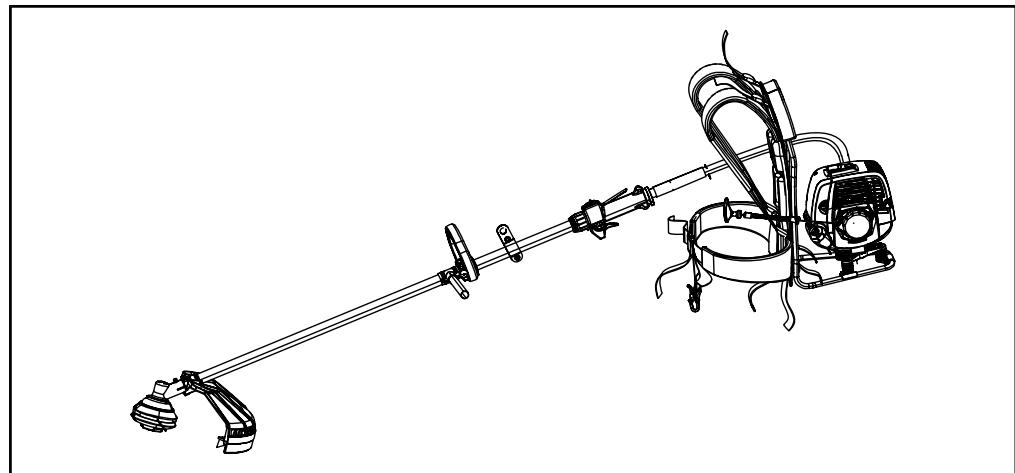

A. General Description

1) ENGINE
2) SHAFT
3) THROTTLE TRIGGER
4) REAR CONTROL GRIP
5) BLADE
6) NYLON STRING HEAD
7) STOP SWITCH
8) FUEL ENRICHMENT LEVER
9) STARTER HANDLE
10) HARNESS RING
11) SPARK PLUG
12) AIR FILTER COVER
13) FUEL TANK CAP
14) MUFFLER SHIELD
15) FLEXIBLE SHAFT
16) DELTA HANDLE
17) SAFETY LEVER

Example of identification

18) SAFETY POLE GUARD
19) STRING CUTTER BLADE
20) NYLON STRING HEAD GUARD EXTENSION
21) BLADE GUARD
22) RING
23) SHOULDER STRAPS
24) SHOULDER STRAP BUCKLE
25) LOAD ADJUSTMENT BUCKLE
26) BELT
27) BELT BUCKLE
28) STARTER KNOB SUPPORT
29) SHAFT FASTENER
30) ANTIVIBRATION DEVICE
31) FRAME
32) PADDING
33) BACKPACK

LEGEND:

1) Guaranteed noise level according to directive 2000/14/EC
2) Manufacturersnameandaddress'
3) Year of manufacture (last two figures; e.g. 03=2003)
4) Product code
5) Serial no.
6) Model/type
7) CE marking of conformity

B. Safety precautions

Meaning of symbols

Warning.

Safety apparel: Approved protective goggles or visor, approved hard hat and hearing protection.

Read the instructions for the user carefully and make sure you understand how all the controls work.

Safety apparel: Approved gloves.

Safety apparel: Approved boots.

Do not smoke when refueling or using the machine.

Fuel enrichment (starting aid).

Danger of flying debris.

Minimum safety distance 15m.

Emergency stop.

Maximum shaft speed.

Use of the manual

• Anyone who uses the machine should have read the entire manual with extreme care.
• All users should be familiar with the operations for use of the machine under absolutely safe conditions as described in this manual, and should be instructed in the proper cutting techniques to use, possibly by practical demonstration.
• Do not allow children or persons who are not familiar with these instructions and are not sufficiently trained to use the brush cutter. Local regulations may specify an age limit for users.
• Keep this manual with the machine when selling or lending it, to enable the future users to familiarize themselves with the product and instructions for safe use.
• All parts of the manual are equally important for the purpose of preventing injury to the operator or damage to the machine. To facilitate your reading, section B is divided into parts that can be called up in the rest of the manual, marked with the "CAUTION" symbol followed by the number of the corresponding paragraph, to concentrate your attention on the main safety procedures related to a particular situation.

Prior to use

• Respect of the procedures described in this manual does not eliminate the risks of accidents but does reduce the probability of their occurring or the effect of the damage.
• If you have never used a brush cutter before, practice using it for a while before actually starting to work with it.
• The operator or user is responsible for any damages to third parties or their property, and for any dangers to which they may be subject.
• Do not use this machine for any other purpose than that for which it was designed, using the proper cutting devices as indicated in the instructions.

Danger of kickback. The blade is capable of amputating arms and legs.

CAUTION!

Danger of serious leg injuries.
Take scrupulous care to follow the instructions in the manual.

CAUTION!

The cutting parts and muffler may get very hot and cause burns. Wait a few minutes before touching them.

• Do not use the machine if you are tired, in poor health or under the effects of alcohol or medication that could affect your reactions.
• Make sure you know how to stop the engine and blade if necessary (see section entitled "Starting and stopping the engine").

Inspect the machine carefully before every use, in case of violent impact or signs of malfunction. Make sure the machine is correctly assembled, and all its parts are working properly. Make sure the screws are all in place and securely tightened. Check operation of the accelerator control block and make sure there is no leakage of fuel. Check that the cutting tool does not move with the motor running at idle speed. Make sure the transmission pipe is properly fastened to the motor joint and the line cutter head or blade are correctly fastened with the screw fastening the blade fully tightened. Check the backpack and make sure the motor is securely fastened to its housing.

2 Replace any accessories (blades, nylon string heads, guards) which show damage or cracks or appear excessively worn. Have your Authorized Service Center replace any damaged parts. For nylon string heads, use only strings made of flexible material recommended by the manufacturer. For example, you should never use metal wire because it could cause serious injuries to people, property and animals. An unsuitable string could break and turn into a very dangerous missile. In mounting the cutting utensils follow the instructions in the chapter entitled "Usable cutting tools and their installation on the machine". ABSOLUTELY DO NOT USE THE BRUSH CUTTER IF THE SPECIFIC SAFETY GUARD FOR THE CUTTING DEVICE IN USE IS NOT SECURELY FASTENED (see chapter "Assembly/disassembly"). Failure to follow this rule can expose you to serious danger such as:

• possible contact with rotating and cutting parts;

• possible contact with flying debris. Never use a brush cutter without its safety pole guard correctly in place. Only use blades or nylon string heads clearly marked with a maximum speed of at least 10,500min^-1 .

3 Use only original or approved accessories and spare parts, which you can purchase from our official distributors. The use of other accessories and spare parts increases the danger of injury and in this case the manufacturer has no liability for damage to persons or property. Never attempt to use the machine if it is incomplete, defective or has been altered by anyone other than an Authorized Service Center. The risk of accidents increases considerably if maintenance is not carried out regularly in a professional way. In case of doubt contact an authorized service center.
4 All operations of maintenance, assembly, disassembly and fueling should be done with the machine on a flat, solid surface so that the motor cannot turn over, in a stable position with the motor off, the switch turned to O/STOP, the cutting tool stopped and wearing adequate protective gloves.

Apparel

5 Dress suitably for the job; wear approved personal protection gear:

• Closely fitting protective clothing (do not wear shorts or loose clothing). Do not wear jewelry that could get caught in moving parts of the machine.
• Safety boots with non-slip sole, crush-resistant toe cap and protection against cuts (do not wear sandals or work barefoot).
• Sturdy gloves resistant to cuts and vibrations.
• Safety visor or protective goggles. Remove the protective film if any.
• Hearing protection.
• Hard hat (if there is any risk of falling objects).

Health precautions

6 Avoid prolonged use. Noise and vibrations may be dangerous. Prolonged use of the machine or other equipment expose the operator to vibrations that can cause the White Finger Syndrome (Syndrome of Raynaud). This could reduce the sensitivity of the hands in distinguishing different temperatures and cause a general numbness. The operator should therefore check the conditions of the hands and fingers if the machine is used continuously or regularly. If one of the symptoms should appear, consult a doctor immediately. Prolonged use of the machine or other equipment can cause discomfort, stress, fatigue, hearing damage. Wear suitable hearing protection when using the machine. Correct and scrupulous maintenance

can also help to protect you further from the risk of noise and vibration.

7 Avoid contact of the eyes and skin with any oil or fuel. Do not inhale the gasoline fumes as they are toxic. Do not start or run the motor in closed or poorly ventilated places. The exhaust fumes are poisonous to breathe and can be asphyxiating and even fatal.

Work zone

8 Examine the work area and be careful of any hazards (such as roads, driveways, power lines, hanging tree limbs, etc.). Take special care when working on sloping terrain. Before use, remove any rubbish from the work area such as rocks, broken glass, ropes, metal parts, cans, bottles and any foreign body that could become entangled with rotating parts or be projected dangerously at a distance. Take account of possible hazards that may not be perceived because of the noise of the machine. Make sure there is someone in the vicinity within safe calling distance in case of accident.

During use

9 During use and for a few minutes after switching off the machine, the gearbox and zone near the shaft on which the cutting device is fastened are very hot. The muffler and its guard are very hot during use and after the engine has been switched off, even with the engine running at minimum speed. Contact can cause burns. Do not touch these parts if they are still hot.

Twigs or grass may jam between the safety guard and the blade or nylon string head. Never try to remove this material with the engine running and the blade rotating. Watch out for the rotating parts and hot surfaces of the machine. Contact between the blades and any extraneous objects could cause serious injury to the operator or other people or animals in the vicinity, and could also damage the machine. Cut only the material recommended for each accessory and take care not to let the blades come into contact with rocks, metal parts, etc. The blade is sharp, so be very careful when handling it even with the engine off.

11 Keep any other persons or animals away from the work zone (minimum distance 15 meters). Since there is a danger when you are working that the blade or nylon string head could throw out grass, dirt, rocks or foreign bodies, when someone approaches switch the engine off or stop the blade or rotating head (see section entitled "Starting and stopping the engine"). Fasten your hair above shoulder length. Start the machine in a flat place, in a stable position, making sure the cutting tool does not touch any

obstacles. Use the machine holding it to the right of your body so that the exhaust fumes can escape freely without obstruction from your clothing. While working, grip the brush cutter firmly with both hands. Stand in a stable position on your feet. Keep the grips clean and dry. Do not use the brush cutter while standing on a ladder or other unstable support. You should always be able to control your balance. Never use the machine under extreme weather conditions or in bad weather (very low temperatures, very hot, humid climate, fog, rain, wind, etc.). Keep all parts of your body and clothing away from the blades during startup or when the engine is running. During use, keep the work zone in front of you. Never cut walking backwards as you cannot see possible hazards. Do not put the machine down with the engine running. Never leave the machine alone. Never raise the brush cutter above knee level during cutting.

Before starting to work, put on the supporting device as shown in "Backpack adjustment". Adjust the shaft fastening buckle so that the blade or line cutter head are parallel to the ground. The connection point (fig. A no.10) should be held in the original position so as to avoid unbalancing the shaft.

Precautions for carrying the machine

13 Never carry the brush cutter, even for short distances, with the engine running. Switch off the engine and carry it with the blade or nylon string head facing backward. For your safety, during transport and storage, always protect the blade with the guard supplied with the machine (see "Protection for transport"). When you transport the brush cutter in a motor vehicle, place it in a stable fixed position so that no fuel leaks out. We recommend emptying the fuel tank whenever you transport the machine.

Fire prevention precautions

14 Never work with the brush cutter in the presence of fire or spilled gasoline. Do not place any inflammable material in the pocket of the backpack. If you have spilt it on yourself, change your clothes at once. Keep the machine

clean by removing any grass cuttings, leaves, excess oil to reduce the fire hazard. Engine exhaust fumes can get very hot and may contain sparks. Do not use the machine near inflammable material. The muffler gets very hot during use and remains hot for some time after switching off the engine. This also applies at idle speed. Take every precaution to reduce the fire hazard, especially in the presence of inflammable materials or gas. Start the engine at a distance from the filling site and far away from any fuel tanks (at least 3 meters).

15 When filling the fuel tank, dry any spilled fuel. Never add fuel in the tank when the engine is running or hot to avoid the risk of fire (let the engine cool off before filling the tank). Fill the tank outdoor, far from flames or sparks. Do not take the cap off the tank with the engine running. Open the cap on the tank carefully to eliminate any excess pressure. After fueling, close the cap tightly. Take care not to spill any fuel. The fumes produced by the fuel can cause an explosion or fire. Gasoline is highly inflammable: before going near any type of fuel, put out your cigarette, pipe or cigar. Do not smoke or take sources of heat or sparks near the fuel. Never refuel near or over inflammable objects (dry leaves, etc.).

Kickback

16 Machines equipped with blades may produce a violent kickback on contact with solid bodies. The force of the kickback can cause the operator to lose control of the machine. The blade is capable of amputating arms and legs. Always work with a sharp blade. A blade with worn teeth can create problems in cutting and can cause KICKBACK, that is, a violent thrust on the front of the machine caused by the impact of the blade against wood or solid foreign bodies. This kickback can cause loss of control of the machine. Never sharpen a damaged blade: replace with a new one. Kickback can also occur when cutting with any type of blade in the hazardous zone (see I1). Do not let the blade cut in the risk sector to prevent kickback.

C. Description of the safety devices on the machine

Safety lever

Never use the machine with its Safety lever pressed with adhesive tape, string or other.

This device serves to prevent accidentally pressing the throttle trigger (fig. A no. 3). In fact, the trigger (fig. A no. 3), can only be pressed if the safety lever is pressed at the same time (fig. A no. 17). By means of 2 separate springs, upon releasing the grip, the throttle trigger (fig. A no. 3) and safety lever (fig. A no. 17) return automatically to their original positions.

Shaft fastener

Use the shaft fastener every time you start the machine, fastening the connector to the supporting device. This way, the shaft will be held in place while your hands are busy with the starting procedure.

Antivibration device

The machine is equipped with an antivibration device (fig. A no. 30) which serves to reduce the vibrations transmitted to the operator.

Engine stop device

Turn the stop button Stop (fig. A no. 8) to O / STOP to stop the engine. To make sure this button works properly, start the engine and check that it stops when the Stop button is turned to the Stop position.

Protection for transport

Never use a machine with the blade cover still on.

The guard covers the sharp extremities of the blade when the machine is in the resting position for transport or storage.

Safety guard

This very important safety device (fig. A no.19) prevents any objects that come into contact with

the cutting device, or the grass itself, from flying up and striking the operator.

Safety pole guard

This device, fastened to the machine, ensures a minimum distance between the operator and the cutting device during use, and prevents the machine from striking and injuring the operator if the blade hits a hard surface (fig. A no. 18).

Muffler

The muffler serves to reduce the noise level to a minimum and to route the exhaust fumes produced by the combustion engine away from the operator.

Backpack release buckles

Stop the cutting device before dropping the shaft.

Before using the machine study the release buckles on the backpack and make sure you are able to use them quickly. If you have to remove the backpack rapidly, proceed as follows: hold the grip firmly in your right hand and use your left to release first the belt and then the left shoulder strap, letting the motor slip to the ground from your right shoulder.

D. Fuel Mixture

Preparation of the mixture

Do not use any other type of fuel than the type recommended in this manual. This machine is equipped with a two-stroke engine and should therefore be fueled with a mixture of unleaded gasoline (with a minimum octane rating = 90 ) and fully synthetic oil specific for two-speed engines that use unleaded gasoline in the proportions indicated in the table on the cover, fig. D.

Control the specifications of the oil shown on the package; the use of oil lacking the specifications expressly indicated in this manual could cause serious damage to the engine!

To obtain the best mixture, pour the oil into an approved container first, followed by the gasoline, and shake the container well (every time you take fuel out of it).

The characteristics of the mixture tend to deteriorate in time, so you should only prepare as much mixture as you are going to need (the use of deteriorated fuel can seriously damage the engine).

Filling the tank

Clean the area around the fuel cap before removing it, to prevent any impurities from contaminating the fuel. Take the cap off the fuel container carefully. Unscrew the cap on the fuel tank and fill it with the necessary quality, using a funnel. During use, to prevent problems in starting the engine again, we strongly recommend that you avoid letting the fuel run out in the tank.

Fuel storage

Store the fuel in a cool, well-ventilated place, in an approved fuel storage container.

Never store the engine with fuel in the tank in a poorly ventilated place where the fumes produced by the gasoline could propagate and

reach a fire, candle, burner or furnace pilot light, water heater, dryer, etc. Never store excessive quantities of fuel.

E. Assembly/disassembly

E1. Setting the motor on the frame

Position the motor so that the fuel cap faces upward and the bracket for fastening it to the frame is on one side. Screw pin A onto the motor as shown in the figure and tighten it securely. Fasten the motor to the frame and tighten it securely with the nut provided (B).

E2. Insertion of padding on frame

Pick up the frame+motor assembly and place them on the base; insert the upper part of the padding on the frame and fasten it with the two straps as shown in the figure. Take the support for the starter knob and fit it as shown in the figure. Fasten the starter cord to the support as shown in figure.

E3. Assembly of the transmission shaft to the flexible shaft

Pull the plastic ring nut away from the end of the rigid tube turning it counterclockwise if necessary. Insert the rigid tube into the handle section until the label is aligned with the edge of the plastic threaded rim Tighten the ring nut hand tight.

Safety pole guard

The safety pole guard should be mounted using the accessories supplied and in the configuration shown in the figure,in contact with the delta handle.

E4. Delta grip

For your safety, fasten the delta handle in front of the label placed on the shaft at a distance of at least 11cm from the rear grip. The handle should be fastened in a comfortable working position. If you are using sawtooth blades, the grip distance should be moved by at least 36~cm .

E5. Fitting guard on line cutter head and grass cutting blade

Fit the safety guard (A) against the gearbox (I) position the lower clamp (G) in the housing under the shield and the upper clamp (F) over the shaft. Insert and tighten the screws (H).

Safety guard extension (exclusively for use with nylon string head)

The string cutting blade housed in the plastic shield will cut the nylon string to optimum length; a string that is too long reduces the rotation speed of the engine and interferes with cutting efficiency, as well as increasing the risk of injury.

The extension (B) should be installed only for use with the nylon string head, with the aid of the string cutter blade (L), that regulates the length of the string and thus the cutting diameter. For correct assembly see the illustration on the cover and perform the following sequence of steps: Insert the extension (B) on the safety guard (A) at the reference notches (C), and fasten with the screws (D), then apply the string cutter blade (L) with the cutting edge facing towards the outside of the shield, and fasten it with the screw (E) (Make sure the screws are tightened all the way (E) and are not loosened by the vibrations. If necessary, tighten them again).

E6. Assembly/disassembly of line cutter head

Apply the nylon string head as shown in the illustration: a) Protection flange b) Upper plate c) Nylon string head. Tighten by turning counterclockwise. As you tighten, hold the nylon string head and plate still and insert the wrench or screwdriver supplied in the holes in the plate and gearbox; first turn the plate until the two holes match.

E7. Assembly/disassembly of grass cutter blade

Do not use the nylon string head guard extension (H) with metal blades.

Assemble blade as illustrated: a) Flange guard - b) Upper cap with blade centering - c) Blade with text and directional arrow facing upwards - d) Lower washer - e) Fixed mower gauge - f) Blade locking screw (length mm 16).

If you want to assemble the rotating mower gauge, proceed as illustrated: a) Flange guard - b) Upper cap with blade centering - c) Blade with text and directional arrow facing upwards - d)

Lower washer - e) Spacer - f) Rotating mower gauge - g) Blade locking screw (length mm 34,5).

Assembly of sawtooth blade and blade guard

When using the sawtooth blade, remove the guard for the line cutter head and grass cutting blade and replace the flange guard (A) with the sawtooth blade guard (H).

Saw tooth blades (24 - 80 tooth) have a central base diameter of 20mm and therefore require the use of the appropriate size top flange to ensure a correct fit. The part number is detailed in the cutting attachment summary chart.

For assembly see figures (E7, E8, E9).

F. Starting and stopping the engine

During startup, stand in a stable position. (Be careful not to twist the starter cord around your hands). Fasten the shaft to the backpack before undertaking the starting procedure, and release it afterwards. Do not pull the starter cord all the way and do not release it abruptly against the machine as this could damage it.

Startup of cold engine

F1. Stop switch (A) turned to "I" opposite the "STOP" mark.
F2. Turn the fuel enrichment lever (B) to the closed position.
F3. Pump by pressing several times on the bulb (C) until you see the fuel flow back into the tank through the tube (D). Put on the backpack. Pull the starter cord evenly, without jerks, and release it in the same way until the motor

catches. Let the motor run for a few seconds and accelerate. This will automatically return the fuel enrichment lever to its original position.

The cutting devices are now rotating.

Startup of warm engine

F1. STOP switch turned to "I" (START). Throttle trigger lever in minimum position (released).
F4. Enrichment lever (B) in original position.
F3. Repeat item F3 in the previous paragraph.

Stopping the engine

F5. Turn the stop switch (A) to "O" (STOP).

After stopping the engine the rotating parts, blade or nylon string head, keep spinning by inertia for a few seconds. Grip the machine firmly until they stop. In case of emergency the above delay can be abbreviated by scraping the blade supporting cup parallel on the ground.

G. Carburetor adjustment

Your machine can be equipped with a low emission carburetor. We recommend that you have any adjustment of the carburetor made exclusively by an authorized service center, which disposes of special equipment for ensuring the best performance with the lowest emissions. To adjust the speed to the minimum, turn the screw marked (T) as shown: With the engine running and well warmed up, turn the screw (T) gently clockwise, until the engine rotates at regular speed (stead noise), without the cutting devices in motion. If the cutting devices are moving, turn the screw (T) gently counterclockwise until you obtain the proper adjustment. The correct minimum speed is

shown in the instruction manual in the paragraph of technical data.

All the above adjustments should be made with the cutting devices correctly installed.

When you start the machine for carburetion, non do not wear the backpack, but set it down and hold it firmly in place with one hand while you use the other to pull the starter cord. Make sure the cutting tool is in a stable, safe position.

The warranty may be invalidated due to erroneous adjustments made by personnel not belonging to authorized service centers.

H. Routine maintenance

After every use

In order to avoid overheating the motor, remove any dust and dirt from the slots on the cylinder cover and finds of the cylinder using a wooden scraper. Clean the backpack (if you wish, you can wash the padding after removing it from the frame). Store the machine in a dry place.

After 25 hours of use

Remove the filter as shown in the figure and clean it using a gentle jet of compressed air. For more thorough cleansing, you can wash it with soapy water.

After 50 hours of use

Add some high speed gear grease in the gearbox through hole (C). Remove and clean the spark plug (set the space between the electrode at 0.5 / 0.6 ~mm ). Replace if excessively encrusted. In case of excessive encrustation check the carburetor adjustment, the percentage of oil in the fuel mixture and make sure the oil is of excellent quality and suitable for two-stroke engines.

After 100 hours of use

Replace the spark plug.

Every three months

Contact your Service Center for a complete overhaul, replacement of the fuel filter and

cleaning of the parts inside the machine. This will reduce the possibility of unexpected problems and will ensure the good performance and long life of your machine.

Periods of prolonged disuse

See "Environmental information".

If you use the machine in an exceptionally dirty or dusty environment these operations should be carried out more often.

H. Replacement of nylon string

To replace the reel of string, press both the release paws indicated by the arrows, remove the empty reel (fig. H2), unroll any string left and rewind the new string. Open the original package of string and insert the ends of the two strings in the eyelets on the reel, then wind the strings completely on the reel in the same direction and fasten the end of each string in the 2 opposite grooves. Replace the reel in its housing and thread the ends of the strings in their bushings. Pull each string so that about 15cm comes out on each side. Reassemble the nylon string head as shown (fig. H5). If the reel becomes excessively worn, replace it with a whole new reel.

I. Techniques for use

Backpack adjustment

During adjustment remember that the weight of the machine should be distributed mainly on your hips, while your shoulders serve to balance the load. Respect of these precautions will ensure a better balance and be less tiring for your back. Adjust the shoulder straps so that the belt is at hip height. Fasten the belt and adjust the straps so as to distribute the load and balance the weight of the machine accurately. Fasten the shaft to the backpack. Adjust the fastening belt so that the shaft is in the best position for starting the machine (12).

Cutting techniques

During the cutting operations, keep the engine running at high speed. After every cutting stage, decelerate the engine to minimum speed as running it at top speed without a load can damage the engine severely.

Wait until the engine is running at minimum speed before moving the machine from one section to another.

The machine is ideal to complete the work of the lawnmover. In fact, it can reach places where a normal lawnmower is unable to go.

Cutting and trimming grass borders with the nylon string head

Cutting with the nylon string head is suitable for light jobs like trimming borders and cutting the grass around trees.

Mowing

To prevent damage to your lawn or the cutting mechanism, keep the string parallel to the ground but avoid contact with the terrain.

Trimming borders

Angle the nylon string head keeping it a short distance from the ground. Cut using the end of the string. Do not press the string against the material to be cut.

Drawing out the string

During cutting, the nylon string wears naturally causing an increase in the speed of the engine and a reduced cutting capacity. When this happens, to bring out more string bump the head against the ground: release the throttle trigger to reduce the engine speed to less than 8000 rpm. Tap gently on the ground with the button (A) as shown in the figure and the string will come out automatically. Accelerate again. If the string does not come out make sure there is still some left and try again.

Thinning grass with the grass cutter blade

The grass is cut with swinging motions from side to side, maintaining the blade parallel to the ground. During the right to left swing the grass is cut, while the backswing must be made without using the blade.

1. KICKBACK can occur when cutting is done with the risk sector of the blade; we recommend cutting with the rest of the blade. Take care that the cup supporting the blade just grazes the ground. This will prevent the blade from touching the ground.

Use of sawtooth blade

Do not attempt to cut trees with a larger than recommended diameter, to prevent the risk of kickback or damage to the blade.

The sawtooth blade serves to cut bushes and small trees, with maximum diameter of seven centimeters. Rest the left side of the special shield on the trunk while cutting to limit the risk of losing control of the machine.

L. Environmental information

This section contains information useful for maintaining the characteristics of eco-compatibility included in the origin design of the machine, and as regards proper use and disposal of oil and fuel.

Design

In the design stage, care was taken to develop an engine with reduced consumption and low emissions of noise and pollutant exhaust fumes.

Use of machine

The operations of filling the tank with the fuel mixture should be carried out in such a way as to

avoid spilling fuel and contaminating the soil and environment.

Periods of prolonged disuse

Always empty the fuel tank with the same precautions used in filling it.

Disposal

Do not dispose inappropriately of the machine when it is no longer usable. Deliver it to an authorized organization for proper disposal in compliance with the regulations in force.

M. Troubleshooting table

	The engine does not start	The engine stutters or loses power	The machine starts but does not cut properly
Make sure the STOP switch is on "I".	●
Make sure that the fuel tank is at least 25% full.	●	●
Make sure the air filter is clean.	●	●
Remove the sparkplug, dry and clean it, then return it to its place. If necessary, replace it.	●	●
Change the fuel filter. Contact your supplier.		●
Follow the correct procedure for assembly of the cutting accessories.			●
Make sure the metal accessories are sharp, and contact your supplier if necessary.			●

The engine continues to have problems: contact your authorized supplier

N. Declaration of conformity

The undersigned, authorized by E.O.P., declares that the following products model: type BC011 BC012 starting from the serial numbers produced from 2003 on, manufactured by E.O.P., Valmadrera, Italy, comply with European Directive: 98/37/EEC (Machine Directive), 93/68/EEC (EEC Marking Directive) & 89/336/EEC (Electromagnetic Compatibility Directive), directive 2000/ 14/EEC (Enclosure V).

Valmadrera, 15.12.03

Pino Todero (Technical Manager)

Electrolux Outdoor Products Italy S.p.A.

Via Como 72, 23868 Valmadrera (Lecco)

ITALY

O. Technical data
Displacement (cm3)	42	46	52
Bore (mm)	41	43	47
Stroke (mm)	32	32	30
Engine output (kW) (ISO 8893)	1,6	1,8	2
Maximum shaft rotation frequency (min-1)	7700	7700	7700
Rotation speed (frequency of rotation) of engine at maximum rotation frequency recommended for shaft (min-1)	12100	12100	12100
Engine speed at max power (min-1)	8500	8500	7500
Minimum speed (min-1).	2800	2800	2800
Maximum speed, no load (min-1)	11000	11000	10000
Dry weight (kg)	9	9	10.8
Fuel tank capacity (cm3)	1000	1000	1000
Noise pressure (at operator ear) Lpav (dBA) (ISO 7917)	97	97	97
Measured sound power level Lwav (dBA) (ISO 10884)	113	113	108
Guaranteed noise level Lwav (dBA) (ISO 10884)	114	114	112
Vibrations on rear grip (m/s2) (ISO 5349)	1,4-10,5	1,4-10,7	1,5-12
Vibrations on front grip (m/s2) (ISO 5349)	1,4-9	1,4-9	1,5-10
	BC011 42cc	BC011 46cc	BC012 52cc
