MODE D'EMPLOI ST-610L TECHNICS

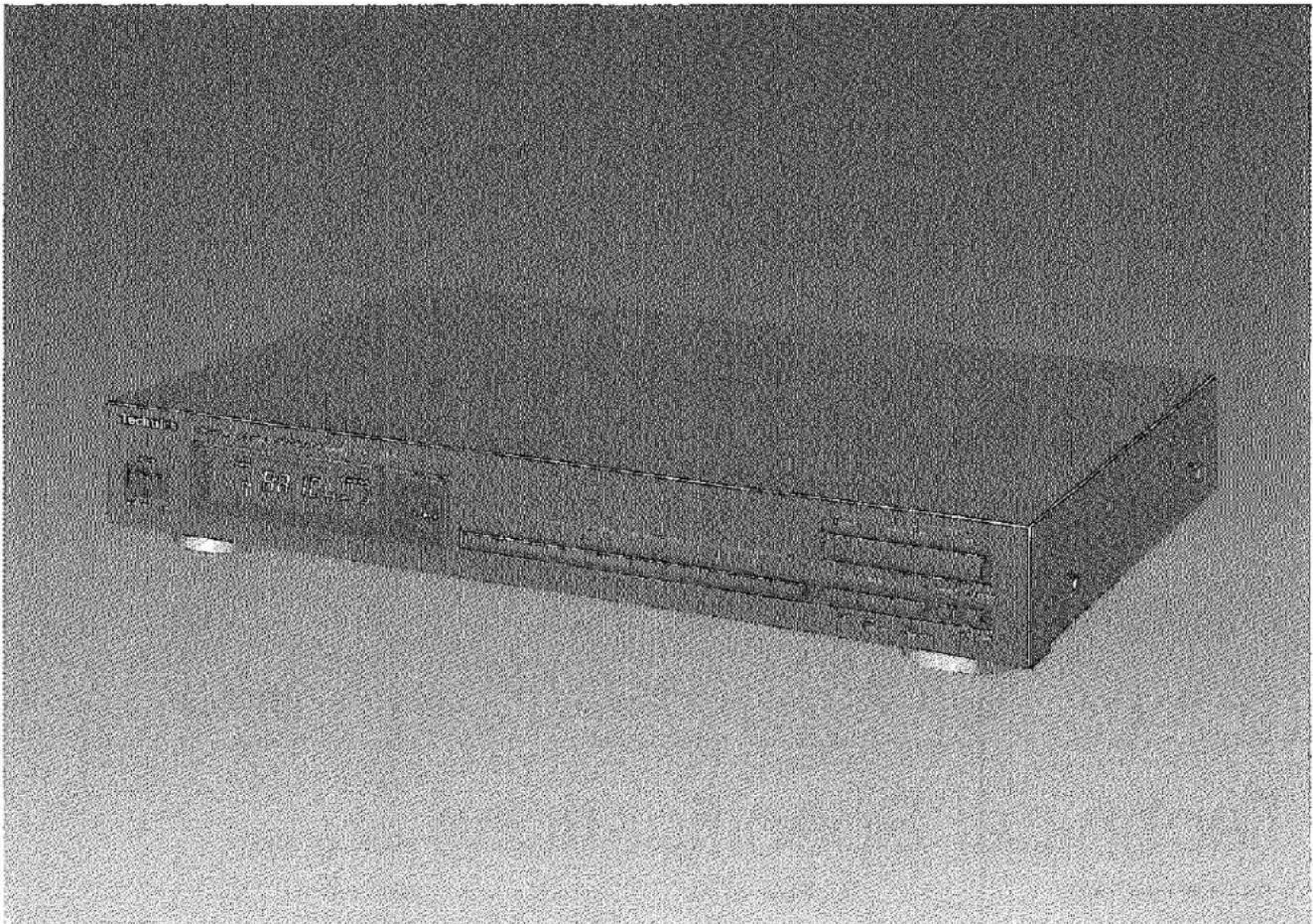

Technics
QUARTZ Synthesizer
LW/MW/FM Stereo Tuner
ST-61OL
OPERATING INSTRUCTIONS
Notes:
- Specifications differ according to the area code.
• The "EB" area code, for example, indicates United Kingdom specifications.
• The "EB" indication is shown on the packing case and serial number tag.
Before operating this unit, please read these instructions completely.
Dear Stereo Fan
We want to thank you for selecting this product and to welcome you to the growing family of satisfied Technics product owners around the world.
We feel certain you will get maximum enjoyment
from this new addition to your home.
Please read these operating instructions carefully, and be sure to keep them handy for convenient reference.
Contents
• Accessories.... 2
• Technical Specifications.... 2
• Suggestions for Safety 3
•For United Kingdom 3
- Connections 4
• Front Panel Controls and Their Functions 5
• Memory Presettings 6
•Listening to Radio Broadcasts 7
• Maintenance 7
*Troubleshooting Guide .... Back cover
Accessories
(Refer to page 4.)
- AC power supply cord..... 1

• Stereo connection cable..... 1

* FM Indoor antenna.... 1

- Attachment plug .... 1

• AM loop antenna ..... 1

• AM antenna holder..... 1

- Screws 2

Technical Specifications
(DIN 45 500)
FM TUNER SECTION
| Frequency range | |
| 87.50~108.00 MHz (50 kHz-steps) | |
| Sensitivity | 1.5 μV (IHF, usable) |
| S/N 30 dB | 1.3 μV (75Ω) |
| S/N 26 dB | 1.2 μV (75Ω) |
| S/N 20 dB | 0.9 μV (75Ω) |
| IHF 46 dB stereo quieting sensitivity | 28 μV/75Ω |
| Total harmonic distortion MONO | 0.15% |
| STEREO | 0.3% |
| S/N MONO | 70 dB (78 dB, IHF) |
| STEREO | 65 dB (70 dB, IHF) |
| Frequency response | |
| 20 Hz~15 kHz, +0.5 dB~-1.5 dB | |
| Alternate channel selectivity | |
| normal ±400 kHz | 65 dB |
| Capture ratio | 1.0 dB |
| Image rejection at 98 MHz | 45 dB |
| IF rejection at 98 MHz | 90 dB |
| Spurious response rejection at 98 MHz | 75 dB |
| AM suppression | 55 dB |
| Stereo separation 1 kHz | 40 dB |
| 10 kHz | 30 dB |
| Carrier leak | 19 kHz | -30 dB (-35 dB, IHF) |
| 38 kHz | -45 dB (-50 dB, IHF) | |
| Channel balance (250 Hz~6,300 Hz) | ±1.5 dB | |
| Limiting point | 1.2 μV | |
| Bandwidth | IF amplifier | 180 kHz |
| FM demodulator | 1000 kHz | |
| Antenna terminals | 75Ω (unbalanced) | |
AM TUNER SECTION
| Frequency range | |
| MW | 522 kHz~1611 kHz (9 kHz-steps) |
| 530 kHz~1620 kHz (10 kHz-steps) | |
| LW | 155 kHz~353 kHz (9 kHz-steps) |
| 153 kHz~351 kHz (-2 kHz shift) | |
| Sensitivity (S/N 20 dB) | MW 20 μV, 300 μV/m |
| LW 50 μV | |
| Selectivity (±9 kHz) | MW (at 999 kHz) 50 dB |
| LW (at 254 kHz) 50 dB | |
| Image rejection | MW (at 999 kHz) 40 dB |
| LW (at 254 kHz) 40 dB | |
| IF rejection | MW (at 999 kHz) 60 dB |
| LW (at 254 kHz) 60 dB | |
GENERAL
| Output voltage | 0.3 V (0.6 V IHF) |
| Power consumption | 9 W |
| Power supply | AC 50 Hz/60 Hz, 240 V |
| Dimensions (W × H × D) | 430 × 69 × 290 mm(16-15/16" × 2-23/32" × 11-7/16") |
| Weight | 2.4 kg (5.3 lb.) |
Notes:
- Specifications are subject to change without notice.
Weight and dimensions are approximate. - Total harmonic distortion is measured by the digital spectrum analyzer (H.P. 3045 system).
Suggestions for Safety
Use a standard electrical AC wall outlet
- Use from an AC power source of high voltage, such as for air conditioners, is very dangerous.
Be extremely careful not to make a connection to the electrical outlet for a large air conditioner or central-heating unit which uses high voltage, because there is the possibility of fire.
- A DC power source cannot be used.
Be sure to check the power source carefully, especially on a ship or other place where DC is used.
■ Connection and removal of the power cord plug
- Wet hands are dangerous.
A dangerous electric shock may result if the plug is touched by wet hands.
- Don't pull the power cord.
Always grasp the plug; never pull the cord itself.
■ Never attempt to repair or reconstruct this unit
A serious electric shock might occur if this unit is repaired, disassembled or reconstructed by unauthorized persons, or if the internal parts are accidentally touched.
For families with children
Never permit children to put anything, especially metal, inside this unit. A serious electric shock or malfunction could occur if articles such as coins, needles, screwdrivers, etc. are inserted through the ventilation holes, etc. of this unit.
Turn off after use
If the unit is left for a long time with the power on, this will not only shorten its useful operation life, but may also cause other unexpected trouble.
If water is spilled on the unit
Be extremely careful if water is spilled on the unit, because a fire or serious electric shock might occur. Immediately disconnect the power cord plug, and consult with your dealer.
Place the unit where it will be well ventilated, and away from direct sunlight
Place this unit at least 10 cm (4") away from wall surfaces, etc., and away from direct sunlight.
Keep the unit away from heaters, etc.
Heat can damage the external surfaces as well as internal circuits and components.
■ Avoid spray-type insecticides
Insecticides might cause cracks or "cloudiness" in the cabinet and plastic parts of this unit. The gas used in such sprays might, moreover, be ignited suddenly.
Never use alcohol or paint thinner
These and similar chemicals should never be used, because they may damage the finish.
If trouble occurs
If, during operation, the sound is interrupted or indicators no longer illuminate, or if abnormal odor or smoke is detected, immediately disconnect the power cord plug, and contact your dealer or an Authorized Service Center.
For United Kingdom
("EB" area code model only)
The "EB" indication is shown on the serial number tag.
Important
THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.
BLUE: NEUTRAL
BROWN: LIVE
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows. The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.
Connections
The Indication AM used here includes both MW and LW.
Note: An outdoor antenna should be installed by a competent technician only.
FM outdoor antenna
(Necessary in mountainous regions, inside reinforced-concrete buildings, etc.)

FM indoor antenna included
- Attach to a wall (using tack or tape) facing in direction of best reception.
• Tack should not contact internal antenna wire.
• For best reception sound quality, an FM outdoor antenna is recommended. - Disconnect this antenna if an FM outdoor antenna is installed.
AM outdoor antenna option
(Necessary in mountainous regions, inside reinforced-concrete buildings, etc.) Use 5 \~ 12 m (16 \~ 40 ft.) of vinyl-covered wire horizontally at the window.

AM loop antenna (measured)
If this antenna is not properly installed, AM broadcasts will not be received. Be sure to connect the AM loop antenna even when an outdoor antenna is used.

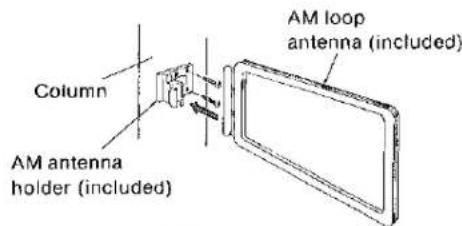

Installation of the AM loop antenna
-
Pay attention to the following points when attaching the antenna.
-
Do not attach it horizontally (to do so would impair reception).
- Do not attach it close to metal surfaces (to do so would result in noise).
When attaching the antenna to a wall, column or rack
Find the height and direction of the antenna where reception is best and then fix it vertically to the wall, rack, etc.

- Do not attach it close to power cords, speaker wires, etc. (to do so would result in noise).
-
Do not attach it close to a tape deck (when the tape deck is being used, chirping or beeping sounds may be received).
-
Connect the AM loop antenna to the AM antenna terminals located on the rear panel of this unit.
When attaching the antenna to this unit
This type of installation may cause impaired reception or result in signal noise. If possible, attach the antenna to the rack, a wall, or a column.
Move the antenna toward the right or left to find the point of best reception.

Front Panel Controls and Their Functions The Indication AM used both MW and LW.

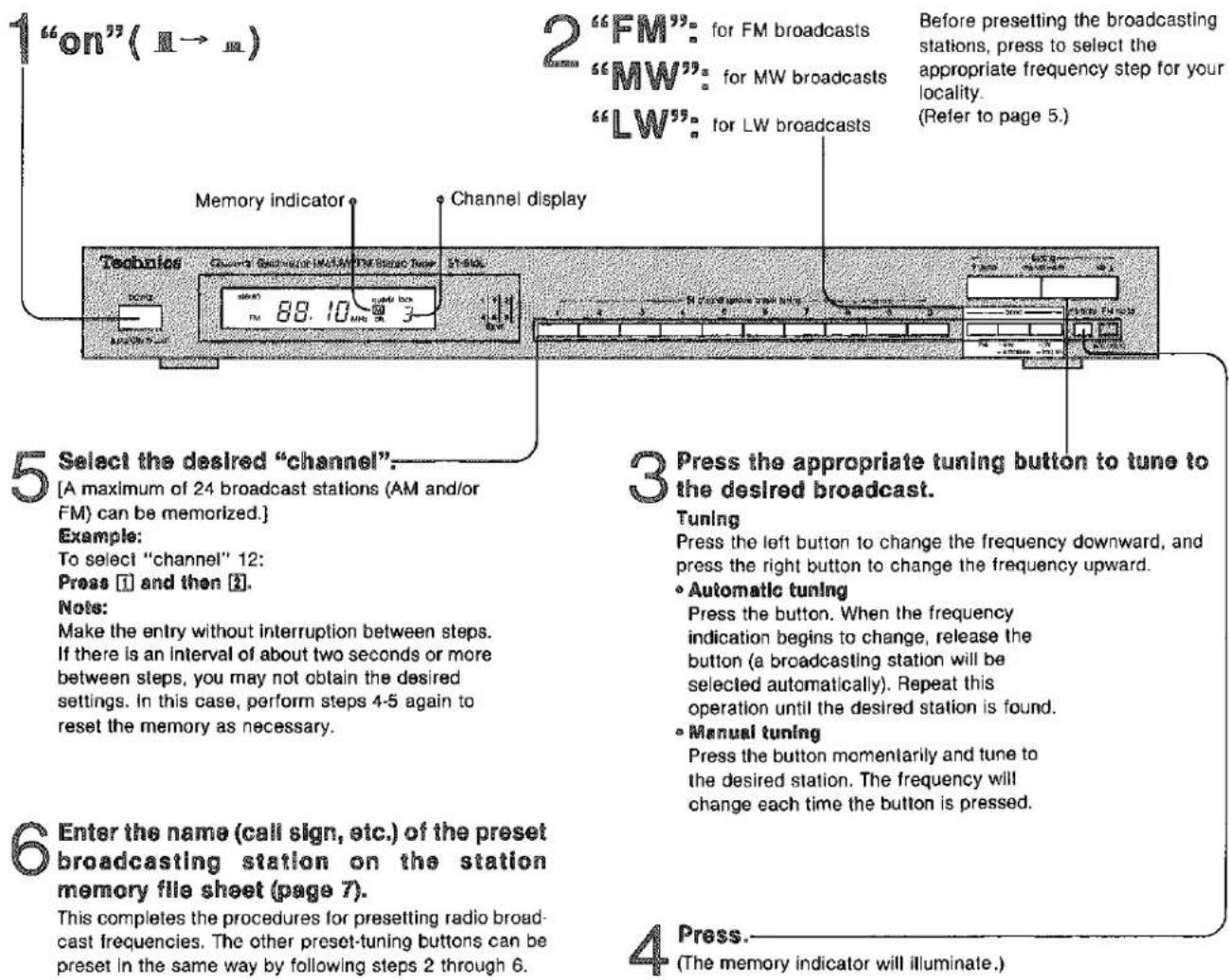

Memory Presettings
The Indication AM used here Includes both MW and LW.
With this unit you may preset as many as 24 radio broadcast stations: FM/AM random presetting. After broadcast stations have been preset as described below, any desired station can be quickly and easily selected.
Note:
If a new broadcasting station is preset into a channel, the broadcasting station which was previously entered in that channel will be automatically erased.
![1 "on" ( Ⅱ → Ⅲ) 2 "FM": for FM broadcasts "MW": for MW broadcasts "LW": for LW broadcasts Before presetting the broadcasting stations, press to select the appropriate frequency step for your locality. (Refer to page 5.) Memory indicator Channel display Technics 68.10 ST-5 5 Select the desired "channel". [A maximum of 24 broadcast stations (AM and/or FM) can be memorized.] Example: To select "channel" 12: Press ① and then ②. Note: Make the entry without interruption between steps. If there is an interval of about two seconds or more between steps, you may not obtain the desired settings. In this case, perform steps 4-5 again to reset the memory as necessary. 3 Press the appropriate tuning button to tune to the desired broadcast. Tuning Press the left button to change the frequency downward, and press the right button to change the frequency upward. • Automatic tuning Press the button. When the frequency indication begins to change, release the button (a broadcasting station will be selected automatically). Repeat this operation until the desired station is found. • Manual tuning Press the button momentarily and tune to the desired station. The frequency will change each time the button is pressed. 6 Enter the name (call sign, etc.) of the preset broadcasting station on the station memory file sheet (page 7). This completes the procedures for presetting radio broad- cast frequencies. The other preset-tuning buttons can be preset in the same way by following steps 2 through 6. 4 Press. (The memory indicator will illuminate.)](/content/2026/06/1307195/images/a60ad505ea03bd86e56172b2d6826870a341d4f32cb9e19355286efea5f15959.jpg)
“Most-recent” memory
The most-recent memory is a system by which the unit "remembers" the FM or AM broadcast station last heard when this unit is turned off, and automatically tunes to that station the next time the power is turned on.
“Back-up” memory
This is the function which preserves the preset memory and most-recent memory functions. In the event of a power failure, or if the power cord of the tuner is disconnected from the electric outlet, the back-up memory will preserve the preset memory and most-recent memory functions for as long as approximately one week.
If the memory setting is erased
The memory settings will be erased in the following cases.
For example:
1) If the power cord is disconnected from the electric outlet,
2) If an audio timer is used and the timer does not operate the tuner for a week or longer.
3) If a power failure occurs, etc.
If any of the above occurs, the memory will have to be reset. The memory in the tuner is maintained by a capacitor. If the power supply is interrupted for a week or longer, set the power switch of the tuner to the "on" position for an hour or more in order to recharge the capacitor. Then reprogram the memory.
Listening to Radio Broadcasts
Have you completed the memory presettings (page 6)?
1 Turn the amplifier on, and set it for listening to radio broadcasts.

Station Memory File Sheet
| CH. 1 | CH. 2 | CH. 3 | CH. 4 | CH. 5 | CH. 6 | CH. 7 | CH. 8 | CH. 9 | CH. 10 | CH. 11 | CH. 12 |
| CH. 13 | CH. 14 | CH. 15 | CH. 16 | CH. 17 | CH. 18 | CH. 19 | CH. 20 | CH. 21 | CH. 22 | CH. 23 | CH. 24 |
Maintenance
To clean this unit, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth,"ipped into a soap-and-water solution or a weak detergent solution. Wring the cloth well before wiping the unit.
Wipe once again with a soft, dry cloth. Never use alcohol, paint thinner, benzine, nor a chemically treated cloth to clean this unit. Such chemicals may damage the finish of your unit.
Troubleshooting Guide
Before requesting service for this unit, check the chart below for a possible cause of the problem you are experiencing. Some simple checks or a minor adjustment on your part may eliminate the problem and restore proper operation.
If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, refer to the directory of Authorized service centers (enclosed with this unit) to locate a convenient service center, or consult your Technics dealer for instructions.
| Problem | Probable cause(s) | Suggested remedy |
| While listening to FM broadcasts | ||
| An unusual hissing noise is heard when listening to the broadcast in stereo, but not heard when listening monaurally. | A slight noise may be heard because the method used for modulation of FM stereo broadcasts is different than that used for monaural broadcasts. | Try reducing the treble sound by turning the treble tone control of the amplifier.Set the FM mode selector to the mono position. (Note that the broadcast will then be heard as monaural sound.)Try changing the location, height and/or direction of the antenna.If an indoor antenna is being used, change to an outdoor antenna.Try using an antenna with more elements. |
| Noise is excessive in both stereo and monaural broadcasts. | Poor location and/or direction of the antenna.Transmitting station is too far away. | |
| The FM stereo indicator or quartz lock indicator flickers, without completely illuminating. | Poor location and/or direction of the antenna.Transmitting station is too far away. | Try changing the location, height and/or direction of the antenna.If an indoor antenna is being used, change to an outdoor antenna.Try using an antenna with more elements. |
| Excessive distortion in the sound of stereo broadcasts. | Nearby building or mountain.(Multi-path distortion is being caused by the mutual interference of broadcast signals received directly from the transmitting station (direct waves) and signals being reflected from nearby buildings or mountains (reflected waves).) | |
| Station selection cannot be made by using the preset-tuning buttons. | The preset-tuning buttons of this unit have not been preset. | Make the presettings. |
| The charge of the capacitor which maintains the "back-up", memory is exhausted. | Set the power switch to the "on" position for 60 minutes or more to perform the charging, and then make the memory presetting again. | |
| While listening to AM broadcasts | ||
| An unusual "beat" sound is heard. | Unit is being used at the same time as the television set. | Turn off television set, or use this unit farther away from it. |
| A low-pitched "hum" sound is heard when the broadcast is tuned. | The AM loop antenna connection wires are too close to the power cord. | Place the antenna connection wires and the power cord farther apart. |
| The power supply frequency from the power cord is modulated and heard from the speakers. | Try reversing the connection of the power cord plug.Install a special outdoor antenna. | |
| A strange hissing noise is produced continuously or intermittently. | Caused by the "discharge phenomenon" and the "oscillation phenomenon" of electric appliances (such as fluorescent lights, TV, small series-type motors, rectification equipment, etc.). | Try placing this unit farther away from such equipment.Install noise-prevention equipment on this unit or on the electric appliance. |
| Station selection cannot be made by using the preset-tuning buttons. | The preset-tuning buttons of this unit have not been preset. | Make the presettings. |
| The charge of the capacitor which maintains the "back-up" memory is exhausted. | Set the power switch to the "on" position for 60 minutes or more to perform the charging, and then make the memory presetting again. | |
