ST-X933L - Récepteur audio TECHNICS - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Récepteur audio stéréo
Marque	Technics
Modèle	ST-X933L
Dimensions (L x H x P)	430 x 140 x 350 mm
Poids	8,5 kg
Alimentation	220-240 V ~ 50/60 Hz
Consommation électrique	250 W max
Puissance de sortie	2 x 50 W RMS sous 8 ohms
Impédance d'entrée	47 kΩ (ligne)
Sensibilité d'entrée	150 mV (ligne)
Rapport signal/bruit	> 80 dB
Gammes de fréquences	FM : 87,5 - 108 MHz ; AM : 522 - 1620 kHz
Entrées	Phono (MM), CD/AUX, Tuner, Magnétophone (RCA)
Sorties	Enceintes (2 paires), Casque (6,35 mm), Magnétophone (RCA)
Fonctions principales	Amplification, syntonisation FM/AM, sélecteur d'entrée, réglages graves/aigus, balance, loudness
Entretien et nettoyage	Débrancher avant nettoyage. Utiliser un chiffon doux et sec. Ne pas utiliser de produits chimiques.
Sécurité	Ne pas exposer à l'humidité ou à la chaleur excessive. Ne pas obstruer les fentes de ventilation.
Pièces détachées et réparabilité	Les pièces détachées sont disponibles auprès de revendeurs agréés Technics. La réparation doit être effectuée par un professionnel.
Accessoires inclus	Câble d'alimentation, antenne FM, antenne AM, notice d'utilisation
Couleur	Noir

FOIRE AUX QUESTIONS - ST-X933L TECHNICS

Comment connecter des enceintes au Technics ST-X933L ?

Utilisez des câbles d'enceinte dénudés. Connectez-les aux bornes à l'arrière du récepteur en respectant la polarité (+/-). Assurez-vous que l'impédance des enceintes est d'au moins 4 ohms.

Comment syntoniser une station FM ?

Appuyez sur le bouton FM pour sélectionner la bande. Utilisez le bouton TUNING pour rechercher manuellement ou activez la recherche automatique en maintenant enfoncé le bouton SCAN.

Que faire si l'appareil ne s'allume pas ?

Vérifiez que le câble d'alimentation est correctement branché et que la prise fonctionne. Assurez-vous que l'interrupteur POWER est enfoncé. Si le problème persiste, contactez un service technique.

Comment nettoyer le récepteur ?

Débranchez l'appareil. Utilisez un chiffon doux et sec pour essuyer la surface. N'utilisez jamais de solvants ou de produits abrasifs. Pour les connecteurs, un spray contact peut être utilisé avec précaution.

Puis-je connecter une platine vinyle ?

Oui, utilisez l'entrée PHONO à l'arrière. Branchez les câbles RCA de la platine. Assurez-vous que votre platine dispose d'un préampli phono intégré ou utilisez un préampli externe si nécessaire.

Comment régler la balance sonore ?

Utilisez les boutons BASS et TREBLE pour ajuster les graves et les aigus. Le bouton BALANCE permet de répartir le son entre les canaux gauche et droit. Le bouton LOUDNESS compense les basses à faible volume.

L'antenne FM fournie est-elle suffisante ?

L'antenne filaire incluse permet une réception de base. Pour une meilleure réception, surtout en zone faible, utilisez une antenne FM extérieure ou une antenne dipôle placée en hauteur.

Comment enregistrer depuis le récepteur ?

Connectez un magnétophone ou un enregistreur à la sortie TAPE OUT (RCA). Sélectionnez la source à enregistrer (ex: FM, CD). Le signal sortira sur la sortie magnétophone.

Que signifient les voyants ?

Le voyant POWER indique que l'appareil est sous tension. Le voyant FM STEREO s'allume lorsqu'une station FM stéréo est correctement syntonisée. Le voyant SIGNAL peut indiquer la force de réception.

Où trouver la notice originale ?

La notice originale est disponible en téléchargement gratuit sur le site notice-facile.com. Vous pouvez également demander une version traduite par email.

MODE D'EMPLOI ST-X933L TECHNICS

Technics

QUARTZ SYNTHESIZER LW/MW/FM

STEREO TUNER

ST-X933L

OPERATING INSTRUCTIONS

Notes:

• Specifications differ according to the area code.
• The "EB" area code, for example, indicates United Kingdom specifications.
• The "EB" Indication is shown on the packing case and serial number tag.

Before operating this unit, please read these instructions completely.

Dear Stereo Fan

We want to thank you for selecting this product and to welcome you to the growing family of satisfied Technics product owners around the world. We feel certain you will get maximum enjoyment

from this new addition to your home. Please read these operating instructions carefully, and be sure to keep them handy for convenient reference.

Contents

• For United Kingdom 2
- Suggestions for Safety 3
- Accessories....4
- Connections 4
- Antenna Connections.... 5
- Front Panel Controls and Functions ..... 6
• Memory Presettings ..... 7

• Listening to Radio Broadcasts .... 8
• Remote-Control Transmitter 9
• Remote-Control Operation....10
  • Technical Specifications ..... 11
• Maintenance....11
• Troubleshooting Guide .... Back cover

For United Kingdom

("EB" area code model only) The "EB" indication is shown on the name plate.

Important

THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.

BLUE: NEUTRAL BROWN: LIVE

As the colours of the wires in the mains lead of this unit may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

Suggestions for Safety

■ Use a standard AC wall outlet

1. Use from an AC power source of high voltage, such as for an air conditioner, is very dangerous. There is the possibility that a fire might be caused by making such a connection.
2. A DC power source cannot be used. Be sure to check the power source carefully, especially on a ship or other place where DC is used.

■ Grasp the plug when disconnecting the power supply cord

1. Wet hands are dangerous.
   A dangerous electric shock may result if the plug is touched by wet hands.
2. Never place heavy items on top of the power supply cord, and never force it to bend sharply.

■AC outlet on rear panel

(not equipped for some countries)

1. Any equipment connected here should have the specified power consumption or less.
   This outlet is exclusively for the connection of other audio equipment, such as a tape deck. Be sure the power consumption does not exceed the wattage specified near the AC outlet.
2. Never connect other electrical appliances, such as an iron or toaster.
   If appliances with a large power consumption are connected, an accident might occur as a result of overheating.

Place the unit where it will be well ventilated

Place this unit at least 10 cm (4") away from wall surfaces, etc.

■ Avoid places such as the following:

In direct sunlight or in other places where the temperature is high.

In places where there is excessive vibration or humidity. Such conditions might damage the cabinet and/or other component parts and thereby shorten the unit's service life.

■ Be sure to place the unit on a flat, level surface.

If the surface is inclined, a malfunction may result.

■ Never attempt to repair or reconstruct this unit

A serious electric shock might occur if this unit is repaired, disassembled or reconstructed by unauthorized persons, or if the internal parts are accidentally touched.

Take particular care if children are present

Never permit children to put anything, especially metal, inside this unit. A serious electric shock or malfunction could occur if articles such as coins, needles, screwdrivers, etc. are inserted through the ventilation holes, etc. of this unit.

If water is spilled on the unit

Be extremely careful if water is spilled on the unit, because a fire or serious electric shock might occur. Immediately disconnect the power cord plug, and consult with your dealer.

■ Avoid spray-type Insecticides

Insecticides might cause cracks or "cloudiness" In the cabinet and plastic parts of this unit. The gas used in such sprays might, moreover, be ignited suddenly.

■ Never use alcohol or paint thinner

These and similar chemicals should never be used, because they might cause flaking or cloudiness of the cabinet finish.

■ Disconnect the power supply cord if the unit will not be used for a long time

If the unit is left for a long time with the power ON, this will not only shorten its useful operation life, but may also cause other troubles.

■If trouble occurs

If, during operation, the sound is interrupted or indicators no longer illuminate, or if abnormal odor or smoke is detected, immediately disconnect the power cord plug, and contact your dealer or an Authorized Service Center.

Accessories

(Refer to pages 4, 5 and 9)

- Stereo connection cable ..... 1

• FM indoor antenna ..... 1

• AM antenna holders 2

- 3-core flat cable .... 1

- Attachment plug 1

• Screws.... 2

• Remote-control transmitter (EUR64754) ..... 1

• AC power supply cord ..... 1

• AM loop antenna ..... 1

- Batteries 2

Connections

Make connections in the numbered sequence by using the included cables and power cord.

1 Connect the stereo connection cable.

② Connect the 3-core flat cable. (Consult your dealer about Technics amplifier combined with this unit)

3 Connect the AC power supply cord.

① Connect this cord only after all other cables have been connected.
② For United Kingdom

4 "AC OUTLET"

This outlet is a "SWITCHED" outlet; the power is controlled by the power switch of this unit.

This outlet is only for use with other audio equipment. Also, do not exceed the indicated power rating when connecting to this outlet.

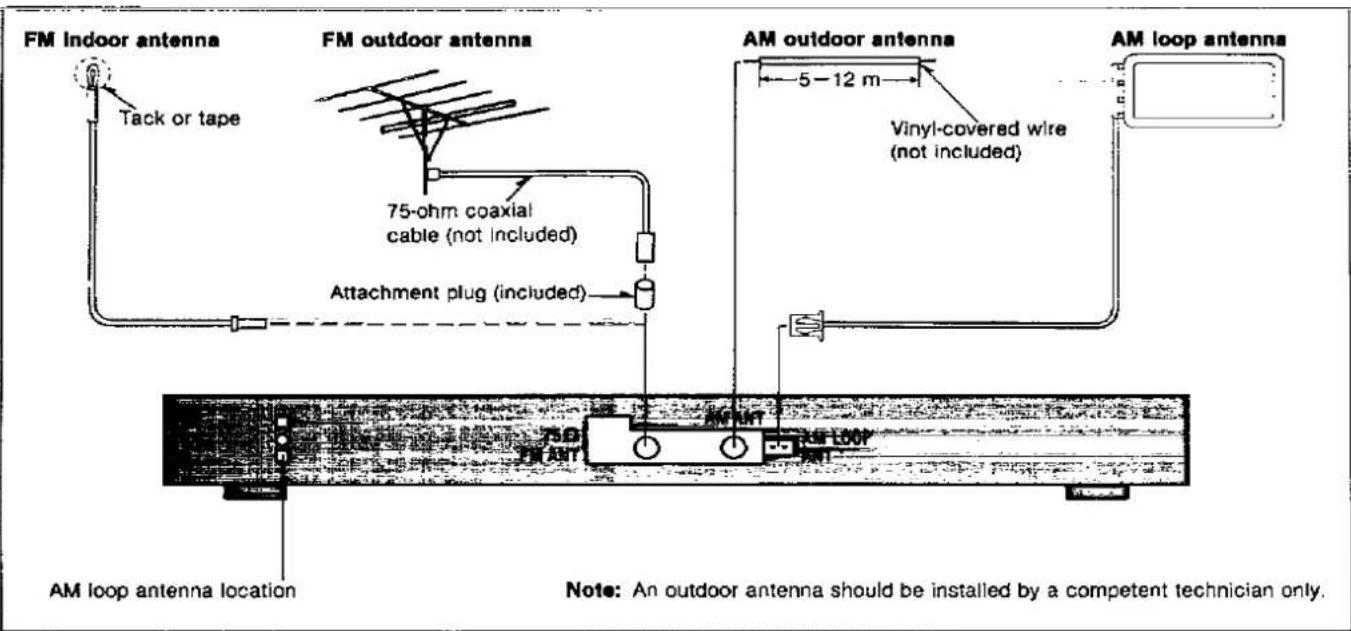

Antenna Connections

The indication AM used here includes both MW and LW.

FM antenna

■FM indoor antenna (included)

Attach to a wall (using tack or tape) facing in the direction of best reception.

For best reception sound quality:

An FM outdoor antenna is recommended.

Notes:

• The tack should not contact the internal antenna wire.
• Disconnect this antenna if an FM outdoor antenna is installed.

AM antenna

■AM loop antenna (included)

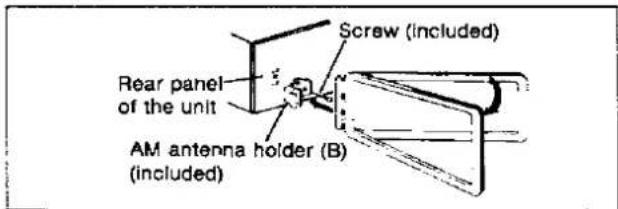

Connect the AM loop antenna to the AM antenna terminals, and attach it to a column, rack or this unit (facing in the direction of best reception).

Notes:

• If this antenna is not properly installed, AM broadcasts will not be received.
• Be sure to connect the AM loop antenna even when an outdoor antenna is used.

Pay attention to the following points when attaching the antenna.

• Do not attach it horizontally (to do so would impair reception).
• Do not attach it close to power cords, speaker wires or metal surfaces (to do so would result in noise).
• Do not attach it close to a tape deck (when the tape deck is being used, chirping or beeping sounds may be received).

When attaching the antenna to a column, a wall or rack

Affix it vertically.

■ FM outdoor antenna (not included)

If the FM Indoor antenna does not provide satisfactory reception of FM broadcasts, an outdoor antenna should be used.
The outdoor antenna may be required in a mountainous region, or if this unit is located inside a reinforced-concrete building, etc.

When attaching the antenna to the unit

This type of installation may cause impaired reception or result in signal noise. If possible, attach the antenna to a rack, a wall, or a column.

Move the antenna toward the right or left to find the point of best reception

■AM outdoor antenna (not included)

The outdoor antenna may be required in a mountainous region, or if this unit is located inside a reinforced-concrete building, etc. Use 5–12 m (16–40 ft.) of vinyl-covered wire horizontally at the window.

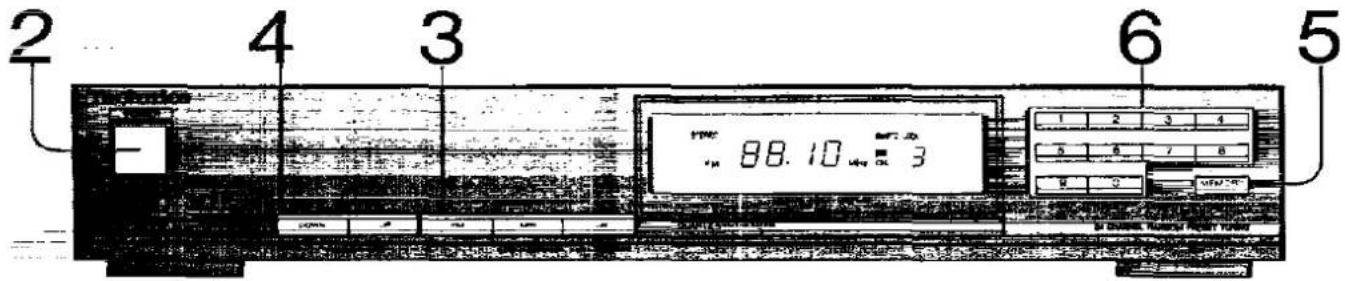

Front Panel Controls and Functions

The Indication AM used here includes both MW and LW.

Control section

Power "STANDBY ⏻/ON" switch (POWER "STANDBY ⏻/ON")

This switch switches ON and OFF the secondary circuit power only. The unit is in the stand-by condition when this switch is set to the "STANDBY d" position. Regardless of the switch setting, the primary circuit is always "live" as long as the power cord is connected to an electrical outlet.

5 Band selectors (BAND SELECTOR)

FM:

Press this button to listen to an FM broadcast. MW:

Press this button to listen to an MW broadcast.

ALLOCATION:

When the MW button is pressed for about 4 seconds, the MW frequency step will change to 10 kHz per step. (This unit is set to 9 kHz before shipment.)

② "STANDBY ⏻" Indicator

This indicator will illuminate when the unit is switched to the standby condition by the power "STANDBY 6/ON" switch on the unit or the ON/OFF switch on the remote-control transmitter.

In order to return to the original frequency indication press this button for about 4 seconds again.

LW:

Press this button to listen to an LW broadcast. FREQ SHIFT:

When the LW button is pressed for about 4 seconds during reception of an LW broadcast, the LW frequency will decrease by 2 kHz.

In order to return to the original frequency indication, press this button for about 4 seconds again.

3 FM mode selector (FM MODE)

This unit automatically switches to the stereo mode when an FM stereo broadcast is received. This selector is used to select the mode (stereo or monaural) of FM broadcast signals.

6 Preset-tuning buttons (1-0)

(24 CHANNEL RANDOM PRESET TUNING)

These buttons are used to preset FM and AM broadcast frequencies into the memory of this unit, and are also pressed to recall the desired preset stations. (Refer to pages 7-8.)

4 Tuning buttons (TUNING)

These buttons can be used for tuning to the desired broadcast station. If the button is pressed momentarily and then released, the frequency will change at intervals of 0.05 MHz for FM and 9 kHz (or 10 kHz) for AM.

7 Memory button (MEMORY)

This button can be used when presetting broadcast station frequencies to the memory. (Refer to page 7.)

- Remote-control signal receptor (SENSOR)

Display section

A FM stereo indicator (STEREO)

This indicator automatically illuminates when an FM stereo broadcast is being received. It will not illuminate if the FM mode selector is set to the monaural mode.

© Memory indicator (M)

This indicator illuminates when the memory button is pressed.

D Channel display

This display shows the channel number selected by one of the preset-tuning buttons.

B Digital frequency display

E Quartz-lock Indicator (QUARTZ LOCK)

This indicator illuminates when the unit is tuned precisely to a broadcast station.

Memory Presettings

The indication AM used here includes both MW and LW.

With this unit you may preset as many as 24 radio broadcast stations: FM/AM random presetting. After broadcast stations have been preset as described below, any desired station can be quickly and easily selected. Stations can be freely preset to any desired channel.

1 Switch the amplifier ON, and set it for listening to radio broadcasts.

2 POWER Switch ON the power switch.

(The frequency will be displayed on the digital frequency display.)

3 FM MW LW Press the desired band selector.

FM: for FM broadcasts

MW: for MW broadcasts

LW: for LW broadcasts

Before presetting broadcast stations, press to select the appropriate frequency step for your locality.

(Refer to page 6.)

4 DOWN UP Press the appropriate tuning button to tune to the desired broadcast.

(Refer to "Frequency tuning", below.)

DOWN Press to change the frequency downward.

UP Press to change the frequency upward.

1. Press and hold one of the tuning buttons, then release the button when the displayed frequency begins to change.

2. When the displayed frequency approaches the desired frequency, press the button momentarily. (The displayed frequency will stop changing.)

Note:

The changing of the displayed frequency will be automatically stopped (by the automatic tuning function) if a broadcast station frequency is located during the tuning process. If the frequency at which it stops is not close to the desired frequency, repeat step 1 above.

1. After stopping at step 2, tap one of the tuning buttons a few times until the desired frequency is reached.

(Refer to "How to designate preset channels", below.)

7 Repeat the above procedures to make memory presettings; write the presettings in the station log (page 8).

Note:

If a new broadcast station is preset into a channel, the broadcast station which was previously entered in that channel will be automatically erased.

- To designate channels 1–9: Press the appropriate (1–9) preset-tuning button.

Note: When selecting channel 1 or channel 2, enter the selection "01" or "02". If only "1" or "2" is pressed, channel access will be delayed by two seconds.

• To designate channels 10-24:

① Press the button for the left digit (1 or 2).
② Press the button for the right digit (1-0) within 2 seconds after pressing the first button.

Example: To designate channel 12

Press the "1" button and then the "2" button.

Note:

If the interval between pressing the first button and pressing the second button is more than about 2 seconds, the setting may not be made correctly. If this happens, make the setting once again. When making a memory presetting, once again designate the channel to be selected after pressing the memory button.

Listening to Radio Broadcasts

Have you completed the steps (on page 7) of "Memory Presettings"?

Note:

To prevent noise while listening to a broadcast station, switch OFF the compact disc player and turntable.

If not, follow the appropriate steps (on page 7), and then select the desired station by following the steps below, or tune by using the tuning buttons. (Refer to "Manual tuning", below.)

If noise is excessive in FM broadcasts

1 Switch the amplifier ON, and set it for listening to radio broadcasts.

FM MODE

Press the FM mode selector.

The sound will then be heard as monaural sound and the FM stereo indicator will not illuminate. If the broadcast signal is weak, sounds can be heard more clearly.

2 POWER Switch

Switch ON the power switch.

(The frequency will be displayed on the digital frequency display.)

[Unreadable due to severe distortion and noise]

31-0

Press the button for the desired channel (1 - 24).

(Refer to "How to designate preset channels" on page 7.) The FM stereo indicator automatically illuminates when an FM stereo broadcast is being received.

Notes:

- When selecting channel 1 or channel 2, enter the selection "01" or "02". If only "1" or "2" is pressed, channel access will be delayed by two seconds.

- If, for channels 10 - 24, the interval between pressing the first button and pressing the second button is more than about 2 seconds, the setting may not be made correctly. If this happens, make the setting once again.

Manual tuning

Follow the steps above, except that, for step 3, follow the steps below.

1 FM MW LW

Select the desired band. (Refer to page 6.)

DOWN UP

Select the desired broadcast station by using one of the tuning buttons.

(Refer to "Frequency tuning" on page 7.)

Back-up memory

The back-up function maintains the preset memory and the most recent memory (see below) when the power is switched OFF, in the event of a power failure, or if the power cord is disconnected. The memory will be maintained for as long as approximately one week.

Most-recent memory

The most-recent memory system "remembers" the broadcast station last tuned to when the unit was switched OFF. That station will be automatically tuned to when the power is switched ON.

■If frequency presettings are accidentally erased

1. Switch ON the power switch for an hour or longer.
2. Make the frequency presettings (on page 7) once again.

Station Log

1		7		13		19
2		8		14		20
3		9		15		21
4		10		16		22
5		11		17		23
6		12		18		24

Remote-Control Transmitter

Insertion of remote-control transmitter batteries

1. Open the cover.

2. Insert the batteries.

• Be sure to insert according to the (+) and (−) indications in the battery compartment.
• Use two UM-4, "AAA"(R03;1.5V) size batteries.

1. Close the cover.

Battery life

Battery life is about one year. (Battery life may vary depending upon the frequency of use and other conditions of use.)

The batteries should be replaced if the unit cannot be operated even when the remote-control transmitter is brought close to the unit.

Battery notes

• Be sure that batteries are inserted so that they are placed correctly with respect to the (+) and (−) indications in the battery compartment. If the batteries are not inserted correctly, they make leak and damage the remote-control transmitter.

• Do not use rechargeable (nickel-cadmium) type batteries.

• Do not mix old and new batteries, or batteries of different types (carbon and alkaline, etc.).

• If the remote-control transmitter is not to be used for a long period of time, take out the batteries and store them in a cool, dark place.
• Remove and dispose of worn-out batteries.
• Never attempt to recharge or short-circuit the batteries, and do not disassemble them or expose them to excessive heat or throw them into a fire.
• If a battery leaks, remove both batteries and dispose of them, and then thoroughly clean the battery compartment before inserting new batteries.

Remote-control transmitter operation notes

Use the remote-control transmitter within 6 meters (20 ft.).

Face it toward the remote-control signal receptor of this unit.

Be sure the transmitter part of the remote-control transmitter and the receptor part of this unit are free from dust.

Excessive dust might prevent reception.

Other notes

1. Do not expose the receptor (on this unit) to direct sunlight or other strong light, because to do so might result in incorrect operation.

2. Do not use a remote-control transmitter for a TV set, a VCR or other video component at the same time as this remote-control transmitter is being used, because to do so might result in incorrect operation.

3. If this unit is installed in a rack with glass doors, the glass doors' thickness or color might make it necessary to use the remote-control transmitter a shorter distance from the unit.

4. The control panel of the remote-control transmitter may be covered by a clear plastic protective sheet. This sheet can be removed if desired.

Remote-Control Operation

• This remote-control transmitter can be used for control of a Technics amplifier with a control terminal, as well as a cassette tape deck, turntable, compact disc player, or a graphic equalizer with a remote-control terminal. Consult your dealer for details.
• For detailed information concerning operation steps, etc., please refer to the appropriate page for each unit and the respective operating instructions. For this system, you can listen to tapes or compact discs, etc., by operating the remote-control transmitter without using the amplifier's input selectors. (Refer to the Technics amplifier's operating instructions.)

Press this key to switch the tuner ON or to the stand-by condition. Note that there is no need to press this key if the tuner's power is ON. (If it is pressed, the tuner will be switched to the stand-by mode.)

Press this key to select the desired preset channel.

Press this key to adjust the volume level.

Press this key to temporarily reduce the volume level. The volume level is attenuated by 20 dB (approx. 1/10). Press once again to return to the previous volume level.

- Press this key to start the play. - Press this key to temporarily stop play. Press once again to resume play.

Press this key to stop play.

- Press momentarily to search for the beginning of the track now playing. Repeat this step the necessary number of times to search for a previous track. - Press and hold to quickly move backward on the disc, and then release at the desired position.

- Press momentarily to search for the next track. - Press and hold to quickly move forward on the disc, and then release at the desired position.

Press this key to switch the equalizer correction ON. Please once again to switch to the flat position.

Press this key to retrieve a memorized curve. (Only applicable to a Technics graphic equalizer with the preset memory function.)

Press this key to select the deck (tape deck A or tape deck B) to be used.

▶: For the "A"-side of the tape ◀: For the "B"-side of the tape

Press one of these keys to begin the playback or recording, pressing the key corresponding to the side of the tape to be played (or recorded).

Note: Depending on which Technics tape deck is used in combination with this unit, tape deck B might be the "A"-side playback-only type.

Press this key to stop tape movement

Press this key to advance or rewind the tape while the unit is in the stop mode.

Press this key to select the desired tune while the unit is in the play mode.

(Only applicable to a Technics tape deck with the "music select" functions.)

Press this key to make a silent interval during recording.

(After 4 seconds, the tape deck will automatically change to the recording stand-by mode.)

To start the recording again, press the playback key.

Press this key to temporarily stop playback or recording. Press the playback key to resume the play or recording

Press this key to change to the recording stand-by mode.

-Note

Depending on which Technics tape deck is used in combination with this unit, it might be that auto-record-muting, pause of the playback (and the recording), and the recording functions of tape deck B not be possible by using the remote-control transmitter.

Press this key to start the play.

Press this key to stop the play.

Note:

Only Technics turntables (e.g., SL-J110R, etc.) equipped with a remote terminal can be remote-controlled by the transmitter included with this unit, and only when connected by the proper cable.

Technical Specifications (DIN 45 500)

■ FM TUNER SECTION

Frequency range	87.50~108.00 MHz (0.05 MHz steps)
Sensitivity	1.5 μV (IHF, usable)
S/N 30 dB	1.3 μV (75 Ω)
S/N 26 dB	1.2 μV (75 Ω)
S/N 20 dB	0.9 μV (75 Ω)
IHF 46 dB stereo quieting sensitivity	28 μV/75 Ω
Total harmonic distortion
MONO	0.15 %
STEREO	0.3 %
S/N
MONO	70 dB (78 dB, IHF)
STEREO	65 dB (71 dB, IHF)
Frequency response	20 Hz~15 kHz, +0.5 dB~ -1.5 dB
Alternate channel selectivity
±400 kHz	65 dB
Capture ratio	1.0 dB
Image rejection at 98 MHz	46 dB
IF rejection at 98 MHz	70 dB
Spurious response rejection at 98 MHz	70 dB
AM suppression	55 dB
Stereo separation
1 kHz	40 dB
10 kHz	30 dB
Carrier leak
19 kHz	-30 dB (-35 dB, IHF)
38 kHz	-45 dB (-50 dB, IHF)
Channel balance (250 Hz~6,300 Hz)	±1.5 dB
Limiting point	1.2 μV
Bandwidth
IF amplifier	180 kHz
FM demodulator	1000 kHz
Antenna terminals	75 Ω (unbalanced)

■ AM TUNER SECTION

Frequency range
MW	522 kHz~1611 kHz (9-kHz steps)
	530 kHz~1620 kHz (10-kHz steps)
LW	155 kHz~353 kHz (0-kHz steps)
	153 kHz~351 kHz (-2-kHz shift)
Sensitivity (S/N 20 dB)
MW	20 μV, 300 μV/m
LW	50 μV
Selectivity (±9 kHz)
MW (at 899 kHz)	55 dB
LW (at 254 kHz)	55 dB
Image rejection
MW (at 899 kHz)	40 dB
LW (at 254 kHz)	40 dB
IF rejection
MW (at 899 kHz)	60 dB
LW (at 254 kHz)	60 dB

GENERAL

Output voltage	0.3 V (0.6 V, IHF)
Power consumption	9 W
Power supply	AC 50 Hz/60 Hz, 240V
Dimensions (W × H × D)	360 × 64.5 × 288 mm(14-3/16" × 2-17/32" × 11-11/32")
Weight	2.0 kg (4.4 lb.)

Note: Specifications are subject to change without notice. Weight and dimensions are approximate.

Maintenance

To clean this unit, use a soft, dry cloth.

For very dirty surfaces, dip a soft cloth in a weak soap-and-water solution and wring well. After cleaning, wipe with a soft, dry cloth.

Never use alcohol, paint thinner, benzine, or a chemically treated cloth to clean this unit.

Such chemicals may damage the unit's finish.

Troubleshooting Guide

Before requesting service for this unit, check the chart below for a possible cause of the problem you are experiencing. Some simple checks or a minor adjustment on your part may eliminate the problem and restore proper operation.

If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, refer to the directory of Authorized Service Centers (enclosed with this unit) to locate a convenient service center, or consult your Technics dealer for instructions.

Problem	Probable cause(s)	Suggested remedy
While listening to FM broadcasts
An unusual hissing noise is heard when listening to the broadcast in stereo, but not heard when listening monaurally.	Due to the differences between a monaural and a stereo signal, a higher level of signal strength is required for proper stereo reception. If the signal level is low, a hissing noise may be produced on the stereo channel.	Try reducing the treble sound by using the treble control of the amplifier.Set for monaural reception to reduce the hiss. Note, however, that the broadcast will not be heard as stereo.Try changing the location, height and/or direction of the antenna.If an indoor antenna is being used, change to an outdoor antenna.Try using an antenna with more elements.
Noise is excessive in both stereo and monaural broadcasts.	Poor location and/or direction of the antenna.Transmitting station is too far away.
The FM stereo indicator or the quartz lock indicator flickers, without completely illuminating.	Poor location and/or direction of the antenna.Transmitting station is too far away.	Try changing the location, height and/or direction of the antenna.If an indoor antenna is being used, change to an outdoor antenna.Try using an antenna with more elements.
Excessive distortion in the sound of stereo broadcasts.	Nearby building or mountain.[Multipath distortion is being caused by the mutual interference of broadcast signals received directly from the transmitting station (direct waves) and signals being reflected from nearby buildings or mountains (reflected waves).]
Sound is distorted, "popping" noise is heard, and/or the volume level becomes low.	Broadcast signals are being disturbed by nearby automobile traffic or airplanes.	Relocate the antenna and the connection wires to a place farther away from where automobiles pass.

While listening to AM broadcasts

An unusual “beat” sound is heard.	Unit is being used at the same time as the television set.	Switch OFF the television set, or use this unit farther away from it.
A low-pitched “hum” sound is heard when the broadcast is tuned.	The AM loop antenna connection wires are too close to the power cord.	Place the antenna connection wires and the power cord farther apart.
	The power supply frequency from the power cord is modulated and heard from the speakers.	Install a special outdoor antenna.
A strange hissing noise is produced continuously or intermittently.	Caused by the “discharge phenomenon” and the “oscillation phenomenon” of electric appliances (such as fluorescent lights, TV, small series-type motors, rectification equipment, etc.)	Try placing this unit farther away from such equipment.Install noise-prevention equipment on this unit or on the electric appliance.

While using the remote-control transmitter

The remote-control transmitter does not function.	Batteries are incorrectly placed.	• Insert the batteries so that the positive (+) and negative (−) polarities are correct.
	The remote-control transmitter batteries are consumed.	• Replace them with new batteries.
	There is an obstruction between the remote-control transmitter and this unit.	• Remove the obstruction.
	The remote-control transmitter is not correctly facing this unit.	• Face the remote-control transmitter correctly toward this unit.
