MODE D'EMPLOI ST-X990 TECHNICS

OPERATING INSTRUCTIONS

Notes:

• Specifications differ according to the area code.
• The "EK" area code, for example, indicates United Kingdom specifications.
• The "EK" indication is shown on the packing case and serial number tag.

Before operating this unit, please read these instructions completely.

Dear Stereo Fan

We want to thank you for selecting this product and to welcome you to the growing family of satisfied Technics product owners around the world.

We feel certain you will get maximum enjoyment

from this new addition to your home.

Please read these operating instructions carefully, and be sure to keep them handy for convenient reference.

Contents

• Technical Specifications.... 2
- Suggestions for Safety 3
• For United Kingdom 3
- Accessories 4
connections 4
- Antenna Connections.... 5
- Front Panel Controls and Functions ..... 6
- Remote-Control Transmitter 8

• Setting the Time.... 9
  • Memory Presettings .... 10
• Listening to Radio Broadcasts.... 12
  • To Use the Timer....13
• Remote-Control Operation .... 16
• Troubleshooting Guide .... 17
• Maintenance .... 17

Technical Specifications (DIN 45 500)

■ FM TUNER SECTION

Frequency range
	87.50~108.00 MHz (50 kHz-steps)
Sensitivity	1.5 μV (IHF, usable)
S/N 30 dB	1.3 μV (75Ω)
S/N 26 dB	1.2 μV (75Ω)
S/N 20 dB	0.9 μV (75Ω)
*6 dB stereo quieting sensitivity harmonic distortion	28 μV/75Ω
MONO	0.15%
STEREO	0.3%
S/N
MONO	70 dB (78 dB, IHF)
STEREO	65 dB (91 dB, IHF)
Frequency response
20 Hz	15 kHz, +0.5 dB - -1.5 dB
Alternate channel selectivity
-400 kHz	65 dB
Capture ratio	1.0 dB
Image rejection at 98 MHz	46 dB
IF rejection at 98 MHz	70 dB
Spurious response rejection at 98 MHz	70 dB
AM suppression	55 dB
Stereo separation
1 kHz	40 dB
10 kHz	30 dB
Carrier leak
19 kHz	-30 dB (-35 dB, IHF)
38 kHz	-45 dB (-50 dB, IHF)
Channel balance (250 Hz~6,300 Hz)	±1.5 dB
Limiting point	1.2 μV
Bandwidth
IF amplifier	180 kHz
FM demodulator	1000 kHz
Antenna terminals	75Ω (unbalanced)

■ AM TUNER SECTION

Frequency range
MW	522 kHz~1611 kHz (9 kHz-steps)
	530 kHz~1620 kHz (10 kHz-steps)
LW	155 kHz~353 kHz (9 kHz-steps)
	153 kHz~351 kHz (-2 kHz shift)

Sensitivity (S/N 20 dB)
MW	20 μV, 300 μV/m
LW	50 μV
Selectivity (±9 kHz)
MW (at 999 kHz)	55 dB
LW (at 254 kHz)	55 dB
Image rejection
MW (at 999 kHz)	40 dB
LW (at 254 kHz)	40 dB
IF rejection
MW (at 999 kHz)	60 dB
LW (at 254 kHz)	60 dB

Programmable content

	Program source (FM, MW, LW)Power ON/OFF timingDesignation of preset station
Setting intervals	1 minute~23 hours, 59 minutes(at 1-min. intervals)

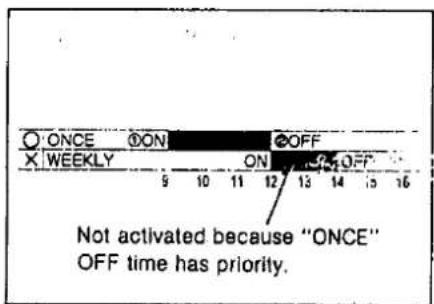

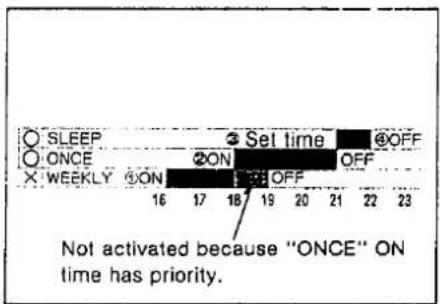

Priority order	sleep, once, weekly

GENERAL

Output voltage	0.3V (0.6V IHF)
Power consumption	9W (clock 5W)
Power supply	AC 50 Hz/60 Hz, 240V
Dimensions (W×H×D)	360 × 64.5 × 288 mm(14-3/16" × 2-17/32" × 11-11/32")
Weight	2.1 kg (4.6 lb.)

TIMER SECTION

Clock	Quarz-lock type24-hour indication
Precision	Within 0 sec.~ ± 10 sec.monthly (at 25°C)
Functions	24-hour programmable;weekly (1 time)once only (1 time)sleep (at 10~60 min)

Notes:

1. Total harmonic distortion is measured by the digital spectrum analyzer (H.P. 3045 system).
2. Specifications are subject to change without notice. Weight and dimensions are approximate.

Suggestions for Safety

■ Use a standard electrical AC wall outlet

1. Use from an AC power source of high voltage, such as for air conditioners, is very dangerous.

Be extremely careful not to make a connection to the electrical outlet for a large air conditioner or central-heating unit which uses high voltage, because there is the possibility of fire.

1. A DC power source cannot be used.

Be sure to check the power source carefully, especially on a ship or other place where DC is used.

■ Connection and removal of the power cord plug

1. Wet hands are dangerous.

A dangerous electric shock may result if the plug is touched by wet hands.

1. Don't pull the power cord.

Always grasp the plug; never pull the cord itself.

■ AC outlet on rear panel (not equipped for some countries)

1. Any equipment connected here should have specified power consumption or less.

This outlet is exclusively for the connection of other audio equipment, such as a tape deck. Be sure the power consumption does not exceed the wattage specified near the AC outlet.

1. Never connect other electrical appliances, such as an iron or toaster.

If appliances with a large power consumption are connected, an unexpected accident might occur as a result of overheating.

■ Never attempt to repair or reconstruct this unit

A serious electric shock might occur if this unit is repaired, disassembled or reconstructed by unauthorized persons, or if the internal parts are accidentally touched.

■ For families with children

Never permit children to put anything, especially metal, inside this unit. A serious electric shock or malfunction could occur if articles such as coins, needles, screwdrivers, etc. are inserted through the ventilation holes, etc. of this unit

■Turn off after use

If the unit is left for a long time with the power on, this will not only shorten its useful operation life, but may also cause other unexpected trouble.

■If water is spilled on the unit

Be extremely careful if water is spilled on the unit, because a fire or serious electric shock might occur. Immediately disconnect the power cord plug, and consult with your dealer.

■ Place the unit where it will be well ventilated, and away from direct sunlight

Place this unit at least 10 cm (4") away from wall surfaces, etc., and away from direct sunlight.

- Keep the unit away from heaters, etc.

Heat can damage the external surfaces as well as internal circuits and components.

■ Avoid spray-type insecticides

Insecticides might cause cracks or "cloudiness" in the cabinet and plastic parts of this unit. The gas used in such sprays might, moreover, be ignited suddenly.

■ Never use alcohol or paint thinner

These and similar chemicals should never be used because they may damage the finish.

■ If trouble occurs

If, during operation, the sound is interrupted or indicators no longer illuminate, or if abnormal odor or smoke is detected, immediately disconnect the power cord plug, and contact your dealer or an Authorized Service Center.

For United Kingdom

("EK" area code model only)

The "EK" indication is shown on the name plate.

Important

THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.

BLUE: NEUTRAL

BROWN: LIVE

As the colours of the wires in the mains lead of this unit may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

Accessories

(Refer to pages 4\~5, 8.)

- Remote-control transmitter (EUR64754) ..... 1

- Batteries 2

• 3-core flat cable ..... 1

- Stereo connection cable .... 1

- AC power supply cord ..... 1

• FM indoor antenna ..... 1

- Attachment plug .... 1

• AM loop antenna ..... 1

• AM antenna holders ..... 2

- Screws.... 2

Connections

Notes:

1 First make connections of the stereo connection cables.
2. After the connections of all cables have been completed, connect the AC power supply cord of this unit to a household AC outlet.

This unit

"SWITCHED" outlet:

Audio equipment rated up to 500W can be connected. Power is controlled by power switch of this unit.

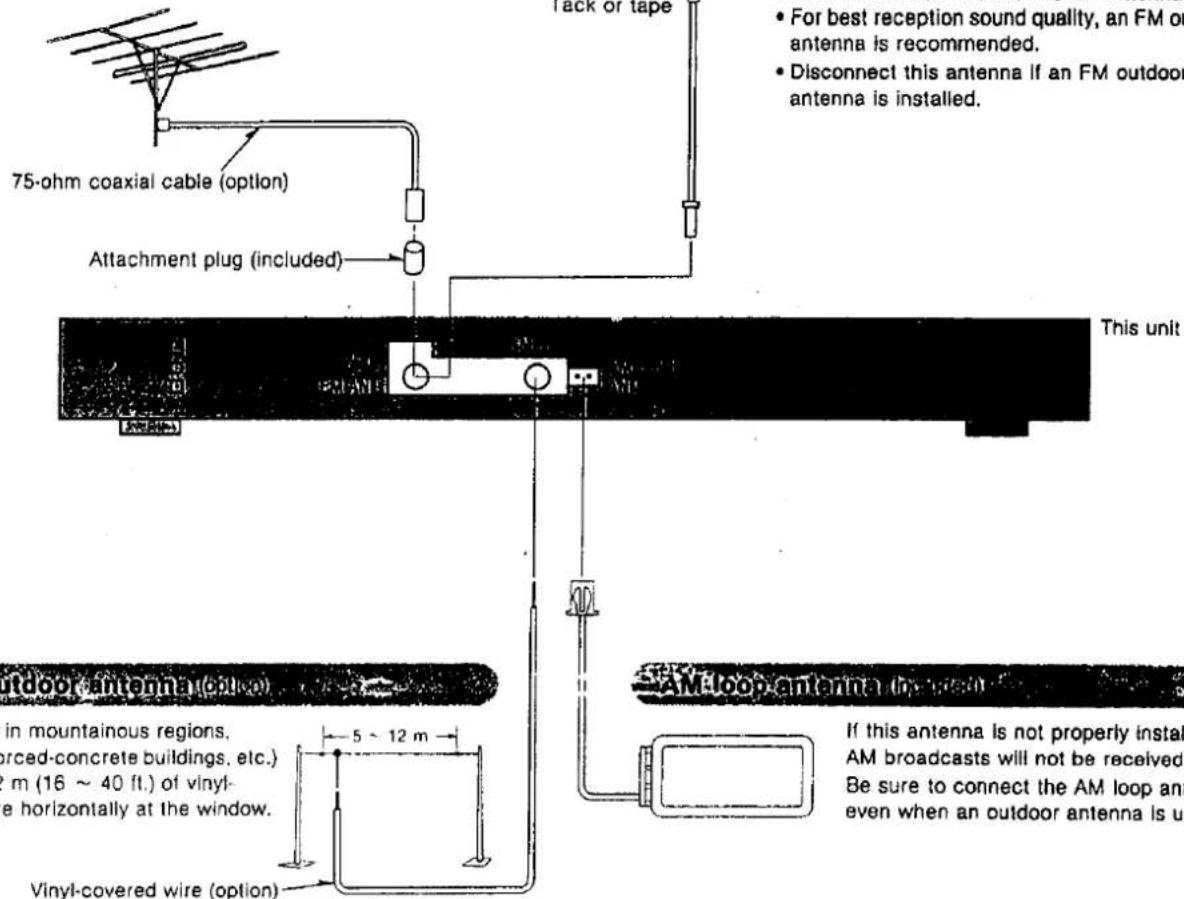

Antenna Connections

The indication AM used here includes both MW and LW.

Note: An outdoor antenna should be installed by a competent technician only.

P. quidum

(Necessary in mountainous regions, inside reinforced-concrete buildings, etc.)

1. 100% of the

• Attach to a wall (using tack or tape) facing in the direction of best reception.
  • Tack should not contact internal antenna wire.
• For best reception sound quality, an FM outdoor antenna is recommended.
• Disconnect this antenna if an FM outdoor antenna is installed.

Installation of the AM loop antenna

1. Pay attention to the following points when attaching the antenna.

2. Do not attach it horizontally (to do so would impair reception).

3. Do not attach it close to metal surfaces (to do so would result in noise).

When attaching the antenna to a wall, column or rack

Find the height and direction of the antenna where reception is best and then fix it vertically to the wall, rack, etc.

SALM loop antenna (in week)

If this antenna is not properly installed, AM broadcasts will not be received. Be sure to connect the AM loop antenna even when an outdoor antenna is used.

• Do not attach it close to power cords, speaker wires, etc. (to do so would result in noise).

• Do not attach it close to a tape deck (when the tape deck is being used, chirping or beeping sounds may be received).

• Connect the AM loop antenna to the AM antenna terminals located on the rear panel of the unit.

When attaching the antenna to the unit

This type of installation may cause impaired reception or result in signal noise. If possible, attach the antenna to the rack, a wall, or a column.

Move the antenna toward the right or left to find the point of best reception.

Front Panel Controls and Functions

The indication AM used here includes both MW and LW.

Tuner section

Control solution

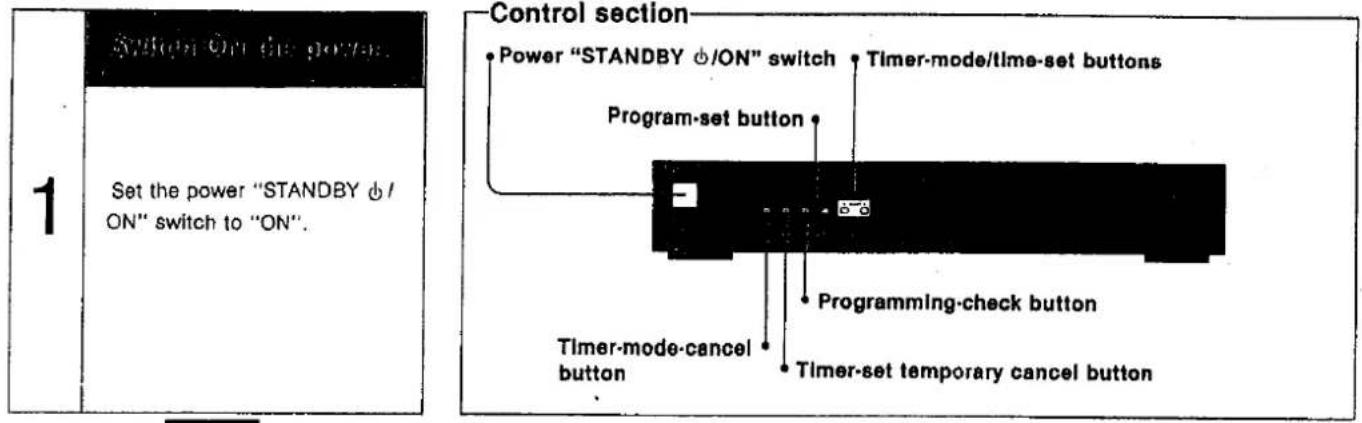

"ower "STANDBY ⏻/ON" switch (POWER "ON/STANDBY ⏻")

This switch switches ON and OFF the secondary circuit power only. The unit is in the "STANDBY" condition when this switch is set to the "STANDBY " position. Regardless of the switch setting, the primary circuit is always "live" as long as the power cord is connected to an electrical outlet.

② Remote-control signal receptor (SENSOR)
③ FM mode selector (FM MODE)

This unit automatically switches to the stereo mode when a stereo broadcast is received. Press this selector to listen in the monaural mode. The FM stereo indicator will not illuminate in the monaural mode.

4 Tuning buttons (TUNING)

If the button is pressed momentarily and then released, the frequency will change at intervals of 0.05 MHz for FM and 9 kHz (or 10 kHz) for AM.

5 Band selectors (BAND SELECTOR)

FM: Press this button to listen to an FM broadcast. MW: Press this button to listen to an MW broadcast.

ALLOCATION: When the MW button is pressed for about 3 seconds, the MW frequency step will change to 10 kHz per step. (This step is set to 9 kHz before shipment.) In order to return to the original frequency indication, press this button for about 3 seconds again.

LW: Press this button to listen to an LW broadcast.

FREQ SHIFT: When the LW button is pressed for about 3 seconds during reception of an LW broadcast, the LW frequency will decrease by 2 kHz. In order to return to the original frequency indication, press this button for about 3 seconds again.

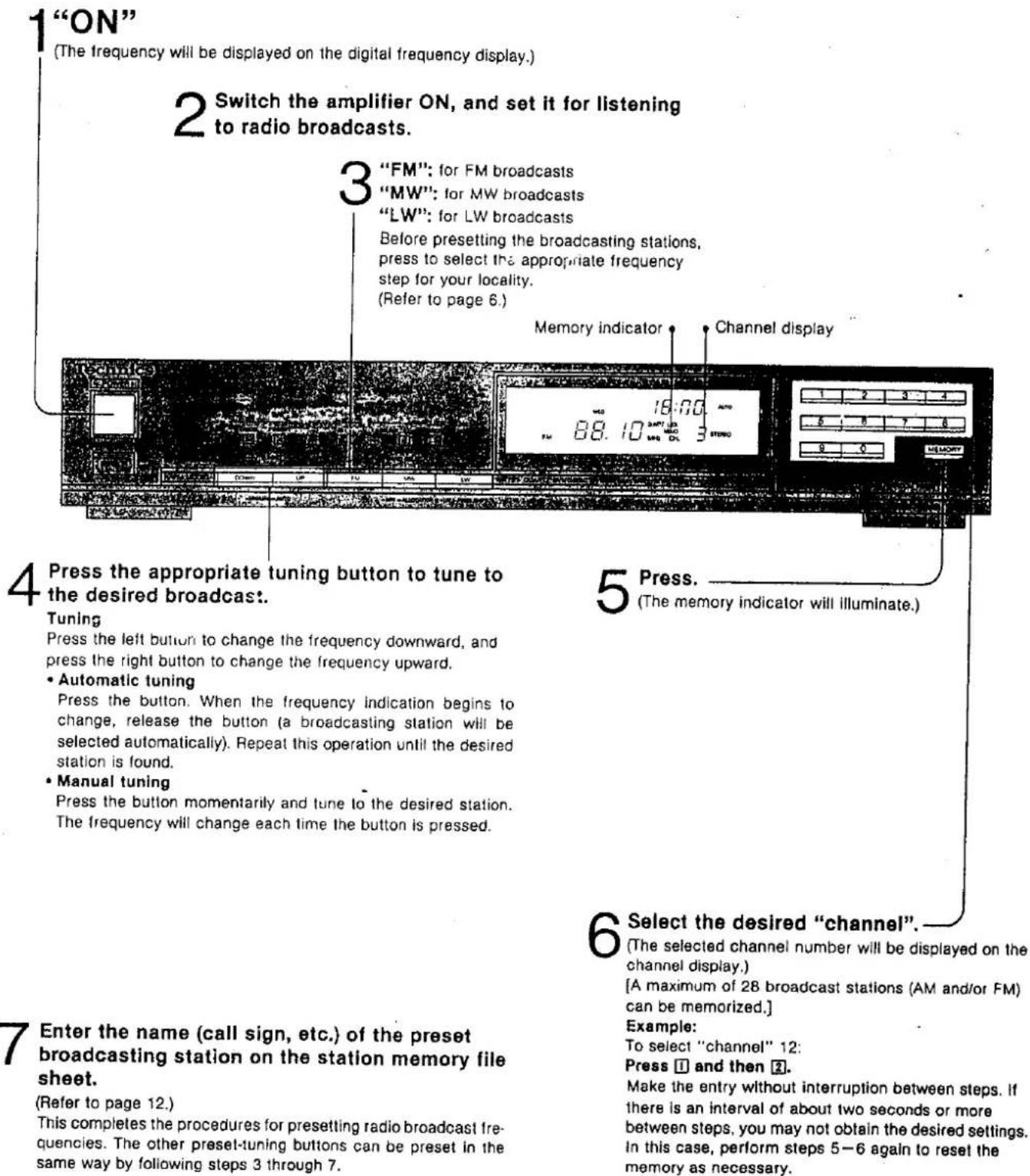

6 Preset-tuning buttons (1 \~ 0) (28 CHANNEL RANDOM PRESET TUNING)

These buttons are used to preset FM and AM broadcast frequencies into the memory of this unit, and also pressed to select the desired preset frequencies.

Note:

Refer to page 10 for information concerning preset memory.

7 Memory button (MEMORY)

(Refer to page 10.)

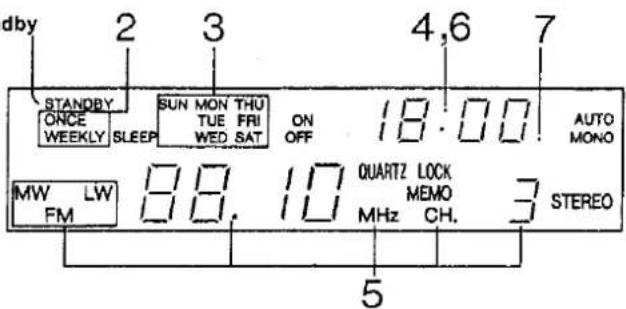

©Diply-VS-10

A Digital frequency display
B Quartz-lock indicator (QUARTZ LOCK)

This indicator illuminates when tuned precisely to an FM or AM station.

© Memory Indicator (MEMO)

(Refer to page 10.)

D Channel display

(Refer to page 11.)

E FM stereo indicator (STEREO)

This indicator automatically illuminates when an FM stereo broadcast is being received.

Note:

It will not illuminate if the FM mode selector is set to the monaural mode.

F FM mode indicators

When FM broadcasts are being received, usually the "AUTO" indication is illuminated.

When the FM mode selector is used to select monaural reception, the word "MONO" illuminates.

Timer section

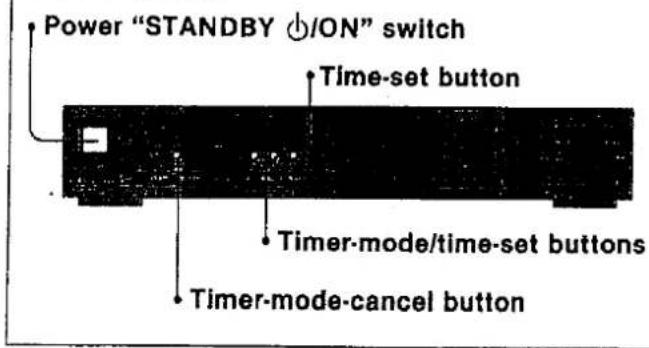

Controlation

Sleep timer set button (SLEEP)

This button can be used to set the time at which the unit will be switched OFF.

(Refer to page 13.)

5 Program-set button (SET)

This button can be used, when making the timer setting, to select the type of timer operation, the day, the time, etc. (Refer to pages 14\~15.)

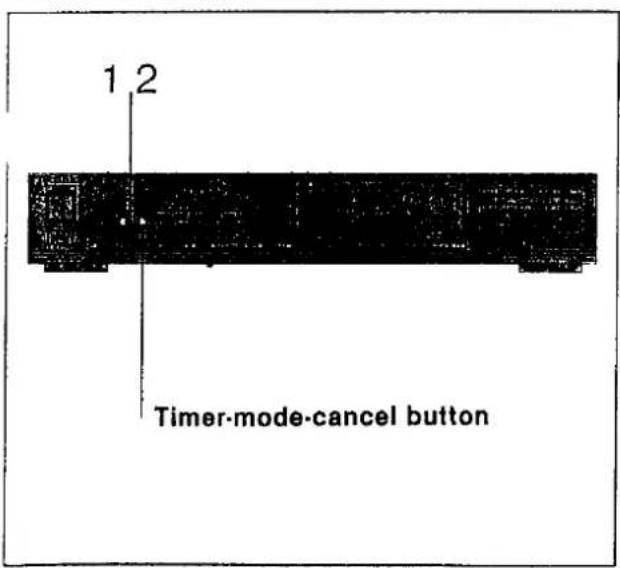

② Timer-mode-cancel button (CANCEL)

This button can be used to erase the timer setting or to cancel a setting that is being made, if, for example, you decide to do something else.

(Refer to pages 9, 13\~15.)

6 Timer-mode/time-set buttons (SELECT)

These buttons can be used, when setting the present time, as well as for setting the day, time, etc. of the timer setting. (Refer to pages 9, 14\~15.)

3 Timer-set temporary cancel button (STANDBY)

This button can be used to temporarily cancel the timer setting.

(Refer to page 14.)

7 Time-set button (CLOCK SET)

This button is used when setting the present time and when setting the day, time, etc. (Refer to page 9.)

4 Programming-check button (READ)

This button can be used to check the programmed setting. (Refer to page 14.)

Deployment

Timer standby indicator (STANDBY)

This indicator shows that the timer has been set to operate at the programmed time.

D Time indicator

This indicator shows the present time, and (if the timer has been set) the time it has been set for.

B Day indicator

This indicator shows the present day, and (if the timer has been set) the day it has been set for.

Colon indicator

This indicator shows, by flashing continuously, that the clock is operating.

CTimer ON/OFF indicator (ON/OFF)

This indicator shows that the times for timer switch-ON and switch-OFF have been set.

F Timer-mode indicator (ONCE/WEEKLY/SLEEP)

This indicator shows the type of timer operation that has been selected.

Remote-Control Transmitter

Insertion of remote-control transmitter batteries

1 Open the cover.

Bottom panel of remote-control transmitter

Battery life

About 1 year.

(Depending on frequency of use.)

2 Insert the batteries and close the cover.

Use two UM-4, "AAA" (R03) size (1.5V) batteries.

Diagram of a battery pack with a curved arrow indicating rotation (no text or symbols)

■ To remove the batteries

Follow the reverse of procedure 2.

Notes concerning use of dry batteries

• Be sure the batteries are inserted so that the positive (+) and negative (−) polarities are correct. Batteries installed with incorrect polarities may leak and damage the remote-control transmitter.
• Never subject the batteries to excessive heat or flame; do not attempt to disassemble them; and be sure they are not short-circuited.
• If the remote-control transmitter is not to be used for a long time, remove the batteries and store them in a cool dark place.
• Always remove old, weak or worn-out batteries promptly and dispose of them.
• Never mix old and new batteries, nor batteries of different types (carbon or alkaline).
• Do not use chargeable batteries (Ni-Cd type).

Operation notes

Use the remote-control

smitter within 6 meters.

...e: If this unit is placed in an audio rack, the distance that the remote-control transmitter can be used from might be reduced due to the thickness or color of the glass door.

Face the remote-control transmitter toward the remote-control signal receptor of this unit.

Be sure the transmitter part of the remote-control transmitter and the receptor part of this unit are free from dust. Excessive dust might prevent reception.

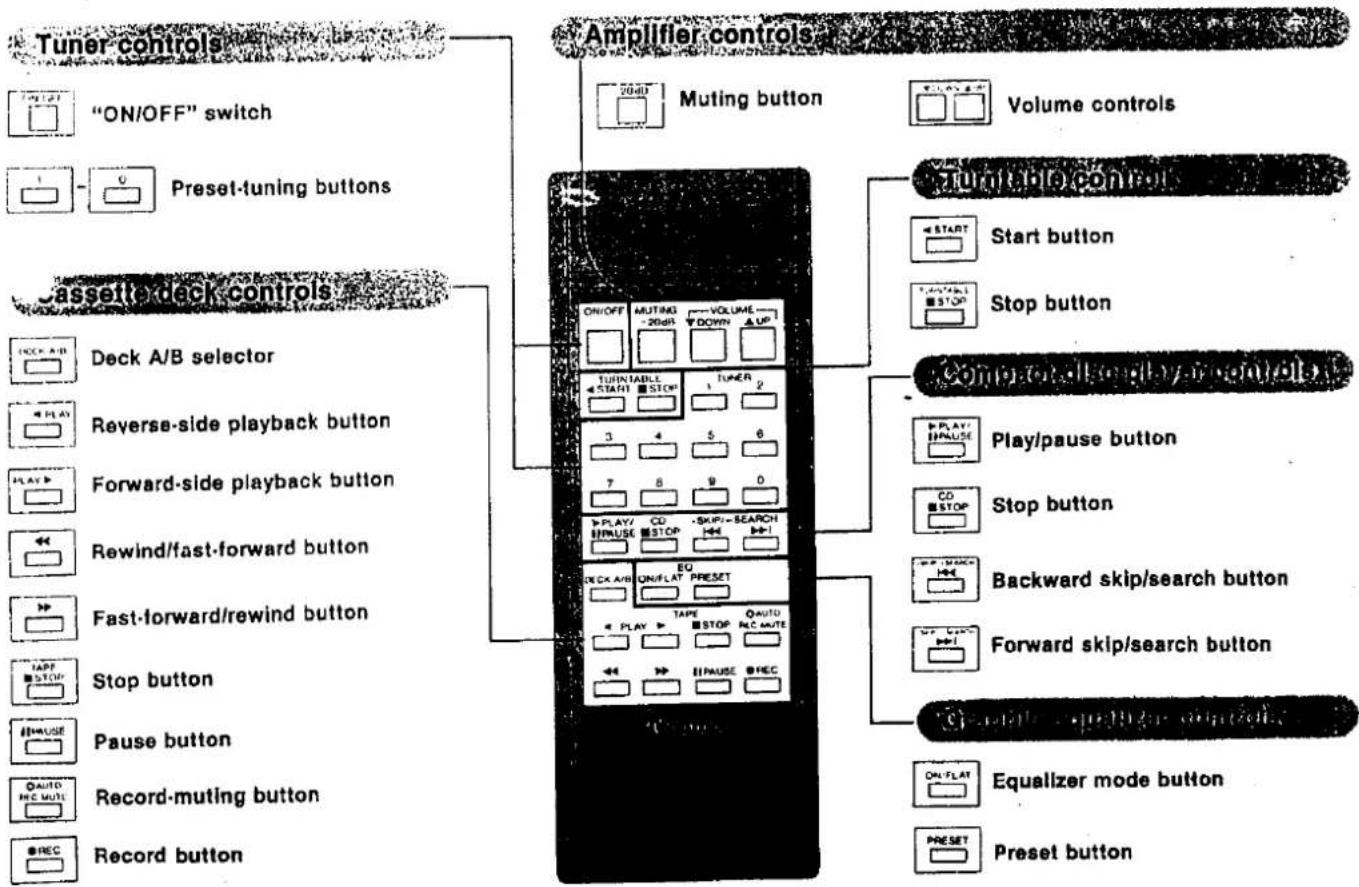

Front panel controls

This remote-control transmitter can be used to control of a Technics amplifier with control terminal, as well as a cassette tape deck, turntable, compact disc player, or graphic equalizer with remote-control terminal.

Consult your dealer for details.

    N["Amplifier controls"] --> O["Muting button"]
    N --> P["Volume controls"]

    Q["Turnable control"] --> R["Start button"]
    Q --> S["Stop button"]

    T["Play/pause button"] --> U["Play/PPAUSE"]
    T --> V["Stop button"]

    W["Backward skip/search button"] --> X["Forward skip/search button"]

    Y["Equalizer mode button"] --> Z["ON/FLAT"]
    Y --> AA["Preset button"]

Setting the Time

Control section

Display section

Example: To set to 16:45 on Wednesday

1

[Unreadable]
Set the power "STANDBY ⏻/ON" switch to "ON".

2

Set the day

② Use the timer-mode/time-set buttons to set to "WED".

Notes:

1. Note that the "E:" in the display will flash continuously when the unit is connected to a power source for the first time, or if the power cord is disconnected or there is any other interruption of power to the unit.

(Note that timer function memory will retain for approximately ten minutes after the power supply was interrupted.)

1. Other operations, such as switching OFF the unit, etc., cannot be done while the time is being set. To do so first press the timer-mode-cancel button, then perform the desired operation. Note that the time will start from the time displayed when the button was pressed.
2. If a mistake is made while making the setting, press the time-set button; then press the timer-mode/time-set buttons (when day, hour or minute is flashing ON and OFF) in order to make the resetting.

4

S###

Bol. the arm.

3

① Press the time-set button. (Flashing will begin.)

② Use the timer-mode/time-set buttons to set to "16".

③ Press the time-set button. (Flashing will begin.)

④ Use the timer-mode/time-set buttons to set to "45".

Memory Presettings

The indication AM used here includes both MW and LW.

With this unit you may preset as many as 28 radio broadcast stations: FM/AM random presetting. After broadcast stations have been preset as described below, any desired station can be quickly and easily selected.

Automatic memory presetting

The FM broadcasting stations, MW broadcasting stations, and LW broadcasting stations will be automatically preset in "channels" 1 through 28 for FM, 15 through 28 for MW, and 22 through 28 for LW, respectively.

Notes:

When MW is automatically preset, the FM stations on "channels" 15 through 28 will be replaced by the new MW stations. When LW is automatically preset, the MW station on "channels" 22 through 28 will be replaced by the new LW stations.

1 "ON"

(The frequency will be displayed on the digital frequency display.)

2 Switch the amplifier ON, and set it for listening to radio broadcasts.

3 "FM": for FM broadcasts "MW": for MW broadcast

“LW”: for LW broadcasts Before presetting the broadcasting stations, press to select the appropriate frequency step for your locality. (Refer to page 6.)

4 Set to the lowest frequency.

• FM: 87.50 MHz
• MW: 522 kHz (9 kHz step) or 530 kHz (10 kHz step)
• LW: 153 kHz (- 2 kHz shift) or 155 kHz

① Press the button and hold slightly (frequency will change continuously).

② Release it when approaching the desired exact frequency, and then press the button again momentarily (frequency change will stop).

③ Press the button momentarily (frequency will change each time the button is pressed), and tune to desired frequencies.

5 Press and then release when the frequency indication begins to change.

The frequency will change upward, and the automatic presetting will begin with the next broadcasting station. It will continue to preset consecutive broadcast stations.

6 Confirm the names (call signs, etc.) of the broadcasting stations which are preset to each channel, and enter them on the station memory file sheet (page 12).

Notes:

1. For automatic presetting in areas where there are less than 28 FM stations, the remaining channels (through channel 28) will be left empty. The empty channels can be filled by using manual memory presetting.
2. If a new broadcasting station is preset into a channel, the broadcasting station which was previously entered in that channel will be automatically erased.
3. For AM broadcasts with extremely strong signal transmissions, the frequency memorized may be slightly different from the correct frequency. If this occurs, use the manual control to memorize.

Manual memory presetting

Stations can be freely preset to any desired channel.

Listening to Radio Broadcasts.

Have you completed the "Memory Presettings" (page 10)?

Note:

To prevent noise while listening to an FM or AM broadcast, switch OFF the compact disc player and turntable.

1"ON"

(The frequency will be displayed on the digital frequency display.)

2 Switch the amplifier ON, and set it for listening to radio broadcasts.

3 Press the desired channel (1 - 28). Note:

When selecting channel 1 or channel 2, enter the selection as "01" or "02". If only "1" or "2" is pressed, channel access will be delayed by two seconds.

Station selection by using the tuning buttons:

Follow steps 3, 4 of "Memory Presettings" on page 11.

FM mode selector
If the broadcast signal is weak, or if there is a large amount of interference in a stereo broadcast, set to the monaural mode. Note that the FM stereo indicator will not illuminate in the monaural mode.

ation Memory File Sheet

CH.1

CH.2

CH.3

CH.4

CH.5

CH.6

CH.7

CH.8

CH.9

CH.10

CH.11

CH.12

CH.13

CH.14

CH.15

CH.16

CH.17

CH.18

CH.19

CH.20

CH.21

CH.22

CH.23

CH.24

CH.25

CH.26

CH.27

CH.28

■ "Most-recent" memory

The most-recent memory is a system by which the unit "remembers" the FM or AM broadcast station last heard when this unit is switched OFF, and automatically tunes to that station the next time the power is switched ON.

■ "Back-up" memory

This is the function which preserves the preset memory and most-recent memory functions. In the event of a power failure, or if the power cord of the tuner is disconnected from the electric outlet, the back-up memory will preserve the preset memory and most-recent memory functions for as long as approximately one week.

■If the memory setting is erased

The memory settings will be erased in the following cases.

For example:

1) If the power cord is disconnected from the electric outlet,
2) If a power failure occurs, etc.

If any of the above occurs, the memory will have to be reset. If the power supply is interrupted for a week or longer, set the power "STANDBY /ON" switch of the tuner to the "ON" position for an hour or more. Then reprogram the memory.

To Use the Timer

Types of timer operations

Sing: (m) (s), 49

This timer can be used to switch the power ON or to standby at the desired time (within a range of 60 to 10 minutes from the present time). Use this timer to switch the power to standby automatically even if you fall asleep while listening. (Programmed settings are canceled when this timer is used.)

(1) _i (2)

This timer can be used to switch the power ON and to standby at a desired day and time (one day only). This is convenient for recording broadcasts when you are away. (Programmed settings are canceled when this timer is used.)

m : x = 1 或 3x + 4y + 1 = 0

• Every week on the same day (one day from Sunday to Saturday)
  • Every day (from Sunday to Saturday)
  • Every day except Saturday and Sunday (from Monday to Friday)

The power will be switched ON and to standby at the desired times (among those described above). This feature is convenient for listening to and/or recording the same program every day.

(The programming remains in effect until canceled.)

Timer sequence of priority

If programmed times overlap, timer operation priority is as follows: "SLEEP", "ONCE" and "WEEKLY" settings.

: Timer is functioning. : Timer is not functioning.

In the following example, the "ONCE" and "WEEKLY" settings will not be activated.

In the following example, the "WEEKLY" setting will be stopped mid-way.

In the following example, the "WEEKLY" setting will not be activated.

Sleep timer operation (SLEEP)

Theorem 1.2. (A) Let (x) be a finite field of x and let x [0, ] . Then

Set only the OFF time of the one-time timer. (Refer to pages 14\~15.)

Press the sleep timer set button or the timer-mode-cancel button. The display will return to indication of the present time.

To Use the Timer (continued)

Operation of the one-time timer (ONCE) and weekly timer (WEEKLY)

Have you completed the steps described in the section "Setting the Time" (page 9.) and "Memory Presettings" (pages 10\~11)? Example: To set the one-time timer for listening to FM "channel" 3 from 18:30 until 21:00 on Saturday
Notes:

1. If a mistake is made while making the setting, press the timer-mode-cancel button and begin again from step 2.
2. To switch OFF the unit during the timer setting, or while confirming the programmed setting, or to use the tuner to listen to FM, press the timer-mode-cancel button and allow the display to return to the display of the present time (the colon flashes continuously) before doing so.

4

The quick brown fox jumps over the lazy dog.

[1] 2016.1.14

1.2.3.4.5.6.7.8.9

1. Press the programming-check button so as to display the program mode (1 or 3) at the left) to be canceled.
2. Press the timer-set temporary cancel button. (The timer standby indicator illumination will stop.)
3. Press the timer-mode-cancel button. (The display is returned to the present time.)

Note:

To activate the timer again, repeat steps 1, 2 and 3.

5

Display section
Timer standby indicator

6

Savino Off Quo

① Press the program-set button. (Flashing will begin.)

② Use the timer-mode/time-set to set to "21".

③ Press the program-set button. (Flashing will, begin.)

④ Use the timer-mode/time-set button to set to "00".

8

Sohing, the man Shelby.

Switch the power "STANDBY / ON" switch to "STANDBY ". Leave the power switch of the amplifier for the performance, In the ON condition.

(Check to be sure that the amplifier's "TUNER" input selector has been selected. Set the amplifier's volume to a desired level.)

7

S###

Press the program-set button. (Flashing will begin.)

Timer programming is completed, and then the display is returned to the present time.

The following table is in Chinese:

1. Press the program-set button

2. Use the timer-mode/time-set button to select "ONCE" or "WEEKLY".

3. Press the timer-mode-cancel button. (The display returned to the preset time.)

Timberlyvock

(Applicable only to cassette tape deck or compact disc play that have a timer stand-by switch)

1. Prepare the cassette tape deck or compact-disc player for play.

2. Set the timer stand-by switch of the cassette tape deck or compact-disc player to the "PLAY" position.

3. Follow the steps above (1\~8). For step 5, however, follow step ① only.

[Unreadable]

1. Prepare the cassette tape deck for recording.

2. Select either one-time timer or weekly timer and set the timer. (Refer to page 14.)

3. Set the timer stand-by switch on the cassette tape deck to the "REC" position.

4. Check to be sure that the amplifier's "TUNER" input selector has been selected; then switch to standby the tuner's power. Leave the power switch of the amplifier, and of the cassette tape deck, in the ON condition.

Remote-Control Operation

For detailed information concerning operation steps, etc., please refer to the appropriate page for each unit and the respective operation instructions. For this system, you can listen to the tapes or compact discs, etc. by operating the remote-control transmitter without pressing the amplifier's input selector.

Note: The control panel of the remote-control transmitter may be covered by a clear plastic protective sheet. This sheet may be removed if desired.

Troubleshooting Guide

Before requesting service for this unit, check the chart below for a possible cause of the problem you are experiencing. Some simple checks or a minor adjustment on your part may eliminate the problem and restore proper operation.

If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, refer to the directory of Authorized service centers (enclosed with this unit) to locate a convenient service center, or consult your Technics dealer for instructions.

Problem

Probable cause(s)

Suggested remedy

While listening to FM broadcasts

An unusual hissing noise is heard when listening to the broadcast in stereo, but not heard when listening monaurally.	A slight noise may be heard because the method used for modulation of FM stereo broadcasts is different than that used for monaural broadcasts.	Try reducing the treble sound by using the treble control of the amplifier.Set the FM mode selector to the monaural position. (Note that the broadcast will then be heard as monaural sound.)Try changing the location, height and/or direction of the antenna.If an indoor antenna is being used, change to an outdoor antenna.Try using an antenna with more elements.
Noise is excessive in both stereo and monaural broadcasts.	Poor location and/or direction of the antenna.
	Transmitting station is too far away.
The FM stereo indicator or the quartz lock indicator flickers, without completely illuminating.	Poor location and/or direction of the antenna.	Try changing the location, height and/or direction of the antenna.If an indoor antenna is being used, change to an outdoor antenna.Try using an antenna with more elements.
	Transmitting station is too far away.
Excessive distortion in the sound of stereo broadcasts.	Nearby building or mountain.[Multipath distortion is being caused by the mutual interference of broadcast signals received directly from the transmitting station (direct waves) and signals being reflected from nearby buildings or mountains (reflected waves).]

While listening to AM broadcasts

An unusual "beat" sound is heard.	Unit is being used at the same time as the television set.	Turn off television set, or use this unit farther away from it.
A low-pitched "hum" sound is heard when the broadcast is tuned.	The AM loop antenna connection wires are too close to the power cord.	Place the antenna connection wires and the power cord farther apart.
	The power supply frequency from the power cord is modulated and heard from the speakers.	Install a special outdoor antenna.
A strange hissing noise is produced continuously or intermittent;.	Caused by the "discharge phenomenon" and the "oscillation phenomenon" of electric appliances (such as fluorescent lights, TV, small series-type motors, rectification equipment, etc.).	Try placing this unit farther away from such equipment.Install noise-prevention equipment on this unit or on the electric appliance.

While using the remote-control transmitter

Remote-control transmitter does not function.	Batteries are incorrectly placed.	• Insert the batteries so that the positive (+) and negative (--) polarities are correct.
	The remote-control transmitter batteries are consumed.	• Replace them with new batteries.
	There is an obstruction between the remote-control transmitter and this unit.	• Remove the obstruction.
	The remote-control transmitter is not correctly facing this unit.	• Face the remote-control transmitter correctly toward this unit.

Maintenance

To clean this unit, use a soft, dry cloth.

If the surfaces are extremely dirty, use a soft cloth, dipped into a soap-and-water solution or a weak detergent solution.

Wring the cloth well before wiping the unit.

Wipe once again with a soft, dry cloth.

Never use alcohol, paint thinner, benzine, nor a chemically treated cloth to clean this unit.

Such chemicals may damage the finish of your unit.
