KL-100 - Étiqueteuse CASIO - Notice d'utilisation et mode d'emploi gratuit

Type d'appareil	Calculatrice
Fonction principale	Calculs mathématiques de base
Alimentation	Piles
Affichage	Écran LCD
Nombre de chiffres affichés	Non précisé
Fonctions scientifiques	Non précisé
Dimensions	Non précisé
Poids	Non précisé
Couleur	Non précisé
Matériau du boîtier	Plastique
Touches	Touches en plastique
Langue du manuel	Anglais
Garantie	Non précisé
Accessoires inclus	Non précisé
Utilisation recommandée	Usage scolaire et bureautique

FOIRE AUX QUESTIONS - KL-100 CASIO

Comment changer les piles du CASIO KL-100 ?

Pour changer les piles, retirez le couvercle du compartiment à piles situé à l'arrière de l'appareil. Remplacez les piles usées par des piles neuves de type AAA, en respectant la polarité indiquée.

Comment réinitialiser le CASIO KL-100 ?

Pour réinitialiser l'appareil, éteignez-le, puis maintenez enfoncé le bouton 'RESET' à l'arrière avec un objet pointu pendant quelques secondes.

Pourquoi l'écran est-il vide même après avoir allumé l'appareil ?

Cela peut être dû à des piles faibles ou déchargées. Vérifiez les piles et remplacez-les si nécessaire. Assurez-vous également que le couvercle des piles est bien fermé.

Comment imprimer des étiquettes avec le CASIO KL-100 ?

Pour imprimer des étiquettes, tapez le texte souhaité sur le clavier, puis appuyez sur le bouton 'PRINT'. Assurez-vous que le rouleau de ruban est correctement installé.

Quelles sont les dimensions maximales pour le texte imprimé ?

Le CASIO KL-100 peut imprimer des étiquettes jusqu'à 12 mm de large. Assurez-vous de sélectionner la taille de police appropriée pour votre étiquette.

Comment changer le type de police sur le CASIO KL-100 ?

Pour changer le type de police, accédez au menu des options de texte, puis sélectionnez le type de police souhaité à l'aide des flèches de navigation.

Le CASIO KL-100 ne se connecte pas à mon ordinateur. Que faire ?

Vérifiez que le câble USB est correctement branché et que les pilotes nécessaires sont installés sur votre ordinateur. Redémarrez l'appareil et réessayez la connexion.

Comment ajouter des symboles ou des caractères spéciaux à mes étiquettes ?

Pour ajouter des symboles, utilisez la touche 'SYMBOL' du clavier pour accéder à la liste des symboles disponibles. Sélectionnez celui que vous souhaitez ajouter à votre étiquette.

Que faire si l'imprimante fait un bruit inhabituel ?

Si l'imprimante émet un bruit inhabituel, cela peut indiquer un problème mécanique. Vérifiez si le ruban est coincé ou si des débris se trouvent à l'intérieur. Si le problème persiste, contactez le service client.

MODE D'EMPLOI KL-100 CASIO

KL-100

User's Guide

Illustration of various writing and drawing tools including books, ink bottles, pens, and a pen (no text or symbols present)

GUIDELINES LAID DOWN BY FCC RULES FOR USE OF THE UNIT IN THE U.S.A. (not applicable to other areas).

NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Caution: Changes or modification to the product not expressly approved by CASIO could void the user's authority to operate the product.

CASIO COMPUTER CO., LTD.

6-2, Hon-machi 1-chome

Shibuya-ku, Tokyo 151-8543, Japan

Important Safety Precautions

Note of the following safety precautions before using the label printer for the first time. Keep these safety precautions and operating instructions on hand for future reference.

About safety precaution symbols

The following symbols are used in this manual and on the product itself to alert you and others to the risk of personal and material injury.

Warning

This symbol indicates an item that can result in death or serious personal injury if ignored.

Caution

This symbol indicates an item that can result in serious personal injury or material damage if ignored.

Examples

A triangle indicates something you should be careful about. This symbol warns against electrical shock.

A circle indicates something you should not do. This symbol indicates you should not try to take something apart.

A black circle indicates something you must do. This symbol indicates you should unplug something.

Warning

Power supply and voltage

Use only a power source whose output matches the rating marked on the plate on the bottom of the label printer. Also, avoid plugging too many appliances into the same extension cord. The wrong voltage or overloading of an AC outlet creates the danger of fire and electrical shock.

Serious malfunction

- Continued use of the unit when smoke or a strange odor is coming from it creates the danger of electrical shock. Immediately turn power off and unplug the power cord from the wall outlet. Request servicing from your original dealer.

AC adaptor

- Do not allow the power cord to become damaged or broken, and never modify, over bend, twist, or pull it. Never place heavy objects on the power cord, and never expose it to direct heat. A damaged power cord creates the danger of fire and electrical shock.

- Use only the AC adaptor specified for this unit (optional AD-95100). Use of another AC adaptor creates the danger of fire and electrical shock.

- Should the power cord become seriously damaged (internal wiring is exposed or cut), request servicing from your original dealer. Use of a seriously damaged power cord creates the danger of fire and electrical shock.

- Never touch the AC adaptor when your hands are wet. Doing so creates the danger of electrical shock.

Never try to take the unit apart

- Never try to take the unit apart or modify it in any way. Doing so creates the danger of electrical shock, burn injury, or other personal injury.

- Never remove the outer cover of the unit. Exposure of high-voltage components inside creates the danger of electrical shock.

Packaging

- Keep the plastic bag that the unit comes in out of the reach of small children. Plastic bags create the danger of suffocation for small children.

Avoid dropping

- Should the unit ever become damaged by falling down, immediately turn off power and unplug the power cord from the wall socket. Request servicing from your original dealer. Use of a damaged unit creates the danger of fire and electrical shock.

Batteries

- Never charge batteries, try to take batteries apart, or allow batteries to become shorted. Never expose batteries to direct heat or dispose of them by incineration.

Tape Cutter

- Never touch the tape cutter while a tape cut operation is being performed. Doing so can result in cuts and other personal injury.

AC Adaptor

- Do not leave the power cord near stoves or other sources of intense heat. Doing so can melt power cord insulation and create the danger of fire and electrical shock.

- When unplugging the power cord from the wall socket, grasp the plug. Never pull on the cord itself. Doing so can damage the power cord and create the danger of fire and electrical shock.

- Whenever leaving the unit unattended for long periods, be sure to unplug it from the wall socket.

- Whenever moving the unit, be sure to unplug it from the wall socket. Leaving the unit plugged in when it is being moved can result in damage to the power cord and create the danger of fire and electrical shock.

- Whenever cleaning the unit, be sure to unplug it from the wall socket.

- When you are through using the unit, use its power switch to turn it off and then unplug it from the wall socket.

Avoid unstable areas

- Never place the unit on a wobbly table or a high shelf. Doing so can cause it to fall, resulting in personal injury.

Water and other foreign matter

- Never allow coffee, juice, or other drinks, or flower vases to spill on the unit. Liquid spilled on the unit creates the danger of fire and electrical shock. Should liquid ever spill onto the unit, immediately turn off power and unplug the power cord from the wall socket. Request servicing from your original dealer.

- Never allow metal objects or combustible materials to get into the air vents of the unit. Doing so creates the danger of fire and electrical shock.

Location

- Avoid leaving the unit in areas subjected to high humidity and large amounts of dust. Such conditions create the danger of fire and electrical shock.

- Avoid leaving the unit on a kitchen table, next to a humidifier, or in any other area where it might come into contact with oil vapors or steam. Such conditions create the danger of fire and electrical shock.

- Never place heavy objects on the unit. Doing so creates the danger of the unit falling, resulting in personal injury.

Batteries

- Misuse of batteries can cause them to leak acid that can cause damage to nearby items and creates the possibility of personal injury.

- Be sure that the plus (+) and minus (−) sides of each battery are facing correctly.

- Never mix batteries of different types.

- Never mix new batteries and dead batteries.

- Remove the batteries if you do not plan to use KL-100 for a long time.

- Use only the battery type specified for this label printer in this manual.

Memory

- Always keep separate written copies of any information you store in the memory of this label printer. Data stored in memory can be unexpectedly lost due to malfunction, repair, dead battery, etc.

Introduction

Congratulations on your selection of the CASIO KL-100 Label Printer. This CASIO Label Printer makes it possible for you to print adhesive labels for a wide variety of applications, such as: name tags, cassette tape labels, floppy disks, binders, and other applications.

You can produce attractive, original labels thanks to such features as:

• Variable tape sizes (6mm, 9mm, 12mm, 18mm)
• Attractive sans-serif font
• Font effects (shading, underline, box)
  • Character Styles (normal, outline, shadow, raised)
• Frames
• Built-in symbols
• Text memory

You can even use tapes with optionally available holders to create your own stamps.

All of this makes the CASIO label Printer the perfect tool for just about all of your labeling needs!

Important!

• Contact a nearby dealer whenever you require servicing.
• Note that the manufacturer shall not be held liable for any loss or claims by third parties which may arise out of the use of this product.
• Note that the manufacturer shall not be held liable for any damages incurred as a result of data loss caused by malfunctions, repairs, or interruption of power supply.
• It is up to the user to keep backup records of important data.
• Keep this manual on hand for future reference.

Contents

Important Safety Precautions .... 1

Part 1 Getting Acquainted....4

Important Precautions 4

General Guide 5

Label Printer Menus 6

Part 2 Getting Ready 6

Power Supply 6

Replacing Batteries 6

To replace the batteries 7

AC Adaptor 7

To connect the AC adaptor 7

Turning Power On and Off 7

Resetting the Memory 7

To reset the memory 7

Auto Power Off Function 7

Tape Cartridges 7

To load a tape cartridge 8

Tape Width Specification 8

To specify 6mm tape width 8

Part 3 Inputting Characters and Symbols 9

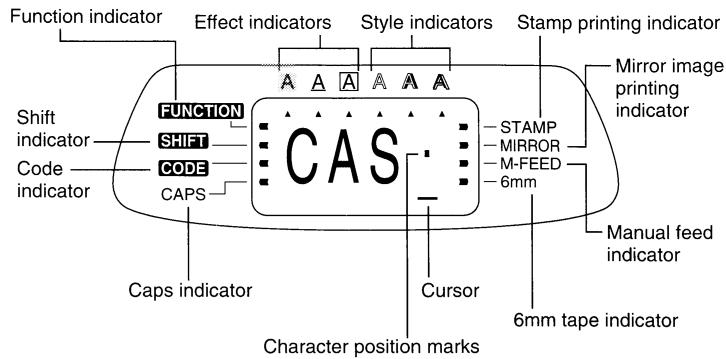

Display Symbols and Indicators 9

Basic Alpha-Numeric Input 10

To input alpha-numeric characters 10

About the CODE key.... 10

Special Symbols 10

To input special symbols 10

Part 4 Deleting and Inserting Characters ...... 11

Moving the Cursor 11

To move the cursor 11

Deleting Individual Characters 11

To delete characters using the BS key 11

To delete characters using the DEL key 11

Clearing the Display 11

To clear the display 11

Text Editing 11

To insert new characters 11

To change existing characters to different ones.... 12

Part 5 Character Size, Text Effects and Character Styles ..... 12

Character Size 12

To change the character size .... 12

Text Effects 13

To specify a text effect 13

Character Styles 13

To specify a character style 13

Part 6 Printing 14

Printing a Tape 14

To print a tape 14

Stamp Printing 14

To print a stamp tape 15

Frames 15

To specify a frame....15

Mirror Image Printing 15

To turn mirror image printing on and off 15

Other Printing Features and Operations 15

Auto Feed 16

To turn auto feed on and off 16

To manually feed tape 16

Print Density 16

To adjust the print density 16

Part 7 Memory 16

To store data 16

To recall text from memory 17

To delete text from memory 17

Part 8 Reference 18

Cleaning the Printer Head and Roller 18

To clean the printer head and roller 18

Initial Power On Settings 18

Initializing the Label Printer 18

To initialize the Label Printer 18

Troubleshooting 19

Error Messages 21

Alpha Characters 2

Symbols 2

Specifications 22

Part 1 Getting Acquainted

This part of the manual provides you with important information you need to know in order to use the Label Printer to its full potential. Be sure to read it carefully before using the Label Printer for the first time.

Important Precautions

• Keep your Label Printer out of areas subject to temperature extremes, moisture and direct sunlight. The recommended temperature range is 10^ to 35^ C ( 50^ to 95^ F).
• Don't let coffee, juice or other liquids splash onto the Label Printer.
• Never let paper clips, pins or other foreign objects get into the tape outlet slot or printer of the Label Printer.
• Do not pile heavy objects on top of the Label Printer.
• Never try to take the Label Printer apart or attempt your own maintenance.
• Do not drop your Label Printer and avoid strong impact.
• Do not pull on the tape or try to force it back into the Label Printer.
• Do not use benzine, thinner, or other volatile chemicals to clean the exterior of the Label Printer. Use a soft, dry cloth or a cloth dampened in a weak solution of a mild, neutral detergent and water. Wring the cloth out until all excess moisture is removed.
• A dirty printer head can cause printing to become smudged. When this happens, clean off the printer head by wiping it with a cotton swab moistened with alcohol (page 18).
• Use of the Label Printer next to a television or radio may interfere with reception.

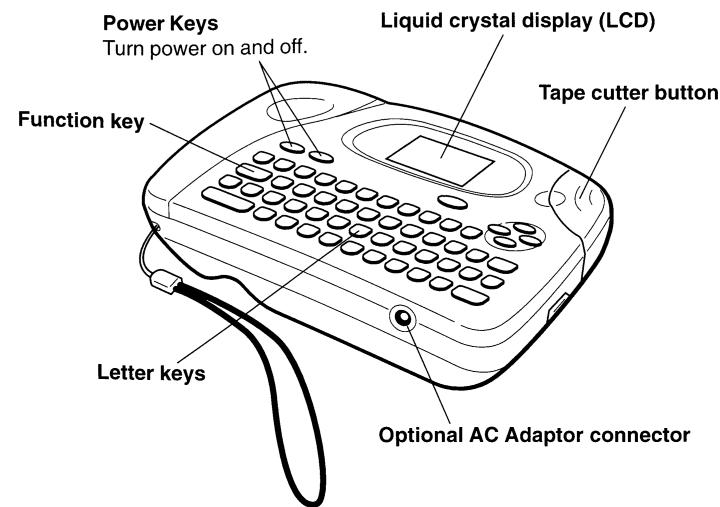

General Guide

Power Keys Turn power on and off. Function key Liquid crystal display (LCD) Tape cutter button Letter keys Optional AC Adaptor connector

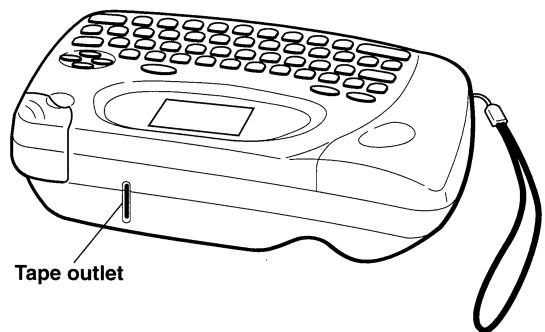

Tape outlet

Using the Strap

Attach the strap to the Label Printer as shown in the illustration, and pull it tight.

To remove the strap, reverse the procedure shown in the illustration.

• Be sure to always hold on to the Label Printer itself when carrying it. Never allow the Label Printer to hang or swing from the strap. Doing so creates the danger of the Label Printer being damaged by surrounding objects or possibly causing injury to yourself or others.
• Take care to check the strap periodically for damage. Use of a damaged strap creates the danger of dropping the Label Printer, which can damage it.

Line drawing of a telephone receiver with attached cable, showing the device's wiring and cable attachment (no text or symbols)

Label Printer Menus

Label Printer operation is designed to be as simple as possible, thanks to on-screen menus that you can use to select the settings you need. Each menu is described in detail in the sections that follow in this manual, but note the following general points when using them.

- The item that is underlined in a menu is the one that is currently selected.

Currently selected item , . : ;

• Use ◀, ▶, ▲ and ▼ to move the underlining left, right, up and down and change the selected item.
• Press SET to execute the underlined item, or ESC to exit the displayed menu (and return to the previous menu or screen) without selecting anything.
• When you press SET to execute a menu item, the Label Printer either moves on to the next menu, or it executes the selected function and returns to the text input screen that you started from.

Part 2 Getting Ready

This part of the manual tells you how to load batteries and the tape cartridge, and how to perform other basic setups for the Label Printer.

Important!

- Be sure to read this section before attempting to use the Label Printer.

Power Supply

The Label Printer can be powered by six AA-size alkaline batteries or an optional AC adaptor (AD-A95100).

Replacing Batteries

A handy low battery power indicator lets you know when battery power is getting too low for proper operation. The message “BATT” appears on the display if battery power is low when you perform any of the following operations.

• Turn power on
• Execute a print operation

Whenever the “BATT” message appears, press SET to clear it from the display. You should still be able to perform some Label Printer operations, but some power intensive operations (like printing) may become impossible if battery power is too low. In any case, you should replace batteries as soon as possible or switch to the AC adaptor as soon as possible after the “BATT” message appears.

Important!

• All data stored in memory is deleted whenever batteries go dead and when you replace batteries. Be sure to keep written backup copies of all important data (text and documents).
• Batteries can burst or leak and damage your unit if you do not use them correctly. Note the following important points.
• Be sure that the plus (+) and minus (−) sides of each battery are facing correctly.
• Never mix batteries of different types
• Never leave dead batteries in the Label Printer.
• Remove the batteries if you do not plan to use the Label Printer for a long time.
• Replace the batteries in accordance with the battery life marked on the side of the battery.

Warning!

• Never use recharged batteries with the unit.
• Do not expose batteries to direct heat, do not short circuit them, and do not try to take them apart.
• Keep batteries out of the reach of small children. If swallowed, consult with a physician immediately.
• Be sure to replace the batteries in accordance with the battery life printed on the side of the battery itself.

To replace the batteries

1. Turn power off.
2. If you are using the optional AC adaptor for power, you should also unplug it from the Label Printer.
3. Turn over the Label Printer, and open the back cover while pressing down on its lock.
4. Remove all six of the old batteries.

1. Load a set of six new alkaline batteries into the battery compartment, making sure that their positive (+) and negative (−) ends are facing in the correct directions.
2. Replace the back cover.

AC Adaptor

Note the following important precautions when using an AC adaptor to power your Label Printer.
- Use only a genuine CASIO AD-A95100 AC adaptor with the same voltage rating as the household current in your area. Using a wrong adaptor can damage your Label Printer.
- Be sure to turn the Label Printer off before you connect the adaptor. Do not turn power on until the adaptor is connected to the Label Printer and plugged into and AC outlet.
- Be sure to unplug the AC adaptor from the AC outlet whenever you are not using the Label Printer.

To connect the AC adaptor

Connect the adaptor to the Label Printer as illustrated nearby. Plug the other end into a standard household AC outlet.

Turning Power On and Off

Press ON to turn power on, and OFF to turn power off.

Important!

- If you are using the Label Printer for the first time, you should reset it first.

Resetting the Memory

You should reset the memory of the Label Printer before using it for the first time, after you have not used it for a long time, or if nothing happens when you turn power on, even after you change the batteries.

Important!

- Resetting Label Printer memory clears its memory of all input data.

To reset the memory

1. Make sure that Label Printer power is off.
2. While holding down the PRINT and ESC keys, press ON to turn power on.
3. Keeping PRINT and ESC held down, release the ON key only.

INT?

1. Press SET to initialize the Label Printer or ESC to abort the reset operation without initializing anything.
2. See "Initializing the Label Printer" on page 18 for information on the initial default settings of the Label Printer following the reset operation.

Auto Power Off Function

If you do not perform any key operation for about six minutes, the Label Printer automatically turns power off. To restore power, press ON.

Tape Cartridges

Use the procedures described below to load a tape cartridge into the Label Printer. After you load the tape cartridge, be sure to use the procedure described under "Tape Width Specification" on page 8 to tell the Label Printer what is the width of the tape you are using.

Important!

• Never try to push the tape back into the cassette. Once tape is out of the cassette, there is no way to wind it back in. Trying to do so can cause operational problems with the Label Printer.
• The following are the tape widths that can be used with this printer: 6mm, 9mm, 12mm, 18mm.

To load a tape cartridge

1. Make sure that the Label Printer is turned off.
2. Open the back cover.
3. If there is a cartridge already in the Label Printer, remove it by grasping the cartridge on both sides with your thumb and forefinger, and lift straight up.
4. Remove the stopper from a new tape cartridge and check to see that the tape is ready to use.

Technical line drawing of a mechanical component with no visible text or symbols

- Make sure that the tape is under the tape guide and that it is not bent or twisted.

- Make sure that the tape does not extend too far past the tape guide. If it does, cut off the end with a pair of scissors.

1. Use a pencil or some other thin object to take up slack in the ink ribbon as shown in the illustration. Note that the tape does not move at this time.
2. If the ink ribbon is slack when you load it into the Label Printer, it can break or cause some other problem.
3. Be sure to turn the ink ribbon take up spool only in the direction indicated by the arrow (a).
4. Turn the spool until the other spool (b) starts turning in the direction noted by the arrow. This indicates there is no slack in the ribbon.
5. Load the tape cartridge into the Label Printer, making sure that the tape and ink ribbon pass between the head and roller.
6. Close the back cover.

1. Turn on Label Printer power and press FUNCTION and then PRINT (FEED) two or three times to make sure that the tape comes out without any problem.
2. If the tape does not come out normally, turn off power and start again from step 1 above.

Tape Width Specification

Important!

- When using 6mm tape, using certain character sizes can cause characters to run off the top or bottom of the tape. Be sure to use the following procedure to tell the Label Printer when you are using 6mm tape.

To specify 6mm tape width

1. Turn power on.
2. Press FUNCTION and then SPACE (6mm).
3. Press ◀, ▶, ▲ or ▼ to change the setting shown on the display between ON (6mm tape) and OFF (other tape width).
4. When the tape width setting is the way you want it, press SET to register it.
5. The tape width you set remains in effect until you change it, press ON or reset the Label Printer's memory.

Part 3 Inputting Characters and Symbols

This part of the manual tells you how to input characters. To make things easier to understand, we call everything you input a character, regardless of whether it is actually a letter, number, or symbol. Explanations here all use the default settings that are in effect from the initial power-on screen.

For information on using other character styles, effects and sizes, see page 12.

Important!

- You can input up to 63 characters per label. Further input becomes impossible after you input the 63rd character.

Display Symbols and Indicators

Before getting into actual input, you should first become acquainted with the symbols and indicators used on the Label Printer display.

Function indicator Effect indicators Style indicators Stamp printing indicator Shift indicator SHIFT CODE CAPS CASP CASM STAMP MIRROR M-FEED 6mm Manual feed indicator 6mm tape indicator Caps indicator Cursor Character position marks

- Function indicator

This indicator appears when you press the FUNCTION key. Pressing a key while this indicator is on the display causes the function marked above that key to be executed.

- Shift indicator

This indicator appears when you press the SHIFT key. While this indicator is on the display, the keyboard is shifted, so the letter keys input upper-case alpha characters. The number keys input the punctuation symbols marked in the upper right corners of the keys.

If both the caps mode indicator and the shift indicator are shown on the display, the keyboard is shifted to lower-case input.

The keyboard automatically unshifts (and the shift indicator disappears) as soon as you input a character.

- Code indicator

This indicator appears when you press the CODE key. While this indicator is on the display, number keys 1 through 2 input the accents marked above them. The keyboard automatically returns to normal (and the code indicator disappears) as soon as you input an accent.

- Caps indicator

This indicator appears when the Label Printer is in the caps (upper-case) mode. All letters you input in the caps mode are upper-case. When the caps mode indicator is not shown on the display, all letters are input as lower-case. Note that the Label Printer stays in the caps mode until you press the CAPS key again.

If both the caps mode indicator and the shift indicator are shown on the display, the keyboard is shifted to lower-case input.

• Effect indicators

These indicators point to the character effect that is currently in use. You can select between shading, underline, and box.

- Style indicators

These indicators point to the character style that is currently in use. You can select between normal, outline, shadow, and raised.

- Stamp printing indicator

This indicator appears when the Label Printer is set up for stamp printing. Labels you create with stamp printing can be attached to an optionally available stamp holder and then used as a pre-inked stamp.

• Mirror image printing indicator

This indicator appears when the Label Printer is set up for mirror image printing. Normal (non mirror image) printing is performed when this indicator is not shown.

- Manual feed indicator

This indicator appears when you are using manual feed instead of auto feed. Auto feed is in effect when this indicator is not on the display.

Important!

- After you finish printing when using manual feed, be sure to always press FUNCTION and then PRINT (FEED) to feed the tape before cutting it. If you don't you will cut off part of the printed text.

- 6mm tape indicator

This indicator appears when you use the procedure on page 8 to specify you are using 6mm tape. No indicator is shown when you are using other (9mm, 12mm, 18mm) tape.

- Cursor

The cursor shows the next input position. Any character you input appears at the point where the cursor is located.

• Character position marks

These marks show where characters will appear as you input them. This part of the display is always blank when you turn power on.

Basic Alpha-Numeric Input

The following operation shows you the basic procedures for inputting letters and numbers. We will explain the procedure by inputting the following characters using the default initial power-on screen.

ABXYZ Computer Company 1234567890

Note

- If you hold down any key, it will repeat its operation or input at high speed until you release it.

To input alpha-numeric characters

1. Turn power on.
2. Input the first line of characters.
3. To input the upper-case letters, you can use either SHIFT or CAPS. With SHIFT you must shift the keyboard for each character. With CAPS the keyboard stays in upper-case until you press CAPS again.

4. Press SPACE to input spaces.

5. If you input a wrong character, press BS to delete it and input again. See page 11 for other details on editing text.

6. When you reach the end of a line of text, press ← (the ▼ cursor key) to input a newline mark.
7. A newline operation is indicated on the display by the symbol. This shows where you changed lines.
8. Input the characters in the second line.
9. To print the text that you input, press PRINT. For details on printing, see page 14.

About the CODE key...

The CODE key makes it possible to input punctuation needed for a number of different languages. The following shows the key operations you should use for each of the characters formed using the CODE key.

Key Operation	Input
CODE 1	'
CODE 2	~

Example: To input á.

CODE 1 A

Special Symbols

You can also access a menu of special symbols by pressing FUNCTION 6 (SYMBOL).

To input special symbols

Example: To input the special symbol #.

1. With the cursor at the location where you want to input a special symbol, press FUNCTION 6 (SYMBOL).

- The symbol that is underlined on the display is the one that is currently selected.

1. Use the ◀, ▶, ▲ and ▼ cursor keys to move the underlining to the symbol you want.
2. Not all of the available symbols fit on the display. The menu will scroll when you press the cursor keys.

3. In this example, underline #.

4. After you underline the symbol you want, press SET.

5. This returns to the input screen, with the symbol you selected input at the location where the cursor was located when you displayed the symbol list.

Part 4 Deleting and Inserting Characters

This section describes everything you need to know about deleting and editing characters you have already input.

Moving the Cursor

Use the cursor keys to move the cursor around the display and position it for deleting and editing characters.

To move the cursor

• Press ◀ to move the cursor to the left, and ▶ to move the cursor to the right.
• Press FUNCTION and then ◀ to make the cursor jump to the beginning (far left) of the characters on the display.
• Press FUNCTION and then ▶ to make the cursor jump to the end (far right) of the characters on the display.
• Holding down the ◀ or ▶ cursor key moves the cursor at high speed.

Deleting Individual Characters

You can delete individual characters with either the BS key or the DEL key (which is the ▲ cursor key). The only difference between the operation of these two keys is the location of the cursor.

To delete characters using the BS key

Example: To change the word "commputer" to "computer".

1. Use ◀ and ▶ to move the cursor under "p".

1. Press BS twice to delete the two m's to the left of the cursor, shifting "puter" to the left as you do.
2. Press FUNCTION and then ▶ to jump back to the end of the characters for more input.

To delete characters using the DEL key

Example: To change the word "commputer" to "computer".

1. Use ◀ and ▶ to move the cursor under the first (far left) "m".
2. Press DEL twice to delete the two m's at the cursor's position, shifting "mputer" to the left as you do.
3. Press FUNCTION and then ▶ to jump back to the end of the characters for more input.

Clearing the Display

Use the following procedure to clear all input text from the display.

To clear the display

Press FUNCTION and then BS (CLS).

At this time the message CLS? appears on the display to confirm that you want to clear the display. Press SET to clear or ESC to abort the operation without clearing anything.

Text Editing

You can use the following procedures to edit text on the display.

To insert new characters

Example: To change the text "ABCDEF" to "ABCXYZDEF".

1. With the original text on the display, move the cursor under the letter "D".

2. Input the new characters (XYZ).

- Inputting the new characters causes them to be inserted at the cursor position. The existing characters are opened up to make room for the new characters.

To change existing characters to different ones

Example: To change the text "ABCDEF" to "XYZDEF".

1. With the original text on the display, use either the BS key or DEL key to delete the characters to be changed (ABC).
2. Remember to use the correct cursor location for the key you plan to use to delete the characters. See page 11 for details.
3. Input the new characters (XYZ).

Part 5

Character Size, Text Effects and Character Styles

This part of the manual explains how to change the size of characters. It also tells you how to assign text effects like underlining, shading, and box printing. It also tells you how to assign text effects like underlining, shading, and box printing, and how to select character styles like normal, outline, shadow, and raised.

Character Size

The following table shows the six character sizes that are available.

Character Size Indicator	Actual Size (mm)
1×1	3×3
1×2	3×6
1×3	3×9
2×1	6×3
2×2	6×6
2×3	6×9

Character size changes are applied to printed text only. The size of the displayed text does not change.

Important!

• Any character size specification you make is applied to all the characters on the display. You cannot make multiple specifications for specific characters.
• The Label Printer automatically adjusts the character size whenever you input a symbol to create a 2-line label as shown below.
  Deleting the symbol with a backspace or delete operation reverts to the initial (unadjusted) character size.

Initial Size	Size After ← Operation
JUST	1×1
2×1	1×1
2×2	1×2
2×3	1×3

Note that you cannot input a ← symbol if you are using 6mm wide tape.

- The Label Printer automatically adjusts the character size whenever you delete a symbol to change a two-line label to a 1-line label.

Initial Size	Size After Delete of ←
JUST	2×2

To change the character size

Example: To input "ABXYZ" as 2×2 characters.

1. Input the text.
2. Press FUNCTION 2 (SIZE) to display the current character size setting.

1. Use ▲ and ▼ (◀ and ▶) to change the displayed size in the following sequence.

1. When the character size you want to specify is on the display, press SET to select it and return to the text display.

Note

- You could also perform the above procedure in reverse, specifying the character size first and then inputting the text.

Text Effects

There are three text effects that you can assign: shading, underlining, and boxed text. The following shows examples of each.

Shading:

ABC.XYZ

Underlining:

ABC.XYZ

Boxed Text:

ABC.XYZ

Text effect changes are applied to printed text only. The appearance of the displayed text does not change, but the text effect indicators will show you when a text effect is being used.

Important!

- Any text effect specification you make is applied to all the characters on the display. You cannot make multiple specifications for specific characters.

To specify a text effect

Example: To shade the text "ABXYZ".

1. Input the text.
2. Press FUNCTION 4 (EFFECT) to display a menu of text effects.

Normal (no effects) Shading Cursor Box Underline

1. Use ◀ and ▶ to move the cursor to the effect you want to use.
2. When the cursor is located under the effect you want to specify, press SET to select it and return to the text display.

Note

- You could also perform the above procedure in reverse, specifying the text effect first and then inputting the text.

Character Styles

There are four character styles that you can assign; normal, outline, shadow, and raised. The following shows examples of each.

Style	Indicator	Sample
Normal	None	ABC.XYZ
Outline	A	ABC.XYZ
Shadow	A	ABC.XYZ
Raised	A	ABC.XYZ

Character style changes are applied to printed text only. The appearance of the displayed text does not change, but the character style indicators will show you when a character style is being used.

Important!

- Any text effect specification you make is applied to all the characters on the display. You cannot make multiple specifications for specific characters.

To specify a character style

Example; To shadow the text "ABXYZ".

1. Input the text.
2. Press FUNCTION 3 (STYLE) to display a menu of character styles.

Outline Normal Shadow Raised

1. Use ◀ and ▶ to move the cursor to the style you want to use.

2. When the cursor is located under the style you want to specify, press SET to select it and return to the text display.

Note

- You could also perform the above procedure in reverse, specifying the character style first and then inputting the text.

Part 6 Printing

This part of the manual includes all the information you need to print tapes. It also tells you how to print special stamp tapes that you can attach to an optional stamp holder to create your own original stamps.

Printing Precautions

• Never turn power off while printing is being performed.
• Make sure that the tape outlet is not blocked before you start printing.
• Never operate the tape cutter while printer is being performed (indicated by the message "PRNT" on the display).
• During printing at very high density, printing of very long text, or repeat printing of the same text a number of times, the Label Printer may stop printing for about five seconds. This is not a malfunction, and normal printing should resume shortly (indicated by the message “P R N T” on the display).

Important!

- Never touch the tape cutter while a tape cut operation is being performed. Doing so can result in cuts and other personal injury.

Printing a Tape

Printing a tape is as easy as pressing the PRINT key.

To print a tape

1. Press the PRINT key to print a tape of the text you have input and laid out.

2. To stop a print operation that is in progress, press ESC.

3. After the print operation is complete, press down on the tape cutter button to cut the tape.

4. Use scissors to trim the tape to the size you want, if necessary.

- After you print a tape, you can peel off its paper backing and stick the tape onto the object you want. Note that the tape will not stick on coarse, wet, oily, or soiled surfaces. Also, you should not try to use the tape where it is exposed to direct sunlight or rain. Do not stick the tape onto human skin.

Backing Tape

- An easy way to remove the backing from a tape and expose the adhesive surface is to bend the tape near one of its ends. This should cause the tape and its backing to separate, allowing you to pull them apart.

Stamp Printing

The stamp printing feature lets you print on special stamp tape. You can then attach the finished stamp tape to an optionally available stamp holder to create your own original pre-inked stamps. The following is the type of stamp holder currently available for use with stamp tapes.

Type	Maximum Stamp Size	Example
ST-15	5.5cm

Note the following important points about stamp printing.

• Stamp printing prints text in mirror image.
• Stamp printing is impossible while 6mm is specified as the tape width.
• An error message (ERR!) appears on the display and the Label Printer refuses to print whenever you try to print text that is longer than the maximum length you specify.

To print a stamp tape

1. Input the text you want to print.
2. Press FUNCTION and then 7 (STAMP).

PRN? : — STAMP — MIRROR

• A mark appears next to the STAMP indicator on the display when mirror printing is turned on.
• If the text you input in step 1 is too long to fit within the maximum length you specified, an error message (page 21) appears when you press SET.
• Press SET to print the stamp tape or ESC to abort the print operation and return to the text input display in step 1.
• After the printing is complete, the Label Printer returns to the input display in step 1.
• Cut off the tape and affix it to the optional stamp holder.
• See the instructions that come with the optional stamp holder for information about how to attach the stamp tape.

Frames

There are three frames that you can assign. The following shows examples of each.

Important!

- Any text effect specification you make is applied to all the characters on the display. You cannot make multiple specifications for specific characters.

To specify a frame.

1. Input the text.
2. Press FUNCTION 5 (FRAME) to display a menu of frames.
3. Use ◀ and ▶ to move the cursor to the frame you want to use.
4. When the cursor is located under the frame you want to specify, press SET to select it. The text with the frame will be printed out, and return to the text display.

Mirror Image Printing

When you specify mirror image for text, it is printed in reverse image. Use mirror image when you plan to print on transparent tape, with the printing on the inside. When viewed through the transparent tape, the text will appear normal. You can also use mirror image printing when using iron-on transfer tape to print iron-on transfers.

Normal

ABC.XYZ

Mirror Image

ABC.XY5

To turn mirror image printing on and off

1. Press FUNCTION and then 8 (MIRROR).

1. Press ◀, ▶, ▲ or ▼ to change the setting shown on the display between ON (mirror printing) and OFF (normal).
2. When the mirror image printing setting is the way you want it, press SET to register it.
3. A mark appears next to the MIRROR indicator on the display when mirror printing is turned on.
4. After you turn printing on, input text and perform the print operation as you normally do (page 14) to produce mirror image tapes.

Other Printing Features and Operations

The following are other operations and settings that you may need to use when printing.

Auto Feed

You can turn the Label Printer's auto feed feature on and off. When auto feed is on, the Label Printer automatically feeds the tape about 16.9mm at the beginning and end of each print operation. This creates identical margins on both sides of your text.

Important!

- After you finish printing when using manual feed, be sure to always press FUNCTION and then PRINT (FEED) to feed the tape before cutting it. If you don't you will cut off part of the printed text.

To turn auto feed on and off

1. Press FUNCTION and then 9 (M-FEED).

1. Press ◀, ▶, ▲ or ▼ to change the setting shown on the display between YES (manual feed) and NO (auto feed).
2. When the feed setting is the way you want it, press SET to register it.

To manually feed tape

Press FUNCTION and then PRINT (FEED) to feed the tape 17.9mm.

Print Density

The print density setting controls how darkly figures are printed on your tapes.

To adjust the print density

1. Press FUNCTION and then 0 (DENSITY).

1. Use ◀ and ▶ to move the underlining to the density setting that you want.
2. The lightest setting is 1, while the darkest setting is 5. The standard setting is 3.
3. Only four of the five settings that are available can appear on the display. The display scrolls left and right when necessary to show all of the available settings.
4. When the density setting is the way you want it, press SET to register it.

Part 7 Memory

This part of the manual tells you how to store text data in memory for instant recall when you need it. You can store two blocks of text in memory, each containing up of 63 characters, for a total of 126 characters.

Important!

• All data stored in memory is deleted whenever batteries go dead and when you replace batteries. Be sure to keep written backup copies of all important data (text and documents).
• When using the optional AC adaptor, never disconnect the adaptor while batteries are not loaded in the Label Printer or when batteries are dead. Doing so causes all data stored in memory to be deleted.

To store data

1. Input the text you want to store.
2. Press FUNCTION and then 1 (MEMO).
3. Press ▼ a number of times to change to the text store prompt.

1. Press SET to store the text in memory or ESC to abort the store procedure without storing anything.

- If there is nothing in memory yet, your text is automatically stored in Area 1. If Area 1 already contains data, your new input is automatically stored in Area 2.

- If there is not enough room for your text to fit in memory, the message "FUL!" appears when you press SET in step 4.

To recall text from memory

Example: To recall the contents of Area 2 while memory contains the following text.

Area 1: ABCDEFG

Area 2: CASIO

1. While the input screen is on the display, press FUNCTION and then 1 (MEMO).

2. Note that text recalled from memory will replace any text currently on the display.

3. Press ▼ a number of times to change to the text recall prompt.

1. Press SET
2. If all of the text does not fit on the display, you can use ◀ and ▶ to scroll it to the left and right.

.ABCD Area 1 text

1. Press ▼ to change to Area 2.
2. Use ▲ and ▼ to switch between Area 1 and Area 2.

. CASI Area 2 text

1. Press SET to recall the text from the area that is currently on the display.
2. Note that recalling data from memory replaces anything that is currently on the input display. Memory text cannot be appended.

To delete text from memory

1. While the input screen is on the display, press FUNCTION and then 1 (MEMO).
2. Press ▼ a number of times to change to the text delete prompt.
3. Press ▼ a number of times to change to the text delete prompt.

DEL?

3. Press SET.

- If all of the text does not fit on the display, you can use ◀ and ▶ to scroll it to the left and right.

— Area 1 text

1. Use ▲ and ▼ to select Area 1 or Area 2 then press SET.

1. Press SET to delete the text from the area that is currently on the display.

Part 8 Reference

This section contains information about the Label Printer that you can use as reference when you need it.

Cleaning the Printer Head and Roller

A dirty printer head and roller can result in poor printing quality. If you have problems with print quality, use the following procedure to clean the printer head and roller.

To clean the printer head and roller

1. Make sure the Label Printer is turned off.
2. Turn over the Label Printer, and open the back cover while pressing down on its lock.
3. Remove the tape cartridge.
4. Use a cotton swab dipped in alcohol to clean the printer head and roller as shown in the illustration.

Print head

Roller

1. Replace the tape cartridge and close the back cover.

Initial Power On Settings

The following are the initial settings of the Label Printer whenever you turn it power on.

Item	Power On
SIZE	JUST (2×2)
EFFECT	CANCEL
STYLE	NORMAL
MIRROR	OFF
M-FEED	NO
6mm	OFF

Initializing the Label Printer

If you experience serious malfunction of the Label Printer or if operation fails completely, try performing the following operation to initialize the printer.

Important!

- Initializing the Label Printer deletes all memory contents. Make sure you have a back-up copy of text stored in memory if you need it.

To initialize the Label Printer

1. Turn power off.
2. While holding down the PRINT and ESC keys, press ON to turn power on.
3. Keeping PRINT and ESC held down, release the ON key only.
4. This prompt confirms whether or not you want to initialize the Label Printer.
5. Press SET to initialize the Label Printer or ESC to abort the reset operation.
6. The following table shows the initial settings.
   INT?

Item	Reset
Display	Cleared
Memory	Cleared
EFFECT	CANCEL
STYLE	NORMAL
M-FEED	NO
MIRROR	OFF
DENSITY	3
6 mm	OFF

Troubleshooting

- Power Supply

Nothing appears on the display.
Possible Causes	Action
Low batteries	Replace batteries.
Batteries loaded incorrectly	Remove batteries and reload them correctly.
AC adaptor is not connected correctly.	Make sure the AC adaptor is connected correctly.

- Text Input

Cannot input text.
Possible Cause	Action
FUNC key has been pressed.	Press ESC to clear FUNC key operation.

Tape does not come out when PRINT is pressed.
Possible Causes	Action
Back cover is not closed completely.	Securely close the back cover.
No more tape left in the cartridge.	Replace the tape cartridge with a new one.
Tape jam	Remove the tape cartridge and pull out the jammed tape by hand. Cut off excess tape with scissors, and carefully replace the cartridge into the label printer.Important!Never allow the tape outlet to become blocked and never touch tape as it is being fed during printing.

Tape comes out when PRINT is pressed, but nothing is printed on it.
Possible Cause	Action
Only blank spaces were input.	Input the text you want to print.

Printing is blurred, blotched, broken, etc.
Possible Causes	Action
Improper print density setting	Adjust the print density setting.
Improper loading of the cartridge	Remove the tape cartridge and reload it correctly.
Dirty print head or rubber roller	Clean the printer head and roller.
Ink ribbon is being fed from the tape outlet along with the tape.
Possible Cause	Action
Ink ribbon cassette loaded while the ink ribbon is slack.	Remove the ink ribbon cassette and check to make sure the ink ribbon is not broken. Next, take up any slack in the ink ribbon and then reload the tape cartridge.Important!Before loading an ink ribbon cassette into the label printer, always make sure you take up any slack in the ink ribbon first.If the ink ribbon is broken, you must change to another ink ribbon cassette.

• Tape Cutting

Cannot cut tape.
Possible Cause	Action
Tape cutter blade is dull.	Take the label printer to the dealer from whom you purchased it to have the tape cutter blade replaced.

Printed text is cut off by tape cut operation.
Possible Causes	Action
The printer is set up for manual tape feed.	Be sure to press the FEED key before performing the tape cut operation.Important!When the printer is set up for manual tape feed, the tape is not fed automatically after printing is complete.
Out of tape	Replace the tape cartridge with a new one.

• Using Labels

Label will not adhere to a surface.
Possible Causes	Action
The backing paper is still on the back of the tape.	Peel the backing paper from the back of the tape to expose the adhesive.
Surface is unsuitable for affixing a tape.	Labels do not adhere well to surfaces that are rough, wet, oily, or dirty.

Error Messages

Message	Possible Causes	Action
ERR!* This message appears on the screen for about one second.	Attempt to input two marks within the same text.Attempt to input mark while 6mm is specified as the tape width.Label text containing a mark was input and then tape width specification was changed to 6mm. (ERR! message appears when you try to perform a print operation.)Text that is longer than 5.5cm when stamp printing is selected.Attempt to print a stamp or frame while 6mm is specified for the tape width.	Use only one mark. Only two lines of text can be input, so text can contain only one mark.Do not use marks. 6mm tape can have only one line of text, so text cannot contain any marks.Delete the mark to print on 6mm tape or switch back to a wider tape.Shorten the text to be printed and try again.Change the tape width setting to OFF and try printing the stamp again.
FUL!* This message appears on the screen for about one second.	Both text memory areas (AREA 1 and AREA 2) already contain text.	Delete text from one of the text memory areas and then store the new text.
BATT	Battery power is too low.	Replace batteries.
ERR!	Memory data has become corrupted for some reason.	Initialize the Label Printer.

Alpha Characters

ABCDEFGHIJKLMNOPQRSTUVWXYZ

NOPQRSTUVWXYZ

a b c d e f g h i j k l m

nopqrstuvwxyz

É é Ú ú lí í Ó ó Á á Ñ Ñ

Symbols

$$ \begin{array}{ccccccccc} \cdot & \cdot & : & ; & \cdot & ' & ' & " & ? ! & i & i & / & \sim & ( & ) & + & - & \times \ \div & = & < & > & \$ & \mathbb{C} & \in & £ & \yen & # & * @ \S ^{\circ}F ^{\circ}C \% \bigcirc \star \heartsuit \end{array} $$

Specifications

Weight: 360g

Ambient Temperature: 10°C\~35°C (50°F\~95°F)

Model: KL-100

Input

Keyboard Layout: Typewriter (QWERTY)

Character Types

Alpha (English and other languages): 64

Numbers: 10

Symbols: 41

Display

Type: Liquid crystal display

Columns: 4

Character matrix: 5×7-dot

Printing

Type: Thermal transfer

Speed: Approximately 6.76mm/second

Width: 4mm (6mm tape) or 8mm (9mm, 12mm and 18mm tapes)

Character Matrix: 48×48-dot

Character font: Sans-serif

Character effects: Shade, underline, box

Character Styles : Normal, Outline, Shadow, Raised

Character sizes: 1×1, 1×2, 1×3, 2×1, 2×2, 2×3

Number of lines: 1 (6mm tape); 1 or 2 (other tapes)

Frames: Three types

Memory

Text: Up to approximately 126 characters (total storage for AREA 1 and AREA 2)

General

Power supply: Six AA-size alkaline batteries or optional AD-A95100 AC adaptor

Battery life: Approximately 2 tape cartridges (continuous printing)

Power consumption: 9W

Auto Power Off: Approximately six minutes after last key operation.

Dimensions: 53 (H) × 178 (W) × 111 (D) mm (2 1/16"H × 7"W × 4 3/8"D)
