STAGEPAS 600I - Système de sonorisation YAMAHA - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Système de sonorisation portable tout-en-un
Marque	YAMAHA
Modèle	STAGEPAS 600I
Puissance de sortie	600 W (340 W + 340 W dynamique / 4 Ω)
Type d'enceinte	2 voies, bass-reflex
Haut-parleur grave	10" (25 cm) cône
Haut-parleur aigu	1,4" (3,56 cm) compression driver
Réponse en fréquence	55 Hz - 20 kHz (-10 dB)
Niveau de sortie max	129 dB SPL (crête IEC à 1 m)
Angle de couverture	90° x 60°
Nombre de canaux d'entrée	10 (4 mono mic/line + 3 stéréo line)
Réverbération intégrée	SPX (Hall, Plate, Room, Echo)
Suppresseur de Larsen	Automatique (filtre notch 7 bandes)
Égaliseur	3 bandes par canal (HIGH, MID, LOW)
Connectivité USB	Pour iPod/iPhone (chargement et lecture audio)
Connecteurs d'entrée	XLR, Jack 6,35 mm, RCA, Mini-jack
Alimentation	100-240 V CA, 50/60 Hz
Consommation électrique	35 W (repos), 100 W (1/8 puissance)
Poids total	25,4 kg (2 x 10,8 kg + 3,8 kg)
Contenu du carton	2 enceintes, mixeur, câbles, patins antidérapants, manuel
Fonctionnalités supplémentaires	Sortie subwoofer, sortie monitoring, entrée footswitch
Entretien	Chiffon sec, éviter solvants et produits chimiques
Sécurité	Ne pas ouvrir, éviter l'eau, ne pas obstruer les aérations
Réparabilité	Aucune pièce réparable par l'utilisateur, confier à un technicien qualifié

FOIRE AUX QUESTIONS - STAGEPAS 600I YAMAHA

Comment brancher les enceintes et le mixeur ?

Utilisez les câbles d'enceinte fournis. Connectez les prises SPEAKERS du mixeur aux entrées des enceintes. Insérez les câbles à fond jusqu'au déclic. Utilisez uniquement les câbles fournis.

Comment régler le volume optimal ?

Mettez tous les contrôles LEVEL et MASTER LEVEL au minimum. Sélectionnez la position MIC ou LINE selon la source. Augmentez progressivement le volume du canal, puis le volume général avec le MASTER LEVEL.

Comment utiliser la réverbération ?

Appuyez sur le bouton REVERB pour l'activer. Choisissez un type (HALL, PLATE, ROOM, ECHO) et réglez la durée avec le contrôle REVERB TYPE/TIME. Ajustez le niveau de réverbération de chaque canal avec les boutons REVERB correspondants.

Comment connecter un iPod/iPhone ?

Utilisez un câble USB Apple officiel. Connectez l'iPod/iPhone au port USB du mixeur. Le son sera mixé sur les canaux 9/10, dont vous pouvez régler le volume. L'appareil sera également rechargé.

Que faire si aucun son ne sort ?

Vérifiez que les câbles d'enceinte sont bien branchés et que le mélangeur est allumé. Assurez-vous que les contrôles LEVEL et MASTER LEVEL ne sont pas au minimum. Vérifiez que le POWER LED est allumé. Si le voyant clignote, il peut y avoir un court-circuit.

Comment utiliser le suppresseur de Larsen ?

Appuyez sur le bouton FEEDBACK SUPPRESSOR pour l'activer. Le voyant s'allume. Le système détecte et coupe automatiquement les fréquences de larsen à l'aide d'un filtre notch 7 bandes. Il se réinitialise à la mise hors tension.

Puis-je utiliser un pied d'enceinte ?

Oui, les enceintes sont compatibles avec des pieds standard. Fixez l'enceinte sur le pied en positionnant le levier de verrouillage vers le haut, puis abaissez-le pour verrouiller. Assurez-vous que l'enceinte est stable.

Comment nettoyer l'appareil ?

Débranchez l'alimentation. Utilisez un chiffon doux et sec. N'utilisez pas de solvants, de produits nettoyants ou de chiffons imprégnés de produits chimiques. Évitez l'humidité.

Que faire en cas de surchauffe ?

Si l'appareil s'éteint automatiquement, vérifiez que les aérations ne sont pas obstruées. Assurez un espace d'au moins 30 cm autour du mixeur. Laissez refroidir, puis rallumez après quelques secondes.

Quels câbles utiliser pour les enceintes ?

Utilisez uniquement les câbles d'enceinte fournis (2 x 6 m). Les câbles de haut-parleur standard avec connecteurs métalliques peuvent provoquer des courts-circuits et endommager l'appareil.

MODE D'EMPLOI STAGEPAS 600I YAMAHA

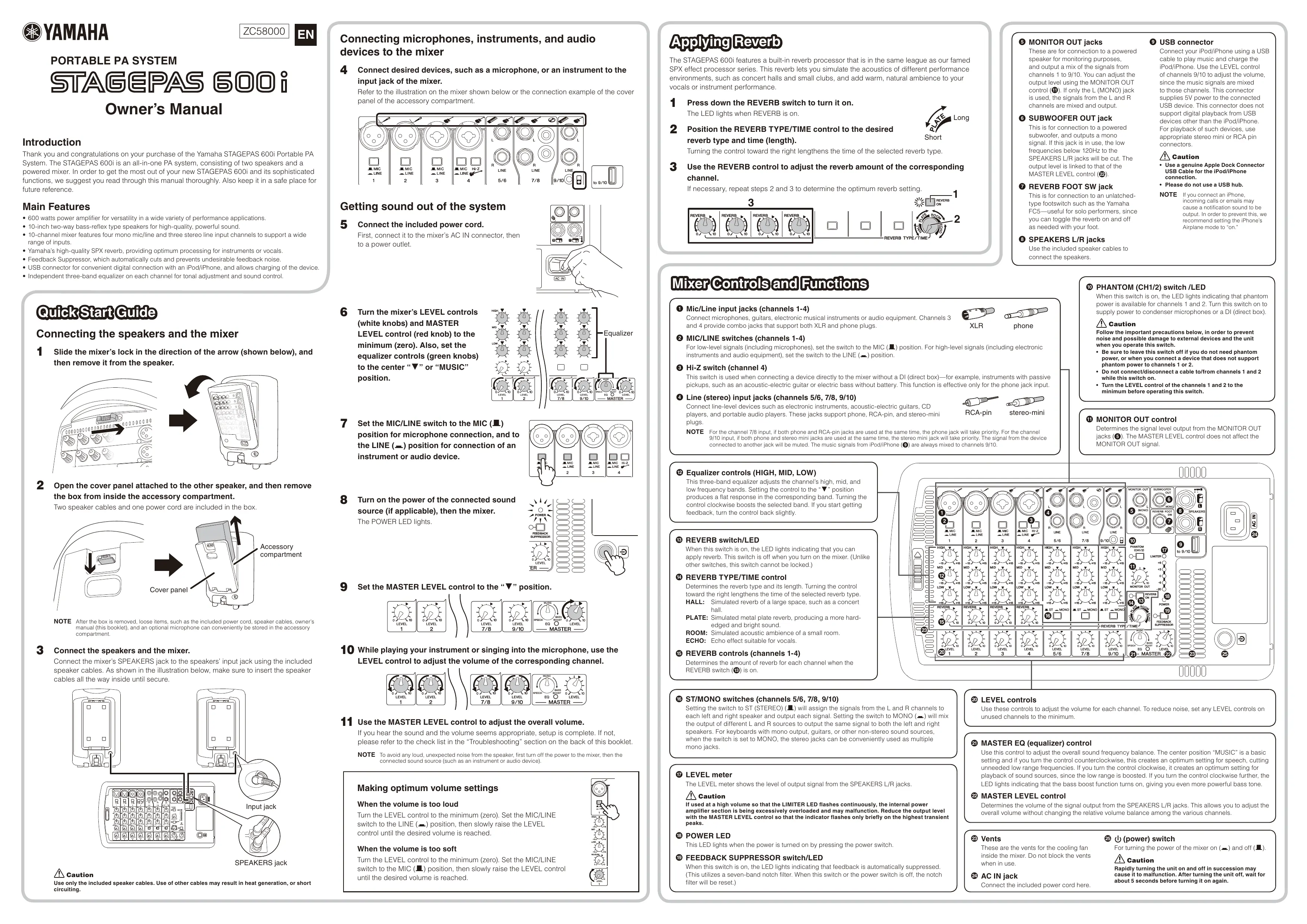

PORTABLE PA SYSTEM STAGEPAS 60 Owner's Manual

Introduction

Thank you and congratulations on your purchase of the Yamaha STAGEPAS 600i Portable PA System. The STAGEPAS 600i is an all-in-one PA system, consisting of two speakers and a powered mixer. In order to get the most out of your new STAGEPAS 600i and its sophisticated functions, we suggest you read through this manual thoroughly. Also keep it in a safe place for future reference.

Main Features

• 600 watts power amplifier for versatility in a wide variety of performance applications.
• 10-inch two-way bass-reflex type speakers for high-quality, powerful sound.
• 10-channel mixer features four mono mic/line and three stereo line input channels to support a wide range of inputs.
• Yamaha's high-quality SPX reverb, providing optimum processing for instruments or vocals
• Feedback Suppressor, which automatically cuts and prevents undesirable feedback noise.
• USB connector for convenient digital connection with an iPod/iPhone, and allows charging of the device.
• Independent three-band equalizer on each channel for tonal adjustment and sound control.

QuickStartGuide

Connecting the speakers and the mixer

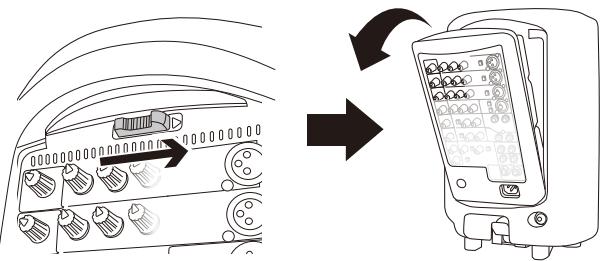

1 Slide the mixer's lock in the direction of the arrow (shown below), and then remove it from the speaker.

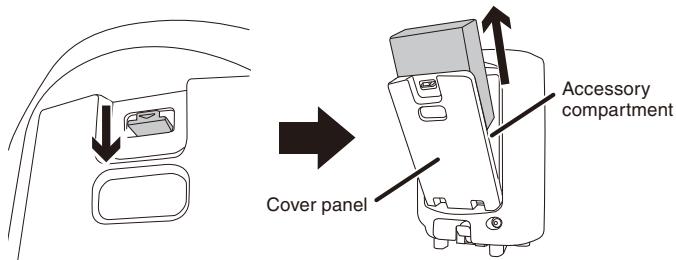

2 Open the cover panel attached to the other speaker, and then remove the box from inside the accessory compartment.

Two speaker cables and one power cord are included in the box.

NOTE After the box is removed, loose items, such as the included power cord, speaker cables, owner's manual (this booklet), and an optional microphone can conveniently be stored in the accessory compartment.

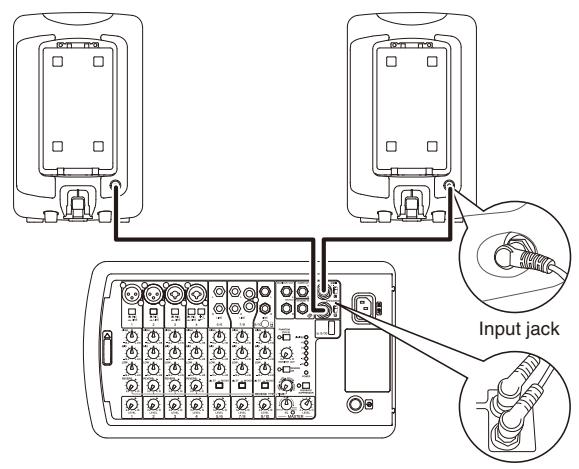

3 Connect the speakers and the mixer.

• Connect the mixer's SPEAKERS jack to the speakers' input jack using the included speaker cables. As shown in the illustration below, make sure to insert the speaker cables all the way inside until secure.

SPEAKERS jack

Caution

Use only the included speaker cables. Use of other cables may result in heat generation, or short circuiting.

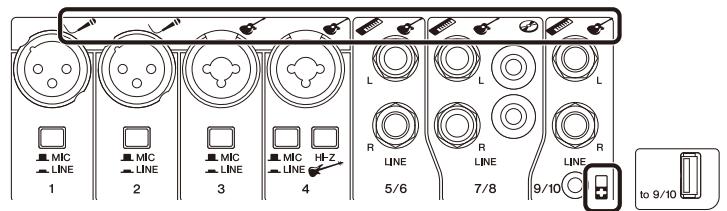

Connecting microphones, instruments, and audio devices to the mixer

4 Connect desired devices, such as a microphone, or an instrument to the input jack of the mixer.

Refer to the illustration on the mixer shown below or the connection example of the cover panel of the accessory compartment.

Getting sound out of the system

5 Connect the included power cord.

First, connect it to the mixer's AC IN connector, then to a power outlet.

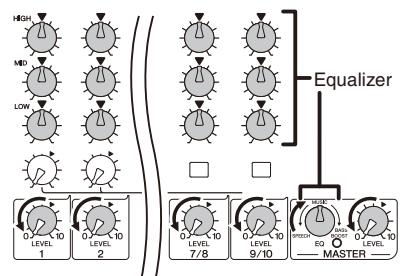

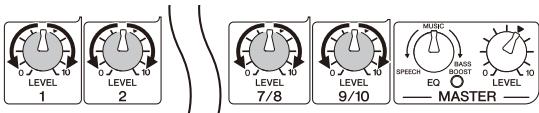

6 Turn the mixer's LEVEL controls (white knobs) and MASTER LEVEL control (red knob) to the minimum (zero). Also, set the equalizer controls (green knobs) to the center “▼” or “MUSIC” position.

7 Set the MIC/LINE switch to the MIC (■) position for microphone connection, and to the LINE (■) position for connection of an instrument or audio device.

8 Turn on the power of the connected sound source (if applicable), then the mixer. The POWER LED lights.

9 Set the MASTER LEVEL control to the “ ” position.

10 While playing your instrument or singing into the microphone, use the LEVEL control to adjust the volume of the corresponding channel.

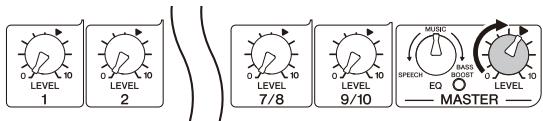

11 Use the MASTER LEVEL control to adjust the overall volume.

If you hear the sound and the volume seems appropriate, setup is complete. If not, please refer to the check list in the "Troubleshooting" section on the back of this booklet.

NOTE To avoid any loud, unexpected noise from the speaker, first turn off the power to the mixer, then the connected sound source (such as an instrument or audio device).

Making optimum volume settings

When the volume is too loud

Turn the LEVEL control to the minimum (zero). Set the MIC/LINE switch to the LINE () position, then slowly raise the LEVEL control until the desired volume is reached.

When the volume is too soft

Turn the LEVEL control to the minimum (zero). Set the MIC/LINE switch to the MIC (■) position, then slowly raise the LEVEL control until the desired volume is reached.

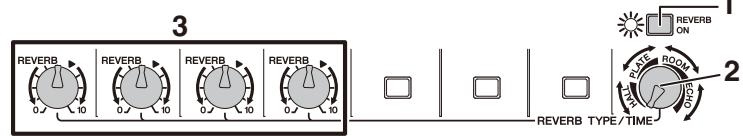

ApplyingReverb

The STAGEPAS 600i features a built-in reverb processor that is in the same league as our famed SPX effect processor series. This reverb lets you simulate the acoustics of different performance environments, such as concert halls and small clubs, and add warm, natural ambience to your vocals or instrument performance.

1 Press down the REVERB switch to turn it on.

The LED lights when REVERB is on.

2 Position the REVERB TYPE/TIME control to the desired reverb type and time (length).

Turning the control toward the right lengthens the time of the selected reverb type.

3 Use the REVERB control to adjust the reverb amount of the corresponding channel.

If necessary, repeat steps 2 and 3 to determine the optimum reverb setting.

Short

⑤ MONITOR OUT jacks

These are for connection to a powered speaker for monitoring purposes, and output a mix of the signals from channels 1 to 9/10. You can adjust the output level using the MONITOR OUT control (1). If only the L (MONO) jack is used, the signals from the L and R

channels are mixed and output.

6 SUBWOOFER OUT jack

This is for connection to a powered subwoofer, and outputs a mono signal. If this jack is in use, the low frequencies below 120Hz to the SPEAKERS L/R jacks will be cut. The output level is linked to that of the MASTER LEVEL control (2).

7 REVERB FOOT SW jack

This is for connection to an unlatched-type footswitch such as the Yamaha FC5—useful for solo performers, since you can toggle the reverb on and off as needed with your foot.

SPEAKERS L/R jacks

Use the included speaker cables to connect the speakers.

USB connector

Connect your iPod/iPhone using a USB cable to play music and charge the iPod/iPhone. Use the LEVEL control of channels 9/10 to adjust the volume, since the music signals are mixed to those channels. This connector supplies 5V power to the connected USB device. This connector does not support digital playback from USB devices other than the iPod/iPhone. For playback of such devices, use appropriate stereo mini or RCA pin connectors.

• Use a genuine Apple Dock Connector
  USB Cable for the iPod/iPhone
  connection. 1. Places to go

• Please do not use a USB hub.

NOTE If you connect an iPhone, incoming calls or emails may cause a notification sound to be output. In order to prevent this, we recommend setting the iPhone's Airplane mode to "on."

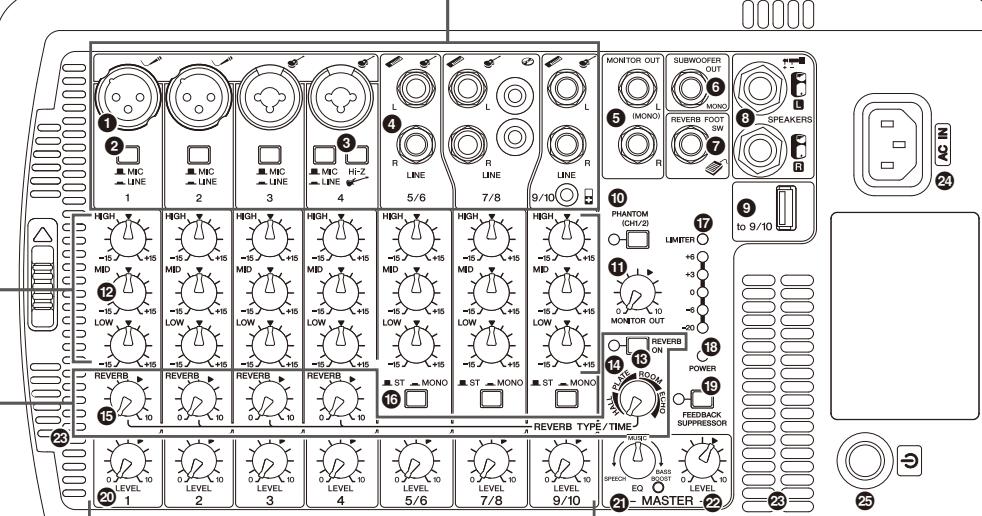

Mixer Controls and Functions

1 Mic/Line input jacks (channels 1-4)

Connect microphones, guitars, electronic musical instruments or audio equipment. Channels 3 and 4 provide combo jacks that support both XLR and phone plugs.

MIC/LINE switches (channels 1-4)

For low-level signals (including microphones), set the switch to the MIC (■) position. For high-level signals (including electronic instruments and audio equipment), set the switch to the LINE (▲) position.

Hi-Z switch (channel 4)

This switch is used when connecting a device directly to the mixer without a DI (direct box) for example, instruments with passive pickups, such as an acoustic-electric guitar or electric bass without battery. This function is effective only for the phone jack input.

Line (stereo) input jacks (channels 5/6, 7/8, 9/10)

Connect line-level devices such as electronic instruments, acoustic-electric guitars, CD

• players, and portable audio players. These jacks support phone, RCA-pin, and stereo-mini

plugs.

NOTE For the channel 7/8 input, if both phone and RCA-pin jacks are used at the same time, the phone jack will take priority. For the channel 9/10 input, if both phone and stereo mini jacks are used at the same time, the stereo mini jack will take priority. The signal from the device connected to another jack will be muted. The music signals from iPod/Phone (9) are always mixed to channels 9/10.

XLR

phone

RCA-pir

stereo-min

ni

4

Caution

Follow the important precautions below, in order to prevent noise and possible damage to external devices and the unit when you operate this switch.

• Be sure to leave this switch off if you do not need phantom power, or when you connect a device that does not support phantom power to channels 1 or 2.

• Do not connect/disconnect a cable to/from channels 1 and 2 while this switch on.

• Turn the LEVEL control of the channels 1 and 2 to the minimum before operating this switch.

1 MONITOR OUT control

Determines the signal level output from the MONITOR OUT jacks (5). The MASTER LEVEL control does not affect the MONITOR OUT signal.

Equalizer controls (HIGH, MID, LOW)

This three-band equalizer adjusts the channel's high, mid, and low frequency bands. Setting the control to the "▼" position produces a flat response in the corresponding band. Turning the control clockwise boosts the selected band. If you start getting feedback, turn the control back slightly.

15 REVERB switch/LED

When this switch is on, the LED lights indicating that you can apply reverb. This switch is off when you turn on the mixer. (Unlike other switches, this switch cannot be locked.)

REVERB TYPE/TIME control

Determines the reverb type and its length. Turning the control toward the right lengthens the time of the selected reverb type

HALL: Simulated reverb of a large space, such as a concert hall.
PLATE: Simulated metal plate reverb, producing a more hard-edged and bright sound.
ROOM: Simulated acoustic ambience of a small room
ECHO: Echo effect suitable for vocals.

15 REVERB controls (channels 1-4)

Determines the amount of reverb for each channel when the REVERB switch (B) is on.

00000

16 ST/MONO switches (channels 5/6, 7/8, 9/10)

Setting the switch to ST (STEREO) will assign the signals from the L and R channels to each left and right speaker and output each signal. Setting the switch to MONO will mix the output of different L and R sources to output the same signal to both the left and right speakers. For keyboards with mono output, guitars, or other non-stereo sound sources, when the switch is set to MONO, the stereo jacks can be conveniently used as multiple mono jacks.

LEVEL meter

The LEVEL meter shows the level of output signal from the SPEAKERS L/R jacks.

If used at a high volume so that the LIMITER LED flashes continuously, the internal power amplifier section is being excessively overloaded and may malfunction. Reduce the output level with the MASTER LEVEL control so that the indicator flashes only briefly on the highest transient peaks.

16 POWER LED

This LED lights when the power is turned on by pressing the power switch

FEEDBACK SUPPRESSOR switch/LED

When this switch is on, the LED lights indicating that feedback is automatically suppressed. (This utilizes a seven-band notch filter. When this switch or the power switch is off, the notch filter will be reset.)

LEVEL controls

Use these controls to adjust the volume for each channel. To reduce noise, set any LEVEL controls on unused channels to the minimum.

3 MASTER EQ (equalizer) control

Use this control to adjust the overall sound frequency balance. The center position "MUSIC" is a basic setting and if you turn the control counterclockwise, this creates an optimum setting for speech, cutting unneeded low range frequencies. If you turn the control clockwise, it creates an optimum setting for playback of sound sources, since the low range is boosted. If you turn the control clockwise further, the LED lights indicating that the bass boost function turns on, giving you even more powerful bass tone.

2 ~ M A S T E R ~ L e v e l ~ c o n t r o l

Determines the volume of the signal output from the SPEAKERS L/R jacks. This allows you to adjust the overall volume without changing the relative volume balance among the various channels.

Vents

These are the vents for the cooling fan inside the mixer. Do not block the vents when in use.

(power) switch

For turning the power of the mixer on (■) and off (■

AC IN jack

Connect the included power cord here.

Rapidly turning the unit on and off in succession may cause it to malfunction. After turning the unit off, wait for about 5 seconds before turning it on again.

Troubleshooting

Power does not turn on.

Did you firmly and securely connect the power cord?

Power shuts down suddenly.

Are the vents of the mixer blocked?

Since inadequate ventilation can result in overheating the mixer, the power may be turned off automatically to protect from overheating. Secure the ventilation for cooling, then turn on the power again.

No sound is heard.

• Did you connect the mixer's SPEAKERS jacks and the speakers' input jacks using the proper speaker cables?
  Did you firmly and securely connect the speaker cables?
  Is a speaker other than the included speaker (MODEL 600S) connected to the mixer's SPEAKERS jacks? Please connect the included speaker (MODEL 600S).
  Did you use the included speaker cables? If you use a commercially-available speaker cable with a metal-housing
  connector, the cable will be shorted when the connector touches other metal, resulting in no sound being produced.
  Is the POWER LED flashing at intervals? There may be a short in the speaker cable or the connection may be faulty. Check that the speaker cable is not scratched and is connected properly to the mixer, then reapply the power.
  For channels 7/8, are both phone and RCA-pin jacks connected at the same time? Or, for channels 9/10, are both phone and stereo mini jacks connect at the same time? The phone jack has priority for channels 7/8 and the stereo mini jack has priority for 9/10.
  Is the POWER LED flashing continuously?

If the internal power amplifier section is excessively overloaded, the amplifier will be muted for protection. The mixer will automatically reset itself after a while.

Sound is distorted or noise is produced

Are the LEVEL controls of all relevant channels and/or the MASTER LEVEL control set too high?
Is the MIC/LINE switch of the corresponding channel set to MIC? If the input level from the source is high, setting the MIC/LINE switch to MIC may result in distorted sound. Set the switch LINE position.
Is the volume of the connected device too high?
Lower the volume of the external device
Is the speaker cable or the power cord located near the input cables? Please keep it away from the input cables.

Sound is not loud enough

Are the LEVEL controls of all relevant channels and/or the MASTER LEVEL control set too low?

Is the MIC/LINE switch of the corresponding channel set to LINE? Turn the LEVEL control to the minimum (zero). Set the switch to the MIC position then slowly raise the LEVEL control.
Is the volume of the connected device too low?

Raise the volume of the external device.
Is the PHANTOM switch set to on when using a microphone that requires phantom power?

The high sounds and low sounds are unbalanced.

Are the equalizer controls raised or lowered too much?
Set the equalizer controls to the center position.
Is the speaker properly outputting the high-frequency range signals?

If not, check the "Protective circuit (poly switch)" note in the Notice section.

iPod/iPhone is not recognized

Is your iPod/iPhone charged?

If your iPod/iPhone has not been charged, it may take some time to be recognized by the mixer. Make sure that your iPod/iPhone is connected to the mixer and wait until it is sufficiently charged.

If any specific problem should persist, please contact your Yamaha dealer.

Attaching a speaker to a speaker stand

1 Attach the speaker to the speaker stand with the lock lever moved up (release position).

2 Move the lock lever down to lock to the stand.

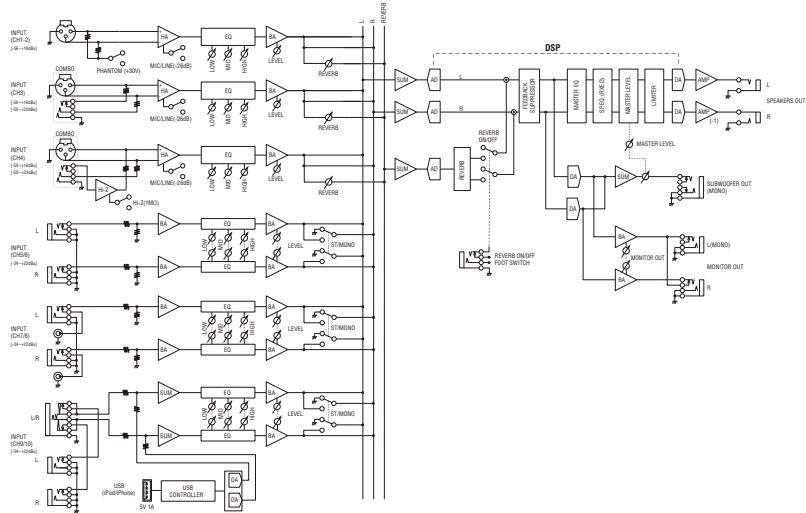

Block Diagram

Specifications

General Specifications

Maximum Output Power (SPEAKERS L/R)

340 W + 340 W/4 Ω @Dynamic at 1 kHz

280W+280W/41@10% THD at 1 kHz

Frequency Response

-3 dB, +1 dB @ 40 Hz-20 kHz, 1 W Output/4Ω (without EQ and SP EQ) (SPEAKERS L/R) -3 dB, +1 dB @ 40 Hz-20 kHz, +4 dBu 10 kΩ Load (MONITOR OUT)

Total Harmonic Distortion

≤0.5% @20 Hz-20 kHz, +11 dBu 10 kΩ (MONITOR OUT)

Hum & Noise (Rs=150Ω, MIC/LINE switch=MIC) 1:10dB, 5 dB, 10 dB, 20 dB, 30 dB, 40 dB, 50 dB, 60 dB, 70 dB, 80 dB, 90 dB, 100 dB

≤-58 dBu Residual output noise (SPEAKERS L/R)

Crosstalk (1 kHz)

≤ -70 dB between input channels

Phantom Voltage

+30V(CH1,2)

Weight

25.4 kg (56 lbs) (Speaker 10.8 kg x 2 + Mixer 3.8 kg)

Package Contents

STAGEPAS 600i (includes two MODEL 600S Speakers and a Powered Mixer), Cover Panel, Power Cord (2m), two Speaker Cables (6m), 12 Non-Skid Pads, Owner's Manual (this booklet)

Power Consumption

35 W (Idle), 100 W (1/8 Power)

Power Requirement

100V-240V50Hz/60Hz

Input Channel Equalization

±15 dB
HIGH:8kHz shelving MID:2.5HKLunch
MID: 2.5 kHz peaking LOW: 100 Hz shelling

Supported iPod/Phone models (as of August 2012)

• iPod touch (1st, 2nd, 3rd, and 4th generation),
• iPod classic, iPod nano (2nd, 3rd, 4th, 5th, and 6th generation), iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G, iPhone

For updated information, check the Yamaha Pro Audio website (http://www.yamahaproaudio.com/).

■ Speakers (MODEL 600S)

Enclosure

2 way ba

Speaker Unit

LF: 10" (25 cm) Cone

HF: 1.4" (3.56 cm) Compression Driver

Crossover Frequency

2.8kHz

Frequency Range

55 Hz-20 kHz (-10 dB)

Maximum Output Level

129 dB SPL (Measured peak IEC noise@1m)

Coverage Angle

90° (Horizontal)/60° (Vertical)

Do not open

• This device contains no user-serviceable parts. Do not open the device or attempt to disassemble the internal parts or modify them in any way. If it should appear to be malfunctioning, discontinue use immediately and have it inspected by qualified Yamaha service personnel.

Water warning

• Do not expose the device to rain, use it near water or in damp or wet conditions, or place on it any containers (such as vases, bottles or glasses) containing liquids which might spill into any openings. If any liquid such as water seeps into the device, turn off the power immediately and unplug the power cord from the AC outlet. Then have the device inspected by qualified Yamahara service personnel.
• Never insert or remove an electric plug with wet hands.

Fire warning

• Do not put burning items, such as candles, on the unit. A burning item may fall over and cause a fire.

If you notice any abnormality

• When one of the following problems occur, immediately turn off the power switch and disconnect the electric plug from the outlet. Then have the device inspected by Yamahara service personnel.
• The power cord or plug becomes frayed or damaged.
• It emits unusual smells or smoke.
• Some object has been dropped into the instrument.
• There is a sudden loss of sound during use of the de
• If this mixer should be dropped or damaged, immediately turn off the power switch, disconnect the electric plug from the outlet, and have the device inspected by qualified Yamaha service personnel.

CAU

Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the device or other property. These precautions include, but are not limited to, the following:

Power supply/Power cord

• When removing the electric plug from the device or an outlet, always hold the plug itself and not the cord. Pulling by the cord can damage it.
• Remove the electric plug from the outlet when the device is not to be used for extended periods of time, or during electrical storms.

Location

• Do not place the device in an unstable position. Unless the device is securely affixed, do not install it in a location where it might fall, even if the surface is level.

• Do not block the vents. This mixer has ventilation holes at the top and sides to prevent the internal temperature from becoming too high. In particular, do not place the mixer on its side or upside down Inadequate ventilation can result in overheating, possibly causing damage to the mixer, or even fire.

• Do not use the device in a confined, poorly-ventilated location. Make sure that there is adequate space between the mixer, or the speaker fitted with the mixer, and surrounding walls or other devices: at least 30cm at the sides, 30cm behind and 30cm above. Inadequate ventilation can result in overheating, possibly causing damage to the device(s), or even fire.

• If you lay the speaker flat on its side or like a stage monitor, make sure to remove the mixer first.
• Do not hold the bottom of the speaker when transporting or moving it. In doing so, you may pinch your hands under the speaker, and result in injury.
• Do not place the device in a location where it may come into contact
  with corrosive gases or salt air. Doing so may result in malfunction.
  Refer to the manufacturer's instructions for more information about it.
• Before moving the device, remove an connected cables.
• When setting up the mixer, make sure that the AC outlet you are using is easily accessible. If some trouble or malfunction occurs, immediately turn off the power switch and disconnect the plug from the outlet. Even when the power switch is turned off, electricity is still flowing to the product at the minimum level. When you are not using the product for a long time, make sure to unplug the power cord from the wall AC outlet.

Connections

• Before connecting the device to other devices, turn off the power for all devices. Before turning the power on or off for all devices, set all volume levels to minimum.
• For the SPEAKERS jacks of the mixer, use only the included MODEL 600S speakers and speaker cables. Use of other types of speakers and cables may result in damage, or even fire.

Maintenance

• Remove the power plug from the AC outlet when cleaning the device

Handling caution

• Do not insert your fingers or hands in any gaps or openings on the vents or panel of the mixer and the ports of the speaker.
• Avoid inserting or dropping foreign objects (paper, plastic, metal, etc.) into any gaps or openings on the vents or panel of the mixer and the ports of the speaker. If this happens, turn off the power immediately and unplug the power cord from the AC outlet. Then have the device inspected by qualified Yamaha service personnel.
• Do not rest your weight on the device or place heavy objects on it, and avoid use excessive force on the buttons, switches or connectors.
• Do not use the speakers for a long period of time at a high or uncomfortable volume level, since this can cause permanent hearing loss. If you experience any hearing loss or ringing in the ears, consult a physician.
• Do not operate the device if the sound is distorting. Prolonged use in this condition could cause overheating and result in fire.
• Do not pull on any attached cable, such that of a microphone. Doing so may cause the speaker to topple, and result in damage or in injury.

Yamaha cannot be held responsible for damage caused by improper use or modifications to the device, or data that is lost or destroyed.

PA_en_1

Explanation of Graphical Symbols

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

The above warning is located on the bottom of the mixer

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions
3. Heed all warnings. 1. Find the number of
4. Follow an instruction 5.Do not use this or
5. Clean only with dry cloth
6. Do not block any ventilation openings. Install in accordance with the
   manufacturer's instruction
7. Do not install near any heat sources such as radiators, heat registers, stoves, other apparatus (including amplifiers) that produce heat.

8. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

9. Protect the power cord from being walked on or pinched particularly at plugs,
   convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/ accessories specified by the manufacturer.

10. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/
11. Unplug this apparatus during lightning storms or when unused for long periods of time.
12. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
    or long periods

quired when
supply cord or plug
the apparatus,
operatormanily,

2 : x^ ( x) = 10 , 2 : x^ ( x) = - 4,10( x) :

2 : x^ ( x) = 10 , 2 : x^ ( x) = - 4,10( x) :

(UL60065_03)

(UL60065_03)

IT! product is found

turning the unit "OFF" and "UN", please try to eliminate the problem by using one of the following measures:

Relocate either this product or the device that is being affected by the

H

• Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to co-axial type cable.

If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Corporation of America, Electronic Service Division, 6600 Orngethetape Ave, Buena Park, CA90620. The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

In Finland: Laite on liettäva suojamaodoituskoskettimilla varustetuu

pistorasiaan.

In Norway: Apparate tå tikkoples jordet stikkontakt
¹ Ojesson, ² Ågren, ³ and the author will be grateful to

In Sweden: Apparaten skil ansilutas til Jorat uttag.

(class b korea)

(1)

Notice

To avoid the possibility of malfunction or damage to the product, follow the notices below.

■ Handling and Maintenance

• Do not expose the device to excessive dust or vibration, or extreme cold or heat (such as in direct sunlight, near a heater, or in a car during the day), in order to prevent the possibility of panel disfiguration, unstable operation, or damage to the internal components.

• Do not place vinyl, plastic or rubber objects on the device, since this might discolor the panel.

• When cleaning the device, use a dry and soft cloth. Do not use paint thiners, solvents, cleaning fluids, or chemical-impregnated wiping cloths.

• Condensation can occur in the device due to rapid, drastic changes in ambient temperature—when the device is moved from one location to another, or air conditioning is turned on or off, for example. Using the device while condensation is present can cause damage. If there is reason to believe that condensation might have occurred, leave the device for several hours without turning on the power until the condensation has completely dried out.

• Avoid setting all equalizer controls and LEVEL knobs to their maximum. Depending on the condition of the connected devices, doing so may cause feedback and may damage the speakers.

• When turning on the AC power in your audio system, always turn on the mixer LAST, to avoid speaker damage due to the noise. When turning the power off, the mixer should be turned off FIRST for the same reason.

- Protective circuit (poly switch)

All full-range loudspeakers are fitted with a self-resetting poly switch that protects the high-frequency driver from damage caused by excessive power. If a loudspeaker cabinet loses high-frequency output, immediately remove power from the unit and wait for two to three minutes. This should be long enough to allow the poly switch to reset. Reapply power and check the performance of the high-frequency driver before continuing, with the power reduced to a level that does not cause the poly switch to interrupt the signal.

Connectors

• XLR-type connectors are wired as follows (IEC60268 standard): pin 1: ground, pin 2: hot (+), and pin 3: cold (-).

Information

About functions/data bundled with the device

• iPodTM, iPhoneTM

iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

"Made for iPod" and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod or iPhone respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

■ About this manual

• The illustrations as shown in this manual are for instructional purposes only, and may appear somewhat different from those on your device.

• The company names and product names in this manual are the trademarks or registered trademarks of their respective companies.

P4 on 1

此功能是告定用（B）前和后自
音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音

(1)

For details of products, please contact your nearest Yamaha representative or the authorized distributor listed below

NORTH AMERICA

CANADA New Canada Ministry Ltd.
Yamada Canada Mable End: 135 Milner Avenue, Scarborough, Ontario, Canada
MTS 3R1, Canada Tel:[phone]

U.S.A.

Yamaha Corporation of America 6680-O,Japan P.O. Box 1200, Tokyo, Japan
6600 Orangethorpe Ave., Buena Park, Calif. 90620 U.S.A.
Tel: [phone]

CENTRAL & SOUTH AMERICA

MEXICO

Yamaha de Mexico S.A. de C.V.
Calz. Javier Rojo Gomez #1149, Cal.Guadalupe del Moral
C.P.09300, Mexico, D.F., Mexico
Tel: [phone]

BRAZIL Yomaha

Tamaia Musical do Brasil Ltda.
Rua Joaquin Floriano, 913 - 4' andar, Itaim Bibi
CEP 04534-013 Sao Paulo, SP. BRAZIL Tel: [phone]
01:01-374418
Yamaha Music Latin America.
Sucursal de Argentina
Olga Cossetti 1533, Plo 4 Nori
Mademo Este-C1107CEK
Buenos Aires, Argentina
Tel:[phone]
PANAMA AND OTHER LAI
AMERICAN COUNTRIES: CARIBBEAN COUNTRIES
Yamaha Music Latin America, S.A.
Torre Banco General, Piso 7, Urbanizacion Marbella
Calle 4/ y Aquilino de la Guardia, Ciudad de Panamá, Panamá.
Cuidad de Panama Tel: [phone]

一
EUROPE
THE UNITED KINGDOM/IRELAND
Yamaha Music Europe GmbH (UK)
Tania Muse Europe GmbH (UK) Sherbourne Drive, Tilbrook, Milton Keynes
MK78BLEngland 71000265890
GERMAN
GERMANY
Yamaha Music Europe GmbH
Siemensstraße 22-34, 25462 Rellingen, German
Tel:[phone] 传真：[phone]
SWITZERLAND/LIECHTENSTEIN
Yamaha Music Europe GmbH Branch Switzerland in Zurich
Seefeldstrasse 94,8008 Zurich,Switzerlan
Tel:[phone] NUTRIPANUC
AUSTRIA/BULGARIA
Yamaha Music Europe GmbH Branch, Austria
Schleiergasse 20, A-1100 Wien, Austria
Tel:[phone]
CZECH REPUBLIC/HUNGARY/COMPUTERSTUDIO/SLOVAKI/SLOVEN
ROMANIA/SLOVAKIA/SLOVENIA
Yamaha Music Europe GmbH
Branch Austria (Central Eastern Europe Off)
Schleiergasse 20, A-1100 Wien, Austria Tel: [phone]
POLAND/LITHUANIA/LATVIA/ESTON
Yamaha Music Europe GmbH
Branch Poland Office at: Westkown 14-02-653 Warsaw, Poland
Ul. Wrodkowa 14 02-353 Warsaw, Poland Tel: [phone]

or plug

St. Louis Street Mosaic

/

DURG

Branen Benelix
3 Wijpen, The Netherlands

m - 1 0 ;

Gallee Cedex 2, France

GmbH, Branch Italy
rate (Milan), Italy

late (Milano),

GmbH Ibérica, Sucursal

,200,28230

1

a Music House

55 Athens, Greece

CELAND

GmbH Germany filial

Box 30053

en

GmbH, Tyskland - filial

8H1

1. Renew, Del

GmbH Germa

345 Osteras, N

A. direct, block

COUNTRY

GmbH

---

DF CHINA

ina) Co.,L.td.

ngan- qu,

Power A. Sector

Haryana, India

(tributor)

n Lord Goto

nesisia

Jung-Dong,

1

No. Jana Jaya

LIMITED

m - 1 0 ;

i

m : x = 1 或 3x + 4y + 1 = 0

Building,

and

m = 311 ;

roup

amatsu,

OCEANIA

m - 1 0 ;
uthbank,

CEAN

round
amatsu,

303

PRECAUTIONS

PLEASE READ CAREFULLY BEFORE PROCEEDING

• Please keep this manual in a safe place for future reference.

WARNING

Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following:

Power supply/Power cord

• Do not place the power cord near heat sources such as heaters or radiators, and do not excessively bend or otherwise damage the cord, place heavy objects on it, or place it in a position where anyone could walk on, trip over, or roll anything over it.
• Only use the voltage specified as correct for the mixer. The required voltage is printed on the name plate of the mixer.
• Use only the supplied power cord
  If you intend to use the device in an area other than in the one you
  purchased, the included power cord may not be compatible. Please
  check with your Yamaha dealer.
• Check the electric plug periodically and remove any dirt or dust which
  may have accumulated on it.
• Be sure to connect to an appropriate outlet with a protective grounding
  connection. Improper grounding can result in electrical shock.

Information for Users on Collection and Disposal of Old Equipment

This symbol on the products, packaging, and/or accompanying

documents means that used electrical and electronic products

should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products,

please take them to applicable collection points, in accordance

with your national legislation and the Directives 2002/96/EC.

By disposing of these products correctly, you will help to save valuable resources

and prevent any potential negative effects on human health and the environment

which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products, please contact

your local municipality , your waste disposal service of the point of sale where youpurchased the items .

purchased the items.

[For business users in the European Union]

If you wish to discard electrical and electronic equipment, please contact your dealer for more information.

of supplier for further information:

Tn

This symbol is only valid in the European Union. If you wish to discard these items, please contact your legal authority or dealer and ask for the correct method of disposal.

IMPORTANT NOTICE FOR THE UNITED

Connecting the Plug and Cord

WARNING: THIS APPARATUS MUST BE EARTHED IMPORTANT. The wires

in this mains lead are coloured in accordance with the following code:

GREEN-AND-YELLOW : EARTH

BLUE NEUTRAL

BROWN : LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is coloured GREEN-and-YELLOW must be connected to the

terminal in the plug which is marked by the letter E or by the safety earth

symbol or colored GREEN or GREEN-and-YELLOV

The wire which is coloured BLUE must be connected to the terminal which is

marked with the letter N or coloured BLACK

The wire which is coloured BROWN must be connected to the terminal which

is marked with the letter L or coloured RED.

or plug

HEAD OFFICE Yamaha Corporation, Pro Audio Division

Nakazawa-cho 10-1, Naka-ku, Hamamatsu, Japan 430-8650 Tel: [phone]

Pro Audio Division
ku, Hamamatsu, Japan 430-8650

(weee_eu)

C.S.G., Pro Audio Division

Yamaha Corporation

208MWHD**-01A0

Printed in China
