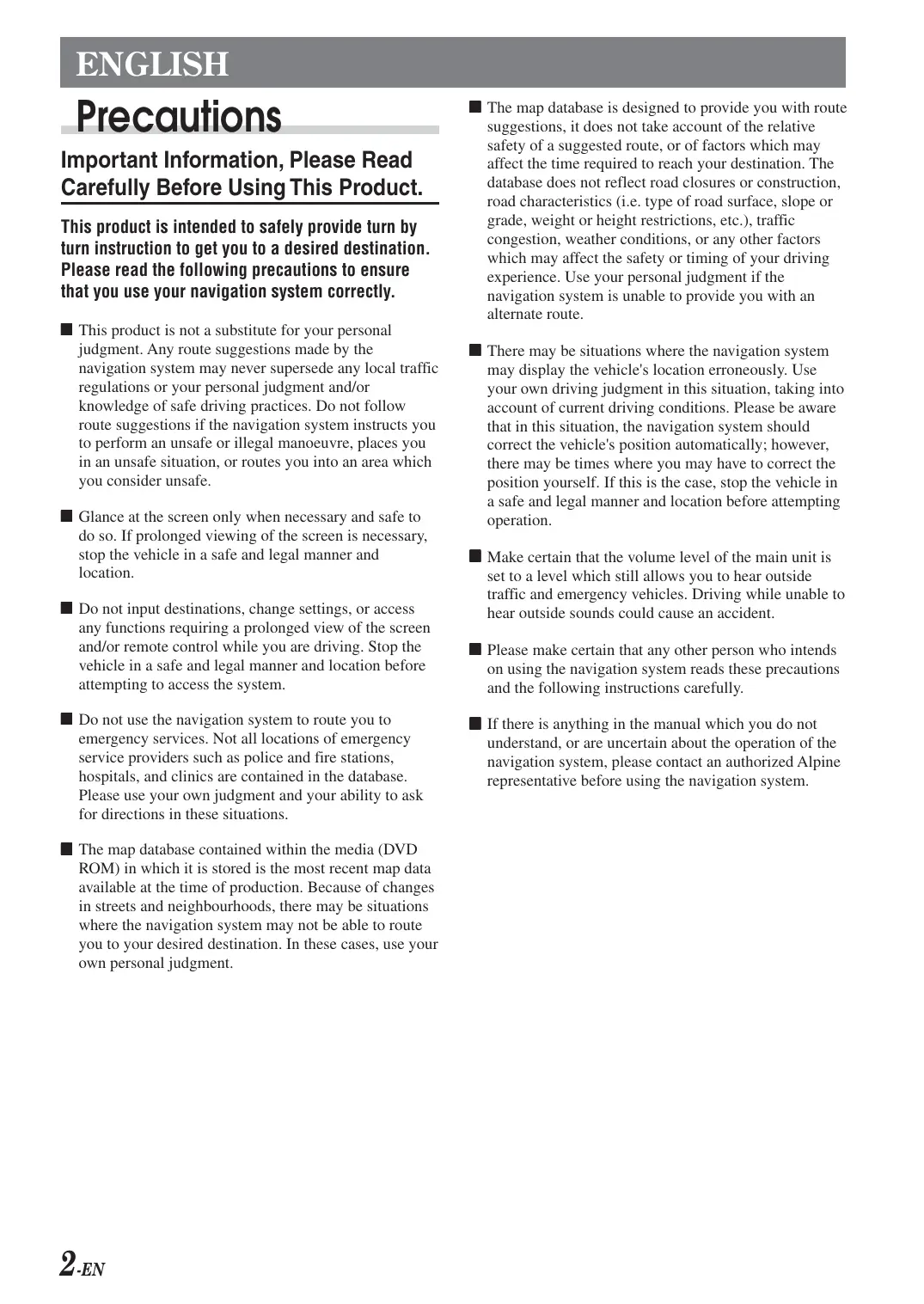

ENGII Precautions Important Information, Please Read Carefully Before Using This Product. This product is intended to safely provide turn by turn instruction to get you to a desired destination. Please read the following precautions to ensure that you use your navigation system correctly. A This product is not a substitute for your personal judgment. Any route suggestions made by the navigation system may never supersede any local traffic regulations or your personal judgment and/or knowledge of safe driving practices. Do not follow route suggestions if the navigation system instructs you to perform an unsafe or illegal manoeuvre, places you in an unsafe situation, or routes you into an area which you consider unsafe. Æ Glance at the screen only when necessary and safe to do so. If prolonged viewing of the screen is necessary, stop the vehicle in a safe and legal manner and location. B Do not input destinations, change settings, or access any functions requiring a prolonged view of the screen and/or remote control while you are driving. Stop the vehicle in a safe and legal manner and location before attempting to access the system. B Do not use the navigation system to route you to emergency services. Not all locations of emergency service providers such as police and fire stations, hospitals, and clinics are contained in the database. Please use your own judgment and your ability to ask for directions in these situations. M The map database contained within the media (DVD ROM) in which it is stored is the most recent map data available at the time of production. Because of changes in streets and neighbourhoods, there may be situations where the navigation system may not be able to route you to your desired destination. In these cases, use your own personal judgment.

M The map database is designed to provide you with route suggestions, it does not take account of the relative safety of a suggested route, or of factors which may affect the time required to reach your destination. The database does not reflect road closures or construction, road characteristics (i.e. type of road surface, slope or grade, weight or height restrictions, etc.), traffic congestion, weather conditions, or any other factors which may affect the safety or timing of your driving experience. Use your personal judgment if the navigation system is unable to provide you with an alternate route. M There may be situations where the navigation system may display the vehicle's location erroneously. Use your own driving judgment in this situation, taking into account of current driving conditions. Please be aware that in this situation, the navigation system should correct the vehicle's position automatically: however, there may be times where you may have to correct the position yourself. If this is the case, stop the vehicle in a safe and legal manner and location before attempting operation. MB Make certain that the volume level of the main unit is set to a level which still allows you to hear outside traffic and emergency vehicles. Driving while unable to hear outside sounds could cause an accident. M Picase make certain that any other person who intends on using the navigation system reads these precautions and the following instructions carefully. BL there is anything in the manual which you do not understand, or are uncertain about the operation of the navigation system, please contact an authorized Alpine representative before using the navigation system.

Points to Observe for Safe Usage © Read the manuals for this disc and the system components carefully before using your navigation system. They contain instructions on how to use the system in a safe and effective manner. Alpine cannot be responsible for problems resulting from failure to observe the instructions in these manuals. © This manual uses various pictorial displays to show you how to use this product safely and to alert you to potential dangers resulting from improper connections and operation. Following are the meanings of these pictorial displays. It is important to fully understand the meanings of these pictorial displays in order to use this manual and the system properly. À WARNING This symbol means important instructions. Failure to heed them can result in serious injury or death. DO NOT DISASSEMBLE OR ALTER. Doing so may result in an accident, fire or electric shock. KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE REACH OF CHILDREN. Swallowing them may result in serious injury. If swallowed, consult a physician immediately DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR

ATTENTION AWAY FROM SAFELY DRIVING YOUR

VEHICLE. Any function that requires your prolonged attention should only be performed after coming to a complete stop. Always stop the vehicle in a safe location before performing these functions. Failure to do so may result in an accident. KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL HEAR OUTSIDE NOISE WHILE DRIVING. Failure to do so may result in an accident. DO NOT FOLLOW ROUTE SUGGESTIONS IF THE NAVIGATION SYSTEM INSTRUCTS YOU TO PERFORM AN UNSAFE OR ILLEGAL MANEUVER, OR PLACES YOU IN AN UNSAFE SITUATION OR AREA. This product is not a substitute for your personal judgment. Any route suggestions by this system should never supersede any local traffic regulations or your personal judgment or knowledge of safe driving practice. USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS. Use for other than its designed application may result in fire, electric shock or other injury. DO NOT PLACE HANDS, FINGERS OR FOREIGN OBJECTS IN INSERTION SLOTS OR GAPS. Doing so may result in personal injury or damage to the product. /\ CAUTION This symbol means important instructions. Failure to heed them can result in injury or material property damage. HALT USE IMMEDIATELY IF À PROBLEM APPEARS. Failure to do so may cause personal injury or damage to the product. Return it 10 your authorized Alpine dealer or the nearest Alpine Service Centre for repairing. KEEP FINGERS AWAY WHILE THE MOTORIZED FRONT PANEL OR MOVING MONITOR IS IN MOTION. Failure to do so may result in personal injury or damage 10 the product. Tip This indicates supplementary explanation of operation of the system. 3 -EN

Precautions User Agreement In using this DVD-ROM “SMART MAP PRO” (hereinafter referred to as “Disk”), as part of the AISIN AW CO., Ltd. (“AISIN AW”) and NAVTEQ Corporation (“NAVTEQ”) Database (hereinafter referred to as “Database”), you are bound by the terms and conditions set forth below. By breaking the seal on this package, and using your copy of the Database and Disk, you have demonstrated your agreement to the terms and conditions of this Agreement. You should therefore, make sure that you read and understand the following provisions. © The Disk and Database may not be copied, duplicated, processed, or otherwise modified, in whole or in part, without the express written permission of AISIN AW, NAVTEQ and ALPINE Electronics, Inc. (“ALPINE”). © Neither the Disk nor the Database may be transferred or sublicensed to any third party for profit, rent or loan, or licensed for reuse in any manners. © The Disk and/or Database may not be decompiled, reverse engineered or otherwise disassembled, in whole or in part. © The Disk and Database may not be used in a network or by any other manner of simultaneous use in multiple systems. © The Disk and Database are intended solely for personal use (or internal use where the end-user business), or the consumer. The Disk and Database are not to be used for commercial purposes. © Neither AISIN AW, ALPINE nor NAVTEQ guarantees to the customer that the functions included in the Disk and Database meet a specific objective of user. © Neither AISIN AW, ALPINE nor NAVTEQ shall be responsible for any damages caused by the use of the Disk and/or Database to the actual user and to any third party. © The Warranty on the Disk and Database shall not extend to an exchange or refund due to misspelling, omission of letters, or any other cosmetic discrepancy in layout found in Disk and/ or Database. 4En

01_02-09_NVD-T334(EN) 4

| on © The right to use the Disk and Database shall expire either when the user destroys this software, or when any of the terms for use is violated and AISIN AW, ALPINE and/or NAVTEQ exercises the option to revoke the licence to use this software. © The terms and conditions hereof apply to all subsequent users and owners as well as to the actual purchaser. (À WARNING © Operation of the system while driving is dangerous. Users should stop vehicle before operating the software. © Road conditions and regulations take precedence over information contained on the display: observe actual traffic restrictions and circumstances while driving. © This software is designed for use exclusively in the INA-N333R, INA-N333RR, INA-N333RS or INA-N333RRS. lt cannot and may not be used in conjunction with other hardware.

To Customers who use the INA-N333R or INA-N333RR model The Owner's Manual explains the function of the disc for the New-Version (Prog. Ver.T4.00, Database Ver.4.00). © Operating System Programme Rewriting

1) Insert the upgrade disc into your INA-N333R or

2) The operating system will automatically be

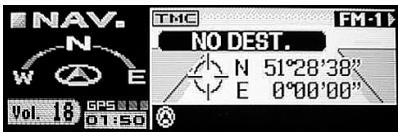

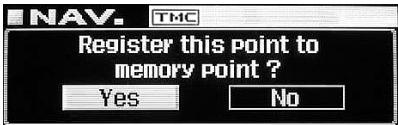

Contents Precautions Important Information, Please Read Carefully Before Using This Product. Points to Observe for Safe Usage … WARNING... CAUTION User Agreement To Customers who use the INA-N333R or INA-N333RR model Contents. Preface Navigation Systems …. Navigation Terminology Features … About the Guidance Display Before Using The System Setting the Navigation Mode 10 Setting the Language Mode . Registering Your Home …. Searching For Destination Selecting Countries Searching for Destination from Addre: Searching for Point of Interest from Category Searching from Postcode . Searching from Local Points Searching from Home/Previous Destination/ Memory Points … Adding Waypoints on the Route . Setting the Display for the Destination Time …. 17 Route Setting/Route Editing Checking the Route by List … Researching Changing the Searching Conditions Changing the Conditions of the Searched Route . Deleting the Destination Changing the Sequence of Waypoints Deleting Waypoints on the Route .… Drive Simulation … Editing for Memory points Changing the Name of a Memory Point or Inputting a Phone Number Deleting the Memory Points ….. TMC Operation Automatic Seek Tuning (SEEK) for Receiving TMC Stations … … 22 Displaying the Traffic Event Information on Route .… …… 23 Displaying all Receiving Traffic event Information ...… 23 Setting Dynamic Route Seek ...…. 24 Setting the RDS-TMC Voice Guidance to Interrupt the Radio or CD, etc. Selecting TMC Reception (Onty w when TMC- 001P is connected). … 24

Setting the System Setting the Anticipated Arrival Time … Setting When Vehicle's Tyres have been Changed … Updating the Present Vehicle Position . Setting the Voice Guidance Volume Suspending/Restarting Voice Guidance 27 Calling Up the Audio Source Remote Control Operation Operation on Remote Control RUE-4191 (optional) … Operation on Remote Control RUE-4135 (optional) … Reference In Case of Difficulty …. If this Message Appears ….. Notes + Due 10 continuous product improvement, specifications and design are subject to change without notice + The displays shown in the photos in this manual may vary slighly from the actual unit screen displays. AT Traffic Information in the UK provided by ITIS Holdings Plc. OV-Trafic V-Trafic Informations in France are provided by Mediamobile company.

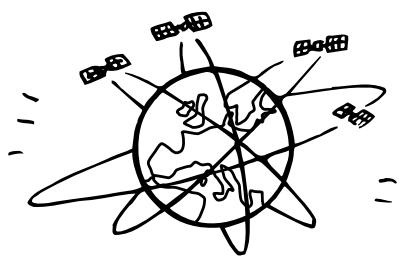

Preface Navigation Systems This navigation system uses three different sensing devices to determine the present location and to track the progress of the vehicle. These three devices are: a GPS (Global Positioning System) receiver which receives digital signals from the GPS satellites to determine the current position of the vehicle, a gyroscope which determines which direction the vehicle tus, and a speedometer pulse sensor which determine how far the vehicle has travelled. Because this system incorporates a gyroscope and a speed sensor, the system will be able to display the vehicle's position and track the vehicle's progress even in areas where the GPS signal may be blocked. Al map data is contained on a removable DVD ROM. This system integrates this unique map database with the sensing devices to automatically plot out a route when a destination is entered. While driving, the navigation system guides you along the route with pictorial displays and verbal prompts. GPS (Global Positioning System) Delay time before the present vehicle's position can be displayed Determination of the present vehicle's position starts when the ignition key is turned to the ACC or ON positions and ends when the key is tumed OFF. When the key is first turned to the ACC or ON positions, there is a light delay of approximately one to two minutes before the present vehicles position can be displayed. This system receives signals from 3 or more GPS satellites (operated by the United States Department of Defence) orbiting at an altitude of 21,000 kilometres and measures the present car position using the same principles as triangulation.

The error from the actual position of the vehicle When GPS signals can be received from 4 or more satellites, 3 dimensional positioning (the altitude, latitude, and longitude) of the vehicle can be determined. In this case, the error from the actual position of the vehicle is in the range of 100 to 655 feet (80 to 200 meters). When GPS signals can only be received from 3 satellites, only two dimensional positioning (latitude and longitude) can be determined, resulting in a slightly increased error. When GPS signals can only be received from less than three satellites, positioning of the vehicle through GPS is not possible. In addition to the inherent errors from GPS, the error rate can also be increased if the United States Department of Defense deliberately changes the accuracy rate. Gyroscope The gyroscope is a sensor that accurately measures the angle by which the direction of a vehicle or other moving body changes. Gyroscopes are used in inertial navigation systems for airliners and ships. In this navigation system, the gyroscope is used together with the speed sensor, making it possible to display the position of the vehicle even in locations where GPS signals may be blocked.

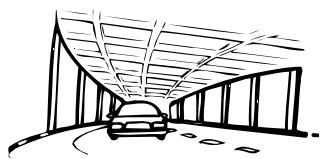

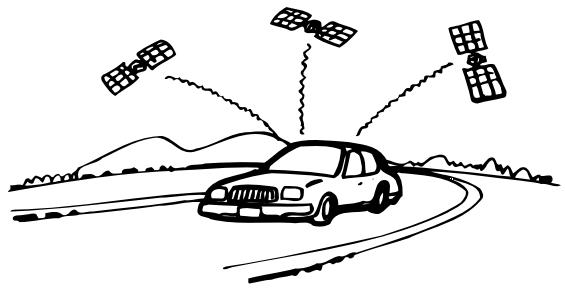

Locations where GPS signals are received easily The optimum locations for receiving GPS signals are locations that command a good view where there are no tall buildings, trees, or other objects to obstruct the signals. Locations where GPS signals cannot be received In the following locations or conditions GPS signals cannot be received. However even in these locations, the gyroscope and speed sensor will provide a substitute means of determining the vehicle's position and the system will be able to continue to track the vehicle's progress along the route In tunnels and indoor parking lots Locations surrounded by tall Locations surrounded by tall buildings trees On the bottom level of double- When a GPS satellite is low on the horizon (angle below 10°), decker motorways obstructions sometimes make normal reception impossible TEN

Preface Navigation Terminology Navigation When a destination is input, the navigation system quickly calculates a route and guides you along the route with arrow displays and voice prompts. Present Vehicle Position () The navigation system integrates the GPS (Global Positioning System) signals received and the map information stored on the DVD ROM to display the position and direction of the vehicle. The system also includes a gyroscope and a speed sensor that enable it to display the present position even in locations where the GPS signals may be blocked. Map Matching Since GPS navigation has an error of 100 — 655 feet (80 m— 200 m), the position of your vehicle may be displayed off the road. Map matching automatically corrects this error so that the position of your vehicle is displayed on the road. Route ©) When a destination is input, the navigation system automatically calculates a route. Road Preference Setting You can set your preferred road on the route to the destination for up to 2 places. Memory Points Locations you go to frequentiÿ can be stored into memory. The system can store up to 50 points, excluding your home. Motorway-Preference Selection When searching for routes with the navigation system, you can switch between searching for routes that give priority to motorways and those that give priority to ordinary roads. When you specify motorway preference, the navigation system automatically searches for a route that gives priority to motonways and guides you along that route. Features Advanced Real Junction View When you are driving on a motorway where quick decisions are required, you can display a detailed map ofthe next junction in advance, and a 3-D view of the appropriate lane along the recommended route. 8 -EN Intersection Zoom AS you near intersections and cross points, the map display automatically zooms in to show a more detailed view that you will need. Motorway Information Display When you travel on motonways, the basic guidance display (with an arrow) automatically shows the distances to the next fuel station/restaurant/parking/ junction (except exit). Three Types of Auto Route Searching Simultaneously You can choose the best route from three types of route searching to your destination. Turn List on the Route After you have set the route, you can check the sequence of waypoints, road names and distances between points by displaying this list. Setting Waypoints You can set one or 2 waypoints to go through to your destination. Real Time Voice Guidance Voice guidance informs you of the distance and direction until your course changes, giving advice timed to match road conditions. The VOICE button lets you call up the voice guide when needed by just pushing the button. DVD-ROM covers All European Areas — All areas of Europe are covered by one disc. Eight Languages selectable for the Voice and Display Guidance You can choose one of eight languages for the voice route guidance and menu displays. (see the “Setting the Language Mode” section, page 10.) Built-in Gyroscope and Speed Sensors — The gyroscope for sensing direction and the speed pulse sensor for detecting distance provide data which allows the vehicle position and direction to be displayed even in locations where the GPS signal cannot be received such as between buildings or in tunnels. TMC (Traffic Message Channel) Ifthere is TMC information, TMC stations can be received by selecting a station on the built-in TMC tuner. The optional RDS-TMC receiver box TMC-001P can also be connected.

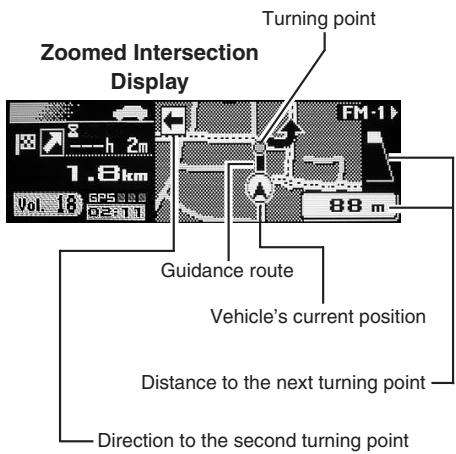

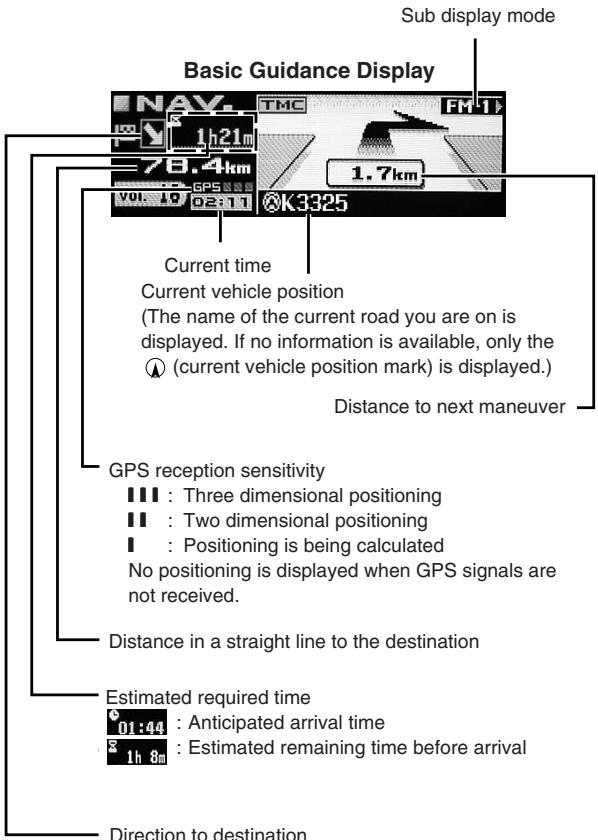

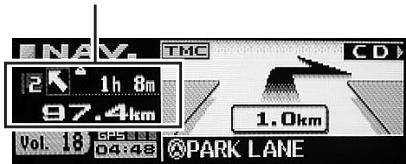

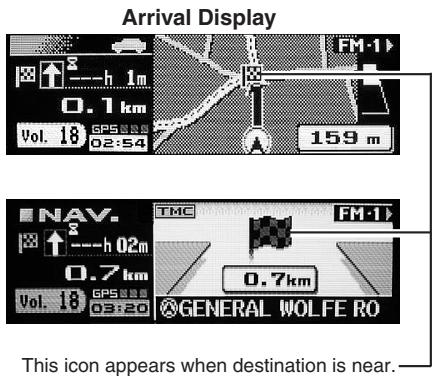

About the Guidance Display While you are driving with the route guidance, the display screens are shoun as follows. Sub display mode Basic Guidance Display Current time Current vehicle position {The name of the current road you are on is displayed. If no information is available, only the @ (current vehicle position mark) is displayed.) Distance to next maneuver GPS reception sensitivity 1: Three dimensional positioning 11: Two dimensional positioning 1: Positioning is being calculated No positioning is displayed when GPS signals are not received. L— Distance in a straight line to the destination Estimated required time . Anticipated arrival time MA : Esimated romaining time before arrival Direction to destination Turing point Zoomed Intersection Display Guidance route Vehicle's current position Distance to the next turning point —l Direction to the second turning point Basic Guidance Display for Motorways Current vehicle position Next parking area Second parking area Arrival Display This icon appears when destination is near. —| Notes About the leftlright display indicators + When you turn to right, the right indicator blinks for about 5 seconds, and then stays li. + When you turn to lef, the left indicator blinks for about 5 seconds, and then stays li. + When the destination is near, the indicators blink on both sides 9 -EN

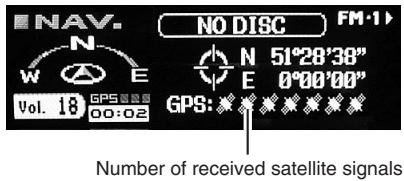

& EÈ EDS Number of received satellite signals 3 Press Æ button to open the display and then insert the SMART MAP PRO disc. 4° Move the Flipper switch up or down to move the cursor to the desired language and press the OK button or MODE knob to execute the selection. (When the system is used for the first time) DEPFOBI sS Dansk a

Note For English, you can seleet the distance indications in either miles (mile) or Kilometres (km) For other languages, only kilometres are used for the distance indications

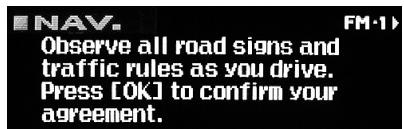

5 Selected language is displayed. An important message is displayed. Please read this message after stopping the vehicle in a safe location. Press the OK button. (You cannot carry out this operation with the Enter button on the optional remote control.) BNAV- CET Observe all road sians and traffic rules as vou drive. Press COK1 to confirm vour agreement. 6 The present vehicle position is displayed. Note Some operations (when displaying the navigation menu, etc.) cannot be performed while the vehicle is in motion. In this case, be sure to first stop your vehicle and apply the parking brake, then perform the operation Setting the Language Mode For the picture/voice guidance and texts, you can choose one of 8 languages as follows. German (Deutsch) © Dutch (Nederlands) © Spanish (Español) © Swedish (Svensk) © Danish (Dansk) English (mile or km)

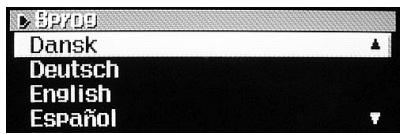

Italian (Italiano) The guidance language can be changed whenever you like by following the procedure below. 1 Press the MENU button to display “NAV. MENU.” 2 Select“Navigation Setup” from “NAV. MENU” by moving the Flipper switch up or down and press the OK button or MODE knob to execute the selection. 3 Select“System Setup” from “Navigation Setup” by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection.

4. Select “Language” from “System Setup” by moving the

Flipper switch up or down Press the OK button or MODE knob to execute the selection.

5 Select the desired language from the “Language” list by moving the Flipper switch up or down and press the OK button or MODE knob to execute the selection. Note For English, you can select the distance indications in either miles or Kilomerres (km) For other languages, only kilometres are used for the distance indications 6 The selected language is displayed. An important message is displayed. Please read this message after stopping the vehicle in a safe location Press the OK button. (You cannot carry out this operation with the Enter button on the optional remote control.) Note You cannot use the MENU button while the vehicle is in motion. Stop your vehicle in a safe place before using the MENU button. Registering Your Home If home has already been registered, you can call it up with a simple operation. 1 Park your vehicle near your home where GPS signal reception is good. 2 Start your vehicle engine and set to navigation mode, then wait about 5 minutes to receive clear GPS signals. 3 Press the OK button. The message appears. Select “Yes” by the Flipper switch and press the OK button or MODE knob to execute the selection. 4 Press the MENU button to display “NAV. MENU.” 5 Select “Navigation Setup” from “NAV. MENU” by moving the Flipper switch up or down Press the OK button or MODE knob to execute the selection. 6 Select ‘Memory Points” from “Navigation Setup” by moving the Flipper switch up or down and press the OK button or MODE knob to execute the selection. 7 The screen changes and the address stored in step 3 is displayed Press the OK button or the MODE knob to set the address. 8 The screen switches to the “Edit Memory Point” menu. Move the Flipper switch up or down to select “Register Home." Press the OK button or MODE knob to execute the selection: 9 the message is displayed Select “Yes” by the Flipper switch and press the OK button or MODE knob to execute the selection. Your home is registered. Set this point as home ? Yes No 10 5 retu to the previous screen, press the RTN button, or to return to the “NAV. MENU" screen, press the MENU button. 11:

MENU RTN Selecting Countries When you search for destinations or points of interest in other countries from their addresses or categories, choose the desired country first by following the procedure below. 1 Press the MENU button to display “NAV. MENU.” NAS

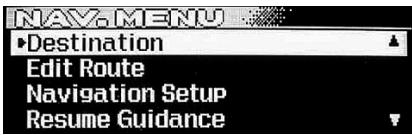

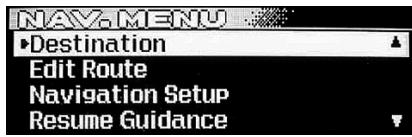

Edit Route Navigation Setup Resume Guidance 2° Select “Destination” from “NAV. MENU" by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection. 3 Select “County” from the “Destination” menu by moving the Flipper switch up or don and press the OK button or MODE knob to execute the selection. © DeStipat gg Address POI Category Memory Points

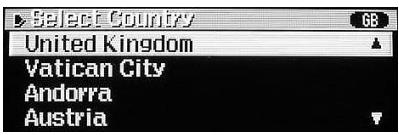

4. Select the desired country from the “Select Country"

list by moving the Flipper switch up or down Press the OK button or MODE knob to execute the selection. For example, if you wish to go to London, select “United Kingdom." CE COUR United Kingdom a Vatican City Andorra Austria Tip You can select your desired locations in 20 countries

5 The display returns to the “Destination” menu. The search for selected country has now been activated. 6 To return to the previous screen, press the RTN button, or to return to the “NAV. MENU" screen, press the MENU button g for Destination from Searc Address If you know the address of the destination, you can display its location by just inputting the address (name of the city/Street) 1 Press the MENU button to display “NAV. MENU.” Select “Destination” from “NAV. MENU" by moving the Flipper switch up or down: Press the OK button or MODE knob to execute the selection. ANA MERNORE": | Edit Route Navigation Setup Resume Guidance 3 Select “Address” from “Destination” by moving the Flipper switch up or down Press the OK button or MODE knob to execute the selection. 4." Press the OK button or MODE knob to execute “City Name Input.”

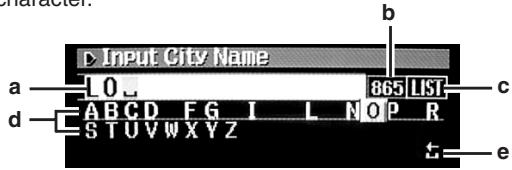

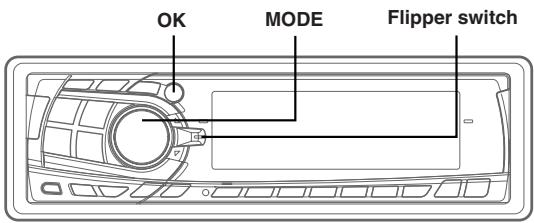

S The character pallet is displayed. Move the cursor to the character to be input by moving the Flipper switch up or down. Press îhe OK button or MODE knob to execute the character. a : Text window Displays the selected characters. b : List of the candidate number c: LIST Displays a list of the candidate names for the selected characters. d : Character pallet Select the desired character. e : Return to the previous character pallet before inputting one character. Return to the previous character and erase it. Tips When one character is input, the candidates for the next character are narrowed down (and the others disappear from the character pallet) You can also search for a loc: of its name and selecting “LIST If you want to display the list of candidate city names, select “LIST,” and then press OK button. Skip to Step 7 by inputting just the start 6 Repeat Step 5 above to complete the character input for the city name. 7 The screen changes to the “Select City” list screen. Select a desired city and press the OK button or MODE knob to execute the selection. LONDON

ON APPRENTICE, ST AUST

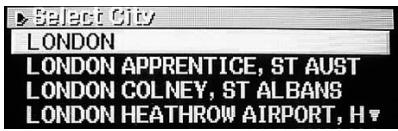

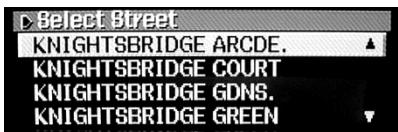

8 Repeat Step 5 above to complete character input of the street name. 9 The screen changes to the “Select Street” list screen. Select a desired street and press the OK button or MODE knob to execute the selection. IDGE GREEN 10 The screen changes to the “Option” screen. Select “Set” and press the OK button or MODE knob to execute the selection. COPHDNN House Number end Street 2nd Street If you know an intersection near where you want to go, you can input two cross streets as your destination. The character pallet is displayed. Input a cross street name. House Number: use to input a house number. The character pallet is displayed. Input a house number.

The displayed screen changes. Select “Start Guidance” and press the OK button or MODE knob to execute the selection.

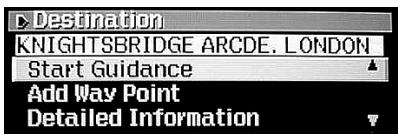

Start Guidance iled Information Add Way Point: Use to add waypoints (see the “Adding Waypoints on the Route,” page 17). Detailed Information: Use this menu for address, phone number information, etc. when a location is searched for using POI Category. Ifthere is no data for address, longitude and latitude are displayed. Register to Memory Points: Use to register the location. When the confirmation message is displayed, select “Yes” and press the OK button to execute the selection. 12 The message appears and route search starts. 13 The displayed screen changes. Move the cursor to {he selected item by moving the Flipper switch up or down and press the OK button or MODE knob to execute the setting of the item. The route guidance to the destination starts. pois Le (Short (Alternative à. Lo] The shortest time route. The shortest distance route. Alternative: Use to search for an alternative route. Quick: Short: 13:

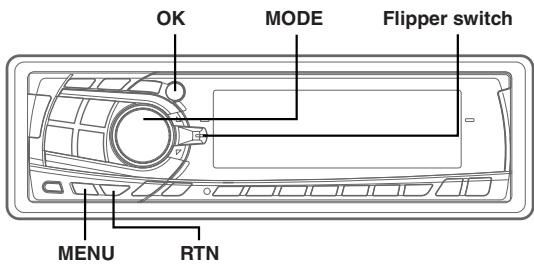

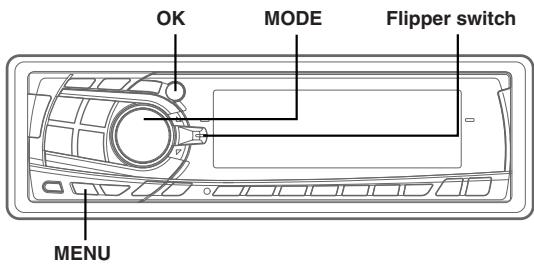

Searching.For Destination ok MODE Flipper switch Searching for Point of Interest from Category If you know the category or name of the desired point of interest (P.O.L.), you can easily display that point of interest by just selecting the desired category from the displayed category list or inputting its name. 1 Press the MENU button to display “NAV. MENU.” 2° Select “Destination” from “NAV. MENU" by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection. 3 Select “POI Category” from the “Destination” menu by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection.

4. Select the desired category from the “POI Category"

list by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection. (This section describes “Travel” as an example.) Tip If you select “AII Categories”, you do not need to select 5 Select “Airport” from the “Travel” list and press the OK button or MODE knob to execute the selection. G The displayed screen changes. Press the OK button or MODE knob to execute “City Name Input." LR h All Citie: If you select “Search All Cities,” you do not need to input a city name. The screen changes directly to the POI Name inputting display.

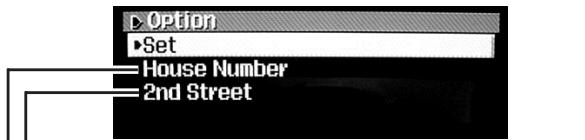

7 The character pallet is displayed. Move the cursor to the character to be input by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection. Tips + When one character is input, the candidates for the next character are narrowed down (and the others disappear from the character pallet). + You can also search for a location by inputting just the start of its name and selecting “LIST.” ant to display the list of candidate city names, select and press the OK button. Skip to Step 9 8 Repeat Step 7 above to complete character input of the city name. 9 he displayed screen changes to the city list. Select a desired CITY and press the OK button or MODE knob to execute the selection. 10 Repeat Step 7 above to complete character input of the “Input POI Name." 11 The displayed screen changes to the “Select POI" list. Select the point of interest, and then press the OK button or MODE knob to execute the selection. 12 The displayed screen changes. Select “Start Guidance" and press the OK button or MODE knob to execute the selection. The message appears and the system starts searching for route. Tip Select “Detailed Information” for information about a location's address or phone number, etc. 13 The display screen changes. Select a desired item from “Quick”, “Short or “Alternative” by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection. The route guidance to the destination starts.

Searching from Postcode If you know the postcode of the destination, you can display its location by just inputting the postcode and street name. 1 Press the MENU button to display “NAV. MENU.” 2° Select“Destination” from “NAV. MENU” by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection. 3 Select “Post cord” from the “Destination” by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection.

4. The character pallet is displayed.

Move the cursor to the character to be input by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the character. Tips + When one character is input, the next available characters are narrowed down (the others disappear from the character pallet) You can also search for a location by inputting just the start of its name and selecting “LIS to display the list of candidate city names, ? and then press OK button. Skip to Step 6. 5 Repeat Step 4 above to complete the character input for the postcode. 6 The screen changes to the “Select Postcode” list screen. Select a desired postcode and press the OK button or MODE knob to execute the selection. 7 Repeat Step 4 above to complete character input of the street name. 8 The screen changes to the “Select Street” list screen. Select a desired street and press the OK button or MODE knob to execute the selection. 9 The screen changes to the “Option screen. Select “Set” and press the OK button or MODE knob to execute the selection. 10 The displayed screen changes. Select “Start Guidance” and press the OK button or MODE knob to execute the selection. The message appears and the system starts searching for route. 11 The display screen changes. Select a desired item from “Quick”, “Short” or “Alternative” by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection. The route guidance to the destination starts.

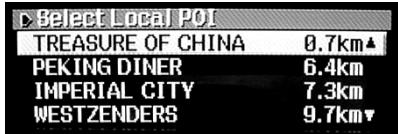

Searching.For Destination ok MODE Flipper switch Searching from Local Points You can search for POIS such as restaurants, hotels, etc., within a 30 km radius of the present vehicle position. 1 Press the MENU button to display “NAV. MENU.” 2° Select “Destination” from “NAV. MENU" by moving the Flipper switch up or down and press the OK button or MODE knob to execute the selection. 3 Select “Local POI" from the “Destination” menu by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection.

4. Select a desired category from the “Local PO/" list and

press the OK button or MODE knob to execute the selection. This section describes the procedure using “Restaurant” as an example. 5 Select “Chinese” from the “Restaurant” list and press the OK button or MODE knob to execute the selection. The message appears and the system starts searching for POI within a 30 km radius of the vehicle. 6 The “Select Local POF list is displayed. Select a desired local point and press the OK button or MODE knob to execute the selection. PEKING DINER IMPERIAL CITY WESTZENDERS 7 The displayed screen changes. Select “Start Guidance” and press the OK button or MODE knob to execute the selection. The message appears and the system starts searching for the route. 8 The displayed screen changes. Select a desired item from “Quick/Short/Alternative” by moving the Flipper switch up or down, and then press the OK button or MODE knob to execute the selection.

Searching from Home/Previous Destination/Memory Points 1 Press the MENU button to display “NAV. MENU.” 2° Select“Destination” from “NAV. MENU” by moving the Flipper switch up or down and press the OK button or MODE knob to execute the selection. 3 Select‘Home” from the “Destination” menu by moving the Flipper switch up or down and press the OK button or MODE knob to execute the selection. This section describes “Searching from home” as an example.

4. The displayed screen changes. Select “Start Guidance”

and press the OK button or MODE knob to execute the selection. The message appears and the system starts searching for the route. 5 The displayed screen changes. Select a desired item from “Quick/Short/Alternative” by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection. The route guidance back to your home starts.

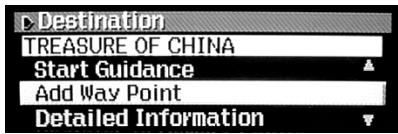

Adding Waypoints on the Route You can set up to 2 waypoints after the route search from your current location to your destination has been completed. 1 Find the waypoint by address, Local POIs, etc. 2° Select “Add Way Point” and press the OK button or MODE knob to execute the selection.

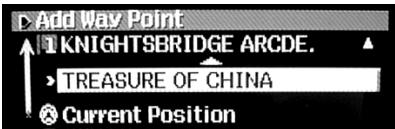

Start Guidance L Add Way Point Detailed Information # 3 The displayed screen changes and the added waypoints are displayed Press the OK button or MODE knob to set the added waypoints. The route searching starts. CAdIWAVI N ŒKNIGHTSBRIDGE ARCDE. 4

@ Current Position Note Before setting the point, you can move the location of the added waypoint by moving the cursor with the Flipper switch. Tips + After setting the waypoint, each time you move the Flipper switch up, the direction and distance to the waypoint, and the anticipated required time that you have set is displayed. (The required time is only displayed when you are driving with the route guidance.) PARK L'ANE "is set in the “Setting the Display for the on Time ” section (this page), the anticipated time is displayed Setting the Display for the Destination Time You can set the display for the destination time in order to anticipate your arrival time or estimated remaining time before arrival 1 Press the MENU button to display “NAV. MENU." 2 Select“Navigation Setup” from “NAV. MENU” by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection: 3 Select “System Setup” from the “Navigation Setup” menu by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection: 4 Select “Est. Time to Dest.” from the “System Setup” menu and press the OK button or MODE knob to execute the selection. 5 The displayed screen changes to the “Est. Time to Dest.” menu. Select “Arrival” or “Remaining” from the menu and press the OK button or MODE knob to execute the selection. Arrival : the anticipated arrival time will be set, and the ® indicator is shown in the guidance display. Remaining: the estimated remaining time will be set, and the & indicator is displayed on the guidance display. 6 To return to the previous screen, press the RTN button. To return to the “NAV. MENU” screen, press the MENU button 17e

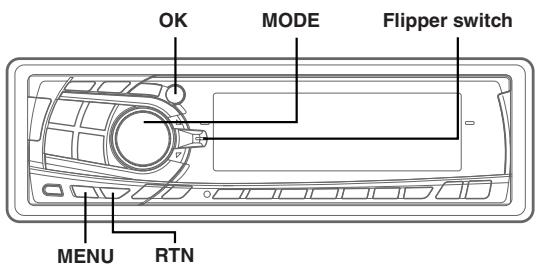

Route Setting/Route Editing ok MODE Flipper switch

4. The system starts to search for a new round-about

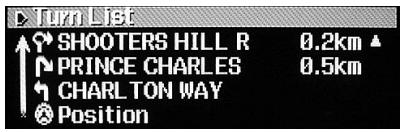

route in the vicinity of the vehicle. Changing the Searching Conditions Checking the Route by List With this detailed list you can find the route, road name and the distance between the points. 1 _Aïter setting the route, press the MENU button to display “NAV. MENU." 2° Select “Edit Route” from “NAV. MENU" by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection. 3 Select“Tum List” from the “Edit Route” menu by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection. 4° The route information is displayed. The ‘Tum List” scrolls by moving the Flipper switch up. % SHOOTERS HILL R 8.2km à 8.5km MPRINCE CHARLES

• CHARLTON WAY & Position S To return to the previous screen, press the RTN button. To return to the “NAV. MENU" screen, press the MENU button. Researching You can edit the route search conditions even after the route calculation has been performed, and have the system search for alternative route. 1 Press the MENU button to display “NAV. MENU." Select “Edit Route” from “NAV. MENU" by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection. 3 Sclect“Re-route” from the “Edit Route” menu by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection.

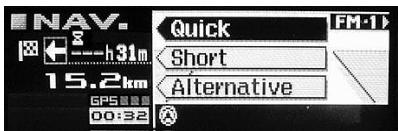

Use this when you want to change the route preference while you are driving receiving route guidance. (For example, if the route preference is set to “Quick”, and you want to change to another route preference.) 1 Press the MENU button to display “NAV. MENU.” Select “Edit Route” from “NAV. MENU" by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection. 3 Select “Search Condition” from the “Edit Route” menu by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection. 4 Set your preference (Quick, Short, Alternative) from the “Search Condition” menu. Changing the Conditions of the Searched Route You can edit the route to use the motorway, ferry, etc. or not. 1 Press the MENU button to display “NAV. MENU.” Select “Edit Route” from “NAV. MENU" by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection. 3 Select“Route Preference” from the “Edit Route” menu by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection.

4. Move the cursor to your desired editing item from the

“Route Preference” menu by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the setting of the item. 5 The displayed screen changes. Select “Allow” or “Detour' and press the OK button or MODE knob to execute the selection. 6 To return to the previous screen, press the RTN button. To return to the “NAV. MENU" screen, press the MENU button. Note The “Motonvay Allow” setting is recommended when searching for a long distance route.

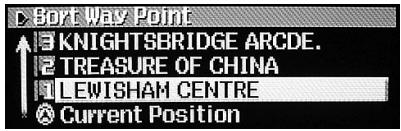

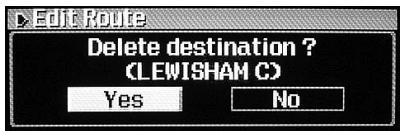

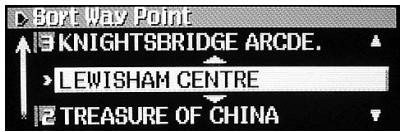

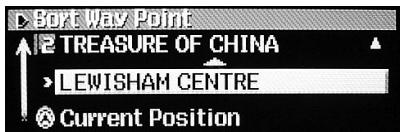

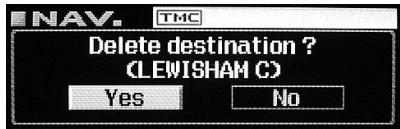

Deleting the Destination Changing the Sequence of Waypoints When the address in the vicinity of the destination is displayed after arrival at the destination, the point information is erased automatically. I the route guidance is cancelled before arrival at the destination or if the address in the vicinity of the destination is not displayed, the point information remains. In such a case, delete the destination. 1 Press the MENU button to display “NAV. MENU.” 2° Select“Edit Route” from “NAV. MENU" by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection. 3 Select“Delete Destination’ from the “Edit Route” menu by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection. 4._ When the message appears, select “Ves” and press the OK button or MODE knob to execute the selection. {Î Delete destination CLEWISHAM CD Yes E The destination is erased and the display returns to the present vehicle position. Tip If you slide the Flipper switch down after setting the destination, the above message appears. Select “Yes” and press the OK button or MODE knob to delete the destination you have set. Delete destination ? CLEWISHAM CD Yes The sequence of waypoints to go through can be sorted in order of distance from the current vehicle position, or it can be changed in any order as you like. 1 Press the MENU button to display “NAV. MENU." Select “Edit Route” from “NAV. MENU" by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection: 3 Select “Edit Way Points” from the “Edit Route” menu by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection: 4 Select “Sort” from the “Edit Way Points” menu and press the OK button or MODE knob to execute the selection. S Move the cursor to the desired point by moving the Flipper switch. BPIUES H D REASURI Â ÉILEWISHAM CENTRE & ent Po 0 Press the OK button or MODE knob. BOMBE

18 TREASURE OF CHINA

ÊLEWISHAM CENTRE & Current Position 6 Move the cursor to the desired position by moving the Flipper switch. Ê LEUWISHAM CENTRE 18 TREASURE OF CHINA , Press the OK button or MODE knob to execute the position. The route searching starts.

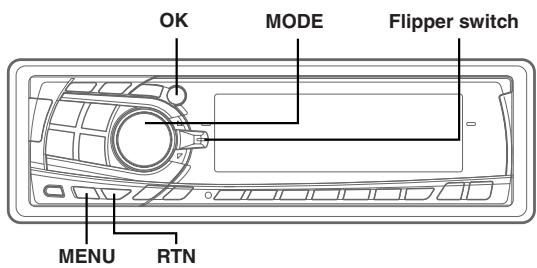

Route Setting/Route Editing Drive Simulation You can check the searched route by carrying out the Lee MODE Flipper switch drive simulation. 1 Aïter searching the route, press the MENU button to display “NAV. MENU" 2° Select“Edit Route” from “NAV. MENU” by moving the Flipper switch up or down — Press the OK button or MODE knob to execute the MENU RTN selection. 3 Select “Demo” from the “Edit Route” menu by moving . . the Flipper switch up or down. Deleting Waypoints on the Route Press the OK button or MODE knob to execute the selection. If you want to delete all waypoints, perform following operation. 4. The drive simulation starts. To exit the drive simulation, press the RTN button. 1 Press the MENU button to display “NAV. MENU.” 2° Select “Edit Route” from “NAV. MENU" by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection. 3 Select “Edit Way Points” from the “Edit Route” menu by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection.

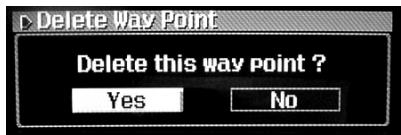

4. Select ‘Delete” from the “Edit Way Points” menu and

press the OK button or MODE knob to execute the selection. + To erase all points (way points and destination), select “Delete AI! and press the OK button or MODE Knob to execute the selection. When the confirmation message appears, select “Yes” and press the OK button to execute the selection. S The displayed screen changes. Move the cursor to your desired waypoint to delete and press the OK button or MODE knob. When the confirmation message appears, select “Yes” and press the OK button or MODE knob to execute the selection. lts waypoints are deleted. Delete this way point ? 20:x

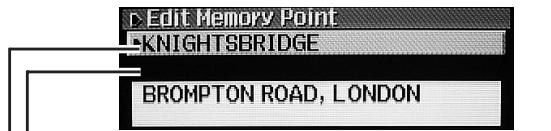

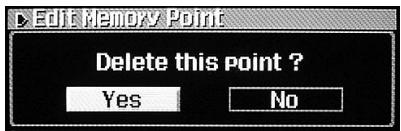

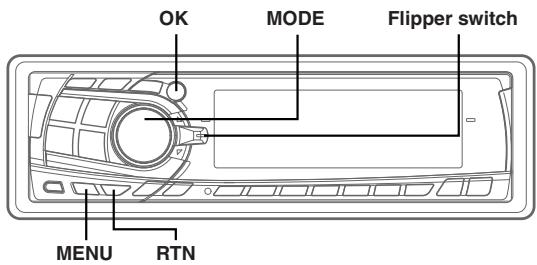

Editing for Memory Poinis 6 Wen the new name or phone number has been input, select “OK” by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection. ok MODE Flipper switch 7 Toretum to the previous screen, press the RTN button. To return to the “NAV. MENU" screen, press the MENU button. Deleting the Memory Points You can store up to 50 locations in memory. You can erase any of the locations as and when you like. 1 Press the MENU button to display “NAV. MENU." Changing the Name of a Memory ! A Select “Navigation Setup” from “NAV. MENU" b Point or Inputting a Phone Number fl ke ’ moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection. When a point is registered, the name of the point will be stored automatically. Use when you edit a stored name of the point or phone number. 3 Select“Memory Points’ from the “Navigation Setup” menu by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection. 1 Press the MENU button to display “NAV. MENU.” 2 Select “Navigation Setup” from “NAV. MENU” by 4 moving the Flipper switch up or down. Select your desired point to erase from the “Memory Press the OK button or MODE knob to execute the selection. Select “Memory Points” from the “Navigation Setup” menu by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection. Select your desired point to edit from the “Memory Points” list and press the OK button or MODE knob to execute the selection. The displayed screen changes to the “Edit Memory Point” menu. Select “Edit Memory Point” from the menu and press the OK button or MODE knob to execute the selection. Execute name change or phone number input.

BROHPTON ROÂD, LONDON

Change Phone No.: Move the cursor to this menu and execute the selection. The numeric input pallet appears. Input the desired number. Change Name: Move the cursor to this item and execute the selection. The character input pallet appears. After selecting with the cursor (=), and deleting inputted characters, input the desired characters. {If more than 14 characters have been input, the character pallet disappears. If selecting with the cursor (=), and deleting inputted characters, the character pallet reappears.) Points” list and press the OK button or MODE knob to execute the selection. The displayed screen changes to the “Edit Memory Point’ menu. Select “Delete” from the menu and press the OK button or MODE knob to execute the selection. The confirmation message appears. Select “Yes” and press the OK button or MODE knob to execute the selection. To return to the previous screen, press the RTN button. To return to the “NAV. MENU” screen, press the MENU button.

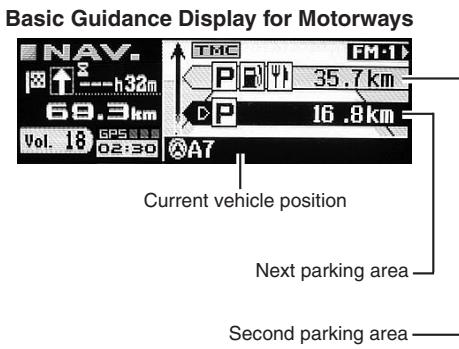

About the TMC indicator receiving TMC (common) not receiving TMC (if TMC tuner is butin) not receiving TMC (when TMC-001P is connected) Symbol [Legend | Symbol | Legend Stationary Road ES fée A | Trafficjam A |rearer A het) M |Paxing w (Ciosed 2 road

Automatic Seek Tuning (SEEK) for Receiving TMC Stations + TMC information can be received when available by selecting a station on this units built-in TMC tuner. The optional RDS-TMC receiver box TMC-001P may be connected. + TMC stations are tuned to receive available TMC information, if a built-in TMC tuner only is used. 1 Press the NAV. button to change the Audio mode. 2 Press the SOURCE/POWER button to select the Radio mode. 22:x In the FM mode, press and hold the OK/TMC button for at least 2 seconds. AI TMC stations that can be received are tuned. “TMC SEEK' is displayed while seeking TMC. When TMC is received, the TMC indicator” is lit on the audio mode display. Notes +_ fa station cannot be sought, the TMC Seek finishes. INA-N333R or INA-N333RR model only: The TMC indicator is lit when a TMC station is received. INA-N333RS or INA-N333RRS model only: The TMC indicator is li only when a received station is currently broadcasting TMC information. The TMC indicator that is displayed in the Navigation mode differs from that shown in the “About the TMC indicator section (on the lef) After receiving a TMC station or TMC information, press the NAV. button to switch the Navigation mode. Press the MENU button to display “NAV. MENU.” Edit Route a Navigation Setup Suspend Guidance *RDS-THC Information x Select “RDS-TMC Information” from “NAV. MENU" by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection. Select “Set up RDS-TMC” from the “RDS-TMC: Information” menu by moving the Flipper switch up or doun Press the OK button or MODE knob to execute the selection. Dynamic Navigation Guide »Set up RDS-THC CE The display screen changes to “Set up RDS-TMC." Press the OK button or MODE knob to execute “Country.” Move the Flipper switch to select the country in which TMC is to be received! Tip With “Auto” selected, as you enter other countries which cover TMC, the unit automatically seeks for TMC stations. Ho when you are in the Radio mode, the unit does not seek automatically for TMC stations of a new country. If you wish to receive non-TMC radio stations and TMC information simultaneously, connect the (optional) RDS- TMC receiver box, TMC-001P. 10 Press the Ok button or MODE knob to set the selected country. 11 To retum to the previous screen, press the RTN button. To return to the “NAV. MENU” screen, press the MENU button.

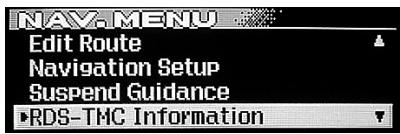

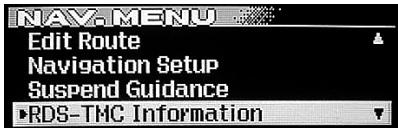

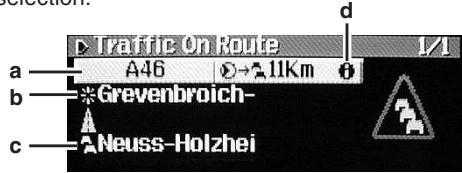

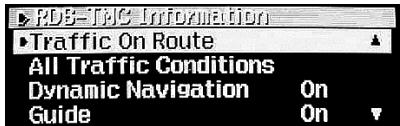

Displaying the Traffic Event Information on Route 1 Aïter setting the route, press the MENU button to display “NAV. MENU." Edit Route a Navigation Setup Suspend Guidance #RDS-TMC Information x 2° Select“RDS-TMC Information” from “NAV. MENU" by moving the Flipper switch up or down Press the OK button or MODE knob to execute the selection. 3 Select“Traffic On Route” from the “RDS-TMC Information” menu by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection. Dynamic Navigation On Guide On

4. ifihere is any traffic event information on your set

route, the information will be displayed When there are more than one piece of information, move the Flipper switch up or down to select the further information you want to know. Press the OK button or MODE knob to execute the selection

© *Neuss-Holzhei : Road name : Destination place name of TMC event : Starting place name of TMC event : When this mark is displayed, “Detail Information” in step 5 will be displayed. 205» Note Afthe destination or starting place name is long, the whole name may not be displayed. Ir is not a malfunction. S Any further information is displayed. When there are more than one pieces of the traffic event information, move the Flipper switch up or down to switch the further information you want to know. [LD £ [UT stationary traffic Note Afthere is no information on your set route, all other receiving information is displayed Tip While receiving the TMC and displaying your cars position, press the OK button for more than 2 seconds to display the traffic event information on your set route. If there is no information on your set route, all other receiving information is displayed. Displaying all Receiving Traffic event Information

In RDS-TMC Information Menu, move the Flipper switch up or down to select “AII Traffic Conditions.” Press the OK button or MODE knob to execute the selection. The display changes to “AII Traffic Conditions” list. Move the Flipper switch up or down to select the traffic event information you want to know. Press the OK button or MODE knob to execute the selection: The traffic event information on the route that you selected is displayed. When there are more than one pieces of the traffic event information, move the Flipper switch up or down to select the further information you want to know. Press the OK button or MODE knob to execute the selection. Further information is displayed. When there are more than one piece of the further information, move the Flipper switch up or down to display any further information: Tip While receiving the TMC and displaying your vehicle's e OK button for more than 2 seconds to event information on the route that you If there is no information on the route that you all other receiving information is displayed. have 23:5n

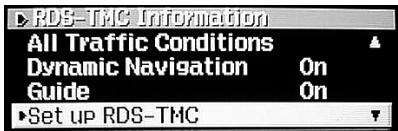

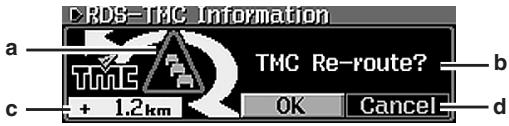

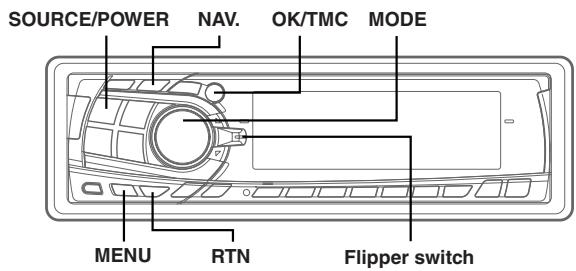

TMC Operation OK MODE Flipper switch Setting Dynamic Route Seek 1 in RDS-TMC Information Menu, move the Flipper switch up or down to select “Dynamic Navigation." Press the OK button or MODE knob to execute the selection. 2° The display changes to ‘Dynamic Navigation” setting. Move the Flipper switch up or down to select “On” or “Off.” Press the OK button or MODE knob to execute the selection. 3 When you set to “On”, a message regarding an evasion route is displayed while guiding the current route. Move the Flipper switch up and down to select “OK” then press the OK button or MODE knob to execute the selection. The unit seeks for a route in consideration of the traffic event given through the RDS-TMC information and new guidance will be given. a :The representative RDS-TMC icon for traffic event information which is currently being given on the route is displayed. : À message regarding an alternative route (s) is displayed. :The difference in distance between a route you have already set and a new route (evasion route) is displayed. “is displayed if the distance cannot be calculated. : If you want to change the guidance for a new route, select “OK." If not, select “Cancel.”

Note When you set to OFF, the unit performs an initial seek for a route without consideration for any traffic event given through ihe RDS-TMC. 24x Setting the RDS-TMC Voice Guidance to Interrupt the Radio or CD, etc. 1 inte RDS-TMC Information menu, move the Flipper switch up and down to select “Guide.” Press the OK button or MODE knob to execute the selection. 2° The display changes to the “Guide” setting display. Move the Flipper switch up or down to select “On” or “Off.” On : TMC voice guidance will activate Off: No TMC voice guidance 3 Press the OK button or MODE knob to execute the selection. Selecting TMC Reception (Only when TMC-001P is connected) If the optional RDS-TMC receiver box TMC-001P is connected, reception of TMC can be set for either “Country” or “Station.” Lin RDS-TMC information Menu, move the Flipper switch up and down to select “Set up RDS-TMC." Press the OK button to execute the selection. 2° The display changes to “Set up RDS-TMC." Move the Flipper switch up and down to select “Country” or “Station.” Press the OK button or MODE knob to execute the selection. 3 Move the Flipper switch to select the name of the country or station you selected in step 2. Press the OK button or MODE knob to execute the selection. If you select “Auto,” a country and a station will be selected and received automatically. Note If you select stations or countries listed as receivable in the list while you are in the area where these stations are not receivable, the TMC receiving is not functioned.

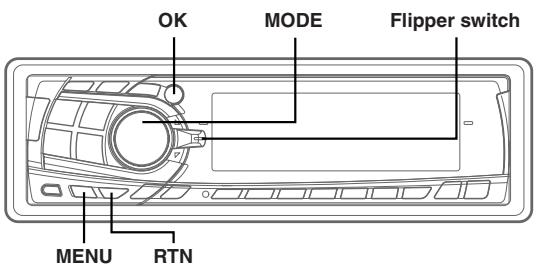

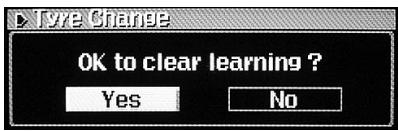

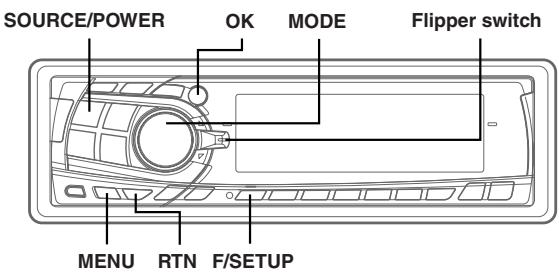

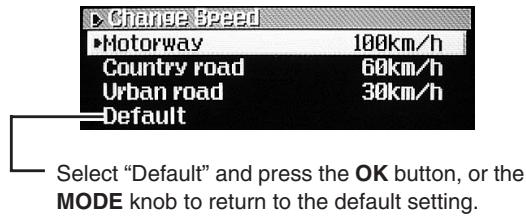

Setting-the System ok MODE Flipper switch Setting When Vehicle's Tyres have been Changed [Setting is required when the vehicle's tyres are changed. Le PE mm mm A MENU RIN Setting the Anticipated Arrival Time You can change the conditions (speed) for estimated arrival time. 1 Press the MENU button to display “NAV. MENU.” 2° Select“Navigation Setup” from “NAV. MENU" by moving the Flipper switch up or down Press the OK button or MODE knob to execute the selection. 3 Select “System Setup” from the “Navigation Setup” menu by moving the Flipper switch up or down Press the OK button or MODE knob to execute the selection. 4 Select “Change Speed” from the “System Setup” menu and press the OK button or MODE knob to execute the selection. 5 Move the cursor to your desired item to edit by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the setting of the item. E - *Hotorway 168km/h Country road 6Bkm/h Urban road 38km/h CL Select “Default” and press the OK button, or the MODE knob to return to the default setting. The displayed screen changes. Move the Flipper switch up or down to change the speed. 116km/h Select the desired speed and press the OK button or MODE knob to execute the selection. 6 To retum to the previous screen, press the RTN button. To return to the “NAV. MENU” screen, press the MENU button. 1 Press the MENU button to display “NAV. MENU." 2 Select“Navigation Setup” from “NAV. MENU” by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection: 3 Select “System Setup” from the “Navigation Setup” menu by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection: 4° Select “Tyre Change” from the “System Setup” menu and press the OK button or MODE knob to execute the selection: 5 When the confirmation message appears, select Yes” and press OK button or MODE knob to execute the selection: 0K to clear learning ? ves No 6 To return to the previous screen, press the RTN button. To return to the “NAV. MENU” screen, press the MENU button. 25:5x

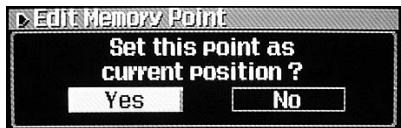

Updating the Present Vehicle Position Ifthe navigation system is not displaying the correct current position, use this procedure to update the present vehicle position. Depending on the GPS signal reception conditions, the direction of your vehicle may be displayed incorrectiy. Map matching automatically corrects this error, but you can manually correct it. 1 Press the MENU button to display “NAV. MENU.” 2° Select “Navigation Setup” from “NAV. MENU" by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection. 3 Select “Memory Points’ from the “Navigation Setup” menu by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection.

4. Select the point that is closest to your present vehicle

position from the “Memory Points” list. Press the OK button or MODE knob to execute the selection. 5 The displayed screen changes to the “Edit Memory Point’ menu. Select “Current Position” from the menu and press the OK button or MODE knob to execute the selection. Gwen the confirmation message appears, select “Yes” and press the OK button or MODE knob to execute the selection. 7 To retum to the previous screen, press the RTN button. To retum to the “NAV. MENU" screen, press the MENU button. 26:\ Setting the Voice Guidance Volume When the voice guidance of the navigation system stars, the volume level of any currently playing audio source is reduced automatically. You can also adjust the volume level of voice guidance. To set the volume level of voice guidance 1 Press and hold the F/SETUP button for at least 2 seconds. The display changes to the SETUP screen. 2° Move the Flipper switch up or down to select NAVI MIX. Press the OK button or MODE knob to set. 3 Move the Flipper switch up or down to select ON or OFF. Press the OK button or MODE knob to set. The display returns to the SETUP screen. 4 Press the F/SETUP button to change to the Navigation mode. 5 When displaying the present vehicle position or voice guidance, press the MODE (Audio control) knob repeatedly to select the NAVI MIX mode. 6 Turn the MODE (Audio control) knob until the desired sound is obtained. Notes +_1f you don't hear the voice guidance, press the VOICE button 10 repeat the voice guidance. + If you have an external audio processor, you can listen to voice guidance with the extension speaker (KAX-551N).

Suspending/Restarting Voice Guidance 1 %o suspend the voice guidance, press the MENU button to display the “NAV. MENU" screen after the route has been calculated. 2° Select “Suspend Guidance” from “NAV. MENU" by moving the Flipper switch up or down. Press the OK button or MODE knob to execute the selection. The message appears and the voice guidance is suspended. 3 When you want to resume the voice guidance, press the MENU button. Select “Resume Guidance” from “NAV. MENU” and press the OK button or MODE knob to execute the selection. The message appears and the voice guidance is resumed. Calling Up the Audio Source 1 White in the Navigation mode (except NAV. MENU screen and each list screen), you can change over to an audio source by pressing the SOURCE/POWER button In addition, you can perform operations such as calling up a preset, switching BAND and TRACK UP/DOWN, SETUP, bass engine, etc. For Audio operation, refer to the INA-N333R/INA- N333RR or INA-N333RS/INA-N338RRS of Owner's Manual. Main Display Mode: current mode is displayed.

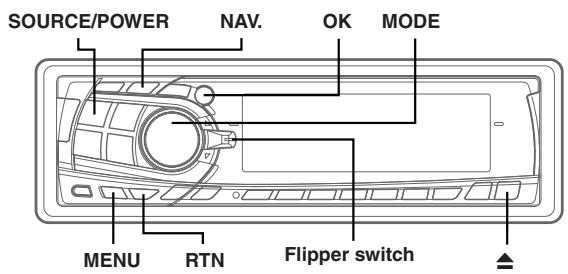

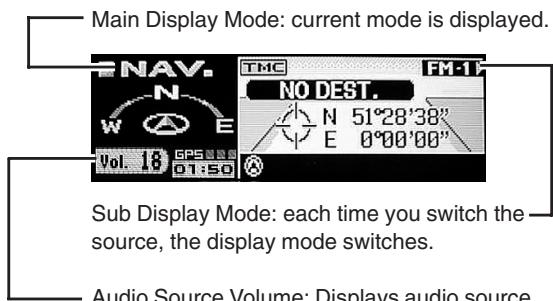

LNH 5128384 /'\F E 0°09'88” Sub Display Mode: each time you switch the source, the display mode switches. Audio Source Volume: Displays audio source volume, or during Voice Guidance interruption, automatically switches to display Voice Guidance volume. Note While the navigation menu is displayed, some operations do not function. Tip When you are driving with route guidance, the voice and route guidance can be interrupted at any time by pressing the NAV. button when you switch to the audio mode However, when the list screen (SETUP, bass engine, etc.) is displayed, only the voice guidance can interrupt the audio source. 275n

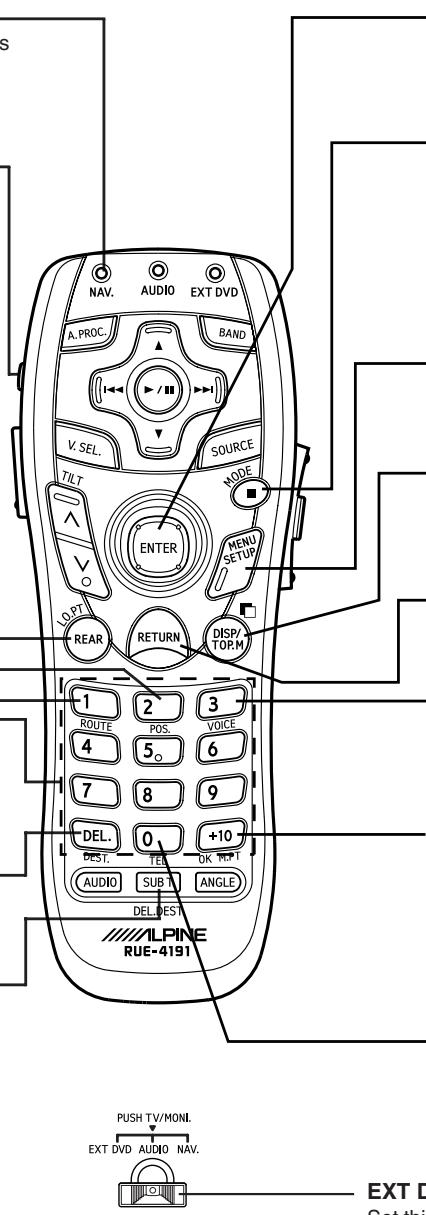

Remote control Operation Operation on Remote Control RUE-4191 (Optional) You can operate it with the optional remote control (RUE-4191). Change the EXT DVD/AUDIO/NAV. Switch, on the side of the remote control, to NAV. NAV. transmission indicator The transmission indicator lights for few seconds when the mode selector switch is set to the “NAV." side. ON/OFF button Press the button to turn the power on/off. LO.PT (Local Point) button When this button is pressed, local points and the vicinity of the current vehicle position will appear in the display. POS. (Position) button Returns to the current position of your vehicle or displays the latitude/longitude. ROUTE button. Pressing this button searches for the route again and switches between motorway preference and ordinary road preference for route searching Numeric Keypad Use these buttons to enter house numbers or street names containing numbers (.e., 42nd St.). DEST. (Destination) button | Pressing this button displays the destination menu. DEL. DEST. button Pressing this button can delete the current destination. er Do aubo NA Joystick/ENTER button Selects highlighted items in menus. Press the ENTER button to execute any highlighted items. MODE button Press this button to input numerals using the numeric keypad, DEL. and + 10 buttons. After pressing the MODE button, the following buttons will be pressed while the status indicator is blinking: numerals (0-9), DEL. and + 10. MENU button Displays NAV. MENU. Ubutton This button is not used. RETURN button Returns the navigation system to the previous searching. VOICE button Initiates vocal instruction for next route maneuver or repeats last instruction. OK M.PT (Memory Point) button Pressing this button displays the memory point list TEL button This button is not used. EXT DVD/AUDIO/NAV. switch Set this switch to the “NAV." side to (Rear of the Remote Control) operate a connected navigation system. The Alpine head unit can be operated with the remote control | Tip For details, refer to the INA-N333R/INA-N333RR or INA-N333RS/INA-N333RRS of Owner's Manual. Note Due to continuous product improvement, specifications are subject to change. 28:ëx

Operation on Remote Control RUE-4135 (Optional) You can operate it with the optional remote control (RUE-4135). Change the AUDIO/NAV. Switch, on the side of the remote control, to NAV. Remote Control transmitter Status indicator Transmits the remote control signals. Aim toward the display monitor for operation. Joystick/ENTER button Selects highlighted items in menus. Press the ENTER button to execute any highlighted items. Zoom/Scroll buttons These buttons are not used. AUDIO/NAV. button Switches between Audio and Navigation operations. Pressing this button illuminates the highlighted portion of the display. LO-PT. (Local Point) button When this button is pressed, local points and the vicinity of the current vehicle position will appear in the display. Illuminates when the remote is transmitting. MENU button Displays NAV. MENU. MODE button Press this button to input numerals using the numeric keypad. The numerals can be input while the status indicator blinks. RETURN button Returns the navigation system to the previous searching. © button This button is not used in the present version. [___—_— Ejbutton This button is not used. VOICE button ROUTE button Pressing this button searches for the route again and switches between motorway preference and ordinary road preference [ for route searching DEST. (Destination) button

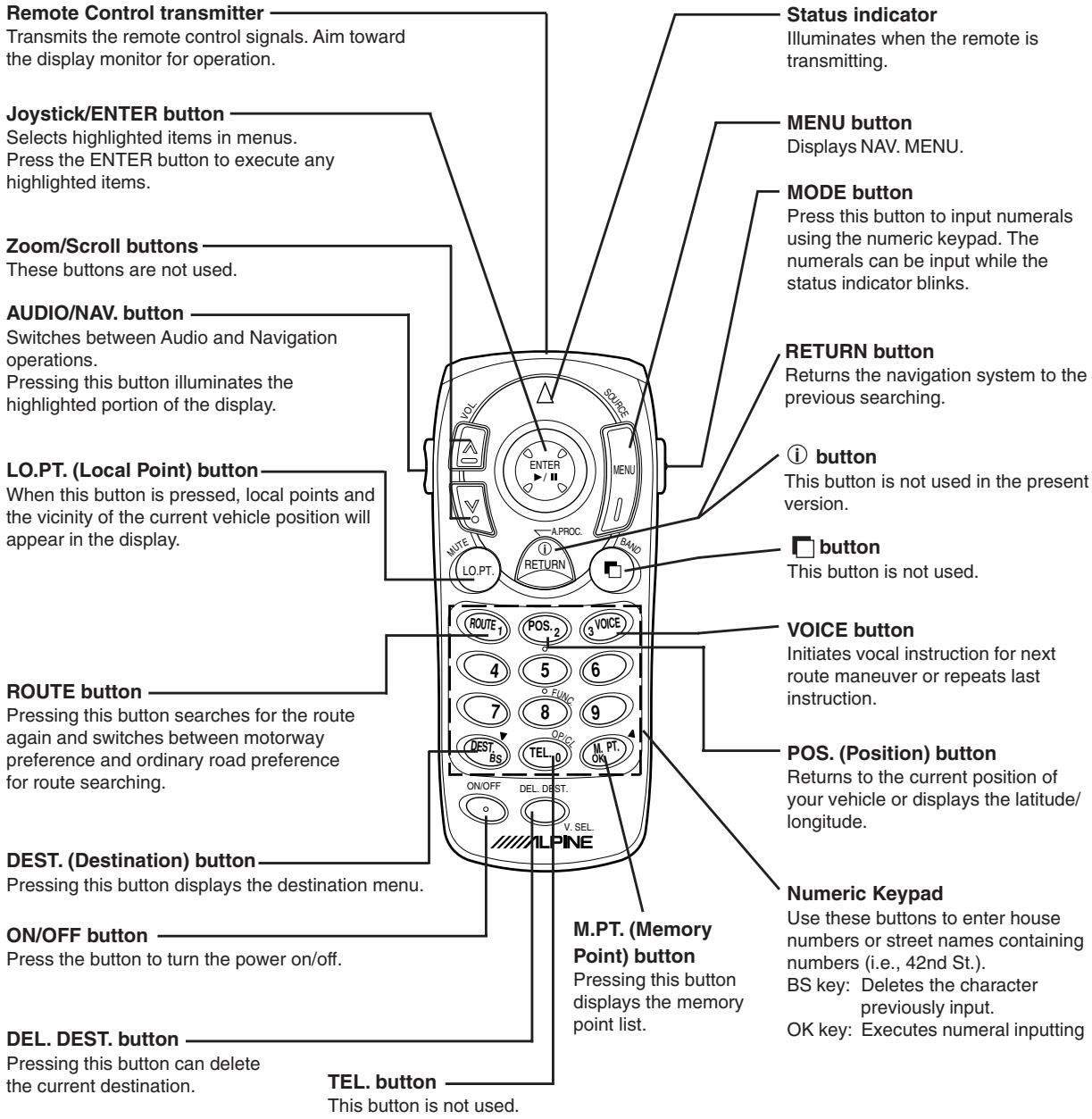

Initiates vocal instruction for next route maneuver or repeats last instruction. Returns to the current position of your vehicle or displays the latitude/ longitude. Pressing this button displays the destination menu. ON/OFF button Press the button to tum the power on/off. DEL. DEST. button Pressing this button can delete the current destination. TEL. button This button is not used Numeric Keypad Use these buttons to enter house numbers or street names containing numbers (.e., 42nd St.). ES key: Deletes the character previously input. OK key: Executes numeral inputting M.PT. (Memory Point) button Pressing this button displays the memory point list. Tips + The Alpine head unit can be operated with the remote control For details, refer to the INA-N333R/INA-N333RR or INA-N333RS/INA-N333RRS of Owner's Manual. + After pressing the MODE button, press the following buttons while the status indic tor is blinking : numerals (0 to 9), BS, and OK. Note Due 10 continuous product improvement, specifications are subject 10 change. 29:5n

Reference In Case of Difficulty If you encounter a problem, please review the items in the following checklist. This guide will help you isolate the problem if the system is at fault. Otherwise, make sure the system is properly connected or consult your authorized Alpine dealer. Symptom Cause Solution No operation Blown fuse Replace with a fuse of the prescribed rating Ambient temperature over 50°C Lower the temperature in the vehicle below 50°C, for example by running for a while with the window open or by using the air conditioner Moisture condensation Allow enough time for the condensation to evaporate (about 1 hour) position cannot be measured correctly. the ignition was switched off. + Movement on a ferry boat + Movement by tow truck The present vehicle The vehicle position changed after + Rotation of a parking lot turntable Drive for a while with GPS signal reception: The Poor satellite configuration measurement error is too large. Measurement is 2 dimensional Move to a location where GPS satellite reception is easy. Cannot read disc is The disc is dirty. Clean the disc. displayed for a certain operation. The pickup lens is dirty. Periodically clean the pickup lens

If this Message Appears Various messages are displayed on the monitor screen during operation. In addition to the messages telling you the current status or providing guidance for the next operation, there are also the following error messages. If one of these error messages is displayed, carefully follow the instructions in the solution column. Message Cause Solution + A disc that the system cannot read | Insert a navigation disc designed only for this system has been loaded. + Main unit error Please consult your Alpine dealer. No data + When there is no item in the list Set by selecting another searching method. when searching for the destination, the display shows “No data Not Registered + An attempt was made to search Register your home or a memory point, then execute home with no home registered. the search. + An attempt was made to search a memory point with no memory registered. Waypoints are full. + An attempt was made to set more | Erase unnecessary waypoints, then set again. than 2 waypoints. Memory points are + An attempt was made to register Erase unnecessary points, then register. full. more than 50 points in memory. Specify the + An attempt was made to search Specify the destination, then carry out the search destination before the destination from the departure using this function. point with no destination registered. Use after setting + An attempt was made to erase a | This message simply announces that no waypoint is waypoint. waypoint even though no waypoint | set. The message goes out soon. is set. Route could not be + No route could be found, for Move to another location. Set the route search again. found example due to traffic situations: Destination is _ m + When the distance from the Because the distance to the destination is too close, from the current departure point to the destination | searching for the route cannot be carried out. Drive on position or is too close, this message appears. | the road by complying the traffic regulations. Destination nearby within _m Destination too far. + When the distance from the Your destination must be within 5,000 km. Please choose a departure point to the destination destination within is too far, this message appears. 5000 km distance No registered roads + The current vehicle position cannot | Move to another location, then resume the route nearby receive the GPS signals. search + There is no road in the vicinity of the current vehicle position where GPS signals can be received! EIEN
