Get the perfect shot

XF205

XF200

you can

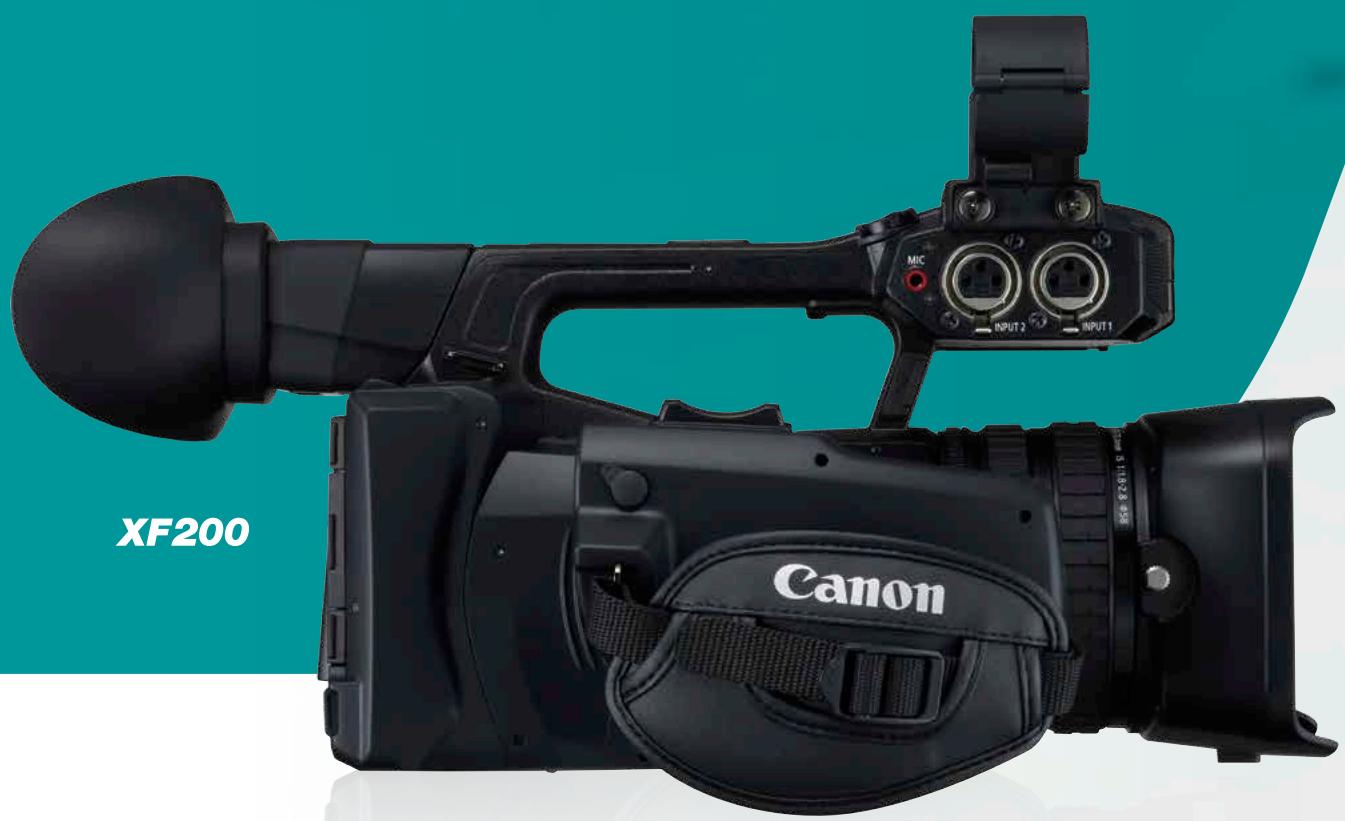

High optical performance and broadcast-quality output in a compact video camera

Canon's XF200-series camcorders pack more features than ever before into a compact, hand-held body. Offering a compelling combination of optical quality, broadcast-quality codec and outstanding handling, the XF205 and XF200 make professional tools accessible to all.

Make the story

The XF200-series is purpose-built to satisfy growing demand for smaller, lightweight cameras to obtain the perfect shot in all kinds of conditions and environments.

Highly versatile, thanks to a number of advanced features packed into an all-new compact chassis, the XF205 and XF200 offer all-in-one options for a variety of users and scenarios.

Professional operators such as electronic news gatherers will appreciate a broadcast-standard codec, 3 lens rings and full manual control, while less experienced content creators can benefit from shooting assists such as Face Detection. The XF205 steps up connectivity with 3G-SDI output, plus Genlock and Timecode for multi-camera shoots.

XF200-SERIES IDEAL FOR:

JOURNALISM AND DOCUMENTARY

CORPORATE PRODUCTION

EVENTS

WEDDINGS

EDUCATION

BROADCAST

Ready for anything

The XF200-series features an advanced camera system capable of providing outstanding images and the responsiveness to deal with all kinds of shooting situations.

OPTICAL


STABILIZER

DYNAMIC

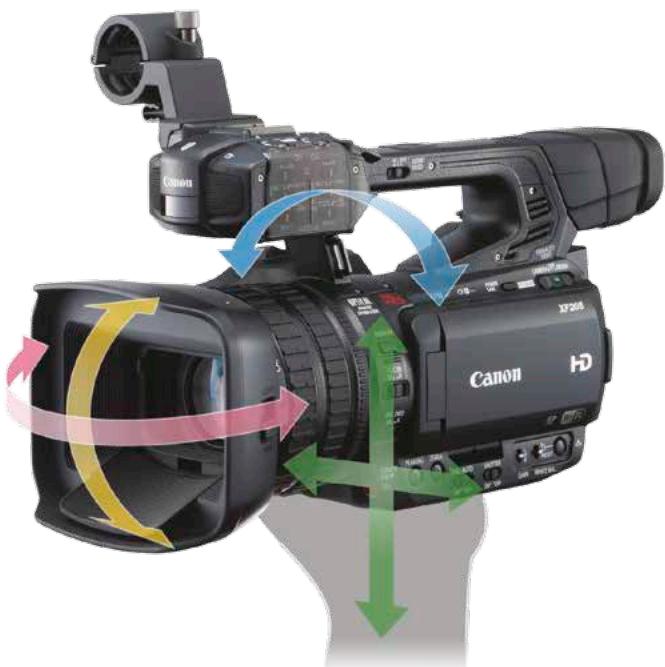

Go steady

Canon's Optical Image Stabilizer technology compensates for camcorder shake across

5 axes, to reduce image distortion under any conditions. In addition to Standard mode for stationary shooting, Powered IS stabilises when zoomed in, while Dynamic IS isolates vibration when following subjects making the XF200-series suitable for handheld run-and-gun footage or use with a drone.

Additional electronic correction – via surplus pixels on the sensor and the power of

DIGIC - further refines the performance.

26.8

WIDE

20x

OPTICAL ZOOM

Wide angle: 26.8mm*

20x Zoom angle: 576mm**

Even greater reach

The powerful 20x optical zoom lens used in the XF200-series is based on top-flight optical technology. With a focal length of 26.8mm^* , the glass lens provides a wide angle and powerful zoom performance within a compact design. The high-index, ultra-low dispersion glass reduces chromatic aberrations throughout the zoom range. A digital teleconverter extends the choice of magnification settings to 1.5x, 3x and 6x.

ENGs and documentary makers will appreciate how the XF200-series enables them to get right in the thick of the action, while corporate producers and videographers will value the ability to achieve a smooth, steady zoom.

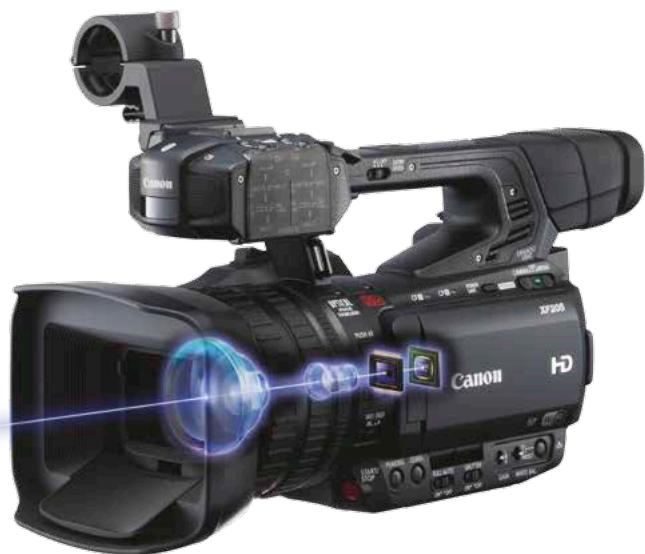

Superb processing capability

The outstanding processing capability provided by DIGIC DV 4 enables enhanced image reproduction. As well as smooth gradation and faithful colour reproduction, it offers support for recording at higher data rates and works with the sensor to eliminate camera shake.

CANON

DiGIC

DV

Image in Normal 1

Infrared OFF

Image in Wide DR Gamma

Infrared ON

Seamless gradation

The new Wide DR gamma option in the XF205 and XF200 provides a 'flatter' image with reduced contrast, offering wider dynamic range (600%) and reducing over-exposure. This helps to retain highlight detail and allows for natural-looking skin tones and greater creative opportunity. Wide DR footage is ready to use without colour grading – ideal for fast turn-around productions like news and current affairs – but also provides more opportunity for image adjustment during post production. This feature is available in Cinema EOS products, enabling seamless combination of footage from a variety of cameras.

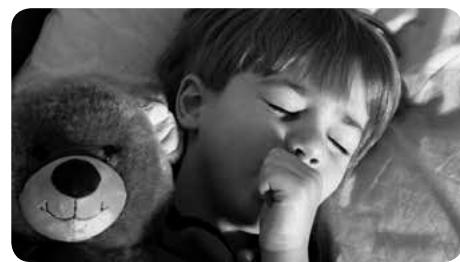

Infrared shooting

The XF200-series benefits from a diffused LED light, which is three times brighter than its predecessor. The IR LED is automatically deactivated when switching from infrared to regular shooting mode to avoid operator error. The wide radiation angle provides brightness throughout the entire image area for more natural-looking recordings. Both green and white (default) infrared shooting options are available.

Improved low light performance

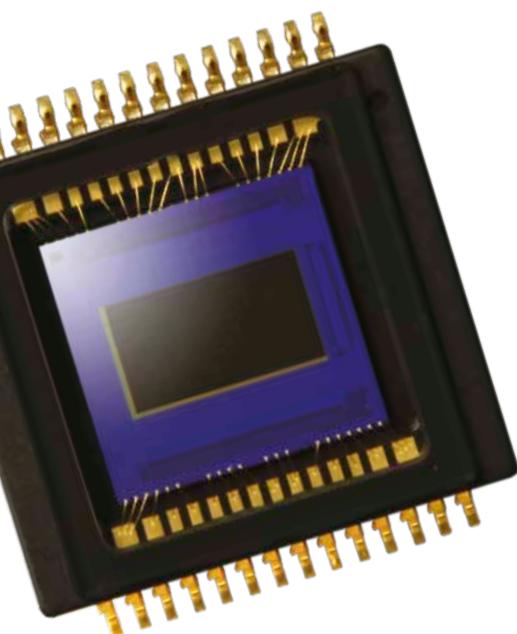

The 2.91 Megapixel HD CMOS Pro sensor provides outstanding dynamic range and low-light performance thanks to an increased sensor size which maximises photosite area. Together with a highly sophisticated image processing system, image noise is reduced and sensitivity increased in low light conditions.

A familiar face

Canon's Face Detection technology recognises human faces by combining an algorithm based on facial features with intelligent scene analysis technology, and adjusts factors such as focus and exposure accordingly. In Face Only mode, the focus is held at the last known point where a face is detected – if the subject exits the frame, the autofocus won't snap to a nearby unrelated object.

Superior handling and ease of use

Stay in total control, whatever the shooting location

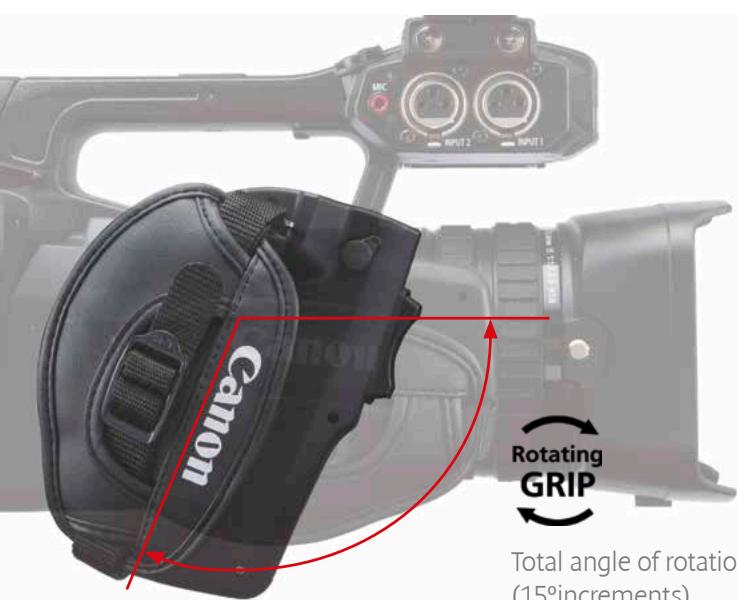

Get a grip

The new variable rotating grip provides a 120^ angle of rotation and fixed intermediate angles at 15^ increments. This allows unprecedented freedom in shooting styles, and ensures a firm grip can be maintained in any scenario, position or conditions.

Total angle of rotation 120^

(15 ^th increments)

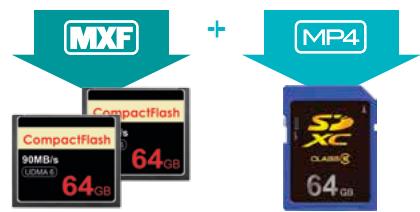

Dual codec

The XF200-series can record images in multiple formats to meet different workflows or output needs with a single camera. Three card slots enable simultaneous recording in MXF for broadcast (2 x CF cards) and MP4 for the web (SD card).

Share smaller files quickly - great for time-critical applications such as breaking news - whilst retaining the Full HD footage for later use, or simply use MP4 for fool-proof back-ups. MP4 files can be transferred via FTP using built-in Wifi or Ethernet connectivity - even during recording.

50Mbps

MPEG-2 4:2:2

35Mbps

Record using double slot with the MXF format.

record using double slots with the MXF format.

(MP4 recording with SD picture quality)

Record using double slot with the MXF format.

(Real time proxy transfer with SD picture quality)

(MP4 recording at same resolution as MXF)

CF card slots A, B

SD slot

CF card slots A, B

SD slot

CF card slots A, B

Mobile applications

Bit Rate

Size

Frame Rate

Bit Rate

Size

Frame Rate

Bit Rate

Size

Frame Rate

Bit Rate

Size

Frame Rate

Bit Rate

Size

Frame Rate

Bit Rate

Size

Frame Rate

50Mbps

1920x1080

50.00i

35Mbps

1920x1080

50.00P

50Mbps

1920x1080

50.00i

3Mbps

640x360

25.00P

50Mbps

1920x1080

50.00i

1.5Mbps

640x360

25.00P

25.00P

24Mbps

25.00P

25.00P

1280x720

50.00i

17Mbps

1280x720

50.00P

1280x720

50.00i

1280x720

50.00i

25.00P

9Mbps

25.00P

25.00P

35Mbps

1920x1080

50.00i

35Mbps

1920x1080

50.00P

35Mbps

1920x1080

50.00i

35Mbps

1920x1080

50.00i

25.00P

24Mbps

25.00P

25.00P

1440x1080

50.00i

35Mbps

50.00P

1440x1080

50.00i

1440x1080

50.00i

1280x720

17Mbps

1280x720

50.00P

1280x720

50.00P

1280x720

50.00P

25Mbps

1440x1080

50.00i

35Mbps

1440x1080

50.00P

25Mbps

1440x1080

50.00i

25Mbps

1440x1080

50.00i

25.00P

24Mbps

25.00P

25.00P

OLED

Vivid OLED screen

The 8.77cm OLED panel has a 1.23 million dot resolution to provide superior viewing from any angle - even outdoors in direct sunlight - delivering vivid colours and true blacks. A handy joystick allows fast and easy control.

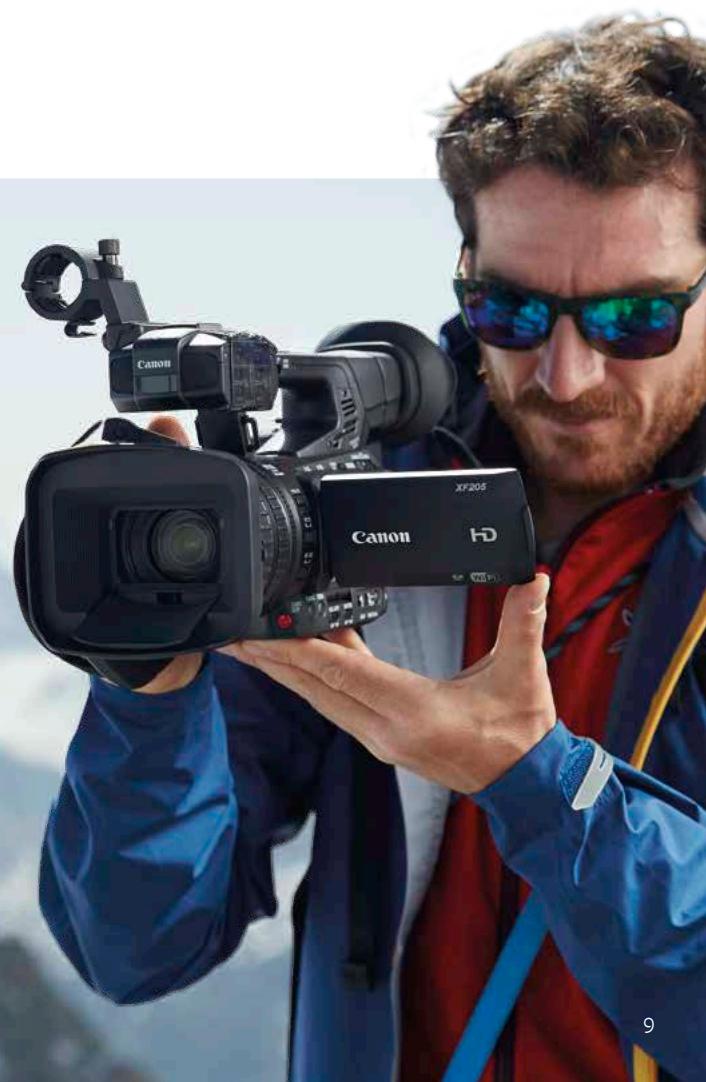

Tiltable EVF

The 1.15cm colour electronic viewfinder, boasting a resolution of 1.23 dots, can be tilted up to 68^ - ideal for shooting from low angles or in confined spaces for greater creative freedom. It offers outstanding visibility, enabling the operator to reliably check focus while shooting.

Get connected

Wired and wireless connectivity lets you share on the go, stream proxy content, and control the camera remotely.

HOMI

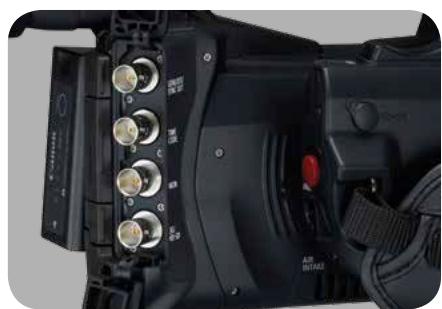

Timecode, Genlock and 3G-SDI terminals allow the XF205 effortless connection to industry-standard broadcast equipment.

Industry-standard connectivity

The XF205 features an accessible 3G/HD-SDI connection port which allows high-bandwidth connection to industry-standard broadcast equipment and transmits video, audio and timecode over a single cable. Genlock input allows the camera to receive a syncsed signal from an external source, permitting smooth switching between multiple cameras in a live shooting environment. A dedicated timecode connector can be used as both an input and output socket, enabling the co-ordination of the internal clocks of two or more camcorders or video devices.

HDMI Output

Both XF200-series cameras include an HDMI terminal, enabling real-time, on-site monitoring of HD video during shooting and allowing connection of low-cost external recorders for high bit rate image capture.

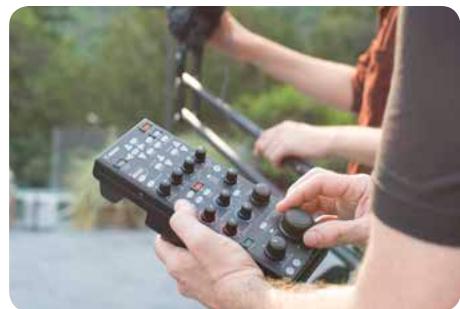

Canon RC-V100 remote control

Remote control

Remote operation increases creative options in different shooting environments, allowing placement of the camera in positions where it is out of reach, such as on a crane. The Canon RC-V100 remote control unit provides cabled remote access to most of the camera's operational and image adjustment functions.

The browser-based Wi-Fi Remote function allows an image to be framed through live view, with remote control of shooting mode, exposure, white balance, aperture, gain, shutter speed, focus and zoom. Recording can be started or stopped, and metadata uploaded.

CERTIFIED

REALTIM

Proxy Transfer

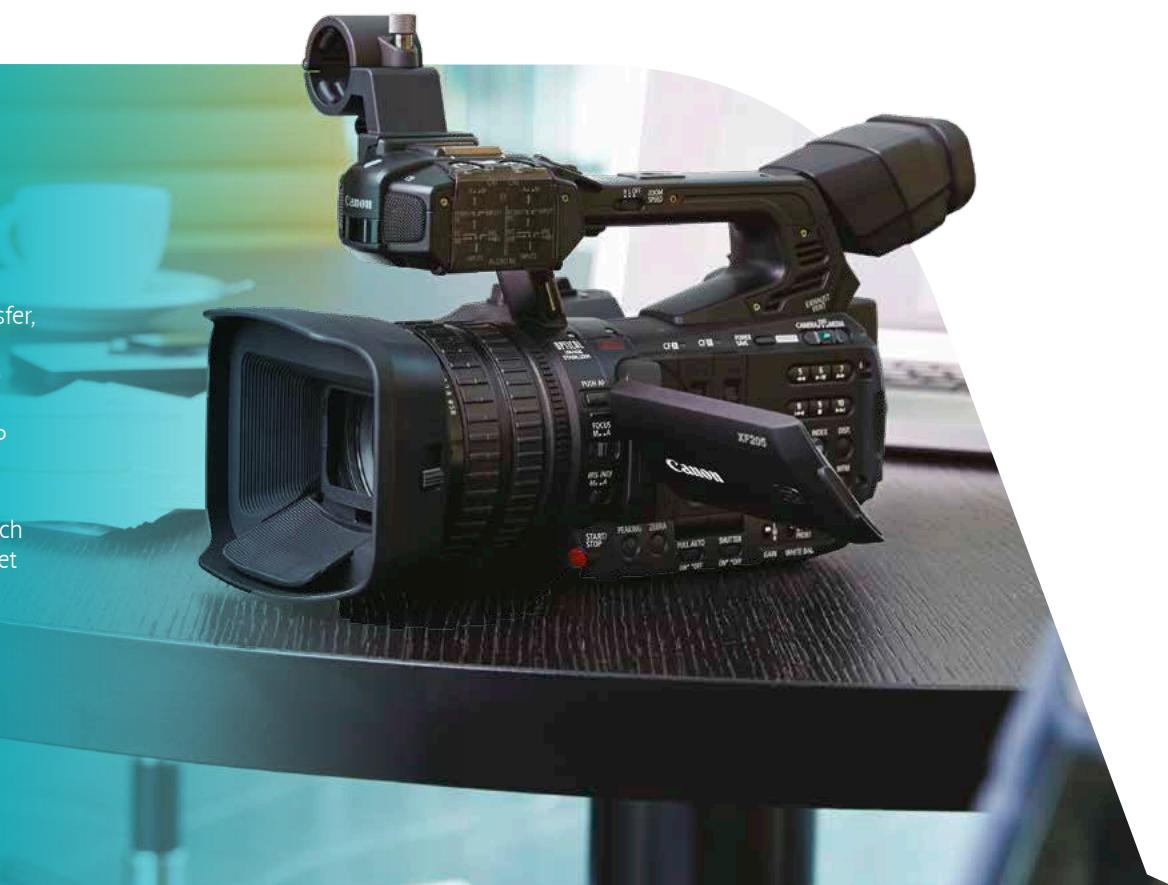

Content sharing and operation

Built-in Wi-Fi, supported at 2.5 GHz and 5 GHz frequencies*, enables FTP file transfer, remote control and real-time low-bitrate streaming of proxy files to another device such as a smartphone. MP4 files can be transmitted while recording using the FTP background function - ideal for back-ups and transferring rushes. Specific camera functions can be wirelessly controlled, such as shutter speed and aperture. An Ethernet LAN terminal ensures a reliable network data connection is always available.

*Wi-Fi standard will depend on availability and country of purchase

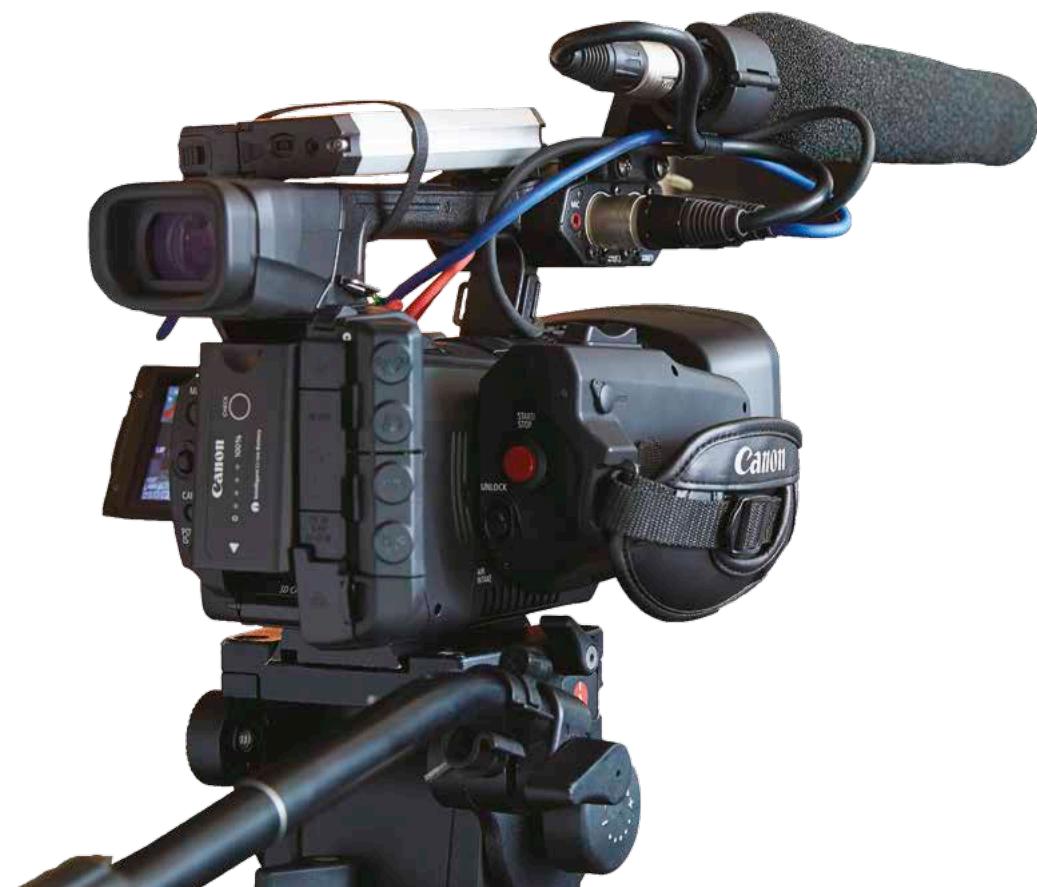

Audio

4ch

High quality linear PCM audio

Record high quality linear PCM sound (16 bits, 48 kHz) on either two or four channels, with volume controls supported for all four. Ideal for use in interviews to independently record the sound from interviewer and interviewee while recording 2-channel sound around the camera using the built-in stereo mic. For documentary and evidential purposes, channel 1 and channel 2 sound can be recorded at independent volume settings to enhance the reliability of the audio.

XF205XF200

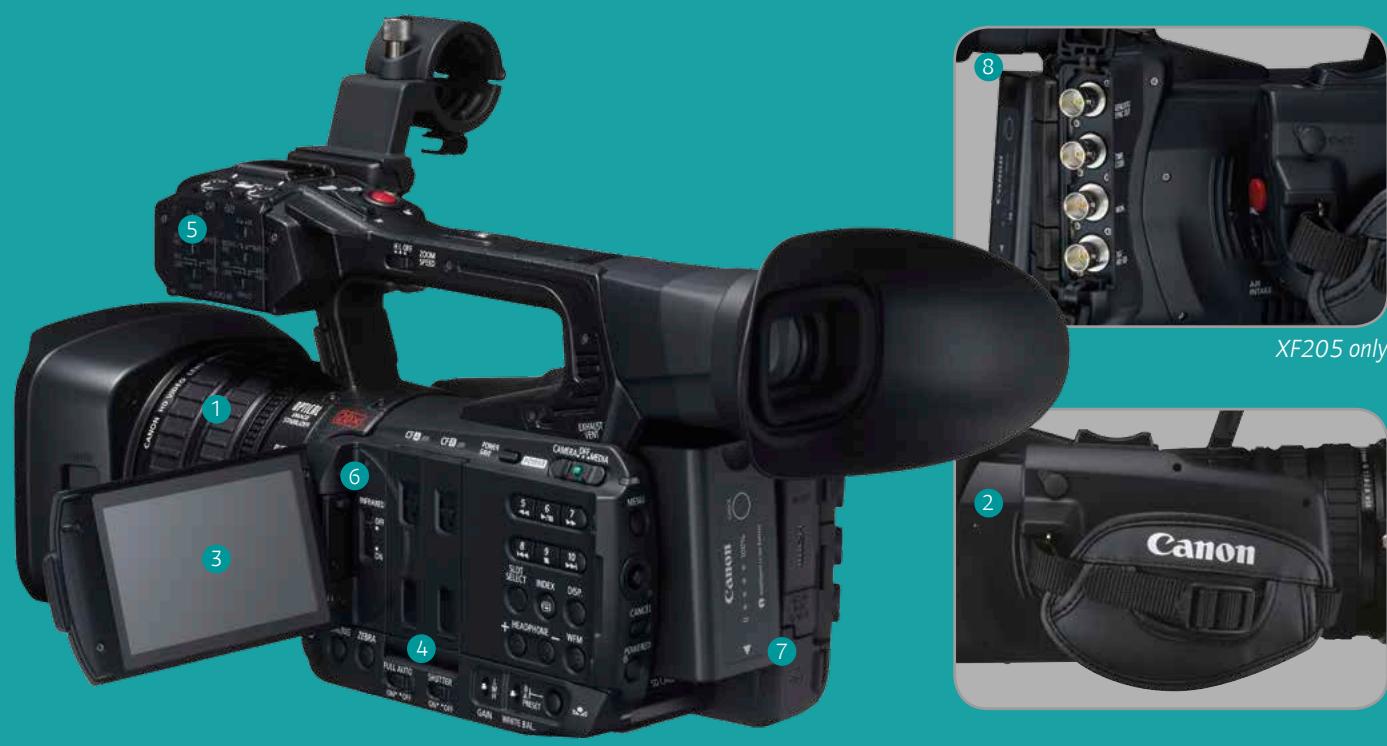

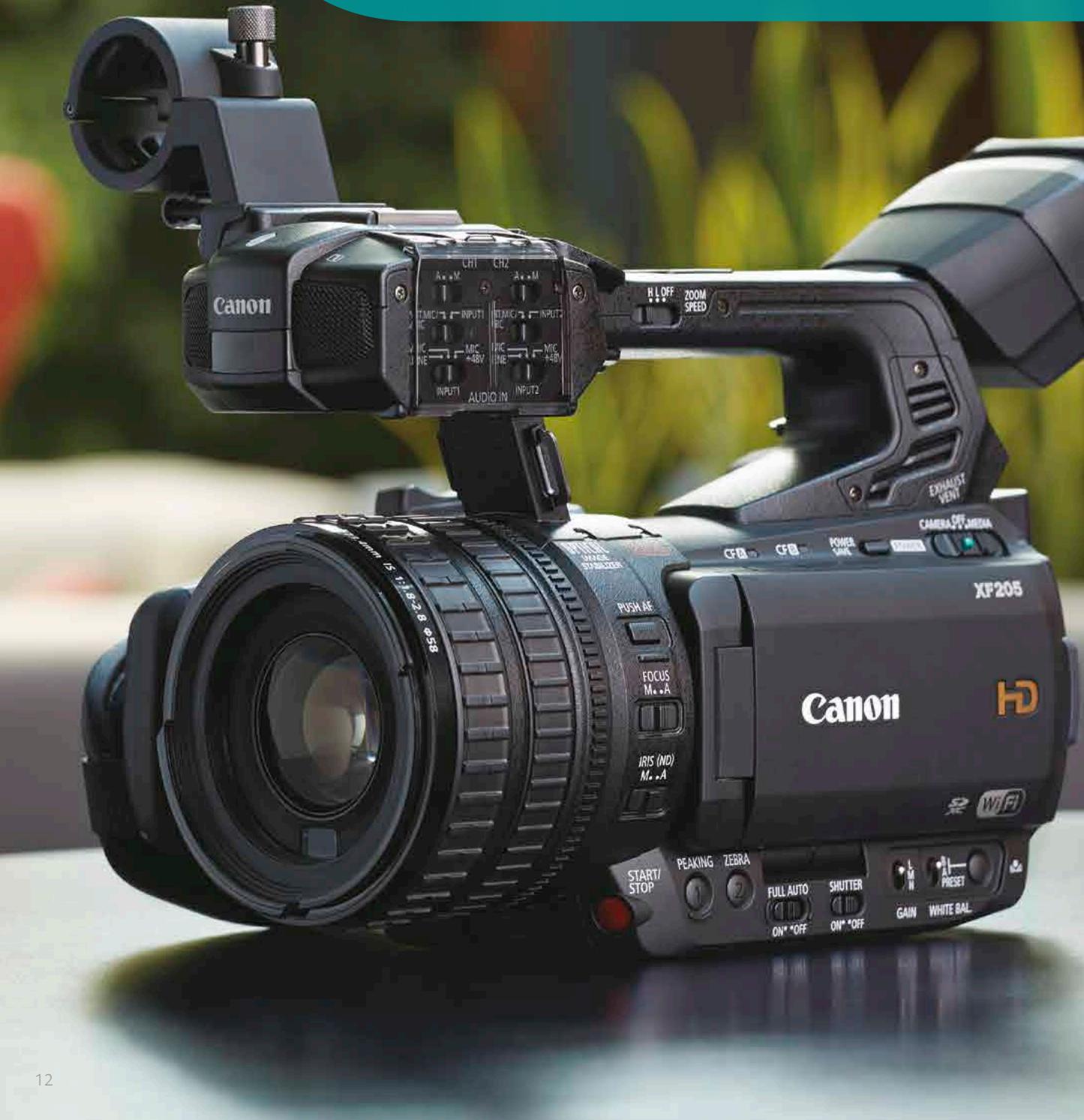

KEY FEATURES

20x, f/1.8 wide-angle zoom lens for amazing long-distance shots

HD CMOS Pro sensor provides outstanding image quality, even in low light

Compact, lightweight design, with 3-ring lens operation and rotatable grip

OLED display and 1.23m dot viewfinder enable precise monitoring

Share content easily via built in Wi-Fi or Ethernet; record proxy files directly to other devices

Dual format recording: broadcast standard 50Mbps MPEG2 codec, plus MP4 recording in HD or SD

Wide DR gamma helps to avoid over-exposure

4 channel audio recording; 2 XLR inputs

Infrared shooting mode, with enhanced IR lamp

Capture GPS location data (optional accessory)

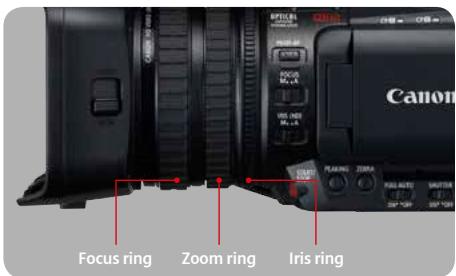

1 20x zoom lens with 3-ring control The upgraded zoom lens offers a focal length range of 26.8-576 mm to get you closer to the action, while three separate lens rings enable focus, zoom and iris control.

Rotating grip

The comfortable handgrip can rotate freely up to a 120^ angle for outstanding operability and rock-steady footage in a variety of shooting scenarios.

Enhanced monitoring

The 1.23m dot OLED screen is easy to view, even in bright sunlight, while the sizeable 1.14cm 1.23m dot EVF can tilt up to 68^ to accommodate different shooting positions.

Dual format recording

Both models support MXF used by broadcast stations and MP4 for compatibility with web browsers and television news outlets.

5 4 channel audio

Upgraded audio capture, with 4-channel linear PCM recording and individual level controls, ensures professional quality sound fit for broadcast use.

6 Infrared shooting mode

For investigative reporting or surveillance, green or white infrared mode produces video images that are evenly illuminated from the centre to the edge of the picture area.

Built-in Wi-Fi and Ethernet

Equipped with both an Ethernet LAN terminal and dual-band wireless LAN connectivity enable browser preview during shoots in addition to FTP transfer.

8 Studio connectivity (XF205 only)

With Genlock, Timecode and 3G-SDI terminals, the XF205 can be integrated into a professional studio environment and used for multi-cam shoots.

What's in the box?

Lens hood with lens barrier, Microphone holder unit, Battery pack BP-955, Data import utility, Compact power adapter CA-930, DC cable DC-930, Wireless controller, WL-D6000, Eyecup.

Optional accessories

Teleconverter TL-H58, Wide attachment WA-H58, 3 x 58mm Filters (PROTECT, ND8xL, ND4xL), Battery Pack BP-955, Battery Pack BP-975 Compact Power Adapter CA-930, DC Cable DC-930, Tripod Adapter TA-100, Tripod Base TB-1, Remote Controller RC-V100, GPS Receiver GP-E2.

Supporting content creators when they need it most

The Canon CPS programme is designed for the benefit of imaging professionals who work regularly with Canon professional photo and video products. CPS was originally devised over 15 years ago.

Canon Professional Services (CPS) is currently a free service that provides Canon professional photo and video users with information and support. To find out more about how to join, and exactly what the newly enhanced CPS programme offers please visit: canon-europe.com/cps

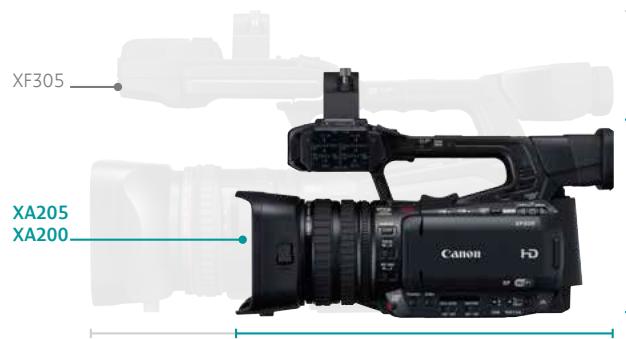

The Canon Range at a Glance Comparison

	XF305	XF300	XF205	XF200	XF105	XF100	XA25	XA20
Codec	MPEG2 MXF		MPEG2 / MP4 (simultaneous dual format recording possible)		MPEG2 MXF		AVCHD / MP4 (simultaneous dual format recording possible)
Video Resolution	1920x1080: 50i; 25p1440x1080: 50i; 25p1280x720: 50p; 25p		1920 x 1080/50i (MXF)1920 x 1080: 50P/25P (MP4)		1920x1080: 50i; 25p1440x1080: 50i; 25p1280x720: 50p; 25p		1920x1080: 50p; 25p (MP4)1280x720: 25p (MP4) 640x360; 25p (MP4)
Max Bitrate/Colour	50Mbps / 4:2:2		MXF: 50Mbps / 4:2:2MP4: 35Mbps / 4:2:0		50Mbps / 4:2:2		AVCHD: 28Mbps / 4:2:0MP4: 35Mbps / 4:2:0
RecordingMedia	2x CompactFlash		2x CompactFlash, 1 x SD Card		2x CompactFlash		2x SDXC/SDHC
Lens	Canon L-series HD Video Lens18x zoom, 29.3mm, f/1.63 rings: Lens, focus, iris		Canon HD Video Lens20 x Optical, 26.8mm, f1.83 rings: focus, iris and zoom		Canon HD Video Lens10x zoom, 30.4mm, f/1.81 ring: Lens, focus, iris (switchable)		Canon HD Video Lens20x zoom, 26.8mm, f/1.81 ring: Focus or zoom (switchable)
Sensor	3x 1/3-type Canon HD CMOS Pro		1x 1/2.84-type HD CMOS Pro		1x 1/3-type Canon HD CMOS Pro		1x 1/2.84-type Canon HD CMOS PRO
Processor	DIGIC DV III		DiGIC DV 4		DIGIC DV III		DiGIC DV 4
Monitoring	10.3cm, 1.3m dot LCD;1.3cm, 1.55m dot EVF		8.77cm, 1.23m dot OLED;1.15cm, 1.23m dot EVF		8.8cm, 0.92m dot LCD;0.61cm, 0.26m dot EVF		8.8cm, 1.23m dot OLED;0.61cm, 1.56m dot EVF
Audio	2x XLR input;2ch Linear PCM (16-bit, 48Khz)		2x XLR input; 3.5mm jack;4ch Linear PCM (16-bit, 48Khz)		2x XLR input; 3.5mm jack;2ch Linear PCM (16-bit, 48Khz)		2x XLR input; 3.5mm jack;AVCHD: Linear PCM (2ch, 16 bit, 48 KHz)* / Dolby Digital (AC-3 2ch, 48kHz) MP4; MPEG-2 AAC LC (2 ch)
VariableFrame Rates	Slow & Fast Motion;Time Lapse; Stop Motion		Slow & Fast Motion;Time Lapse; Stop Motion		Slow & Fast Motion;Time Lapse; Stop Motion		Slow/Fast Motion (MP4 mode only)
Customisation	Custom Picture; Custom Function;Custom Display; 13 assignable buttons		13 assignable buttons		Custom Picture; Custom Function;Custom Display; 10 assignable buttons		5 assignable buttons
AdditionalStudioConnectivity	HD/SD-SDI outputTime code input/outputGenlock inputX		HD/SD-SDI outputTime code input/outputGenlock inputX		HD/SD-SDI outputTime code/Genlock terminal (switchable)X		HD/SD-SDI outputX
Built-in Wi-Fi	X		Browser Remote, Camera Access,Browser Preview, File transfer via FTP		X		Remote Operation; Movie Uploader(YouTube and Facebook)**; Playback (in browser);Media Server; FTP File Transfer
Infrared Mode	X		✓		✓		✓
Weight(camera only)	2670g	2630g	1560g	1510g	1070g	1020g	Approx. 770g	Approx. 765g

BENEFITS OF CPS:

Access to CPS support teams at major international and local events

Priority repair service

Local CPS support

Free back-up equipment loans during repairs.*

*Dependant on your level of CPS membership and subject to availability

IMAGE SENSOR
Sensor	1/2.84 type HD CMOS Pro
Filter	RGB Primary Colour filter (Bayer array)
Total pixels	3.09 megapixels (2208 x 1398)
Effective pixels per sensor	2.91 megapixels (2136 x 1362)
LENS
Zoom ratio	20 x Optical
Focal length	3.67 - 73.4mm (35mm equivalent: 28.8 - 576mm)*
Minimum focus distance	60cm (throughout zoom range); 10mm (Wide MACRO setting)
ND filter	Built-in gradation ND filter
Zoom control	Zoom rockers on body and handle;
	Selectable manual zoom/focus ring on lens;
	Selectable High Speed and Soft Zoom modes available.
Zoom speed	Zoom Rocker: Variable speed/Fixed speed (Fast/Normal/Slow, 16 speed level settings available in each mode);
	Grip zoom: Fixed speed (Fast/Normal/Slow, 16 speed level settings available in each mode)
	Zoom Ring: As operation speed
Focus control	Manual control via focus ring, automatic (Instant AF, Medium AF, TV AF, Face Detection AF, Face Only AF), Push AF
Iris control	Ring control; Full Auto
Aperture range	f1.8 - f16
Filter diameter	58mm
Lens elements/groups	12/10
Aperture blades	8 Blade Circular Aperture
Image stabilization system	Dynamic IS and Powered IS, 5 Axis image stabilisation
Digital zoom/Teleconverter	1.5x; 3x; 6x
RECORDING
Video storage media	Type 1 Compact Flash memory cards (2 card slots); SD Card x 1
Type	Dual Format recording, Double slot (simultaneous) recording and Relay (continuous) recording possible
	UDMA4, 30MB/s or faster (40MB/s or faster for Fast/Slow recording); SD card Class 4 or higher, Class 6 & 10 recommended for 35Mbps MP4 recording
Recording time	128GB CF card: Up to 320 mins (1080/50i @ 50 Mbps)
	128GB SD Card: up to 8 Hours (MP4/50P @35Mbps)
Recording file format	Material eXchange Format (MXF) to CF card, MP4 to SD card
Recording format	MPEG-2 Long GOP
	50Mbps CBR (4:2:2) MPEG-2 422P@HL;
	35Mbps VBR (4:2:0) MPEG-2 MP@HL;
	25Mbps CBR (4:2:0) MPEG-2 MP@H14
	MP4: MPEG-4/AVC/H.264
	35/24/17/9/3 Mbps;
	All modes variable bit rate, 4:2:0 colour sampling
Recording frame rate	MXF
(PAL Mode)	50Mbps: 1920 x 1080/50i, 25p; 1280 x 720/50p, 25p;
	35Mbps: 1920 x 1080/50i, 25p; 1440 x 1080/50i; 1280 x 720/50p, 25p;
	25Mbps: 1440 x 1080/50i, 25p
	MP4:
	35/24Mbps: 1920 x 1080: 50P/25P
	17Mbps: 1280 x 720: 50P
	9 Mbps: 1280 x 720: 25P
	3Mbps: 640 x 360: 25P
Slow/Fast motion	YES
	720p: 12, 15, 18, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32, 34, 37, 42, 45, 48, 50fps; 1080p: 12, 15, 18, 20, 21, 22, 23, 24, 25fps
Interval Record	YES MXF recording only, 2, 6 or 12 frames, 25 time intervals
Frame Record	YES. 2, 6 or 12 frames
Pre Record (cache record)	YES (3 seconds)
Scan Reverse	YES. Vertical/horizontal both
Photo storage media	SD/SDHC/SDXC memory card
Still quality	During video recording: 1920 x 1080 in 1920 x 1080 or 1440 x 1080 mode; 1280 x 720 in 1280 x 720 mode; During playback: 1920x1080
PANEL
Type	Organic LED
Size	8.77cm (3.5") Organic EL (OLED)
Dots	1.23m (approx. equivalent)
Image quality adjustments	Brightness, contrast, colour, sharpness
Adjustable	Yes
Waveform Monitor	Yes, selectable on/off, Line, Line and Spot, Field, RGB, YPbPr
Focus Assist	Peaking; Magnifying; Edge Monitor (using waveform display)
Peaking	Peaking 1, Peaking 2 (Colour, Gain, Frequency customisable for each)
Zebra	Level 1; Level 2; Both; Output via HD-SDI or HDMI
Markers	On/Off (Aspect ratio, Safe area, Grid, Horizontal, Centre)
EVF
Size	1.15cm (0.45")
Dots	1.23m (approx. equivalent)
Image quality adjustments	Brightness, contrast, colour, backlight,
Adjustable	Vertical tilt, up to 68°
Viewing Angle	28.2°
Correction lens	+ 2.0 to -5.5 diopter
SYSTEM MISC
Tally lamp	YES (x2)
Accessory shoe	YES (cold shoe)
Custom Button Assignment	YES (13 assignable buttons; select from 28 functions)
Rotating Side Grip	YES 120° angle of rotation in 15° increments
INFRARED
Infrared shooting mode	YES (green or white)
Built-in IR lamp	YES

INPUTS/OUTPUTS
Audio in	XLR inputs with 48V phantom power (x2), 3.5mm microphone input jack
Headphone output	3.5mm stereo jack
Video monitor output	YES (BNC HD-SDI, output only, XF205 only)
HDMI	YES (HDMI™ mini connector, output only, 1080/50p output possible)
USB	YES (Mini-B, USB 2.0 Hi-Speed, output only)
3G-HD/SD-SDI output	YES, selectable
Time code	(BNC, output only, embedded audio and time code, XF205 only)
Genlock	YES (BNC, switchable input/output, XF205 only)
LAN	YES (BNC, Sync in/out selectable, XF205 only)
AV terminal	YES, Ethernet (1000BASE-T supported)
DC input	3.5mm mini jack (output only for video and audio)
Remote Control Terminal	YES
Colour Bars	2.5mm mini jack
EXPOSURE	YES (SMPTE or EBU), with 1KHz Tone
Exposure metering	Standard (centre weighted), Spotlight, Backlight
Exposure compensation	-2 to +2 EV
Auto Exposure mode	Full Auto
Auto Gain Control setting	Full Auto/AGC Limit/Manual
Auto Gain Control limit	3dB, 0dB, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, 21dB, 24dB, 27dB, 33dB
Gain setting	-6dB / -3dB / 0dB/ 3dB / 6dB / 12dB / 18dB / 24dB / 27dB / 33dB / TUNE (0.5 dB increments from 0 to 27 dB).27dB maximum in Auto mode
SHUTTER SPEED
Control Modes	Full Auto / Manual control (Auto; Speed; Angle; Clear Scan (CS); Slow Shutter (SLS); IR Slow Shutter)
Shutter speed	1/18 to 1/2000 depending on frame rate
Shutter Angle	11.25° to 360° depending on frame rate
Slow Shutter (SLS)	1/3, 1/6, 1/12, 1/25 (depending on frame rate)
Clear Scan	50i/p: 50 to 250.51Hz; 25p: 25 to 250.51Hz
CUSTOM PICTURE
Stored Configurations	9 (Including Wide DR)
Storage Medium	SD/SDHC memory card
Gamma	6 preset profiles
Master Pedestal	-50 to +50
Master Black	-50 to +50 for each of R,G,B
Black Gamma	Adjustable height, width and apex
Low Key Saturation	-50 to +50 adjusts colour saturation in low brightness area
Knee	Adjusts over exposure characteristic (Automatic, Slope, Point, Saturation)
Sharpness	Adjustment for Detail level, Detail frequency, Coring, HV balance, Detail limit, Knee Aperture, Level Depend, Ingredient Ratio
Noise reduction	Off, Automatic, On (1 to 12)
Skin detail	Effect Level (Low, Middle, High), Hue, Chroma, Area, Y Level
Selective Noise Reduction	Effect Level (Low, Middle, High), Hue, Chroma, Area, Y Level
Colour matrix	Normal 1-4, Cine 1-2, Wide DR Matrix and Hue-18-+18, Colour Gain-50-+50
White balance	-50 to +50 white balance offset for R,G,B
Colour correction	Area selection / area revision of two areas
Setup level	-50 to +50 On/Off
Clip 100% IRE	Limits output to 100% after setup adjustment
Wireless LAN standards	IEEE 802.11b/g/n (2.4GHz band) / IEEE 802.11a/n (5GHz band)2
Supported Wi-Fi Functions	Rec start/start, 3 speed focus control, 3 speed zoom control, WB mode/adjust, Iris, Shutter,Colour Temperature, Assign Button,ND Auto/Off
Supported Browser for Remote Operation	Internet Explorer 8 or later, Safari (iOS), Safari (MacOS),Android standard browser
Remote Operation Control Features	Aperture, Focus, WB, shutter Speed, Gain, Exposure Compensation,Shooting Mode, Slot select, Start/Stop Recording
Live view image Resolution	Camera setting mode: 680 x 383; Simplified setting: 284 x 160
Authentication Systems	Open/WPA-PSK/WPA2-PSK
Encryption	WEP64, WEP128, TKIP, AES
GPS Information (Optional cecessory)	Latitude/Longitude/Elevation, Coordinated Universal Time (UTC)
WHITE BALANCE
Auto	YES, in Full Auto Mode
Preset	A, B, Preset (Daylight, Tungsten), Colour Temperature
TIME CODE
Countup system	Regen, RecRun, FreeRun, External, Hold
Start value setting	"00:00:00:00", Set/Reset selectable
AUDIO
Recording	16-bit 4ch or 2ch (48 kHz) linear PCM
Control	Audio limiter, Auto/manual settings via control dials on handle
Microphone attenuation	YES
Microphone level meter	YES
ACCESSIONS
Supplied	Data Import Utility, Battery pack BP-955, DC cable DC-930, Compact power adapter CA-930, Wireless controller WL-D6000, Eyecup, Lens Hood with Barrier, Microphone Holder Unit, Mains Cable.
Optional	GP-E2 GPS Reciever, Wide Converter WA-H58, Teleconverter TL-H58.,BP-975, Tripod Adapter TA-100, Tripod Base TB-1, GPS Receiver GP-E2,Remote Controller RC-V100, Filter (58mm) Protect/ND8XL/ND4XL.
MISCELLANEOUS
Dimensions	Approx 160 x 201 x 353mm
Weight (camera only)	(including lens hood with barrier, Eye Cup and microphone holder
Weight (fully equipped)	XF205 - 1560g, XF200 - 1510g
Operating Temperature range	-5°C to +45°C, 60% relative humidity
Footnotes:1 26.8mm - 576mm when wide view angle option selected.2 Wi-Fi standard will depend on availability and country of purchaseAll specifications are subject to change without notice

Canon Inc. Canon Europe Ltd

canon.com 3 The Square, Stockley Park

Uxbridge, Middlesex

Canon Europe UB11 1ET UK

canon-europe.com

English Edition 0189W125

© Canon Europa N.V., 2014
