Kratos P1-750G - Computer power supply Gamdias - Free user manual and instructions

Brand	Gamdias
Model	Kratos P1-750G
Product Type	Power Supply Unit
Form Factor	ATX
Wattage	750W
Efficiency Certification	80+ Bronze
Input Voltage	100-240V AC
Input Frequency	50-60Hz
Fan Size	120mm
Fan Bearing	Sleeve Bearing
Modular Cabling	Non-modular
Main Connectors	24-pin ATX, 4+4-pin CPU, 2x 6+2-pin PCIe, 6x SATA, 3x Molex
Protection Features	OVP, UVP, OCP, OPP, SCP
Safety Certifications	CE, FCC, RoHS
Dimensions (W x L x H)	150mm x 140mm x 86mm
Weight	2.2 kg
Operating Temperature	0°C to 40°C
Cleaning Instructions	Use compressed air to clean dust from fan and vents. Do not open casing.
Warranty	3 years limited warranty

Frequently Asked Questions - Kratos P1-750G Gamdias

What is the wattage of the Gamdias Kratos P1-750G?

The Gamdias Kratos P1-750G is a 750 watt power supply, suitable for mid-range to high-end gaming PCs.

Is the Kratos P1-750G modular?

No, it is a non-modular power supply. All cables are permanently attached.

What efficiency rating does the P1-750G have?

It is certified 80+ Bronze, ensuring up to 85% efficiency at typical loads.

Does this PSU support dual GPU setups?

Yes, it has two 6+2-pin PCIe connectors, supporting most dual GPU configurations.

What safety protections are included?

It includes Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Current Protection (OCP), Over Power Protection (OPP), and Short Circuit Protection (SCP).

Can I use the Kratos P1-750G in a small form factor case?

It is a standard ATX PSU measuring 150mm x 140mm x 86mm, so it fits most mid-tower and full-tower cases but may not fit smaller cases.

How do I clean the power supply?

Unplug the PSU and use compressed air to blow out dust from the fan and vents. Never open the casing as it contains high-voltage capacitors.

What is the warranty period?

The Gamdias Kratos P1-750G comes with a 3-year limited warranty.

Is this power supply compatible with Ryzen or Intel builds?

Yes, it is compatible with all standard ATX motherboards including those for Ryzen and Intel CPUs.

Does it come with a power cord?

Yes, the package includes an AC power cord suitable for your region.

USER MANUAL Kratos P1-750G Gamdias

GAMDIAS

KRATOS | P 1-750W

Addressable RGB 750W Power Supply

Step 01.

English

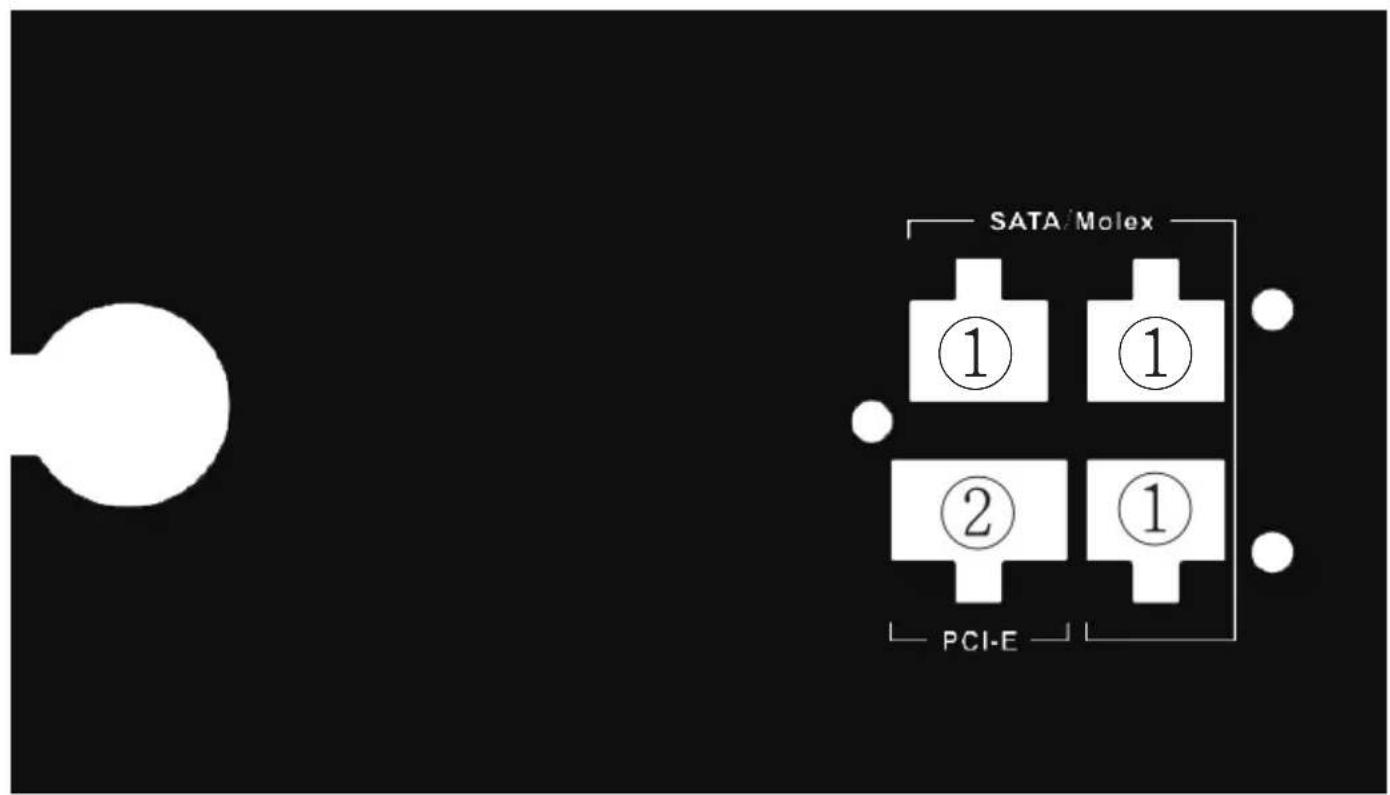

Step 03.

①

②

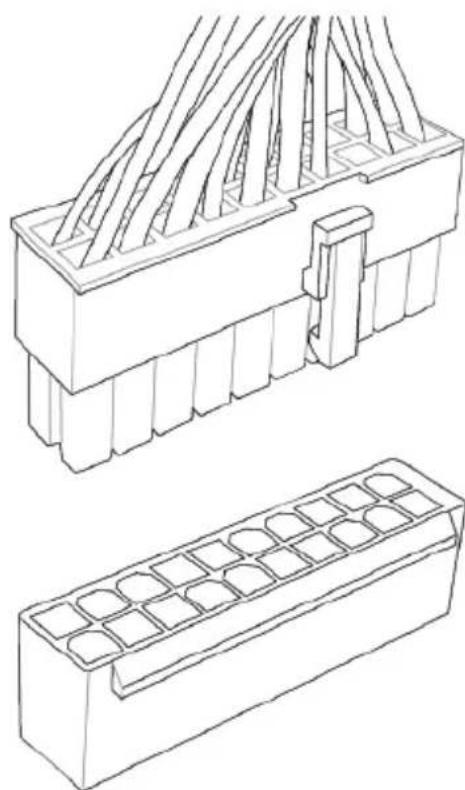

Step 04. Motherboard

20+4 Pin

20 Pin

Step 05. CPU

4+4 Pin

4 Pin

Step 06. PCIE

6+2 Pin

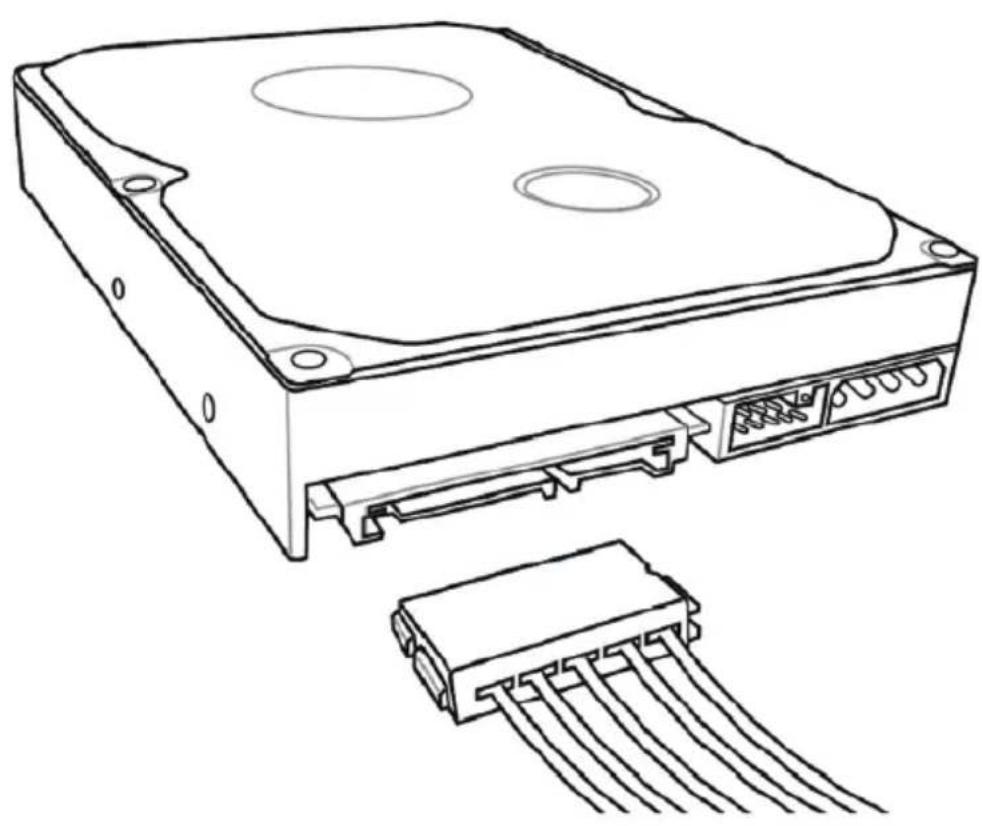

Step 07. SATA

Step 08. Molex

Step 09. FDD

Step 10.

If your motherboard has 5V 3-Pin addressable (digital) LED header, you can customize RGB lighting via motherboard manufacture sync software

Step 11. RGB Lighting

RGB Lighting

Easily switch to motherboard manufacture sync software or built-in 30 lighting effects by long pressing button for 3 seconds.

Step 12.

Step 13.

Step 14. Product Warranty Policy

http://www.gamdias.com/warranty-en-gb
