USER MANUAL ARMBARQUAD StarTech.com

Black horizontal monitor stand with four vertical connectors, no text or symbols visible

*actual product may vary from photos

For the latest information, technical specifications, and support for this product, please visit www.StarTech.com/ARMBARQUAD.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

PHILLIPS ^® is a registered trademark of Phillips Screw Company in the United States or other countries.

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Warning statements

Make sure to assemble this product according to the instructions. Failure to do so might result in personal injury or property damage.

Make sure that the weight of the monitor doesn't exceed the weight capacity of this product. If you exceed the weight capacity, you might experience personal injury or damage to the equipment. This product can support the following weight: 8 kg (17.6 lb.) per monitor mount.

Never operate this product if parts are missing or damaged.

Varningsmeddelanden

Technical specifications 2

Package contents....3

Requirements 5

Assembly 6

Assemble the lower pole....6

Attach a crossbar....7

Attach the upper pole 8

Attach the second crossbar....9

Attach monitors to the crossbars....11

Adjust the tilt angle of your monitor 15

Tipping hazard warning....16

Adjust the vertical position of the monitors 16

Technical support....18

Warranty information....18

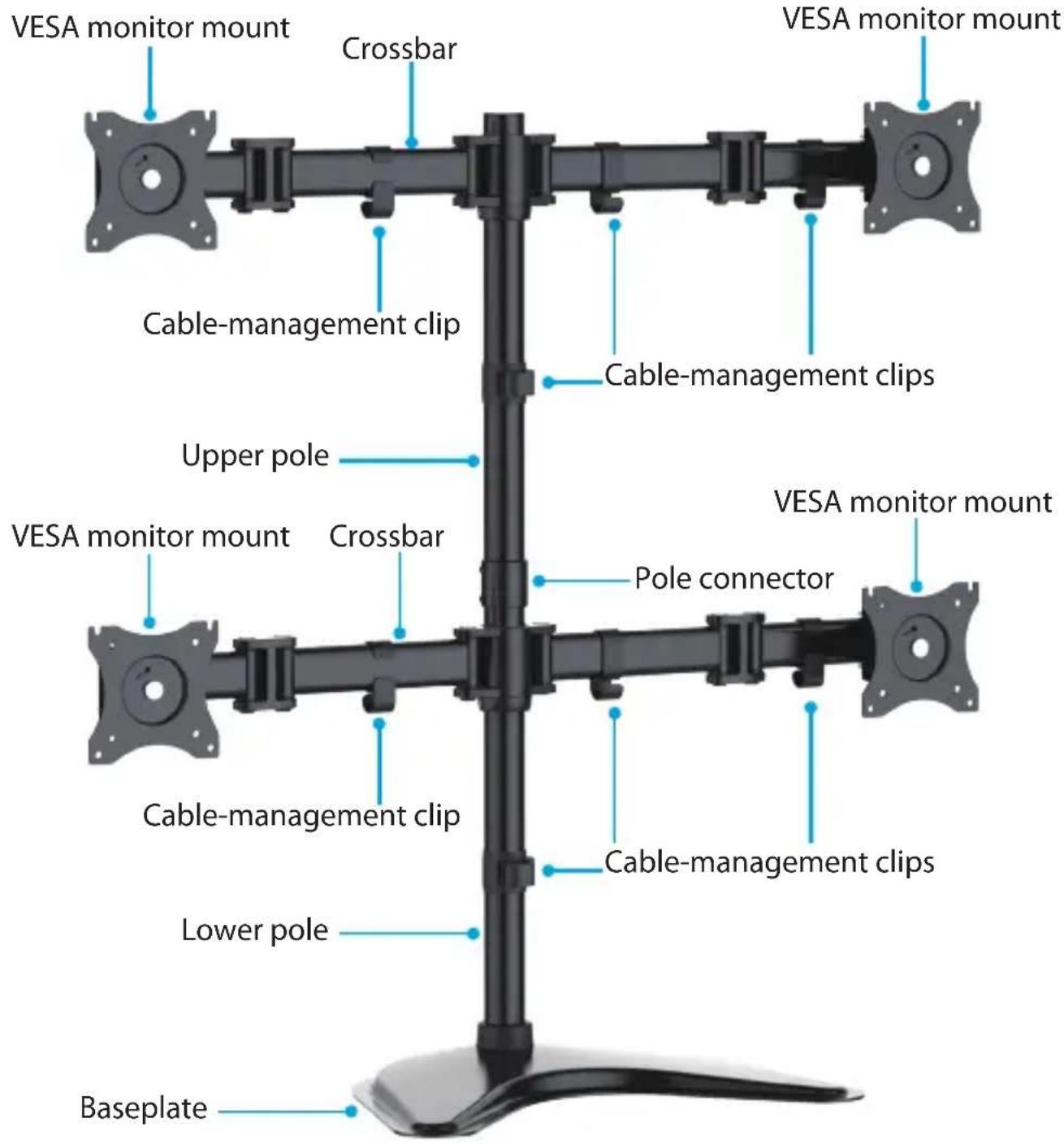

Introduction Product diagram

Technical specifications

Type of measurement Measurement

VESA mounting hole pattern	75x75100x100
Weight capacity	Up to 8 kg (17.6 lb.)per monitor mount
Tilt	+45° to -45°
Screen size	Between 330 mm and 686 mm(13 in. and 27 in.)
Rotate	360°
Swivel	180°

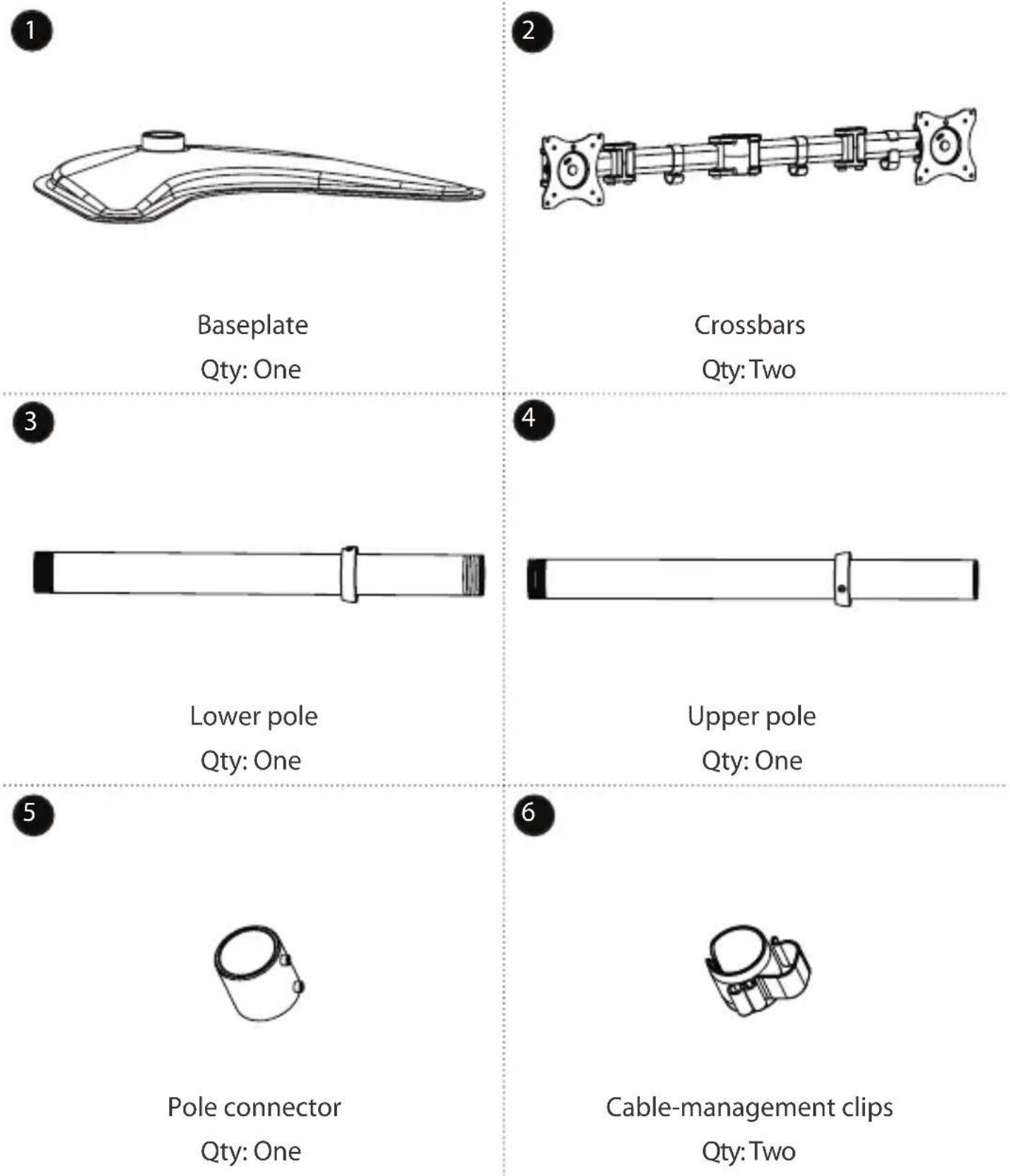

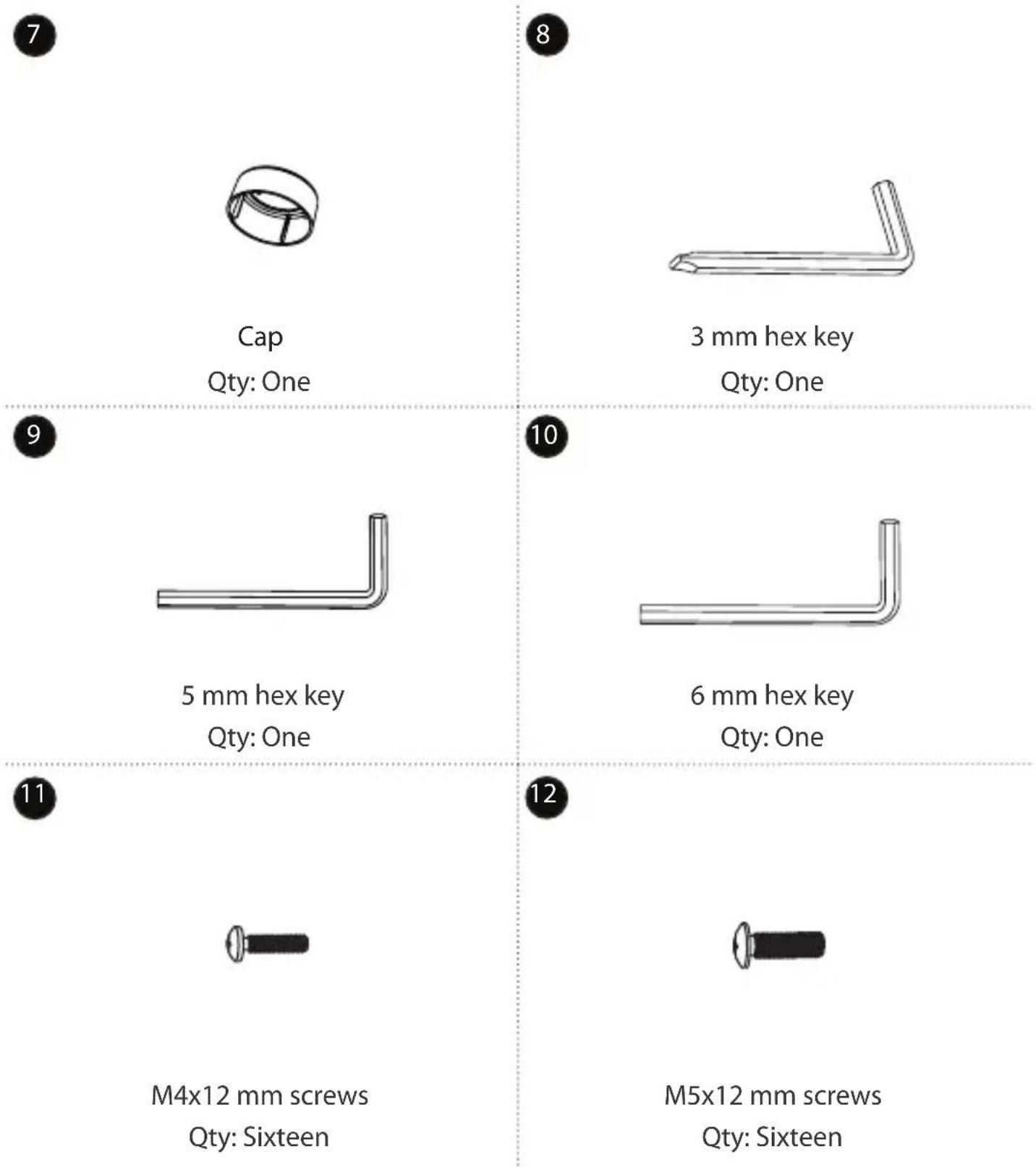

Package contents

Baseplate

Qty: One

Crossbars

Qty: Two

Lower pole

Qty: One

Upper pole

Qty: One

Pole connector

Qty: One

Cable-management clips

Qty: Two

13

Washers Qty: Sixteen

Instruction manual Qty: One

Requirements

• Four monitors or displays that are compatible with one of the mounting hole patterns that ARMBARQUAD supports
  • A Phillips screwdriver

Requirements are subject to change. For the latest requirements, please visit www.StarTech.com/ARMBARQUAD.

Assembly

Warning! Make sure that the combined weight of the monitors does not exceed the weight capacity of this product. If you exceed the weight capacity, you might experience personal injury or damage to the product.

This product can support the following weight: 8 kg (17.6 lb.) per monitor mount.

Assemble the lower pole

1. Thread the cable-management clip onto the pole.

2. Thread the cap onto the pole.

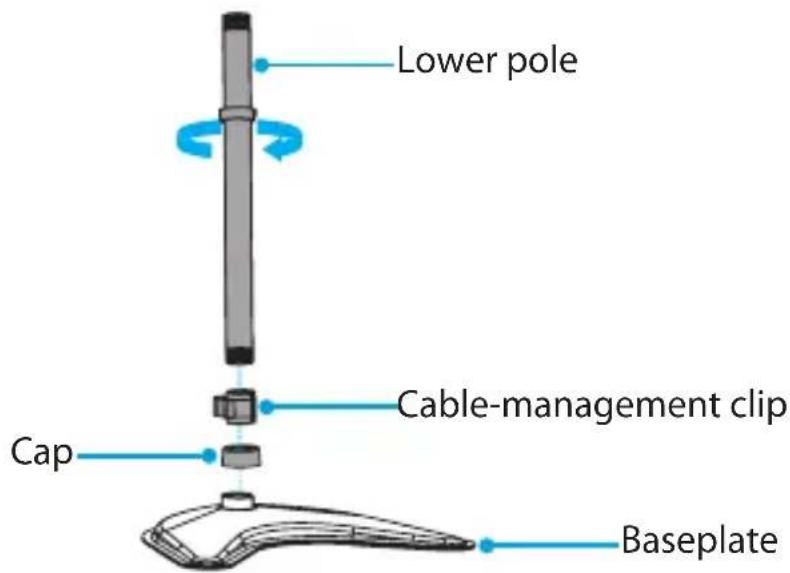

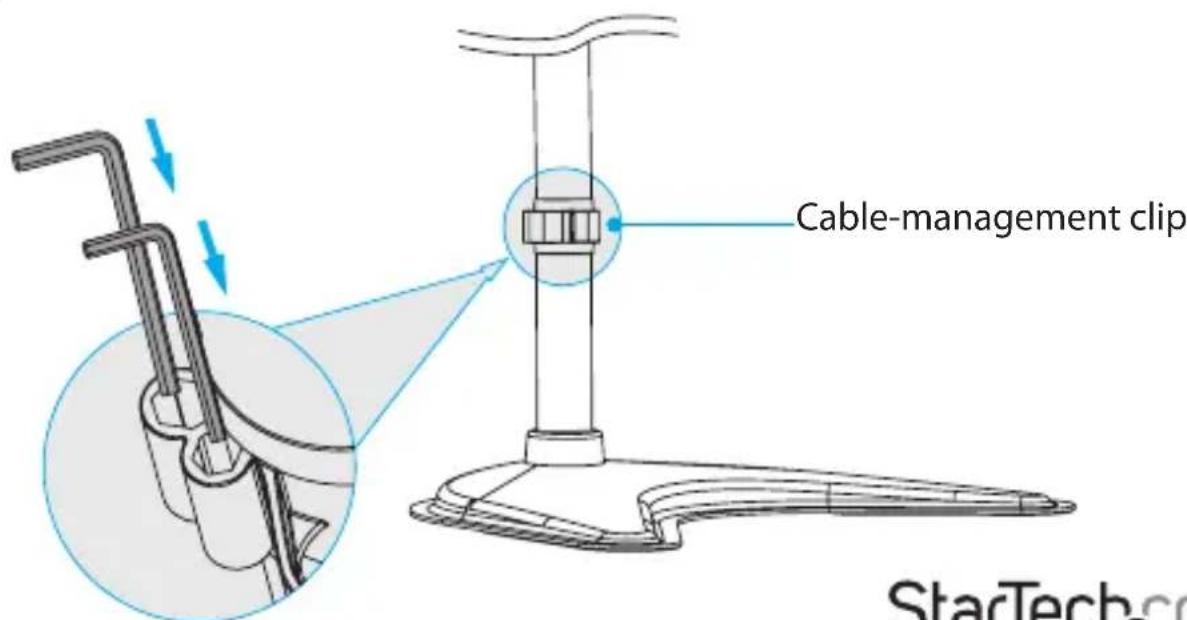

3. Screw the pole into the baseplate. (figure 1)

figure 1

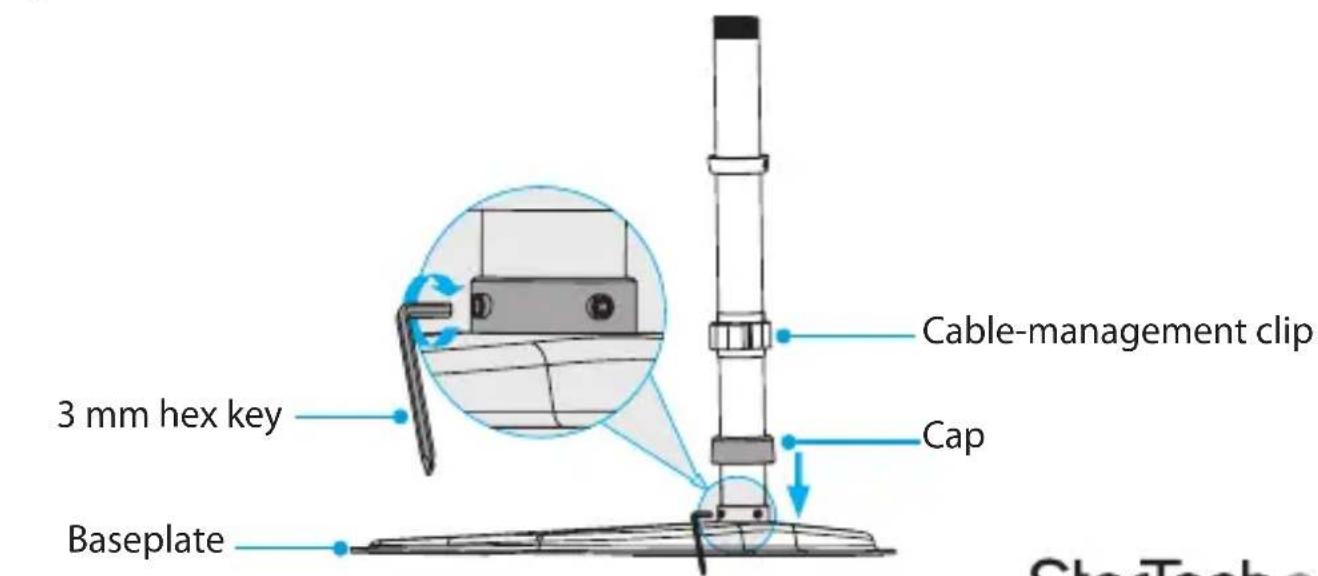

1. Use the 3 mm hex key to tighten the screws and attach the pole to the baseplate.

2. Push the cap down so that it sits flush against the baseplate and covers the screws. (figure 2)

figure 2

Instruction manual

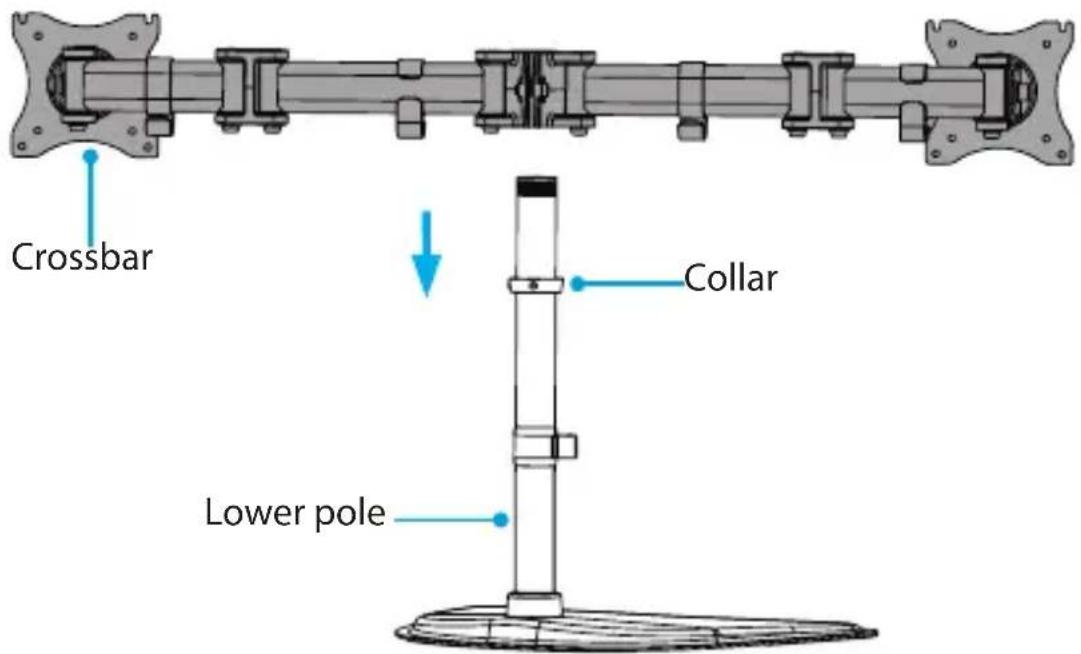

Attach a crossbar

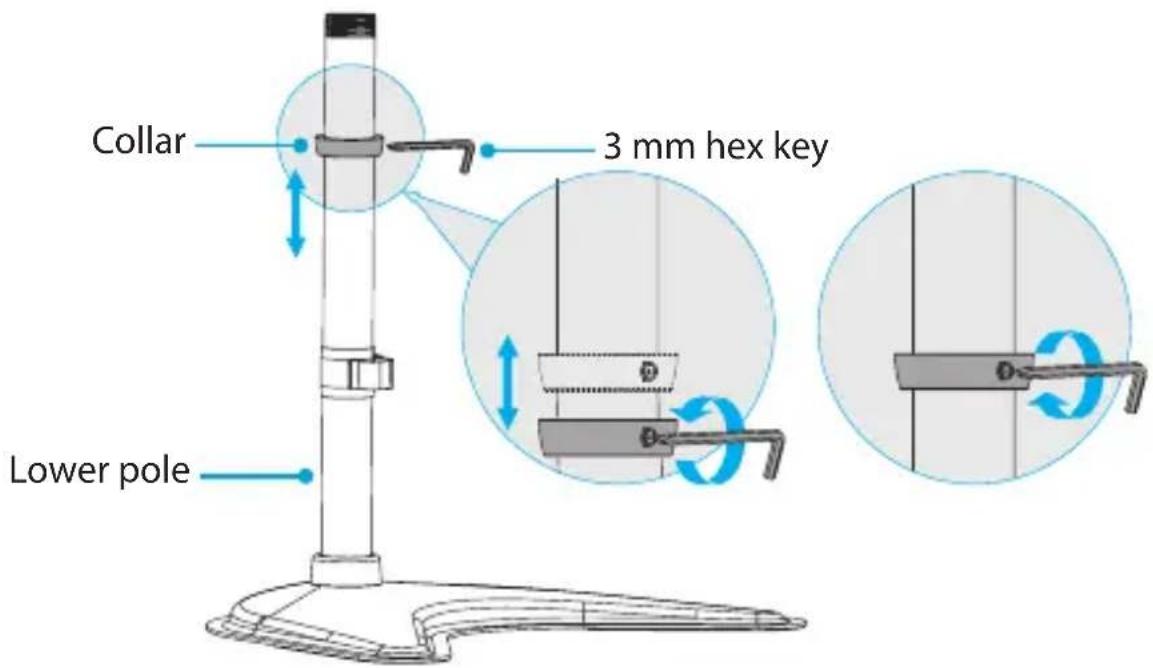

1. Use the 3 mm hex key to loosen the screw in the side of the collar on the lower pole, and raise or lower the collar on the pole.

2. When the collar is at the desired height, use the 3 mm hex key to tighten the screw in the side of the collar. (figure 3)

figure 3

1. Slide one of the crossbars down the pole so that it sits against the collar. (figure 4)

figure 4

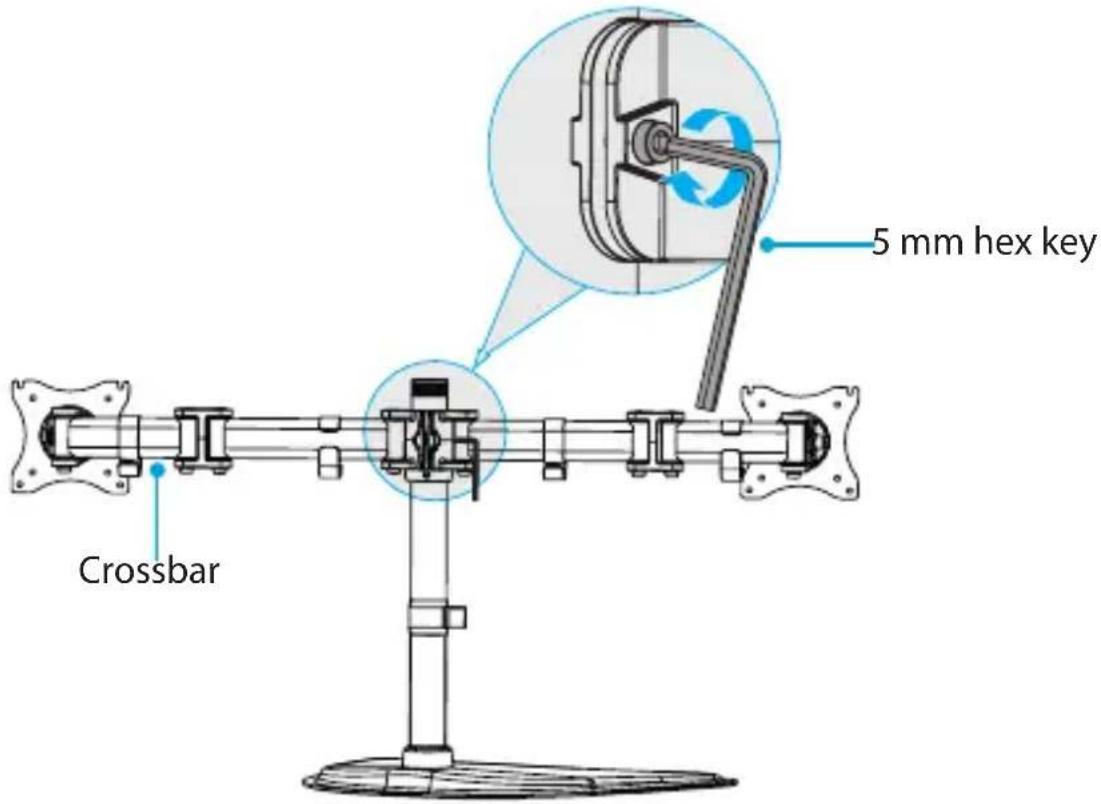

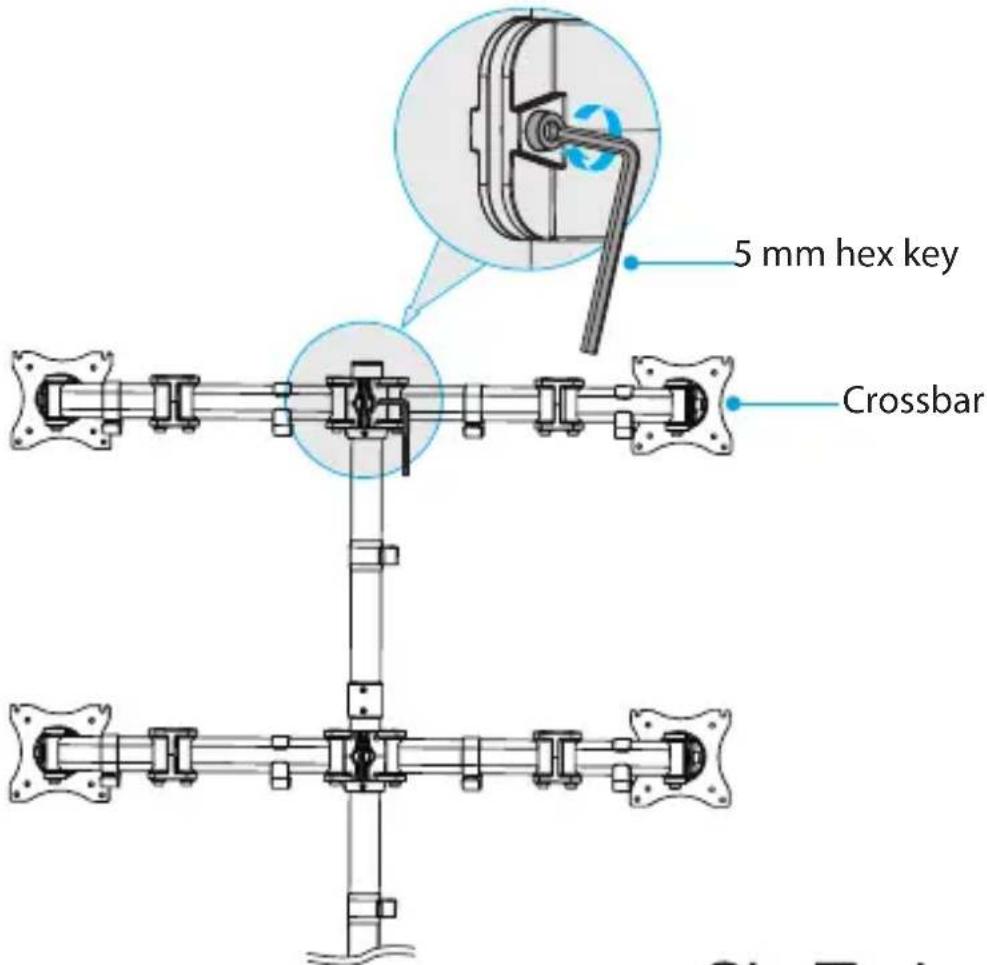

1. Use the 5 mm hex key to tighten the screw at the back of the crossbar. (figure 5)

figure 5

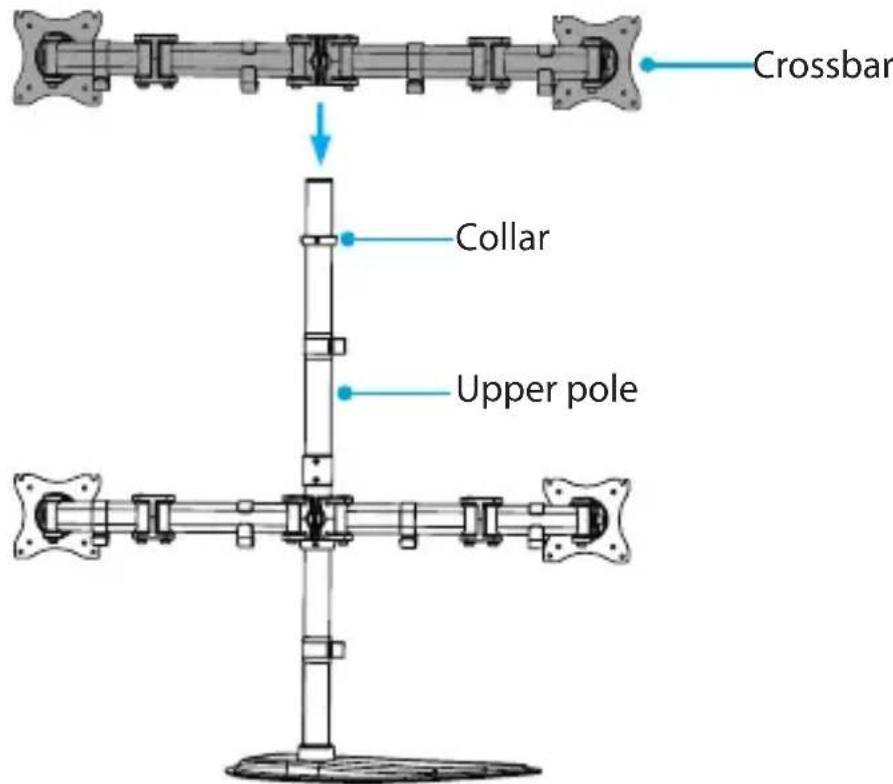

Attach the upper pole

1. Screw the pole connector onto the lower pole.
2. Thread the other cable-management clip onto the upper pole.

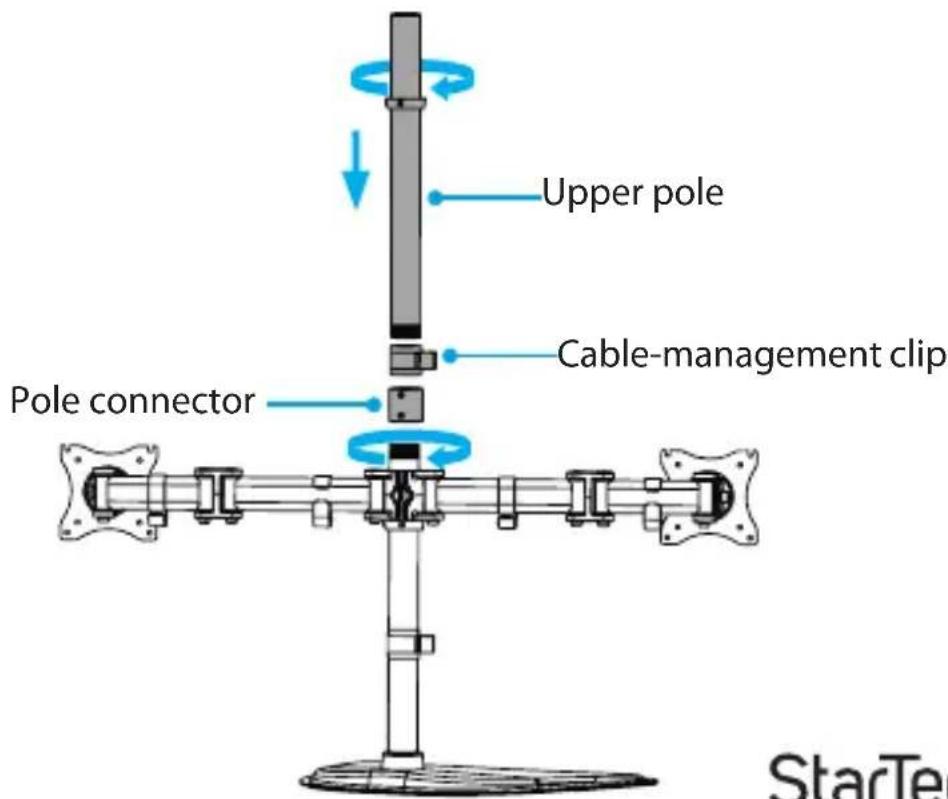

3. Screw the upper pole into the pole connector. (figure 6)

figure 6

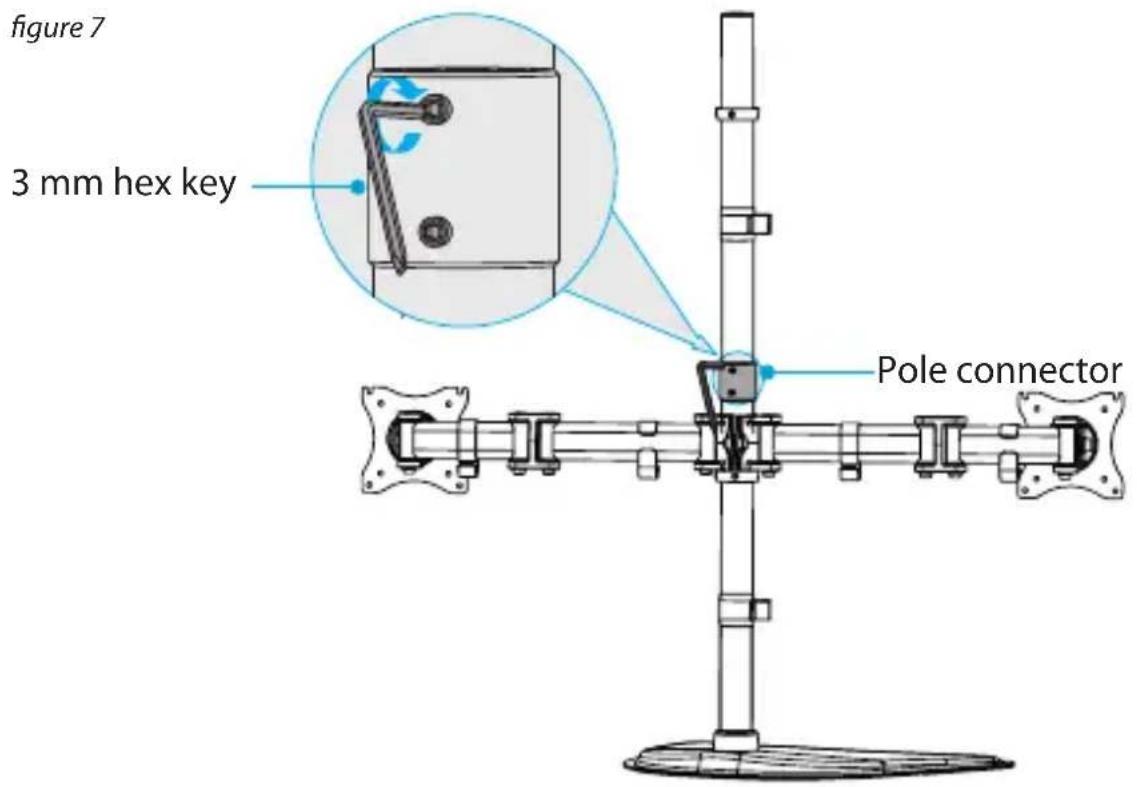

1. Use the 3 mm hex key to tighten the two screws in the side of the pole connector. (figure 7)

Attach the second crossbar

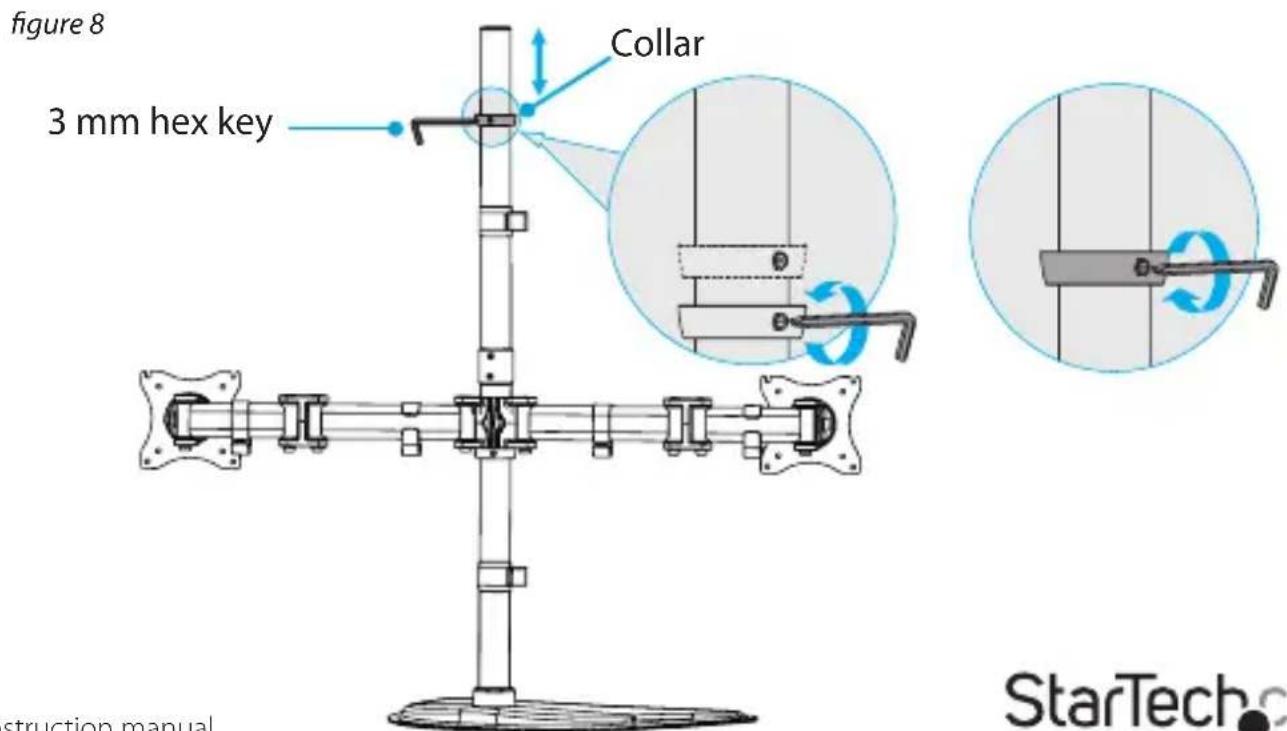

1. Use the 3 mm hex key to loosen the screw in the side of the collar on the upper pole, and raise or lower the collar on the pole.
2. When the collar is at the desired height, use the 3 mm hex key to tighten the screw in the side of the collar. (figure 8)

1. Slide the other crossbar down the pole so that it sits against the collar. (figure 9)

figure 9

1. Use the 5 mm hex key to tighten the screw at the back of the crossbar. (figure 10)

figure 10

Attach monitors to the crossbars

Warning! Attaching the monitors is a two-person job. Do not attempt to complete this task by yourself.

Tipping hazard! The ARMBARQUAD is free-standing and when you attach monitors to it, you increase the tipping hazard. A second person is required to keep the ARMBARQUAD upright as you attach the monitors.

ARMBARQUAD is designed to be used with monitors that are the same size and weight. If you attach monitors that are different sizes and weights to the ARMBARQUAD, you do so at your own risk.

Use the 100x100 VESA mounting hole pattern to attach a monitor

To accommodate different monitor sizes, the ARMBARQUAD comes with two sets of screws that are different lengths and diameters.

To select the appropriate screws for the type of monitor that you're using, complete the following:

• Determine the depth of the mounting holes on the monitor.
• Determine the diameter of the mounting holes on the monitor.

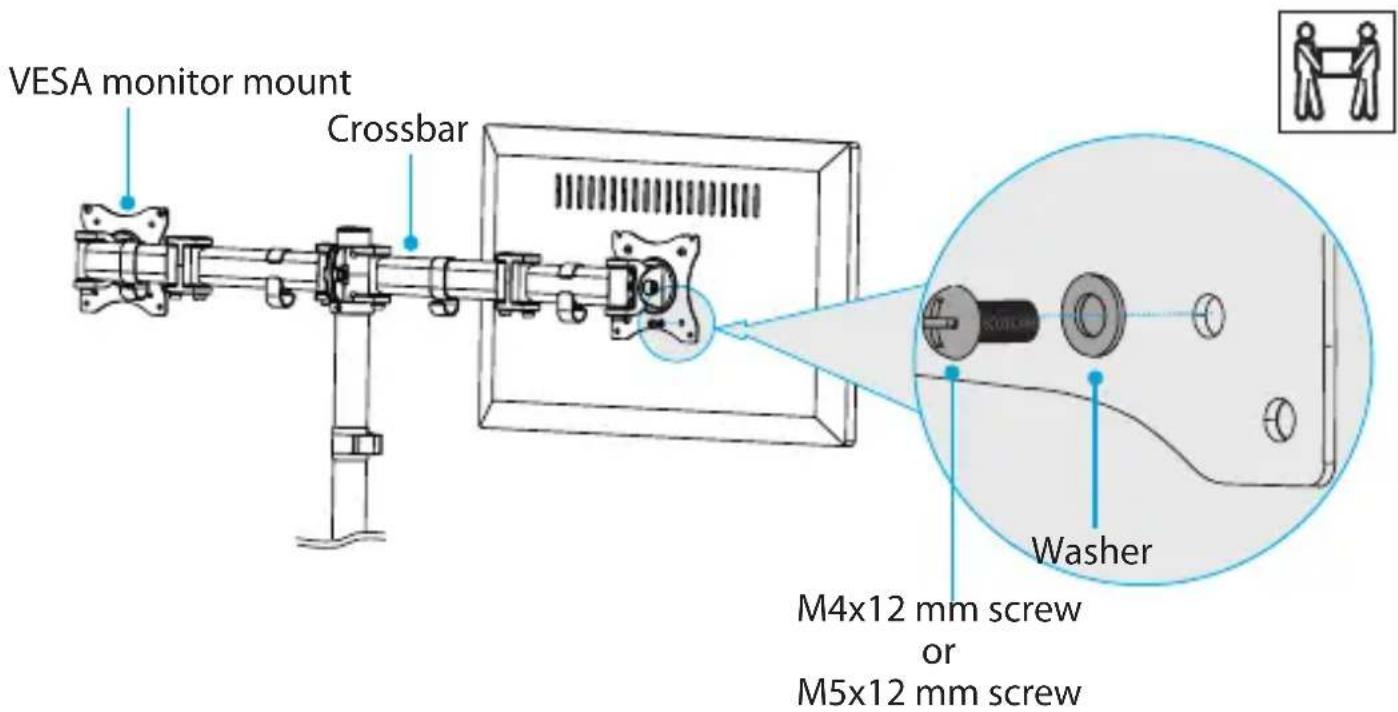

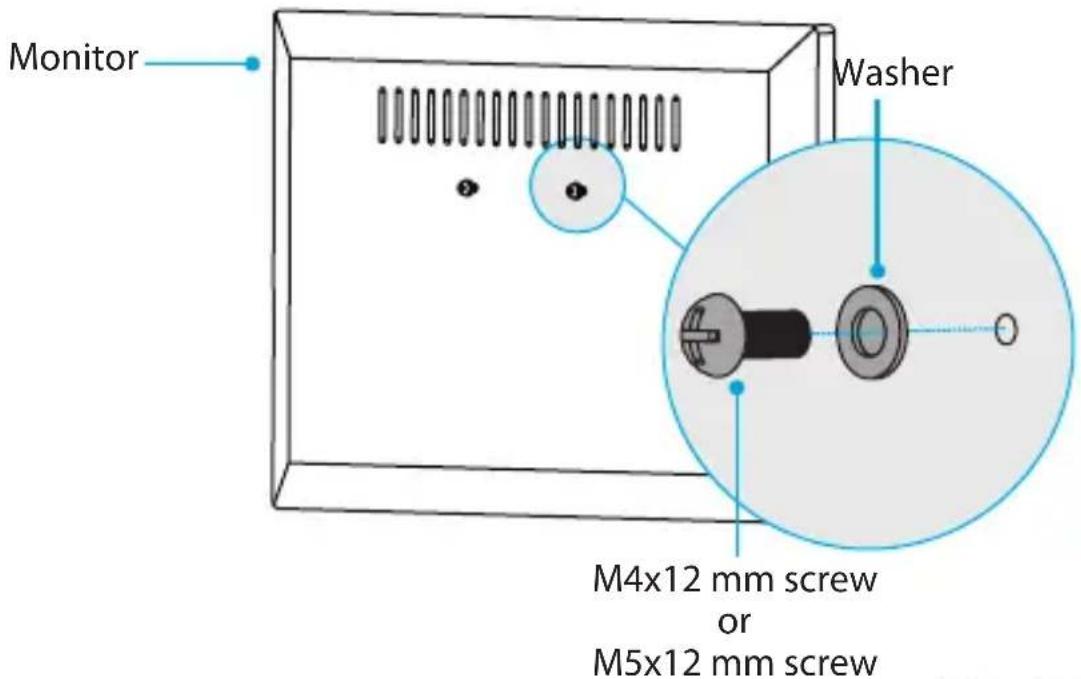

1. Place two of the washers over the top two mounting holes on the back of the monitor.

2. Insert two of the M4x12 mm screws or M5x12 mm screws through the washers and into the back of the monitor. (figure 11)

Caution! At this point in the assembly, do not tighten the screws so that they are flush against the monitor. To attach the monitor to the VESA monitor mount, you need to leave a small gap between the screws and the monitor.

figure 11

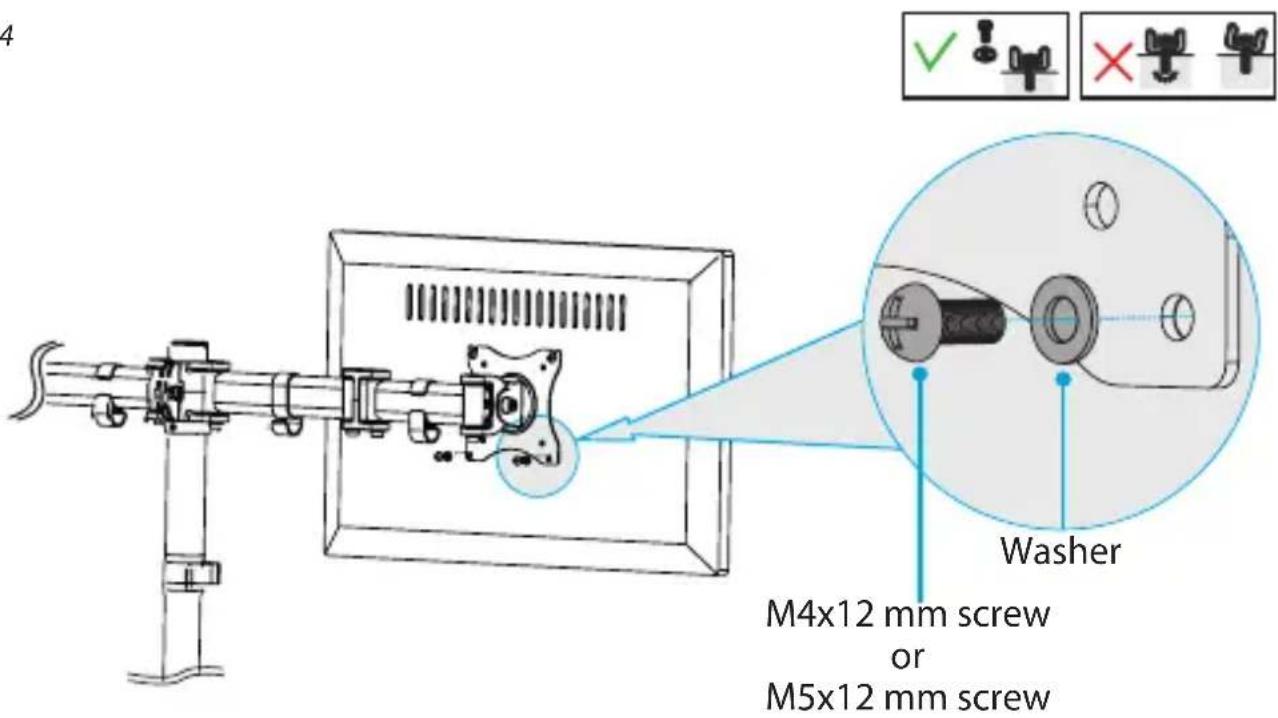

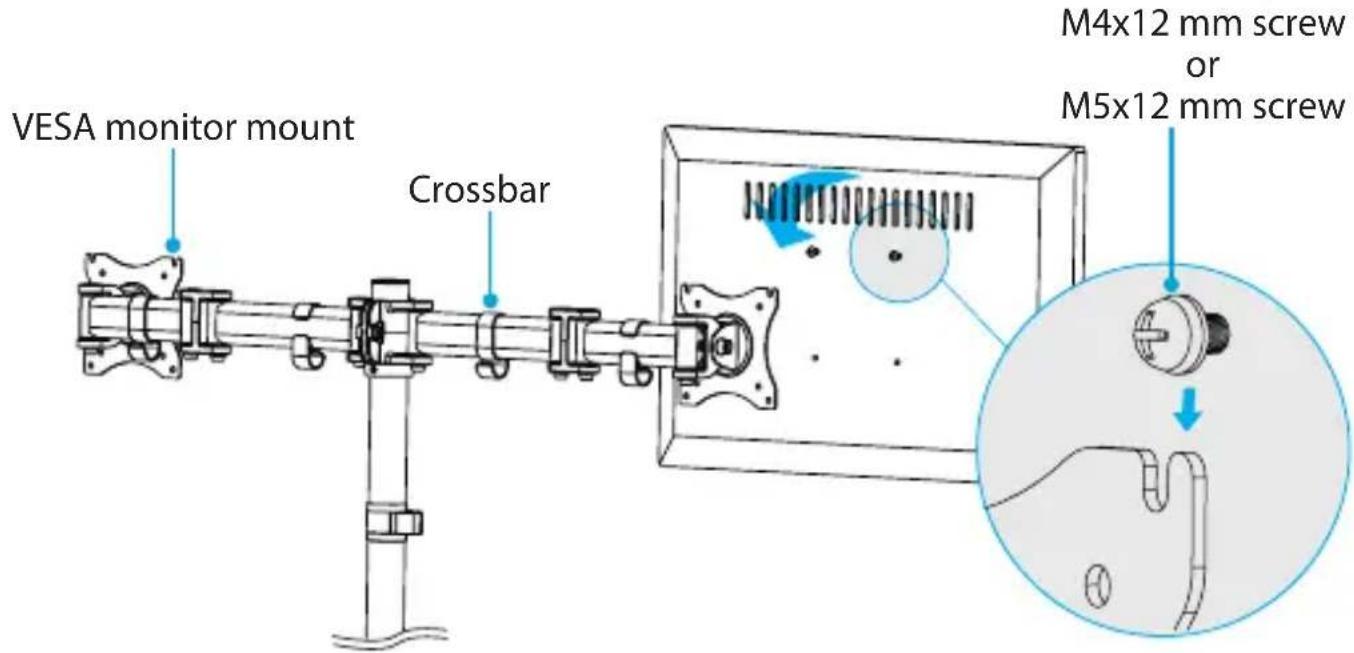

1. Carefully hook the screws into the top two slots on the VESA monitor mount on the crossbar. (figure 12)

figure 12

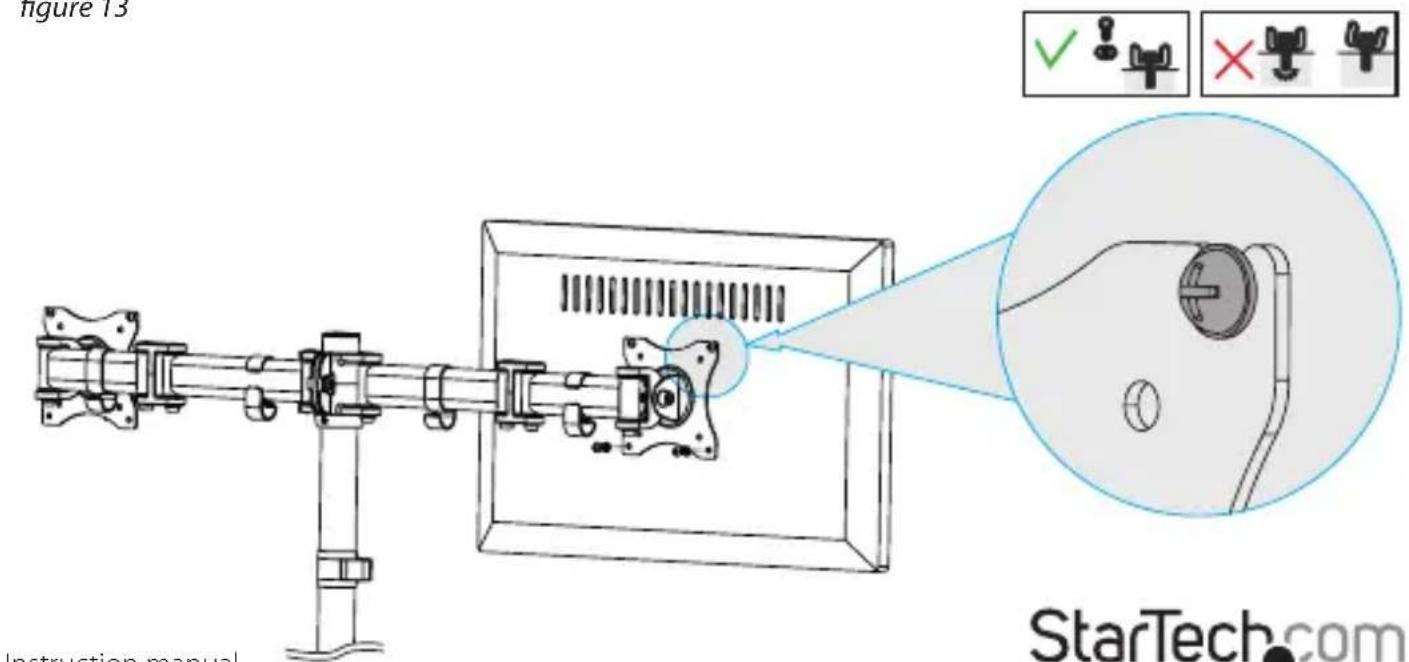

1. Use a Phillips screwdriver to tighten the screws. (figure 13)

Caution! If the crossbar starts to slip down the pole when you add the weight of the monitor, remove the monitor and use the 5 mm hex key to tighten the screw in the back of the crossbar. When the screw is tightened, repeat step 3 to reattach the monitor.

Warning! Do not over-tighten the screws. If you encounter resistance while you're tightening the screws, stop tightening. Failure to do so could result in damage to the monitor.

figure 13

1. Place two washers over the lower mounting holes in the VESA monitor mount.
2. Insert two M4x12 mm screws or M5x12 mm screws through the washers, the mounting holes in the VESA monitor mount, and into the back of the monitor. (figure 14)

Warning! Do not over-tighten the screws. If you encounter resistance while you're tightening the screws, stop tightening. Failure to do so could result in damage to the monitor.

1. Repeat steps 1 to 6 to attach the other three monitors to the VESA monitor mounts on the crossbars.

figure 14

Use the 75x75 VESA mounting hole pattern to attach a monitor

To accommodate different monitor sizes, the ARMBARQUAD comes with two sets of screws that are different lengths and diameters.

To select the appropriate screws for the type of monitor that you're using, complete the following:

• Determine the depth of the mounting holes on the monitor.
- Determine the diameter of the mounting holes on the monitor.

1. Line up the mounting holes on the back of the monitor with the 75x75 mounting holes in the VESA monitor mount on the upper crossbar.

2. While someone holds the monitor in place, insert the M4x12 mm screws or M5x12 mm screws through the washers, the mounting holes in the VESA monitor mount, and into the back of the monitor. (figure 15)

3. Use a Phillips screwdriver to tighten the screws.

Caution! If the crossbar starts to slip down the pole when you add the weight of the monitor, remove the monitor and use the 5 mm hex key to tighten the screw in the back of the crossbar. When the screw is tightened, repeat step 2 to reattach the monitor.

Warning! Do not over-tighten the screws. If you encounter resistance while you're tightening the screws, stop tightening. Failure to do so could result in damage to the monitor.

1. Repeat steps 1 to 3 to attach the other three monitors to the VESA monitor mounts on the crossbars.

figure 15

Adjust the tilt angle of your monitor

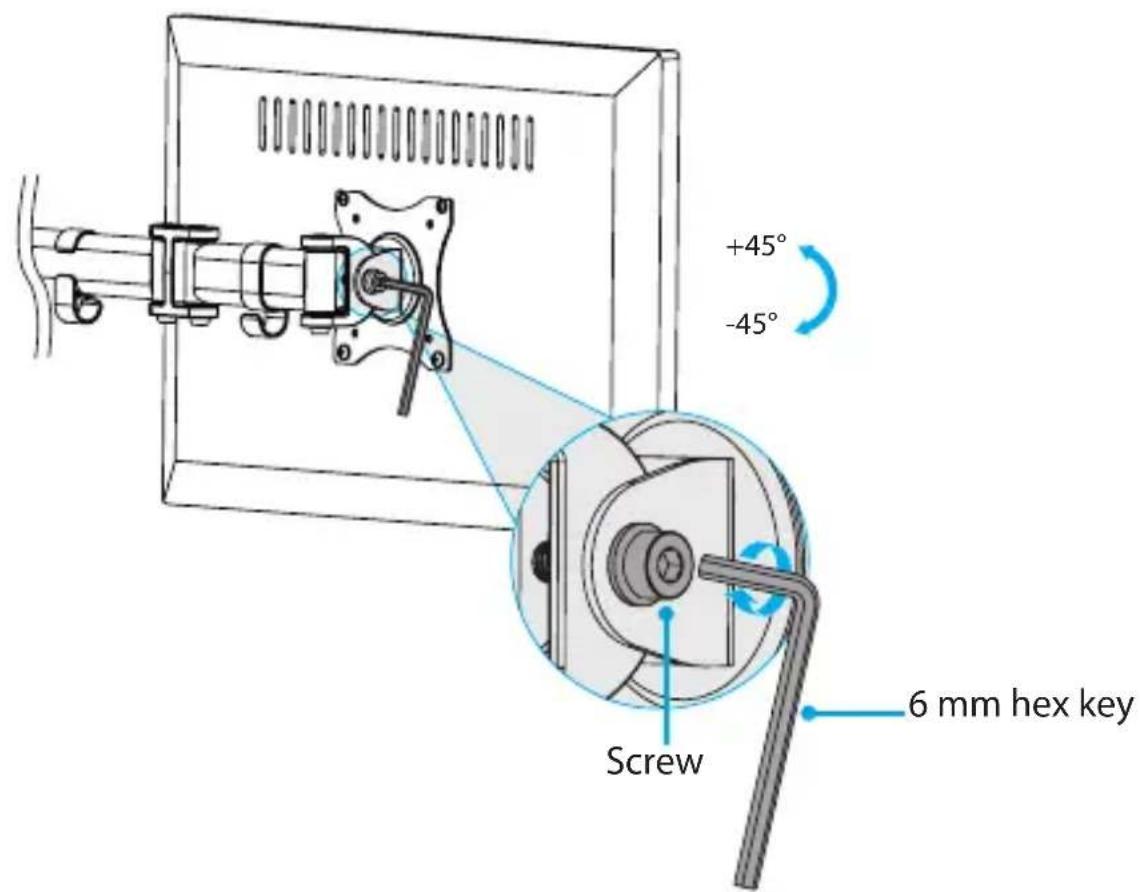

1. To change the angle that the monitor is tilted at, use the 6 mm hex key to loosen the screw in the side of the VESA monitor mount.
2. Position the monitor at the angle that works best for you.
3. Use the 6 mm hex key to turn the screw clockwise to tighten it. (figure 16)

figure 16

1. When you're done adjusting the tilt angle, you can store the 5 mm hex key and the 6 mm hex key holder in the cable-management clip. (figure 17)

figure 17

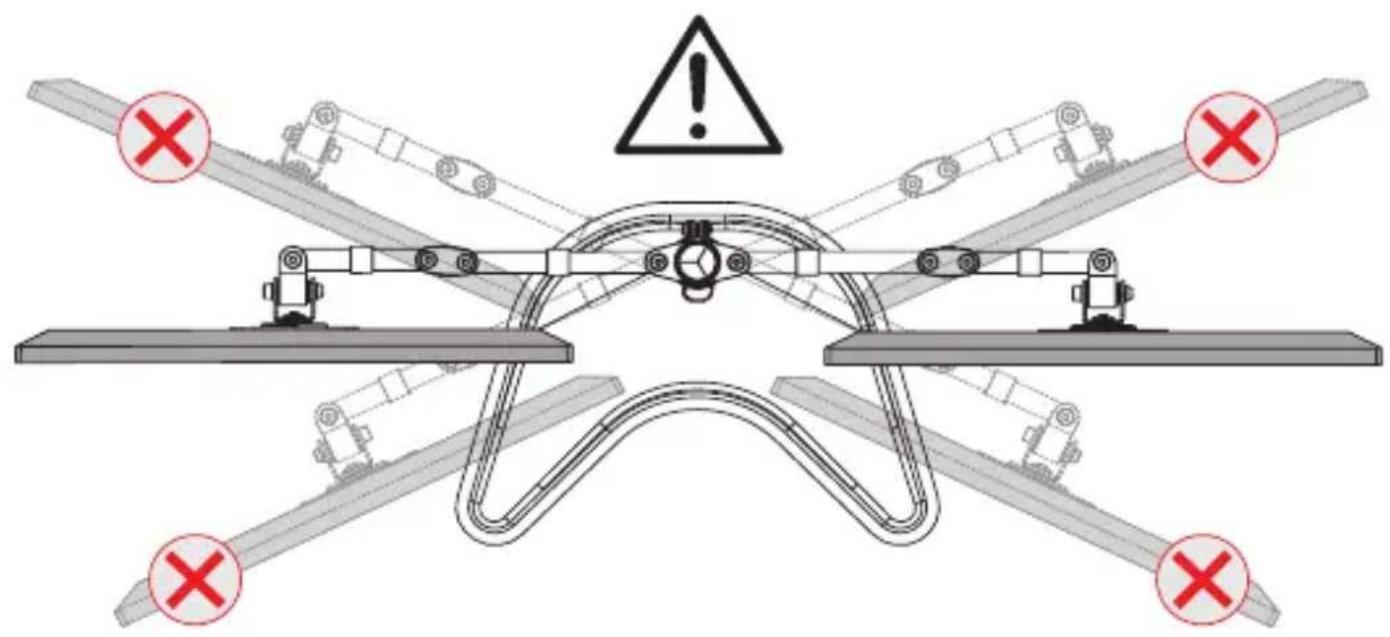

Tipping hazard warning

Warning! The most stable configuration of the ARMBARQUAD is in the “flat” position, with each set of monitors positioned in a straight line. Depending upon the forward and rear positioning of the monitors, ARMBARQUAD can become unstable. If you adjust the position of the monitors, you do so at your own risk, and you should exercise caution and test the stability of the ARMBARQUAD before you use it in the adjusted configuration. (figure 18)

figure 18

Adjust the vertical position of the monitors

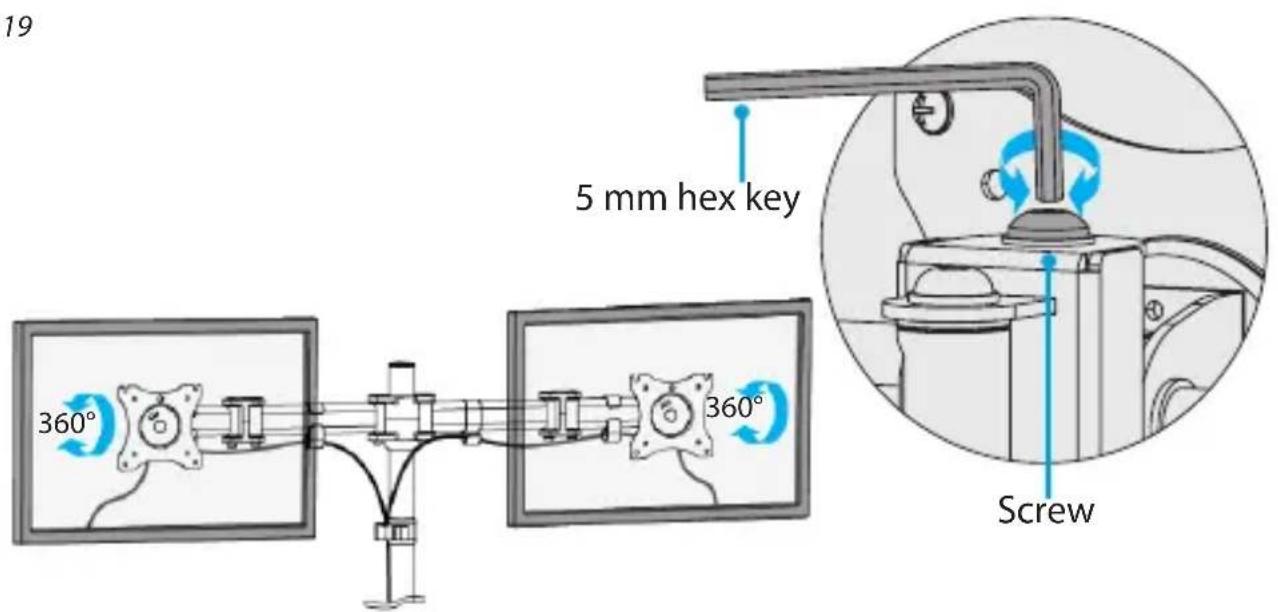

- To make adjustments to the position of the monitors, use the 5 mm hex key to adjust the screw in the top of the VESA monitor mounts.

figure 19

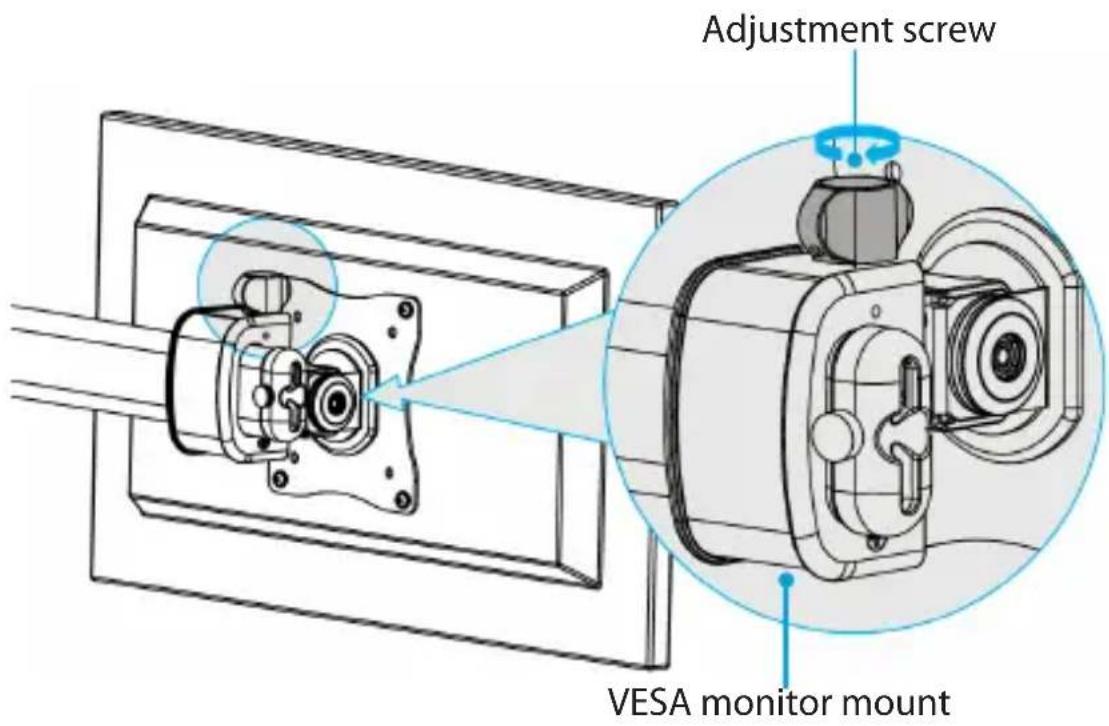

- To raise or lower the left and right monitors minutely, use the adjustment screws located on the top of the VESA monitor mounts. (figure 20)

Technical support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty information

This product is backed by a five-year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
