Product Type	Single Monitor Arm / Mount
Brand	StarTech.com
Model	ARMPIVOTHDB
Color	Black
Material	Steel and Aluminum
Mounting Style	Desk Clamp and Grommet Mount
VESA Compatibility	75x75 mm and 100x100 mm
Max Screen Size	32 inches
Max Weight Capacity	20 kg (44 lbs)
Height Adjustment	Yes, gas spring assisted, range up to 45 cm
Tilt Range	-45° to +45°
Swivel Range	-90° to +90°
Rotation (Landscape/Portrait)	360°
Arm Length	48 cm (19 inches)
Extension	Fully articulating with two pivot points
Cable Management	Integrated cable routing channels
Weight of Arm	Approximately 3.5 kg (7.7 lbs)
Desk Thickness Range	10 – 80 mm (clamp) / 10 – 50 mm (grommet)
Grommet Hole Size	10 – 50 mm
Included Tools	Hex key, bolts, and mounting hardware
Compliance	RoHS, REACH
Warranty	3 years

Frequently Asked Questions - ARMPIVOTHDB StarTech.com

Is the StarTech.com ARMPIVOTHDB compatible with my monitor?

The mount supports VESA patterns 75x75 mm and 100x100 mm. Check your monitor's VESA pattern and weight (up to 20 kg / 44 lbs). Most monitors up to 32 inches are compatible.

Can I install this arm without drilling?

Yes, it includes both a desk clamp and a grommet mount option. No drilling required if using the clamp on a standard desk edge.

What is the range of height adjustment?

The gas spring arm provides approximately 45 cm (17.7 inches) of vertical travel, allowing you to easily position the monitor at eye level.

How do I manage cables with this mount?

The arm features integrated cable management channels that run along the arm segments. Simply route your cables through the clips and covers to keep them tidy.

Can I rotate my monitor to portrait mode?

Yes, the VESA head allows 360° rotation, so you can easily switch between landscape and portrait orientations.

What is the maximum desk thickness for the clamp?

The desk clamp fits desks with thickness from 10 mm to 80 mm (0.4 to 3.15 inches).

Is the mount suitable for a curved monitor?

Yes, as long as the monitor meets the VESA pattern and weight requirements. The arm provides sufficient tilt and swivel to adjust for curvature.

Does the arm come with all necessary hardware?

Yes, the package includes the arm, desk clamp, grommet mount, VESA plates, screws, and a hex key for assembly.

Can I adjust the tension of the gas spring?

Yes, the arm has an adjustable gas spring tension via a hex key screw. This allows you to fine-tune the lift strength to match your monitor's weight.

What is the warranty on this product?

StarTech.com offers a 3-year warranty against defects in materials and workmanship.

USER MANUAL ARMPIVOTHDB StarTech.com

Single-Monitor Arm - One-Touch Height Adjustment - Heavy Duty

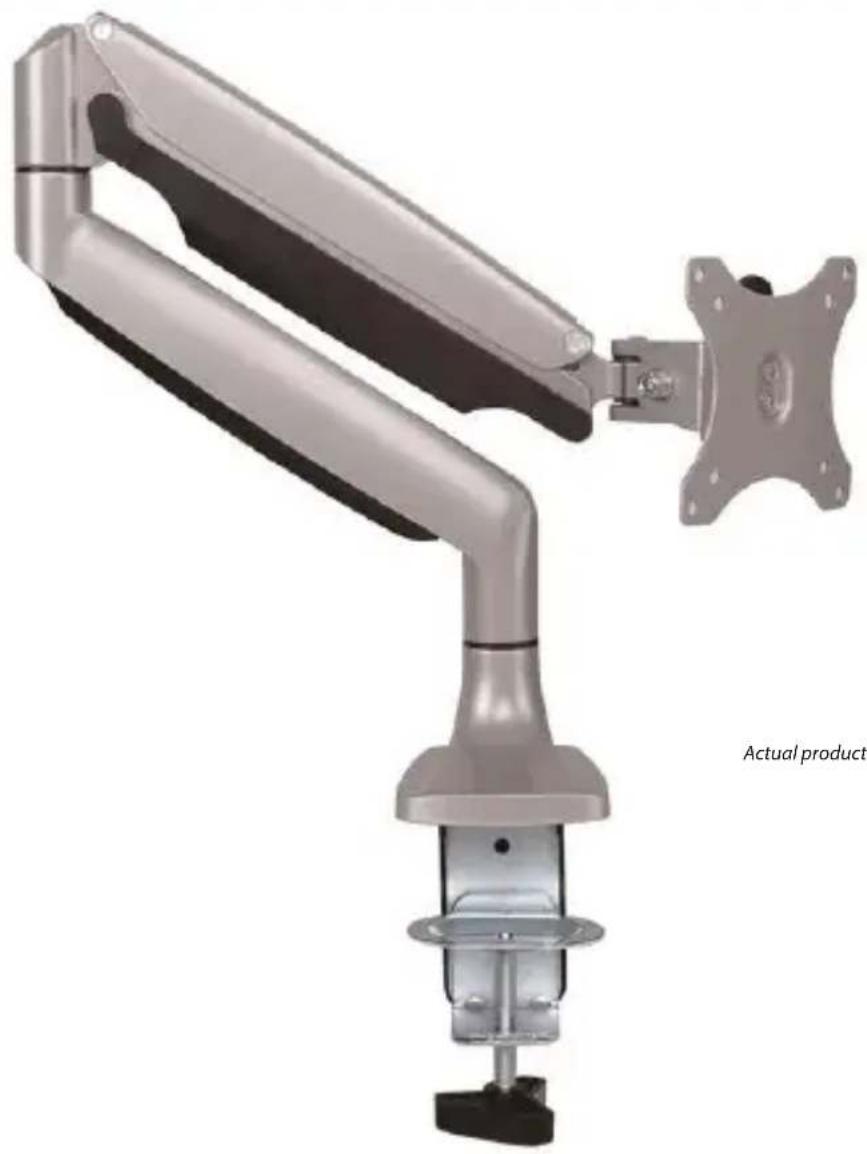

Illustration of a modern automated arm with a wall-mounted device, showing mechanical components and a separate labeled 'Actual product' (no text or symbols on the device itself)

Actual product may vary from photos

User Manual

SKU#: ARMPIVOTHD & ARMPIVOTHDB

For the latest information and specifications visit

www.startech.com/ARMPIVOTHD

Compliance Statements

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
- Consult the dealer or an experienced radio/TV technician for help

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Safety Statements

Safety Measures

• Wiring terminations should not be made with the product and/or electric lines under power.
• Product installation and/or mounting should be completed by a certified professional as per the local safety and building code guidelines.
• Cables (including power and charging cables) should be placed and routed to avoid creating electric, tripping or safety hazards.

Mesures de sécurité

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Warning Statements

Make sure to assemble this product according to the instructions. Failure to do so might result in personal injury or property damage.

Make sure that the weight of the monitor doesn't exceed the weight capacity of this product. If you exceed the weight capacity, you might experience personal injury or damage to the equipment. This product can support the following weight: 19.8 lb. (9 kg).

Never operate this product if parts are missing or damaged.

Allowing any part of your component cables to get caught between moveable parts might result in personal injury or damage to your equipment.

Varningsmeddelanden

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Table of Contents

Compliance Statements....1

Safety Statements....3

Warning Statements 4

Technical Specification......8

Package Contents....10

Requirements 13

Assembly 13

Use the Desk Clamp to Attach the Arm Mount....13

Use the Grommet Mount to Attach the Arm Mount....14

Attach a Monitor....15

Adjust the Spring Arm....17

Routing the Cables 17

Adjust the Position of the Arm Mount......18

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

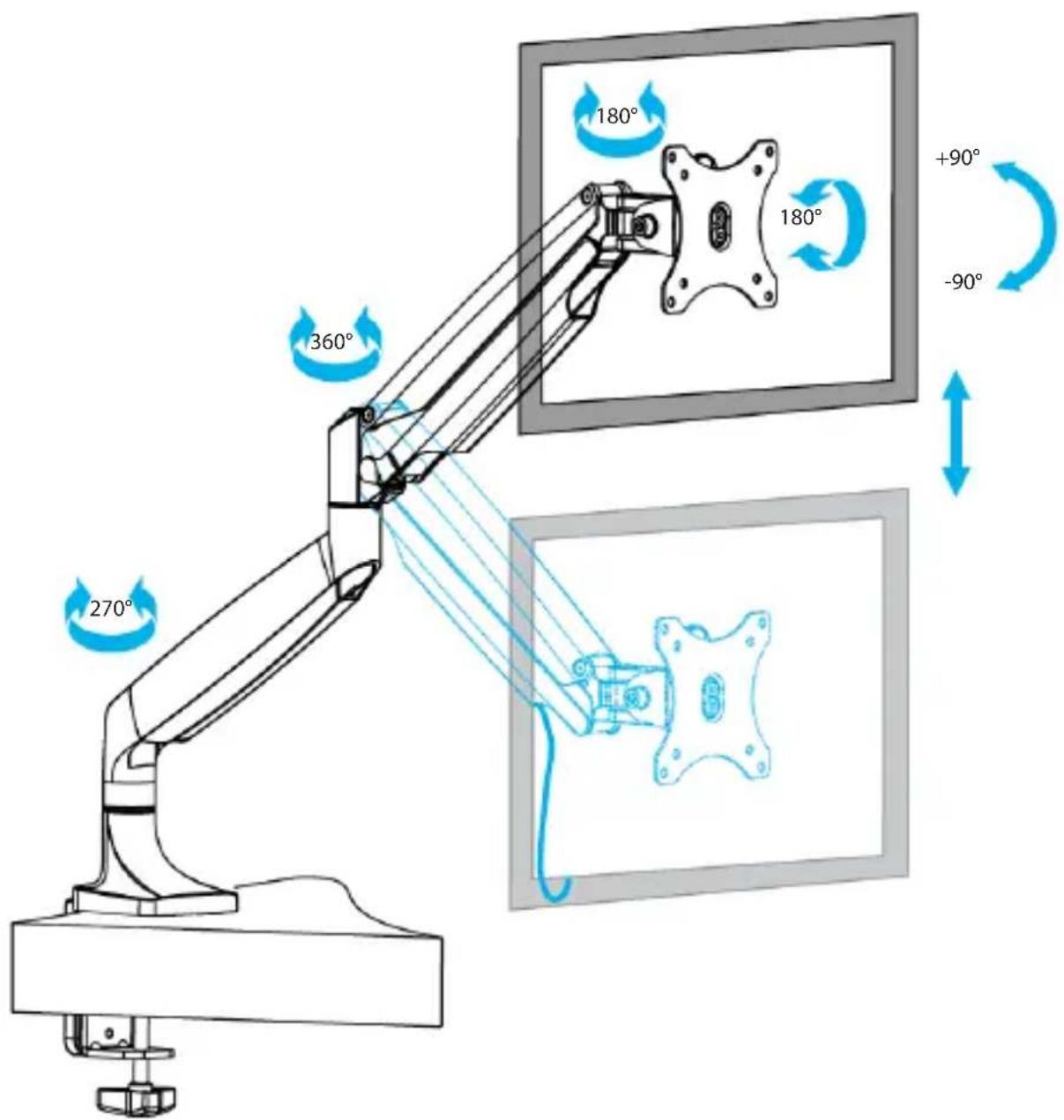

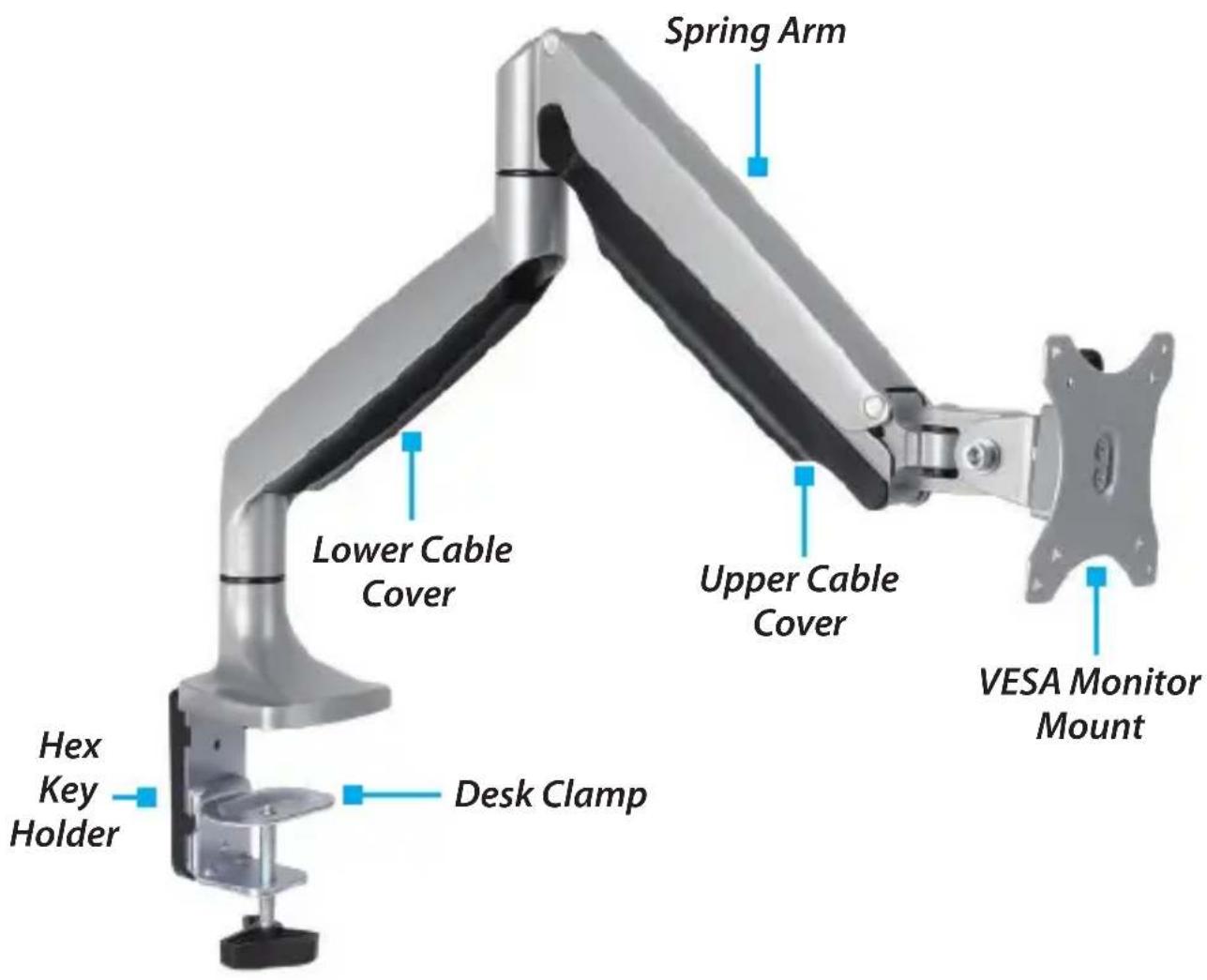

Product Diagram

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

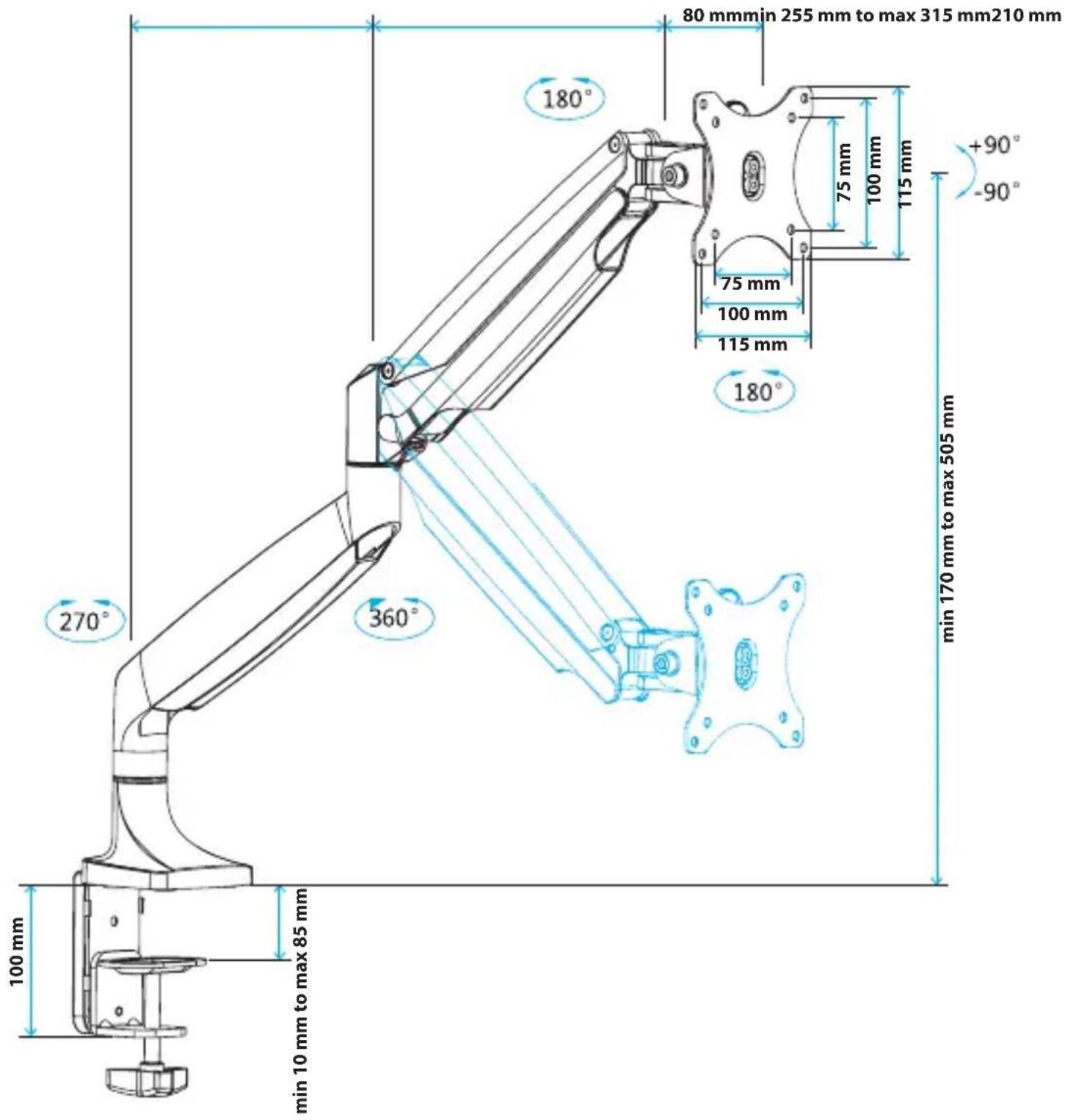

Product Dimensions

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical Specification

Type of Measurement Measurement

Simple geometric diagram with a square and concentric circles inside a rounded rectangle (no text or symbols)

VESA Mounting Hole Pattern

Weight Capacity

Abstract geometric diagram with overlapping parallelograms and curved arrows, enclosed in a rounded square (no text or symbols)

Tilt

Simple diagram with a rectangle containing two arrows pointing diagonally (no text or symbols)

Screen Size

75×75

100x100

Up to 9 kg (19.8 lb.)

+90° to -90°

Max 813 mm (32 in.)

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Simple diagram of a square with a double-headed arrow indicating rotation (no text or symbols)

Rotate

180^

Simple diagram of a square with an arrow inside, no text or symbols present

Swivel

180^

Package Contents

1

Technical line drawing of a robotic arm with articulated joints and a vertical-mounted sensor (no text or symbols)

Spring Arm

Qty: One

2

Pure mechanical part diagram with no text, numbers, or symbols

VESA Monitor Mount Qty: One

3

Grommet Base Plate Qty: One

4

Grommet Knob Qty: One

5

Grommet Screw Qty: One

6

Grommet Plate Qty: One

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

7		8
	Rubber Pads Qty: Two		Desk Clamp Qty: One
9		10
	L Bracket Qty: One		Clamp Screws Qty: Five
11		●
	Hex Key Holder Qty: One		4 mm Hex Key Qty: One

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

13
	5 mm Hex Key Qty: One	6 mm Hex Key Qty: One
15	[xzck]
	M4x12 mm Thumbscrews Qty: Four	M5x12 mm Screws Qty: Four
17
	Washers Qty: Four	Spacers Qty: Four
19
	User Manual Qty: One

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Requirements

Requirements are subject to change. For the latest requirements, please visit www.StarTech.com/ARMPIVOTHD.

• Monitor/Display that is compatible with a VESA mount
• Phillips Screwdriver

Assembly

You can use either the desk clamp or grommet mount to attach the Arm Mount to your mounting surface.

Use the Desk Clamp to Attach the Arm Mount

Warning! Make sure that the weight of the monitor doesn't exceed the weight capacity of this product, up to 9 kg (19.8 lb.). If you exceed the weight capacity, you might experience personal injury or damage to the product.

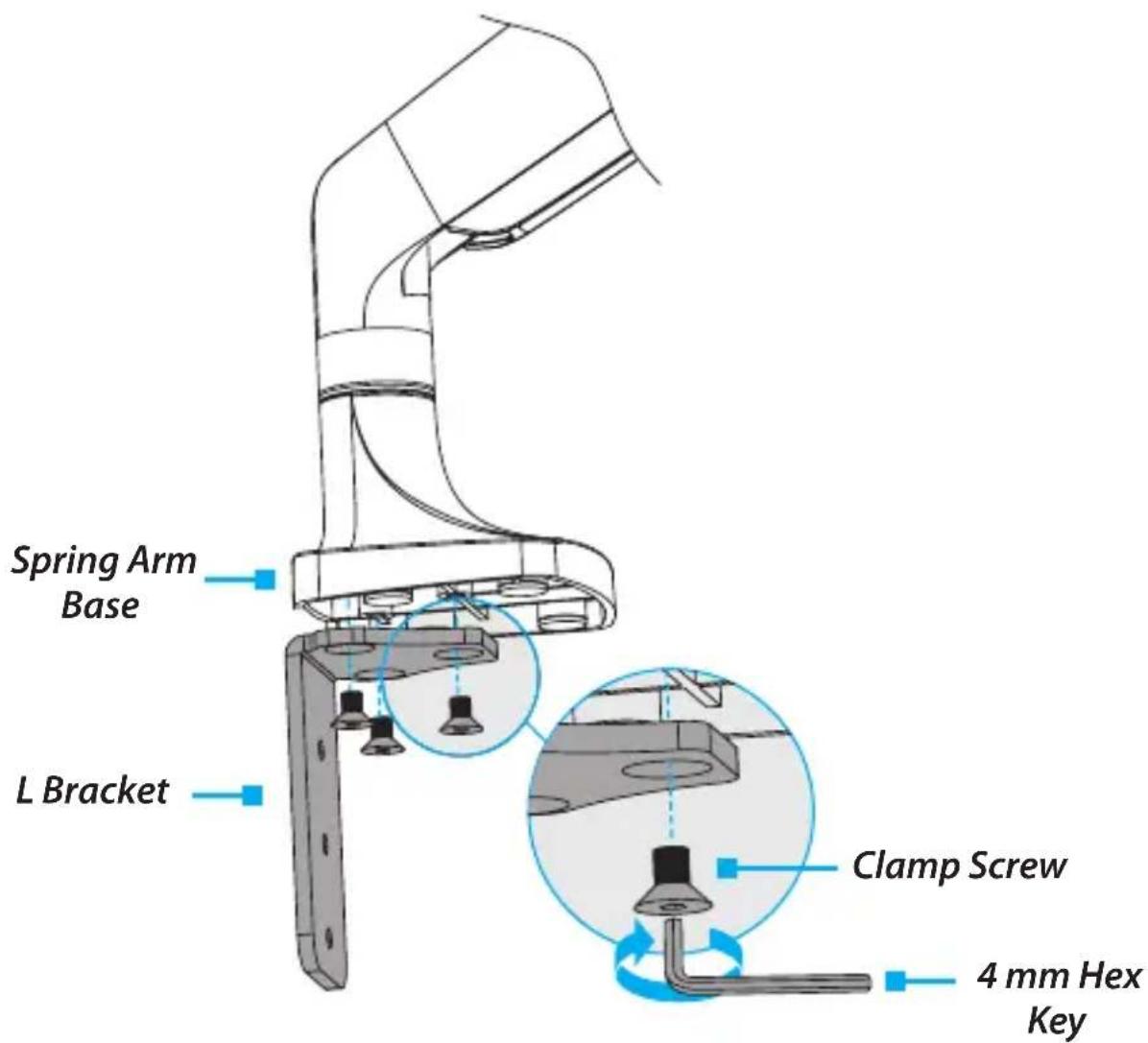

1. Align the three holes on the top of the L Bracket (9) with the holes on the underside of the Spring Arm's (1) base.

2. Insert three of the Clamp Screws (10) through the L Bracket and into the bottom of the Spring Arm.

3. Use the 4 mm Hex Key (12) to tighten the Clamp Screws. (Figure 1)

Figure 1

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

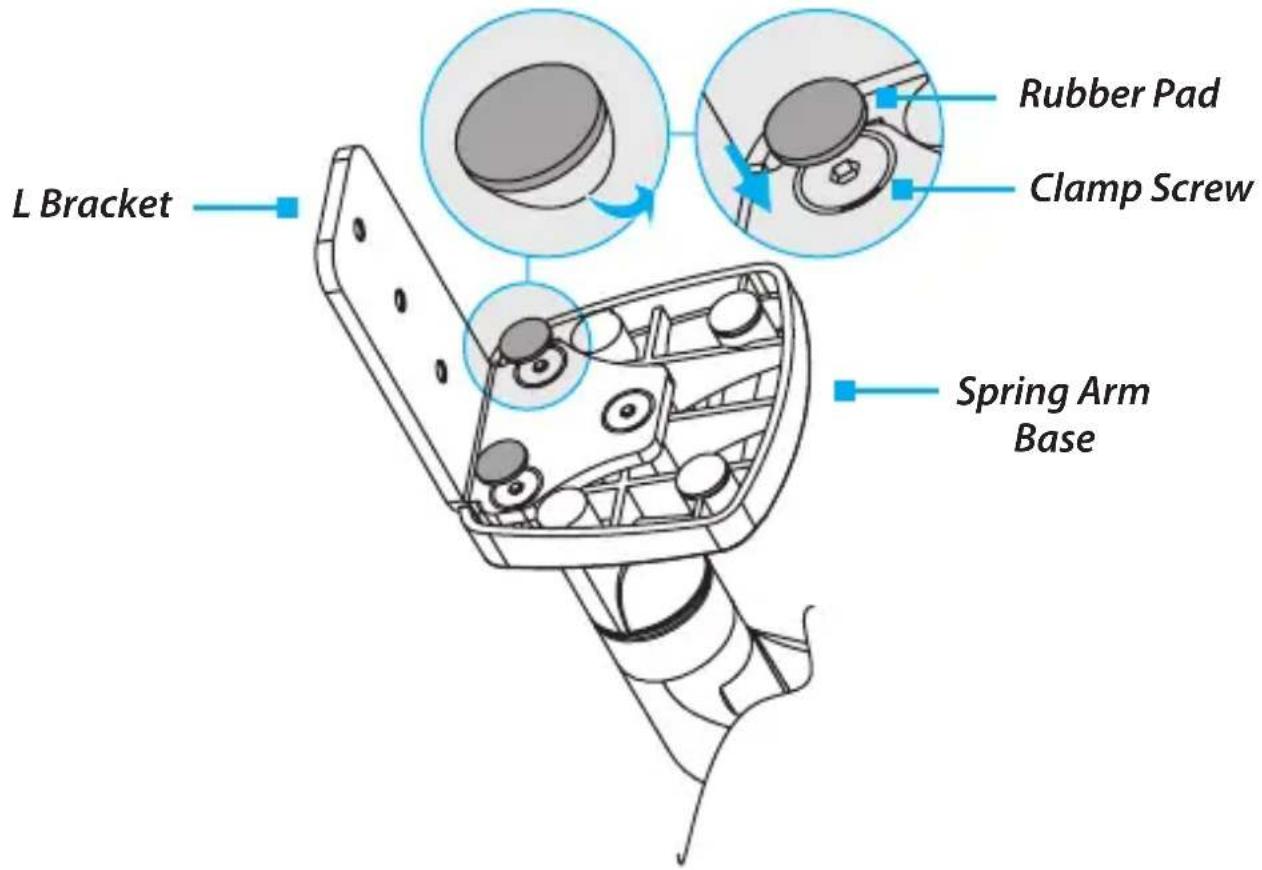

1. Remove the backing from the two Rubber Pads (7) and affix the Rubber Pads to the tops of two of the Clamp Screws on the underside of the L Bracket and Spring Arm. (Figure 2)

Figure 2

1. Depending on the thickness of your mounting surface, do one of the following:

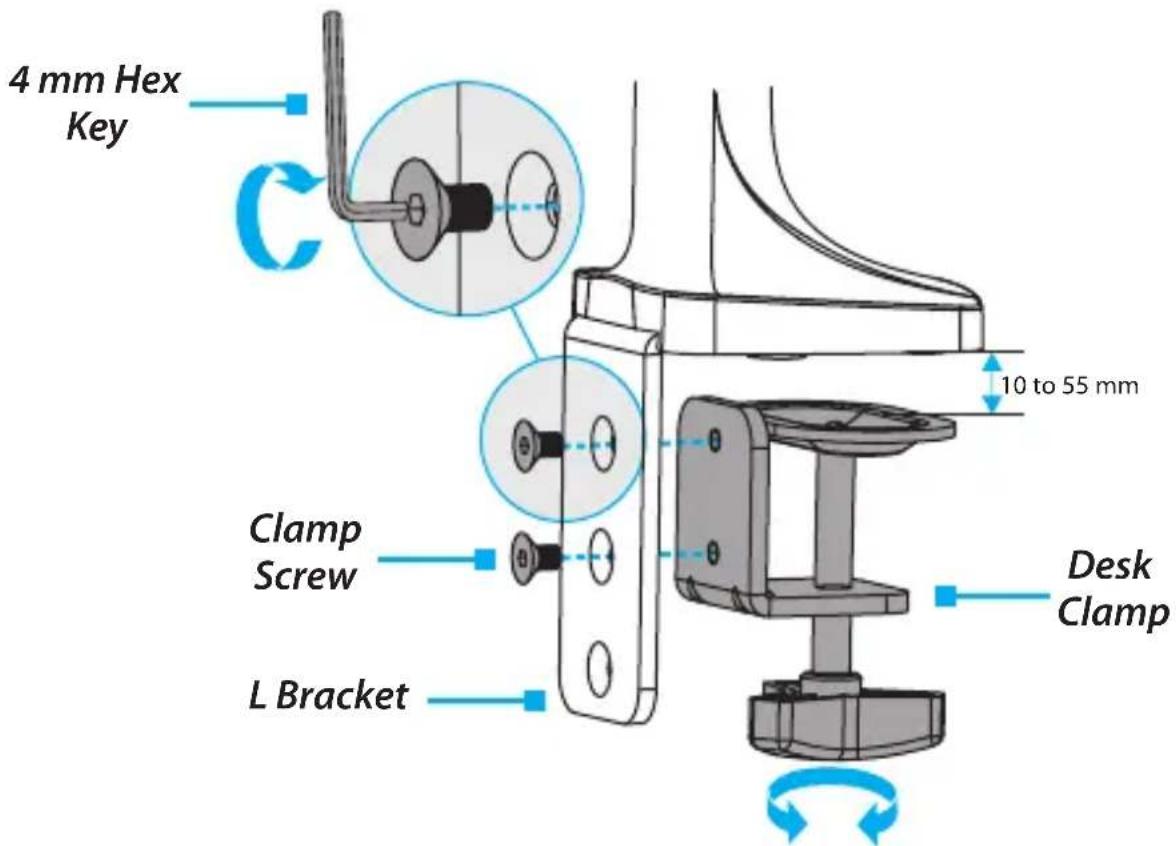

- If your mounting surface is between 10 and 55 ~mm (0.4 and 2.2 in)

a. Position the Desk Clamp (8) so that the holes on the Desk Clamp line up with the top two holes in the L Bracket.

b. Insert two of the Clamp Screws through the L Bracket and into the Desk Clamp.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

c. Use the 4 mm Hex Key to tighten the Clamp Screws. (Figure 3)

Figure 3

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

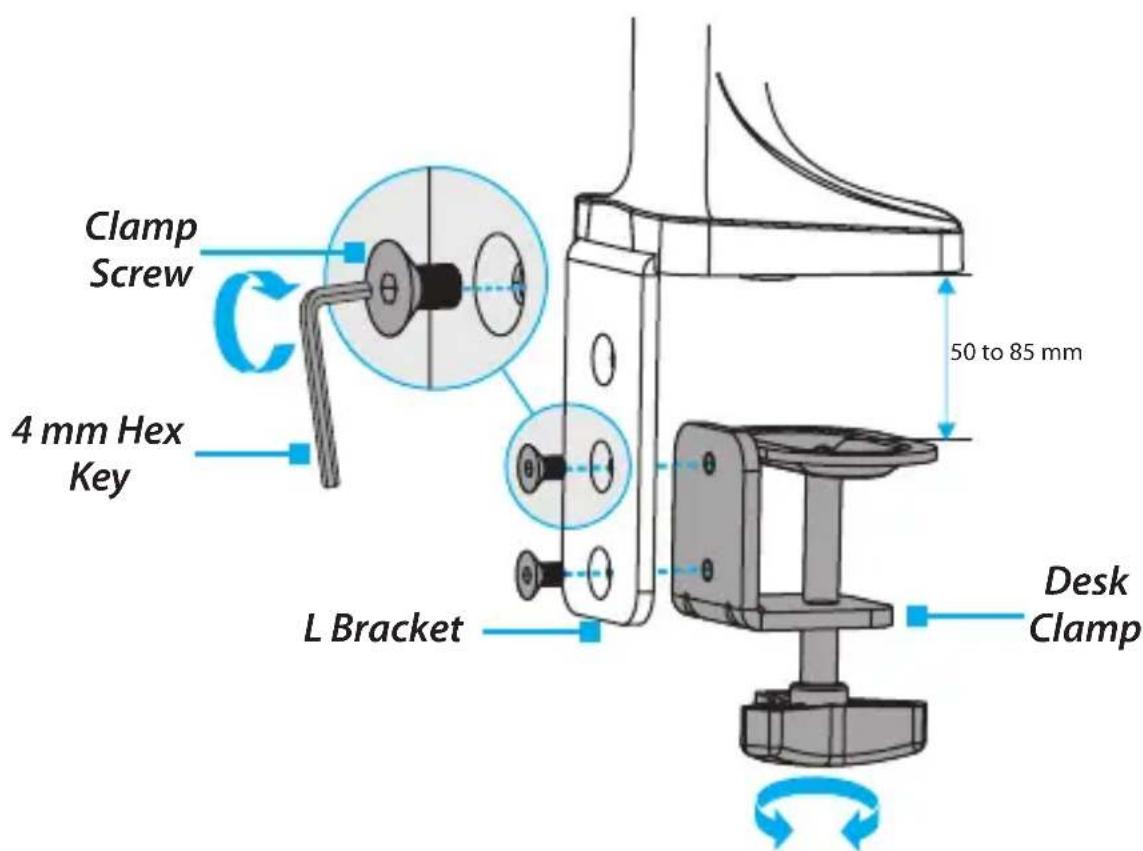

• If your mounting surface is between 50 and 85 ~mm (1.9 and 3.3 in)
  a. Position the Desk Clamp (8) so that the holes on the Desk Clamp line up with the bottom two holes in the L Bracket.
  b. Insert two of the clamp screws through the L Bracket and into the Desk Clamp.
  c. Use the 4 mm Hex Key to tighten the Clamp Screws. (Figure 4)

Figure 4

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

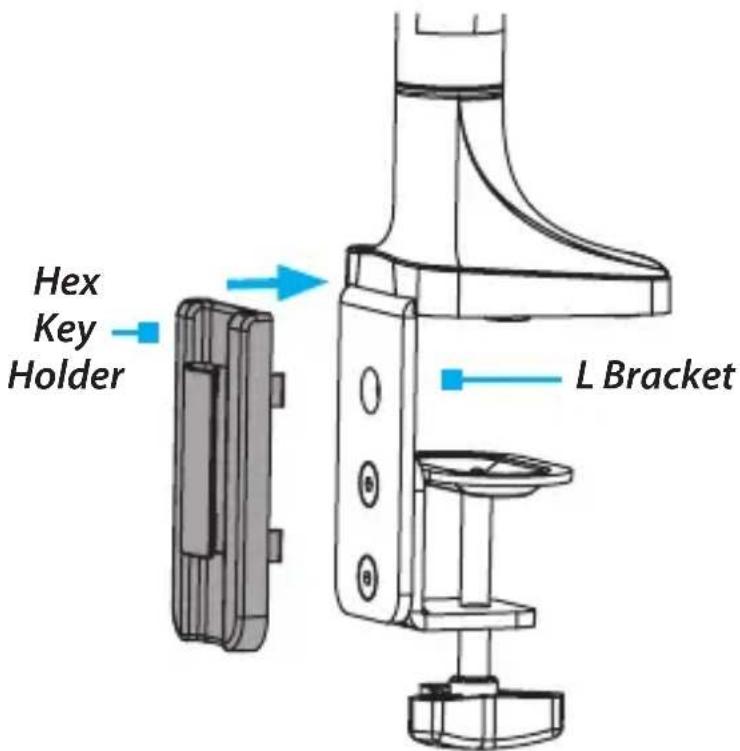

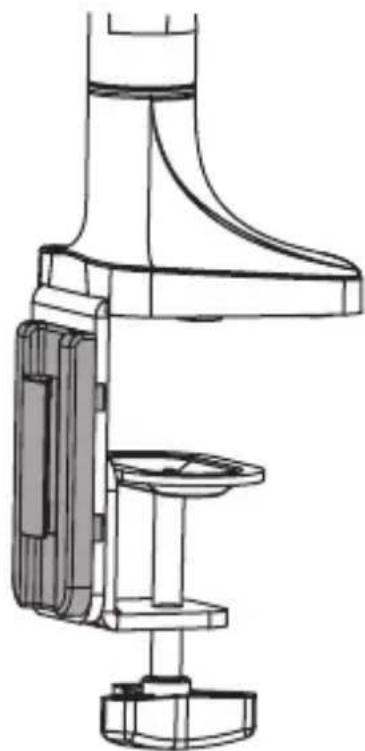

1. Snap the Hex Key Holder (11) onto the L Bracket. (Figure 5)

Technical line drawing of a mechanical device with a base mount and handle (no text or symbols)

Figure 5

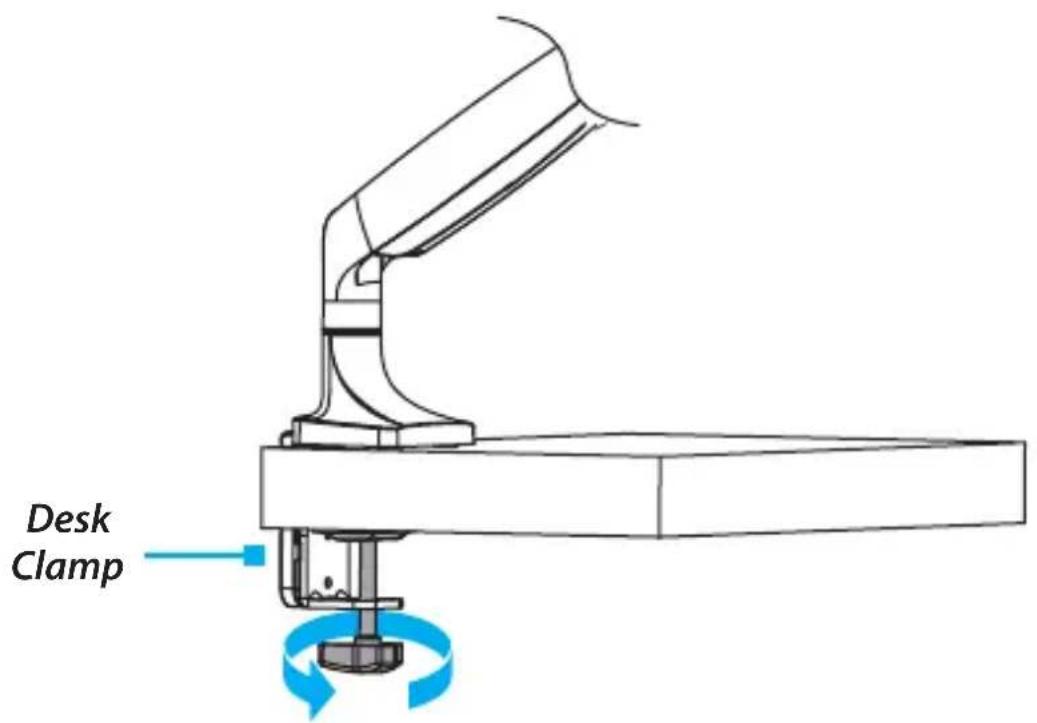

1. Turn the knob on the Desk Clamp counterclockwise until you reach the thickness of the mounting surface that the Arm Mount is attached to.

2. Slide the Desk Clamp over the edge of the mounting surface.

3. Turn the knob clockwise to tighten the Desk Clamp. (Figure 6)

Figure 6

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Use the Grommet Mount to Attach the Arm Mount

Warning! Make sure that the weight of the monitor doesn't exceed the weight capacity of this product. If you exceed the weight capacity, you might experience personal injury or damage to the product. This product can support the following weight: Up to 9 kg (19.8 lb.).

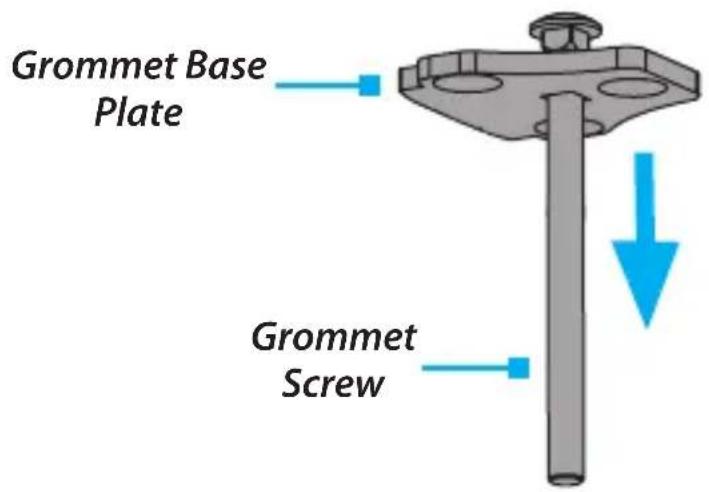

1. Insert the Grommet Screw (5) through the Grommet Base Plate (3). (Figure 7)

Figure 7

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

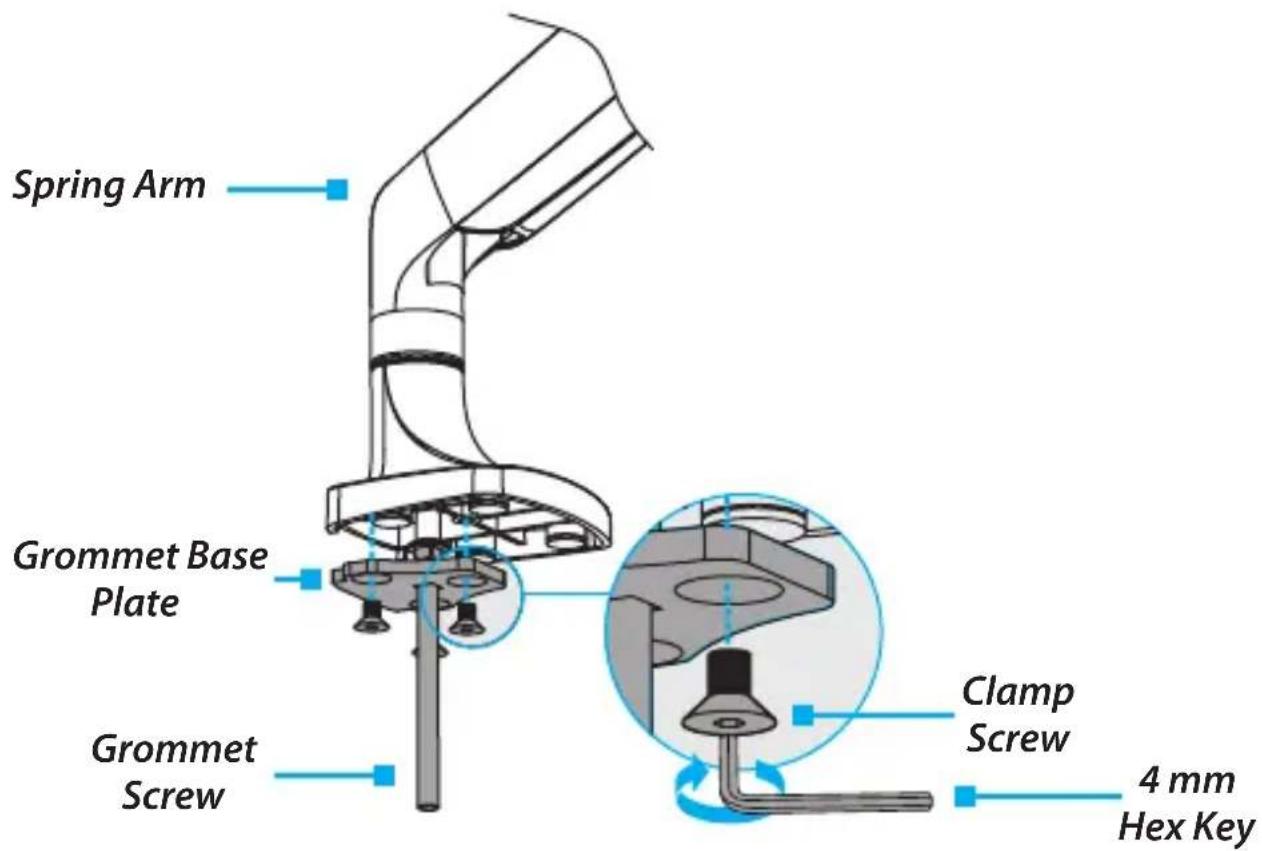

1. Line up the three holes on the top of the Grommet Base Plate with the holes on the bottom of the Spring Arm (1).

2. Insert three of the Clamp Screws (10) through the Grommet Base Plate and into the bottom of the Spring Arm.

3. Use the 4 mm Hex Key (12) to tighten the Clamp Screws. (Figure 8)

Figure 8

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

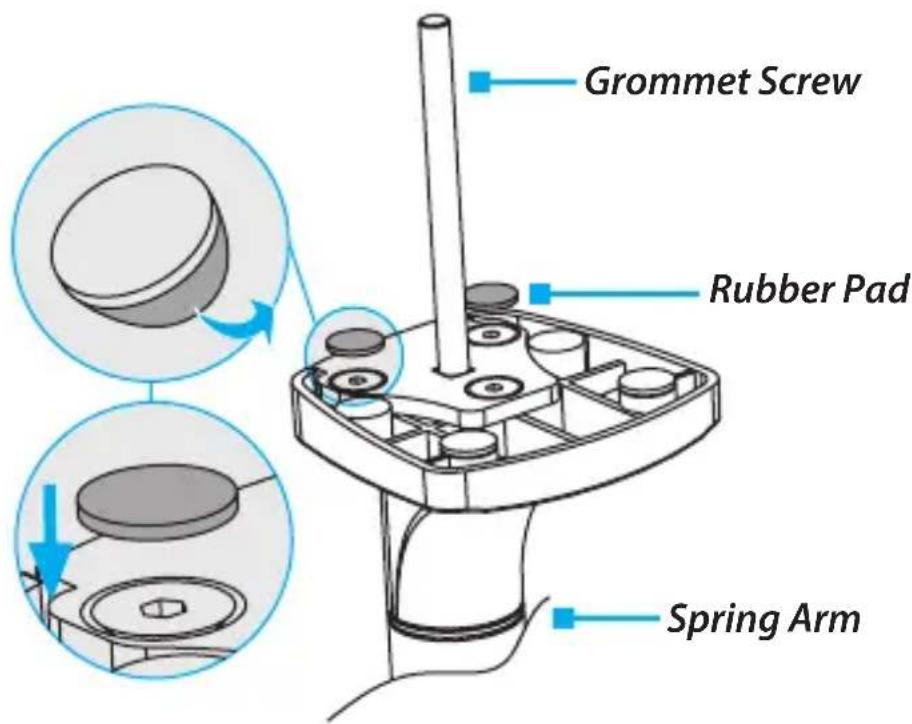

1. Remove the backing from the two Rubber Pads (7) and affix the Rubber Pads to the tops of two of the Clamp Screws on the underside of the Spring Arm. (Figure 9)

Figure 9

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

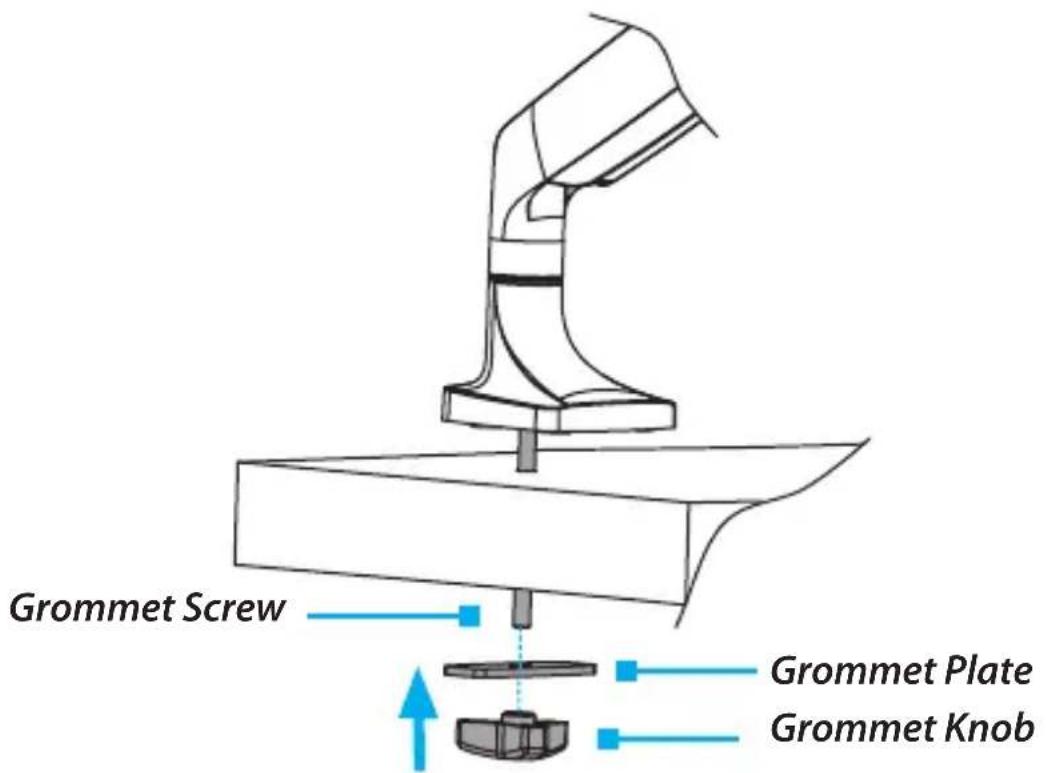

1. Place the assembled spring arm and grommet screw over the grommet hole in your mounting surface.
2. On the underside of the mounting surface, thread the Grommet Plate (6) through the Grommet Screw so that the Grommet Plate is flush against the mounting surface.
3. Screw the Grommet Knob (4) onto the Grommet Screw and turn the Grommet Knob clockwise to tighten it flush against the Grommet Plate. (Figure 10)

Figure 10

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Attach a Monitor

Warning! Attaching a monitor is a two-person job. Do not attempt to complete this task by yourself.

To accommodate different monitor designs, the Arm Mount comes with two sets of screws that are different lengths and diameters, and a set of spacers.

To select the appropriate screws for the type of monitor that you're using, complete the following:

• Determine whether the back of the monitor is flush or inset.
  • Determine the depth of the mounting holes on the monitor.

• Determine the diameter of the mounting holes on the monitor.

• Do one of the following:

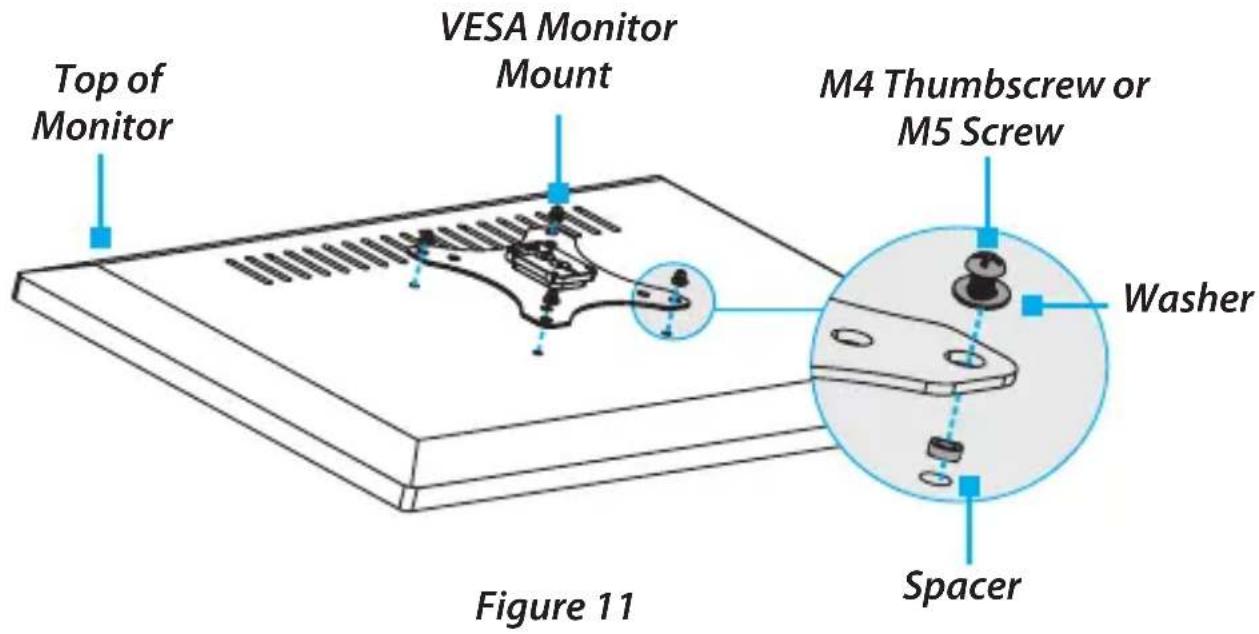

- If required, place the Spacers (18) over the mounting holes on the back of your monitor, and position the VESA Monitor Mount (2) over the spacers. Make sure that you position the VESA Monitor Mount so that the arrow on the back of the VESA Monitor Mount is pointed towards the top of the monitor.

- Position the VESA Monitor Mount (2) over the mounting holes on the back of your monitor. Make sure that you position the VESA Monitor Mount so that the arrow on the back of the VESA Monitor Mount is pointed towards the top of the monitor.

1. Position the four Washers (17) over the holes on the VESA Monitor Mount.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Insert the four M4x12 mm Thumbscrews (15) or the four M5x12 mm Screws (16) through the Washers, the VESA Monitor Mount, and into the back of the monitor. (figure 11)

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Use a Phillips screwdriver to tighten the screws.

Warning! Do not over-tighten the screws. If you encounter resistance while you're tightening the screws, stop tightening. Failure to do so could result in damage to the monitor.

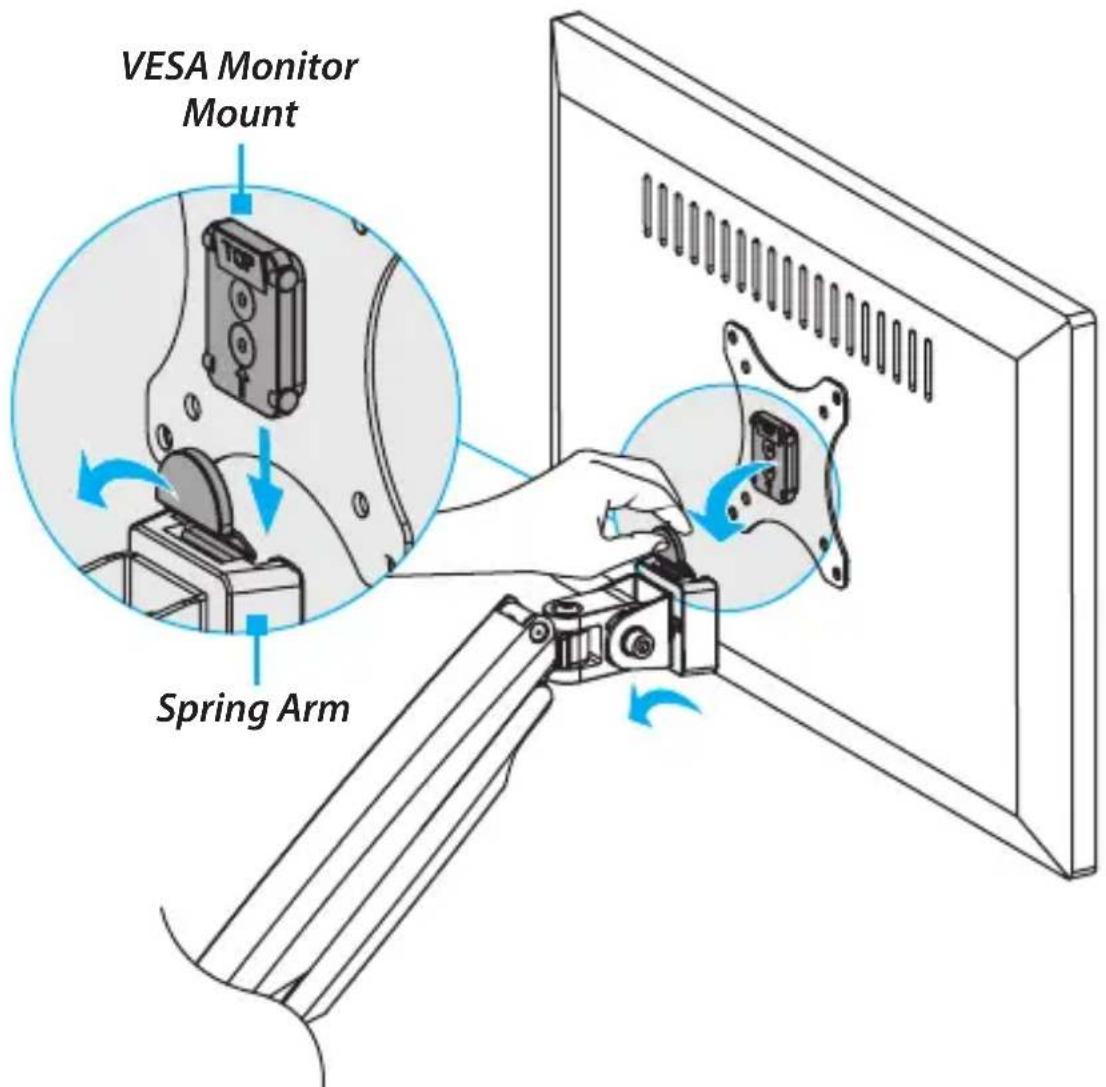

1. Pull the tab on the Spring Arm (1), and slide the VESA Monitor Mount and monitor into the mount on the Spring Arm. (Figure 12)

Figure 12

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Adjust the Spring Arm

You need to adjust the spring arm in two places.

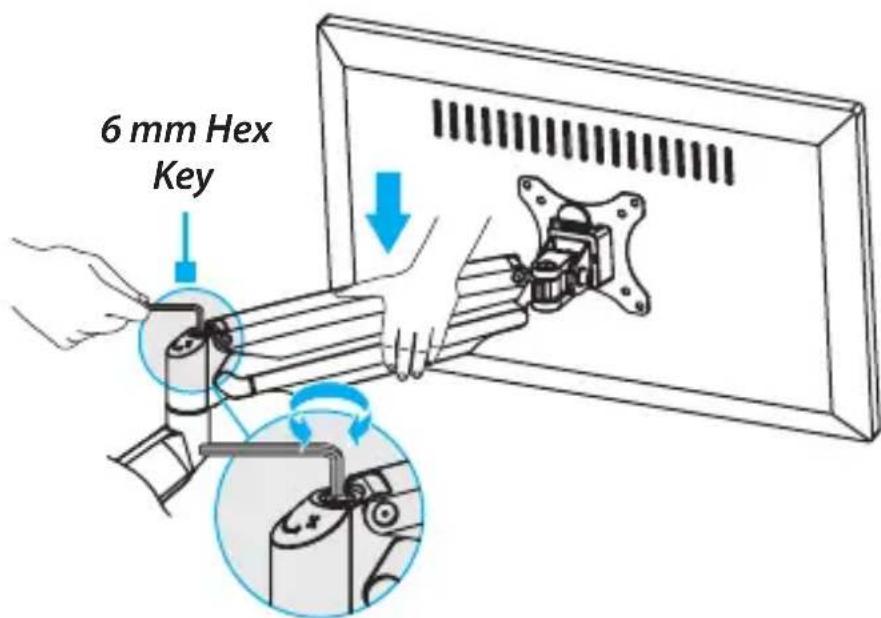

1. To increase or decrease the tension in the Spring Arm (1), hold down the Spring Arm so that it is straight, and use the 6 mm Hex Key (14) to turn the screw in the joint of the Spring Arm counterclockwise or clockwise. (Figure 13)

Figure 13

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

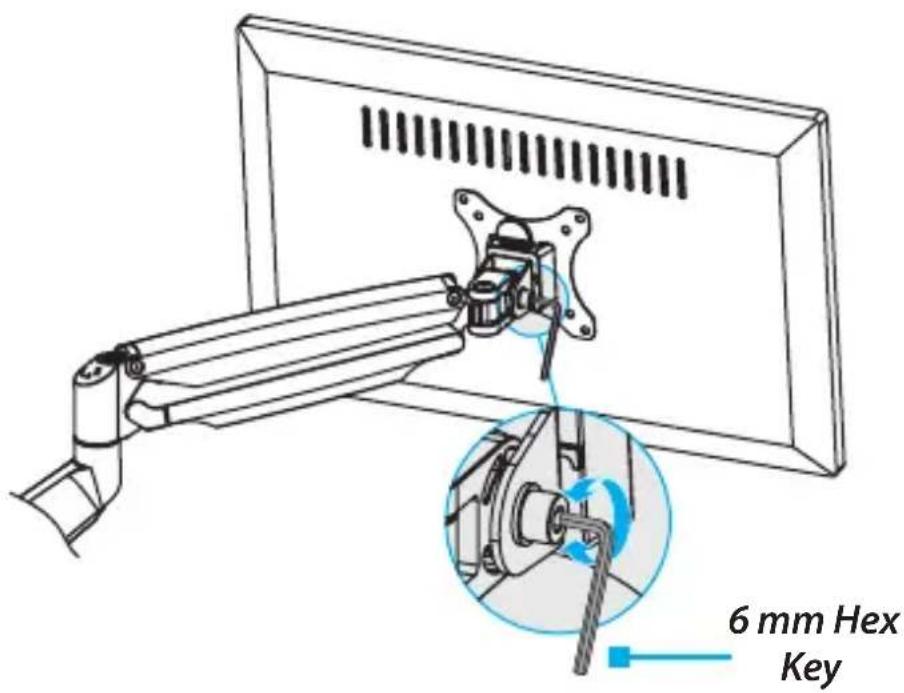

1. To change the angle that the monitor is tilted at, use the 6 mm Hex Key to turn the screw in the side of the mount counterclockwise. When the screw is loose, position the monitor at the angle that works best for you. Use the 6 mm Hex Key to turn the screw clockwise to tighten it. (Figure 14)

Figure 14

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

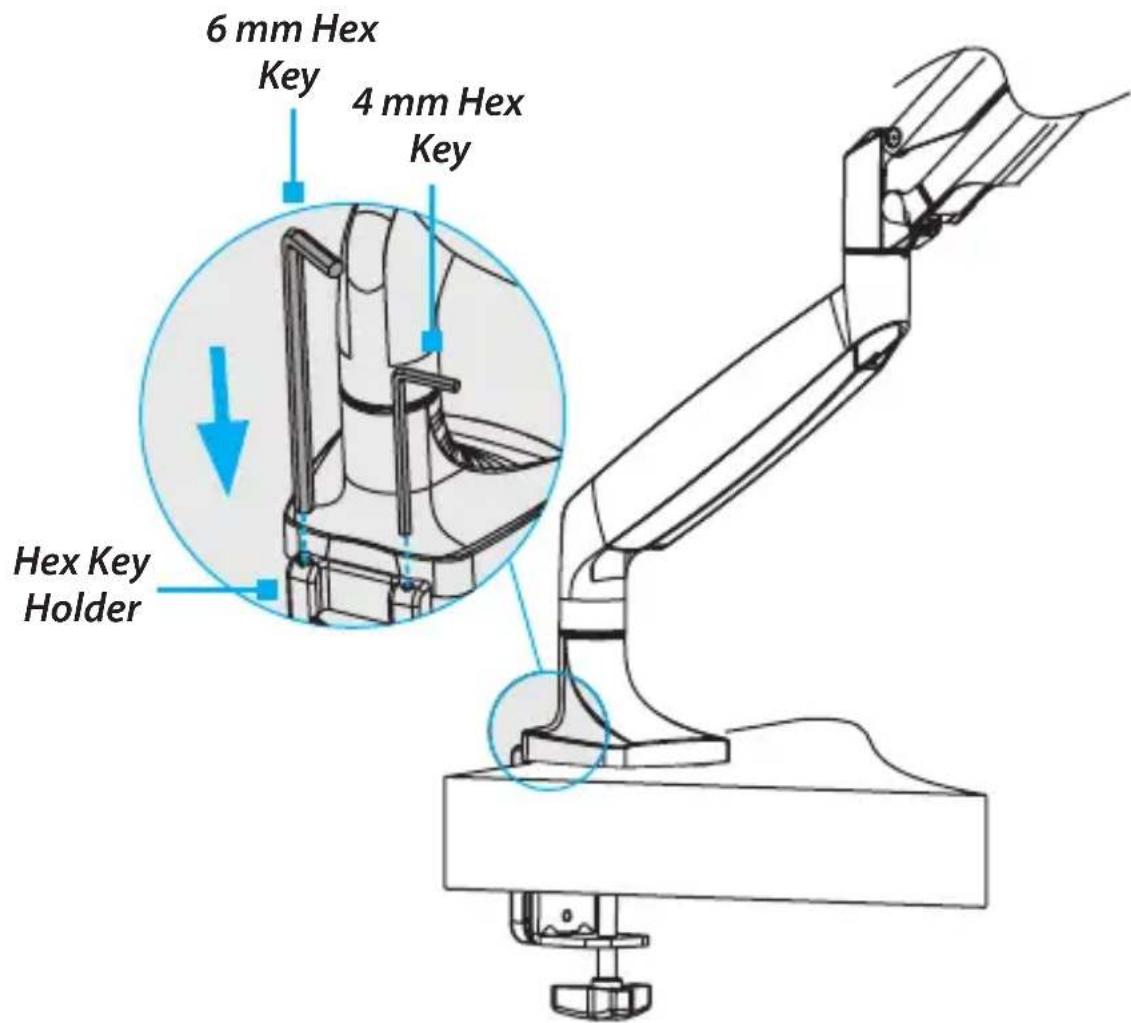

Tip! If you used the Desk Mount to mount the Arm Mount, when you're done adjusting the Arm Mount, you can store the hex keys in the Hex Key Holder (11) on the side of the L Bracket (9). (Figure 15)

Figure 15

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Routing the Cables

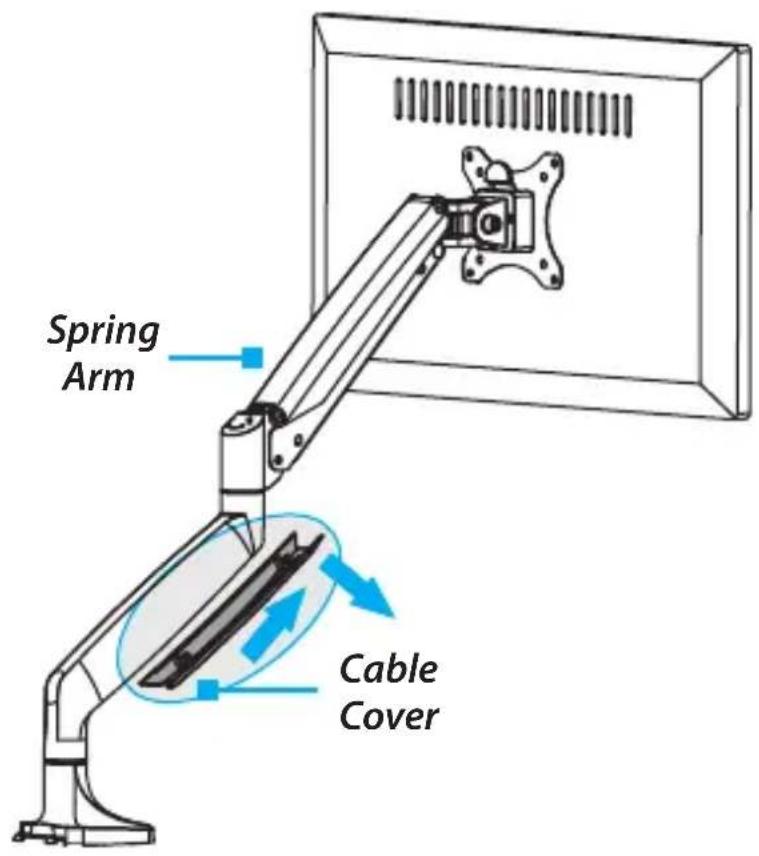

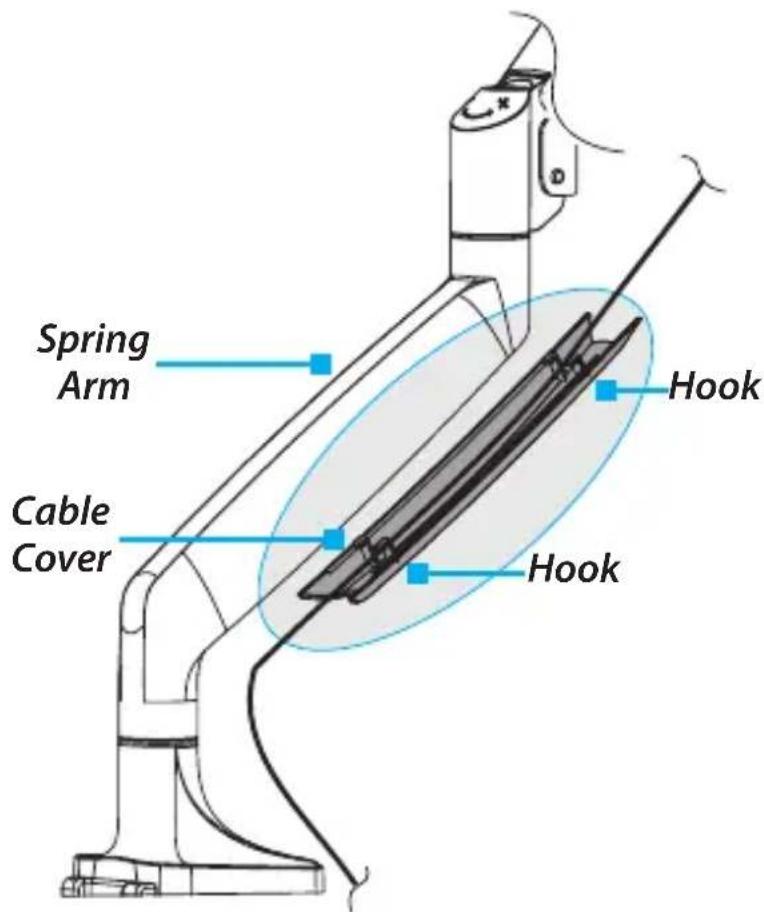

1. On the bottom portion of the Spring Arm (1), slide the Cable Cover up and away from the Spring Arm. (Figure 16)

Figure 16

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

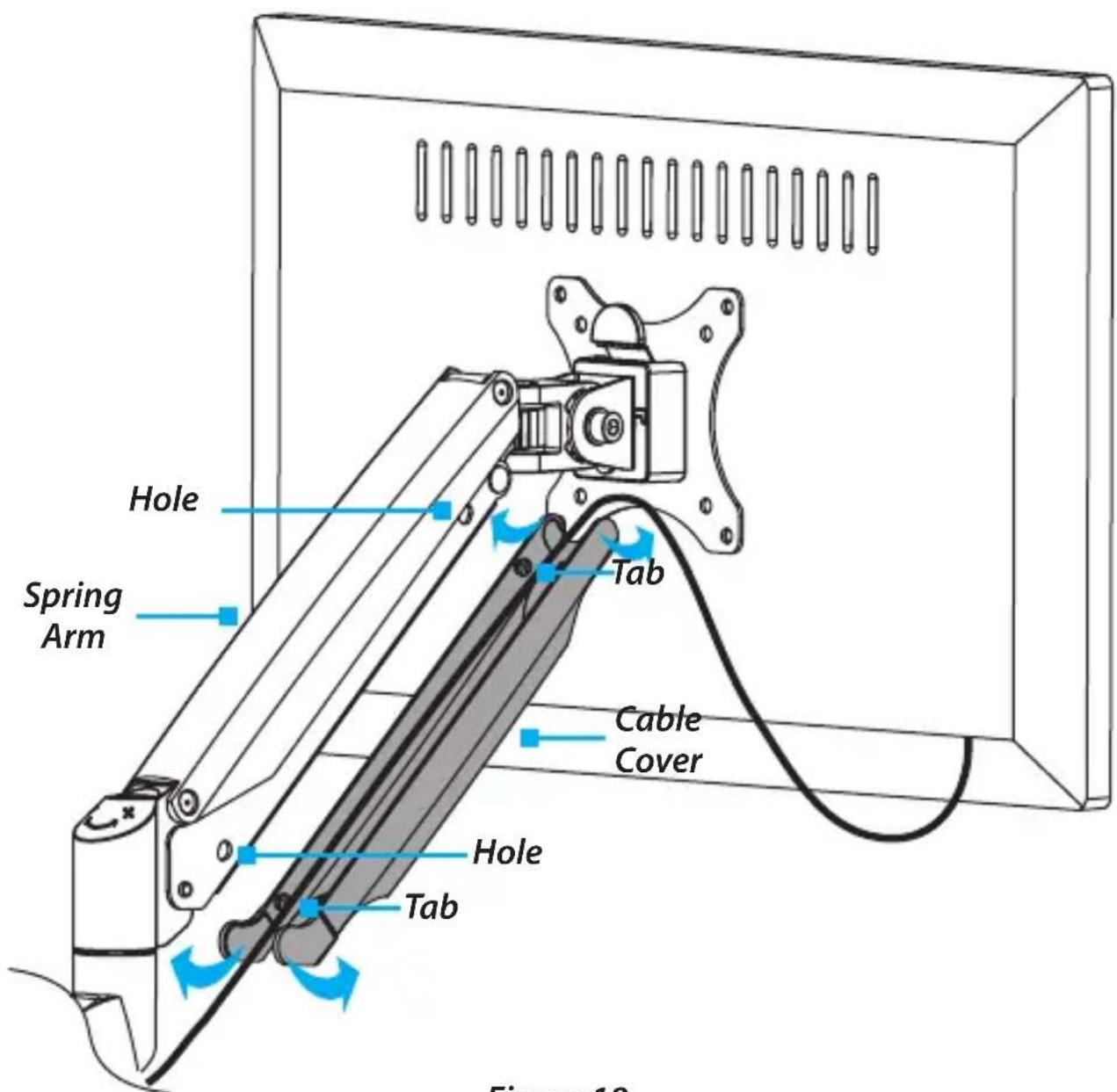

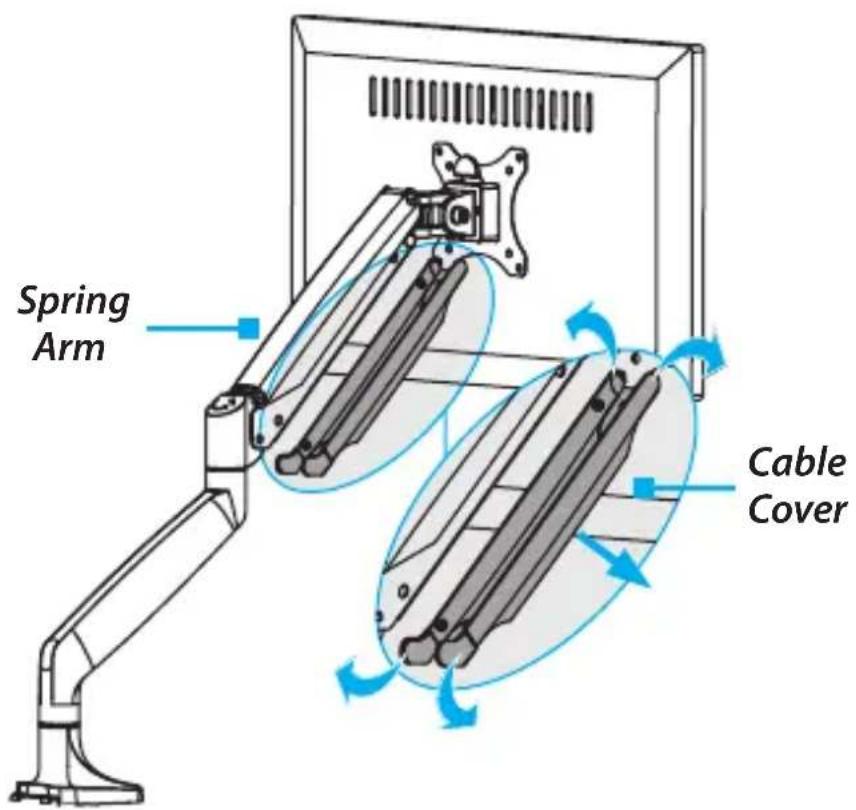

1. On the upper portion of the Spring Arm, pull the ends of the Cable Cover away from the Spring Arm, and remove the Cable Cover from the Spring Arm. (Figure 17)

Figure 17

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

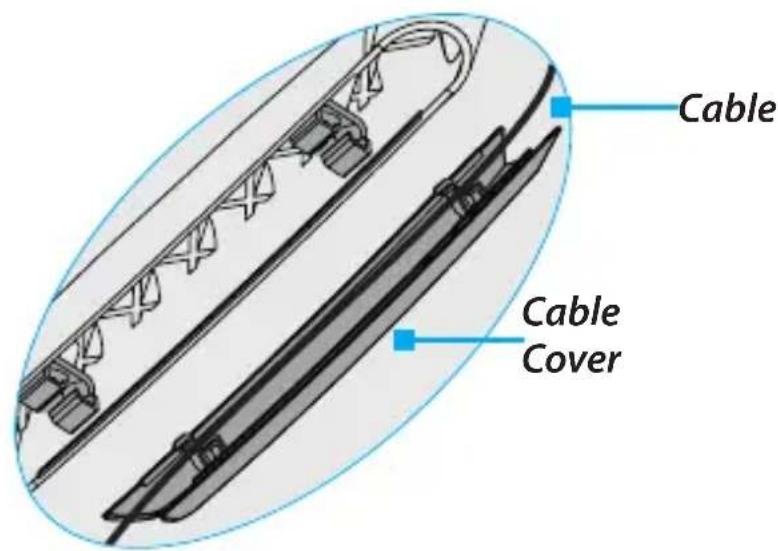

1. Run the cables along the inside of the Cable Cover that you removed from the upper portion of the Spring Arm.
2. To reattach the Cable Cover, pull out the ends of the Cable Cover and insert the Tabs on the inside of the Cable Cover into the holes on the Spring Arm. (Figure 18)

Figure 18

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Run the cables along the inside of the Cable Cover that you removed from the bottom portion of the Spring Arm. (Figure 19)

Figure 19

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Place the Cable Cover slightly higher than the cavity in the lower part of the Spring Arm, and slide the Cable Cover down so that the Hooks on the Cable Cover slide into the Clips in the Spring Arm. (Figure 20)

Figure 20

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Adjust the Position of the Arm Mount

You can adjust the Arm Mount in the following ways:

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical Support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a five-year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Hard-to-find made easy. At StarTech.com, that isn't a slogan. It's a promise.

StarTech.com is your one-stop source for every connectivity part you need.

From the latest technology to legacy products — and all the parts that bridge the old and new — we can help you find the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need to go. Just talk to one of our tech advisors or visit our website. You'll be connected to the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.

Reviews

Share your experiences using StarTech.com products, including product applications and setup, what you love about the products, and areas for improvement.

StarTech.com Ltd.

45 Artisans Cres.

London, Ontario

N5V 5E9

Canada

FR: fr.startech.com

DE: de.startech.com

StarTech.com LLP

2500 Creekside Pkwy.

Lockbourne, Ohio

43137

U.S.A.

ES: es.startech.com

NL: nl.startech.com

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Rd., Brackmills

Northampton

NN4 7BW

United Kingdom

IT: it.startech.com

JP: jp.startech.com
