USER MANUAL ARMWALLDS2 StarTech.com

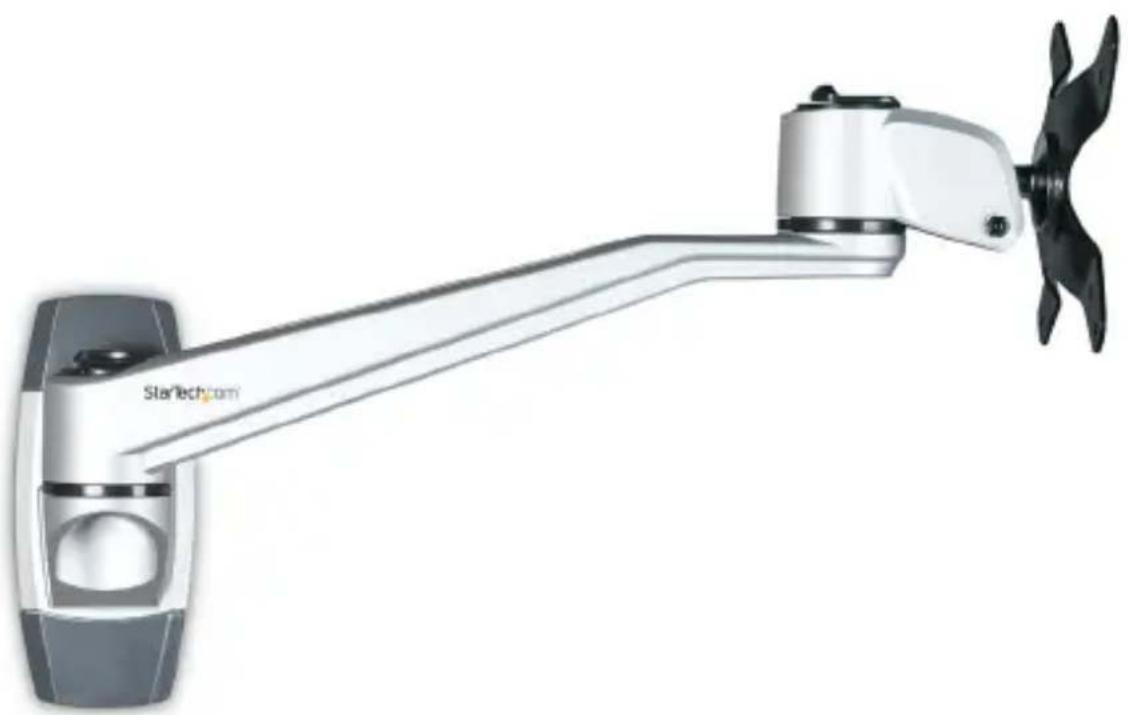

Monitor Wall Mount | Dual Swivel | Premium

Modern wall-mounted device with a propeller and fan assembly, no visible text or symbols on the main body.

Actual product may vary from photos

User Manual

SKU#: ARMWALLDS2

For the latest information and specifications visit

www.startech.com/ARMWALLDS2

Compliance Statements

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Warning Statements

• Make sure that you assemble this product according to the instructions.
• Do not exceed the weight capacity of this product. Overloading this product might result in injury or property damage. This product can support the following weight: 30.8 lb. (14 kg).
• This product is intended for indoor use only and should not be used outdoors.
• The mounting hardware included with this product might not be adequate for some wall structures. If you lack the necessary expertise to attach this product to the wall structure that you're using, contact a construction professional to install the wall mount or to provide specific mounting instructions for your wall structure.

Varningsmeddelanden

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Warnhinweise

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

- Cables (including power and charging cables) should be placed and routed to avoid creating electric, tripping or safety hazards.

Mesures de sécurité

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Table of Contents

Compliance Statements....1

Warning Statements....2

Safety Statements....5

Product Diagram....7

Product Dimensions/Rotation ....8

Product Information 9

Specifications....9

Package Contents 10

Requirements 12

Installation 12

Mounting the Wall Mount....12

Attaching the Swivel Arm 14

Removing the Swivel Arm....15

Attaching a Monitor....16

Attaching the Monitor Mount 16

Removing the Monitor Mount 18

Adjusting the Monitor Tilt 18

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Diagram

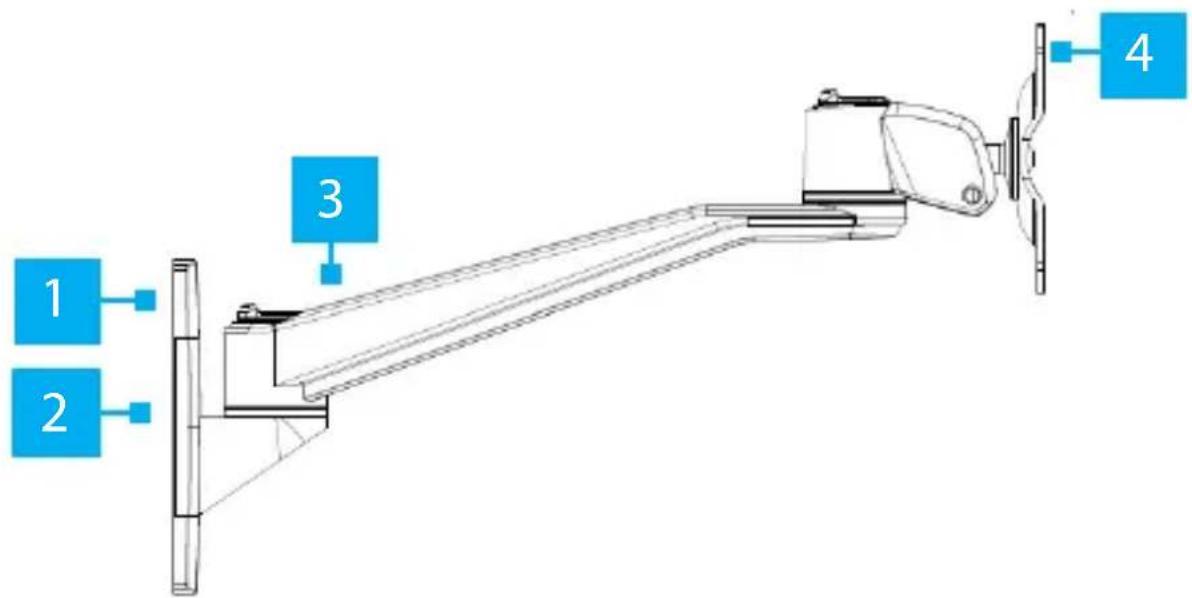

1 Decorative Cap Swivel Arm
2 Wall-Mount Bracket Monitor	Mount

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

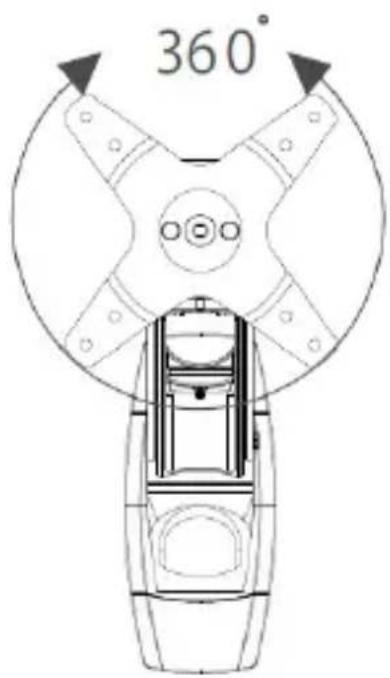

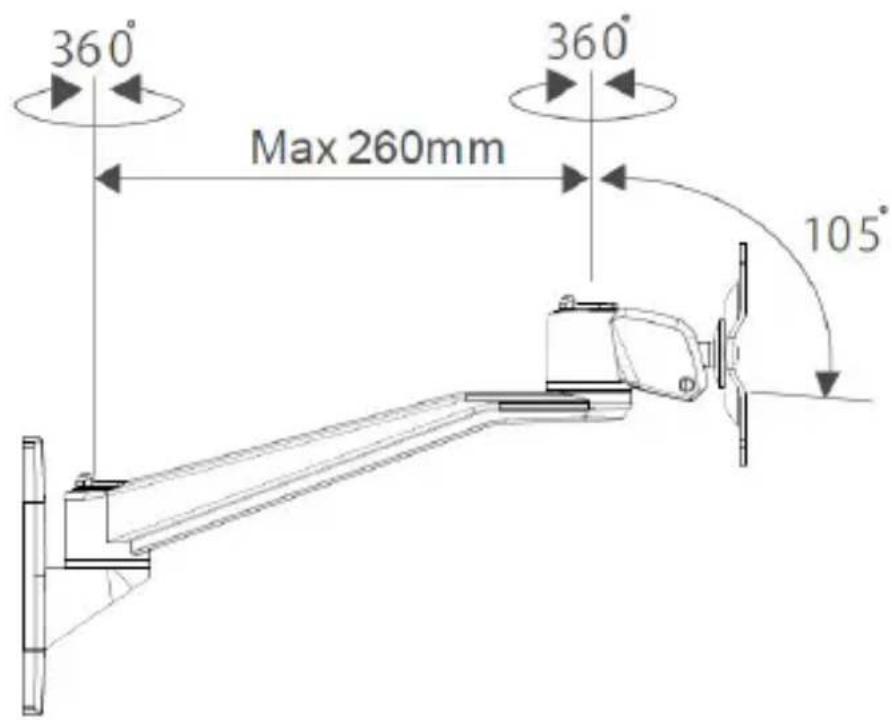

Product Dimensions/Rotation

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Information

Specifications

Type of Measurement Measurement
VESA Mounting Hole Pattern	75x75100x100
Tilt	+90° to -15°
Screen Size	Maximum 30 in. (762 mm)
Rotate	360°

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Swivel	+180° to -180°
Weight/Load Capacity	30.8 lb. (14 kg)

Package Contents

Wall-Mount Bracket Qty: One	Swivel Arm Qty: One

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Monitor MountQty: One	Hex KeyQty: One
Hand ScrewQty: Four	Mounting ScrewsQty: Two
Wall PlugsQty: Two

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Requirements

• Phillips Head Screwdriver x 1
- Writing Utensil x 1
- Level x 1

Installation

Mounting the Wall Mount

Notes: Product mounting should be completed by a certified professional as per the local safety and building code guidelines.

Wall structures vary, and it's important to make sure that the type of structure and mounting hardware that you're using will properly support the mounted equipment. Failure to do so may result in personal injury and/or equipment damage.

1. Before installing the Wall Mount onto the mounting surface, contact a professional contractor.
2. After consulting a professional, the Wall Mount can be mounted using the Mounting Hardware included.
   Note: The provided Mounting Hardware may not be suitable for use with all wall structures.
3. (Optional) While mounting, use Wall Screw Anchors if required.
4. Remove the Decorative Caps on the Wall-Mount Bracket by sliding them off of the ends, before mounting the Wall Mount.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

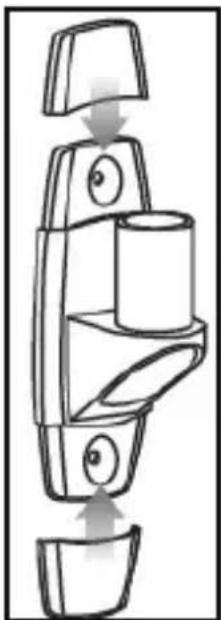

1. When the Wall-Mount Bracket has been mounted, slide the Decorative Caps over the top and bottom of the Wall-Mount Bracket. The Decorative Caps hide the screws used to secure the Wall-Mount Bracket to the mounting surface.

Diagram of a multi-tiered mechanical device with arrows indicating motion or assembly (no text or symbols)

Installing the Decorative Caps

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Attaching the Swivel Arm

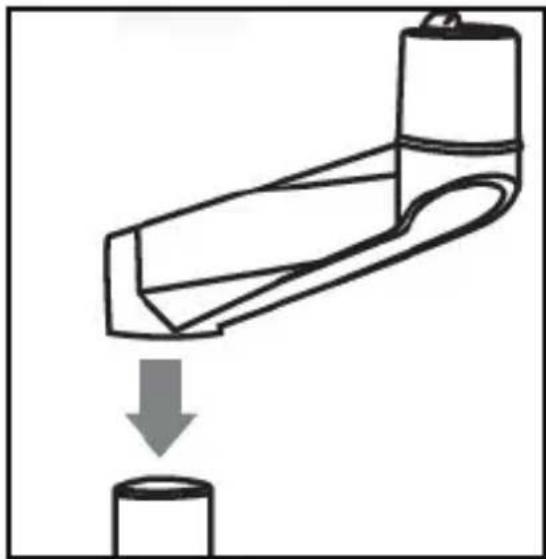

1. Align the Mounting Hole on the Swivel Arm with the Mounting Peg on the Wall-Mount Bracket.

2. Slide the Mounting Hole on the Swivel Arm over the Mounting Peg until it clicks in place.

Simple line drawing of a mechanical component with a downward arrow indicating motion or force (no text or symbols)

Attaching the Swivel Arm to the Mounting Peg

1. Using the Hex Key (included), tighten the Hex Screw on the side of the Swivel Arm, to increase the swivel effort or fix the arm in place.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Removing the Swivel Arm

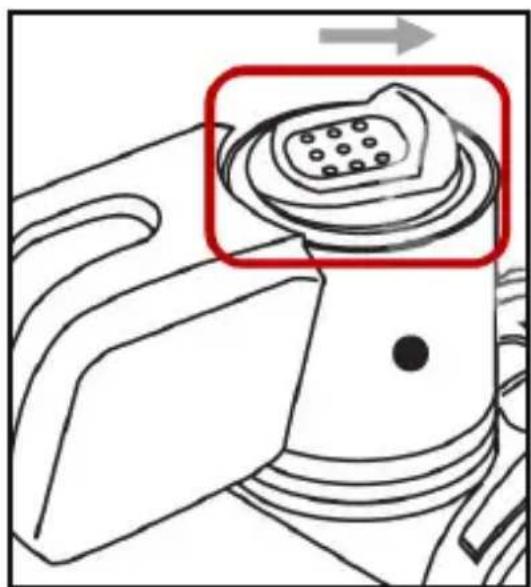

1. Slide the Thumb Clip away from the Swivel Arm, disengaging the locking mechanism.

Technical line drawing of a mechanical component with a highlighted section showing a grid-like structure (no text or symbols)

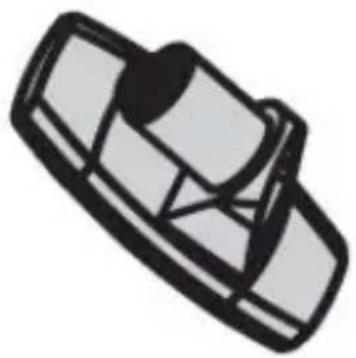

Thumb Clip

1. While holding the Thumb Clip and the weight of the Swivel Arm, lift the Swivel Arm up, sliding the Mounting Peg out of the Mount Hole.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Attaching a Monitor

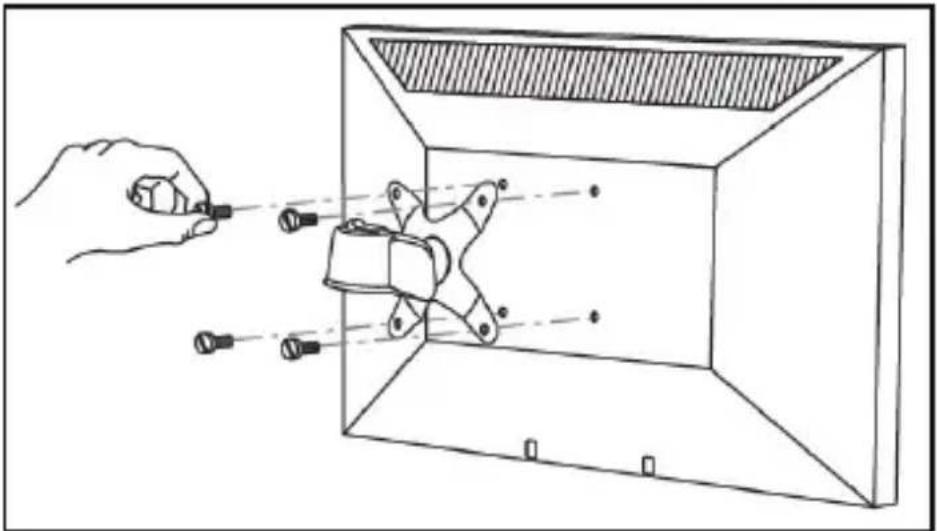

1. Align the Mounting Holes (x 4) on the Monitor Mount with the mounting holes on the back of the Monitor.
2. Insert the Hand Screws through the Monitor Mount and into the back of the Monitor.
3. Using your fingers, tighten the Hand Screws.

Warning! Do not over-tighten the screws. If you encounter resistance while you're tightening the screws, stop tightening. Failure to do so could result in damage to the monitor.

Diagram of a hand using a tool to adjust or install a mechanical component inside a 3D box (no text or symbols present)

Attaching a Monitor

Attaching the Monitor Mount

Notes: Attaching the Monitor Mount may require two people.

The Wall Mount supports up to a maximum of 30.8 lb. (14 kg).

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

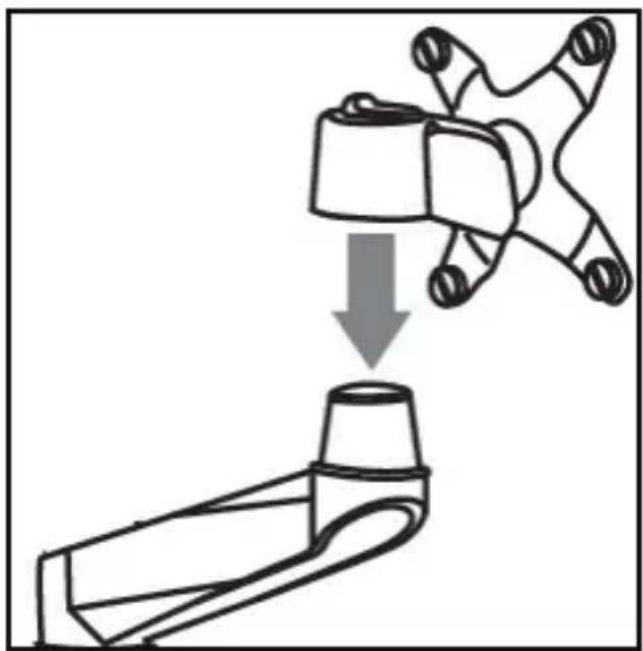

1. While supporting the weight of the Monitor, carefully align the Mounting Hole on the Monitor Mount with the Mounting Peg on the top Spring Arm.
2. Slide the Mounting Hole on the Monitor Mount over the Mounting Peg until it clicks into place.

Diagram showing a mechanical assembly with a component being lifted by an arrow, no text or symbols present

Attaching the Monitor Mount

1. Using the Hex Keys, adjust the swivel tension of the Monitor Mount by loosening or tightening the Hex Screws located on the Monitor Mount next to the Mounting Hole.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Removing the Monitor Mount

1. Slide the Thumb Clip towards the Swivel Arm, disengaging the locking mechanism.

Technical line drawing of a mechanical component with a highlighted section showing a grid-like structure (no text or symbols)

Thumb Clip

1. While holding the Thumb Clip and the weight of the Monitor Mount, lift the Monitor Mount up sliding the Mounting Peg out of the Mounting Hole.

Adjusting the Monitor Tilt

- While supporting the weight of the Monitor, use the Hex Key (included) to loosen or tighten the Hex Screw on the side of the Monitor Mount, until the tension can hold the weight of the Monitor but it is still adjustable.

Note: The screw cap located on the opposite side of the Hex Screw is not used for tilt adjustments.
